Large-Stokes-shifted yellow photoluminescence emission from an imide and polyimides forming multiple intramolecular hydrogen bonds

Abstract

A novel imide compound (DH-MC) and polyimides (DH-PIs) that form multiple intramolecular hydrogen bonds (H-bonds) were synthesised from 2,2′-dihydroxybenzophenone-3,3′,4,4′-tetracarboxylic dianhydride (DHBA) to investigate the effects of distinct H-bond structures on the photoluminescence properties of these compounds. The DHBA moiety, which contains two proton donors and three proton acceptors, can form three types of H-bond structures (MC-0, MC-1, and MC-2). DFT calculations have predicted that the most energetically stable conformation is MC-1, forming an asymmetric H-bond structure, which is consistent with the FT-IR spectroscopy and single-crystal XRD analysis results. A colourless toluene solution of DH-MC exhibited orange fluorescence with a large Stokes shift (ν = 11 905 cm⁻¹), and DH-MC and the DH-PIs exhibited yellow fluorescence with a large ν of >10 000 cm⁻¹ in the solid state, with both originating from excited-state intramolecular proton transfer (ESIPT). In addition, these compounds exhibit small-Stokes-shifted fluorescence from the anionic form of the DHBA moiety, resulting in yellow coloration of the DH-PI film and the DH-MC powder. To reduce coloration, a polyimide copolymer (CoPI) film was prepared using DHBA and 4,4′-oxydiphthalic anhydride (ODPA) in which the molar ratio of DHBA was set at 3%. Owing to the dilution effect and efficient energy transfer from the blue-fluorescent ODPA to the DHBA moiety in the excited state, the colourless and transparent CoPI film exhibited prominent yellow fluorescence with a quantum yield of 0.14. The wavelength-converting spectrum demonstrated that the CoPI film absorbs a wide range of UV radiation from a xenon light source and significantly enhances the yellowish light component via ESIPT emission. The CoPI film is a promising candidate for solar spectral conversion applications.

---

1. Introduction

Polyimide (PI) is a high-performance polymer with excellent mechanical properties and outstanding thermal and chemical stability.¹ In addition, PIs exhibit low dielectric constants, low thermal expansion and good flexibility, and PI films can be readily prepared. Therefore, PI films have been widely utilized for the production of microelectronics. Importantly, a variety of PIs derived from various dianhydrides and diamines have been reported and applied commercially. Thus, understanding the structure–property relationships of PIs is essential for their application.² Over the past decade, the fluorescence properties of PI films have been extensively studied.^3–7 Highly fluorescent PI films with excellent comprehensive performances are considered ideal wavelength-downshifting materials and are expected to be applied to luminescent solar concentrators, flat panel displays, crop cultivators, and photovoltaic devices.^8–12 Due to their excellent thermal and chemical stability, fluorescent PIs can satisfy long-term use requirements even under extreme conditions, such as at elevated temperatures of >300 °C.

Common aromatic PIs exhibit only weak photoluminescence. For example, Kapton, a commercialised PI synthesised from pyromellitic dianhydride (PMDA) and 4,4′-diaminodiphenyl ether (ODA), exhibits only weak fluorescence between 400 and 700 nm with a photoluminescence quantum efficiency (Φ) as low as 9.7 × 10⁻⁷.^13,14 Time-dependent density functional theory (TD-DFT) calculations have indicated that this fluorescence originates from a charge-transfer (CT) transition. In this CT transition, the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) are located in the diamine and dianhydride moieties, respectively.^3,15 Due to the small degree of overlap between the HOMO and LUMO, this CT transition gives rise to a low oscillator strength (f), which can explain the small Φ value of the Kapton film.

In addition to the CT transition, another transition occurring in PIs is the locally excited (LE) transition, which is observed in imide model compounds (MCs), which are small molecules that have the same structure as the repeating unit of a PI derived from cyclohexylamine.³ In such MCs, both the HOMO and LUMO are located in the dianhydride moieties with significant overlap, and the LE transition gives rise to a larger f value than the CT transition.³ However, conventional aromatic PIs predominantly show weak CT fluorescence due to the strong electron-donating and -accepting nature of the diamine and dianhydride moieties, respectively.

A series of highly fluorescent semi-aromatic PIs derived from aromatic dianhydrides and aliphatic diamines have been reported by our group.^3–7,16 Aliphatic diamines, which are weakly electron donating, effectively inhibit the CT transition and enhance the LE transition. For example, a PI prepared from 1,4-bis(3,4-dicarboxyphenoxy)benzene dianhydride (HQDEA) and 4,4′-diaminodicyclohexylmethane (DCHM) gave rise to a high Φ value of 0.11.³ It is worth mentioning that the PIs synthesized from HQDEA, 4,4′-oxydiphthalic anhydride (ODPA), 3,3′,4,4′-biphenyltetracarboxylic dianhydride (s-BPDA), and 4,4′-(4,4′-isopropylidenediphenoxy)diphthalic anhydride (BPADA) in combination with DCHM displayed prominent fluorescence from the lowest LE (π–π*) transition due to the highly conjugated dianhydride moieties. Meanwhile, PIs derived from pyromellitic dianhydride (PMDA), 2,3,3′,4′-biphenyltetracarboxylic dianhydride (a-BPDA), 4,4′-(hexafluoroisopropylidene)diphthalic anhydride (6FDA) and 3,3′,4,4′-benzophenone-tetracarboxylic dianhydride (BTDA) with DCHM showed almost no fluorescence because the lowest energy LE (n–π*) transitions are forbidden.

To achieve intense and large-Stokes-shifted fluorescence, MCs and PIs exhibiting fluorescence originating from the excited-state intramolecular proton transfer (ESIPT) process have been developed.^17–25 ESIPT is a photophysical process, whereby the molecule is excited in the enol form and fluorescence is emitted from the excited keto form.^26–30 Because of the distinct configurations undergoing the excitation and emission processes, ESIPT can induce large-Stokes-shifted fluorescence. The introduction of phenolic groups adjacent to an imide ring is a facile strategy for obtaining PIs with ESIPT emission.^17–19,31 For example, our group has reported that a PI derived from 1-hydroxypyromellitic dianhydride (PHDA, Chart 1) and DCHM exhibited large-Stokes-shifted orange photoluminescence via ESIPT. However, because of its planar structure, the PHDA moiety is highly likely to form aggregates. The aggregated form generates a competitive photophysical process via ESIPT. As a result, the Φ value of the PHDA/DCHM PI film is as low as 0.07.^18,25

Chart 1 Structures of dianhydrides (DHBA, PHDA), model compounds (DH-MC, BT-MC), and polyimides (DH-PI, BT-PI, and CoPI-0.03) derived from DHBA, ODPA, and BTDA dianhydrides and DCHM diamine.

In this study, 2,2′-dihydroxybenzophenone-3,3′,4,4′-tetracarboxylic dianhydride (DHBA) was adopted as a new ESIPT dianhydride, and the optical properties of the PIs (DH-PI and CoPI) and MC (DH-MC) derived from DHBA are investigated (Chart 1). Compared with PHDA, the structure of DHBA is more flexible owing to the rotatable –CO– linkage, which may effectively suppress aggregation of the dianhydride moieties. Moreover, the MC and PI have two proton donors (–OH) adjacent to acceptors (–C=O), enabling the formation of three different types of hydrogen (H)-bonded structures, which are expected to have distinct optical properties. For comparison, BT-PI and BT-MC (Chart 1) that do not emit ESIPT fluorescence were also prepared, and their optical properties were examined.

2. Materials and methods

2.1 Materials

The reagents and purification procedures are listed in the ESI.†

2.2 Synthesis

DHBA was synthesised as described in the literature with some modifications.³² The detailed synthetic procedure is illustrated in Scheme S1 in the ESI,† and the ¹H-NMR spectra of the synthesised monomers are shown in Fig. S1 in the ESI.† The synthesis schemes and procedures for the model compounds (DH-MC, and BT-MC) and polyimides (DH-PI, BT-PI, and CoPI) are shown in Schemes S2–S5 (ESI†). The ¹H and ¹³C NMR spectra of DH-MC are shown in Fig. S2 and S3 (ESI†). The synthesis and properties of BT-MC have been reported by Yamashita et al.³³ The structures of the PIs were confirmed via their FT-IR spectra as shown in Fig. S4 (ESI†). The symmetric and anti-symmetric C=O stretching vibrations in the imide ring (1778 and 1706 cm⁻¹, respectively), and C–N stretching (1359 cm⁻¹) at the imide–cyclohexane moiety are clearly observed, which can confirm the imide structure in the PIs. Due to the insolubility of the PIs in organic solvents, NMR spectra were not obtained for the PIs.

2.3 Measurements

2.3.1 Steady-state UV-vis absorption and excitation/emission spectroscopy. The UV-vis absorption and photoluminescence excitation/emission spectra were acquired using a V-760 spectrometer (JASCO, Japan) and an F-7100 fluorescence spectrometer (Hitachi Hi-Tech, Japan), respectively. All of the prepared PI films were analysed on fused silica substrates, and the MC solutions were analysed using a fused silica cell with a light path of 10 mm. The front-face method was adopted for the film samples to reduce self-reabsorption of the emitted luminescence, and the obtained spectra were corrected for the sensitivity of the photomultiplier tubes (Hamamatsu R928, Japan).

2.3.2 Photoluminescence quantum yield. Total photoluminescence quantum efficiencies (Φ_total) were measured using a calibrated absolute luminescence quantum yield measurement system (C9920-02, Hamamatsu Photonics, Japan). A multichannel analyser (C7473-36, Hamamatsu Photonics, Japan) was used as the detector in this analysis. The total quantum yield was calculated using the following equation:where A_abs is the area of absorption in the spectra and A_fl is the fluorescence area in the spectra. The Φ values were obtained from five measurements, and the average value was used. The measurement error was estimated to be within ±0.002.

2.3.3 Time-resolved luminescence measurements. The photoluminescence decay kinetics of the PI films were investigated using a fluorescence lifetime spectrometer (Quantaurus-Tau, Hamamatsu, Japan). The fluorescence decay components were recorded by applying light from a flashing light-emitting diode (LED) at wavelengths of 340, 375, and 470 nm. The fluorescence decay curves were recorded until the peak intensity reached a sufficient value (1000 counts). The emission decay was fitted using one to two exponential functions, and the final average lifetime was estimated using the following equation:where A_i is the pre-exponential factor of the lifetime τ_i.

2.3.4 Crystallography. A single crystal suitable for X-ray analysis was mounted on a fibre loop. Diffraction experiments were performed using a Rigaku Saturn CCD area detector with graphite-monochromated Mo-Kα radiation λ = 0.71073 Å). The intensity data (6° < 2θ < 55°) were corrected for Lorentz-polarization effects and absorption. Structure solution and refinements were performed using the CrystalStructure (2000–2018) software (Rigaku Corp., Tokyo Japan). The heavy-atom positions were determined employing a direct methods program (SIR92), and the remaining non-hydrogen atoms were located applying subsequent Fourier syntheses and refined using full-matrix least-squares techniques against F² in the SHELXL-2014/7 program.³⁴ The hydrogen atoms were placed at calculated positions and included in the refinements with a riding model. CCDC 2117075 contains the supplementary crystallographic data.

2.3.5 Other measurements. The ¹H and ¹³C NMR spectra were obtained using an AL-400 spectrometer (JEOL Ltd., Tokyo, Japan) operating at 400.0 and 100.0 MHz for the ¹H and ¹³C nuclei, respectively. Chemical shifts were calibrated using tetramethylsilane (TMS) as the standard (0 ppm). Thermogravimetric analysis (TGA) measurements were conducted using a TGA-50 analyser (Shimadzu Corp., Kyoto, Japan) at a heating rate of 5 °C min⁻¹ under a nitrogen flow. Fourier transform infrared (FT-IR) absorption spectra were obtained using an FT-IR 4200 spectrometer (JASCO, Japan). The powder samples were dispersed in KBr, while PI films on a silicon wafer were measured using an attenuated total reflection (ATR) attachment (incident angle: 45°). The refractive index of the germanium crystal prism (internal reflection element) was 4.0.

2.4 Quantum chemical calculations

Density functional theory (DFT) calculations were conducted using Gaussian-16 software (Rev.C.01),³⁵ as described in our previous studies.^36,37 Geometry optimisation was independently conducted applying the B3LYP and CAM-B3LYP functionals with a 6-311G(d) basis set for the ground S₀ and excited S₁ states, respectively. The 6-311++G(d,p) basis set was used to calculate the vertical excitation wavelength and oscillator strength (f) for each of the S₀ and S₁ geometries. Each calculated transition was replaced by a Gaussian broadening function with a width of 0.10 eV, producing the shapes of the calculated spectra. The solvent effects in the ground and excited states were incorporated based on the polarizable continuum model (PCM) implemented in the Gaussian software.

3. Results and discussion

3.1 Structure of H-bonds in DH-MC

The DH-MC molecule contains two phenolic groups as proton donors and three carbonyl groups as proton acceptors for H-bonding. Thus, DH-MC can form three types of conformers, MC-0, MC-1, and MC-2, which have distinct H-bond structures, as shown in Chart 2. The calculated total energy (E) values of these structures are listed in Table 1, where S₀ and S₁ denote the ground and excited states, respectively. Notably, the MC-2 conformer is energetically unstable in the S₀ state, and geometry optimisation in the excited keto state, in which ESIPT occurs toward the central C=O group, could not be achieved. By contrast, MC-1 showed the lowest E value among the enol forms, followed by MC-0, indicating that MC-1 is the most stable conformer in the ground state. Moreover, MC-1 also showed the lowest E value among the excited keto forms, indicating that MC-1 could be the most stable conformer in both the S₀ and S₁ states. As shown in Chart 2, intramolecular proton transfer occurs at the H-bond between the phenolic and imide C=O groups in the excited state of MC-1, that is, the keto form. The proton-transferred keto conformer with the H-bond between the central C=O and another phenolic group could not be optimised and suddenly relaxed to the enol form.

Chart 2 Three possible H-bonding structures of DH-MC. The enol (S₀) and keto (S₁) conformers are shown for MC-1.

Table 1 Calculated relative total energy (E) values of MC-0, MC-1, and MC-2 for the ground (S₀) enol state and the excited (S₁) keto state

State	E(MC-0) (kJ mol^−1)	E(MC-1) (kJ mol^−1)	E(MC-2) (kJ mol^−1)
a E(MC-1) in the ground enol state is set to 0 (kJ mol^−1). b Optimisation was not achieved.
Enol (S0)	0.54	0.0^a	7.96
Keto (S1)	312.12	312.05	—^b

---

The formation of H-bonds causes a shorter wavenumber shift in the stretching vibration of the carbonyl (>C=O) group.³⁸ For comparison, another MC that did not form intramolecular H-bonds was prepared using BTDA (BT-MC, Scheme S2, ESI†). Fig. 1 and Fig. S5 (ESI†) compare the FT-IR spectra of the DH-MC and BT-MC powders. For BT-MC, the symmetric and anti-symmetric stretching vibrations of the C=O in the imide ring (1771 and 1703 cm⁻¹, respectively), the symmetric stretching vibration of the central C=O group (1663 cm⁻¹), the aromatic C=C stretching in the dianhydride moieties (1460 cm⁻¹), and the C–N stretching in the main chain (1374 cm⁻¹) were clearly observed. In DH-MC, only the stretching vibration of the central C=O group has a short wavenumber shifted from 1663 to 1630 cm⁻¹ due to H-bond formation. In addition, the peak at 1685 cm⁻¹ is the short-wavenumber-shifted peak corresponding to the 1703 cm⁻¹ peak (anti-symmetric stretching of C=O in the imide ring), indicating the formation of H-bonds at the imide C=O. The formation of H-bonds at two different C=O groups was consistent with the MC-1 conformer. These experimental results agree well with the calculated FT-IR spectra of MC-1 (Fig. S6, ESI†).

Fig. 1 ATR FT-IR spectra of BT-MC and DH-MC powders.

The precise conformation of DH-MC in the crystalline state was analysed using single-crystal XRD (Fig. 2), although complete structural refinements were hampered by the unsatisfactory quality of the crystals. Note that DH-MC only has the H-bonded asymmetric conformation represented by MC-1, which agrees well with the calculation results and the FT-IR spectrum. The torsion angles of O7–C29–C20–C19 are 70.9° in the crystal and 61.6° in the optimised geometry of the calculations (Fig. S7, ESI†). The intramolecular H-bond length of O3–O7 (2.612 Å) was considerably shorter than that of O6–O4 (3.002 Å). The planar structure of the phenolic and central C=O groups is fixed by the short and strong H-bonds, and, interestingly, no double H-bonds are formed at the central C=O group.

Fig. 2 Crystal structure of DH-MC.

Moreover, note that an obvious asymmetric structure is detected in the ¹³C NMR spectrum of DH-MC dissolved in CDCl₃ (Fig. S3, ESI†). This can be attributed to a specific conformation in the solution induced by an asymmetric intramolecular hydrogen bond structure like MC-1. The ¹³C signals were assigned according to the calculated NMR spectra of MC-1 based on DFT.

Prior to evaluating the optical properties, the MC-1 electronic structures were examined. Table 2 lists the calculated values of the transition wavelengths, oscillator strengths (f), and dominantly contributing molecular orbitals (MOs) with assignments of one-electron transitions for the enol form of MC-1 in the optimised S₀ geometry and those for the keto forms in the optimised S₁ geometry. In addition, Fig. 3 and Fig. S8 (ESI†) illustrate the spatial distributions of the calculated MOs, where HOMO−m and LUMO+m denote the (m + 1)-th highest occupied MO and the (m + 1)-th lowest unoccupied MO, respectively. For the enol form of MC-1 in the ground state, the HOMO and HOMO−1 are located on the left-hand side of the dianhydride moiety, whereas the LUMO and LUMO+1 are uniformly distributed over the dianhydride moiety. Therefore, the HOMO → LUMO, HOMO → LUMO+1 and HOMO−1 → LUMO transitions are attributed to hybridised local and charge-transfer (HLCT) transitions.^16,39–41 In addition, HOMO−2, HOMO−3, and HOMO−4 are predominantly located at the amine moieties. Thus, the transitions from these MOs to LUMO, LUMO+1, and LUMO+2 are attributable to CT (π–π*) transitions. Because of the significant overlap of the MOs, the oscillator strengths of the S₀ → S₁ (379 nm) and S₀ → S₃ (350 nm) transitions are larger than 0.1, which coincides well with the major absorptions in the experimental spectra.

Table 2 Calculated electronic transitions of MC-1 (DH-MC) for the enol form in the optimized S₀ geometry (ground state) and those for the keto form in the optimized S₁ geometry (the first excited state)

State	Transition wavelength (nm)	Oscillator strength	Orbitals	Assignment of transition	Contribution
Enol S1	379.28	0.1095	HOMO–LUMO	HLCT (π–π*)	0.47
			HOMO–LUMO+1	HLCT (π–π*)	0.01
Enol-S2	370.77	0.0007	HOMO−2–LUMO	CT (π–π*)	0.24
			HOMO−2 – LUMO+1	CT (π–π*)	0.10
Enol-S3	350.10	0.1450	HOMO−1–LUMO	HLCT (π–π*)	0.31
Keto-S1	563.65	0.1924	HOMO–LUMO	LE (π–π*)	0.48
Keto-S2	523.16	0.0247	HOMO−1 – LUMO	CT (π–π*)	0.49
Keto-S3	494.28	0.0036	HOMO−2–LUMO	CT (π–π*)	0.26
			HOMO−4–LUMO	CT (π–π*)	0.20

---

Fig. 3 Calculated molecular orbitals of the MC-1 (DH-MC) enol (S₀) and keto (S₁) forms. HOMO−m and LUMO+m denote the (m + 1)-th highest occupied orbital and the (m + 1)-th lowest unoccupied orbital, respectively.

For the keto form of MC-1 in the excited state, the HOMO ← LUMO transition is attributable to the LE (π–π*) transition, and the HOMO and LUMO overlap spatially, in contrast to those of the enol form. Therefore, the oscillator strength of the S₀ ← S₁ transition increases considerably (f = 0.192), which indicates that MC-1 in the excited keto form is likely to exhibit strong emission. By contrast, TD-DFT calculations indicate that BT-MC exhibits almost no fluorescence because of the very low oscillator strengths for the S₀ → S₁ transition (370 nm, f = 0.0021) and the S₀ ← S₁ transition (443 nm, f = 0.0015) due to their LE (n–π*) nature (Fig. S9, Table S1, ESI†).

3.2 Optical properties of DH-MC

The steady-state UV-vis absorption and emission spectra of DH-MC in toluene solution (1 × 10⁻⁵ M) are displayed in Fig. 4. The three absorption peaks observed at 380, 370, and 340 nm are attributed to the CT (π–π*) transitions (MC-1, Table 2) of the S₀ → S₁, S₀ → S₂, and S₀ → S₃ states, respectively. Furthermore, prominent orange fluorescence was observed at 595 nm when DH-MC was excited at 350 nm, which was attributed to the large-Stokes-shifted (11 905 cm⁻¹) fluorescence originating from ESIPT. Note that the Φ value of this ESIPT fluorescence was as low as 0.01 in solution. One possible reason is that the vigorous rotational motion of DH-MC in solution enhances non-radiative deactivation.

Fig. 4 Steady-state UV-vis absorption and fluorescence spectra of DH-MC dissolved in toluene (λ_ex = 350 nm; 10⁻⁵ M,) and toluene/DBU (λ_ex = 460 nm; [DH-MC], 10⁻⁵ M; [DBU], 10⁻² M). Insets are photos of DH-MC solutions under sunlight and UV light (375 nm).

It has been reported that ESIPT molecules are sensitive to environmental acidity/basicity due to the presence of proton donors, such as –OH or –NH. Fig. 4 and Fig. S10 (ESI†) show the changes in the steady-state UV-vis absorption and emission spectra of DH-MC dissolved in toluene (1 × 10⁻⁵ M) before and after the addition of 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU; 1 × 10⁻² M), an organic base. Owing to deprotonation by DBU, anionic or dianionic species can be generated. Thus, new absorption and corresponding fluorescence emission peaks were observed at 460 and 530 nm, respectively. The DH-MC solution was colourless and exhibited orange fluorescence under neutral conditions, whereas the solution became yellow and exhibited green fluorescence under basic conditions, resulting from the anion/dianion of DH-MC. The excitation and emission spectra of DH-MC dissolved in toluene (λ_em = 525, 595 nm) are shown in Fig. S11 (ESI†). When the fluorescence is monitored at 525 nm, a small distinct peak is observed at 460 nm in the excitation spectrum. Since this peak position (460 nm) is the same as that of the absorption peak under basic conditions (Fig. 4), a small amount of anionic species generated by spontaneous deprotonation exists even in the neutral state.

Our group has reported that an ESIPT-MC having two phenolic groups at the pyromellitic dianhydride moiety appeared red or blue depending on the DBU concentration (10⁻³ M and 1 M) due to the successive formation of anions and dianions, respectively.¹⁷ Because DH-MC may also generate both anionic and dianionic species, a series of DH-MC/toluene solutions ([DH-MC] = 1 × 10⁻⁵ M) were prepared at DBU concentrations ranging from 0 to 1 M. However, as shown in Fig. S10 (ESI†), an increase in DBU concentration from 10⁻⁵ M to 10⁻¹ M did not significantly affect the UV-vis absorption and emission spectra. This finding may indicate that both the anion and dianion of DH-MC show similar optical properties because the two phenolic groups are attached to different benzene rings, whereas the two phenolic groups are attached to the same benzene ring in our previously reported ESIPT-MC.¹⁷ The Stokes-shift of the anionic form is smaller (6830 cm⁻¹) than that of the ESIPT emission.

Fig. 5 displays the steady-state excitation/emission spectra of DH-MC in the powder solid state. Although the sample was excited at 340 nm, close to the solution, the emission peak was observed at 540 nm, which is much shorter than the emission in the solution state (595 nm). This is due to the vigorous molecular motion in the solution state, wherein the averaged conformation probably resembles that optimised by the TD-DFT calculations. Thus, the emission wavelength in the solution was similar to the calculated result. However, in the solid-state, the conformation of DH-MC is fixed and differs from that in the solution. Furthermore, another fluorescence peak with λ_ex = 450 nm and λ_em = 540 nm was observed for the DH-MC powder, which originates from the anionic form of DH-MC, and its emission peak overlapped with the prominent keto emission. Since imide compounds contain plural proton-accepting groups such as >C=O and =N–, spontaneous deprotonation of the phenolic –OH occurs in the solid state. By contrast, BT-MC dissolved in toluene presented neither prominent absorption over 350 nm (Fig. S12, ESI†) nor fluorescence, which is consistent with the TD-DFT calculation results for BT-MC.

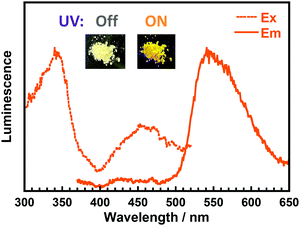

Fig. 5 Steady-state excitation/emission spectra of DH-MC powder (λ_ex = 340 nm, λ_em = 540 nm). Insets are photos of DH-MC powder under sunlight and under UV light (375 nm).

3.3 Optical properties of DH-PI and CoPI

The DH-PI film demonstrates similar optical properties to those of the DH-MC powder. As shown in Fig. 6a, the DH-PI film exhibited two major absorption peaks at 340 and 470 nm. The former is attributable to the HLCT (π–π*) transition of the enol form, and the latter is attributable to the anionic form of the DHBA moiety. As shown in Fig. 6b, two adjacent fluorescence peaks were observed for the DH-PI film. The emission peak observed at 550 nm when the film was excited at 340 nm exhibited a large Stokes shift (v = 11 230 cm⁻¹), which originates from the ESIPT process. Another fluorescence peak at 540 nm when excited at 470 nm with a small Stokes shift (v = 2758 cm⁻¹) originates from the anionic form of the DHBA moieties, and these peaks are comparable to those of the DHBA anions in toluene. As a result, the DH-PI film shows a yellowish colour and yellow fluorescence. As mentioned above, the yellowish colour of the DH-PI film is caused by the anionic form of DHBA, which is unfavourable for wavelength-converting applications. Moreover, the DH-PI film shows a relatively low Φ value of 0.04 due to the aggregation of the DHBA moieties. Comparably, a PI derived from BTDA (BT-PI) showed a very weak emission at ∼490 nm when excited at 440 nm (Fig. S13, ESI†). As this emission is not observed in the BT-MC solution, and the BT-PI film shows a relatively intense phosphorescence at ∼500 nm at lower temperatures (Fig. S14, ESI†) similar to that of the benzophenone crystal,⁴² this emission is attributable to room-temperature phosphorescence.

Fig. 6 Steady-state (a) UV-vis absorption and (b) emission spectra of the DH-PI film. Insets are photos of the DH-PI film under sunlight and under UV light (375 nm).

Although the DH-PI film exhibits large-Stokes-shifted yellow fluorescence (v = 10 893 cm⁻¹), it has an intense yellow appearance that originates from the anionic form generated by spontaneous deprotonation. Doping a small amount of sulfuric acid (H₂SO₄) in the poly(amic acid) solution effectively suppresses the characteristic absorption of the anionic form,²⁵ but the addition of 2 equiv. of H₂SO₄ caused microphase separation, generating a haze due to light scattering (Fig. S15, ESI†). Another effective method for improving the colourlessness and transparency is copolymerization with a colourless PI.^25,43 4,4′-Oxydiphthalic anhydride (ODPA) was chosen as the major component of the dianhydrides for preparing a copolyimide (CoPI) owing to the excellent colourlessness and intense blue fluorescence of ODPA/DCHM PI, which is attributable to the LE (π ← π*) transition of the ODPA moiety.³ The molar ratio of DHBA units in this CoPI was set to 0.03 (CoPI-0.03), while that of the ODPA units was 0.97. As shown in Fig. 7, the CoPI-0.03 film shows good colourlessness with a weak absorption peak at 470 nm originating from the anionic form of the DHBA moiety. Furthermore, this film exhibited weak blue fluorescence at 400 nm and intense yellow fluorescence at 542 nm when excited at 340 nm. The former originates from the LE (π ← π*) transition of the OPDA moiety, while the latter is assigned to the ESIPT fluorescence of the DHBA moiety. Although the molar fraction of DHBA was considerably lower than that of ODPA, prominent ESIPT fluorescence was observed, indicating that efficient energy transfer occurred from ODPA to DHBA in the PI chain.

Fig. 7 Steady-state (a) UV-vis absorption and (b) emission (λ_ex = 340 nm) spectra of the CoPI-0.03 film. Insets are photos of the CoPI-0.03 film under sunlight and under UV light (375 nm).

The energy-transfer efficiency (E_FRET) can be estimated from the variation in the fluorescence lifetime τ of the energy donor (ODPA moiety),^43,44 as follows:

where τ_DA and τ_D are the fluorescence lifetimes of the ODPA moiety in the CoPI and ODPA/DCHM PI measured at 405 nm, respectively. As shown in Table S2 (ESI†), the measured τ_DA and τ_D values of 7.66 and 3.17 ns, respectively, readily indicate that the E_FRET value in CoPI was as high as 0.77. Comparing with the Φ value of the DH-PI film (0.04), that of CoPI was significantly higher (Φ = 0.14) owing to the suppression of aggregation of the DHBA moieties.³¹ The newly prepared CoPI film, demonstrating good optical transparency and a high Φ value, is well suited for wavelength-conversion applications.

For practical applications that entail solar spectral conversion, sunlight (AM1.5) includes radiation with a wide range of wavelengths, from UV (∼300 nm) to near-infrared (∼1200 nm). Therefore, we generated a wavelength-converting spectrum (WCS), which plots the difference between the spectra obtained with and without the CoPI-0.03 film formed on fused silica substrates using a xenon light source, as we have previously reported.²⁵Fig. 8 displays the WCS of CoPI-0.03, wherein the strong UV absorptions at 340 and 380 nm correspond to the absorptions of the ODPA and PHDA units, respectively. Note that the broad positive band observed at ∼540 nm agrees well with the ESIPT yellow fluorescence emitted from the DHBA unit. Accordingly, this CoPI film can function as an efficient solar spectral converter, which absorbs sunlight UV radiation and enhances the yellow light over a wide wavelength range without absorbing visible radiation.

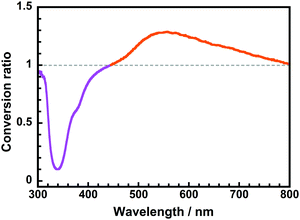

Fig. 8 Wavelength-converting spectrum of the CoPI-0.03 film.

4. Conclusions

2,2′-Dihydroxybenzophenone-3,3′,4,4′-tetracarboxylic dianhydride (DHBA) was synthesised, and the structures and optical properties of novel polyimide (DH-PI), copolyimide (CoPI-0.03), and a model compound (DH-MC) derived from DHBA were investigated. DH-MC can form three types of conformers (MC-0, MC-1, and MC-2) with distinct H-bond structures. DFT calculations show that MC-1 is the most stable conformer, and the results of FT-IR spectroscopy and single-crystal XRD analysis are consistent with the calculated results. In the solid-state, DH-MC and DH-PI showed large-Stokes-shifted (v > 10 000 cm⁻¹) fluorescence via the excited-state intramolecular proton transfer (ESIPT) process. The ESIPT process absorbs UV light at 340 nm and emits yellow light at 550 nm. Another fluorescence peak was observed at 540 nm using an excitation wavelength of 470 nm, originating from the anionic form of the DHBA moiety. Due to spontaneous deprotonation, DH-MC and DH-PI show yellow coloration in the solid state. The relatively low fluorescence quantum yield of the DH-PI film (Φ = 0.04) is attributable to the aggregation of the DHBA moieties.

To achieve highly fluorescent colourless PI films with high quantum yields, copolyimide (CoPI) was synthesised using DHBA and ODPA dianhydrides, whereby the molar ratio of DHBA was set to 0.03. Owing to efficient energy transfer (E_FRET > 0.7) from the ODPA to the DHBA moieties, the CoPI-0.03 film exhibited prominent yellow ESIPT fluorescence from the DHBA moiety when excited at 340 nm. In addition, this CoPI film displays good colourlessness and a sufficiently high quantum yield (Φ = 0.14) owing to the suppression of DHBA aggregation, which enables the conversion of UV radiation from sunlight to yellow visible light, as evidenced in the wavelength-converting spectrum.
