Keggin based self-assembled mesoporous materials for the capture of selective guest molecules

Abstract

A series of self-assembled mesoporous materials, compounds 1–9, of the type [RPPh₃]_n[XM₁₂O₄₀] (R = Ph, Me, Et; n = 3 or 4; X = P, Si; M = Mo, W) composed of Keggin anions and phosphonium cations have been fabricated and characterized. These thermally stable hybrid materials show selective reversible uptake of non-polar molecules such as iodine and carbon disulfide under ambient conditions. The resultant porosity is attributed to the self-assembling of the cations on the surface of the Keggin anion such that the pores are lined with the phosphonium cations rendering them hydrophobhic. The present work explores the spontaneous self-assembly process of POM integrated mesoporous compounds stabilized via non-covalent interactions and their potential applications as adsorbing materials.

---

Introduction

Efforts to achieve/promote spatial organization via self-assembly of small building blocks have been made constantly.¹ Among the huge plethora of building units available, construction of ordered nanomaterials integrated with polyoxometalates (POMs) as molecular building blocks are particularly sought after primarily due to the resultant properties and applications. The construction of the nanostructured assemblies, obtained by the functionalization of POM clusters with organic units in an ion exchange reaction, is an ingenious technique for the formulation of new functional materials.^2–6 This strategy provides for the combination of the properties of both the POMs and the organic units in a synergistic manner. In such systems, the anionic POM and the organic moieties which act as the cations are held together by non-covalent interactions.^7–10 Among the prevalent non-covalent interactions of the type van der Waals forces, hydrogen bonding and π–π stacking, complexes stabilized by electrostatic interactions are particularly desirable.^11–13 Even though, nano-sized POMs have been exploited extensively for their catalytic and adsorption properties, their low solubility in organic solvents and high crystalline energy hamper their applications in many fields.^14,15 The organic–inorganic hybrid POM materials, hence, are highly lucrative as they are more accessible by the organic as well as the biological media which further their application spectrum to capturing bulky molecules, drug delivery and as heterogeneous catalysts. Self-assembly is one of the routes through which the materials aspects of POMs can be honed. The simple process of self-assembly can result in the formation of smart responsive systems,^16–19 liquid crystals,^20–25 micellar and micro-emulsion systems,^26–31 hollow spheres/vesicles^5,32–35 and porous materials.^36–39 Designing porous materials out of POMs is extremely attractive. POM-based porous materials can be generated by the combination of POMs with different metal–organic frameworks (MOFs), coordination polymers (CPs), organic amines and surfactants as well as by immobilization on porous silica and carbon substrates.⁴⁶ POMs which display uniform particle size, specific surface charges and well-defined topologies exhibit augmented surface areas when designed into hybrid porous materials. Amalgamation of the inherent characteristics of POMs with their newly acquired properties enables the usage of porous POM-hybrid materials in a multitude of applications such as gas adsorption, hydrogen storage, catalysis, super-capacitors and hydrogen evolution.^40–52

Much attention has been devoted to porous materials because of the possible interactions between their pore walls and incoming atoms, ions or molecules. Their versatility is further enhanced by the ability to control their pore sizes during synthesis which in turn facilitates the uptake of several gaseous, liquid and solid guests. Additionally, they have been understood to be substances of scientific and technological importance.^53,54 The synthetic routes to porous materials^55–61 primarily involve the templating strategies apart from the many other techniques which require extensive work-up and can be tedious. In such a scenario, porous hybrid materials generated during a facile, spontaneous self-assembly process in the absence of any external template, is highly remarkable. Depending on their pore shape and size, and counter cations, these porous materials can be utilized for selective trapping of molecules as well as catalysts (both homogeneous and heterogeneous) to drive certain dormant reactions in aqueous, organic as well as biphasic media. As such, there are many reports related to the synthesis of POM-based porous materials using a variety of techniques^48–52 but those obtained via self-assembly process are rare. One of the important contributions is reported by Wei, Zhang and their co-worker in which they have demonstrated reversible iodine capture by polyoxometalate based 2D nanostructures.⁶²

Herein we report a series of solid, polycrystalline POM associated mesoporous hybrid materials 1–9 of the type [RPPh₃]_n[XM₁₂O₄₀] (where R = Me, Et, Ph; X = Si, P; M = Mo, W; n = 3 or 4). These materials are formed due to the spontaneous aqueous phase self-assembly reaction of POM anion and organic phosphonium cations, forming spherical aggregates, the two moeities being held together by electrostatic interactions. Interestingly, the porosity of these complexes is due to the self-assembly of the spherical aggregates composed of Keggin anions and phosphonium cations. The adsorption properties of these porous materials have further been studied. The mesoporous structure of the synthesized POM hybrid materials and the hydrophobic nature of their pores enable the successful reversible uptake of selective guests such as iodine (I₂) and carbon disulfide (CS₂) under ambient conditions.

Experimental section

All the chemicals (phosphomolybdic acid, silicomolybdic acid, phosphotungstic acid, silicotungstic acid, tetraphenylphosphonium bromide, methyltriphenylphosphonium bromide, ethyltriphenylphosphonium bromide, iodine, carbon disulfide) were of reagent grade, received from commercial sources and used as received. Deionized water was used throughout the synthesis. Fourier transform infrared spectra (FT-IR) of the solid samples were recorded at room temperature in the range of 400–4000 cm⁻¹ on a Shimadzu FT-IR spectrophotometer. Room temperature powder X-ray diffraction patterns for the solid samples were measured on a Rigaku Powder X-ray diffractometer, Miniflex-600 equipped with a Cu Kα radiation source (λ = 1.540 Å) operating in Bragg–Brentano geometry. The solution state UV-visible spectroscopic experiments were conducted on a Shimadzu UV 2600 UV-vis spectrophotometer in the wavelength range of 200–800 nm. The field emission scanning electron microscope (FESEM) imaging was carried out on a Carl Zeiss model Ultra 55 microscope. EDX spectra were recorded using Oxford Instruments X-Max^N SDD (50 mm²) systems and INCA software analysis. The images were recorded for solid samples deposited as a very fine film on the surface of carbon tape. The transmission electron microscope (TEM) images were recorded on a JEOL 2100F instrument. The TEM sample was prepared by dispersion of the solid sample in water followed by sonication for 30 minutes. The sonicated suspension was coated on the TEM copper grid through drop casting followed by drying at room temperature. The TGA data was recorded on a Mettler Toledo TGA 1 instrument for the temperature range of 25–700 °C at the rate of 5 °C min⁻¹ under an inert flow of dry N₂ gas (flow rate 20 cm³ min⁻¹). The room temperature NMR spectra were recorded on a Bruker Avance III (500 MHz). The NMR data were recorded in d₆-DMSO solvent. Chemical shifts are indicated as δ values with respect to TMS which is used as an internal standard. The specific surface area measurements were performed by Brunauer–Emmett–Teller (BET) method using Quantachrome Autosorb-ICTCD analyzer. The atomic force microscopy (AFM) experiments were carried out with oxford instruments and the relevant data were analysed by asylum software. The Kelvin probe force microscopy (KPFM) technique was performed in non-contact mode of operation using conductive probe. The conductive probe was coated with Ti/Ir tip with radius of 25 nm, having a spring constant of 2 N m⁻¹ and the bias of +3 V was applied to the tip.

Synthesis of compounds 1–9

An aqueous solution of the Keggin [XM₁₂O₄₀]ⁿ⁻ (X = P, Si; M = Mo, W) (0.42 mmol in 75 mL) was prepared. To it, 25 mL aqueous–methanolic (4 : 1 v/v) or aqueous solution of phosphonium cation (RPPh₃; R = Me, Et, Ph) (3.5 mmol) salt was added. The obtained suspension was refluxed for two hours at 100 °C. The resultant polycrystalline precipitate was washed with water and vacuum dried. Yield: 85–90%.

CH analysis data, observed (calculated): compound 1: % C, 32.45 (30.44), % H, 2.52 (2.13); compound 2; % C, 27.67 (26.72), %H, 2.33 (2.24); compound 3: % C, 26.36 (25.79), % H, 2.038 (2.054); compound 4: % C, 37.06 (36.29), %H, 2.47 (2.54); compound 5: % C, 33.07 (32.19), %H, 2.63 (2.707); compound 6: % C, 31.54 (31.16), %H, 2.47 (2.48); compound 7: % C, 23.63 (22.19), %H, 1.55 (1.78); compound 8: % C, 19.17 (19.42), %H, 1.45 (1.63); compound 9: % C, 28.12 (27.17), %H, 1.95 (1.91).

Result and discussion

The concept of self-organization of organic surfactants has been utilized to design ordered porous materials out of systems which otherwise remain unstructured such as silica type materials.⁶³ This idea has been extended to inorganic entities to fabricate long range order ensembles. Among the many available candidates for the generation of self-assembled functional materials, nano-sized POMs have been employed as building blocks for the construction of 1D, 2D and 3D supramolecular architectures.^64–67 The self-assemblies of the POM building blocks have been observed majorly in three categories of compounds: (1) the giant POM clusters such as Mo₁₅₄, Mo₁₃₂ and Mo₇₂Fe₃₀ which self-assemble to spherical blackberry structures having hollow interiors, investigated by Liu, Kegel and Müller and their co-workers;^32,68–76 (2) research groups of Wei, Gouzerh, Cronin and Peng reported self-assemblies of POM nanoclusters covalently grafted with organic ligands;^77–84 and (3) self-assemblies of POM nanohybrids obtained by cation exchange between POM and organic compounds.^{2–6,85–88} In the past two decades, efforts have been devoted to the synthesis of assembled structures of POMs in the forms of wires, tubes, vesicles among the many others.^28,89–92 The approach of obtaining assembled architectures from non-covalently modified POMs is thought to be versatile as it encompasses an extensive range of POMs.⁹³ It is also supposed that this technique allows for the controlled generation of assemblies in terms of their shapes and sizes. Furthermore, the inorganic–organic hybrid compounds, synthesized in this manner, are stabilized by non-covalent electrostatic interactions between the POM anion and organic cation. These building blocks then direct the self-assembly reaction in appropriate solvent, resulting in solid state functional materials. Research groups of Kurth, Wu and Liu reported POM integrated materials wherein the POM surfaces have been altered by surfactants resuting in formation of assemblies of surfactant encapsulated POMs (SEPs).^{36,37,93–97} Bio-compatible self-assemblies have also been synthesized by utilizing peptide or protein building blocks.⁹⁸ Isolation of well formed POM assembled hybrid structures have also been realized by using bulky organic cations, such as, alkylammonium cations apart from the imidazole and pyridine derivatives,^13,29,99 although reports related to phosphonium cations are rare. These cations facilitate the stacking of the POM building units around them in well defined morphologies rather than into uncharacterized aggregations. Moreover, self-assemblies of different morphologies are displayed depending on the type of electrostatic interactions operating between the POM anion and the cation as well as the manner by which they arrange.⁹⁹

Keggin-based porous materials of the type [RPPh₃]_n[XM₁₂O₄₀] (1–9) were synthesized by mixing aqueous solution of POM anions with aqueous–methanolic solution of the phosphonium salts (Scheme 1). Refluxing the precipitate obtained on mixing the two solutions resulted in the desired product. Nine corresponding compounds of this series have been synthesized, namely [PPh₄]₃[PMo₁₂O₄₀] (1), [EtPPh₃]₃[PMo₁₂O₄₀] (2), [MePPh₃]₃[PMo₁₂O₄₀] (3), [PPh₄]₄[SiMo₁₂O₄₀] (4), [EtPPh₃]₄[SiMo₁₂O₄₀] (5), [MePPh₃]₄[SiMo₁₂O₄₀] (6), [PPh₄]₃[PW₁₂O₄₀] (7), [MePPh₃]₃[PW₁₂O₄₀] (8) and [PPh₄]₄[SiW₁₂O₄₀] (9).

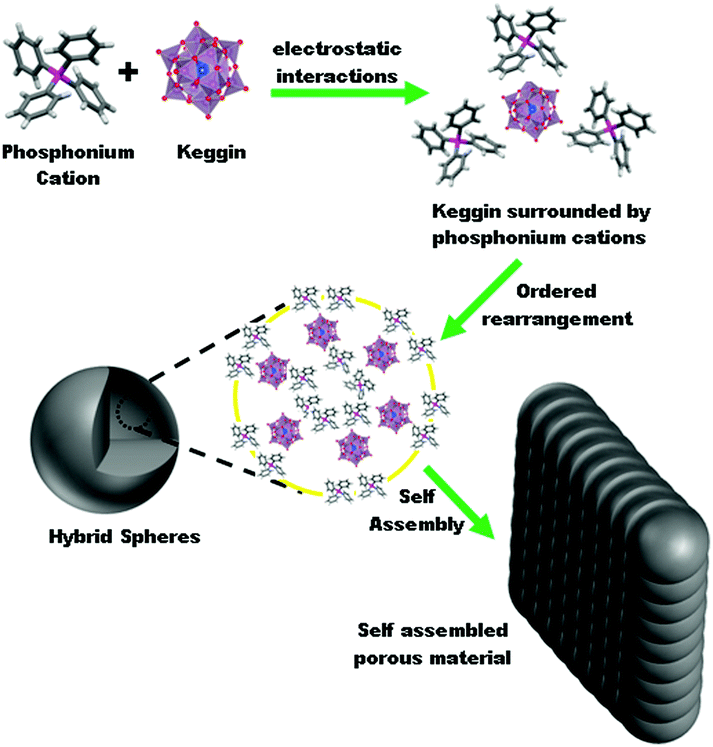

Scheme 1 Schematic representation for the self-assembly route to mesoporous materials (1–9) through electrostatically held hybrid spherical aggregates of Keggin anions and phosphonium cations.

The FT-IR plots for compounds 1–9 (Fig. 1) show the bands corresponding to the phosphonium cation (∼1483 (s, ν_as (C=C)), 1107 (s, ν_s (P–C)), 687 (s, ν(C–H)) and the signature peaks of the Keggin anions (∼1064 (m, ν_as (PO₄)) in compounds 1–3 and 7–8 and ∼910 (m, ν_as(SiO₄)) in compounds 4–6 and 9, which confirm the presence of both the entities in the hybrid porous materials.¹⁰⁰

Fig. 1 Comparative IR spectra for (a) compound 1; (b) compound 2; (c) compound 3; (d) compound 4; (e) compound 5; (f) compound 6; (g) compound 7; (h) compound 8; (i) compound 9.

The powder XRD patterns recorded (in the range 2θ = 5–40°) for the hybrid compounds 1–9 are shown in Fig. 2(a). The PXRD plots show a peak in the region 2θ = 7–10° (d ∼1.2 nm) which is characteristic of the Keggin structure.¹⁰¹ The phases and structures of compounds 1–9 have also been investigated by recording their XRD patterns and compared with those of their parent Keggin compounds (Fig. 2(b)). While the hybrid compounds show a very broad feature in the wide angle region of 2θ = 15–40°, the respective Keggin compounds show a number of Bragg peaks in the same region. The PXRD pattern of the hybrid compounds is relatively different from the Keggin compounds, which indicate that the secondary structures of the Keggin derivatives (compounds 1–9) are influenced by the presence and nature of cations.

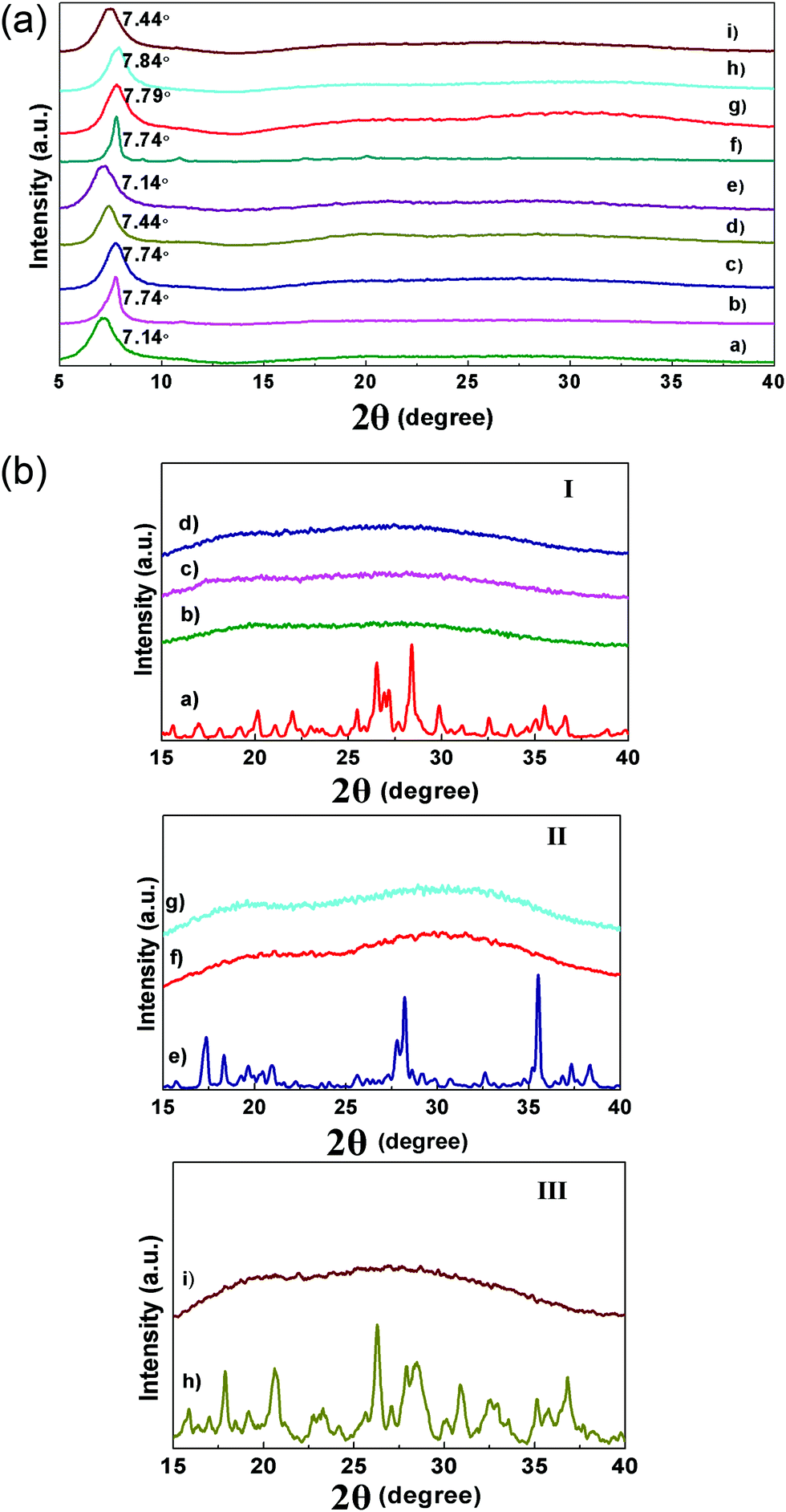

Fig. 2 Comparative PXRD spectra for (a) compound 1; (b) compound 2; (c) compound 3; (d) compound 4; (e) compound 5; (f) compound 6; (g) compound 7; (h) compound 8; (i) compound 9. Fig. 2b. Wide angle XRD spectra for the POM hybrid materials and their parent Keggin; I (a) H₃[PMo₁₂O₄₀]; (b) compound 1; (c) compound 2; (d) compound 3; II (e) H₃[PW₁₂O₄₀]; (f) compound 7; (f) compound 8; III (h) H₄[SiW₁₂O₄₀]; (i) compound 9.

Compounds 1–9 obtained as polycrystalline precipitate were imaged using FESEM (Fig. 3). A thin layer of the compound was coated on the surface of a carbon tape prior to recording the data. The FESEM images show coral (elongated spherical structures) shaped assemblies³⁸ with sizes ranging from 100–200 nm. The energy dispersive X-ray (EDX) spectroscopy shows the presence of carbon, phosphorous (or silicon) and molybdenum (or tungsten) throughout the assemblies signifying the presence of both the Keggin anion and the phosphonium cation (ESI,† Fig. S6). The FESEM images for compounds 1–9 also show the presence of inner channel and cavities (organized unevenly) which is most probably the reason for the evident porosity in these compounds.

Fig. 3 FESEM images for (a) compound 1; (b) compound 2; (c) compound 3; (d) compound 4; (e) compound 5; (f) compound 6; (g) compound 7; (h) compound 8; (i) compound 9.

Compounds 1–9 were also imaged using the TEM technique. The samples were prepared by sonicating aqueous suspension of the compounds (1.5 mg mL⁻¹) for 30 minutes. The resultant suspensions were drop casted on copper grids and allowed to dry prior to the recording of the TEM data. The TEM images, obtained for compounds 1–9 (Fig. 4), exhibit spherical aggregates with average diameter of ∼20 nm. The most characteristic feature of the high resolution TEM (HR-TEM) images, obtained, is the granular appearance of the hybrid colloidal spherical aggregates, which give an impression of small highly contrasting dots, embedded within a poorly electron contrasting substance. While the small black dots denote the Keggin polyanion, the low contrasting material corresponds to the phosphonium cations surrounding the polyanion.^38,98 The mesoporous compounds 1–9 display high thermal stability showing disintegration only beyond 300 °C as confirmed from their thermogravimetrical analyses (ESI,† Fig. S9, S10a–i). The porous nature of compounds 1–9 was investigated by nitrogen sorption experiments (ESI,† Fig. S13). The hybrid compounds show type IV nitrogen adsorption–desorption isotherm with H₁-type hysteresis loop³⁹ in the relative pressure range p/p_o of 0.9 to 1.0 indicating the formation of mesoporous compounds. The H₁-type hysteresis loop suggests a fairly uniform arrangement of spherical agglomerates with cylindrical pore geometry. This outcome is in accordance with the proposed aggregation of spherical particles leading to mesoporous material.

Fig. 4 TEM images for (a) compound 1; (b) compound 2; (c) compound 3; (d) compound 4; (e) compound 5; (f) compound 6; (g) compound 7; (h) compound 8; (i) compound 9. The inset shows the HR-TEM image for the respective compound.

The specific surface area measurements for compounds 1–9 show the presence of pores with an average size of 32.9 nm and pore volume of 0.38 cm³ g⁻¹. Therefore, compounds 1–9 can be classified as mesoporous compounds with an average surface area of ∼25 m² g⁻¹. Since it is known that bare hetero polyanions (HPAs), generally exhibit low surface areas, it can be said that the cations play an important role in the synthesis of mesoporous materials as it is their arrangement around the Keggin moiety (as directed by the non-covalent interactions) and the further aggregation of the spherical agglomerates that provide them their porosity.

The Keggin anion [PM₁₂O₄₀]³⁻ (or [SiM₁₂O₄₀]⁴⁻ M = Mo, W) of the mesoporous compounds 1–9 (which are hybrid self-assemblies of Keggin anion and phosphonium cation) can be envisaged as the tetrahedral ion, PO₄³⁻ (or SiO₄⁴⁻) held within a {M₁₂O₃₆} cage.⁵ In the porous compounds of the type [RPPh₃]_n[XM₁₂O₄₀], the organic cations are therefore sufficiently attracted (via electrostatic interactions) to the central tetrahedral anion, the two being separated by the {M₁₂O₃₆} cage. The Keggin anions and the phosphonium cations, which are randomly oriented in the aqueous solution, reorganize/rearrange themselves in such a way that the phosphonium cations, which are hydrophobic and non-covalently bound to the Keggin, lie on the surface of the Keggin molecule. This orientation of the phosphonium cations on the Keggin surface serves as the base for the formation of hybrid spherical aggregates of [RPPh₃]_n[XM₁₂O₄₀] as observed in the TEM images (Fig. 4). Further, it is expected that the observed porosity in the compounds 1–9 arises during the arrangement of spherical aggregates which results in the formation of inner channels and cavities which are unevenly distributed throughout the Keggin-based mesoporous compounds. Consequently, the hydrophobicity of the pores can be attributed to the phenyl rings of the organic cations which line the pore surface.

We also studied the surface potential measurements by using Kelvin probe force microscopy (KPFM) technique. The concerned images are given in the ESI† (Fig. S23–S26). We could perform surface potential measurements of five representative samples (compounds 1, 2, 4, 7 and 9) out of nine samples described in this work. Compounds 1, 2 and 4 are molybdenum containing Keggin associated self assembly and compounds 7 and 9 are tungsten containing Keggin associated assembly. As shown from the KPFM images, the tungsten compounds [PPh₄]₃[PW₁₂O₄₀] (7) and [PPh₄]₄[SiW₁₂O₄₀] (9) show negative surface potentials. On the contrary, the molybdenum compounds [PPh₄]₃[PMo₁₂O₄₀] (1), [EtPPh₃]₃[PMo₁₂O₄₀] (2) and [PPh₄]₄[SiMo₁₂O₄₀] (4) exhibit positive surface potentials. It is evident from the observed data that the cation components of the compounds do not play any major role on the nature (whether positive or negative) of observed surface potentials of the materials, because both compounds 7 and 9 have same cationic entity.

In the case of tungsten containing compounds 7 and 9, the negative surface potential implies that the negative charges of the surface POM anions are not fully counterbalanced by the surface phosphonium cations in the interface between the phosphonium cation and POM anion. This may be due to the kinetic sluggishness of tungsten (in comparison to molybdenum). On the same logic, in case of molybdenum compounds, 1, 2 and 4, the positive surface potential indicates that the net positive charges of the surface phosphonium cations are not completely counterbalanced by the net negative charges of the surface POM anions in the interface of phosphonium cation and POM anion.

The porosity and thermal stability of inorganic–organic hybrid materials 1–9 encouraged us to explore the adsorption/uptake of certain environmentally malignant molecules. The choice of the guest was chiefly driven by the fact that the phosphonium cations of the hybrid porous compounds are present on the exterior of the pore walls which render them hydrophobic in nature. Therefore, guests with complimenting nature are welcome. Apart from the hydrophobic character of the incoming molecule, it is observed that its size and shape are also important. The porous materials were applied for the adsorption of three guests: iodine (I₂), toxic carbon disulfide (CS₂) and non-degrading methyl orange dye. It was found that while the porous materials readily adsorbed guests such as I₂ and CS₂, they were unable to adsorb methyl orange dye which was rejected because of its bulky size and non-linear shape. Hence, it can be said that the porous materials, apart from exhibiting selectivity in terms of the nature of the incoming guest, also display selective adsorption, based on the shape and size of the guest.

Iodine adsorption studies

In order to explore the reversible iodine (I₂) adsorption and release ability of compounds 1–9, fresh samples of the compounds (25 mg) were exposed to iodine vapours (1 g) in a gas–solid reaction at room temperature and were monitored in real time. The mesoporous compounds 1–9, on exposure to I₂ showed a gradual colour change from yellow (compounds 1–6) or white (compounds 7–9) to brown with time (Scheme 2).

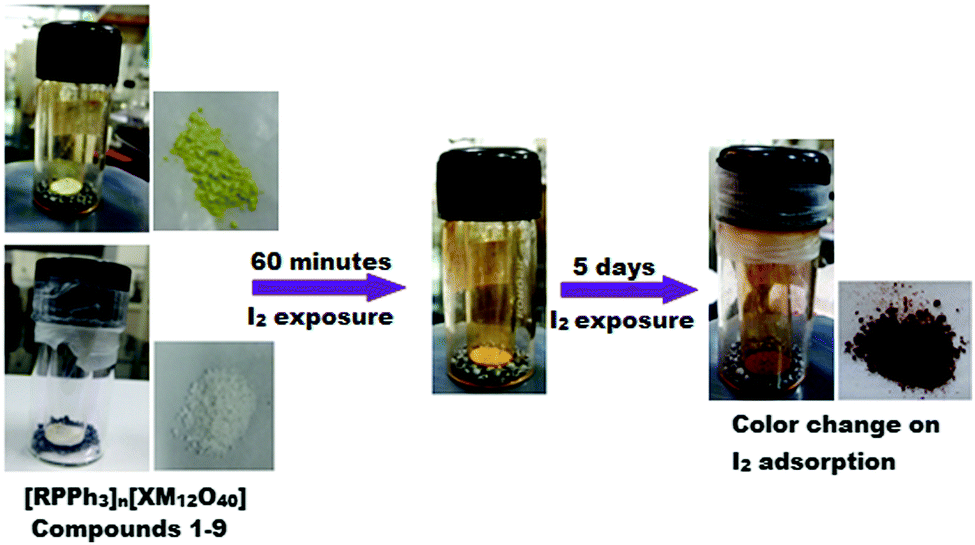

Scheme 2 Real time adsorption of I₂ by compounds 1–9.

The brown colour of the porous materials, observed due to the adsorption of I₂, intensified till 15 days, after which no further colour change was observed indicating the saturation of I₂ uptake by the porous compounds. This observation was also supported by the time dependent UV-visible studies, conducted for compound 1 which showed gradual increase in the uptake of iodine, saturating after 15 days, after which minimal increase in the adsorption of I₂ was observed (Fig. 5 and Table S4, ESI†). The adsorbed I₂ could be easily removed by the simple immersion of the I₂-loaded hybrid POM compounds in organic solvents such as ethanol and hexane.

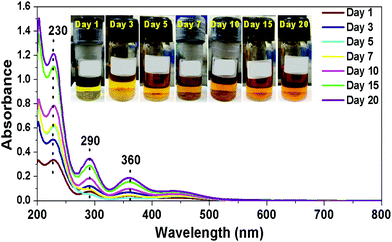

Fig. 5 UV-visible spectra of ethanol solutions containing iodine extracted from compound 1 at different intervals of time.

On immersion, I₂ leached from the mesoporous compounds into ethanol (brown coloration) or hexane (violet coloration). Powdered compounds 1–9 themselves showed a colour change from brown to yellow (or white) after 3–4 hours of immersion confirming the removal of adsorbed I₂. The structural integrity of the compounds post I₂ uptake and its removal was confirmed by IR spectroscopy (ESI,† Fig. S2a and b). Since the POM integrated hybrid materials exhibit easy uptake and release of I₂ they can act as suitable candidates for capturing radioactive I₂ thereby helping in nuclear waste management.

The quantification of the amount of I₂ adsorbed by the porous materials 1–9 was carried out by the method of linear correlation in accordance with the Lambert Beer's Law (ESI,† Fig. S14–S17 and Tables S2, S5). The extraction of the adsorbed I₂ by compounds 1–9 was carried out both in ethanol and hexane and the obtained solutions were analyzed by UV-visible spectroscopy for their capturing ability of I₂ (Fig. 6 and ESI,† Fig. S18).

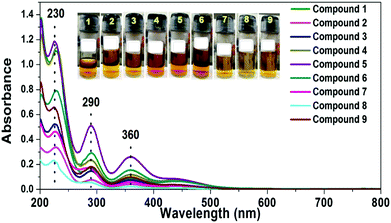

Fig. 6 Solution state UV-Visible spectra for extracted iodine solutions of compounds 1–9 in ethanol. The solutions were diluted 50 times prior to recording of the data.

The UV-visible analysis showed that compounds 1–9 adsorbed variable amounts of I₂. The highest I₂ adsorption capacity in ethanol for the mesoporous compounds under study was measured as 1.03, 0.98 and 0.95 mg of I₂/(mg of the porous compound) for compounds 5, 4 and 1, respectively (ESI,† Table S3). The controlled experiments show that the iodine adsorption is facilitated by the phosphonium components of the titled hybrid materials (see ESI† for the the details).¹⁰² Four cycles of reversible adsorption and desorption of I₂ were carried out for compound 1. The amount of adsorbed I₂ varied from 0.90 mg to 0.75 mg of I₂/(mg of compound 1) for cycle 1 and 3 and remained constant thereafter (ESI,† Fig. S19 and Table S7).

We have conducted iodine adsorption by the constituent protonated salt of Keggin anions and phosphonium cations (as bromide salts) as controlled experiments. The phosphomolybdic acid, silicomolybdic acid, phosphotungstic acid and silicotungstic acid, as such do not adsorb iodine but the phosphonium salts adsorb iodine. These experiments clearly suggest that the phosphonium part of the obtained self-assembled materials plays important role for the iodine adsorption in the present work. Even though, the phosphonium bromide salt adsorbs iodine, this cannot be compared to the iodine adsorption by self-assembled materials in the present study, because phosphonium bromide salt is a molecular level (water soluble) substance, not a heterogeneous material.

Another choice of suitable guest was CS₂ but due to its toxic nature, its reversible adsorption studies by the porous compounds was limited to [PPh₄]₃[PMo₁₂O₄₀] (1). When exposed to CS₂ vapours, compound 1 showed a visible colour change from yellow to green. The green colour of the compound intensified with continuous exposure to CS₂ vapours for one week (Scheme 3). The adsorption of CS₂ by porous compound 1 can be explained on the basis of strong electrostatic interaction (in the form of quadrupole interactions) between the phenyl ring of the phosphonium cation and the incoming CS₂ molecule. The adsorbed CS₂ was easily removed from the CS₂-loaded compound 1 by its extraction in methanol. As the adsorbed CS₂ leached into methanol, compound 1 gradually changed color from green to yellow, the complete desorption taking place in 3–4 hours. Compound 1 showed no structural disintegration during the uptake and removal of CS₂ as confirmed by IR spectroscopy (Fig. 7) The successful adsorption of CS₂ within the pores of compound 1 was confirmed by IR, UV-visible and NMR spectroscopy (ESI,† Fig. S21). The IR spectra of the CS₂ loaded compound 1 showed a band at 1265 cm⁻¹ corresponding to C=S stretch originally absent in compound 1.¹⁰³ Additionally, the UV-visible spectrum for the methanolic solution of CS₂ shows an intense peak at 220 nm and weak bands in the range of 230–330 nm in the UV region of the spectrum confirming presence of CS₂ (Fig. 7).¹⁰⁴

Scheme 3 Time dependent CS₂ adsorption by compound 1.

Fig. 7 (I) IR spectra of (a) compound 1; (b) compound 1 exposed to CS₂ vapours; (c) regenerated compound 1 obtained from methanol; (II) UV-visible spectrum for compound 1; inset: enlarged view of the spectrum in the UV range 250–350 nm.

Three cycles of reversible uptake and removal of CS₂ by compound 1 were performed which showed minimal decline in its efficiency for adsorption of CS₂ after each cycle (ESI,† Fig. S22). Therefore the POM incorporated mesoporous compounds 1–9 can act as suitable hosts for the selective capture of linear non-polar molecules such as radioactive I₂ and CS₂ which are environment unfriendly.

Conclusions

In summary, a series of mesoporous Keggin-based hybrid materials have been successfully synthesized and characterized. The synthesis of the hybrid materials in the present study is an example of non-covalent functionalization of POMs involving cation replacement reaction of POMs. The anion and the phosphonium cation in the porous material are held together by non-covalent interactions. In contrast to the commonly used surfactants and ammonium cations, phosphonium cations have been utilized as the counter cations in the ion exchange reaction. In the solution phase, the randomly oriented, closely associated Keggin anion and phosphonium cation form spherical aggregates, with the phosphonium cations present on the Keggin surface. The porosity of these materials is the result of the self assembling tendency of the polyanion and the bulkier tetraphenylphosphonium cation. Since these compounds efficiently adsorb I₂ and CS₂ on their surfaces, we propose that these porous hybrids serve to selectively and reversibly adsorb non-polar linear molecules, tentatively due to the hydrophobic interactions between the phenyl moities of cation and the guest molecules. This piece of work therefore, highlights the role of the cation in directing the self-assemblies offering new prospects, wherein diverse POM self-assemblies can be generated by employing different cations (both lipophillic and lipophobhic). Furthermore, the surface properties can be modulated by choosing appropriate cations, which fit best to the desired requirements.
