Interstitial flow enhances the formation, connectivity, and function of 3D brain microvascular networks generated within a microfluidic device

Abstract

The bulk flow of interstitial fluid through tissue is an important factor in human biology, including the development of brain microvascular networks (MVNs) with the blood–brain barrier (BBB). Bioengineering perfused, functional brain MVNs has great potential for modeling neurovascular diseases and drug delivery. However, most in vitro models of brain MVNs do not implement interstitial flow during the generation of microvessels. Using a microfluidic device (MFD), we cultured primary human brain endothelial cells (BECs), pericytes, and astrocytes within a 3D fibrin matrix with (flow) and without (static) interstitial flow. We found that the bulk flow of interstitial fluid was beneficial for both BEC angiogenesis and vasculogenesis. Brain MVNs cultured under flow conditions achieved anastomosis and were perfusable, whereas those under static conditions lacked connectivity and the ability to be perfused. Compared to static culture, microvessels developed in flow culture exhibited an enhanced vessel area, branch length and diameter, connectivity, and longevity. Although there was no change in pericyte coverage of microvessels, a slight increase in astrocyte coverage was observed under flow conditions. In addition, the immunofluorescence intensity of basal lamina proteins, collagen IV and laminin, was nearly doubled in flow culture. Lastly, the barrier function of brain microvessels was enhanced under flow conditions, as demonstrated by decreased dextran permeability. Taken together, these results highlighted the importance of interstitial flow in the in vitro generation of perfused brain MVNs with characteristics similar to those of the human BBB.

---

1. Introduction

Brain microvascular networks (MVNs) are specialized vascular structures composed of brain endothelial cells (BECs), pericytes (PCs), and astrocytes (ACs). BECs have upregulated expression of membrane transporters, such as glucose transporter 1 (GLUT1) and P-glycoprotein 1 (P-gp), as well as tight junction (ZO-1) and basement membrane (collagen IV and laminin) proteins.¹ This contributes to a restrictive, semipermeable barrier between the blood and the brain extracellular space called the blood–brain barrier (BBB). PCs are mural cells that are in direct contact with brain capillaries and modulate microvessel diameter and blood flow through contractile mechanisms.^2,3 ACs are glial cells that extend processes which ensheathe brain blood vessels with perivascular endfeet. Both PCs and ACs provide paracrine and juxtacrine signals that enhance BBB-related gene and protein expression as well as barrier function.^2,4 The physical and transport barrier created by the BBB is paramount for brain homeostasis. BBB dysfunction is a hallmark of most neurodegenerative diseases, including Alzheimer's disease,⁵ Parkinson's disease,⁶ Huntington's disease,⁷ amyotrophic lateral sclerosis,⁸ stroke,⁹ and brain cancers.¹⁰ The BBB is impermeable to 98% of small-molecule drugs and ∼100% of large-molecule therapeutics, making it one of the largest obstacles to curative treatments of neurodegenerative diseases.¹¹ It is postulated that the development of physiologically-accurate in vitro models of human brain MVNs will contribute to the understanding of the biological mechanisms of BEC microvessels and expedite the development of therapeutics for neurodegenerative diseases and brain cancers.¹²

Microfluidic devices (MFDs) have become popular platforms for in vitro models of human physiology due to their precise spatiotemporal control over physical and chemical parameters. Several MFDs have been previously designed to study the human BBB and the cellular interactions that dictate its function.^13–15 However, these designs implemented endothelial cell-lined fluidic channels and artificial, semipermeable membranes that did not accurately represent the natural morphology of brain microvasculature. At present, there are only two microfluidic models that developed brain MVNs through natural morphogenic processes (angiogenesis and vasculogenesis) by culturing endothelial cells with PCs and ACs within a 3D extracellular matrix (ECM).^16,17 These designs produced functional microvessels with diameters comparable to those of brain capillaries, arterioles, and venules (3 to 100 μm).^18,19 However, both studies relied exclusively on diffusion for the delivery of soluble growth factors and neglected to expose cells to physical stimuli found in brain tissue, such as interstitial flow. Consequently, these MVNs were only perfused during permeability measurements and were not exposed to intravascular flow during the development of microvessels with open lumens.

Interstitial flow describes the bulk movement of fluid through the ECM of biological tissues. This bulk flow delivers nutrients, removes metabolic wastes, and provides mechanical cues to cells and the ECM. Mechanical signaling from interstitial flow governs cell behavior and protein expression.^20,21 Indeed, interstitial flow has been shown to influence angiogenesis.^22,23 vasculogenesis,^24–26 lymphangiogenesis.^27–29 glycocalyx formation,^30,31 tumor cell migration,^32,33 myofibroblast differentiation,³⁴ inflammation,²⁸ and embryogenesis,^31,35 In the brain, the bulk flow of fluid through the interstitial space facilitates the cross-talk between vascular and neural cells, long-distance transport of metabolites and regulatory peptides, and removal of harmful macroscopic wastes through the glymphatic system.^36,37 Convection dominates the extracellular transport of soluble factors through 3D ECMs and effectively governs the local gradients of diffusible signals.³⁸ For example, interstitial flow has been shown to act synergistically with vascular endothelial growth factor (VEGF) to direct capillary branching through a morphogen gradient amplification mechanism.³⁹ In previous MFD models, interstitial flow was induced to develop self-assembled MVNs using endothelial cells and fibroblasts from non-brain sources.^{22–26,40,41} In some models, the same mechanism that induced interstitial flow also promoted the perfusion of microvessels once anastomosis was achieved.^24,25 In addition to the exchange of metabolites and gases, blood flow in vessels provides shear stress and strain to the vascular wall which modulates vascular function.^42,43 Indeed, intravascular flow regulates shear stress-responsive genes and can alter endothelial cell structure.^44,45 Shear stress also has a direct effect on the differentiation of vascular endothelial cells towards a BBB phenotype.⁴⁶ Due to their significant role in vascular morphogenesis, interstitial and luminal flow should be included in microfluidic models attempting to recapitulate brain microvasculature.

Recently, the effect of interstitial flow on the brain microvessel formation was explored in a Transwell-based system by Figarol and colleagues.⁴⁷ Despite the development of brain MVNs cultured under continuous interstitial flow, it was observed that microvessels oriented themselves perpendicular to shear flow. As a result, the authors stated that these microvessels were non-perfused and found no significant differences in the mean vessel diameter between cultures with and without flow.⁴⁷ In our study, we cultured primary human BECs, PCs, and ACs within a MFD to develop brain MVNs through both angiogenic and vasculogenic processes. Microvessels were cultured with (flow conditions) or without (static conditions) interstitial flow induced by a hydrostatic pressure gradient across a 3D fibrin hydrogel. Our overarching hypothesis was that interstitial flow would improve brain MVN formation and interconnectivity as well as enhance endothelial barrier function. MVNs were evaluated by their morphological features, longevity, perfusion, cellular interactions, protein expression, and permeability. Our work highlights the importance of the bulk flow of interstitial fluid for in vitro brain MVN development and provides a practical approach to increase the success rate of achieving perfusable vasculature in MFDs.

2. Materials and methods

2.1 Cell culture

Endothelial cell growth medium 2 (EGM-2) was made by combining growth medium 2 (PromoCell) with growth medium 2 SupplementMix and 1% penicillin/streptomycin (Fisher Scientific). Pericyte medium and astrocyte medium were created by combining pericyte and astrocyte basal medium (ScienCell) with pericyte and astrocyte growth supplement, respectively, and then adding 2% fetal bovine serum and 1% antibiotic solution. Primary human brain microvascular endothelial cells (BECs, ScienCell, Cat: 1000) were expanded in EGM-2 in tissue culture flasks coated with 0.2% porcine gelatin (Sigma-Aldrich). To visualize cells in culture, BECs were made to express tandem dimer tomato fluorescent protein (tdTomato, Vector Builder, VB181014-1005thm) or enhanced green fluorescent protein (EGFP, Vector Builder, VB150915-10026) using lentiviral transduction protocols. Briefly, 18 hours after seeding, BECs were cultured in EGM-2 containing 5 μg mL⁻¹ polybrene (Vector Builder) and the manufacturer's recommended concentration of either tdTomato or EGFP lentiviruses. After 24 hours, the medium was replaced with normal EGM-2. On day 3, cell selection was performed by adding EGM-2 with 10 μg mL⁻¹ blasticidin or puromycin (Sigma-Aldrich). Unmodified BECs, BECs expressing tdTomato (BECs-tdT), and BECs expressing EGFP (BECs-EGFP) were expanded in EGM-2 and harvested between passage 5 and 6. Primary human brain vascular pericytes (PCs, ScienCell, Cat: 1200) and human astrocytes (ACs, ScienCell, Cat: 1800) were expanded in pericyte and astrocyte medium, respectively, in tissue culture flasks coated with poly-L-lysine (ScienCell) and harvested between passage 2 and 5. All cells were incubated at 37 °C and 5% CO₂ and harvested at 70% confluence using 0.25% trypsin–EDTA (Fisher Scientific).

2.2 Characterization of interstitial flow in the microfluidic device

3D cell culture chips from AIM Biotech (Singapore) were used for all experiments. These MFDs possessed one central hydrogel channel flanked by two fluidic channels connected to cell culture medium reservoirs (Fig. 1A). To quantify interstitial flow in the MFD, we first injected a fibrin solution into the hydrogel channel. Briefly, fibrinogen (8 mg mL⁻¹) and thrombin (4 U mL⁻¹) from bovine serum (Sigma-Aldrich) were dissolved in EGM-2 and phosphate-buffered saline (PBS) with calcium and magnesium ions (Fisher Scientific), respectively. Fibrinogen and thrombin solutions were combined at equal volumes to produce a fibrin solution with a final concentration of 4 mg mL⁻¹. Fibrin solutions were quickly added to hydrogel channels and allowed to polymerize for at least 10 minutes at room temperature.

Fig. 1 Interstitial flow characterization in the MFD. A) Image of the MFD from AIM Biotech (Singapore). Second image shows an enhanced view of the yellow square. B) Images showing the sideview of reservoir volumes used for static and flow culture. For static and flow conditions, culture medium was added to produce a hydrostatic pressure difference of 0 and 1.5 mmH₂O, respectively. Orange arrow indicates the direction of interstitial flow of culture medium across the hydrogel channel. Yellow dashed lines identify reservoir volume heights. C) Fluorescence time-lapse images of Oregon Green 70 kDa dextran solution (green) flowing through cell-free fibrin gels under static and flow conditions at 0, 90, and 180 seconds. Green arrow indicates the direction of flow of dextran solution. White dashed lines outline microposts. Scale bars indicate 200 μm. D and E) Graph of dextran solution velocity (D) and flow rate (E) measured at pressure differences from 0 to 1.5 mmH₂O. The data show mean value, error bars ± SEM, n = 4. F and G) Graph of simulated interstitial flow velocity (F) and flow rate (G) experienced over 9 hours under flow (1.5 mmH₂O) conditions.

Interstitial flow across the hydrogel channel was generated by creating a hydrostatic pressure difference between opposite reservoirs. To simulate how cell culture medium would flow across the fibrin matrix, the permeability of the fibrin hydrogel was needed. Since the change in reservoir volume over time was difficult to measure accurately, fluorescent dextran solution was used to visualize the movement of fluid across the fibrin gel. Briefly, Oregon Green™ 488 dextran (70 kDa, Invitrogen) was dissolved in EGM-2 to produce a 5 μg mL⁻¹ solution. Different volumes of dextran solution and normal EGM-2 were added to each “high-pressure” and “low-pressure” reservoir, respectively, as shown in Table 1. These volumes produced five differential pressures across the fibrin hydrogel: 0, 0.375, 0.75, 1.125, and 1.5 mmH₂O. Pressure values (mmH₂O) were assumed to be equal to the volume height difference (mm) between opposite reservoirs. Immediately afterwards, time-lapse fluorescence images were acquired every 10 seconds for 5 minutes using an Eclipse Ti2 inverted microscope (Nikon) with a 4× objective at 37 °C. Fluorescence images were analyzed in ImageJ (National Institutes of Health) to calculate the permeability of the fibrin gel and simulate interstitial flow in the microfluidic device (ESI† Methods S.1). Once bulk fluid movement across the hydrogel channel was properly characterized, we sought to determine the influence of interstitial flow on brain microvascular network development and function. For all future experiments, cells were cultured under either static or flow conditions where a hydrostatic pressure difference of 0 or 1.5 mmH₂O was established, respectively (Fig. 1B).

Table 1 Hydrostatic pressure differences

Pressure difference (mmH2O)	Volume of dextran solution in high-pressure reservoirs (μL)	Volume of EGM-2 in low-pressure reservoirs (μL)
0	60	60
0.375	65	55
0.75	70	50
1.125	75	45
1.5	80	40

---

2.3 Brain endothelial cell angiogenesis

To determine the influence of interstitial flow on angiogenesis, BECs-EGFP were stimulated to extend angiogenic sprouts into the hydrogel channel. Briefly, solutions of fibrinogen (8 mg mL⁻¹) and thrombin (4 U mL⁻¹) were prepared as previously described (Materials and methods 2.2). PCs and ACs were harvested and resuspended together in the fibrinogen solution at 4 × 10⁶ cells per mL each. Fibrinogen-cell and thrombin solutions were combined at a ratio of 1 : 1 and introduced to the hydrogel channel of MFDs and allowed to polymerize for 10 minutes at room temperature. The final fibrin concentration was 4 mg mL⁻¹. The final cell concentration of both PCs and ACs was 2 × 10⁶ cells per mL. To create vascular channels from which angiogenic sprouts would originate, BECs-EGFP were harvested and side-seeded in one of the fluidic channels. BECs-EGFP were resuspended in EGM-2 at 5 × 10⁶ cells per mL and introduced to the low-pressure fluidic channel. MFDs were inverted at 90° and incubated (37 °C and 5% CO₂) for 15 minutes to encourage BECs to adhere to the fibrin gel interface. Afterwards, non-adherent cells were washed out of the fluidic channel with EGM-2. All cells were cultured in MFDs for 7 days with EGM-2 with 50 ng mL⁻¹ of recombinant human VEGF (PeproTech, Cat: 100-20) and 5 μg mL⁻¹ of bovine aprotinin (Fisher Scientific). VEGF and aprotinin were supplemented to promote angiogenesis and prevent significant fibrin degradation, respectively. Samples were cultured at 37 °C and 5% CO₂ under static (0 mmH₂O) or flow (1.5 mmH₂O) conditions as previously described (Materials and methods 2.2). Every 24 hours, the old cell culture medium was removed from reservoirs and replaced with fresh medium to reestablish volumes.

2.4 Brain endothelial cell vasculogenesis

To determine the influence of interstitial flow on vasculogenesis, BECs-tdT or BECs-EGFP were stimulated to form MVNs in the hydrogel channel. Briefly, solutions of fibrinogen (8 mg mL⁻¹) and thrombin (4 U mL⁻¹) were prepared as previously described (Materials and methods 2.2). BECs, PCs, and ACs were harvested and resuspended together in the fibrinogen solution at 10 × 10⁶, 2 × 10⁶, and 2 × 10⁶ cells per mL, respectively. Fibrinogen-cell and thrombin solutions were combined at a ratio of 1 : 1 and introduced to the hydrogel channel of MFDs and allowed to polymerize for 10 minutes at room temperature. The final fibrin concentration was 4 mg mL⁻¹. The final cell concentrations of BECs, PCs, and ACs were 5 × 10⁶, 1 × 10⁶, and 1 × 10⁶ cells per mL, respectively. Cells were cultured for 3 days in EGM-2 with VEGF (50 ng mL⁻¹) and aprotinin (5 μg mL⁻¹). On day 3, BECs-tdT or BECs-EGFP were side-seeded in both of the fluidic channels, as previously described (Materials and methods 2.3), to increase the chance of anastomosis. From this point on, cells were cultured in EGM-2 with just aprotinin for up to 14 days in culture. VEGF supplementation was not continued to promote the formation of endothelial tight junctions and decrease vascular permeability.⁴⁸ Cells in MFDs were cultured at 37 °C and 5% CO₂ under static (0 mmH₂O) or flow (1.5 mmH₂O) conditions as previously described (Materials and methods 2.2). Every 24 hours, the old cell culture medium was removed from reservoirs and replaced with fresh medium to reestablish volumes.

2.5 Immunocytochemistry protocol

Immunocytochemistry techniques were used to fluorescently label specific proteins at the conclusion of cell culture. Briefly, all the samples were washed three times with PBS and fixed with 4% paraformaldehyde (Alfa Aesar) for 1 hour at room temperature. Next, samples were washed three times with PBS and incubated with a blocking/permeabilizing (B/P) solution composed of 10% normal goat serum (MP Biomedicals), 0.2% Triton X-100 (Fisher Scientific), and 0.1 M glycine (Fisher Scientific) in PBS overnight at 4 °C. Samples were then incubated with primary antibodies in B/P solution overnight at 4 °C. PCs and ACs were labeled with neural/glial antigen 2 (NG-2) and glial fibrillary acidic protein (GFAP), respectively. BEC tight junctions were labeled with zonula occludens-1 (ZO-1). The basal lamina of microvessels was identified with collagen IV and laminin. Membrane transporters on BECs, PCs, and ACs were identified with GLUT1 and P-gp. After primary antibody incubation, samples were washed three times with PBS and then incubated with secondary antibodies and Hoechst 33342 (1 : 1000, Invitrogen) in B/P solution overnight at 4 °C. Afterwards, samples were washed three times with PBS and stored at 4 °C until needed. Specific antibody information can be found in Tables S1 and S2.†

2.6 Angiogenic sprout analysis

BECs-EGFP were allowed to sprout into the fibrin gel containing PCs and ACs for one week under static or flow culture conditions. Fluorescence z-stack (200 μm range using 10 μm slices) images were acquired on day 1, day 3, and day 7 using an Eclipse Ti2 microscope with a 20× objective. Angiogenic sprouts were identified by the EGFP signal expressed in BECs. In ImageJ, z-stacks were compressed to maximum intensity projections (MIPs). Regions of interest (ROIs) were selected to identify angiogenic sprouts originating from three adjacent hydrogel–liquid interfaces located between microposts. For days 1, 3, and 7, the number of angiogenic sprouts in each ROI was counted. For these sprouts, the sprout length was measured as the Euclidean distance between the base of the micropost and the sprout tip. On day 7, the sprout diameter was measured as the width of angiogenic sprouts located at the tip of microposts (230 μm into the hydrogel channel). The sprout length and diameter were averaged for each ROI. For the sprout count, average length, and average diameter, 3 experimental replicates were analyzed to generate mean values for static and flow culture conditions. After imaging was completed, all the samples were fixed and stained for NG-2 and GFAP to collect representative images.

2.7 Microvessel perfusion

Fluorescent microspheres were used to determine if the MVNs formed from BECs-tdT, PCs, and ACs under static and flow conditions were perfusable. After 8 days in culture, Dragon Green polystyrene microspheres (1.9 μm diameter, Bang Laboratories, 1 : 1000) were resuspended in warm (37 °C) EGM-2. For all the samples, 70 μL of microsphere solution was added to both of the high-pressure reservoirs and 50 μL of warm EGM-2 was added to both of the low-pressure reservoirs, producing a hydrostatic pressure difference of 0.75 mmH₂O. This stimulated microspheres to enter the open lumen at the hydrogel–liquid interface. A pressure difference of 0.75 mmH₂O was selected to simulate what MVNs experienced when 50% of the original pressure difference was present and to measure intraluminal flow velocities closer to the average values experienced by microvessels. Immediately after adding the microsphere solution, fluorescence time lapse images (300 millisecond intervals for 30 seconds) were acquired using an Eclipse Ti2 microscope at 37 °C with a 10× objective (Videos S1 and S2†). One minute after the microsphere solution was added, representative fluorescence images of the hydrogel channel were acquired with a 4× objective. Anastomosis was considered achieved if the microspheres were observed flowing from the high-pressure channel to the low-pressure channel exclusively through the lumen of microvessels. The movement of microspheres through MVNs cultured under static and flow conditions was analyzed to determine microsphere velocity and estimate microvessel shear stress (ESI† Methods S.2).

2.8 Microvessel analysis

BECs-tdT, PCs, and ACs formed brain MVNs when cultured under both static and flow conditions. Microvessel analysis was performed to quantify the effect of interstitial flow on MVN characteristics. After 8 days in culture, all the samples were fixed as previously described (Materials and methods 2.5). Fluorescence z-stack (50 μm range at 5 μm intervals) images were acquired using an LSM 800 confocal laser scanning microscope (ZEISS) with a 20× objective. Microvessels were identified by the tdTomato signal expressed in BECs. This signal was used to calculate blood vessel parameters (blood vessel area, branch number, average branch length, average branch diameter, and the number of blood vessel segments) for MVNs cultured under static and flow conditions (Fig. S2†). First, in ImageJ, z-stacks were compressed to MIPs. Next, the tdTomato signal was converted to a binary image and individual particles smaller than an individual BEC were removed. Binary images were then used to determine the vessel area, A_V, as well as the vessel area as a percentage of the total area of the image. The ImageJ plugin, Skeletonize, was used to skeletonize the binary image and Analyze Skeleton (2D/3D) was used to determine the number of branches, n_B, and the average branch length, L_B. From these values, the average branch diameter, D_B, was calculated using the following equation:Analyze Skeleton was also used to determine the number of blood vessel segments of each sample by counting the Skeleton ID numbers assigned in each image. For all blood vessel parameters, 6 experimental replicates were analyzed to generate average values for static and flow conditions.

To determine the effect of interstitial flow on MVN longevity, BECs-EGFP, PCs, and ACs were cultured under static or flow conditions for 14 days. Samples were fixed on day 8 and day 14. Fluorescence z-stack (50 μm range at 5 μm intervals) images were acquired using an LSM 800 confocal microscope with a 20× objective. In ImageJ, the EGFP signal was used to measure the blood vessel area, average branch diameter, and number of blood vessel segments for MVNs cultured under static and flow conditions. For all parameters, 6 experimental replicates were analyzed. For both static and flow cultures, day 8 averages were compared to day 14 averages.

2.9 Pericyte and astrocyte analysis

To determine the effect of interstitial flow on the association of PCs and ACs with microvessels, BECs-tdT, PCs, and ACs were cultured under static or flow conditions for 8 days. In all the samples, PCs and ACs were immunocytochemically labeled with NG-2 and GFAP, respectively. Fluorescence z-stack (50 μm range at 5 μm intervals) images were acquired using an LSM 800 confocal microscope with a 20× objective. Microvessels were identified using the tdTomato signal. When measuring PC and AC coverage, z-stack images were cropped at one slice (5 μm) from the top and bottom of the microvessels imaged. This was to minimize the inclusion of PCs and ACs in the fibrin hydrogel that were not directly in contact with the blood vessels. In ImageJ, cropped z-stacks were compressed into MIPs and binary images were made of the tdTomato, NG-2, and GFAP channels. PC and AC coverage was calculated as the area of overlap of the tdTomato signal with the NG-2 and GFAP signal, respectively. Both values were represented as a percentage of the total microvessel area. When measuring the number of GFAP+ACs and the total length of AC process extensions, full-range z-stacks were compressed into MIPs. The number of GFAP+ACs was calculated by counting the number of nuclei associated with the GFAP signal. Next, the binary GFAP signal was skeletonized, and Analyze Skeleton (2D/3D) was used to calculate the total length of AC processes extended into the fibrin hydrogel. For all parameters, 6 experimental replicates were analyzed to generate average values for static and flow conditions.

2.10 Protein immunofluorescence analysis

To determine the effect of interstitial flow on MVN protein expression, BECs-tdT, PCs, and ACs were cultured under static or flow conditions for 8 days. On day 8, all the samples were fixed and stained for ZO-1, laminin, and collagen IV. Fluorescence z-stack (50 μm range at 5 μm intervals) images were acquired using an LSM 800 confocal microscope with a 20× objective. In ImageJ, z-stacks were compressed into MIPs. The tdTomato signal was used to identify microvessels and calculate the vessel area as previously explained (Materials and methods 2.8). ROIs were selected to include microvessels with clearly defined borders. In each ROI, the total pixel intensity value for each fluorescently tagged protein was measured. The total pixel intensity was then normalized by the microvessel area to allow for statistical analysis. For all protein intensity analysis, 6 experimental replicates were analyzed to generate average values for static and flow conditions. Average values measured for microvessels cultured under flow conditions were represented relative to the averages measured under static conditions.

2.11 Enzyme-linked immunosorbent assay

To determine the effect of interstitial flow on the secretion of soluble signals from MVNs, normal BECs, PCs, and ACs were cultured under static or flow conditions for 6 days. Brain-derived neurotrophic factor (BDNF) was selected as the target protein for enzyme-linked immunosorbent assay (ELISA). To ensure sufficient BDNF would be detected, two modifications were made to the vasculogenesis protocol. First, the final cell densities of BECs, PCs, and ACs were increased to 6 × 10⁶, 2 × 10⁶, and 2 × 10⁶ cells per mL, respectively. Second, the culture medium was changed every other day. On days between medium changes, the reservoir volumes required for static and flow conditions were reestablished using the conditioned medium. The entire volume from all reservoirs was collected from samples on day 2, 4, and 6 and stored at −80 °C until needed. Concentrations of soluble human BDNF in conditioned media were determined using a Total BDNF Quantikine ELISA Kit (R&D Systems) according to the manufacturer's instructions. For BDNF concentrations, the culture medium volumes of 3 MFDs were analyzed in duplicate to generate average values for static and flow conditions on each day.

2.12 Dextran permeability assay

To determine the effect of interstitial flow on microvessel permeability, BECs-EGFP, PCs, and ACs were cultured under static or flow conditions for 8 days. On day 8, a 5 μg mL⁻¹ solution of Texas Red™ 594 dextran (70 kDa, Invitrogen) was prepared in warm EGM-2. For all the samples, 60 μL of warm EGM-2 was added to both low-pressure reservoirs and then 60 μL of dextran solution was quickly added to both high-pressure reservoirs. Fluorescence z-stack (50 μm range at 5 μm intervals) time lapse (30 second intervals for a maximum of 180 seconds) images were acquired using an LSM 880 confocal laser scanning microscope at 37 °C with a 20× objective. Due to the brief imaging period, CO₂ and humidity levels were not regulated. For MVNs cultured under both static and flow conditions, ROIs were selected to include microvessels with well-defined borders. In ImageJ, z-stacks for each time point were compressed into MIPs. It was assumed that the dextran fluorescence intensity increased proportionally with the concentration of dextran and that the microvessels analyzed were circular. With those assumptions, microvessel permeability coefficients (P) were calculated using the following equation derived from Fick's First Law by Uwamori and colleagues:⁴⁹where r is the radius of the microvessel, is the change over time of the fluorescence intensity of the Texas Red dextran in the extracellular space within 5 μm of the microvessel wall, and I₀ is the initial fluorescence intensity of the intraluminal dextran, which was constant throughout imaging. For dextran permeability experiments, 9 experimental replicates were analyzed to generate average values for static and flow conditions.

2.13 Statistical analysis

All statistical analysis was performed using Prism (GraphPad Software). Statistical testing between two experimental conditions was done using a two-tailed Student's t-test with Welch's correction. Statistical testing of data with more than one experimental variable was done using two-way analysis of variance with the Šidák multiple comparisons test. Statistical significance was determined as p < 0.05. All data are represented as the mean with error bars of the standard error of mean (SEM).

3. Results

3.1 Characterizing interstitial flow across the fibrin hydrogel

3D cell culture chips from AIM Biotech (Fig. 1A) were selected for experimentation due to their ability to generate interstitial flow across a hydrogel channel by creating a hydrostatic pressure gradient between opposite reservoirs. We selected the pressure differences of 0 and 1.5 mmH₂O to represent the static and flow culture conditions, respectively, for all experiments (Fig. 1B). A solution of Oregon Green dextran (70 kDa) was employed to visualize the bulk flow of fluid across the central channel and to calculate the permeability of the fibrin hydrogel. Under static conditions, the dextran solution remained in the fluid channel and did not diffuse significantly into the fibrin hydrogel during imaging (Fig. 1C). Under flow conditions, the dextran solution migrated across the fibrin hydrogel from the high-pressure channel and reached the low-pressure channel after approximately 180 seconds (Fig. 1C). We assumed that the movement of fluorescent dextran across the hydrogel channel would be similar to that of other solutes in the culture medium. During flow culture, the volume height difference between opposite reservoirs decreases until equilibrium is reached. Therefore, to better characterize the interstitial flow experienced as reservoir volumes equilibrated, various volumes were added to reservoirs to produce hydrostatic pressures from 0 and 1.5 mmH₂O (Table 1) and the dextran solution velocity was measured. The hydrostatic pressure differences of 0, 0.375, 0.75, 1.125, and 1.5 mmH₂O generated average dextran solution velocities of 0.08 ± 0.02, 1.73 ± 0.07, 3.64 ± 0.15, 4.74 ± 0.07, and 5.73 ± 0.10 μm s⁻¹ (Fig. 1D), respectively, which corresponded to average dextran solution flow rates of 0.22 ± 0.05, 4.54 ± 0.18, 9.55 ± 0.39, 12.44 ± 0.19, and 15.03 ± 0.26 nL s⁻¹ (Fig. 1E), respectively. The average volumetric flow rates calculated at 0.375, 0.75, 1.125, and 1.5 mmH₂O were then used to calculate the average fibrin hydrogel permeability of 4.35 ± 0.23 × 10⁻¹³ m². Using this permeability value, we were able to simulate the interstitial flow velocity (Fig. 1F) and volumetric flow rate (Fig. 1G) that would be experienced across the fibrin hydrogel over time under flow conditions. Both the interstitial velocity and flow rate decreased exponentially from their initial values and had reduced by three orders of magnitude after approximately 9 hours. Despite the decrease in interstitial flow values, we postulated that the presence of the interstitial flow would markedly influence BEC morphogenesis compared to the absence of flow. Hence, to determine the effect of interstitial flow on microvessel development and function, we compared the differences between MVNs generated under the static and flow conditions described above.

3.2 Interstitial flow enhanced brain endothelial cell angiogenesis

To determine the influence of interstitial flow on BEC angiogenesis, BECs-EGFP were side-seeded along one fluidic channel and sprouted into the fibrin gel containing PCs and ACs under static or flow culture conditions (Fig. 2A). Under both conditions, BECs-EGFP produced angiogenic sprouts that extended into the fibrin hydrogel over the course of a week (Fig. 2B). Under flow conditions, BECs extended the angiogenic sprouts against the direction of interstitial flow. By day 7, the angiogenic sprouts were surrounded by supporting NG-2+PCs and GFAP+ACs under both conditions (Fig. 2C). After one day in culture, there was no significant difference between the number of sprouts or the average sprout length for BECs-EGFP cultured under static and flow conditions. However, on day 3 and day 7, both the sprout count (Fig. 2D) and average length (Fig. 2E) were enhanced for BECs-EGFP cultured under flow compared to static conditions. The day 7 sprout count observed under static and flow conditions was 8.00 ± 1.53 and 16.00 ± 0.58, respectively (Fig. 2D). The day 7 average sprout length observed under static and flow conditions was 294.36 ± 13.47 and 560.11 ± 10.11 μm, respectively (Fig. 2E). Finally, the day 7 average sprout diameter observed under static and flow conditions was 13.64 ± 0.43 and 39.61 ± 2.28 μm, respectively (Fig. 2F). In summary, the mean sprout count, average length, and average diameter were increased for BECs-EGFP cultured under flow conditions compared to those under static conditions. Taken together, these data indicate that the application of interstitial flow enhances BEC angiogenesis.

Fig. 2 BEC angiogenesis in the MFD. A) Illustration of the protocol to study BEC angiogenesis. On day 0, PCs (red) and ACs (purple) were suspended in a fibrin matrix in the hydrogel channel and BECs (green) were side-seeded at the hydrogel–liquid interface of one fluidic channel. Cells were cultured in EGM-2 (+VEGF, +aprotinin) under static or flow conditions for one week. B) Fluorescence images of BECs (EGFP, green) extending angiogenic sprouts into the fibrin hydrogel under static and flow conditions on day 1, 3, and 7. PCs and ACs were not labeled. Scale bars indicate 100 μm. C) Fluorescence images of BEC (EGFP, green) angiogenic sprouts supported by PCs (NG-2, red) and ACs (GFAP, purple) grown under static and flow conditions on day 7. Yellow dashed lines indicate the distance at which the sprout diameter was measured. Scale bars indicate 200 μm. B and C) Blue arrows indicate the direction of interstitial flow. White dashed lines outline microposts. D and E) Graph of the number of sprouts (D) and the average sprout length (E) observed for BECs-EGFP with PCs and ACs under static and flow conditions on day 1, 3, and 7. F) Graph of the average sprout diameter observed for BECs-EGFP with PCs and ACs under static and flow conditions on day 7. D–F) The data show mean value, error bars ± SEM, n = 3, ns p > 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001.

3.3 Interstitial flow engendered brain microvascular network perfusion

To determine the influence of interstitial flow on brain MVN formation, BECs-tdT, PCs, and ACs were suspended in a fibrin gel and cultured under static or flow conditions (Fig. 3A). After two days in culture, BECs-tdT under both culture conditions began to expand into the fibrin matrix and form vascular plexuses (Fig. 3B). On day 3, additional BECs-tdT were side-seeded in both fluidic channels to increase the chance of anastomosis across the hydrogel channel. By day 8, mature 3D brain MVNs supported by NG-2+PCs and GFAP+ACs were formed within the hydrogel channel under both conditions (Fig. 3B). These MVNs were observed throughout the entire length of the hydrogel channel in static and flow samples, indicating that significant degradation and regression of the fibrin gel had not occurred (Fig. S1†). BECs-tdT side-seeded in fluidic channels had formed confluent monolayers, creating an endothelial barrier between the fluidic channels and the fibrin gel (Fig. 3C). After 8 days, microvessels formed under both static and flow culture conditions expressed tight junction protein, ZO-1, at the periphery of BECs (Fig. 3D). Collectively, these observations demonstrated that BECs-tdT were able to undergo endothelial morphogenic processes to form 3D MVNs within a MFD, similar to previous studies.^16,50,51 Further analysis was performed to elucidate the distinctions between the microvessel networks formed under the two culture conditions.

Fig. 3 Brain MVN formation in the MFD. A) Illustration of the protocol to study BEC vasculogenesis. On day 0, BECs (red), PCs (purple), and ACs (green) were suspended in a fibrin matrix in the hydrogel channel. Cells were cultured in EGM-2 (+VEGF, +aprotinin) under static or flow conditions for three days. On day 3, BECs were side-seeded in both fluidic channels. Cells were then cultured in EGM-2 (+aprotinin) under static or flow conditions until either day 8 or 14. B) Fluorescence images of BECs (tdTomato, red) forming MVNs under static and flow conditions on day 2 and 8. PCs and ACs were labeled with NG-2 (purple) and GFAP (green), respectively, on day 8. Blue arrow indicates the direction of interstitial flow induced under flow conditions. Scale bars indicate 200 μm. C) Maximum intensity projection of the fluorescence confocal image of BECs (tdTomato, red) side-seeded in the fluidic channel on day 8. Image shows the cross-sectional view of the X–Y and Z–Y planes. B and C) White dashed lines outline microposts. D) Confocal fluorescence images BECs (tdTomato, red) expressing ZO-1 (green) under static and flow conditions on day 8. C and D) Scale bars indicate 50 μm.

Microvessel perfusion and anastomosis was visualized with fluorescent microspheres. After 8 days of static or flow culture, a solution of 1.9 μm diameter microspheres was added to MFD reservoirs such that the hydrostatic pressure difference across the fibrin gel was 0.75 mmH₂O (Fig. 4A). This stimulated microspheres to flow from the high-pressure channel to the low-pressure channel through the open lumen of microvessels. However, we did not observe MVN anastomosis in any sample cultured under static conditions. While microspheres were able to enter several open lumens formed in static culture, they were not able to make egress and terminated in microvessels in the hydrogel channel. In addition, microspheres were also observed in the interstitial space of the fibrin hydrogel in static samples (Fig. 4B, Video S1†). This demonstrated that microvessels were porous enough to allow the exit of microspheres or that the BEC-tdT monolayer in the fluidic channel did not act as a sufficient barrier to the fibrin gel. In contrast, MVNs formed under flow conditions consistently achieved anastomosis, as demonstrated by microspheres flowing from high-pressure channels to the low-pressure channels through the open lumen of microvessels (Fig. 4B, Video S2†). In flow culture, microspheres were rarely observed in the fibrin matrix surrounding microvessels. Due to the restrictive flow experienced by microspheres traveling through microvessels formed under static conditions, the mean microsphere velocity was 31.59 ± 8.72 μm s⁻¹. This was a stark contrast from the mean microsphere velocity of 521.77 ± 41.52 μm s⁻¹ experienced by microspheres traveling through microvessels formed under flow conditions (Fig. 4C). Assuming that the velocity of the microspheres was the maximum velocity of the culture medium flowing through the microvessels, the fluid shear stress experienced by microvessels was estimated. These calculations gave a mean shear stress of 0.018 ± 0.006 and 0.394 ± 0.030 dyn cm⁻² for microvessels formed under static and flow conditions, respectively (Fig. 4D). Taken together, these data demonstrated that interstitial flow was necessary during MVN formation to develop microvessels capable of perfusion in this system. To reiterate, microvessels cultured under static conditions experienced neither luminal flow nor fluid shear stress leading up to the perfusion experiment due to the lack of a hydrostatic pressure gradient. The calculated microsphere velocity and microvessel shear stress values were only possible due to the hydrostatic pressure difference (0.75 mmH₂O) created specifically for this perfusion experiment. Moreover, microvessels cultured under flow conditions were subjected to a higher hydrostatic pressure difference (1.5 mmH₂O) after each culture medium change. This resulted in luminal flow through every accessible microvessel until the reservoir volumes equilibrated. Although this did not last the full 24 hours between culture medium changes, we predicted that the flow experienced by microvessels would be significant enough to impact their morphology and function.

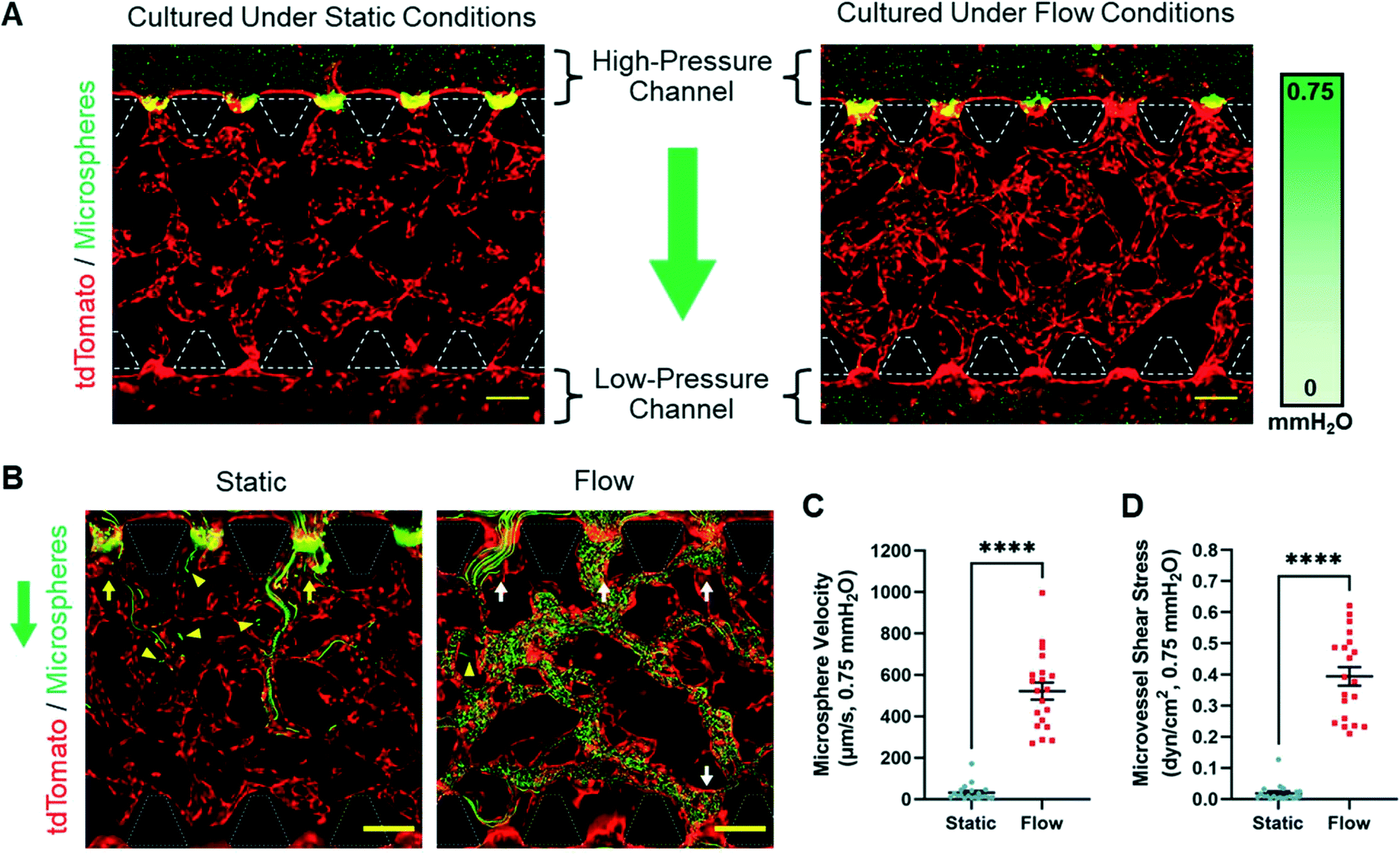

Fig. 4 Microsphere perfusion assay. A) Fluorescence images of the microsphere (green) perfusion experiment for microvessels (tdTomato, red) cultured under static and flow conditions. Culture medium with and without microspheres was added to the high-pressure and low-pressure fluidic channels, respectively, to create a hydrostatic pressure difference of 0.75 mmH₂O. B) Maximum intensity projection of fluorescence time-lapse images (30 seconds) of microspheres (green) flowing through microvessels (tdTomato, red) formed under static and flow conditions. White and yellow arrows indicate open lumens with and without egress for microspheres, respectively. Yellow triangles point to microspheres that have leaked into the fibrin gel. Original time-lapse videos for static and flow samples are presented as Videos S1 and S2,† respectively. A and B) Green arrows indicate the direction of microsphere solution flow during the perfusion experiment. White dashed lines outline microposts. Scale bars indicate 200 μm. C and D) Graph of microsphere velocity (C) and microvessel shear stress (D) experienced by MVNs formed under static and flow conditions with a pressure difference of 0.75 mmH₂O. The data show mean value, error bars ± SEM, microsphere velocity and microvessel shear stress values (n = 20) were measured from one sample per culture condition, ****p < 0.0001.

3.4 Interstitial flow enhanced brain microvascular network morphology and longevity

After it was observed that only MVNs cultured under flow conditions formed perfused microvessels, we hypothesized that the presence of interstitial and luminal flow would enhance microvessel formation. To measure this, BECs-tdT, PCs, and ACs were suspended in fibrin in the hydrogel channel and cultured under static or flow conditions for eight days. By day 8, distinct brain MVNs had formed under both conditions (Fig. 5A). Microvessels were evaluated by several vascular parameters: vessel area, the number of vessel branches, average branch length and diameter, and the number of vessel segments. When comparing static to flow culture parameter means, the vessel area increased from 38.19 ± 2.78 to 59.86 ± 1.79% (Fig. 5B), the average branch length increased from 47.46 ± 2.16 to 58.68 ± 1.93 μm (Fig. 5D), and the average branch diameter increased from 28.65 ± 1.73 to 37.20 ± 1.36 μm (Fig. 5E), respectively. No statistical difference was found between the mean number of branches for MVNs formed under static (103.50 ± 5.19) and flow (102.00 ± 6.84) conditions (Fig. 5C). Lastly, the mean number of vessel segments (per area) was 2.83 ± 0.48 and 1.50 ± 0.22 for MVNs cultured under static and flow conditions, respectively (Fig. 5F). Collectively, these data indicate that the addition of interstitial flow increases the relative size of microvessels compared to those cultured without it. Once MVN anastomosis was achieved under flow conditions, microvessels became perfusable and experienced shear stress every time the hydrostatic pressure gradient was reset. As a result, the vessel area, branch length, and branch diameter increased compared to those of microvessels cultured under static conditions. The increase in microvessel size increased the chance that neighboring vascular plexuses would amalgamate, reducing the amount of individual vessel segments. Indeed, MVNs cultured under flow conditions appeared more continuous than MVNs cultured under static conditions, which still had individual microvessels separated from the surrounding vessels on day 8 (Fig. 5A). In summary, interstitial flow promotes the development of larger, more connected, microvessels when compared to microvessels cultured without flow.

Fig. 5 MVN morphology and longevity quantification. A) Maximum intensity projection of fluorescence confocal images of microvessels (tdTomato, red) cultured under static and flow conditions for 8 days. PCs and ACs were not labeled. B–F) Graphs comparing the vessel area (B), number of branches (C), average branch length (D), average branch diameter (E), and number of vessel segments (F) between MVNs cultured under static and flow conditions. G) Fluorescence confocal images of microvessels (EGFP, green) cultured under static and flow conditions for 8 and 14 days. Images show the maximum intensity projection of the X–Y plane and the cross-section of the Y–Z plane at the yellow dashed line. PCs and ACs were not labeled. H–J) Graphs comparing the vessel area (H), average branch diameter (I), and number of vessel segments (J) between day 8 and day 14 for MVNs cultured under static and flow conditions. A and H) Blue arrows indicate the direction of interstitial flow. Scale bars indicate 100 μm. B–F, H–J) The data show mean value, error bars ± SEM, n = 6, ns p > 0.05, *p < 0.05, **p < 0.01, ***p < 0.001, ****p < 0.0001.

After it was concluded that flow culture was beneficial for microvessel formation, we hypothesized that interstitial and luminal flow would prevent MVN regression during longer culture periods. To test this, BECs-EGFP, PCs, and ACs were cultured under static or flow conditions for 8 and 14 days. MVNs were observed in MFDs on day 8 and day 14 in samples cultured under both conditions (Fig. 5G). Visually, microvessels grown in flow culture on day 8 and day 14 were comparable and possessed wide, open lumens. In contrast, day 14 microvessels grown in static culture were thinner than those on day 8 and had narrower open lumens (Fig. 5G). To quantify these observations, three vascular parameters were selected to evaluate MVN maintenance over time: vessel area, average branch diameter, and the number of vessel segments. From day 8 to day 14, the vessel area decreased from 45.76 ± 1.41 to 21.65 ± 2.65% (Fig. 5H), and the average branch diameter decreased from 36.93 ± 2.36 to 20.91 ± 1.36 μm (Fig. 5I), respectively, for microvessels cultured under static conditions. In static culture, the number of vessel segments increased from 4.00 ± 0.86 to 9.33 ± 0.76 from day 8 to day 14, respectively (Fig. 5J). These values confirmed that MVNs in static culture decreased in size and became more fragmented from day 8 to day 14. In contrast, microvessels cultured under flow conditions saw no significant changes in the vessel area (76.15 ± 2.29 to 70.65 ± 2.44%, Fig. 5H), average branch diameter (48.27 ± 1.64 to 45.98 ± 2.61 μm, Fig. 5I), and number of vessel segments (1.17 ± 0.17 to 1.33 ± 0.21, Fig. 5J) from day 8 to day 14, respectively. Plainly, MVNs formed in flow culture maintained their vascular characteristics for the duration of two weeks. The resulting difference between MVNs cultured under static and flow conditions can be attributed to the effect of interstitial and luminal flow on microvessels. Microvessels in static culture received no physical cues to maintain open lumens during extended culture. Contrastingly, after MVNs achieved anastomosis in flow culture, the microvessels were exposed to luminal flow daily. To reiterate, this provided the physical and biological cues for BECs to maintain mature, open lumens to compensate for the flow. Additionally, interstitial flow allows for more effective delivery of nutrients and removal of cellular waste products than simple diffusion. This was likely advantageous for cellular health and MVN maintenance in long-term culture. In summary, the presence of interstitial flow stymied microvessel regression and maintained MVNs longer than those cultured without interstitial flow.

3.5 Interstitial flow increased astrocyte coverage of microvessels

Next, we investigated if the presence of interstitial flow influenced PC and AC association with microvessels. To test this, BECs-tdT, PCs, and ACs were cultured under static or flow conditions for eight days. By day 8, MVNs formed in both static and flow culture were composed of tdTomato+ microvessels surrounded by NG-2+PCs and GFAP+ACs (Fig. 6A). Closer inspection revealed that both PCs and ACs were directly in contact with hollow microvessels (Fig. 6B). PC and AC coverage was measured as a percentage of the total vessel area in the field of view. No statistical difference was found between the mean PC coverage of microvessels cultured under static (20.77 ± 1.99%) and flow (16.48 ± 1.13%) conditions (Fig. 6C). However, when comparing the mean AC coverage of microvessels in static and flow culture, an increase from 6.44 ± 0.71% to 9.20 ± 0.18% was observed, respectively (Fig. 6D). These data show that only AC coverage was enhanced under flow culture conditions.

Fig. 6 PC and AC microvessel coverage quantification. A) Maximum intensity projection of fluorescence confocal images of MVNs, composed of BECs (tdTomato, red), PCs (NG-2, purple), and ACs (GFAP, green), formed under static and flow conditions on day 8. Bottom two images show merged signals with cell nuclei (Hoechst, blue). Scale bars indicate 100 μm. B) Expanded view of the white square. Images show the maximum intensity projection of the X–Y plane and the cross-section of the X–Z plane at the yellow dashed line. White triangles point to nuclei (Hoechst, blue) of cells that do not express tdTomato (red), NG-2 (purple), or GFAP (green). White and yellow arrows highlight NG-2+PC and GFAP+AC contact with microvessels, respectively. Scale bars indicate 50 μm. A and B) Blue arrows indicate the direction of interstitial flow. C and D) Graph of the PC (C) and AC (D) coverage as a percentage of the total microvessel area measured for samples with BECs-tdT, PCs, and ACs cultured under static and flow conditions. E and F) Graphs of the number of GFAP+ nuclei (E) and the total length of astrocytic process extensions (F) measured for samples with BECs-tdT, PCs, and ACs cultured under static and flow conditions (per area). C–F) The data show mean value, error bars ± SEM, n = 6, ns p > 0.05, *p < 0.05.

Immunofluorescence images of MVNs revealed the presence of nuclei that did not possess any fluorescent marker (Fig. 6B). In 2D cell culture, we observed that PCs uniformly expressed NG-2 (Fig. S3A†). While nearly all ACs were identified with GFAP in 2D cell culture, we observed a small population ACs with no visible GFAP signal (Fig. S3B†). However, this was not surprising since AC expression of GFAP varies in vivo.⁵² When ACs transition to a reactive state, it is typically accompanied by an increase in cellular diameter, GFAP expression, and the number of astrocytic processes.^52,53 For these reasons, we speculated that the unlabeled nuclei in MVNs could be those of ACs with no GFAP expression. We postulated that the increase in AC coverage of microvessels cultured under flow may be the result of an increase in the number of GFAP+ACs or an increase in the amount of astrocytic process extensions in the fibrin gel. However, no statistical difference was found between the mean number of GFAP+ACs (per area) observed in static (26.67 ± 1.74) and flow (28.83 ± 0.40) culture (Fig. 6E). Moreover, no statistical difference was found between the mean total length of AC processes (per area) observed in static (8.26 ± 0.64 mm) and flow (9.89 ± 0.46 mm) culture (Fig. 6F). Taken together, these data indicate that the slight increase in AC coverage in flow culture is not due to a higher number of GFAP+ACs or an increase in the total length of astrocytic processes.

3.6 Interstitial flow enhanced basal lamina protein production in microvessels

Endothelial protein expression is dependent on physical stimuli, such as shear stress.⁵⁴ For this reason, we sought to determine if the presence of interstitial and luminal flow had an effect on microvessel protein production. To accomplish this, BECs-tdT, PCs, and ACs were cultured under static or flow conditions for eight days. On day 8, immunofluorescence analysis was used to measure the expression of three proteins: ZO-1 (Fig. 7A), collagen IV (Fig. 7B), and laminin (Fig. 7C). All three proteins were observed in the MVNs cultured under both static and flow conditions. Previously, we stated that ZO-1 was observed to be localized at the borders of BECs (Fig. 3D). Basal lamina proteins, collagen IV and laminin, were observed along the border of microvessels (Fig. 7B and C). To determine the relative expression levels of each protein, the total fluorescence intensity was normalized by the microvessel area. No significant difference was observed between the relative fluorescence intensity of ZO-1 of microvessels cultured under static (1.00 ± 0.05) and flow (0.88 ± 0.05) conditions (Fig. 7D). In contrast, we found that the presence of basement proteins was enhanced under flow conditions compared to static conditions. When comparing relative static to flow means, the collagen IV fluorescence intensity increased from 1.00 ± 0.03 to 1.85 ± 0.11, respectively (Fig. 7D). Similarly, when comparing relative static to flow means, the laminin fluorescence intensity increased from 1.00 ± 0.07 to 1.84 ± 0.13, respectively (Fig. 7D). These data indicate that interstitial flow increases the amount of collagen IV and laminin located on microvessels, but not ZO-1, associated with BEC microvessels. In samples where ZO-1 and collagen IV were labeled simultaneously, similar trends were observed (Fig. S4†). This confirmed that the increased pixel intensity of basement membrane proteins was not due to staining protocol errors. Taken together, these results suggest that interstitial flow has significant influence on the accumulation of basement membrane proteins on brain microvessels.

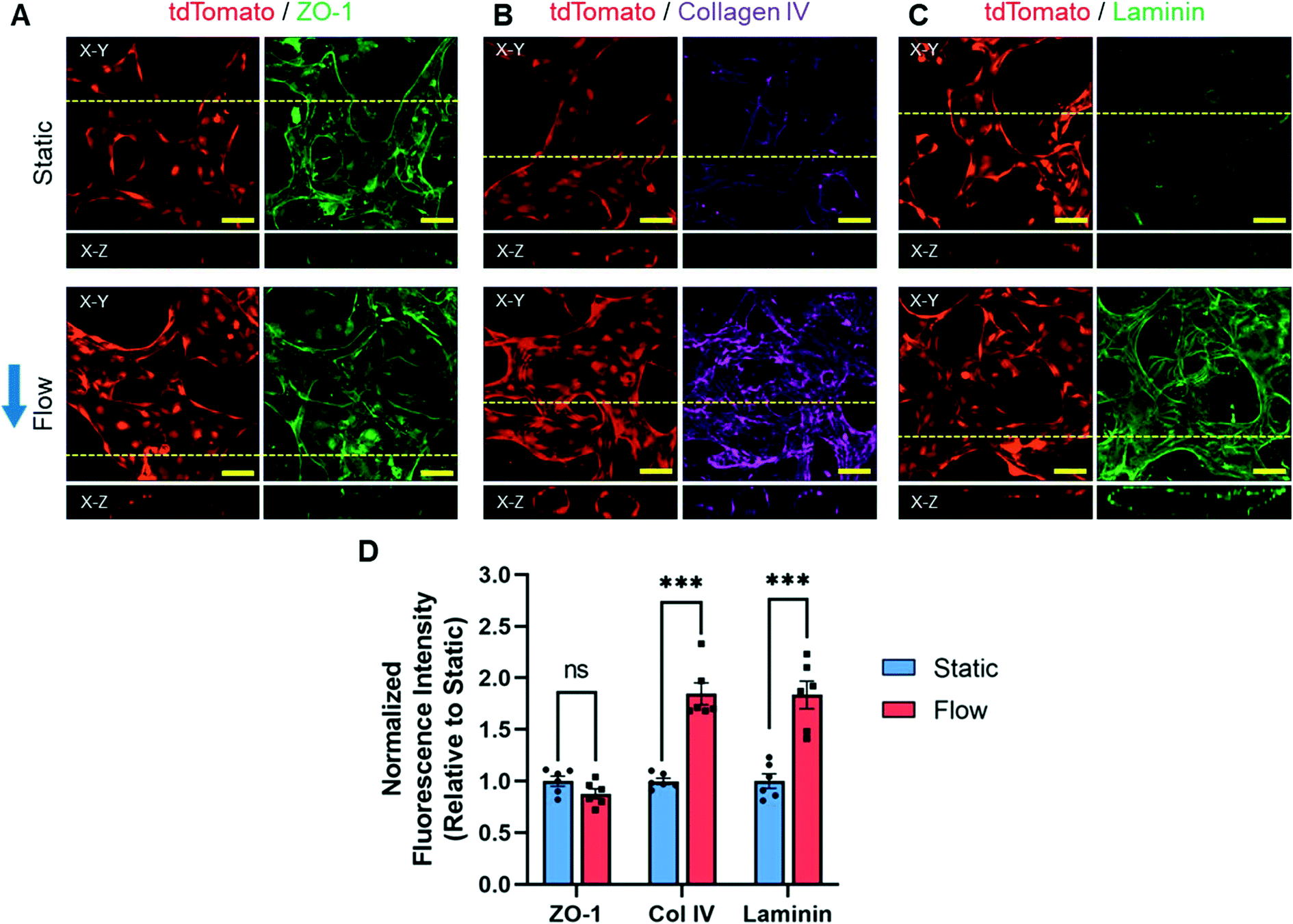

Fig. 7 Immunocytochemistry analysis of BEC proteins. A–C) Fluorescence confocal images of microvessels (tdTomato, red) cultured under static and flow conditions stained for ZO-1 (A, green), collagen IV (B, purple), and laminin (C, green) on day 8. Images show the maximum intensity projection of the X–Y plane and the cross-section of the X–Z plane at the yellow dashed line. Blue arrow indicates the direction of interstitial flow. Scale bars indicate 50 μm. D) Graph of fluorescence intensity of ZO-1, collagen IV, and laminin identified on microvessels cultured under static and flow conditions. Total fluorescence intensity was normalized to the vessel area and presented relative to the static condition mean. The data show mean value, error bars ± SEM, n = 6, ns p > 0.05, ***p < 0.001.

To confirm the presence of membrane transport proteins commonly found in the BBB, brain MVNs composed of BECs-EGFP, PCs, and ACs were also cultured under static or flow conditions for eight days. On day 8, both GLUT1 and P-gp were identified at the border of microvessel lumens under both culture conditions, indicating the expression of these membrane transporters in BECs-EGFP (Fig. S5†). In addition, we observed nuclei in the interstitial space that were also co-labeled for GLUT1 and P-gp. These cells were not EGFP+ and therefore not BECs-EGFP. For this reason, we assumed that these nuclei belonged to either PCs or ACs, although we did not co-label these cells with NG-2 or GFAP, respectively. Due to the high expression of GLUT-1 and P-gp in all brain MVN cell types, we did not perform any immunofluorescence analysis on these membrane transport proteins as it would be difficult to distinguish proteins exclusively expressed by microvessels.

Based on the idea of flow-mediated protein expression, we tested if the presence of interstitial flow had an effect on MVN protein secretion. We selected BDNF, a prominent neurotrophin, as the target protein for ELISA. In the mammalian brain, BDNF is predominantly produced and secreted by BECs^55,56 but has also been reported to be derived from PCs⁵⁷ and ACs,⁵⁸ albeit at lower quantities. We cultured BECs, PCs, and ACs under static or flow conditions and collected the conditioned culture medium to test for the presence of BDNF on days 2, 4, and 6. We considered higher concentrations of BDNF to be present in conditioned medium from flow samples simply due to interstitial flow removing soluble BDNF from the fibrin gel. However, we believed that this factor would be negligible due to the equilibration of the hydrostatic pressure difference in flow culture. We previously reported that the interstitial flow rate after 9 hours was essentially negligible (Results 3.1). Therefore, the distribution of soluble BDNF for the remaining 15 hours between volume reestablishments would be dependent on diffusion and identical to static conditions. After 15 hours without interstitial flow, we assumed that the concentration of BDNF reached an equilibrium throughout the fluidic channels of flow samples. This, coupled with the collection of conditioned culture medium every 48 hours from both high-pressure and low-pressure reservoirs, reduced the possibility that higher concentrations of BDNF in flow culture would be solely the result of convective mass transfer. The concentration of BDNF in conditioned culture medium from day 2 was below the minimum detectable limit of the ELISA kit (data not shown). However, the BDNF concentration was able to be measured for culture medium collected from day 4 and day 6 (Fig. S6B†). Between day 4 and day 6, the concentration of soluble BDNF increased from 25.29 ± 6.94 to 71.42 ± 21.96 pg mL⁻¹, respectively, in static culture. Similarly, in flow culture, the BDNF concentration increased from 49.41 ± 11.65 to 112.79 ± 17.26 pg mL⁻¹ from day 4 to day 6, respectively. These results show that the mean BDNF concentration was measured to be higher in flow culture than static culture on day 4 and day 6; however, no significant difference was calculated. From these data, we concluded that the presence of interstitial flow did not enhance the concentration of soluble BDNF in MFDs.

3.7 Interstitial flow decreased microvessel permeability

Lastly, we tested if the presence of interstitial flow had an influence on microvessel barrier function. To determine this, BECs-EGFP, PCs, and ACs were cultured under static or flow conditions for eight days. On day 8, microvessels from all the samples were perfused with 70 kDa dextran solution to measure the rate at which dextran permeated into the surrounding fibrin ECM (Fig. 8A). As demonstrated in the microsphere perfusion experiment, only MVNs cultured under flow conditions achieved anastomosis and experienced luminal flow (Fig. 4A and B). Similarly, in preliminary experiments, we observed that only microvessels cultured under flow conditions were able to be perfused with Oregon Green dextran (70 kDa) solution (Fig. S7†). In MVNs cultured under static conditions, most microvessel segments located in the hydrogel channel were inaccessible to the dextran solution. Eventually, dextran diffused into the center of the hydrogel channel and revealed the outline of hollow, non-perfused microvessels grown in static culture (Fig. S7†). For these reasons, time-lapse confocal images of microvessels grown in static and flow culture were acquired near the gel–liquid interface and the center of the hydrogel channel, respectively. For MVNs cultured under static conditions, the dextran solution entered microvessels at the hydrogel–liquid interface and was initially retained in the vascular lumen (Fig. 8A). After 150 seconds, trace amounts of dextran visibly leaked into the surrounding fibrin matrix. For MVNs cultured under flow conditions, dextran perfused into mature microvessels and was observed predominantly in the vascular lumen for the duration of imaging (Fig. 8A). The dextran permeability coefficient for microvessels cultured under static and flow conditions was found to be 8.07 ± 0.90 × 10⁻⁷ and 2.35 ± 0.27 × 10⁻⁷ cm s⁻¹, respectively (Fig. 8B). These results indicate that microvessels cultured under static conditions are more permeable to dextran than those cultured under flow conditions. Indeed, the maximum permeability coefficient for microvessels in static culture (1.16 × 10⁻⁶ cm s⁻¹) was nearly a full order of magnitude higher than the maximum value in flow culture (3.23 × 10⁻⁷ cm s⁻¹). In addition, the permeability coefficient values calculated for static culture were observed over a larger range than the values calculated for flow culture. Taken together, these data indicate that culturing MVNs under flow conditions enhances microvessel barrier function.

Fig. 8 Dextran permeability assay. A) Fluorescence time-lapse confocal images of microvessels (EGFP, green) cultured under static and flow conditions perfused with Texas Red 70 kDa dextran (red) at 0 and 150 seconds. Images show the X–Y plane and the cross-section of the Z–Y plane at the yellow dashed line. Blue arrow indicates the direction of interstitial flow. White dashed lines outline microposts. Scale bars indicate 50 μm. B) Graph of the permeability coefficient of 70 kDa dextran for microvessels cultured under static and flow conditions. The data show mean value, error bars ± SEM, n = 9, ***p < 0.001.

4. Discussion

In this work, we successfully developed 3D brain MVNs within a MFD and demonstrated the importance of interstitial flow regarding their formation, maintenance, and function. The MFD used from AIM Biotech has been implemented in previous studies, highlighting its utility and potential for adoption by other laboratories.^50,59,60 Our microfluidic model included self-assembled human MVNs composed of primary BEC microvessels supported by PCs and ACs, mimicking capillary networks found in the brain.^2,4 Brain MVNs were formed through natural endothelial processes and did not rely on physiologically-inaccurate channel geometries and configurations, like several previous MFD models.^13,61–64 The benefits of interstitial flow on vasculogenesis and angiogenesis have previously been characterized using non-brain endothelial cells.^39,40,65 However, in these studies, the majority of microvessel analysis was focused on morphological changes in response to interstitial flow. We present the first microfluidic model to characterize multiple effects of interstitial flow on brain-specific microvessel formation in the presence of PCs and ACs. Campisi and colleagues recently reported the development of similar brain MVNs using human induced pluripotent stem cell-derived endothelial cells in the absence of interstitial flow.¹⁶ Despite the resemblance to this experimental setup, we were unable to generate perfused microvessels in our model under static conditions. This distinction emphasizes how different experimental variables can drastically alter the functionality of brain MVNs developed in vitro. To produce perfused brain microvessels, we generated interstitial flow in our model and observed marked differences in vascular parameters as a result. Due to the dramatic effect on microvessel morphology, we continued our investigation to further elucidate the influence of interstitial flow on other characteristics of brain microvasculature. Recently, Figarol and colleagues studied the effects of continuous interstitial flow on brain MVNs using a Transwell-based model.⁴⁷ When compared to that study, our present work possesses three major distinctions: 1) formation of 3D brain MVNs within a MFD; 2) development of microvessels with open lumens capable of perfusion; and 3) quantitative analysis of multiple vascular morphological features, luminal flow and shear stress, PC and AC coverage, soluble protein concentration, and microvessel barrier function. These analyses demonstrate our model's potential to study the biological relevance of the bulk flow of interstitial fluid on the formation of functional human brain MVNs.

To study the effect of interstitial flow on human brain MVN formation, two experimental conditions were created in the MFD: static and flow. Under static conditions, a pressure difference of 0 mmH₂O generated an average dextran solution flow velocity of 0.08 μm s⁻¹ (Fig. 1D) and volumetric flow rate of 0.22 nL s⁻¹ (Fig. 1E) across the fibrin gel. Obviously, a pressure difference of 0 mmH₂O physically should not have generated any convective flow. The minuscule velocity and flow rate measured can likely be attributed to minute height differences in reservoir volumes due to pipetting error and unlevel imaging surfaces. Therefore, for all the samples cultured under static conditions, the movement of solutes in the fibrin hydrogel was assumed to be completely dependent on diffusion. Under flow conditions, a pressure difference of 1.5 mmH₂O generated an average dextran solution flow velocity of 5.73 μm s⁻¹ (Fig. 1D) and volumetric flow rate of 15.03 nL s⁻¹ (Fig. 1E) across the fibrin gel. These data represented the maximum values obtained under flow conditions and confirmed that the movement of solutes through the fibrin hydrogel was initially governed by convection. Simulated data showed that the interstitial flow velocity and rate decreased until they reached values three orders of magnitude lower after approximately 9 hours (Fig. 1F and G). During that time period, the bulk flow experienced by the fibrin gel was within the physiological range of interstitial flow found in most soft tissues (0.1 to 10 μm s⁻¹).^22,35,66,67 This feature of our model is critical considering the regulatory role of interstitial fluid flow in communication between neural, glial, and vascular cell types.³⁶

Although flow samples experienced nonzero convective flow rates after 9 hours, they were in the order of picoliters per second and therefore considered insignificant. Our experimental design's largest shortcoming was the lack of continuous flow after the reservoir volume equilibration. Cells in flow culture experienced conditions similar to static culture for extended time periods (approximately 15 hours) between medium changes. We also acknowledge that interstitial flow rates through cell-laden fibrin gels may differ from those through empty gels used to determine fibrin hydrogel permeability. However, our equation used to calculate hydrogel permeability (eqn (S2)†) does not contain a variable to account for the presence of dispersed objects, such as cells. With that said, the purpose of that experiment was to highlight the stark difference between the movement of fluid through fibrin gels under static and flow conditions and obtain an estimate of the interstitial flow rate over time. In actuality, the interstitial flow rate profile likely changed as BECs expanded and fused into microvessels in the hydrogel channel. Additionally, the BEC monolayer seeded in both fluidic channels (Fig. 3C) on day 3 likely acted as a physical barrier to flow across the length of the fluidic channel. This barrier would have decreased the interstitial flow rate and extended the time before equilibrium was reached. However, the equations used to simulate bulk flow through the fibrin hydrogel over time do not consider the presence of a semi-permeable barrier and could not be used to simulate interstitial flow after day 3 (ESI† Methods S.1). Moreover, the pressure difference certainly decreased at a faster rate once MVN anastomosis was achieved. Although luminal flow is a desired attribute of brain capillaries, limited reservoir volumes prevented long-term exposure to this stimulus. These problems could be circumvented by the implementation of a microfluidic pump that constantly maintained the pressure across the hydrogel channel.⁶⁸ However, we used a pumpless microfluidic system because it was simpler, cheaper, occupied less space, and used low reagent volumes. Future experiments with pumpless MFDs could implement larger reservoir attachments or ECMs with lower permeabilities to extend flow culture periods. Despite the limitations of our design, we chose to implement non-continuous interstitial flow in our cultures because it was substantial enough to produce a quantifiable effect on brain MVN formation and function.

To the best of our knowledge, we are the first group to use a MFD to explore the effects of interstitial flow on BEC angiogenesis in the presence of PCs and ACs. BEC angiogenesis was enhanced under flow conditions, as evidenced by the increase in the sprout number, length, and diameter observed by day 7. In addition to the inclusion of VEGF in the culture medium, PCs and ACs were seeded within the fibrin hydrogel to encourage angiogenic sprouting, similar to Lee and colleagues.¹⁷ We predicted that PCs and ACs would promote endothelial morphogenesis through direct cell–cell contact and the secretion of pro-angiogenic factors.^2,4,69,70 However, in our study, BEC angiogenesis was mediated by both biological and physical cues. In flow culture, we observed enhanced angiogenesis against the direction of interstitial flow (Fig. 2B), similar to previous studies using non-brain endothelial cells.^22,71 Those studies reported that interstitial flow attenuated soluble factor gradients and acted as the directional cue for angiogenesis.^22,71 In our design, the mean interstitial flow rate experienced by BEC angiogenic sprouts at the inception of flow culture was 5.73 μm s⁻¹. This value is close to the interstitial flow rate used in previous studies (6 μm s⁻¹) to eliminate any established morphogen gradient in MFDs.^22,65,72 Although our flow rate decreased exponentially over time, the direction of bulk fluid movement remained the same until reservoir volume equilibration. Until that moment, it is likely that no gradients of soluble growth factors released by PCs and ACs were able to develop due to the presence of interstitial flow through the fibrin gel. The evident difference between the morphology of angiogenic sprouts in static and flow culture highlights the necessity of implementing interstitial flow in future in vitro models of brain microvessel sprouts.

We observed the formation of brain MVNs in both static and flow cultures. However, microsphere perfusion demonstrated that microvessels formed under static conditions did not allow for significant luminal flow. In contrast, most microvessels grown in flow culture possessed perfused lumens. Although we predicted that flow conditions would increase the chance of microvessel perfusion, we did not anticipate the complete lack of anastomosis in static samples. Previous studies have shown that brain MVNs generated without interstitial flow were able to be perfused with dextran solutions.^16,17 This distinction from our observations highlights the potential impact of experimental design variables (cell source, density, arrangement, and ECM composition) on the generation of perfused microvessels. Our study showcases that the addition of interstitial flow is sufficient enough to achieve anastomosis uniformly and reproducibly in cell-laden hydrogels that would otherwise be non-perfused. Although interstitial flow has been shown to promote the anastomosis of capillary networks composed of non-brain endothelial cells,^{22–26,41,40} we are the first to report the direct influence of interstitial flow on the perfusion of brain MVNs developed within a MFD. Future researchers should consider the application of interstitial fluid flow in their models to increase the chance of developing perfused microvessels.

With a pressure of 0.75 mmH₂O, the average microvessel shear stress experienced by MVNs formed under static and flow conditions was 0.018 and 0.394 dyn cm⁻², respectively (Fig. 4D). Although shear stress values vary depending on the vessel, the shear stress experienced by microvessels in flow culture was within the range of reported physiological values (0.1–60 dyn cm⁻²).^73,74 It can be assumed that microvessels in flow culture experienced wall shear stress values comparable to those observed in certain brain microvessels. However, the shear stress experienced during microsphere perfusion by microvessels from static culture resembled that of extremely low flows present during early blood vessel formation (∼10⁻²–10⁻⁴ dyn cm⁻²).⁷⁴ To reiterate, these values were only experienced by microvessels briefly during the perfusion assay. Microvessels under static conditions did not experience significant shear stress during culture. As a further point, microvessels grown under flow conditions likely experienced higher shear stress values when a pressure difference of 1.5 mmH₂O was applied. Vessel wall shear stress is paramount for vascular health and is directly responsible for cytoskeletal remodeling, transcriptional regulation of genes, and activation of signaling cascades in endothelial cells.^73,75 A critical design flaw in previous microfluidic models of MVNs is the lack of luminal flow present during microvessel development.^16,49,51,76 Although our experimental design did not have continuous flow, we predicted that intermittent luminal flow would have significant effects on microvessel formation and function.

To the best of our knowledge, we are the first to explore the effects of interstitial flow on brain MVN formation within a MFD. After 8 days, the average branch diameters (Fig. 5E) of microvessels under static (28.65 μm) and flow (37.20 μm) conditions were within the range for that of brain microvasculature observed in vivo (3 to 100 μm).^18,19 MVNs cultured under flow conditions produced larger, more connected microvessels than those cultured under static conditions. This was probably due to the higher availability of nutrients and the more efficient removal of cellular waste due to convective fluid transport through the fibrin hydrogel. However, the principal reason for this discrepancy in microvessel morphology was likely the result of luminal flow experienced after MVN anastomosis. Wall shear stress and transmural pressure gradients regulate the blood vessel diameter, depending on the elasticity and thickness of the vascular wall.^73,77 The luminal flow experienced by microvessels under flow conditions plausibly caused microvessels to grow in diameter, as well as maintain their morphology for extended culture. Shear stress-induced vessel dilation has been shown to be accompanied by enhanced endothelial cell nitric oxide production, cytoskeletal reorganization, and increased ECM interaction through integrins.^78,79 In addition, microvessel enlargement due to perfusion likely promoted the fusion of adjacent expanding vessels, creating interconnected MVNs. Microvessel fusion in static culture was dependent solely on paracrine signaling from proximal cells and local ECM remodeling. The discernible effect of interstitial flow on microvessel morphology adds credence to the importance of implementing bulk interstitial fluid flow when generating brain MVNs in vitro.

We did not observe significant changes in vascular morphology in microvessels cultured under flow conditions between day 8 and 14. In contrast, microvessels in static culture decreased in size and were more segmented after two weeks. Interstitial and luminal flow likely prevented significant microvessel regression through shear stress-mediated processes previously described.^78,79 Blood vessel regression and pruning is a natural part of vascular remodeling.⁸⁰ However, the fragmented microvessels observed in static culture on day 14 were likely the result of vessel destabilization induced by the lack of physical and biological stimuli. Previous studies of brain MVNs developed in vitro were typically terminated after approximately one week in culture.^16,17 It is possible that microvessels developed in these MFDs would regress in long-term culture due to the absence of interstitial and luminal flow. In our model, the presence of microvessels with open lumens after two weeks of flow culture confirms the importance of interstitial flow for vessel maintenance as well as highlights the potential longevity of this experimental design. The maintenance of perfused brain MVNs is advantageous for in vitro models attempting to recapitulate time-intensive biological processes of the neurovascular unit, such as neurogenesis or neurodegenerative disease progression.^81,82 The optical transparency of this MFD also facilitates the long-term visualization of these cellular interactions, which would be difficult to perform in in vivo models.

The MVNs developed in static and flow culture were composed of BEC microvessels supported by PCs and ACs (Fig. 6B). Both PCs and ACs are fundamental for vascular health and regulate BBB function.^2,4 In our model, PCs associated with microvessels directly while ACs extended processes which terminated in endfeet at the microvessel border. It was postulated that PCs and ACs would secrete pro-vasculogenic factors and promote microvessel maturation through direct contact with BECs.¹⁶ We initially hypothesized that the presence of interstitial flow would increase PC and AC microvessel coverage. However, only AC coverage was enhanced for microvessels cultured under flow conditions compared to static culture. This was not the result of an increase in the number of GFAP+ACs or the total length of astrocytic processes in the fibrin gel. Microvessels likely came into contact with proximal astrocytic processes as they dilated. The lumens of microvessels formed under static conditions did not expand as extensively as those under flow conditions. Therefore, we surmised that the enhanced AC coverage was likely due to the physical expansion of microvessels and not a direct response of astrocytes to interstitial flow. It is also possible that microvessels under flow conditions produced soluble signals that better attracted astrocytic endfeet; however we did not investigate this. Nonetheless, increased AC coverage may be useful in future studies to investigate the interactions of vascular and glial cells. As an example, the clearance of harmful proteins from the brain through the glymphatic system is dependent on the function of perivascular channels dictated by aquaporin-4 on astroglial endfeet.³⁷ The study of this macroscopic waste removal in vitro would be applicable for characterizing the progression of human neurodegenerative diseases.⁸³

The presence of interstitial flow was the independent variable in our experiments. However, once anastomosis was achieved in flow culture, microvessels were likely influenced by intraluminal flow as well. Indeed, shear stress from luminal flow in blood vessels has a direct effect on the gene expression of vascular endothelial cells.^44,75,84 We hypothesized that shear stress experienced by microvessels from luminal flow would enhance the expression of BBB-related proteins in BECs. While there was no change in the relative fluorescence intensity of ZO-1, an increase in collagen IV and laminin intensities was observed in microvessels cultured under flow conditions compared to static conditions (Fig. 7D). We found this result interesting considering that previous studies have demonstrated that laminar shear stress enhances the expression of several endothelial cell tight junction proteins, including ZO-1.^46,85 However, no difference in the expression and localization of claudin-5, occludin, and ZO-1 was observed for iPSC-derived human brain microvascular endothelial cells subjected to shear stress.⁸⁶ Furthermore, while Figarol and colleagues observed an upward trend in protein and gene expression of claudin-5 and ZO-1 in brain microvascular endothelial cells exposed to interstitial flow, no significance was reported.⁴⁷ Due to these results, as well as our own ZO-1 data, we did not test the expression of other tight junction associated proteins. It is possible that the intermittent shear stress profile BECs experienced under flow conditions was not conducive to tight junction improvement. Nonetheless, the enhanced fluorescence intensity of collagen IV and laminin under flow conditions correlated with data from previous studies. Endothelial cells exposed to high shear stress saw a significant increase in the mRNA expression of collagen IV compared to those under static conditions.⁸⁷ In addition, endothelial cells experiencing shear stress were reported to have reduced production and secretion of matrix metalloproteinase-2 (MMP2), which degrades basement membrane proteins such as collagen IV.^87,88 Basement membrane remodeling of laminin structures and laminin-associated integrins was also observed in endothelial cells exposed to flow-induced shear stress.⁸⁹ Lastly, laminin 511 was previously identified as an endothelial cell-derived basement membrane protein that was essential for shear stress response.⁹⁰ Taken together, these results conclude that shear stress upregulates basal lamina proteins that are responsible for vascular remodeling as well as shear stress detection. For these reasons, we surmise that the shear stress experienced by microvessels in flow culture was the cause of the enhanced fluorescence intensity observed for collagen IV and laminin. It is possible that the interstitial flow experienced on the basolateral membrane of microvessels contributed to increased basement membrane production. However, we found no literature that claimed that interstitial fluid flow specifically influenced collagen IV and laminin production. Moreover, the increased mean intensities of collagen IV and laminin experienced in flow culture do not necessarily indicate that basement membrane protein production was enhanced. It is possible that basement membrane degradation was reduced in flow culture, compared to static culture, which would align with previous studies regarding endothelial cell MMP production.^87,88 Future studies regarding mRNA levels, as well as the concentration of extracellular MMPs, are needed to confirm the cause of the increased intensity of basement membrane proteins.

We confirmed the expression of both GLUT1 and P-gp in microvessels composed of BECs-EGFP cultured under static and flow conditions (Fig. S5†). The localization of GLUT1 and P-gp on BECs is critical for the function of the BBB in vivo.¹ The expression of both membrane transport proteins in BECs-EGFP indicates the presence of a microvessel transport barrier. However, we also observed the expression of GLUT1 and P-gp in all cells not expressing EGFP, which were assumed to be PCs and ACs by default. Although we predicted that these membrane transporters would be localized exclusively at the luminal and abluminal membrane of BECs, the expression of GLUT1 and P-gp is not uncommon in mural and glial cells. Indeed, in addition to BECs, GLUT1 has been shown to be expressed in vascular pericytes^91–93 and astrocytes.^94,95 Similarly, P-gp has been reported to be localized along brain capillaries as well as adjacent pericytes^96,97 and astrocytes.^96,98,99 The presence of GLUT1 and P-gp in the membranes of BECs, PCs, and ACs suggests that these proteins govern the transportation of substrates throughout the entire brain at the cellular level.¹ The expression of both transmembrane proteins in all brain MVN cell types in our model gives credence to its ability to potentially replicate this substrate regulation in vitro. Moreover, P-gp has a significant role in modulating multidrug resistance of numerous brain tumors.¹⁰⁰ An in vitro model of human brain MVNs with physiologically-accurate expression and localization of P-gp would be valuable for the development of effective anti-cancer drugs.

We further speculated that flow conditions would enhance BEC secretion of BDNF since endothelial cells have been shown to exhibit flow-specific protein secretion patterns.¹⁰¹ However, flow culture did not significantly increase BDNF concentration compared to static culture, indicating that interstitial flow had no discernable effect on the secretion of BDNF. It is possible that a statistical difference would have been found with a larger sample size. Due to the absence of interstitial flow for the majority of time (approximately 15 hours) between reservoir volume height reestablishments in flow samples, we maintain that the concentration of soluble BDNF was predominantly due to cellular secretion and not the removal of BDNF from the fibrin gel due to bulk fluid movement. Nonetheless, the increase in BDNF concentration between day 4 and day 6 under both static and flow conditions demonstrated that MVN cells (predominantly BECs) increased their secretion of the neurotrophin as microvessels matured. This is encouraging for generating in vitro models of brain MVNs to recapitulate the neurovascular unit, given the critical role of BDNF in neuron survival and maturation.

Healthy brain capillaries are characterized by low permeability to most molecules, including dextran.¹ Dextran (70 kDa) permeability coefficients of 8.07 × 10⁻⁷ and 2.35 × 10⁻⁷ cm s⁻¹ were calculated for microvessels cultured under static and flow conditions, respectively (Fig. 8B). In our model, microvessels cultured under both conditions had lower permeabilities compared to other human in vitro BBB models that implemented Transwells^102–104 or endothelial cell-lined microfluidic channels.^13,61 This demonstrated an advantage of MVNs being formed through natural morphogenic processes in vitro. However, only the mean permeability coefficient for microvessels in flow culture was comparable to that of rat cerebral microvessels (1.5 × 10⁻⁷ cm s⁻¹)¹⁰⁵ and human MVNs formed in MFDs.^49,106 Microvessels formed under static conditions were visibly leakier than those formed under flow conditions. Initially, we considered conducting permeability studies with alternative molecules (Lucifer yellow and rhodamine 123). However, the stark contrast between the average dextran permeability of static and flow samples effectively demonstrated the improvement in barrier function due to interstitial flow. It is unlikely that the opposite trend would be observed with solutes of lower molecular weights. Although we hypothesized that interstitial flow would reduce permeability to dextran, we found our results interesting considering the localization of ZO-1 at BEC junctions observed on microvessels grown in static and flow culture (Fig. 3D). In addition, no difference in ZO-1 fluorescence intensity was recorded between microvessels from both conditions (Fig. 7D). Given the role of ZO-1 in the function of the BBB,¹⁰⁷ we expected the difference in microvessel permeability values between static and flow cultures to be less pronounced. However, microsphere perfusion revealed that static conditions produced microvessels that allowed microspheres to leak into the fibrin extracellular space (Fig. 4B). Given the much smaller size of a dextran molecule to a microsphere, it is not surprising that dextran was able to permeate into the fibrin matrix, despite the presence of healthy tight junction proteins. This might also explain the larger range of permeability values observed in static samples, as less porous microvessels might possess barrier functions comparable to those of microvessels grown in flow culture. Moreover, basal lamina proteins, such as collagen IV and laminin, act as a physical barrier that contribute to low permeability of brain capillaries.¹⁰⁸ It is possible that the increased accumulation of basement membrane proteins in the perivascular space of microvessels in flow culture contributed to their vascular function. Lastly, since ACs provide cellular signals that enhance endothelial cell barrier function, it is also possible that the increased AC coverage of microvessels observed in flow culture had an effect on vascular permeability, although we did not investigate this.⁴ In conclusion, the generation of perfusable, semi-permeable microvessels under flow conditions emphasizes the importance of interstitial flow in the formation of functional brain MVNs. This is significant to the development of future in vitro BBB models and validates the use of this design for future drug screening and permeability studies.¹⁰⁹

5. Conclusion

In this study, we have demonstrated the significance of interstitial flow in the development of human brain MVNs within a MFD. MVNs possessed suitable cellular interactions from PCs and ACs and expressed BBB-related proteins. Under flow conditions, microvessels were perfused and exhibited improved vascular morphological features as well as enhanced endothelial barrier function. These results demonstrated the notable influence of interstitial flow on brain MVN formation and highlighted the coupling of physical and biological cues that regulate brain microvessel maturation. Together, these features make our experimental design an ideal in vitro model of human brain microvasculature that can be easily replicated by other laboratories. The presence of perfused, functional brain MVNs will be valuable in preclinical studies to determine the efficacy of drugs for the central nervous system that rely on vascular delivery.¹⁰⁹ Moreover, modification of the current experimental design could be used to study the progression of neurodegenerative diseases that are characterized by BBB dysfunction.^5–10 Lastly, future mechanistic studies can be performed in this platform to elucidate the cellular mechanics of interstitial flow-mediated microvessel function.
