Calcination-free production of calcium hydroxide at sub-boiling temperatures

Abstract

Calcium hydroxide (Ca(OH)₂), a commodity chemical, finds use in diverse industries ranging from food, to environmental remediation and construction. However, the current thermal process of Ca(OH)₂ production via limestone calcination is energy- and CO₂-intensive. Herein, we demonstrate a novel aqueous-phase calcination-free process to precipitate Ca(OH)₂ from saturated solutions at sub-boiling temperatures in three steps. First, calcium was extracted from an archetypal alkaline industrial waste, a steel slag, to produce an alkaline leachate. Second, the leachate was concentrated using reverse osmosis (RO) processing. This elevated the Ca-abundance in the leachate to a level approaching Ca(OH)₂ saturation at ambient temperature. Thereafter, Ca(OH)₂ was precipitated from the concentrated leachate by forcing a temperature excursion in excess of 65 °C while exploiting the retrograde solubility of Ca(OH)₂. This nature of temperature swing can be forced using low-grade waste heat (≤100 °C) as is often available at power generation, and industrial facilities, or using solar thermal heat. Based on a detailed accounting of the mass and energy balances, this new process offers at least ≈65% lower CO₂ emissions than incumbent methods of Ca(OH)₂, and potentially, cement production.

---

Introduction

Calcium hydroxide (Ca(OH)₂), also known as portlandite, slaked- or hydrated-lime finds wide use in industries and applications such as: soil stabilization in road and building construction,^1,2 bleaching in the Kraft paper process,³ and as a flocculant in water treatment.^4,5 According to the U.S. Geological Survey (USGS), global lime (Ca(OH)₂ and CaO) production was 420 million metric tons (t) in 2018.⁶ Moreover, Ca(OH)₂ is of interest in the climate change context because it can uptake/sequester CO₂ to form calcium carbonate (CaCO₃).^7,8 For example, 1 t of Ca(OH)₂ can uptake 0.59 t of CO₂. Thus, any process that emits less than 0.59 t of CO₂ over the course of Ca(OH)₂ production has the potential to achieve a “carbon-negative” outcome. Carbonation reactions can also result in cementation.^9,10 This is significant as the ability to utilize Ca(OH)₂ as a cementation agent,¹¹ or indeed as a feedstock (for CaO) could greatly diminish the CO₂ emissions associated with traditional cement (“ordinary portland cement”: OPC) production. Today, however, the production of Ca(OH)₂ features a CO₂ footprint similar to OPC production (∼1 t of CO₂ per t of Ca(OH)₂ produced). This is because Ca(OH)₂ production, similar to OPC production is based around the age-old process of limestone calcination (i.e., thermal decomposition, which results in the desorption of the “mineralized CO₂” bound within the limestone and accounts for ≈65% emissions associated with the process; the remainder being from the combustion of fossil fuels to power kiln operations) at ≈900 °C to produce CaO,^12,13 the precursor of Ca(OH)₂; that is subsequently granulated and hydrated (i.e., contacted with water) to produce Ca(OH)₂. In addition, the process requires quarried limestone that not only consumes nonrenewable mineral resources, but also disrupts ecosystems, and causes pollution and biodiversity destruction.^14,15

Ca-Containing alkaline wastes accrue as a waste-/by-product of numerous large-scale industries. This includes, for example, slags from iron and steel production, and fly ashes from coal combustion. These materials are not only produced in large amounts on an ongoing basis, but there exist tremendous historical reservoirs of these materials in the U.S. and across the world.^16–18 For example, even now the U.S. produces greater than 17 million t of slag^19,20 and 91 million t of coal combustion residuals. Of the latter, only 58% are beneficially utilized.²¹ And, global waste reservoirs host well over a billion tons of slag,¹⁶ and tens of billions of tons of fly ash,^22–24 based on broad estimates. Underutilized quantities of alkaline wastes, i.e., fly ashes and slags, are routinely disposed in landfills, which not only implies a waste disposal cost (“tipping fees”, NB: the average tipping fee in the U.S. is on the order of $50 per t),²⁵ but can also result in environmental damage.^26–29 Therefore, with a specific goal of enhancing waste utilization, resource recovery and reutilization, and circular economy, we demonstrate an approach to extract Ca-from alkaline industrial wastes,^30,31 and produce Ca(OH)₂ via a calcination-free process. While herein we focus on alkaline industrial wastes, of course, the broad contours of this process are also applicable to alkaline rock species, which although harder to solubilize unless externally stimulated,^32,33 offer the potential to offer a near-limitless source for alkaline element extraction.

New concept

The conceptual basis of our new process involves the leaching/dissolution of Ca-bearing wastes to mobilize Ca-species in solution (see process flow diagram, Fig. S1†). This results in an aqueous Ca-abundance that is typically substantively lower than the saturation concentration of Ca(OH)₂ (∼21.2 mmol L⁻¹ at pH = 12.475 and T = 25 °C (ref. 34)).^30,31,35 Therefore, it is necessary to concentrate the leachate by a factor of 2 or more times depending on the initial Ca-content of the leachate. Such concentration is achieved by reverse osmosis (RO) based ion-separations wherein by means of size and/or charge exclusion;³⁶ divalent cations (e.g., Ca²⁺, Mg²⁺) can be enriched in the retentate stream. RO is used to achieve large production rates of saturated solution and to improve the energy efficiency of the concentration process. The retentate is then subjected to a temperature swing, e.g., using low-grade waste heat (≤100 °C) as derived from the flue gas of a power plant or another heavy industry operation, wherein the retrograde solubility of Ca(OH)₂ (ref. 37) ensures its precipitation to an increasing extent with increasing temperature. The advantage of such a low-temperature approach is straightforward: it obviates the need for limestone's decarbonation and eliminates the associated CO₂ emissions. Moreover, the precipitation step can be accomplished at ambient pressure and at sub-boiling temperatures, enabling its deployment using a wide range of potential waste heat streams including coal power plants and combined cycle natural gas power plants.³⁸ Besides, operating at temperatures above 100 °C would be energetically inefficient due to the low solubility of Ca(OH)₂ in water³⁹ and the large heat of vaporization of water. These general characteristics facilitate process intensification (PI) by renewable electrification and/or renewable heat (solar thermal) integration. Towards this end, we establish the feasibility of the low-temperature process, assess its limitations, and finally compare its energy and CO₂ intensity to incumbent methods.

Materials and methods

Slag leaching

Slag leachates were prepared by contacting 1, 3, 5, and 10 g of a technical basic oxygen furnace (BOF) slag (i.e., a crystalline slag‡) with 100 mL DI water to achieve solid to liquid mass fractions (s/l) of 0.01, 0.03, 0.05, and 0.1, respectively. To prepare the slag for leaching, slag fines (<9.5 mm) were dried at 70 °C for 24 h, ground for 1 hour in a planetary ball mill (MSK-SFM-1), and manually sieved to retain particles with a size lower than 106 μm. Batch leaching was conducted in 200 mL plastic bottles under either unstirred or stirred conditions at room temperature. Stirring was controlled using a Corning LSE orbital shaker (6780 NP) at 200 rpm. Solution aliquots of 2 mL were extracted after 0, 5, 10, 30, 60, 180, 360 and 720 minutes for analysis of total dissolved calcium, silicon, sodium, aluminum, and magnesium analysis using a PerkinElmer Avio 200 inductively coupled plasma – optical emission spectrometer (ICP-OES). Prior to elemental analysis, the samples were filtered through 0.2 μm syringe filters and then diluted in 5 vol% HNO₃. The ICP-OES was calibrated using standard solutions containing the elements of interest in concentrations of 0, 0.1, 1, 10, 25, 50, and 100 ppm which were prepared using analytical (1000 ppm) standards purchased from Inorganic Ventures.

The chemical composition (in mass%) of the simple oxide constituents of the slag was measured using X-ray fluorescence (XRF). The BOF slag was dominantly composed of CaO (38 mass%), followed by Fe₂O₃ (31%), SiO₂ (13%), MgO (6%), and Al₂O₃ (4%). This information was used to quantify calcium extraction (X_Ca) according to: where n_Ca,sln(t) are the moles of calcium in the solution at time t, and n_Ca,slag are the moles of calcium in the solid slag as measured by XRF. The calcium leaching rate ṅ_Ca (in mmol_Ca/ h⁻¹) at time t was defined as: where V_b is the solution volume and t is the leaching time. The leaching rate affects the production rate (“yield”) of Ca(OH)₂, and the efficiency of slag valorization because, from stoichiometry, one mole of Ca-leached from the slag should produce one mole of Ca(OH)₂ as per the reaction: Ca²⁺ + 2OH⁻ ↔ Ca(OH)₂.

Reverse osmosis (RO) concentration

RO concentration was carried out using two calcium-rich alkaline solutions, namely a reagent grade Ca(OH)₂ solution and a slag leachate solution. Reagent grade Ca(OH)₂ was added to 1 L deionized (DI) water (resistivity ≥ 18.2 MΩ cm) to produce 5 and 10 mmol L⁻¹ (mM) reagent grade Ca(OH)₂ solutions. On the other hand, the slag leachate was prepared by leaching, over time, 150 g of as-received basic oxygen furnace (BOF) slag into 3 L of DI water (s/l = 0.05) at 25 °C. The concentration of total dissolved calcium [Ca] in the solution after leaching was generally in excess of 14 mM, whereas sodium, potassium, silicon, and aluminum impurities were present in concentrations lower than 0.1 mM, as measured by ICP-OES. The concentration of [Ca] in the leachate was adjusted to 5 mM and 10 mM by dilution with DI water to obtain 1 L of solution. Thereafter, the solutions were concentrated using a cross-flow flat-sheet membrane cell (FR42 Sterilities Corp.) fitted with thin film composite (TIC) polyamide RO membranes sourced from Dow Filmtec^® (BW30XFR) with an active area of 42 cm². Prior to each experiment, the membranes were pre-treated by soaking them in DI water for at least 24 hours. A new membrane was used for each experiment to ensure reproducibility. Additionally, a gear pump (GJ Series Micropump®) was used to pressurize the Ca-containing solutions through the membrane. Furthermore, 99% pure N_2(g) at atmospheric pressure was continuously bubbled into the feed tank at a flowrate of 0.02 L min⁻¹ to minimize the presence of atmospheric CO₂ and to avoid the carbonation of the alkaline Ca-rich solution, and the resulting (undesirable) formation of CaCO₃.

The feed stream, with an initial Ca-concentration [Ca]_i of 5 or 10 mM, was pressurized through the RO membrane at constant flow rate of 120 mL min⁻¹ and gauge pressure of 413 kPa. A by-pass line was used to maintain a constant feed pressure throughout the duration of the experiment. The retentate was recirculated back to the feed tank for further concentration while the solution that permeated through the membrane was collected in the permeate tank. The concentration of calcium as a function of time was measured by taking 5 mL aliquots from both the feed [Ca]_f and the permeate [Ca]_p tanks every hour. Additionally, the permeate mass flow rate was monitored using an analytical balance (mass resolution: 1 mg) and a timer. A schematic of the RO experimental setup is shown in Fig. S2.† The performance of the RO system was assessed based on three typical metrics: (i) the water recovery Y, (ii) the salt rejection R, and (iii) the concentration factor CF. The water recovery Y (in %), represents the ratio of water volume recovered as permeate V_p (in L), to the initial volume of solution V_i (in L), i.e.,⁴⁰ . Note that in industrial systems, the water recovery Y ranges typically between 35–85%.^40–43 In addition, salt rejection R (in %) represents the fraction of dissolved species that did not pass to the permeate side i.e., the percentage of Ca-rejected by the membrane which is expressed as:⁴⁴ where [Ca]_f and [Ca]_p are the Ca-concentration in the feed and permeate solutions, respectively. For reference, NaCl rejection ranges from 95–99% for the membrane used herein. Finally, the retentate concentration factor CF_r and the permeate concentration factor CF_p were respectively defined as the ratio of [Ca]_f and [Ca]_p to the initial calcium concentration in solution [Ca]_i.⁴⁵

Following concentration, scaling was observed on the RO membranes. To analyze the mineral scale formed, the membranes were dried for 24 h under vacuum conditions. Thereafter, carbon tape was used to remove the scale and to mount it on a metallic support. The morphology and elemental composition of the dried solids were evaluated using a FEI Nova 230 Scanning Electron Microscope fitted with an energy dispersive (SEM-EDS) X-ray analyzer under high vacuum conditions and at an accelerating voltage of 15 kV.

Ca(OH)₂ precipitation by temperature swing

Ca(OH)₂ precipitation was carried out by adding reagent grade Ca(OH)₂ to 100 mL DI water to obtain solutions saturated in Ca(OH)₂ at 25 °C (∼21 mM).³⁷ In addition, the actual slag leachate obtained following RO concentration was also utilized in the precipitation experiments. The experiments were carried out by placing the solutions in a stirred jacketed glass reactor, which was connected to a circulating water bath (Polyscience AD07R-20) that was thermally equilibrated at 25 °C. The reactor was sealed with Parafilm™ to minimize evaporation and N_2(g) was bubbled through the solution to inhibit CO₂ dissolution in water and the subsequent carbonation of Ca(OH)₂. To exploit the (inverse) solubility dependence of Ca(OH)₂ with temperature and to induce precipitation, the solution temperature was increased by circulating hot water through the jacketed reactor. Reagent grade Ca(OH)₂ solutions were heated to 85 °C at (actual) heating rates (dT/dt) of 10 °C h⁻¹, 27 °C h⁻¹, and 54 °C h⁻¹. The solution's electrical conductivity σ_exp, pH, and temperature T were measured continuously using a ThermoScientific Orion Versa Star meter. These measurements were used to determine the onset of Ca(OH)₂ precipitation and the [Ca] concentration in solution according to:,⁴⁶ where λ_i is the equivalent conductivity, z_i is the valence, and c_i is the concentration of each ionic species (i = Ca²⁺, OH⁻). The equivalent conductivity of any ionic species λ_i was calculated from the Onsager relations expressed as:⁴⁷ λ_i(T) = λ_i(T) − S_i(T)Γ^1/2, where λ_i is the ionic conductivity of an ionic species at infinite dilution, S is a parameter dependent on the temperature, viscosity, and dielectric constant of the medium, and Γ is the ional concentration of the solution (see ESI†).⁴⁷ In the case of precipitation using the concentrated slag leachate, the temperature was increased to 70 °C at a fixed rate of 27 °C h⁻¹.

To confirm the composition of the precipitates, following precipitation, the solution was vacuum filtered using Whatman filters (3–5 μm pore size) and a heated ceramic funnel to minimize the redissolution of the precipitated Ca(OH)₂. The crystals were then dried in an initially N_2(g)-purged desiccator for 24 h under vacuum at room temperature to remove water and minimize the carbonation of Ca(OH)₂. The dried solids were placed on a carbon tape for morphology and elemental analysis using SEM-EDS, as previously discussed. Further, a small amount (∼3 mg) of dried Ca(OH)₂ crystals were characterized using thermogravimetric analysis (TGA) using a PerkinElmer STA 6000. To do so, the sample was initially equilibrated at 35 °C for 5 min to establish a mass baseline and then heated gradually from 35 °C-to-900 °C at a rate of 10 °C min⁻¹ while continuously monitoring the mass. Ultra-high purity N_2(g) was circulated through the sample chamber at a flow rate of 20 mL min⁻¹. The mass change versus temperature revealed the presence and quantity of Ca(OH)₂ and CaCO₃ present on account of their characteristic thermal decomposition at temperatures in excess of ∼400 °C^48,49 and ∼600 °C,⁵⁰ respectively.

Results and discussion

Slag leaching

Fig. 1 shows the calcium concentration [Ca] as a function of time (in log scale) for slag particles smaller than 106 μm leached in DI water under (a) unstirred and (b) stirred conditions. It indicates that [Ca] concentration increased, approximately by a factor of 2, from unstirred to stirred conditions during the first hour of reaction. Stirring enhanced the rate of slag dissolution because calcium transport from the solid/liquid interface to the bulk solution was aided by convective mass transfer, as opposed to unstirred conditions wherein dissolution is transport (diffusion) limited.⁵¹ Increasing s/l resulted in larger [Ca] concentrations since adding more slag increased the amount of calcium available for leaching. Fig. 1(b) indicates that the maximum [Ca] concentration obtained was on the order of 17.3 ± 3.1 mM for s/l = 0.1 after 6 h, under stirred conditions, which is around 75% of the saturation concentration of Ca(OH)₂ at 20 °C (22 mM).³⁴ The decrease in the [Ca] concentration after achieving its peak value is indicative of secondary precipitation that consumed some of the [Ca] in solution. Such secondary precipitation is consistent with the reduction in the [Si] concentration in the leachate at similar times (see ESI: Fig. S3†), suggesting the precipitation of a calcium silicate hydrate (C–S–H) phase.⁵² As such, although calcium leaching is enhanced and somewhat accelerated by increasing s/l, the amount of [Ca] that can be sustained in solution is limited by the equilibrium solubility of one or more phases, including Ca(OH)₂.^30,53,54 In general, Fig. 1(a) and (b) highlight that reducing s/l reduced the amount of Ca-extracted into solution, at shorter and longer reaction times, and independent of the stirring condition. It should be noted, however, that the amount of Ca-leached, depends strongly on the type of slag used (see Fig. S4†).^20,54–56 The implication: that certain slags may be more suitable than others for Ca-extraction, and that depending on the slag used, multiple (2 or more) concentration cycles may need to be carried out to sufficiently enrich the Ca-concentration in solution with obvious energy intensity implications. This issue while also applicable to fly ashes, is less relevant, since fly ashes, especially the CaO-rich variants rapidly mobilize their Ca-species in solution.^18,57,58

Fig. 1 The aqueous [Ca]-concentration as a function of time during batch leaching of a BOF slag for s/l = 0.01, 0.03, 0.05, and 0.1 under (a) unstirred, and (b) stirred conditions. In general, increasing the s/l resulted in larger [Ca] concentrations since the enhanced quantity of slag increased the surface area, and amount of Ca-available for leaching in the solid phase. (c) The calculated calcium conversion X_Ca, i.e., the ratio (fraction) of the amount of Ca-in solution to the Ca-in the slag solids, and (d) the calcium leaching rate as a function of time for different s/l under stirred conditions.

Fig. 1(c) and (d) shows the calcium extraction X_Ca and the calcium leaching rate ṅ_Ca as functions of time for different s/l for stirred conditions. Fig. 1(c) shows that X_Ca decreased with increasing s/l; i.e., suggesting reducing efficiency of Ca-extraction from the slag with increasing s/l;¹⁷ albeit offering meaningfully faster Ca-mobilization into solution (see Fig. 1(d)). Taken together, the data in Fig. 1 indicates: (a) larger s/l maximizes the amount of [Ca] leached and a smaller s/l maximizes X_Ca (b) with short duration leaching (in a single cycle), in the best case (s/l = 0.01, 24 hours leaching) no more than 8 mol% of the Ca-content of slag was extracted.⁵⁹ Finally and unsurprisingly, with increasing leaching time and a decreasing undersaturation with respect to the dissolving/leaching slag, the Ca-leaching rate ṅ_Ca decreased exponentially with time. Thus, practically, the leaching time should be reduced as much as possible⁶⁰ (i.e., ≤6 hours) to achieve a critical (minimal) Ca-content in solution as would be appropriate for the follow-on RO concentration step.

RO concentration

RO concentration was carried out using reagent grade Ca(OH)₂ solutions and slag leachate solutions. The processing of 1 L of feed solution took between 8 and 10 h for an average feed flow rate around 120 cm³ min⁻¹ and gauge pressure of 413 kPa. The calcium concentration in the feed tank [Ca]_f increased throughout the duration of the experiment while the calcium concentration in the permeate tank [Ca]_p remained below 1 mM. The final calcium concentration in the feed tank [Ca]_f readily approached the saturation level of Ca(OH)₂ (∼21 mM at 25 °C)³⁷ in both reagent grade Ca(OH)₂ and slag leachate solutions for an initial calcium concentration [Ca]_i of 10 mM.

Fig. 2 shows the permeate concentration factor CF_p and the retentate concentration factor CF_r as functions of time for: (a) reagent-grade Ca(OH)₂ solutions and (b) slag leachate solutions for initial feed calcium concentrations [Ca]_i of 5 mM and 10 mM. It indicates that the retentate concentration factor CF_r was always smaller for the solutions with larger initial feed concentration [Ca]_i. This difference is on account of the osmotic pressure π, which is larger for solutions with a larger initial feed concentration [Ca]_i according to the Van't–Hoff relation:⁶¹ π = R_UT_f([Ca]_f + [OH⁻]_f), where R_U is the universal gas constant, T_f is the feed temperature and [Ca]_f and [OH⁻]_f are the calcium and hydroxide concentrations in the feed solution, respectively. Since larger concentration leads to larger osmotic pressure π, the flow rate of permeate solution V̇_p crossing the membrane decreased according to:⁶¹ V̇_p = A_mL_p(ΔP − Δπ), where A_m is the membrane area, L_p is the membrane permeability, ΔP is the pressure difference and Δπ is the osmotic pressure difference, between the feed and permeate solutions. Since the experiments were performed at a constant feed pressure, ΔP was constant. On the other hand, increasing the initial calcium concentration [Ca]_i from 5 to 10 mM increased Δπ, thus reducing the driving force (ΔP − Δπ) and decreasing the permeate flow rate V̇_p. Consequently, the retentate concentration factor CF_r as a function of time was slightly lower for solutions with [Ca]_i of 10 mM compared to 5 mM.

Fig. 2 The permeate concentration factor CF_p (blue) and retentate concentration factor CF_r (orange) as a function of time for initial calcium concentration [Ca]_i of 5 and 10 mM for: (a) reagent-grade Ca(OH)₂ solution, and (b) slag leachate solutions. RO concentration data showing permeate concentration factor CF_p (blue) and retentate concentration factor CF_r (orange) as a function of water recovery Y for: (c) reagent grade Ca(OH)₂ solution, and (d) slag leachate solutions. The dashed line corresponds to maximum theoretical CF_r assuming 100% calcium rejection by the RO membrane.

In addition, Fig. 2 also shows the permeate concentration factor CF_p and the retentate concentration factor CF_r as a function of the water recovery Y for reagent grade Ca(OH)₂ solutions and slag leachate solutions. Assuming that all the calcium in the feed solution was rejected by the membrane (R = 100%, CF_p = 0), the maximum theoretical value of CF_r can be calculated from a mass balance as:⁶² . Fig. 2(c) and (d) indicates that the calculated retentate concentration factor CF_r follows the trend corresponding to 100% rejection for both reagent grade Ca(OH)₂ and slag leachate solutions. The slight difference might be due to the uncertainties in calculating the permeate volume, which was not measured directly but estimated from permeate flow rate measurements. Moreover, Fig. 2 reveals that the difference between the retentate concentration factor CF_r calculated for the two initial feed concentrations ([Ca]_i = 5 mM, 10 mM) was somewhat larger for the slag leachate solutions than reagent grade Ca(OH)₂ solutions. This observation could be due to either membrane degradation or membrane scaling. For example, membrane degradation may result in a decrease in the calcium rejection R which would increase the Ca-concentration in the permeate [Ca]_p.⁶³ On the other hand, a typical sign of membrane scaling is a decrease in the permeate flow rate V̇_p.^64–67 We observed that calcium rejection R remained above 90% for both reagent grade Ca(OH)₂ and slag leachate solutions. This implies that R was not affected by the presence of impurities in the slag leachate, and that membrane degradation was not significant (N.B.: This was also confirmed using longer duration testing carried out using a pilot-scale production system). On the other hand, significant differences were observed in the permeate flow rate V̇_p. In fact, V̇_p remained constant at 0.9 ± 0.1 mL min⁻¹ for both 5 and 10 mM reagent grade Ca(OH)₂ solutions, whereas it declined when water recovery reached 40% in the case of the 10 mM slag leachate solutions. This decline in V̇_p is attributed to scale formation on the membrane surface, e.g., due to the formation of Ca(OH)₂, and/or hydrated calcium phases. Based on the retentate composition at 6 hours, Ca(OH)₂ and 11 Å Tobermorite have saturation indexes of 0.03 and 2.35, respectively (see Fig. S5†) – suggesting their precipitation.^68,69 The results of the RO concentration and the equilibrium calculations also highlight that the solubility of portlandite decreased in comparison with reagent grade Ca(OH)₂ solutions, i.e., on account of the common-ion effect, because the presence of other alkaline species (e.g., Na⁺, K⁺) in solution – extracted during leaching – alkalinizes the solution shifting the equilibrium towards Ca(OH)₂ precipitation.

Fig. 3(c) shows SEM images of the mineral scale formed on the RO membranes after 10 h of concentration of a slag leachate solution with an initial calcium concentration [Ca]_i of 10 mM. Here (and in the case of Ca(OH)₂ solutions), the crystallite size ranged from 100 μm to 300 μm. However, a higher area density of precipitates was observed on the membrane used for concentrating slag leachate solutions compared to that used with reagent grade Ca(OH)₂ solution. This suggests that the presence of impurities in the slag leachate enhanced scale formation; once again, on account of the common-ion effect. This also explains why the permeate flow rate decline was stronger with slag leachate solutions than with reagent grade Ca(OH)₂ solutions with the same initial calcium concentration. Nevertheless, scaling could be avoided through precautionary measures. For example, stopping RO concentration before reaching Ca(OH)₂ saturation, or reversing the feed flow direction periodically to change the saturation index of precipitate phases within the RO cell.^66,70 Table 1 summarizes EDS elemental analysis (in atom%) of crystallites deposited on the membrane surfaces (the sampling points are shown in the inset of Fig. 3(c)). The O–Ca ratio was noted as being 2 ± 0.3 across all solutions considered (see Table 1), whereas carbon, aluminum, and silicon were detected only in small quantities suggesting compositions consisting of mainly Ca(OH)₂, and small quantities of CaCO₃ and/or low-rank hydrated calcium-silicate compounds.⁷¹

Fig. 3 The characterization of precipitated Ca(OH)₂ crystals obtained from saturated slag leachate solutions using: (a) thermal analysis showing evidence of Ca(OH)₂ and CaCO₃, respectively, (b) micrographs confirming the presence of Ca(OH)₂ and CaCO₃, the former of which are identified by the hexagonal structure, and the latter by their equiaxed form, and (c) micrographs of membrane scale obtained from slag leachate solutions. The yellow squares indicate the location of SEM-EDS sampling points.

Table 1 The elemental composition of the mineral scale formed on the RO membrane surfaces as analyzed using SEM-EDS

Element (atom%)	Ca(OH)2 solution	Slag leachate solution
Ca	32.55 ± 0.94	28.80 ± 2.68
O	60.89 ± 1.99	59.48 ± 7.48
C	6.47 ± 1.18	11.32 ± 9.74
Al	0.03 ± 0.01	0.14 ± 0.03
Si	0.06 ± 0.03	0.03 ± 0.02

---

Precipitation of portlandite from RO-concentrated solutions

Following concentration, precipitation experiments were carried out using the reagent grade Ca(OH)₂ and slag leachate solutions. Temperature-swing induced precipitation was examined using concentrated slag leachates which featured a [Ca] concentration around ∼19 mM (i.e., wherein the starting Ca-concentration was 10 mM). Herein, at 45 °C a change in the solution's appearance occurred (i.e., from transparent to translucent) corresponding to the formation of colloidal-scale and/or hyper-branched precipitates (e.g., of C–S–H) that induced strong Tyndall scattering effects.^72,73 At the end of the temperature ramping process, ∼3 mg of precipitates were collected (via filtration) from the saturated slag leachate solution. Fig. 3 shows the characterization of precipitates obtained from the slag leachate using (a) TGA and (b) SEM. Herein, TGA (Fig. 3(a)) shows that 66 mass% of the analyzed precipitates corresponding to Ca(OH)₂ started to decompose at 400 °C.^49,74 An additional 15 mass% of the precipitates started to decompose around 600 °C, indicating the presence of impurity CaCO₃ that formed due to: (a) the presence of dissolved CO₂ in the feed water.⁵⁰ and/or, (b) brief exposure of the wet Ca(OH)₂ precipitates to air during drying wherein they readily carbonate on contact with atmospheric CO₂.⁷⁵ The remaining 19 mass% impurities appear to be composed of slag particulates. As such, although the formation of Ca(OH)₂ was confirmed, it is important to control the ambient conditions during precipitation, separation and drying to avoid Ca(OH)₂ carbonation. Fig. 3(b) shows representative SEM images of the precipitates whose particle size ranged between 2 and 10 μm. While it is indeed anticipated that particles smaller than 2 μm were present, they were not collected due to the large pores of the filter used for separation (>3 μm). Moreover, the precipitated crystals featured two differentiated morphologies: (i) small hexagonal platelet aggregates corresponding to Ca(OH)₂ (ref. 76 and 77) and (ii) individual crystals with rhomb-like structures resembling CaCO₃.^78,79

Finally, Fig. 4 shows (a) the measured ionic conductivity and (b) the corresponding [Ca] concentration [i.e., calculated using eqn (S1)–(S10)]† as functions of temperature for different heating rates ranging from 10 to 50 °C h⁻¹ for near-saturated reagent grade Ca(OH)₂ solutions. Also shown is the theoretical solution conductivity σ_calc and estimated [Ca] concentration for a solution with an initial Ca-concentration of 21.2 mM: (i) in the absence of precipitation and (ii) during ongoing Ca(OH)₂ precipitation which acts to remove calcium and hydroxyl species from solution thereby resulting in a reduction of the solution conductivity. The calculated saturation index (SI) of Ca(OH)₂ as a function of temperature for [Ca]_initial = 21.2 mM is shown in Fig. 4(c). In qualitative compliance with classical nucleation theory (CNT), Fig. 4 demonstrates that the rate of nucleation is negligible until a critical supersaturation, here 0.25 corresponding to the SI at T = 65 °C, is reached. It is interesting to note that the onset of precipitation occurred at the same critical supersaturation across all heating rates; i.e., as indicated by the reduction of the measured conductivity σ_exp vis-à-vis the calculated conductivity σ_calc and the [Ca] concentration in solution. Nonetheless, the heating rate may affect the precipitation kinetics^80,81 and final properties of the precipitates as shown, for example, for the aqueous precipitation of TiO₂ from TiOCl₄ solutions.⁸² Overall, across all ramp rates, ∼5 millimoles of Ca(OH)₂ per liter of solution were precipitated while heating to 85 °C, consistent with the calculated equilibrium precipitation yield based on the (retrograde) solubility of Ca(OH)₂.

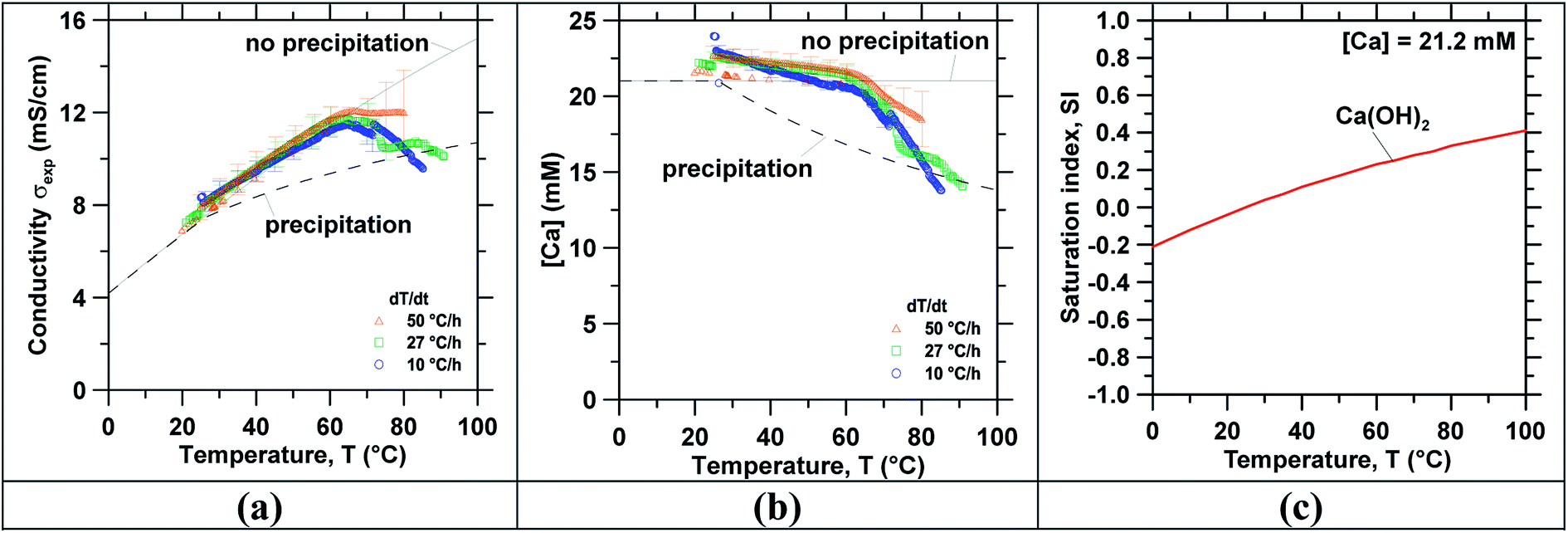

Fig. 4 The measured: (a) solution's electrical conductivity as a function of temperature, (b) the corresponding [Ca] concentration (calculated from the measured conductivity), and (c) the saturation index (SI) (calculated using PHREEQC with minteq v4 database) as a function of the temperature for a solution with [Ca] = 21.2 mM, added as Ca(OH)₂. This data was obtained during the precipitation of reagent-grade Ca(OH)₂ solutions at different temperature ramp rates.

Energy and CO₂ balances associated with traditional and novel methods of Ca(OH)₂ production

The traditional pathway for Ca(OH)₂ production involves the thermal decomposition of limestone (CaCO₃) to lime (CaO) at 900 °C; following which the lime is slaked (hydrated) to produce Ca(OH)₂.^83,84 Here, high-grade heat is sourced from the combustion of fossil fuels. The enthalpic energy consumption Q_T to produce 1 kg of Ca(OH)₂ can be estimated (i.e., without considering thermal losses, or inefficiency) as where M_Ca(OH)2 = 0.0741 kg mol⁻¹ is the molar mass of Ca(OH)₂, ΔH_rxn = 179.2 kJ mol⁻¹ CaCO₃ is the enthalpy of the calcination reaction CaCO₃ → CaO + CO₂.⁴⁹ The thermal efficiency of a typical vertical shaft kiln – the lime industry standard – is around 60%.⁸⁴ Thus, the actual energy consumption of the traditional thermal process is on the order of 4 MJ kg⁻¹ Ca(OH)₂,⁸⁵ and can be substantively larger for rotary lime kilns.^12,84,86

The energy required to produce 1 kg of Ca(OH)₂ via the low-temperature precipitation process can be calculated based on mass and energy conservation principles, and the data from the prior sections (see Fig. S1†). For example, the mechanical work W_RO necessary to pressurize the water through the RO system with a high-pressure pump was calculated to be 2.23 MJ kg⁻¹ Ca(OH)₂ according to W_RO = VΔP, where V = 5.4 m³ is the total volume of solution and ΔP = 414 kPa is the pressure difference between the pump inlet and outlet for the process conditions summarized in Fig. S1.† Similarly, the mechanical work of the low-pressure pumps W_P can also be calculated as , where, ΔP is the pressure drop due to friction losses in pipes,⁸⁷ D is the pipe diameter (D = 0.009 m), L = 1 m is the length of the pipe, ρ = 1000 kg m⁻³ is the solution density, and f = 0.041 is Darcy's friction factor corresponding to the solution volumetric flow rate necessary to produce 1 kg of Ca(OH)₂ per day (V̇ = 3.1 × 10⁻⁵ m³ s⁻¹). Under these assumptions, ΔP is equal to 474 Pa. The mechanical work of the low-pressure pumps W_P (is multiplied by 2 to account for the number of pumps) was 5.1 kJ kg⁻¹ of Ca(OH)₂. This number is nearly three orders of magnitude lower than the work of the RO pump W_RO.

The sensible heat required to induce the temperature-swing, and in turn, portlandite precipitation, Q_s,p was estimated as follows. Previously, it was demonstrated that 5 millimoles of Ca(OH)₂ precipitate when heating near-saturated reagent grade Ca(OH)₂ solutions from 25 °C to 85 °C (ΔT = 60 °C). As such, following a simple mass balance, the mass of water to produce 1 kg of Ca(OH)₂ is m = 2700 kg H₂O per kg Ca(OH)₂. Assuming >90 mass% recovery of water, this translates into a consumable water demand of less than 270 kg H₂O per kg Ca(OH)₂. Thus, the sensible heat demand was calculated as Q_s,p = mc_pΔT = 677.15 MJ kg⁻¹ Ca(OH)₂, where c_p = 4.18 kJ kg⁻¹ is the specific heat of water.⁸⁸ This indicates that the thermal energy demand for precipitation is two orders of magnitude larger than the mechanical energy consumption of the RO pump because only 0.37 g of Ca(OH)₂ is precipitated per liter of water. However, the thermal energy consumption could be reduced by more than 50%, e.g., by implementing heat recovery loops. Furthermore, since the operating temperature for precipitation is below 90 °C, this energy could be sourced simply in the form of low-grade (e.g., flue gas borne) waste heat from industrial facilities such as thermal plants fired by coal, gas or nuclear power, steel processing facilities, and renewable heat sources like geothermal or concentrated solar power. For example, a mid-sized coal-fired power plants produces up to 5 000 000 GJ of low-grade thermal energy per year corresponding to exhaust temperatures up to 128 °C (at the stack).³⁸

Table 2 compares the energy demand to produce 1 kg of Ca(OH)₂ via the traditional and a novel low-temperature precipitation process. It is noted that although the low-temperature process features a substantial energy demand – it is still attractive as it allows valorization of low-grade heat; that would, otherwise, be discarded. As such, if we focus on the “practical demand”, the energy consumption of the novel process is ∼44% lower than that of the traditional process.^39,89,90 By contrast, if solution concentration was carried out through thermal evaporation instead of RO – although the electrical energy demand of 2.2 MJ kg⁻¹ of Ca(OH)₂ would vanish – 6338 MJ of waste heat would be required to produce 1 kg of Ca(OH)₂, reducing by one order of magnitude the maximum Ca(OH)₂ production rate for a fixed amount of waste heat (see ESI† for detailed calculations), making this option unpractical. Other alternatives such as evaporating water from solution at ambient conditions (e.g., using solar evaporation) would favor the precipitation of CaCO₃ instead of Ca(OH)₂ because highly alkaline solutions readily absorb CO₂ present in the air.³⁹ Thus, concentration and precipitation of Ca(OH)₂ solely by heat (or waste heat) would introduce technical challenges such as the use of an inert atmosphere further complicating the process.

Table 2 A comparison of the energy intensity of traditional calcination and novel calcination-free Ca(OH)₂ production processes. Herein, for the “Novel” process, the thermal energy – being in the form of low-grade waste heat – is excluded from the analysis

Energy consumption (kJ kg^−1 Ca(OH)2)		Process
		Traditional	Novel
Total thermal energy	QT	4000	677 150
Total work	WT = WRO + WP	—	2241
Total energy	ET = QT + WT	4000	679 391
Total high-grade energy	ET − Qs,alt	4000	2241

---

The main advantage of the alternative process, however, is that it obviates CO₂ emissions associated with limestone's decomposition, while allowing alkaline waste utilization. The alternative process requires 2241 kJ (0.62 kW h) of electrical energy per kg of Ca(OH)₂. Hence, assuming that 0.43 kg of CO₂ are emitted per kW h of electricity consumed (e.g., corresponding to natural gas combustion, or 0.03 kg of CO₂ per kW h for renewable solar power)^91–93 and neglecting CO₂ emissions associated with low grade waste heat, the CO₂ emissions of the alternative process are on the order of ∼0.27 kg CO₂ per kg of Ca(OH)₂. On the other hand, conservatively, 0.74-to-0.86 kg of CO₂ are produced per kg of Ca(OH)₂ in the traditional production process depending on the type of fuel utilized.⁸⁶ This estimate includes CO₂ released on account of the thermal decomposition of CaCO₃ [0.59 kg CO₂ per kg of Ca(OH)₂] and the CO₂ emitted from natural gas combustion [0.15 to 0.27 kg CO₂ per kg of Ca(OH)₂],^85,86 but these numbers could be larger for less efficient kilns.¹² Thus, the CO₂ emissions from the alternative process are only a third that of the traditional process. For these reasons, although more work remains, this style of low-temperature precipitation pathway, for portlandite production, is worthy of further work and consideration.
