Dimerization of pentacyclopentacorannulene C₃₀H₁₀ as a strategy to produce C₆₀H₂₀ as a precursor for C₆₀

Abstract

The chemical synthesis of C₆₀ fullerene in the laboratory is still a challenge. In order to achieve this goal, we propose a synthetic route based on the dimerization between two pentacyclopentacorannulene (C₃₀H₁₀) fragments employing the Diels–Alder cycloaddition reaction. Density functional calculations indicate that a step wise non-concerted dimerization mechanism of C₃₀H₁₀ is favored over a one stage dimerization. The step wise dimerization implies the sequential formation of 2, 4, 6, and 10 new C–C bonds between the two fragments. This leads to the formation of the Diels–Alder cycloadduct C₆₀H₂₀. The results then suggest the synthesis of C₆₀H₂₀ as a precursor for C₆₀. The synthesis of the analogue C₆₀F₂₀ has already been reported.

---

Introduction

Regarding the utopian idea that assures that “chemists must be able of synthesize everything imaginable”,¹ there are a lot of complex molecules that resist the attempts of synthesis, becoming challenging targets for organic chemists. A clear example of this is the controlled bottom-up synthesis of carbon fullerenes.^2–5 Even when some successful attempts have been made in the synthesis of prototypes for these systems,^6–10 an improvement of the known synthetic methods, as well as the development of new techniques, are still needed.¹¹ The present status of the synthesis of fullerenes has been reviewed previously by three of the authors.⁵

Traditionally, fullerenes are synthesized by a collection of vaporization methods,¹² which lead to the production of fullerenes on a commercial scale. However, those methods imply a great environmental and energetic cost, and they are not very efficient, with yields lower than 1%. Additionally, the uncontrollable character of the reaction makes impossible to select a single fullerene or a specific isomer. Anctil et al.¹³ pointed out that the energy used in the synthesis and the separation of C₆₀ can reach up to 106.9 GJ kg⁻¹ (for comparison, the average annual electricity consumption for a US home in 2010 was about 41 GJ),¹⁴ and if we add the energy needed for purification and functionalization, the total energy can suffer a threefold increase, making fullerenes expensive.

In the pursuing of an efficient method for the synthesis of C₆₀, Sygula et al.^15,16 have suggested the dimerization of two identical hemispherical C₃₀ fragments, as an “intriguing possibility” to synthesize fullerenes. Scott¹⁷ also labelled the dimerization of hemifullerenes as a “particularly seductive strategy”, and highlighted its resemblance with the dimerization of triquinacene to produce dodecahedrane, as was proposed by Woodward et al.¹⁸ The work of McElvany et al.¹⁹ showed that it is possible to obtain C₆₀ by the coalescence of large monocyclic C₃₀ rings obtained by laser induced fragmentation of carbon oxide precursors. In this case, the high energy annealing conditions provided by the laser allow for the dimerization and reorganization of the molecular cyclic precursors to form C₆₀.

In the synthesis of geodesic polyarenes, all the efforts have been directed to the insertion of the needed curvature in the fragments. An advantage of the dimerization scheme is that the curvature is already present in the starting material, and the main issue, which forms the topic of the present work, is to develop a way to stitch those fragments together. Another advantage is that a successful dimerization will provide a direct method to synthesize the fullerene, consequently increasing the efficiency. Previous works have demonstrated the applicability of the Diels–Alder (DA) cycloaddition reaction in the growing of polycyclic aromatic hydrocarbons (PAHs),^20,21 as well as a way to put two PAHs together.^22,23 This reaction proceeds in solution and under mild conditions, and could be easily controlled and manipulated by the use of different substituents.^24–26

The progress in the synthesis of fullerene fragments has been steady. Scott¹ discovered an efficient method to obtain the fragment C₂₀H₁₀ (corannulene; a carbon pentagon surrounded by five hexagons) in high yield. The method combines chemical synthesis with flash vacuum pyrolysis. Many larger curved polycyclic aromatic hydrocarbons, some of them fullerene fragments have also been synthesized by similar methods,⁴ and Mehta and Panda²⁷ have reviewed the work on the synthesis of bucky-bowl fragments as a previous step in the synthesis of C₆₀. Geneste and coworkers²⁸ have shown that between the known isometric hemifullerenes C₃₀H_x derived from C₆₀, the pentacyclopentacorannulene C₃₀H₁₀ (labelled 1 from now on), is one of the most similar to C₆₀ in terms of curvature. Cyclopentacorannulene C₂₂H₁₂, which can be viewed as having only one five-membered ring at the boundary, instead of the five pentagons of C₃₀H₁₀ (1), has been synthesized by Abdouzarak et al.²⁹ using the Scott method.¹ The synthetic methods that use flash vacuum pyrolysis or other high-energy gas phase methods have been scarcely employed for the simple annulation of fully unsaturated five-membered rings onto the perimeter of PAHs.¹ However, Scott et al., using microwave-assisted intramolecular arylations, included fused networks of five- and six-membered rings into the corannulene to obtain indenocorannulenes (ICs) and the complete family of all seven ICs (mono-IC, ortho-di-IC, para-di-IC, 1,2,3-tri-IC, 1,2,4-tri-IC, penta-IC and tetra-IC).³⁰ Although the full C₃₀H₁₀ (1) has not been synthesized yet, one can expect that similar methods will allow for the synthesis of this fragment. On the basis of ab initio calculations Mojica et al.^31,32 suggested that C₃₀H₁₀ (1) is a good dienophile towards DA cycloaddition reaction with butadiene and possesses high symmetry, which makes it an ideal fragment to produce C₆₀H₂₀ and the C₆₀ fullerene (Fig. 1).

Fig. 1 Schematic view of the dimerization of pentacyclopentacorannulene C₃₀H₁₀ (1).

In this work we have studied, using the density functional theory (DFT)³³ and the nudge elastic band (NEB) method,³⁴ the DA dimerization of two C₃₀H₁₀ fragments (Fig. 1). The resulting C₆₀H₂₀ molecule is a C₆₀ fullerene wrapped by a double belt of twenty H atoms forming C–H bonds around the equatorial plane of C₆₀ (the poles are occupied by the central pentagons of the two fragments). Although the C₆₀H₂₀ molecule with the belt of twenty H atoms, has not been obtained experimentally, its structure has been described theoretically by Keppert and Clare,^35,36 and it is isostructural with the one that we obtained. Our results expand the work of Sygula et al.^15,16 and Scott¹⁷ and support the DA dimerization of C₃₀H₁₀ (1) as a viable synthetic strategy to produce C₆₀H₂₀ as a precursor of C₆₀.

Computational methods

Density functional calculations³³ have been performed using the supercell method with a basis set of plane waves, as implemented in the DACAPO code.³⁷ The ionic cores are represented by ultrasoft pseudopotentials.³⁸ An energy cutoff of 350 eV was taken for the plane wave expansion of the wave functions, and a cutoff of 1000 eV for the electron density. Electronic exchange and correlation effects are treated by the generalized gradient approximation (GGA) of Perdew and Wang (PW91).³⁹ We considered a supercell of size 25 × 15 × 15 Å and a single k point [1,1,1] of the Monkhorst–Pack type.⁴⁰ The selected supercell size is sufficiently large to minimize the interaction between molecules in different cells. The activation barriers occurring in the dimerization process have been calculated by using the nudge elastic band method.³⁴ Calculations made with the Gaussian 09 (G09) program⁴¹ package at the B3LYP/631-G(d,p) level of theory^42,43 for selected structures along the dimerization path fully confirm the results obtained with the DACAPO code.

Results and discussion

The DA dimerization of two C₃₀H₁₀ fragments 1 + 1 could occur through a one stage mechanism or a stepwise mechanism. In the one stage mechanism all the ten new C–C bonds will be formed in a single step DA reaction, whereas in the stepwise mechanism two new bonds will first join both fragments together to form an open C₆₀H₂₀, and the eight remaining bonds will be formed subsequently, due to the proximity of the edges of the fragments, leading to the C₆₀H₂₀ with the C₆₀ cage structure. The two dimerization mechanisms of C₃₀H₁₀ have been investigated.

(1) One stage dimerization

In this case ten C–C bonds are formed simultaneously between the C atoms of the edges of the two fragments (those C atoms of the fragments saturated with H atoms). To calculate the minimum energy path (MEP) for the one stage dimerization we consider three parts of the process: the first part starts with the two fragments at a large distance, facing each other and properly oriented in order to facilitate the formation of the desired C–C bonds between the diene moiety (blue color) of one fragment and the dienophile moiety (red color) of the other (Fig. 2). The two fragments are stepwise approached one to the other till the distance between the central pentagons of the fragments is 7.5 Å (inset labelled (b) in Fig. 3). At this distance, the two fragments are separated but begin to deform (the corannulene rings are slightly flattened) due to the fragment–fragment interaction. During the approaching path just described, a constrained minimization of the structure is performed at each step, keeping fixed the distance between the central pentagons of the two fragments. The energies along this path, shown in the left panel of Fig. 3, indicate that the energy increases as the two fragments approach each other because of the deformation induced by the interaction between the fragments. The rigidity of C₃₀H₁₀ against flattening deformations was noticed by Liu et al.⁴⁴ in their theoretical study of the bowl-to-bowl inversion of this molecule. The last part of the dimerization process is investigated going backwards from the final configuration of the C₆₀H₂₀ molecule. The two C₃₀H₁₀ fragments are stepwise separated along their common axis till the distance between the two opposite polar pentagons is of 7.5 Å (inset labelled (d) in Fig. 3). At this distance, the cage structure is still preserved although somewhat deformed. At each step a constrained minimization is performed, similarly as it was explained above. The energies along this path are shown in the right panel of Fig. 3.

Fig. 2 The reactive sites of the fragments considered for the Diels–Alder reaction are shown in the red and blue circles for the five- and six-membered rings, respectively.

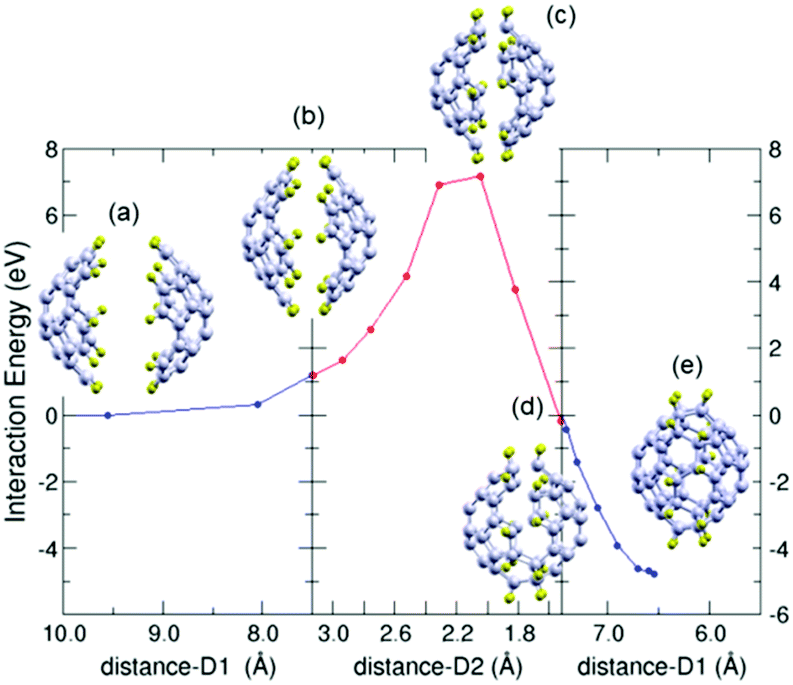

Fig. 3 Minimum energy path for the one-stage dimerization of two pentacyclopentacorannulene fragments (1 + 1). The dimerization is decomposed in three stages (panels) explained in the text. The energies are given with respect to the energy of the separated fragments as a function of the distance D1 between the two fragments (distance between the opposite apex pentagons) for the first and third panels, and as a function of distance D2 (average distance between the ten pairs of carbon atoms forming the ten bonds that unite the two fragments) for the intermediate panel. The initial and final structures of the three panels and the transition state for dimerization (intermediate panel) are shown as insets labelled (a)–(e). The coordinates of the selected structures shown in the figure are provided in the ESI.† Carbon and hydrogen atoms are represented in grey and yellow colours, respectively.

Then the minimum energy path (MEP) joining the two previously obtained structures (the structures shown in the insets (b) and (d) of Fig. 3, having, in both cases, a distance of 7.5 Å between the polar pentagons) is calculated by applying the NEB method. A barrier of nearly 7 eV has to be overcome to fuse the two fragments into the C₆₀H₂₀ molecule. The distance between the polar pentagons remains almost constant along this path (although it is allowed to vary). The main structural change is carried out by the C–H bonds. In the separated fragments the C–H bonds prolong the surface of the carbon frame. In contrast, in the cage structure, the C–H bonds are almost perpendicular to the surface of the cage. The hybridization of the C atoms that form the bonds between the two fragments changes from sp² in the separated fragments to sp³ in the cage structure. Thus, the DA reactions on this preferred orientation will end up forming the C₆₀H₂₀ molecule.

(2) Stepwise dimerization

In this mechanism, two, four, six and ten C–C bonds are formed sequentially between the two fragments (see Fig. 4). A four-stages process is devised starting from the separated fragments, going successively through three intermediate (metastable) structures (2, 3 and 4 in Fig. 4) having, respectively, two, four, and six C–C bonds between the two fragments, and ending up in the C₆₀H₂₀ cage having ten C–C bonds between the two fragments. Notice that a metastable structure having eight C–C bonds between the two fragments does not appear and therefore the system evolves from structure 4 (having six C–C bonds between the two fragments) to the C₆₀H₂₀ cage (having ten C–C bonds between the two fragments) in a single stage. The three intermediate structures (2, 3 and 4) have been fully optimized. Then the minimum energy path between every two successive structures is calculated using the NEB procedure. The MEP energies and some representative structures are shown in Fig. 4, and the coordinates of those representative structures are provided in the ESI.†

Fig. 4 Minimum energy path for the stepwise dimerization of two pentacyclopentacorannulene fragments (1 + 1). The energies are given with respect to the energy of the separated fragments as a function of the distance D2 (average distance between the ten pairs of carbon atoms forming the ten final bonds that unite the two fragments). Each panel corresponds to the formation of two additional C–C bonds between the two fragments, except for the final panel that corresponds to the formation of four C–C bonds. The initial, final and transition state structures for the processes represented in each panel are shown as insets labelled (a)–(i). The coordinates of the selected structures shown in the figure are provided in the ESI.† Carbon and hydrogen atoms are represented in grey and yellow colours, respectively.

The formation of the first two C–C bonds between the fragments is an endothermic process, a DA cycloaddition reaction³¹ costing about 2 eV, with an activation barrier of 4 eV (1 + 1 → 2). Once the two fragments have formed the first two C–C bonds, the formation of two additional C–C bonds is exothermic with respect to the structure with only two C–C bonds, releasing an energy of 1.2 eV (2 → 3), although this configuration (3) is still 0.8 eV higher in energy than the separated fragments. The activation barrier for the formation of the third and fourth C–C bonds is 1.1 eV (2 → 3), substantially smaller than the activation barrier in the first step. The formation of the next two C–C bonds occurs by an exothermic process (3 → 4), releasing 1.1 eV after overcoming an activation barrier of 1.1 eV. This is the first intermediate structure (4) in the path of dimerization which is more stable than the separated fragments (by 0.3 eV). Finally, the cage structure is closed with the formation of four more C–C bonds (4 → C₆₀H₂₀). This step is highly exothermic (4.5 eV) with an activation barrier of only 0.5 eV. It is noticeable that the activation barriers decrease and the exothermicity increases along the successive steps leading to the closing of the cage. The stepwise dimerization is more probable than the one-stage process of Fig. 3 because it involves significantly smaller activation barriers.

Producing a C₆₀ fullerene from the C₆₀H₂₀ molecule requires removing the belt of H atoms (see Fig. 5). However, we find that the system formed by C₆₀ and ten free H₂ molecules is less stable (about 10 eV higher in energy) than the C₆₀H₂₀ molecule.

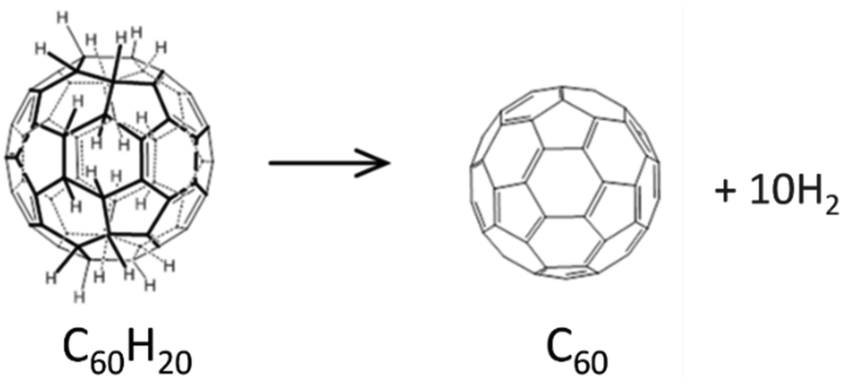

Fig. 5 The aromatization of the Diels–Alder cycloadduct produces the C₆₀ fullerene.

The removal of hydrogen in the form of molecular H₂ from C₆₀H₂₀ would cost, in average, about 1 eV per H₂ molecule to arrive to the clean C₆₀ fullerene. Therefore, the dehydrogenation of C₆₀H₂₀ is an endothermic process that would require high temperatures or appropriate reactants. Other possibility would be to use ultraviolet (UV) radiation. This has been proposed to be the key to the formation of Co₆₀ from large polycyclic aromatic hydrocarbons like C₆₆H₂₀ in the interstellar medium.^45,46

Fort and Scott^20,21 have shown that the use of nitro-derivatives of ethylene in DA reactions provides an efficient way to increase the number of benzene rings in polycyclic aromatic hydrocarbons. Therefore, a promising way of controlling and manipulating the energy of the C₃₀H₁₀ DA cycloaddition and C₆₀H₂₀ aromatization reactions to obtain C₆₀ could be the use of electron-withdrawing and electron-donating groups^47,48 in the two pentacyclopentacorannulene fragments. Our previous studies of the substituent effect in the reactivity of C₃₀H₁₀ suggested that it is possible to increase its reactivity in the DA reactions.^31,32

The results presented support the possibility to dimerize C₃₀H₁₀ and the existence of C₆₀H₂₀. In fact, the fullerene hydride C₆₀H₂₀ has been detected in the mass spectra of C₆₀ hydrides synthesized by condensation of benzene molecules,⁴⁹ although, the structure of C₆₀H₂₀ formed in these experiments is not necessarily the belt-like structure discussed here, which is closely connected to the structure of the precursor C₃₀H₁₀. Boltalina et al.⁵⁰ synthesized and characterized spectroscopically the analogue molecule C₆₀F₂₀. The C₆₀F₂₀ was obtained through fluorination of fullerene C₆₀ with Cs₂PbF₆ or with KF/MnF₃ mixtures under vacuum at temperatures of 580 °C and 480 °C, respectively. The structure of C₆₀F₂₀ comprises two dehydrocorannulene caps held together by a (CF)₂₀ chain. This suggests that the experimental chemical synthesis of C₆₀H₂₀ should be an achievable challenge.

Conclusions

Using the density functional formalism, we have performed calculations to investigate the dimerization of two identical hemispherical C₃₀H₁₀ fragments to produce C₆₀H₂₀, as a way to synthesize the fullerene C₆₀ in a direct and efficient way in the laboratory. A stepwise mechanism is favoured over the one stage mechanism because the energy barriers involved are lower. The activation barriers decrease and the exothermicity increases along the successive steps leading to the closing of the cage. The results support the possibility to dimerize C₃₀H₁₀ and the existence of C₆₀H₂₀. Even when C₃₀H₁₀ has not been synthetized, Scott et al.³⁰ have pointed out that the syntheses of the indenocorannulenes constitute the first demonstration that the stepwise introduction of curvature can be pushed all the way to produce a level of curvature equal to that of C₆₀ and even beyond. We hope that our results will motivate synthetic chemists to synthesize the fragment C₃₀H₁₀ and attempt its dimerization.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

Work supported by MINECO of Spain and the European Regional Development Fund (grant MAT 2014-54378-R), Junta de Castilla y León (grant VA021G18), and CONACyT-México (project grants 180523 and 163234). M. M. acknowledges CONACyT for a predoctoral fellowship (CB-2012/180523). FM thanks to Programa Especial de Apoyo a la investigación básica UAM-2019, CONACYT. AR acknowledges a LE STUDIUM Research Fellowship, cofunded by the European Union's Horizon 2020 research and innovation programme under the Marie Skłodowska-Curie grant agreement no. 665790. The authors thankfully acknowledge the facilities provided by Centro de Proceso de Datos-Parque Científico (University of Valladolid).
