Arūnas Jagminas*a,
Simonas Ramanavičiusa,
Vitalija Jasulaitienea and
Mantas Šimėnasb
aState Research Institute Centre for Physical Sciences and Technology, Sauletekio Ave. 3, LT-10257 Vilnius, Lithuania. E-mail: arunas.jagminas@ftmc.lt
bFaculty of Physics, Vilnius University, Sauletekio Ave. 9, LT-10222 Vilnius, Lithuania
First published on 9th December 2019
At the present time, the formation of titanium monoxide (TiOx) two dimensional (2D) species with distinct composition, size, shape, and a significantly reduced bandgap (Eg) value compared to TiO2 is of great scientific and practical importance. This paper describes our findings investigating Ti surface oxidation for the formation of TiOx films possessing a densely-packed nanoplatelet morphology and a low bandgap value. This goal was herein achieved by the hydrothermal treatment of the Ti surface in selenious acid solution kept at a slightly alkaline pH. Furthermore, the nanoplatelet design not typical for TiO2 porous films was created by this method for the first time. The formation of titanium monoxide, particularly TiO0.84, as a major crystalline phase, was verified by XRD and confirmed by EPR investigations. It is worth noting that these nanoplatelet-shaped films with a thickness of 0.1–0.25 μm exhibited a very large shift of their light absorption threshold, down to 1.29 eV, compared to the Eg of anatase TiO2 and a surprising 70% porosity determined via simulation of experimental reflection plots. It is anticipated that this unique TiOx nanomaterial will pave the way for new investigations and applications.
Nonstoichiometric semiconducting titanium oxides, namely titanium suboxides, containing structural vacancies in both titanium and oxygen sublattices with a general formula TinO2n−1, where n ≥ 2, represent a group of less known low band gap materials, well reviewed in the recent years by the Chen17 and Xu18 groups. The experimental results have shown that the n value usually varies between 3 and 10,6 although significantly higher n values were also reported.19–21 The excellent electric conductivity, and visible light absorption are also characteristic features of titanium monoxides, TiOx (x < 2), making them very suitable for prospective applications in electronic and optoelectronic devices, photo catalysis, batteries, etc. For example, the presence of vacancies in TiO1.0 results in an Eg ≅ 2.0 eV, as reported by Gusev.22 To date different precursors and synthesis methods have been reported for TinO2n−1 and TiOx fabrication.23–28 From these reports, titanium monoxides can be synthesized from raw TiO2 powders by high temperature reduction with hydrogen,23,24 carbon25,26 and active metals such as Ti, Na, Ca, Mg, Al, and Ca.27,28 For example, well-mixed probes of TiO2 and Ti powders can be converted to titanium monoxides via arc melting in an oxygen-free atmosphere at 2273 K, and in a tube furnace at 1173 K.28 Various titanium monoxides have also been synthesized by heating of TiO2 powders with CaCl2 at 1373 K (ref. 25) and CaH2 at 625 K.26 Geng et al. established the nanotube-shaped TinO2n−1 films by Ti anodizing in the H2 atmosphere at 1323 K (ref. 29) whereas He et al. formed magneli phase Ti8O15 nanowires with a diameter of 30 nm and a length of 2.5 μm on a cleaned Ti substrate by heating together with TiO2 powders placed separately in a tube furnace under a N2 stream at 1323 K.30 However, it is commonly accepted that TinO2n−1 is difficult to synthesize. Firstly, processing in the oxygen-free atmosphere at high temperature is required. Secondly, TinO2n−1 is unstable even at 425–525 °C temperatures decomposing to various superstructures.31 As a result, TinO2n−1 materials synthesized by heating a mixture of powdered Ti and TiO2 at high temperature, usually comprised a two-phase composition. To overcome this problem, chemical,32 electrochemical,33 mechano-chemical,34 and flame35 synthesis methods of TinO2n−1 compounds have been proposed.
Here we present a facile synthesis pathway of novel, nanoplatelet-shaped titanium monoxide film on a Ti substrate. It is worth noting that to date there are no reports of the direct formation of titanium monoxide nanoplatelet films well attached to a conductive substrate. The surprising result was obtained in this study via hydrothermal oxidation of a titanium substrate in a slightly alkaline selenious acid solution at a quite low temperature, ca. 150° to 180 °C. To explain the low bandgap value of titania films with a novel design, EPR investigations were performed.
X-ray powder diffraction experiments were performed with a D8 diffractometer (Bruker AXS, Germany), equipped with a Göbel mirror as a primary beam monochromator for CuKα radiation. Diffuse reflectance spectra of titania films were obtained by means of a Shimadzu UV-VIS-NIR spectrophotometer UV-3600 coupled with a MRC-3100 unit. Measurements were performed by mounting a sample holder onto the integrating sphere. The measurable range of wavelengths falls between 200 nm and 850 nm, covering the UV and visible light regions. In the integrating sphere, one beam strikes the sample normally to the surface while the other beam – aslant. The light absorbance was calculated from the diffuse reflection coefficient using the Kubelka–Munk function. X-ray photo electron spectroscopy (XPS) measurements were carried out using the ESCALAB MKII spectrometer equipped with a new XR4 twin anode. The non-monochromatic MgKα, X-ray source was operated at hν = 1253.6 eV with 300 W power (20 mA/15 kV) and the pressure in the analysis chamber was lower than 5 × 10−7 Pa during spectral acquisition. The spectra were obtained using an electron analyzer with a pass energy of 20 eV for narrow scans and a resolution of 0.05 eV and with a pass energy of 100 eV for survey spectra. All spectra were recorded at a 90° take-off angle and calibrated using the C 1s peak at 284.6 eV. The spectra calibration, processing and fitting routines were done using the Advantage software (5.918) provided by Thermo VG Scientific. Core level peaks of Ti 2p, Se 3d, and O 1s were analyzed using the nonlinear Shirley-type background and the calculation of the elemental composition was performed on the basis of Scofield's relative sensitivity factors. To investigate the optical properties of titania films, the reflectance spectra of the samples were recorded in the wavelength range of 200–1700 nm using a Shimadzu UV-VIS-NIR spectrophotometer equipped with a MPC-3100 integrating sphere. The specular reflectance of the light from the film surface was calculated using an optical model of two layers. The Bruggeman Effective Medium Approximation (EMA) was applied to calculate the optical constants of the nanoplatelet titanium monoxide film formed on the Ti substrate and consisting of the naturally formed thin layer of TiO2 and the nanoplatelet titanium monoxide layer with the empty voids (see Scheme 1 in Fig. 6). The porosity of films was calculated by fitting the model functions to the measured data using a CompleteEASE software program, as in our previous study of porous alumina.36
Our initial investigations revealed that the expected oxidative behavior of the selenious acid towards the Ti substrate under hydrothermal conditions proceed in the 50 to 500 mmol L−1 concentration range at the pH of 8 to 11 and at 140–190 °C temperatures. However, uniformly designed nanostructured films were formed mainly in the 0.1–0.3 mol L−1 solutions at pH of 9. For evidence, Fig. 1 depicts the top-side SEM images of the Ti surface after autoclaving in 0.2 mol L−1 H2SeO3 solutions, kept at the pHs of 9.0 and 10.0 at 150° and 180 °C for 15 h. As seen, just at a pH close to 9.0 the films with a novel nanoplatelet-shaped design were formed (Fig. 1a–d). More detailed investigations of these films with a SEM revealed the formation of an array from densely packed nanoplatelets of the length of 80–100 nm and the thickness of 5–12 nm (see Fig. 1b and d), depending on the pH, synthesis temperature and the processing time. It was determined that apart from the pH, the crucial role on the titania film design and the film thickness is played the autoclaving temperature. By increasing the treatment temperature from 150° to 180 °C, the average thickness of the titania layer is increased from about 80–86 nm to 240–260 nm (see insets in Fig. 1).
Under the optimized synthesis conditions (150–180 °C, 15 h), most probably due to the small thickness, the elemental composition of these films cannot be determined by the EDX analysis. X-ray photoelectron spectroscopy (XPS) analysis indicated that the as-formed films on the surface side were mainly composed of titanium and oxygen. Just a small content of selenium was detected by XPS at the film surface. An increase in the concentration of selenious acid from 0.05 to 0.5 mol L−1 resulted in the incorporation of just somewhat larger amount of selenium. Noteworthy, at pH of 10.0 (Fig. 1f), there is an obvious difference of the as-formed film morphology because the somotoid-shaped species randomly distributing on the surface are formed. Fig. 2 depicts XRD patterns of the as-formed (a) and annealed (b) film formed on the Ti substrate by hydrothermal treatment in the H2SeO3 solution. It can be noted that the as-formed films in the low-concentrated solution, e.g. 0.05–0.1 mol L−1 for up to 30 h, were found to be composed mainly of amorphous components. In more concentrated H2SeO3 solutions, e.g. 0.2–0.5 mol L−1, as-formed films were also found to be amorphous but containing titanium monoxide TiO0.84 crystallites due to the clearly resolved peak at 2θ 36.92°, corresponding to the peak from the {111} plane. After annealing in the oxygen-containing atmosphere these nanoplatelet films seem to be composed of both crystalline TiO2 and nonstoichiometric titania phases (see b pattern and inset in Fig. 2). It is reasonable to note that the shift of the main XRD peak ascribed to anatase and usually seen at 2θ = 25.2° to the lower angles, namely 22.6°, could be related to the formation of nonstoichiometric titania. All other experiments, performed without H2SeO3 at the varying pH and temperature, have never shown such morphology and the TiOx phase formation. Furthermore, no detectable peaks corresponding to Se–O or Ti–Se compounds were observed in the XRD patterns of nanoplatelet films formed in the solutions containing from 0.05 to 0.5 mol L−1 of H2SeO3 by the hydrothermal treatment at the temperatures from 150° to 180 °C for up to 48 h.
To further explore the composition of nanoplatelet-shaped films as-formed by the hydrothermal treatment under the optimized conditions of this study and after calcination at various temperatures, investigation were conducted using CW EPR of the sub-micrometer-sized titanium particles. It is worth noticing, that in this case the quite similar morphology films were formed. Note that EPR is a precise tool to reveal the existence of Ti3+ and oxygen vacancies in the titania materials.38–40 Fig. 3 depicts the EPR spectrum recorded at 110 K for titanium species after hydrothermal treatments in the selenious acid solutions and subsequent calcination in the oxygen-free atmosphere. The spectrum consists of two slightly overlapping signals exhibiting different saturation behavior. The narrow line at g = 2.0023 ± 0.0001 might be attributed to the conduction electrons as previously observed in anatase after thermal reduction at high temperature.41 We also cannot rule out that the origin of this signal is some free radicals formed during the sample preparation. The second signal is much broader with an effective g-value of 1.961 ± 0.003, which is typical for Ti3+ ions in various environments and polymorphs of titania.38,40,41

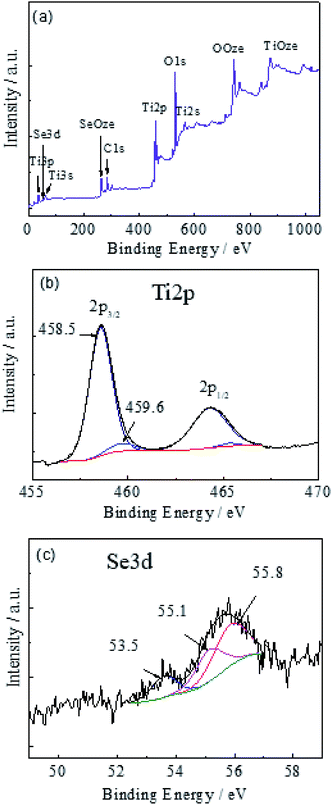

X-ray photoelectron spectroscopy (XPS) investigations were carried out to determine the composition and valence states of elements involved in the nanoplatelets. In the survey spectrum (Fig. 4a), the elements of Ti, Se, and O are clearly identified. Besides the above elements, the C element was also observed most probably due to the adventitious hydrocarbon from the XPS spectrometer itself and was not further analyzed. The Ti 2p3/2 peak (Fig. 4b) can be decomposed into two components centered at 459.6 and 458.5 eV, attributable to different oxidation states of titanium.42–45 The main component at 458.5 eV corresponds to the Ti4+ state.43–45 The second component at 459.6 eV probably is due to the small or Ti–OH contribution.43,44 The absence of clearly resolved Ti3+ 2p3/2 binding energy in a vicinity of 456.8–457.8 eV (ref. 46 and 47) most probably should be ascribed to the formation of titanium monoxide mainly in a lower part of film not capable analyze by XPS.
Fig. 4 panel c depicts the high-resolution scans of the Se 3d electrons for the sample obtained by the hydrothermal treatment in the same H2SeO3 solutions under the same synthesis conditions, e.g. 150 °C for 15 h. From the deconvoluted peak areas, Se is mainly present in the Se0.46,47 Furthermore, the incorporation of selenium was estimated to be just ∼0.48, ∼0.67 and ∼1.1 at% for 0.1, 0.3, and 0.5 mol L−1 solutions. Besides, the quantity of Se0 increased with the solution concentration increase from ∼28% (at 0.1 mol L−1) to ∼33% (at 0.3 mol L−1) and ∼83% (at 0.5 mol L−1). In addition, we have found that post-calcination of the nanoplatelet film in the oxygen-free ampoule at 350 °C results in the evaporation of elemental selenium from the titanium monoxide film sublimating onto the walls of the glass tube by drops, well confirming the incorporation of a-Se0 species instead of formation the titanium selenides.
To determine the absorption coefficient and an indirect band gap characteristic of titania films, the diffuse reflectance spectra were further collected and analyzed. The absorption coefficient (A) was calculated by the formula: A = (1 − R)2/2R,48 where R is the reflectance. The Kubelka Munk function plots for possible indirect transitions [(Ahν)1/2 vs. hν] of selected nanoplatelet films fabricated under conditions of this study as a function of the subsequent annealing treatments are displayed in Fig. 5. As shown, the film synthesized at 150 °C and annealed in the oxygen-free atmosphere at 350°, 400°, and 440 °C exhibits the optical gap of 2.83, 1.74, and 2.32 eV, respectively. The strongest absorption in the visible range shows the film calcined at 400 °C. With the further Tan increase to 440 °C, the Eg value decreased to 2.32 eV, which is significantly lower than a typical Eg value of anatase TiO2 equal to ∼3.2 eV. This result can be ascribed to decomposition of titanium suboxides at Tan ≥ 450 °C, as reported in ref. 49. It is worth noticing that in case of annealing the 180 °C film in the oxygen-free atmosphere at 400 °C the film possessing the smallest band gap value of 1.29 eV (Fig. 5b) was fabricated.
To determine the possible parameters of the nanoplatelet TiO0.84 film formed in the adapted herein solution under the optimized hydrothermal treatment conditions, e.g. 180 °C, 15 h, before and after annealing at 400 °C in the air and in the oxygen-free atmosphere, the model of the nanoporous titania film as in ref. 50 and 51 was developed (Fig. 6a) and analyzed. For example, Fig. 6b depicts the experimental reflection versus wavelength, Rp(λ), plot for the nanoplatelet film calcined in the oxygen-free atmosphere. The same plot was calculated on the basis of the film model and it is presented by a red line. In this way, it was determined that the shape of the theoretically calculated plot Rp(λ) well resembled the experimental one if the film thickness approximated 86.6 nm and the surprising 79% porosity well complying with the film structure observation by SEM presented in Fig. 1d.
It can be inferred that an increase in the band gap reduction of nanoplatelet titania could be attributed to the doping with selenium. However, the selenium content in the film is very low, not detectable by XRD and Raman (the data are not presented) and it decreases further upon calcination in the ampoule due to evaporation and sublimation of Se0 ruling out the possibility to increase the band gap redshift. To check the influence of Se0 incorporation, the nanotubed titania (TiNt) films decorated with Se0 nanoparticles were further designed and their optical properties were investigated. For this purpose, Ti specimens were anodized in the ethylene glycol solution containing NH4F and H2O at 50 V for 30 min as previously reported14 and calcined in the air at 450 °C for 2 h. In this way, the nanotube shaped (Fig. 7a) film of the 4.7 μm thickness with 120 nm tubes at the metal|film interface was formed. For crystallization, the samples were annealed at 450 °C in the air for 2 h (∂T/∂t = 10 °C min−1). The decoration of this film with Se0 was carried out by electrodeposition from the 0.2 mol L−1 H2SeO3 solution as in the case of alumina.52 As seen from the Se mapping image (Fig. 7b) and the Se distribution in the film cross-section (Fig. 7c), the adapted herein treatment conditions result in the rather uniform deposition of selenium species throught all the film thickness. Furthermore, the Raman spectra (Fig. 7d) revealed deposition of pure Se0 species, whereas the XRD pattern (not shown herein) indicated their amorphous nature. Eventually, the diffuse reflectance spectra for several films with various Se0 contents were investigated and characteristic plots (Fig. 7e) were analyzed. As can be seen, the heterostructuring of titania nanotubes with a-Se species only slightly redshifts the band gap of anatase TiO2. These results well comply with the reported ones.53 Therefore, a significant Eg redshift of our nanoplatelet films should be mainly ascribed to the formation of the low band gap titanium monoxide family member TiO0.84 confirmed by XRD and EPR.
