Tuning analog resistive switching and plasticity in bilayer transition metal oxide based memristive synapses

Abstract

Memristive devices with analog resistive switching characteristics are widely investigated nowadays for electronic synapses that facilitate memory and learning in neuromorphic computing hardware. It is therefore essential to understand and optimize the incremental switching behavior of the cells in order to enhance the functionality of memristive neural networks. Here we report a systematic study on the analog switching of bilayer oxide based memristive synapses and show that transition metal oxides with rich intermediate phases, such as WO_x, are able to provide larger number of conductance states compared with oxides with few intermediate phases such as TaO_x and HfO_x. This could be attributed to the intrinsically different electrical properties of the intermediate phases that jointly contribute to the change of device conductance, in addition to that caused by the varied geometry of filaments during programming. Controlled studies adopting different materials, compositions and sequences of oxide bilayers reveal that the analog switching is mainly dominated by the switching layer, thus providing clues to the optimization of memristive devices for future neuromorphic applications.

---

1. Introduction

Memristors, theoretically proposed in 1971,¹ are 2-terminal nanoionic devices that could potentially serve as building blocks for future memory and computing applications due to their high scalability, low power consumption, and excellent compatibility with complementary metal oxide semiconductor (CMOS) technology.^1–8 In 2008, HP Labs linked the concept of memristors with experimentally found resistive switching (RS) devices,² and since then their application in non-von Neumann computing paradigms especially neuromorphic computing has been widely exploited.⁹ In the envisioned neuromorphic systems, memristors are usually utilized to implement the functionality of synapses in a compact way and therefore enable learning and memory in resultant neural networks. The synaptic plasticity that can be achieved at the device level fundamentally determines the functionality of the constructed networks. A number of synaptic functions have been emulated using memristors till now, such as spike timing dependent plasticity,¹⁰ paired pulse facilitation,¹¹ heterosynaptic plasticity,^12,13 etc.

It should be noted that the requirement placed on device characteristics in neuromorphic computing significantly departs from that in nonvolatile memory application, e.g. in terms of the number of states (NOS) that can be reliably accessed during resistive switching. To date, synaptic devices based on various binary transition metal oxides such as TaO_x,^14,15 HfO_x,^16–18 TiO_x^19–22 and WO_x^23–28 have been widely studied. The RS behaviors have been further engineered by introducing different interfacial layers and forming a bilayer structure.^29–39 However, it is still unclear how the switching materials should be optimized in order to better fit the requirement in synaptic applications.

In this work, we have systematically studied the analog switching characteristics in memristive synapses based on bilayer oxide structures composed of a switching layer and a base layer. Through controlled investigations on the materials, compositions and stacking sequences of the oxide bilayer, it was found that the switching layer plays a dominant role in the analog switching. More importantly, the existence of rich suboxide phases in the switching layer material was found to be favorable for increasing the number of weight states, despite the fact that the intermediate oxide phases are usually deemed undesirable for nonvolatile memory applications. The richness of multilevel states could be attributed to the different electrical properties of the suboxide phases that jointly contributes to the change of device conductance, in addition to that caused by the varied geometry of filaments during programming. The findings in this work could shed light on the mechanism of analog switching in oxide memristors and provide clues to further optimization of memristive synapses.

2. Experimental

All devices studied in this work were fabricated in a 1 × 20 crossbar array on SiO₂ (150 nm)/Si substrates, as illustrated in Fig. 1a. Both the bottom and top electrodes were patterned by photo lithography, and subsequently 30 nm thick Pt film with 5 nm thick Ti adhesion layer was deposited by e-beam evaporation and adopted as the electrodes after lift-off processes. Each cell has a size of 2 × 2 μm², as shown in the scanning electron microscopy (SEM) image in Fig. 1b. We have prepared four different transition metal oxide based bilayer structures varied in stacking sequence and material/composition, namely TaO_y/Ta₂O_5−x, Ta₂O_5−x/TaO_y, WO_z-50%/TaO_y and Ta₂O_5−x/WO_z-10%, as the switching materials of the devices, in which the oxygen-rich Ta₂O_5−x and WO_z-50% layers largely decide the overall device resistance and thus serve as the switching layers while the oxygen-deficient TaO_y and WO_z-10% films act as the base layers. The thicknesses of the switching layer and the base layer were always fixed to ∼30 nm and ∼5 nm, respectively. The Ta₂O_5−x layer was prepared by radio frequency (RF) sputtering of a nominally stoichiometric Ta₂O₅ target, while the TaO_y layer was deposited by direct current (DC) reactive sputtering of a Ta metal target in Ar/O₂ gas mixture (the oxygen partial pressure was 3%) at 400 °C (more details can be found in our previous work⁴⁰). The WO_z-50% and WO_z-10% films with different oxygen concentrations were deposited by reactive sputtering in Ar/O₂ gas mixture using a W metal target, and the percentage following WO_z denotes the oxygen partial pressure that was experimentally used in depositions. Electrical measurements including DC and pulse tests were performed using an Agilent B1500A semiconductor parameter analyzer together with a probe station. The electrical stimuli were always applied on the top electrodes with bottom electrodes grounded. The microstructure of the devices was analysed by high-resolution transmission electron microscopy (HRTEM) and scanning transmission electron microscopy (STEM). The compositions and chemical states of the oxides were analyzed by X-ray photoelectron spectroscopy (XPS), together with detailed peak deconvolutions. The values of x and y in Ta₂O_5−x and TaO_y have been extracted by XPS, which were found to be ∼0.4 and ∼1.0, respectively.

Fig. 1 (a) Schematic of the bilayer device structure. (b) SEM image of the 1 × 20 crossbar array. Scale bar: 100 μm. (c) 5 consecutive I–V sweeps (gray) and averaged I–V curve (black) of a Pt/Ti/Ta₂O_5−x/TaOy/Pt device. (d) 5 consecutive I–V sweeps (gray) and averaged I–V curve (black) of a Pt/Ti/Ta₂O_5−x/TaO_y/Pt device. (d) 5 consecutive I–V sweeps (gray) and averaged I–V curve (black) of a Pt/Ti/TaO_y/Ta₂O_5−x/Pt device. (e, f) Ta 4f XPS spectra obtained from the blank Ta₂O_5−x and TaO_y film, respectively. Blue, green and magenta lines correspond to Ta 4f doublets from the fully oxidic, suboxidic and metallic states, respectively.

3. Results and discussion

Fig. 1c and d show typical current–voltage (I–V) characteristics of Pt/Ti/Ta₂O_5−x/TaO_y/Pt and Pt/Ti/TaO_y/Ta₂O_5−x/Pt devices, respectively, where the stacking sequences of the Ta₂O_5−x and TaO_y films are opposite in these two structures. Despite the identical deposition conditions of Ta₂O_5−x and TaO_y films in both structures, the Pt/Ti/Ta₂O_5−x/TaO_y/Pt and Pt/Ti/TaO_y/Ta₂O_5−x/Pt devices exhibit distinct switching behaviors after electroforming. When the TaO_y film was sputtered before the Ta₂O_5−x film, the resultant Pt/Ti/Ta₂O_5−x/TaO_y/Pt device shows typical bipolar switching (Fig. 1c), which can be well explained by the V_O exchange between the Ta₂O_5−x and TaO_y layers.^29,40,41 In this case, the more stoichiometric and thus more insulating Ta₂O_5−x layer on top serves as the switching layer where local filament formation/dissolution is deemed to take place, while the more oxygen-deficient and thus more conductive TaO_y layer beneath acts as the base layer and hence can be considered as a reservoir of oxygen vacancies (V_Os). The migration of oxygen vacancies from the oxygen-deficient TaO_y layer to the oxygen-rich Ta₂O_5−x layer and accompanying electrochemical redox reactions lead to a set process, while backward V_O migration and redox reactions result in a reset process.^29,40,41 Such difference in oxygen concentration in Ta₂O_5−x and TaO_y was clearly verified by detailed XPS analysis, as shown in Fig. 1e and f. The Ta 4f XPS spectrum of Ta₂O_5−x films (Fig. 1e) shows a dominant Ta 4f doublet with Ta 4f_7/2 and 4f_5/2 peaks located at 26.35 and 28.25 eV, respectively. These peaks are indicative of fully oxidized Ta⁵⁺ state, consistent with the property of RF sputtered films with roughly maintained stoichiometry with that of the target. In contrast, Fig. 1f shows the Ta 4f XPS spectrum of TaO_y films, where three distinct chemical states of Ta can be found after peak deconvolutions. Besides the Ta⁵⁺ doublet with the Ta 4f_7/2 peak located at 26.2 eV, a suboxidic and metallic Ta doublets can be clearly identified with Ta 4f_7/2 peak shifted to 23 and 21.4 eV.⁴⁰ Such lowered valence state of Ta clearly demonstrates the oxygen-deficient nature of the TaO_y film and therefore verifies the role of TaO_y layer as the reservoir of oxygen vacancies in the bilayer. The gradient of oxygen concentration in the bilayer structure therefore defines the polarity of the bipolar switching in Pt/Ti/Ta₂O_5−x/TaO_y/Pt devices, which is favorable for enhancing the stability of cyclic switching.^42,43 As a control experiment, we have also fabricated single-layer devices including Pt/Ti/Ta₂O_5−x/Pt and Pt/Ti/WO_z-50%/Pt, which have shown generally increased switching voltages and low yields, as can been in ESI Fig. S1.†

When the TaO_y film was deposited after the Ta₂O_5−x film, however, the Pt/Ti/TaO_y/Ta₂O_5−x/Pt device exhibits complementary resistive switching (CRS) behavior (Fig. 1d) that is distinct from that in Fig. 1c. CRS behavior was firstly put forward by combining two RS cells anti-serially stacked together with a common electrode.⁴⁴ In this case, one cell is always in OFF state at low voltages, leading to overall high resistance and thus high nonlinearity, while the device state is defined by the internal configuration of the two cells instead of the overall resistance. Such nonlinear behavior can be used to address the sneak current problem in passive crossbar memristor arrays,^42,44 and therefore will be desirable for reducing the power consumption of memristive neural networks. These different switching effects, in oxide bilayer where only the stacking sequence was reversed, can be ascribed to interfacial reactions between the electrode and oxides. When the TaO_y film was sputtered before Ta₂O_5−x, the Ta₂O_5−x film is in contact with the top electrode, where a 5 nm thick Ti adhesion layer exists between Ta₂O_5−x and Pt. Since Ti is a well-known oxygen getter material,⁴⁵ a portion of the Ta₂O_5−x film could be reduced and thus the effective thickness of the switching layer is expected to be smaller than the nominal deposition thickness of Ta₂O_5−x, i.e. 5 nm. On the contrary, when the TaO_y film was deposited after the Ta₂O_5−x film, the Ta₂O_5−x film is in immediate contact with the inert bottom Pt electrode where no Ti exists in between. As a consequence, the effective thickness of the switching layer will not be affected by the existence of Ti and thus is expected to be larger than that in Pt/Ti/Ta₂O_5−x/TaO_y/Pt devices. Given the different effective Ta₂O_5−x thicknesses, it is possible for the V_Os to get depleted in the Pt/Ti/TaO_y/Ta₂O_5−x/Pt structure, leading to the observed CRS behavior in Fig. 1d rather than the bipolar switching in Pt/Ti/Ta₂O_5−x/TaO_y/Pt devices (Fig. 1c). This has been verified by the reappearance of bipolar switching when a Ti layer was inserted into the bottom interface of Pt/Ti/TaO_y/Ta₂O_5−x/Pt devices (Fig. 2a) and also by detailed TEM characterization (Fig. 2b–e). Obviously, the Ta₂O_5−x film when in direct contact with Ti (Fig. 2d) is thinner than the Ta₂O_5−x without interfacial reactions with Ti (Fig. 2e), therefore clearly verifying our hypothesis that Ti has the effect of reducing a portion of Ta₂O_5−x film and the different resistance switching behaviors in Fig. 1c and d indeed originate from interfacial reactions. As a result, a subtle variation in the thickness of the switching layer is able to result in pronounced evolutions in switching characteristics, implying that the switching layer plays a dominant role in resistive switching, which will be further discussed afterwards.

Fig. 2 (a) 5 consecutive I–V sweeps (gray) and averaged I–V curve (black) of a Pt/Ti/TaO_y/Ta₂O_5−x/Ti/Pt device. (b and c) Cross sectional STEM images of Pt/Ti/Ta₂O_5−x/TaO_y/Ti/Pt and Pt/Ti/TaO_y/Ta₂O_5−x/Pt devices. (d and e) Cross sectional HRTEM images of Pt/Ti/Ta₂O_5−x/TaO_y/Ti/Pt and Pt/Ti/TaO_y/Ta₂O_5−x/Pt devices. Scale bar: 5 nm.

Furthermore, the conductance of memristors needs to be incrementally adjusted in order to serve as electronic synapses,^12,24,46,47 and we have thus studied the analog conductance modulation of the aforementioned memristive devices as well. Fig. 3a shows the pulse train used for measurements on Pt/Ti/Ta₂O_5−x/TaO_y/Pt devices, which contains a single, wide set pulse (V_SET = −1.1 V, t_SET = 10 ms) that ensures switching of the device to its highest conductance, followed by 50 narrower reset pulses with varied amplitudes (V_RESET = 1.05–1.30 V, t_RESET = 200 ns, t_interval = 10 ms) aiming to incrementally reduce the device conductance and cause synaptic depression. One can see that gradual conductance reductions can be obtained as the number of reset pulses increases (Fig. 3c), and the step of conductance change upon application of each pulse (ΔG) as well as the maximum adjustment range (G_max/G_min) can be facilely tailored by the amplitude of the applied pulses, as shown in Fig. 3c. In general, a higher V_RESET leads to larger ΔG and G_max/G_min (Fig. 3c), and such controllability is desirable for implementing different learning rates in memristive neural networks. Similar conductance adjustments, i.e. ΔG and G_max/G_min dependent on the amplitude of V_SET pulses, can also be achieved in potentiation processes, as shown in Fig. 3b and d. However, the conductance adjustment in potentiation (Fig. 3d) seems more abrupt compared with that in depression (Fig. 3c). This can be explained by the fact that the V_O drift driven by the applied electric field and the V_O diffusion caused by the V_O concentration gradient in the bilayer films are in the same direction during potentiation, i.e. both flowing from TaO_y to Ta₂O_5−x, so that the V_O movement is accelerated (Fig. 3d). In stark contrast, the V_O drift and diffusion are in opposite directions in depression, where reversed electric field is applied but the V_O concentration gradient remains the same, therefore resulting in the overall more gradual conductance modulation observed in Fig. 3c.

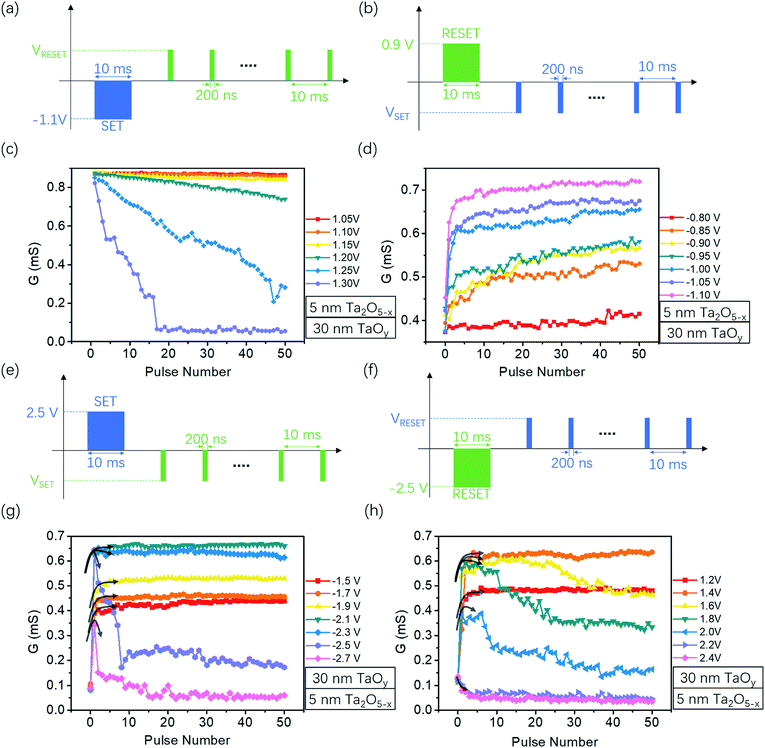

Fig. 3 (a, b) Schematic of pulse trains used for the long-term depression (LTD) and long-term potentiation (LTP) measurements with the Pt/Ti/Ta₂O_5−x/TaO_y/Pt device. (c, d) LTD and LTP of the Pt/Ti/Ta₂O_5−x/TaO_y/Pt. (e, f) Schematic of pulse trains used for LTD and LTP measurements with the Pt/Ti/TaO_y/Ta₂O_5−x/Pt device. (g, h) LTD and LTP of the Pt/Ti/TaO_y/Ta₂O_5−x/Pt devices.

Fig. 3e–h further shows the conductance evolution of Pt/Ti/TaO_y/Ta₂O_5−x/Pt devices when programming pulses with various amplitudes and polarities were applied. Similar with the Pt/Ti/Ta₂O_5−x/TaO_y/Pt devices, the ΔG and G_max/G_min are also strongly dependent on the amplitudes of the applied potentiation and depression pulses. Nevertheless, it can be clearly observed that the device conductance in Pt/Ti/TaO_y/Ta₂O_5−x/Pt goes through a 2-regime evolution process when the pulse amplitude exceeds −2.3 V (Fig. 3e and g) or 1.6 V (Fig. 3f and h), where the device conductance increases first and then decreases. Such behavior is consistent with the CRS effect in Pt/Ti/TaO_y/Ta₂O_5−x/Pt devices as observed in DC measurements and once again indicates the influence of the switching layer thickness (Fig. 1c).⁴⁸

Based on the above analysis, it is obvious that the base layer and the switching layer in an oxide bilayer structure play different roles in filament growth/dissolution and resistive switching dynamics. In general, the base layer serves as a reservoir of oxygen vacancies, while the filament formation/dissolution mainly takes place in the switching layer. This therefore indicates that the optimization of synaptic plasticity, e.g. the NOS, should be mainly performed on the material properties and defect structures of the switching layer. Tantalum oxide is a well-recognized material system with few thermodynamically stable intermediate oxide phases.^43,49 As a result, the analog conductance state of the devices should mainly originate from the geometry of the conduction channels, including the length and width of the filaments.¹⁴ This to certain extent limits the NOS in tantalum oxide based memristive synapses. It is therefore of interest to replace tantalum oxide with other materials with rich intermediate phases and investigate the analog switching properties.

In light of this, we have introduced tungsten oxide as the new switching layer, which has been reported to have a large number of intermediate oxide phases including magneli phases.⁵⁰ Fig. 4a shows the schematic of the Pt/Ti/WO_z-50%/TaO_y/Pt devices, where the WO_z-50% layer deposited using a high oxygen partial pressure of 50% in reactive sputtering was used to replace Ta₂O_5−x and served as the switching layer while the base layer was still TaO_y. The W 4f XPS spectrum of the WO_z-50% film (Fig. 4c) shows a dominant W 4f doublet with W 4f_7/2 and 4f_5/2 peaks located at 36 and 38.15 eV, respectively, suggesting that the WO_z-50% film is nearly fully oxidized and can indeed serve as the switching layer of the device. As expected, the Pt/Ti/WO_z-50%/TaO_y/Pt devices exhibit typical bipolar switching, as shown in Fig. 4b, and the switching polarity is consistent with the built-in gradient of oxygen concentration in the WO_z-50%/TaO_y bilayer. Fig. 3d–g further show the potentiation and depression processes in Pt/Ti/WO_z-50%/TaO_y/Pt devices based on pulse measurements. Compared with the conductance adjustments in Pt/Ti/Ta₂O_5−x/TaO_y/Pt devices where Ta₂O_5−x serves as the switching layer (Fig. 3c and d), it is obvious that the Pt/Ti/WO_z-50%/TaO_y/Pt devices with WO_z-50% as the switching layer have shown larger NOS and better analog switching characteristics (Fig. 4f and g). A direct comparison of the pulse measurement results in different systems is shown in ESI Fig. S2.† The conductance of the Pt/Ti/WO_z-50%/TaO_y/Pt devices can also be changed in a more gradual manner in both potentiation and depression processes. The ΔG and G_max/G_min are once again dependent on the amplitudes of the potentiation and depression pulses.

Fig. 4 (a) Schematic of the Pt/Ti/WO_z-50%/TaO_y/Pt device structure. (b) 5 consecutive I–V sweeps (gray) and averaged I–V curve (black) of a Pt/Ti/WO_z-50%/TaO_y/Pt device. (c) W 4f XPS spectra obtained from the blank WO_z-50% film. Blue lines correspond to W 4f doublets from the fully oxidic states. (d, e) Schematic of pulse trains used for LTD and LTP measurements with the Pt/Ti/WO_z-50%/TaO_y/Pt device. (f, g) LTD and LTP of the Pt/Ti/WO_z-50%/TaO_y/Pt device.

The observed increase of NOS in Pt/Ti/WO_z-50%/TaO_y/Pt devices is expected to originate from the existence of rich intermediate oxide phases in tungsten oxide, as proposed above. Therefore, besides the geometric changes in conducting filaments upon application of potentiation and depression pulses, it is possible for some localized parts of the conduction channel to undergo phase transitions between the intermediate oxide phases of WO_z, further contributing to the incremental switching and thus the NOS. The applied electric field on the devices and the relatively strong thermal effects during device operations (with electrical conductance at ∼mS level) can provide sufficient driving force for such localized phase transitions. An example of such phase transitions in WO_z between the mother phase and a magnéli phase has been experimentally verified by transmission electron microscopy observations²⁴ and found responsible for the resistive switching in this system. It is worthwhile noting that in the case of analog switching the conducting filament does not have to undergo phase transitions as a whole. Instead, only localized phase transitions in parts of the conduction channel will suffice in adjusting the device conductance in an incremental way, leading to the fine analog switching observed in Fig. 4f and g when the phase transition processes are coupled with the geometric changes of conducting filaments.

In order to verify this hypothesis, we have also fabricated control devices where tungsten oxide was used as the base layer instead of the switching layer (Fig. 5a). The oxygen partial pressure was reduced to 10% during the deposition of WO_z in order to increase the concentration of oxygen vacancies, therefore forming a Pt/Ti/Ta₂O_5−x/WO_z-10%/Pt structure. The XPS spectrum from the WO_z-10% film clearly shows existence of reduced W and metallic W states in the film (green and magenta doublets) and hence increased V_O concentration in the film, as shown in Fig. 5c. A typical oxide bilayer is thus formed when the more oxygen-deficient WO_z film is stacked with oxygen-rich Ta₂O_5−x, and the devices once again display typical bipolar switching characteristics (Fig. 5b). However, since the WO_z was used as the base layer instead of the switching layer in the present Pt/Ti/Ta₂O_5−x/WO_z-10%/Pt structure, the switching characteristics are now mainly decided by Ta₂O_5−x and thus the intermediate states in WO_z do not effectively contribute to the analog switching, unlike in Pt/Ti/WO_z-50%/TaO_y/Pt devices. As a result, the switching of the Pt/Ti/Ta₂O_5−x/WO_z-10%/Pt devices becomes very abrupt and the NOS largely decreases, as shown in Fig. 5d–g, which strongly demonstrates that the incremental switching behavior and the NOS are indeed correlated with the number of intermediate oxide phases in the switching layer.

Fig. 5 (a) Schematic of the Pt/Ta₂O_5−x/WO_z-10%/Pt device structure. (b) 5 consecutive I–V sweeps (gray) and averaged I–V curve (black) of a Pt/Ti/Ta₂O_5−x/WO_z-10%/Pt device. (c) W 4f XPS spectra obtained from the blank WO_z-10% film. Green and magenta lines correspond to W 4f doublets from the suboxidic and metallic states, respectively. (d, e) Schematic of pulse trains used for LTD and LTP measurements with the Pt/Ti/Ta₂O_5−x/WO_z-10%/Pt device. (f, g) LTD and LTP of the Pt/Ti/Ta₂O_5−x/WO_z-10%/Pt.

We have further examined the above hypothesis in other transition metal oxide systems, and Fig. 6a summarizes the reported NOS values in memristive synapses based on four different transition metal oxides that have been reported previously,^{14,15,17,18,20–22,27–29} where HfO_x and TaO_x are typical material systems with few thermodynamically stable oxide phases while WO_x and TiO_x represent material systems with rich intermediate phases.^{40,43,49–52} The extraction of NOS should takes into account the noise level and conductance change that could be recognized (ESI Table S1 and related discussions†). It is obvious in Fig. 6a that WO_x and TiO_x based synaptic devices have generally shown much higher NOS compared with HfO_x and TaO_x, once again verifying that there is indeed an underlying correlation between the NOS and the number of phases in oxide memristors. This correlation is schematically depicted in Fig. 6b, where the existence of intermediate phases provides more conductance levels when coupled with the geometric changes of filaments, compared with oxides with few thermodynamically stable intermediate phases.

Fig. 6 (a) The number of multilevel states in four transition metal oxides based memristive synapses. (b) Schematic of the conductance change mechanism in oxide systems with and without intermediate phases, leading to different NOS.

We would like to finally note that here we have concentrated on tailoring the number of conductance states, which is an important criterion for memristive synapses, but other characteristics of the cells such as endurance, retention etc. will put additional constraints on the synaptic devices and sometimes have different requirements on material properties. It is also likely to have some extent of intermixing between the switching layer and the base layer, due to inevitable inter-diffusion, as verified by XPS depth profiling analysis (ESI Fig. S3†). The present findings, however, could provide important clues to the optimization of memristive cells for future neuromorphic computing applications.

4. Conclusions

In summary, we have systematically studied the influence of materials, compositions and stacking sequences of oxide bilayer on the analog switching characteristics of memristive synapses. The results unambiguously showed the dominant role of the switching layer in deciding the analog switching properties and therefore device optimizations should be concentrated on the switching layer. Furthermore, compared with oxides with few thermodynamically stable intermediate phases, it was found that the existence of rich intermediate phases could lead to larger NOS and thus more gradual resistive switching. These findings could be important for future device optimizations and constructions of neuromorphic computing systems.

Conflicts of interest

There are no conflicts of interest to declare.

Acknowledgements

This work was supported by National Key R&D Program of China (2017YFA0207600), Beijing Municipal Science & Technology Commission Program (Z161100000216148) and National Natural Science Foundation of China (61674006, 61421005). Y. Y. acknowledges support from the “1000 Youth Talents Program” of China.

References

1. L. O. Chua, IEEE Trans. Circuit Theory, 1971, 18, 507–519.
2. D. B. Strukov, G. S. Snider, D. R. Stewart and R. S. Williams, Nature, 2008, 453, 80–83.
3. J. J. Yang, D. B. Strukov and D. R. Stewart, Nat. Nanotechnol., 2013, 8, 13–24.
4. R. Waser, R. Dittmann, G. Staikov and K. Szot, Adv. Mater., 2009, 21, 2632–2663.
5. R. Waser and M. Aono, Nat. Mater., 2007, 6, 833–840.
6. Y. Yang, P. Gao, S. Gaba, T. Chang, X. Pan and W. Lu, Nat. Commun., 2012, 3, 732.
7. Y. Yang, P. Gao, L. Li, X. Pan, S. Tappertzhofen, S. Choi, R. Waser, I. Valov and W. D. Lu, Nat. Commun., 2014, 5, 4232.
8. N. K. Upadhyay, S. Joshi and J. J. Yang, Sci. China. Inform. Sci., 2016, 59, 061404.
9. M. Prezioso, F. Merrikh-Bayat, B. D. Hoskins, G. C. Adam, K. K. Likharev and D. B. Strukov, Nature, 2015, 521, 61–64.
10. S. H. Jo, T. Chang, I. Ebong, B. B. Bhadviya, P. Mazumder and W. Lu, Nano Lett., 2010, 10, 1297–1301.
11. C. Du, W. Ma, T. Chang, P. Sheridan and W. D. Lu, Adv. Funct. Mater., 2015, 25, 4290–4299.
12. Y. Yang, B. Chen and W. D. Lu, Adv. Mater., 2015, 27, 7720–7727.
13. Y. Yang, M. Yin, Z. Yu, Z. Wang, T. Zhang, Y. Cai, W. D. Lu and R. Huang, Adv. Electron. Mater., 2017, 3, 1700032.
14. S. Kim, C. Du, P. Sheridan, W. Ma, S. Choi and W. D. Lu, Nano Lett., 2015, 15, 2203–2211.
15. X. Li, H. Wu, G. Bin, W. Wu, D. Wu, N. Deng, J. Cai and H. Qian, Nanotechnology, 2016, 27, 305201.
16. B. Gao, Y. J. Bi, H. Y. Chen, R. Liu, P. Huang, B. Chen, L. F. Liu, X. Y. Liu, S. M. Yu, H. S. P. Wong and J. F. Kang, ACS Nano, 2014, 8, 6998–7004.
17. Y.-E. Syu, T.-C. Chang, J.-H. Lou, T.-M. Tsai, K.-C. Chang, M.-J. Tsai, Y.-L. Wang, M. Liu and S. M. Sze, Appl. Phys. Lett., 2013, 102, 172903.
18. L. Zhao, H. Y. Chen, S. C. Wu, Z. Jiang, S. Yu, T. H. Hou, H. S. Wong and Y. Nishi, Nanoscale, 2014, 6, 5698–5702.
19. A. Fabien, G. Ligang, D. H. Brian and B. S. Dmitri, Nanotechnology, 2012, 23, 075201.
20. K. Seo, I. Kim, S. Jung, M. Jo, S. Park, J. Park, J. Shin, K. P. Biju, J. Kong, K. Lee, B. Lee and H. Hwang, Nanotechnology, 2011, 22, 254023.
21. L. Gao, I. T. Wang, P. Y. Chen, S. Vrudhula, J. S. Seo, Y. Cao, T. H. Hou and S. Yu, Nanotechnology, 2015, 26, 455204.
22. J. Park, M. Kwak, K. Moon, J. Woo, D. Lee and H. Hwang, IEEE Electron Device Lett., 2016, 37, 1559–1562.
23. T. Chang, S.-H. Jo and W. Lu, ACS Nano, 2011, 5, 7669–7676.
24. Z. H. Tan, R. Yang, K. Terabe, X. B. Yin, X. D. Zhang and X. Guo, Adv. Mater., 2016, 28, 377–384.
25. R. Yang, K. Terabe, G. Liu, T. Tsuruoka, T. Hasegawa, J. K. Gimzewski and M. Aono, ACS Nano, 2012, 6, 9515–9521.
26. T. Shi, X. B. Yin, R. Yang and X. Guo, Phys. Chem. Chem. Phys., 2016, 18, 9338–9343.
27. D. Kuzum, S. Yu and H. S. Wong, Nanotechnology, 2013, 24, 382001.
28. R. Yang, K. Terabe, Y. P. Yao, T. Tsuruoka, T. Hasegawa, J. K. Gimzewski and M. Aono, Nanotechnology, 2013, 24, 384003.
29. M.-J. Lee, C. B. Lee, D. Lee, S. R. Lee, M. Chang, J. H. Hur, Y.-B. Kim, C.-J. Kim, D. H. Seo, S. Seo, U. I. Chung, I.-K. Yoo and K. Kim, Nat. Mater., 2011, 10, 625–630.
30. S. H. Chang, S. B. Lee, D. Y. Jeon, S. J. Park, G. T. Kim, S. M. Yang, S. C. Chae, H. K. Yoo, B. S. Kang, M. J. Lee and T. W. Noh, Adv. Mater., 2011, 23, 4063–4067.
31. X. Liu, S. M. Sadaf, M. Son, J. Shin, J. Park, J. Lee, S. Park and H. Hwang, Nanotechnology, 2011, 22, 475702.
32. J. Lee, C. Du, K. Sun, E. Kioupakis and W. D. Lu, ACS Nano, 2016, 10, 3571–3579.
33. J. J. Yang, J. Borghetti, D. Murphy, D. R. Stewart and R. S. Williams, Adv. Mater., 2009, 21, 3754–3758.
34. M.-K. Kim and J.-S. Lee, ACS Appl. Mater. Interfaces, 2016, 8, 32918–32924.
35. S.-M. Lin, J.-Y. Tseng, T.-Y. Su, Y.-C. Shih, J.-S. Huang, C.-H. Huang, S.-J. Lin and Y.-L. Chueh, ACS Appl. Mater. Interfaces, 2014, 6, 17686–17693.
36. P. Bousoulas, P. Asenov, I. Karageorgiou, D. Sakellaropoulos, S. Stathopoulos and D. Tsoukalas, J. Appl. Phys., 2016, 120, 154501.
37. R. Huang, X. Yan, K. A. Morgan, M. D. B. Charlton and C. H. de Groot, J. Phys. D: Appl. Phys., 2017, 50, 175101.
38. G. Niu, M. A. Schubert, S. U. Sharath, P. Zaumseil, S. Vogel, C. Wenger, E. Hildebrandt, S. Bhupathi, E. Perez, L. Alff, M. Lehmann, T. Schroeder and T. Niermann, Nanotechnology, 2017, 28, 215702.
39. K. Park and J.-S. Lee, RSC Adv., 2016, 6, 21736–21741.
40. Y. C. Yang, S. Choi and W. Lu, Nano Lett., 2013, 13, 2908–2915.
41. Y. C. Yang, J. Lee, S. Lee, C. H. Liu, Z. H. Zhong and W. Lu, Adv. Mater., 2014, 26, 3693–3699.
42. Y. C. Yang, P. Sheridan and W. Lu, Appl. Phys. Lett., 2012, 100, 203112.
43. J. J. Yang, M. X. Zhang, J. P. Strachan, F. Miao, M. D. Pickett, R. D. Kelley, G. Medeiros-Ribeiro and R. S. Williams, Appl. Phys. Lett., 2010, 97, 232102.
44. E. Linn, R. Rosezin, C. Kugeler and R. Waser, Nat. Mater., 2010, 9, 403–406.
45. J. J. Yang, J. P. Strachan, F. Miao, M. X. Zhang, M. D. Pickett, W. Yi, D. A. A. Ohlberg, G. Medeiros-Ribeiro and R. S. Williams, Appl. Phys. A: Mater. Sci. Process., 2011, 102, 785–789.
46. Z. Wang, S. Joshi, S. E. Savel'ev, H. Jiang, R. Midya, P. Lin, M. Hu, N. Ge, J. P. Strachan, Z. Li, Q. Wu, M. Barnell, G. L. Li, H. L. Xin, R. S. Williams, Q. Xia and J. J. Yang, Nat. Mater., 2017, 16, 101–108.
47. T. Ohno, T. Hasegawa, T. Tsuruoka, K. Terabe, J. K. Gimzewski and M. Aono, Nat. Mater., 2011, 10, 591–595.
48. X. Zhu, C. Du, Y. Jeong and W. D. Lu, Nanoscale, 2017, 9, 45–51.
49. S. P. Garg, N. Krishnamurthy, A. Awasthi and M. Venkatraman, J. Phase Equilib., 1997, 18, 407.
50. M. Katoh and Y. Takeda, Jpn. J. Appl. Phys., Part 1, 2004, 43, 7292–7295.
51. H. Okamoto, J. Phase Equilib. Diffus., 2008, 29, 124.
52. P. G. Wahlbeck and P. W. Gilles, J. Am. Ceram. Soc., 1966, 49, 180–183.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c7ra07522g

---
