A g-C₃N₄/rGO nanocomposite as a highly efficient metal-free photocatalyst for direct C–H arylation under visible light irradiation

Abstract

Visible light mediated photoredox arylations can proceed under very mild conditions and have therefore become attractive. Nowadays, various metal nanomaterials and metal complexes have been developed as photocatalysts for direct arylation of heteroaromatics. These photocatalysts, however, still suffer from corrosion, high cost, aggregation or poor stability. We report the design and fabrication of a g-C₃N₄/rGO nanocomposite and demonstrate its excellent activity, high apparent quantum efficiency, and recyclability to catalyze the metal free direct arylation of heteroaromatics under visible light at room temperature. Moreover, the g-C₃N₄/rGO catalyst can be reused more than five times without significant loss of activity, confirming this catalyst's excellent stability. The present strategy to fabricate a metal-free g-C₃N₄/rGO nanocomposite for direct C–H arylation open a new avenue towards replacing metal-based catalysts in fine organic synthesis.

---

1. Introduction

Arylated heteroarenes are widely used in materials science due to their interesting optical and electronic properties. Simultaneously, these compounds exhibit remarkable biomedical applications, especially in peptide mimetics or pharmaceuticals.^1–5 The most efficient synthesis of aryl-heteroaryl bonds is the direct C–H arylation of heteroarenes.^6,7 Recently, using visible light driven-metal catalysts for C–H arylation has attracted significant attention.^8–13 Compared with metal-based catalysts, the metal-free photocatalysts undoubtedly provide a valuable strategy to overcome the drawbacks caused by metals. It's well-known that the metal can be compromised, dissolved or decomposed in the reaction system and also cause detrimental environmental pollution problems.^14–17 Very recently, König reported using Eosin Y, a high-cost organic photosensitizer, as a metal-free photocatalyst for direct arylation of heteroarenes.¹⁸ However, the cost, recycling and reuse of the photocatalyst is still a problem. Hence, the development of efficient, low-cost, sustainable, environmentally friendly, metal-free photocatalytic materials for C–H arylation is urgently required.

The graphitic carbon nitride (g-C₃N₄) is a fascinating photocatalyst,^19–22 which absorbs the visible light with a medium band gap (2.4–2.8 eV). Due to the exceptional physicochemical stability, earth-abundant, low-cost, green precursors and especially the metal-free feature, it is a better candidate of photocatalyst. However, the photocatalytic efficiency of bare g-C₃N₄ is limited by the high recombination rate of photogenerated electron–hole pairs. In addition, the weak van der Waals interaction between adjacent conjugated planes also hinders the electron coupling between the planes, which negatively affects the electron transfer and the photocatalytic activity.²³ To resolve this problem, many attempts have been carried out to improve the photocatalytic performance of g-C₃N₄, such as non-metal doping, noble metal deposition, preparation of nano-porous g-C₃N₄ or 2D materials hybriding.^24,25 In fact, introducing 2D graphene or its derivatives can promote the photo-generated charge separation and transfer, resulting to minimize recombination losses, which is an effective strategy to improve visible light utilization, and electron transport property of g-C₃N₄.²⁶ Recently, the composites of g-C₃N₄ and 2D graphene have been widely used in photocatalytic water splitting, dyes removal and so on.^27,28 Up to now, there has been no report on the use of the g-C₃N₄/rGO nanocomposite as photocatalyst for visible light driven-direct C–H arylation.

Here we developed the g-C₃N₄/rGO nanocomposite by thermally treating the precursor materials consisted of melamine and rGO at 550 °C for 4 h in nitrogen. The precursor of melamine was polymerized to g-C₃N₄. On account of the similar carbon network and sp² conjugated π structure, the g-C₃N₄ are very facile compatibility with rGO to form the “sandwich structure”. Such unique structure is essential for improving the photo-generated electron transfer and photocatalytic activity of g-C₃N₄.²⁹ The resulting g-C₃N₄/rGO nanocomposite shows an excellent photocatalytic performance for direct C–H arylation of heteroarenes with aryl diazonium salts under visible light irradiation (the schematic is shown in Fig. 1a). The quantum efficiency is 70.7% at the wavelength of 450 nm.

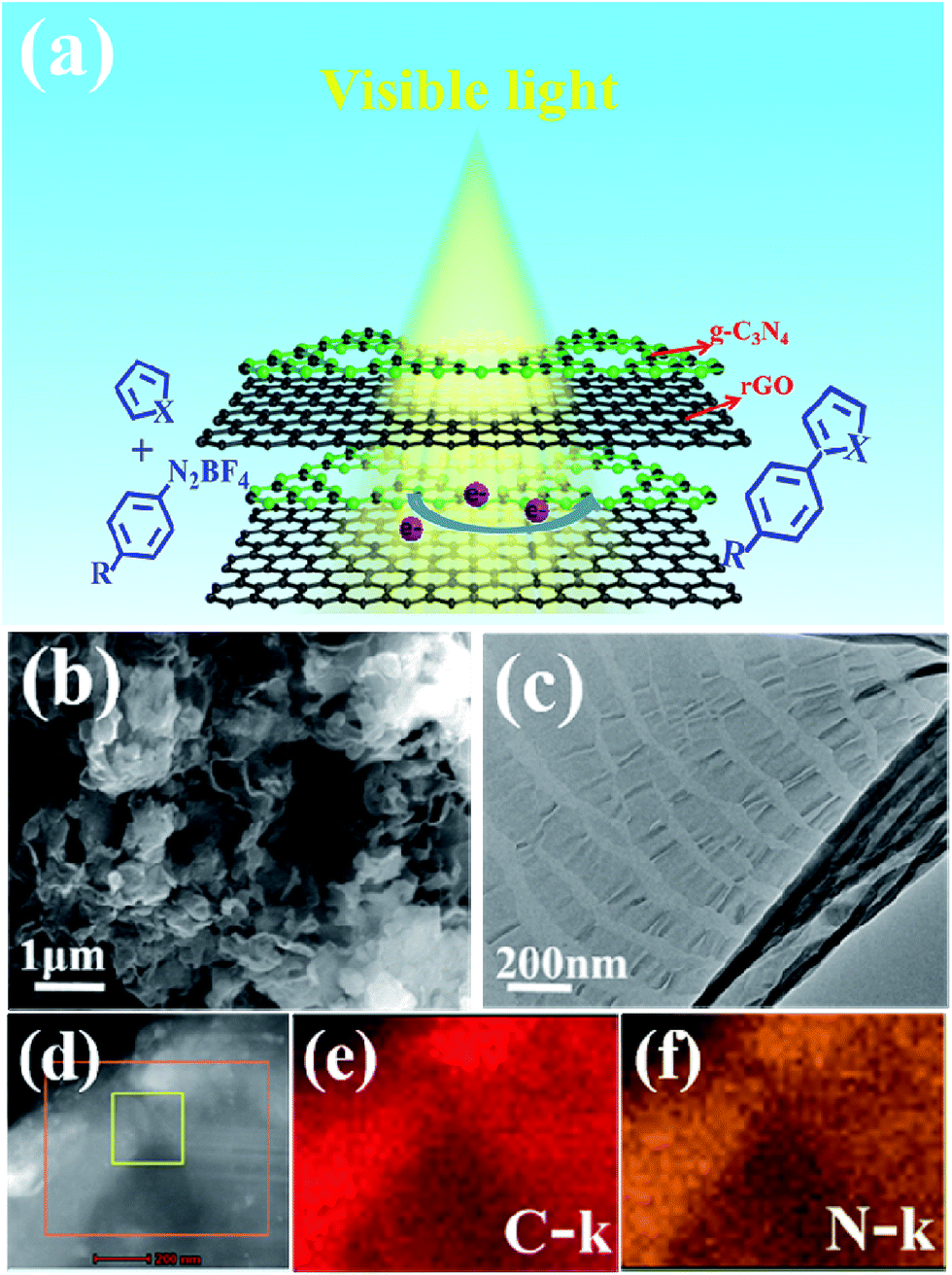

Fig. 1 (a) The schematic illustration of g-C₃N₄/rGO nanocomposite with “sandwich structure” for photocatalysis direct C–H arylation; (b) the SEM image of g-C₃N₄/rGO nanocomposite; (c) the TEM image of g-C₃N₄/rGO nanocomposite; (d) high angle annular dark field scanning TEM images; (e and f) elemental mapping images of g-C₃N₄/rGO nanocomposite.

2. Experimental section

2.1. Materials

All reagents and solvents were obtained commercially and used without further purification unless otherwise noted. Graphite powder was purchased from Sigma-Aldrich. The dialysis bags (MWCO 8000–14 000 g mol⁻¹) were purchased from Shanghai Med. Thiophene (99%) and furan (98%) were purchased from J&K Scientific Ltd. Hydrogen peroxide, sulphuric acid (95–97%), sodium nitrite, N,N-dimethyl formamide (DMF), and potassium permanganate were obtained from Tianjin Med. Hydrazine hydrate (85%), and melamine were purchased from Sinopharm Chemical Reagent Co., Ltd.

2.2. Instrumentation

¹H NMR spectra and ¹³C NMR spectra were acquired with Varian 400 MHz NMR. X-ray photoelectron spectroscopy (XPS) measurements were performed on a PHI-5702 multifunctional spectrometer using AlKα radiation. FT-IR spectra were recorded on a Nicolet FT-170SX spectrometer. Photocatalysis was performed using daylight lamp. X-ray diffraction (XRD) patterns were obtained on a Bruker AXS D8 advance diffractometer with CuKα radiation (λ = 1.5418 Å). The transmission electron microscope (TEM) was operated on a JEM-2100 (200 kV) instrument. UV-visible adsorption spectra (UV-vis) were calculated by a UV 1750 spectrometer. The yields were determined by 450-GC gas chromatograph.

2.3. Preparation of GO³⁰

Concentrated sulfuric acid (46 mL) in a 250 mL flask was setted in an ice bath with mechanical agitation at 250 rpm. After cooling down the solution to <10 °C, graphite powder (1.0 g, 40 nm, 99%) was added and then KMnO₄ (3.0 g) and NaNO₃ (3.0 g) were slowly added to the mixture and keep the temperature of the suspension <10 °C. Successively, the reaction system was transferred to a 40 °C oil bath and vigorously stirred for 2 h. Then 100 mL water was slowly added to the reaction system. Subsequently, the reaction mixture was poured into 150 mL water and some H₂O₂ (30%) liquor was added dropwise. At this time, the color of the solution changed from dark brown to yellow. The mixture was centrifuged at 8000 rpm for 2 min and washed with water and NaCl solution to remove metal ions and keep the pH at 6. The resulting solid was dispersed in 200 mL water to form a GO aqueous dispersion. Then the solution was sonicated for 36 h. Finally, it was purified by dialysis for one week using a dialysis bag with a molecular weight cutting off of 8000 to 14 000 g mol⁻¹ to remove the remaining acid and metal species.

2.4. Preparation of rGO

The distilled water (150 mL) was added into a flask (250 mL), then the certain volume of GO dispersed in aqueous solution (2 g L⁻¹) was added under ultra sonication for 1 h. GO in the synthesis compounds was reduced by adding hydrazine hydrate (4 mL) under stirring at 90 °C for 24 h. After that, rGO was made, which was collected by centrifugation and was washed three times with methanol and two times with distilled water, and then dried in an oven.

2.5. Preparation of g-C₃N₄/rGO³¹

All chemicals were analytical grade purity and distilled water was used in the whole experiment. g-C₃N₄/rGO nanocomposite was prepared by an impregnation-chemical reduction strategy. The melamine (2.0 g) and reduced graphene oxide (rGO) were put into a crucible (30 mL) with a cover and heated at 550 °C for 4 h and kept at this temperature for another 4 h under flowing nitrogen, subsequently cooled to room temperature. The weight percentages of rGO in the photocatalyst samples were 0, 0.5, 1.0, and 2.0 wt% respectively.

2.6. Preparation of aryldiazonium salts

The aryldiazonium salts were prepared according to the literature with slight modification.³² The corresponding aniline (0.02 mol) was dissolved in a mixture of ultrapure water (8 mL) and 50% fluoroboric acid (6.8 mL). After the temperature fell below zero, 3 mL sodium nitrite solution (1.38 g) was added slowly. The mixture was stirred for 40 minutes in ice bath, and the resulting precipitate was collected by centrifuging and washed several times with aether. The resulting solid was recrystallized by acetone and aether.

2.7. The apparent quantum efficiency (AQE) calculation

A 300 W Xe arc lamp was used as the light source for photocatalytic reaction. The measurement of AQE was performed using same amount of reactants. We fixed the wavelength at 400 nm< λ < 700 nm for vis-irradiation. The laser power in the photocatalytic reaction was collected using a power meter (Newport; 843R). The corresponding wavelength captured for AQE calculation is located at 450 nm. Thus the AQE is calculated as the following equation, AQE = n/n_p × 100%, in which n and n_p are denoted as number of photons that generating product needed and the number of incident photons, respectively. The apparent quantum efficiency (AQE) was calculated. The reaction condition is as follows: 0.1 mmol 1a, 4 mg g-C₃N₄/rGO nanocomposite, 1 mL DMF, 1 mL furan, under visible light irradiation (450 nm) for 15 min. During the reaction process, total absorb light energy ΔE = 18.4–5.1 = 13.3 J, N = 0.53 × 1 mmol = 0.53 mmol, energy per photon E₀ = hc/λ = 6.63 × 10⁻³⁴ × 3 × 10⁸/(450 × 10⁻⁹) = 4.42 × 10⁻¹⁹ J, molar of photons n_p = [ΔE/(E₀ × N_A)] × t = [13.3/(4.42 × 10⁻¹⁹ × 6.02 × 10²³)] × 15 = 0.75 mmol, AQE (initial) = n/n_p = 0.53/0.75 × 100% = 70.7%. With the same method, we can calculate the initial AQE of other catalysts, respectively.

3. Results and discussion

3.1. Preparation and characterization of g-C₃N₄/rGO

The unique “sandwich structure” of g-C₃N₄/rGO nanocomposites are confirmed by scanning electron microscope (SEM) and transmission electron microscopy (TEM). Fig. 1b shows the SEM image of g-C₃N₄/rGO nanocomposite with the rGO content of 1.0 wt% (g-C₃N₄/rGO-1). The result indicates that the morphology of g-C₃N₄/rGO-1 nanocomposite is similar to cotton, which may be attribute to the fact that g-C₃N₄ grows along the two-dimensional nano-sheet of rGO to form fluffy nanocomposite. The TEM image further displays that the g-C₃N₄/rGO nanocomposite exhibits multilayer structures, and the g-C₃N₄ is sandwiched between rGO sheets (Fig. 1c). The elemental mapping images (Fig. 1e and f) detailed shows the presence and homogeneous distribution of C and N elemental in g-C₃N₄/rGO nanocomposite. The SEM and TEM characterization of pure g-C₃N₄, rGO and g-C₃N₄/rGO nanocomposite with different rGO ratios are shown in Fig. S1.†

As shown in Fig. 2a, the X-ray diffraction (XRD) patterns of rGO presents broad signal at 24.2°, which corresponds to the (001) diffraction peak of interlayer spacing.³³ Two distinct diffraction peaks of g-C₃N₄ and g-C₃N₄/rGO-1 nanocomposite are present at 13.1° and 27.5°, which associate with the (100) and (002) reflection indexes of g-C₃N₄ respectively.³⁴ In Fig. 2b, the XPS survey spectrum revealed the existence of C, N, and O species in –C₃N₄/rGO-1 nanocomposite. As shown in Fig. S3,† comparing with the pure g-C₃N₄ and/rGO, the FTIR spectra of g-C₃N₄/rGO nanocomposite also exhibits the same groups stretching of rGO and pure g-C₃N_4. These results indicate that the g-C₃N₄ and rGO coexist in the g-C₃N₄/rGO nanocomposite.

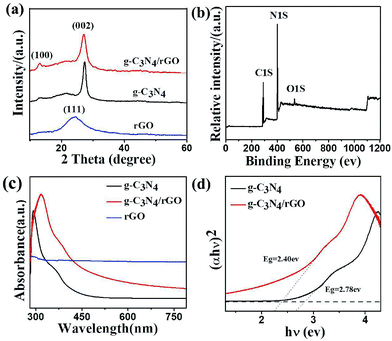

Fig. 2 (a) XRD patterns of pure g-C₃N_4, rGO and g-C₃N₄/rGO nanocomposite; (b) XPS spectra of the g-C₃N₄ and g-C₃N₄/rGO nanocomposite; (c) UV-vis diffuse reflectance spectra of the pure g-C₃N₄, g-C₃N₄/rGO nanocomposites and rGO; (d) the plots of transformed Kubelka–Munk functions versus the light energy.

The UV-vis diffuse reflectance spectra of pure g-C₃N₄ and g-C₃N₄/rGO-1 nanocomposite are shown in Fig. 2c. The results illustrate that both of the samples exhibit strong visible light absorption. Obviously, rGO enormously affects the optical property of the g-C₃N₄/rGO nanocomposite. Moreover, with increasing rGO ratio in g-C₃N₄/rGO nanocomposite, a red shift is observed in the absorption band edge (Fig. 2c and S4a†),³⁶ which means the band gap narrowing of the nanocomposite.³⁵ We also have tested the band position and redox potential energy values of g-C₃N₄ by electrochemical technique (Fig. S5†). Fig. 2d shows the plots of the transformed Kubelka–Munk function of light energy about the investigated samples. The estimated band gaps are 2.78 and 2.40 eV, corresponding to pure g-C₃N₄, g-C₃N₄/rGO-1, respectively. Fig. S4b† shows that the band gap of g-C₃N₄/rGO composites becomes more and more narrow with increasing rGO ratio. This supports the result of a red shift in the absorption band edge of g-C₃N₄/rGO nanocomposite. Probably, the reactive oxygen functional groups on the rGO surface (e.g., –OH, –COOH) can play a key role of cross-linkers to form C–O–C covalent bonding between rGO and g-C₃N₄ during thermal conversion, which could be the reason for the band gap narrowing and enhancing visible light absorption of the nanocomposites.³⁷ The narrow band gap is beneficial to photo-generated electrons.^19–22 However, too high rGO ratio in nanocomposite is also disadvantageous because most of the incident light will be absorbed by rGO, resulting in a decreased light utilization of g-C₃N₄.³⁹ Therefore, an appropriate rGO ratio in nanocomposite could be critically important for improving the light utilization and photocatalytic efficiency.

Photoluminescence (PL) analysis is performed to investigate the suppression of electrons and holes (e⁻/h⁺) recombination. As shown in Fig. 3, the emission peak of pure g-C₃N₄ appears at 450 nm, which is due to the band–band PL phenomenon with the energy of light approximately equal to the band-gap energy of g-C₃N₄ (2.78 eV), leading to the n–π* electronic transitions in g-C₃N₄.³⁸ For the g-C₃N₄/rGO nanocomposite, the modification of rGO causes fluorescence quenching. The degree of fluorescence quenching was obviously increased with the increase of rGO ratio. The result demonstrates that the recombination of photo-generated electrons and holes is greatly inhibited by the introduction of rGO because rGO acting as an electron collector, which indicates that the separation of photogenerated e⁻/h⁺ in the g-C₃N₄/rGO composites is more efficient than in pristine g-C₃N₄.³⁹ As a whole, the appropriate rGO ratio can improve light utilization and photocatalytic efficiency.

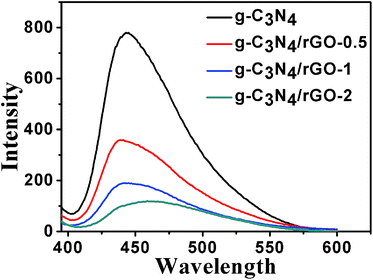

Fig. 3 Photoluminescence (PL) spectra of the g-C₃N₄ and g-C₃N₄/rGO nanocomposites. The extent of the fluorescence quenching was found to be obviously increased with increasing rGO ratio in the g-C₃N₄/rGO nanocomposites.

3.2. Photocatalytic property

Subsequently, we investigate the photocatalytic activity of g-C₃N₄/rGO nanocomposite to direct arylation of diazonium salt (1a) with furan (2a) under visible light irradiation (λ > 420 nm) at room temperature. Firstly, various solvents are used at room temperature. As shown in Table 1, the reaction in N,N-dimethylformamide (DMF) could provide the target product in ideal yield of 91% (as shown in Table 1). Fig. 4b presents a comparison of the visible light driven-photocatalytic performance of g-C₃N₄/rGO nanocomposite with different rGO contents (0, 0.5, 1.0, 2.0 wt%) for direct arylation. The result shows that the rGO content has a significant influence on the photocatalytic activity of g-C₃N₄. The pure g-C₃N₄ shows a general photocatalytic activity and the product yield is 66%, owing to the moderate band gap and unique electronic structure of g-C₃N₄. In the presence of a small amount of rGO (0.5 wt%), the activity of the nanocomposite is remarkably enhanced. The photocatalytic activity of the samples further increased with increasing rGO content to 1.0 wt%, and the highest product yield of 91% is obtained. When the rGO content is higher than 1.0 wt%, the photocatalytic activity of the nanocomposite is rapidly decreased. This decline could be related to the increase in the opacity and light scattering, leading to a decrease of irradiation passing through the reaction suspension solution. The results are similar to the previous studies showing that a suitable loading content of graphene is crucial for optimizing the photocatalytic activity of graphene/g-C₃N₄ and graphene/TiO₂ nanocomposites.^31,39–41 As shown in Fig. S8,† the color of g-C₃N₄/rGO nanocomposite changes from yellow to gray with increasing the ratio of rGO. It can be concluded that the rGO ratio affect the light scattering of the photocatalytic reaction system. In further study, the reaction kinetic of formation of p-nitrophenol furan (3a) with or without visible light irradiation is investigated. The result illustrates that the yield of the target product is reached 91% under visible light irradiation in a relatively short time of 1.5 h. Meanwhile, there is no by-product formation with the time extension. Otherwise, in the absence of visible light irradiation, the productivity is only 18% after 6 hours reaction (Fig. 4c). The result displays that the photocatalytic direct C–H arylation using g-C₃N₄/rGO-1 nanocomposite could be due to a direct photo-generated electron transfer under visible light irradiation. Comparing with rGO, pure g-C₃N₄ or no catalyst, the g-C₃N₄/rGO nanocomposite as a photocatalyst provides the highest yield of 91% of the target product (Fig. 4d). The result confirms that g-C₃N₄/rGO nanocomposite has an excellent photocatalytic activity for direct C–H arylation. In addition, the stability of g-C₃N₄/rGO nanocomposite is tested. The metal-free catalyst can be separated easily by centrifugation and allowed the repetitive usage without loss of performance at least five times recycles (as shown in Fig. 4e).

Table 1 Photoreaction was performed in different solvents. Reaction conditions: 0.1 mmol 1a, 4 mg g-C₃N₄/rGO nanocomposite, 1 mL solvent, 1 mL furan, irradiation with visible light for 1.5 h under nitrogen atmosphere. All the yields were determined by GC

Entry	Reaction condition	Yield [%]
1	DMF	91%
2	EtOH	80%
3	MeOH	68%
4	MeCN	52%
5	Acetone	0%
6	Isopropanol	6%
7	n-Hexane	6%
8	1,4-Dioxane	7%

---

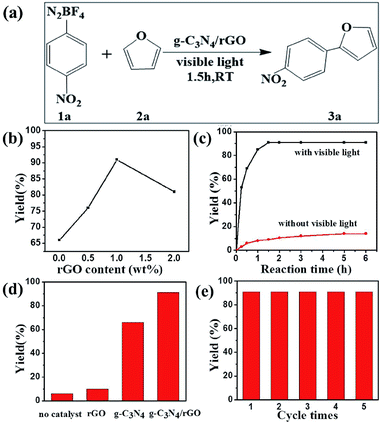

Fig. 4 (a) Reaction condition: 0.1 mmol 1a, 4 mg g-C₃N₄/rGO nanocomposite, 1 mL DMF, 1 mL furan, under visible light irradiation for 1.5 h in nitrogen atmosphere. All the yields were determined by GC. (b) Effects of rGO content on the photocatalytic performance of g-C₃N₄/rGO nanocomposite; (c) the visible light effect on the photocatalytic activity of g-C₃N₄/rGO nanocomposite; (d) photocatalytic activities of the g-C₃N₄, rGO, and g-C₃N₄/rGO nanocomposite for direct C–H arylation; (e) the reusability of g-C₃N₄/rGO nanocomposite for direct C–H arylation under visible light irradiation.

Under optimized reaction conditions, we studied the substrate scope of the g-C₃N₄/rGO nanocomposite photocatalytic direct C–H arylation (Table 2). As forming direct C–H arylation of furan with aryldiazonium salts (1a–f), various functional groups are tested. Among the aryl diazonium salts used for direct arylation of furan, electron-acceptor-(nitro) and neutral-(halogen) substituted diazonium salts were found more efficient for target product formation than electron-donor-substituted ones (methoxy). The metal-free photocatalyzed C–H arylation was also effective for other heteroarenes, such as thiophene, and the ideal products are obtained in good yields (4a–d). We are also compared with other photocatalysts reported of photocatalyzed C–H arylation (Table S1†).

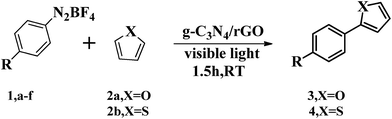

Table 2 Substrate scope of aryldiazonium salts^a

a Reaction conditions: 0.1 mmol 1a–f, 4 mg g-C₃N₄/rGO-1 nanocomposite, 1 mL DMF, 1 mL heteroarene, irradiation with visible light for 1.5 h under nitrogen atmosphere. All the yields were determined by GC.

---

3.3. Mechanism studies

In the previous studies,^18,42 single-electron transfer (SET) mechanism was proposed for photocatalytic C–H arylation. In this work, in order to verify that such single-electron comes from the g-C₃N₄/rGO photocatalyst, 1,4-benzoquinone (BQ) is added to trap the electrons, the photocatalytic activity obviously decrease compared with the reaction without BQ (as shown in Fig. S6†), indicating that the photogenerated electron plays a key role in the photocatalytic reaction. Meanwhile, the N,N-diisopropylethylamine (DEIA) as a hole scavenger is added, which has no effect for the product yield (as shown in Fig. S6†). The result further confirms that the electron transfer is the major active species for photocatalytic reaction. As shown in Fig. 5, the photogenerated electrons transfer to aryl diazonium salt 1 to produce aryl radical 5. Addition of aryl radical 5 to heteroarene 2 gives radical intermediate 6, which is further transformed to carbocation intermediate 7 by two possible pathways: (a) oxidation of the radical intermediate 6 by the g-C₃N₄/rGO radical cation to give 7 and (b) the oxidation of 6 by aryl diazonium salt 1 in a radical chain transfer mechanism. Finally, intermediate 7 is protonated, regenerating the aromatic system and leading to the desired coupling product 8. The above SET process was further confirmed by the low target product yield when the 2,2,6,6-tetramethylpiperidinoxyl (TEMPO) was added to the above reaction system (as shown in Fig. S7†).¹⁸

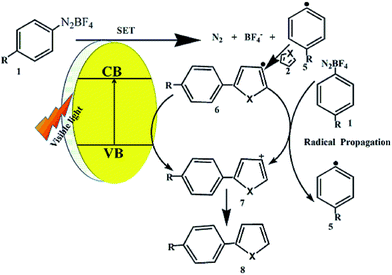

Fig. 5 The proposed reaction mechanism for the g-C₃N₄/rGO nanocomposites direct arylation of heteroarenes.

4. Conclusions

In summary, a sandwich structure g-C₃N₄/rGO nanocomposite has been designed. For the first time, such nanocomposite was successfully used as metal-free visible light-driven photocatalyst for direct C–H arylation. The reaction displays an excellent tolerance of substituents with diverse functional groups. The outstanding features of the catalyst are the stability, recyclability, environmentally friendly and low cost. Further applications based on the development of g-C₃N₄/rGO nanocomposite mediated reactions with visible light are the subject of current investigations. The findings of our study provide clear evidence that metal-free g-C₃N₄/rGO nanocomposite has great potential for highly efficient photocatalytic activity for direct C–H arylation, which open a new avenue towards replacing metal-based catalyst in fine organic synthesis.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The work was supported by the National Natural Science Foundation of China (21401091, 21671088, and 21431002) and the Fundamental Research Funds for the Central Universities (lzujbky-2017-105).
