DOI:
10.1039/C7RA04352J
(Paper)
RSC Adv., 2017,
7, 34963-34971
Direct inhibition of Keap1–Nrf2 interaction by egg-derived peptides DKK and DDW revealed by molecular docking and fluorescence polarization†
Received
18th April 2017
, Accepted 5th July 2017
First published on 12th July 2017
Abstract
Egg-derived small peptides have various biological activities, including antioxidant properties. The Keap1–Nrf2 pathway is central to cell resistance to oxidative stress. In this study, we screened an egg-derived short peptide library to identify molecules with a potential to directly inhibit the Keap1–Nrf2 interaction, using molecular docking, fluorescence polarization assay, and a cytotoxicity model. Among the 20 small peptides selected by molecular docking, two tri-peptides, DKK and DDW, could directly inhibit the binding of the Keap1 Kelch domain to the FITC-labelled 9-mer Nrf2 peptide, as evidenced by increased Kd in fluorescence polarization experiments. Furthermore, in H2O2-treated cells, DKK and DDW promoted survival and upregulated the activity of catalase and superoxide dismutase, key enzymes involved in detoxification of reactive oxygen species. Our findings indicate that small egg-derived peptides DKK and DDW can exert antioxidant effects and protect cells against oxidative stress by directly inhibiting Keap1–Nrf2 interaction.
1. Introduction
Eggs are an excellent source of dietary proteins, such as egg white proteins, which are easier to digest and absorb than other food-derived proteins such as those from chicken, beef, and milk. Egg proteins are rich in amino acids, including eight essential and 12 nonessential amino acids, which are the building blocks of the majority of proteins in living organisms. Furthermore, the peptides produced as a result of egg protein degradation are suggested to have additional biological activities compared to the whole-egg proteins and have become a target of extensive research on foodborne bioactive peptides.1–3 One of the most important biological properties of egg-derived peptides is their antioxidant activity.4–6 However, very often egg peptides demonstrating antioxidant activity in chemical experiments fail to do so in cell cultures and animal models, and the reason is generally acknowledged to be peptide degradation, which accounts for the rapid drop of the activity of egg-derived peptides after they enter the cell. In this respect, the use of short peptides consisting of two or three amino acids can provide a solution to this problem because these peptides can be completely absorbed in the small intestine and their activity will not be affected during the process.7,8
Studies on antioxidant peptides are focused on the molecular mechanisms underlying their biological activity.9 The Keap1–Nrf2 pathway is the most important regulator of cytoprotective responses to oxidative stress caused by various exogenous and endogenous factors.10,11 The main players in this signalling mechanism are transcription factor Nrf2 (nuclear factor erythroid 2-related factor 2) and repressor protein Keap1 (Kelch-like ECH-associated protein 1) which promotes Nrf2 proteasomal degradation.12 Under basal conditions, Keap1 forms a homodimer through BTB domains and then binds to DLG and ETGE motifs of the Neh2 domain in Nrf2 via two Kelch domains, resulting in Nrf2 ubiquitylation and degradation.10,13–15 When cells are exposed to oxidative stress, cysteine residues in the Keap1 BTB and IVR domains are modified, leading to conformational changes in the Keap1 homodimer and dissociation of the Nrf2 inhibitory complex, which prevents Nrf2 degradation.16,17 As a result, the accumulated Nrf2 translocates to the nucleus and activates gene expression of a series of phase II detoxification enzymes, including hemeoxygenase 1 (HO-1), NAD(P)H dehydrogenase 1 (NQO1), superoxide dismutase (SOD), and catalase (CAT), involved in antioxidative mechanisms and cell protection from oxidative stress.17,18
On the basis of these data, it can be hypothesized that external molecules that can promote the dissociation of the Keap1–Nrf2 complex and increase intracellular Nrf2 accumulation would enhance cell resistance to oxidative stress and, consequently, improve the health status of the organism.10,19 Such antioxidant molecules, known as Keap1–Nrf2 interaction inhibitors, can exert indirect and direct effects. Indirect inhibitors modify the conformation of the key cysteine residues in the Keap1 BTB and IVR domains, whereas direct inhibitors bind to the Kelch domain of Keap1 and occupy the Keap1–Nrf2 binding site. The result of both reactions is the inhibition of Keap1–Nrf2 interaction and activation of the pathway.20 However, the indirect inhibitors may promote side effects, as they can also modify cysteine residues of other cell proteins and affect their normal functional activity.10 Therefore, the direct inhibitors have higher specificity and are potentially less toxic compared to the indirect ones, and, thus, are more physiologically suitable for use in humans.10,21
The objective of this study was to screen natural egg-derived antioxidant peptides for direct inhibition of the Keap1–Nrf2 interaction (Fig. 1).
 |
| Fig. 1 Schematic illustration of the experimental design of the study. | |
2. Materials and methods
2.1. Materials and chemicals
Di-peptides (EK, DW, WE, EY, DK, and EW), tri-peptides (DKE, EWE, EEW, EDW, DWE, DKD, QKE, ECD, DET, DKQ, DWD, DEW, DKK, and DDW), the 9-mer Nrf2 peptide (H-LDEETGEFL-OH, residues 76–84), and a fluorescent probe (FITC-conjugated 9-mer Nrf2 peptide) were purchased from Shanghai Qiang Yao Biological Technology Co., Ltd (Shanghai, China, http://www.chinapeptides.com). The Kelch domain of the human Keap1 (residues 321–609) was purchased from Nanjing Zoonbio Biotechnology Co., Ltd (Nanjing, China). HepG2 cells were obtained from Chinese Infrastructure of Cell Line Resources. Dulbecco's modified Eagle's medium (DMEM), foetal bovine serum (FBS), penicillin–streptomycin solution, and MEM Nonessential Amino Acids were obtained from Gibco (USA). The Cell Titer 96® AQueous One Solution Cell Proliferation kit (MTS assay) was purchased from Promega Biotechnology Co. Ltd (Beijing, China). Bicinchoninic acid assay (BCA) and SOD and CAT assay kits were purchased from Nanjing Jiancheng Bioengineering Co. (Nanjing, China). Cell lysis buffer was purchased from Beyotime Institute of Biotechnology (Shanghai, China).
2.2. Docking experiments
To test docking interactions, we followed the method of Onoda et al.22 with some modifications. The ligand library comprised 400 di-peptides and 6138 tri-peptides generated by degradation of egg proteins (Tables 1 and S1†), including egg white and egg yolk proteins, and proteins of fertilized eggs. The sequences of these proteins were obtained from the Uniport database (http://www.uniprot.org). Then, the ligand library was analysed using Merck Molecular Force Field, and energy minimization was applied to the calculation. Among the 24 PDB files (Table 2) relevant to human Keap1 protein and found in the RCSB database (http://www.pdb.org), only 13 contained ligands and could be used to compare docking precision (Table 3). The structure of the Keap1 Kelch domain bound to the Nrf2 16-mer peptide (PDB ID: 2FLU) was chosen after considering the ligand type, RMSD value, and resolution. The crystal structure of Keap1 in the 2FLUfile was modified by adding hydrogen atoms and CHARMm force field22,23 and used as a docking receptor. Three binding sites: site 1 (centre coordinates: x: −4, y: 6, z: 0, radius: 21 Å), site 2 (centre coordinates: x: 5, y: 9, z: 1, radius: 15 Å), and site 3 (centre coordinates: x: 7.36, y: 8.33, z: 1.77, radius: 15 Å) were selected according to the Kealp1 structure and receptor binding site. To perform molecular simulations, Discover Studio 2.5 for semi-flexible docking program CDOCKER was used.22,24,25
Table 1 Protein sources of the ligand library
Uniprot ID |
Protein |
Length (aa) |
P01012 |
Ovalbumin |
386 |
P01013 |
Ovalbumin-related protein X |
232 |
P01014 |
Ovalbumin-related protein Y |
388 |
I0J178 |
Ovalbumin-related protein Y |
388 |
I0J179 |
Ovalbumin-related protein Y |
388 |
P02789 |
Ovotransferrin |
705 |
F1NVN3 |
Ovotransferrin |
738 |
Q4ADJ7 |
Ovotransferrin |
705 |
Q4ADG4 |
Ovotransferrin |
705 |
Q4ADJ6 |
Ovotransferrin |
705 |
E1BQC2 |
Ovotransferrin |
707 |
Q92062 |
Ovotransferrin |
738 |
E1BVL8 |
Ovotransferrin |
731 |
P01005 |
Ovomucoid |
210 |
B6V1G0 |
Ovomucoid |
210 |
I0J170 |
Ovoglobulin G2 |
439 |
I0J171 |
Ovoglobulin G2 |
439 |
I0J172 |
OvoglobulinG2 type AA |
439 |
I0J173 |
OvoglobulinG2 type AB |
439 |
I0J174 |
OvoglobulinG2 type AB |
439 |
I0J175 |
OvoglobulinG2 type BB |
439 |
Q98UI9 |
Mucin-5B |
2108 |
F1NBL0 |
Mucin-6 |
1185 |
P00698 |
Lysozyme C |
147 |
P10184 |
Ovoinhibitor |
472 |
Q9PSS0 |
Ovomacroglobulin |
208 |
P02701 |
Avidin |
152 |
P01038 |
Cystatin |
139 |
E1BYI2 |
Cystatin |
147 |
R4GLT1 |
Cystatin |
139 |
P87498 |
Vitellogenin-1 |
1912 |
P02845 |
Vitellogenin-2 |
1850 |
Q91025 |
Vitellogenin-3 |
347 |
O57579 |
AminopeptidaseEy |
972 |
P02752 |
Riboflavin-binding protein |
283 |
P05094 |
Alpha-actinin-1 |
893 |
P41263 |
Retinol-binding protein 4 |
196 |
Q5ZIM6 |
Protein AATF |
574 |
Q6IV20 |
Gallinacin-11 |
104 |
Q8AXU9 |
Endophilin-A3 |
353 |
P27731 |
Transthyretin |
150 |
Q91044 |
NT-3 growth factor receptor |
827 |
P19121 |
Serum albumin |
615 |
O57604 |
Podocalyxin |
571 |
P02659 |
Apovitellenin-1 |
106 |
Q05744 |
Cathepsin D |
398 |
Table 2 PDB files of the human Keap1 protein in the RCSB database
Table 3 RMSDmin of 13 PDB files
2.3. Fluorescence polarization assays
The assay was performed as described by Zhan et al.26 with some modifications. Fluorescence polarization was analysed using a TECAN Infinite F200 Pro instrument (Tecan, Switzerland) for multifunctional enzyme analysis and black 384-well plates with non-binding surface (Corning, USA). Each well was filled with 40 μL containing 10 μL PBS, 10 μL of 4 mM small peptides, 10 μL of Keap1 Kelch domain at different concentrations, and 10 μL of 200 nM fluorescent probe.27,28 The plates were covered and oscillated for 30 min at room temperature in the dark, and fluorescence polarization was measured at λex = 485 nm and λem = 535 nm.29 Based on the obtained values of fluorescence polarization, the dissociation constant (Kd) was calculated using the following equation:26
where F is fluorescence polarization, Fc is fluorescence polarization of the Keap1 Kelch domain-FITC-labelled 9-mer Nrf2 peptide complex, F0 is fluorescence polarization of the FITC-labelled 9-mer Nrf2 peptide, Cprobe is the final concentration of the FITC-labelled 9-mer Nrf2 peptide, and [protein] is the log10 of Kelch domain final concentration.
2.4. Establishment of H2O2 damage model in HepG2 cells
HepG2 cells were seeded in culture dishes and grown in DMEM supplemented with 10% FBS, 1% PPS, and 1% non-essential amino acids. Cells were collected at 80–90% confluence, seeded into 96-well plates, and incubated for 12 h at 37 °C, 5% CO2. Then, different concentrations of H2O2 were added to some wells (injury group), while the same amount of serum-free DMEM was added to the other wells (control group), and plates were incubated for 4 h at the same conditions.30 Cell viability was analysed by adding 20 μL of MTS solution per 100 μL medium for 2 h and measuring the absorbance at 490 nm in a multi-mode microplate reader (Bio Tek Instruments, USA).31
2.5. Toxicity assay
HepG2 cells were seeded into 96-well plates for 12 h. Then, the test group received small peptides or the 9-merNrf2 peptide at different concentrations, while the control group received the same volume of serum-free DMEM.31 After 2 h incubation, cell viability was analysed by the MTS assay as described above.32
2.6. Cytoprotection of H2O2-treated HepG2 cells by small peptides
The assay was performed according to Liu et al.32 with some modifications. HepG2 cells were seeded into 96-well plates for 12 h and treated with different concentrations of small peptides (test group), 0.625 μM of the 9-mer Nrf2 peptide (positive control group), or serum-free DMEM (negative control group) for 2 h. Then, test wells and part of the control wells received 350 μM H2O2, while the other control wells received serum-free DMEM. After incubation for 4 h, cell viability was analysed as described above.30
2.7. Measurement of antioxidant enzyme activities
HepG2 cells were seeded into 96-well plates and incubated with small peptides, 0.625 μM of the 9-mer Nrf2 peptide, and 350 μM H2O2 as described above. Then, culture medium was removed, and cells monolayers were rinsed twice with PBS and treated with cell lysis buffer for 30 min on ice.32 The resulting cell lysates were centrifuged at 13
000 × g at 4 °C for 5 min, and total protein and CAT and SOD activities were measured using the corresponding assay kits.31
2.8. Statistical analysis
Fluorescence polarization assays and cell experiments were performed in triplicate, and the obtained data were expressed as the mean ± SEM. The difference between two groups was analysed by one-way ANOVA and considered significant at p < 0.05.
3. Results
3.1. Molecular docking
There were 24 PDB files related to human Keap1 protein in the RCSB database, but only 13 of them (PDB ID: 2FLU, 3VNG, 3VNH, 3ZGC, 4IFL, 4IFN, 4IN4, 4IQK, 4L7B, 4L7C, 4L7D, 4N1B, and 4XMB) included ligands that marked binding sites. The ligands and receptors from these files were docked by CDOCKER, and their RMSDmin values were obtained (Table 3). Two of these PDB files (2FLU and 4IFL) used the ETGE motif to calculate the RMSD value, and the ligand in these files was the 16-mer Nrf2 peptide (H-AFFAQLQLDEETGEFL-OH, residues 69–84) with an unstable structure; therefore, the files were unsuitable for calculating the RMSD value by docking directly with their ligands and receptors. ETGE was the key motif of the 16-mer Nrf2 peptide, as it is critical for binding to the Keap1 Kelch domain;34 therefore, it was used to calculate RMSD in 2FLU and 4IFL. It has been generally accepted that the RMSDmin value less than 2.0 Å could be subjected to molecular docking experiments,33 so 12 PDB files (PDB ID: 2FLU, 3VNH, 3ZGC, 4IFL, 4IFN, 4IN4, 4IQK, 4L7B, 4L7C, 4L7D, 4N1B, and 4XMB) could be used. Among them, only three (2FLU, 3ZGC, and 4IFL) contained Keap1 and ETGE (residues 79–82) of Nrf2, and could directly reveal Keap1–Nrf2 interaction,34,35 whereas the ligands in the other PDB files were small non-peptide compounds (RCSB database; http://www.pdb.org). Therefore, the crystal structures of the Keap1 protein shown in 2FLU, 3ZGC, and 4IFL files were more suitable for investigating the interaction between Keap1 and its peptidomimetic inhibitor. However, the ligand in the 3ZGC file was a cyclic peptide that did not correspond to the native Nrf2; hence, it was not used in this study. The remaining 2FLU and 4IFL files contained the native Nrf2 as a ligand, but the resolution in 2FLU (1.50 Å) was higher than that in 4IFL (1.80 Å, Table 2) and the RMSDmin (0.81 Å versus 0.83 Å, respectively) was lower (Table 3). Therefore, we chose 2FLU as the receptor file; in addition, 2FLU was frequently used in previous molecular docking experiments.36–38
The Keap1 Kelch domain had a central cavity39 and bound Nrf2 through key amino acid residues located above this cavity (Fig. 2A1 and A2). Based on the central cavity structure, it was obvious that the binding of small peptides to the Keap1 Kelch domain varied depending on the site (Fig. 2B1–G1). The results of molecular docking were obtained using CDOCKER_ENERGY as an index: higher CDOCKER_ENERGY indicated stronger binding affinity of the tested small peptides to the Keap1 Kelch domain. The best six ligand poses identified by molecular docking of di-peptides to each site of the Keap1 Kelch domain were EK, DK, DW, EW, WE, and EY (Fig. 2B2–D2), although their binding affinity to different sites varied. The best 10 ligand poses identified by molecular docking of tri-peptides to each site of the Keap1 Kelch domain were DKE, QKE, DKD, EDW, DWE, DKK, EEW, EWE, ECD, DWD, DET, DEW, DDW, and DKQ (Fig. 2E2–G2). The CDOCKER_ENERGY values of the best ligand pose for di-peptides in sites 1, 2, and 3 were 49.23, 77.16, and 75.43 kcal mol−1, respectively. The CDOCKER_ENERGY values of the best ligand pose for tri-peptides in sites 1, 2, and 3 were 71.89, 106.66, and 106.82 kcal mol−1, respectively. These data indicate that the binding affinity of small peptides to site 1 of the Keap1 Kelch domain was significantly lower than that to sites 2 and 3, whereas there was no significant difference in peptide binding affinity to sites 2 and 3.
 |

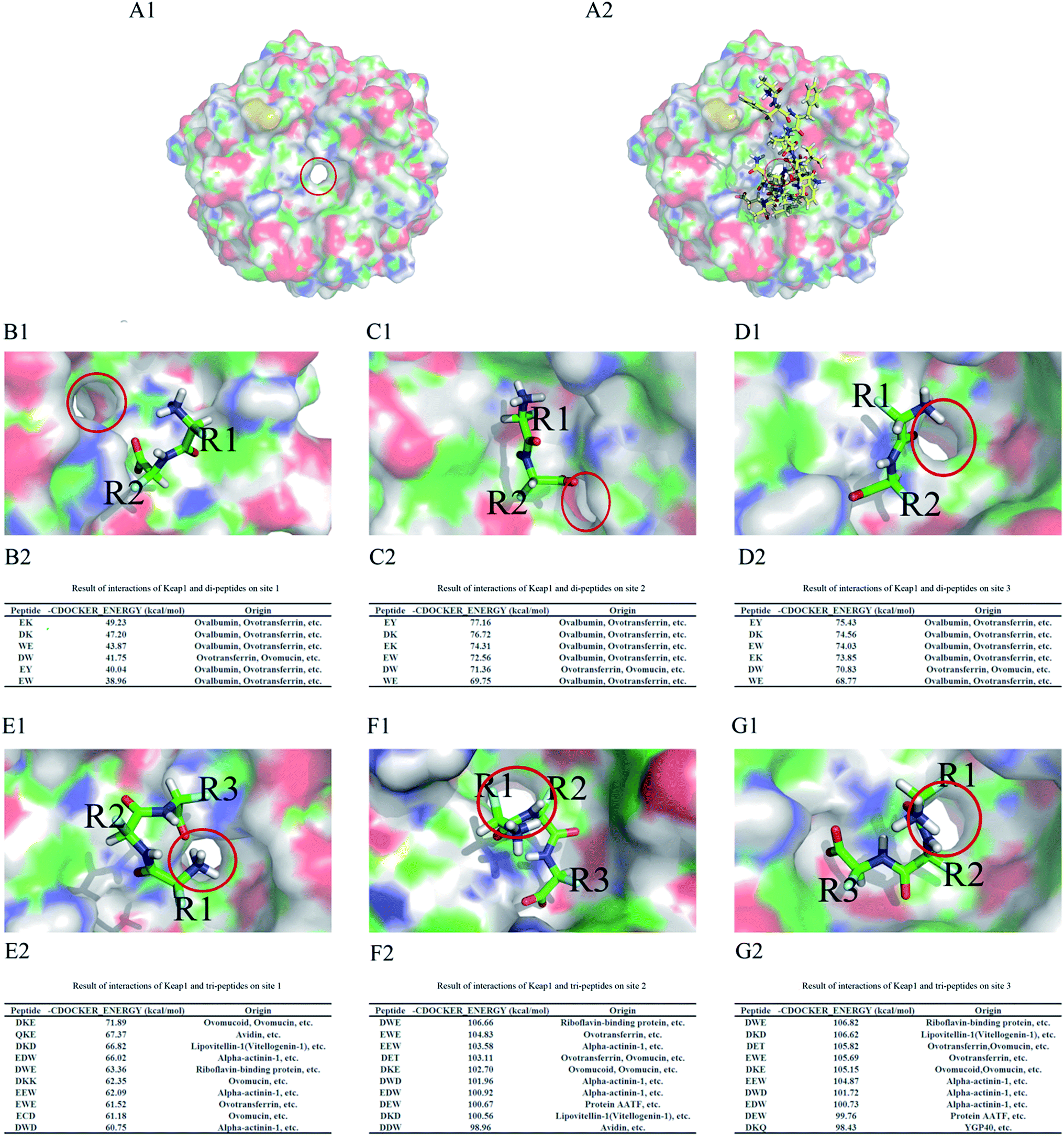

| Fig. 2 Ligand docking into the Keap1 Kelch domain. (A1) The structure of the Keap1 Kelch domain; (A2) binding of the 16-mer Nrf2 peptide (residues 69–84) to the Keap1 Kelch domain. (B–D) Interaction of di-peptides with the Keap1 Kelch domain in site 1 (B1), site 2 (C1), and site 3 (D1). The best six poses of molecular docking for di-peptides into site 1 (B2), site 2 (C2), and site 3 (D2). (E–G) Interaction of tri-peptides with the Keap1 Kelch domain in site 1 (E1), site 2 (F1), and site 3 (G1). The best 10 poses of molecular docking of tri-peptides into site 1 (E2), site 2 (F2), and site 3 (G2). R1, R2, and R3 represent peptide side-chain groups. The central cavity of the Keap1 Kelch domain is circled. | |
3.2. Fluorescence polarization assay
Competitive inhibition of Nrf2 binding to the Keap1 Kelch domain by 20 small peptides was analysed by the fluorescence polarization assay using the FITC-labelled 9-mer Nrf2 peptide containing the ETGE motif which exhibits 100 times higher binding affinity to the Kelch domain compared to that of another Kelch-binding motif, DLG. As evidenced by the Kd values (Fig. 3A) and binding curves (Fig. 3B), only two tri-peptides, DKK and DDW, could significantly decrease the binding of the FITC-labelled Nrf2 peptide to the Keap1 Kelch domain, indicating that these peptides specifically inhibited Nrf2 association with Keap1. These results suggested that the DKK and DDW peptides docked into the binding site for Nrf2 on the Keap1 Kelch domain, thus inhibiting Keap1–Nrf2 interaction.
 |

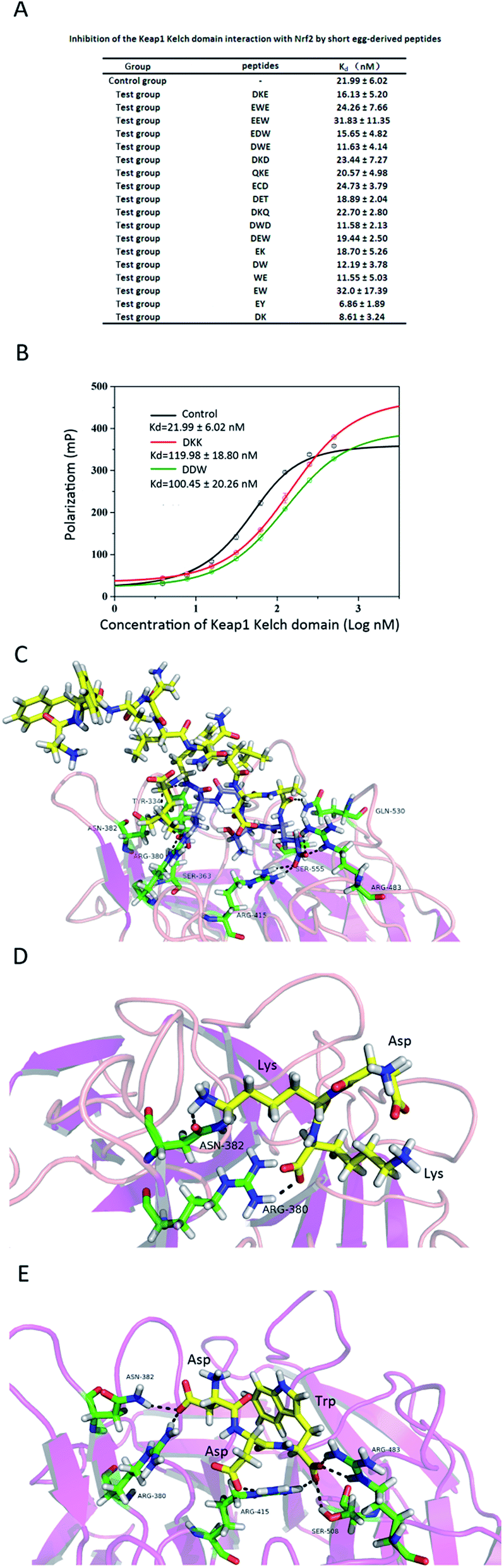

| Fig. 3 Inhibition of the Keap1 Kelch domain interaction with Nrf2 by short egg-derived peptides. (A, B) Competitive inhibition of Keap1 Kelch binding to FITC-labelled 9-mer Nrf2 by egg-derived peptides was analysed by the fluorescence polarization assay. Fluorescence polarization was measured at λex = 485 nm and λem = 535 nm, and Kd values are shown as the mean ± SEM. (C–E) Interaction of 16-mer Nrf2 (C), DKK (D), and DWW (E) peptides with the residues of the Keap1 Kelch domain. | |
3.3. HepG2 cell model of oxidative damage, cytotoxicity, and cytoprotection
Next, the DKK and DDW tri-peptides selected based on the affinity to the Keap1 Kelch domain were tested for the ability to protect cells against oxidative stress. HepG2 cells were treated with H2O2, which decreased their survival in a concentration-dependent manner (Fig. 4A). As 350 μM H2O2 caused ∼50% inhibition of cell viability compared to that in untreated control (p < 0.01), this concentration was chosen to test the antioxidant effects of the selected tri-peptides.
 |
| Fig. 4 Protection of H2O2-treated HepG2 cells by the DKK and DDW peptides. (A) Cytotoxicity of H2O2. HepG2 cells were treated with the indicated concentrations of H2O2 for 4 h at 37 °C. (B) Cytotoxicity of DKK and DDW. HepG2 cells treated with the indicated concentrations of the peptides for 2 h at 37 °C. (C) Protection of H2O2-treated HepG2 cells by DKK and DDW. Cells were first treated with the indicated concentrations of DKK and DDK for 2 h, and then with 350 μM H2O2 for 4 h. Cell viability was evaluated by the MTS assay. The data are presented as the mean ± SEM; #p < 0.05, ##p < 0.01 compared to control (A, B) or H2O2 treatment (C), and *p < 0.05, **p < 0.01 compared to the 9-mer Nrf2 peptide at 0.625 μM (C). | |
The DKK and DDW peptides were not cytotoxic at the concentration range from 0.1 μM to 100 μM, but decreased cell viability at 1000 μM compared to that in control (p < 0.01, Fig. 4B). At the same time, the 9-mer Nrf2 peptide was not cytotoxic at concentrations from 0.5 μM to 10 μM, but decreased cell viability at 20 μM compared to that in control (p < 0.05; Fig. 4B). The peptides at non-cytotoxic concentrations were examined for protective effects on H2O2-treated HepG2 cells, and the 9-mer Nrf2 peptide (0.625 μM) was chosen as positive control, because it has been shown to interfere with Keap1–Nrf2 interaction.10 H2O2 at 350 μM significantly decreased cell viability compared to that in control (p < 0.01); however, the 9-mer Nrf2 peptide could significantly increase the viability of H2O2-treated HepG2 cells (p < 0.05, Fig. 4C). Although the protective effect of the DKK and DDW peptides at low concentrations (0.1 μM and 1.0 μM) was not statistically significant, at high concentrations (10.0 μM and 100.0 μM), DKK and DDW could significantly increase the viability of H2O2-treated HepG2 cells (p < 0.05 and p < 0.01, respectively, Fig. 4C). Furthermore, DKK (100.0 μM) and DDW(10.0 μM and 100.0 μM) showed a significantly higher protective effect compared to the 9-mer Nrf2 (p < 0.05 and p < 0.01, respectively). These results suggest that tri-peptides DKK and DDW can protect HepG2 cells from oxidative stress.
3.4. Antioxidant enzyme activity
To further investigate the antioxidant potential of the tri-peptides, we measured the activity of CAT and SOD, the enzymes involved in detoxification of reactive oxygen species (ROS). The results indicate that H2O2 downregulated CAT in HepG2 cells and that the 9-mer Nrf2 peptide could increase CAT and SOD activity in H2O2-treated cells, although the effect was not statistically significant. The reason why Nrf2 could improve cell viability but not the activity of CAT and SOD may be that it could bind its targets on the cell surface but was too large to penetrate cells and activate the Keap1–Nrf2 pathway in order to increase CAT and SOD activities. However, DKK and DDW increased CAT activity in H2O2-treated cells in a concentration-dependent manner, and the effect was statistically significant at 100 μM (p < 0.05 compared to H2O2 alone and 9-mer Nrf2; Fig. 5A). Similarly, the activity of SOD decreased by H2O2 treatment was rescued by the addition of tri-peptides at 10 μM and 100 μM (Fig. 5B). While the effect of the DKK peptide on SOD activity was statistically significant only at high concentration (100 μM; p < 0.05 compared to H2O2 alone and 9-mer Nrf2), DDW could upregulate SOD both at low (10 μM; p < 0.05) and high (100 μM; p < 0.01) concentrations compared to H2O2 alone and 9-mer Nrf2 (Fig. 5B).
 |

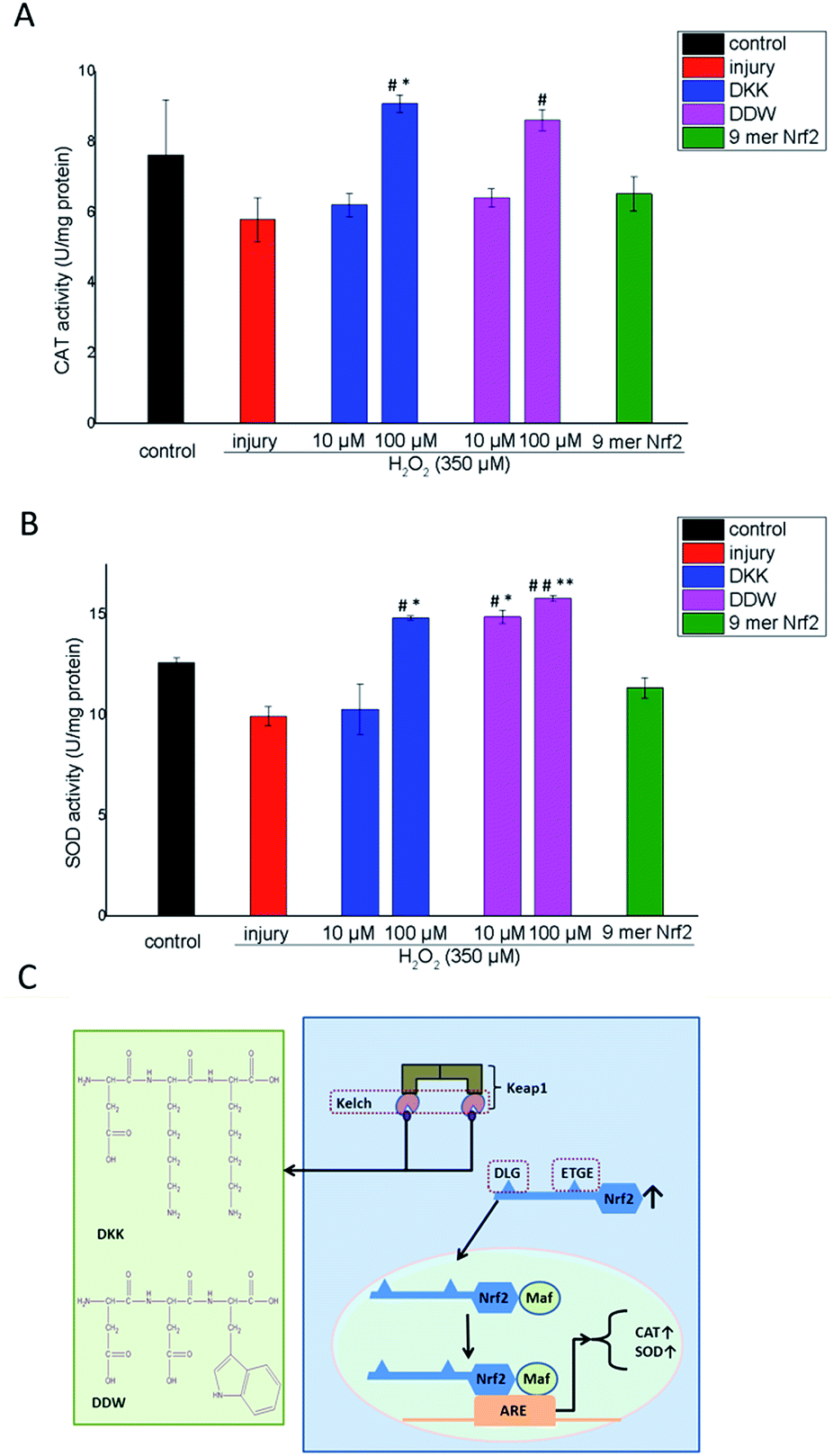

| Fig. 5 Effects of the DKK and DDW peptides on CAT and SOD activity in H2O2-treated HepG2 cells. Cells were treated with the indicated concentrations of DKK or DDK for 2 h, and then with 350 μM H2O2 for 4 h at 37 °C. (A) CAT and (B) SOD enzymatic activities were measured using commercial assay kits. The data are presented as the mean ± SEM; #p < 0.05, ##p < 0.01 compared to H2O2 treatment, and *p < 0.05, **p < 0.01 compared to the 9-mer Nrf2 peptide (0.625 μM). (C) Schematic illustration of the putative mechanism underlying DKK and DDW effects on the expression of CAT and SOD. | |
4. Discussion
Eggs are a rich source of proteins, and various small peptides with antioxidant activity can be obtained from eggs through protein degradation. Among the antioxidant pathways, Keap1–Nrf2 signalling is one of the most important in the oxidation process.10 Although a number of methods have been applied to study direct inhibitory effects of small molecules on Keap1–Nrf2 interaction, most of them are complicated and not suitable for high throughput screening.40 Molecular docking is a rapid and cost-effective method based on simulating molecular interactions, which could be applied for high throughput screening of small target molecules.22–25,40 Therefore, we used the molecular docking approach for preliminary screening of egg-derived peptides for the affinity to Keap1 and ability to inhibit Keap1–Nrf2 binding. The structure of the Keap1:Nrf2 interface (PDB ID: 2FLU), representing the human Keap1 Kelch domain bound to a 16-mer Nrf2 peptide was used here for modelling Keap1–Nrf2 interactions. The 16-mer Nrf2 peptide binds to Keap1 mainly through hydrogen bonding with the six amino-acid stretch(78-EETGEF-83) which has a size significantly exceeding that of the tested di- and tri-peptides (Fig. 2A2), indicating that the peptides could only partially occupy the Keap1 binding site for Nrf2. Therefore, we could not use this site in the docking experiments with our small peptides. To reduce the impact of size difference and increase the accuracy of the analysis, the following three binding sites were designed. Site 1 was obtained based on the Keap1 binding site for 16-mer Nrf2 peptide; site 2 was designed based on all Keap1 amino acids positioned within 3.5 Å from the 16-mer Nrf2 peptide; finally, site 3 was based on the ETGE motif in the 16-mer Nrf2 peptide. Then, a ligand library of short egg-derived peptides was screened and 14 tri- and six di-peptides were selected according to their potential to directly interfere with the binding of Keap1 to Nrf2, as predicted by molecular docking.
These candidate peptides were tested in the fluorescence polarization assay, which is an effective method to detect molecular interactions in a non-cellular environment, because it is rapid and generates reproducible data.26–28 In the competitive fluorescence polarization test, IC50 is commonly used as an index to evaluate the binding affinity of a ligand to the receptor. However, according to Inoyama et al.,28 the IC50 value could not reflect the binding affinity between Keap1 and peptides shorter than seven amino acids, i.e., the di- and tri-peptides tested in our study. Therefore, we used Kd rather than IC50 as an evaluation index in the fluorescence polarization assay, because it had higher detection sensitivity compared to IC50. Among the 20 small peptides tested, two tri-peptides, DKK and DDW, could significantly inhibit Keap1–Nrf2 binding as evidenced by the increase in the Kd value (Fig. 3B). Our analysis indicates that DKK and DDW form hydrogen bonds with the residues in the Keap1 Kelch domain involved in Keap1–Nrf2 interaction. Thus, DKK binds to Arg380 and Asn382 (Fig. 3D), while DDW binds to Arg380, Asn382, Arg415, Arg483, and Ser508 (Fig. 3E), which are key residues in the binding site for the 16-mer Nrf2 peptide in the Keap1 Kelch domain (Tyr343, Ser363, Arg380, Asn382, Arg415, Arg483, Gln530, and Ser555) (Fig. 3C).33 Hence, DKK and DDW occupy the binding site for Nrf2 in the Kelch domain and prevent the Keap1–Nrf2 interaction, which may result in the induction of cellular antioxidant mechanisms.
Indeed, our findings indicate that the DKK and DDW peptides could protect HepG2 cells against H2O2-induced damage, increasing their viability and upregulating the activity of key antioxidant enzymes CAT and SOD. The putative mechanism underlying the protective effects of the tri-peptides against oxidative stress is shown in Fig. 5C. The DKK and DDW peptides partially occupy the Keap1 binding site for Nrf2 through hydrogen bonding with the key residues, thus preventing the proteasomal degradation of Nrf2. The accumulated Nrf2 then translocates to the nucleus, where it forms heterodimers with the Maf protein and binds to Antioxidant Response Element (ARE), activating gene expression of phase II detoxification enzymes, including CAT and SOD.10,17,18 Further studies in cellular models are required to confirm this mechanism. Considering that the selected tri-peptides are not cytotoxic at the concentrations providing cell protection against oxidative stress, they can be also tested in experimental animals.
5. Conclusions
Our study indicates that the combination of molecular docking and fluorescence polarization methods can be applied to effective screening of direct Nrf2 inhibitors. As a result, small egg-derived peptides DKK and DDW were identified as direct inhibitors of the Keap1–Nrf2 interaction, which could improve cell resistance to oxidative stress, suggesting their potential as antioxidants.
Abbreviations
Nrf2 | Nuclear factor erythroid 2-related factor 2 |
Keap1 | Kelch-like ECH-associated protein 1 |
HO-1 | Hemeoxygenase 1 |
NQO1 | NAD(P)H dehydrogenase 1 |
SOD | Superoxide dismutase |
CAT | Catalase |
Maf | Musculoaponeurotic fibrosarcoma |
ARE | Antioxidant response element |
Acknowledgements
This work was partially supported by National Natural Science Foundation of China (No. 31471597), Jilin Key Laboratory of Nutrition and Functional Food (20160622030JC) and Fundamental Research Funds for the Central Universities (451170301197). We are grateful to the Faculty of Life Science, Jilin University, for providing the instrumentation and technical guidance for fluorescence polarization experiments.
References
- L. Ding, Y. Zhang, Y. Q. Jiang, L. Y. Wang, B. Q. Liu and J. B. Liu, J. Agric. Food Chem., 2014, 62, 3177–3182 CrossRef CAS PubMed.
- J. B. Liu, Z. P. Yu, W. Z. Zhao, S. Y. Lin, E. L. Wang and Y. Zhang, Food Chem., 2010, 122, 1159–1163 CrossRef CAS.
- Z. P. Yu, W. Z. Zhao, J. B. Liu, J. Lu and Z. F. Chen, J. Sci. Food Agric., 2011, 91, 921–926 CrossRef CAS PubMed.
- C. Chen, Y. J. Chi, M. Y. Zhao and L. Lv, Amino Acids, 2012, 43, 457–466 CrossRef CAS PubMed.
- O. K. Chang, G. E. Ha, G. S. Han, K. H. Seol, H. W. Kim, S. G. Jeong, M. H. Oh, B. Y. Park and J. S. Ham, J. Agric. Food Chem., 2013, 61, 7294–7300 CrossRef CAS PubMed.
- S. Shen, B. Chahal, K. Majumder, S. J. You and J. P. Wu, J. Agric. Food Chem., 2010, 58, 7664–7672 CrossRef CAS PubMed.
- M. Brandsch, I. Knuetter and E. Bosse-Doenecke, J. Pharm. Pharmacol., 2008, 60, 543–585 CrossRef CAS PubMed.
- B. S. Vig, T. R. Stouch, J. K. Timoszyk, Y. Quan, D. A. Wall, R. L. Smith and T. N. Faria, J. Med. Chem., 2006, 49, 3636–3644 CrossRef CAS PubMed.
- X. M. Wang, H. X. Chen, X. G. Fu, S. Q. Li and J. Wei, LWT–Food Sci. Technol., 2017, 75, 93–99 CrossRef CAS.
- S. Magesh, Y. Chen and L. Q. Hu, Med. Res. Rev., 2012, 32, 687–726 CrossRef CAS PubMed.
- L. Baird and A. T. Dinkova-Kostova, Arch. Toxicol., 2011, 85, 241–272 CrossRef CAS PubMed.
- D. D. Zhang, Antioxid. Redox Signaling, 2010, 13, 1623–1626 CrossRef CAS PubMed.
- D. D. Zhang, S. C. Lo, Z. Sun, G. M. Habib, M. W. Lieberman and M. Hannink, J. Biol. Chem., 2005, 280, 30091–30099 CrossRef CAS PubMed.
- F. Hong, K. R. Sekhar, M. L. Freeman and D. C. Liebler, Specific patterns of electrophile adduction trigger Keap1 ubiquitination and Nrf2 activation, J. Biol. Chem., 2005, 280, 31768–31775 CrossRef CAS PubMed.
- M. McMahon, N. Thomas, K. Itoh, M. Yamamoto and J. D. Hayes, J. Biol. Chem., 2006, 281, 24756–24768 CrossRef CAS PubMed.
- D. D. Zhang and M. Hannink, Mol. Cell. Biol., 2003, 23, 8137–8151 CrossRef CAS PubMed.
- A. Kobayashi, M. I. Kang, Y. Watai, K. I. Tong, T. Shibata, K. Uchida and M. Yamamoto, Mol. Cell. Biol., 2006, 26, 221–229 CrossRef CAS PubMed.
- A. Uruno and H. Motohashi, Nitric Oxide, 2011, 25, 153–160 CrossRef CAS PubMed.
- X. J. Wang, Z. Sun, W. Chen, Y. Li, N. F. Villeneuve and D. D. Zhang, Toxicol. Appl. Pharmacol., 2008, 230, 383–389 CrossRef CAS PubMed.
- S. J. Chapple, R. C. M. Siow and G. E. Mann, Int. J. Biochem. Cell Biol., 2012, 44, 1315–1320 CrossRef CAS PubMed.
- J. T. Kern, M. Hannink and J. F. Hess, Curr. Top. Med. Chem., 2007, 7, 972–978 CrossRef CAS PubMed.
- T. Onoda, W. Li, T. Sasaki, M. Miyake, K. J. Higai and K. Koike, J. Ethnopharmacol., 2016, 186, 84–90 CrossRef CAS PubMed.
- D. Wu, J. Yan, J. Wang, Q. Wang and W. Li, Food Chem., 2015, 170, 423–429 CrossRef CAS PubMed.
- G. K. Panigrahi, M. K. Suthar, N. Verma, S. Asthana, A. Tripathi, S. K. Gupta, J. K. Saxena, S. Raisuddin and M. Das, Food Res. Int., 2015, 77, 368–377 CrossRef CAS.
- A. Singh, S. K. Paliwal, M. Sharma, A. Mittal, S. Sharma and J. P. Sharma, J. Mol. Graphics Modell., 2016, 63, 1–7 CrossRef CAS PubMed.
- C. Y. Zhan, K. Varney, W. R. Yuan, L. Zhao and W. Y. Lu, J. Am. Chem. Soc., 2012, 134, 6855–6864 CrossRef CAS PubMed.
- Z. Y. Jiang, M. C. Lu, L. L. Xu, T. T. Yang, M. Y. Xi, X. L. Xu, X. K. Guo, X. J. Zhang, Q. D. You and H. P. Sun, J. Med. Chem., 2014, 57, 2736–2745 CrossRef CAS PubMed.
- D. Inoyama, Y. Chen, X. Y. Huang, L. J. Beamer, T. A. N. Kong and L. Q. Hu, J. Biomol. Screening, 2012, 17, 435–447 CrossRef CAS PubMed.
- R. Hancock, H. C. Bertrand, T. Tsujita, S. Naz, A. El-Bakry, J. Laoruchupong, J. D. Hayes and G. Wells, Free Radical Biol. Med., 2012, 52, 444–451 CrossRef CAS PubMed.
- J. B. Liu, Z. F. Chen, J. He, Y. Zhang and T. Zhang, Food Funct., 2014, 5, 3179–3188 CAS.
- E. Kerasioti, D. Stagos, A. Tzimi and D. Kouretas, Food Chem. Toxicol., 2016, 97, 47–56 CrossRef CAS PubMed.
- D. Liu, F. G. Pan, J. Y. Liu, Y. Wang, T. Zhang, E. L. Wang and J. B. Liu, RSC Adv., 2016, 6, 81092–81100 RSC.
- H. Gohlke, M. Hendlich and G. Klebe, J. Mol. Biol., 2000, 295, 337–356 CrossRef CAS PubMed.
- S. C. Lo, X. C. Li, M. T. Henzl, L. J. Beamer and M. Hannink, EMBO J., 2006, 25, 3605–3617 CrossRef CAS PubMed.
- S. Hörer, D. Reinert, K. Ostmann, Y. Hoevels and H. Nar, Acta Crystallogr., 2013, 69, 592–596 CrossRef PubMed.
- S. Mikiya, S. Hajime, T. Tomoyuki, M. Yoshinori, N. Hisashi, S. Rieko, Y. Naoyoshi, I. Hideki, N. Noriko, Y. Yoshitaka, A. Takumi, T. Ryuji and K. Naoki, FEBS Open Bio, 2015, 5, 557–570 CrossRef PubMed.
- B. Elango, D. Kesavan, K. Suresh, S. Dornadula, H. Waheeta, P. Ramasamy and R. M. Kunka, Bioorg. Med. Chem., 2016, 24, 3378–3386 CrossRef PubMed.
- N. C. Andreia, M. Carla, C. G. Rita, C. C. Margarida, R. Elsa, V. H. Jack and J. G. Maria, FEBS Lett., 2016, 590, 1455–1466 CrossRef PubMed.
- B. Padmanabhan, K. I. Tong, T. Ohta, Y. Nakamura, M. Scharlock, M. Ohtsuji, M. Kang, A. Kobayashi, S. Yokoyama and M. Yamamoto, Mol. Cells, 2006, 21, 689–700 CAS.
- B. C. Pearce, D. R. Langley, J. Kang, H. W. Huang and A. Kulkarni, J. Chem. Inf. Model., 2009, 49, 1797–1809 CrossRef CAS PubMed.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c7ra04352j |
|
