Highly sensitive CO2 sensor based on microrods-like La2O3 thin film electrode

A. A. Yadava, A. C. Lokhandeb, J. H. Kim*b and C. D. Lokhande*a
aThin Film Physics Laboratory, Department of Physics, Shivaji University, Kolhapur-416004, MS, India. E-mail: l_chandrakant@yahoo.com; Fax: +91 231 2609233; Tel: +91 231 2609225
bPhotonic and Electronic Thin Film Laboratory, Department of Materials Science and Engineering, Chonnam National University, Gwangju 500-757, South Korea. E-mail: jinhyeok@chonnam.ac.kr; Fax: +82 62 530 1699; Tel: +82 62 530 1702

Received 3rd September 2016 , Accepted 21st October 2016

First published on 24th October 2016


Abstract

In this paper, microrods-like La2O3 thin films are successfully prepared by a chemical bath deposition method. The structural, morphological, wettability and compositional properties of La2O3 thin films are studied using X-ray diffraction (XRD), Fourier transform Raman (FT-Raman) spectroscopy, scanning electron microscopy (SEM), transmission electron microscopy (TEM), Brunauer–Emmett–Teller (BET) and X-ray photo-electron spectrum (XPS) techniques. The La2O3 thin film shows highest selectivity 48% toward CO2 gas as compared to other gases with response and recovery time periods of 50 and 73 s, respectively at a concentration of 350 ppm.


1. Introduction

In the past few years, great efforts have been made to reduce and prevent global warming and climate change. Among them, the monitoring and control of carbon dioxide (CO2) gas emission from motor vehicles, industries, and other sources of pollutants are of great importance. It is one of the principle gas among other green house gases and its increased emission in the atmosphere leads to the phenomenon of global warming.1 The industrial revolution has played a critical role towards the increase of CO2 concentration in environment, hence, it is very important to detect and control the level of CO2 gas in the atmosphere.2 A wide range of metal oxides especially; ZnO,2 SnO2,3 Fe2O3,4 CuO,5 TiO2,6 Co3O4,7 WO3,8 etc. have been used as active sensor materials for the various gases and vapors like CO, NOx, SOx, NH3, alcohols etc. A number of pure and mixed metal oxides, such as ZnO, SnO2, CdO, BaTiO3–CuO, etc. have been investigated as CO2 sensing materials.3,9

The p-type oxides, such as Cr2O3,10 CuO,5 NiO,11 La2O3,12 Co2O3 (ref. 13) etc. can be good alternatives to n-type sensors. Among them, La2O3 shows good sensing properties towards various gases like COx, NOx and ethanol.14 The band gap of La2O3 is 5.5 eV and a dielectric constant (k) between 8 and 23, which have motivated its application in high-k dielectric device, flash memories, incorporating as a trapping layer and in the development of luminescent materials.15–19 In the area of chemical sensors, Jinesh et al.20 reported CO2 sensing response of a device composed by the superposition of metal/La2O3/Si layers. More investigations on structural, morphological and sensing studies of p-type oxides are necessary, in order to gain insight on their sensing mechanism.

In the present work, chemical bath deposition a versatile, economic and simple method, is used for the large area deposition of La2O3 thin film. The sensing properties of La2O3 thin film are studied for CO2 gas in the temperature range 473–573 K and concentration range of 100 to 350 ppm. La2O3 thin film are characterized by X-ray powder diffraction (XRD), Fourier Transform Raman (FT-Raman) spectroscopy, X-ray photo-electron spectrum (XPS), Brunauer–Emmett–Teller (BET), transmission electron microscopy (TEM) and scanning electron microscopy (SEM) techniques.

2. Experimental

The La2O3 thin film was synthesized by chemical bath deposition (CBD) method. The analytical grade lanthanum nitrate (La(NO3)3) and urea ((NH2)2CO) were dissolved in 50 ml distilled water with slowly stirring until a clear homogeneous solution was obtained. The properly cleaned glass substrate was immersed in the mixed solution and then kept in constant temperature water bath at 358 K. After 5 h, La2O3 thin film deposited on the glass substrate was air annealed at temperature 773 K.21 The reaction mechanism of film formation is represented as follows.

image file: c6ra22118a-t1.tif(1)
and

image file: c6ra22118a-t2.tif(2)

In case of CBD method, the film is formed when supersaturated solution transformed in to the saturated state. The transformation includes the step such as the nucleation, coalescence and growth by aggregation of particles, which are shown in the Fig. 1.21 During nucleation, clusters of precursor molecule are decomposed and nucleation sites are formed. The basic structure of ground work is formed by coalescence of aggregated particle.


image file: c6ra22118a-f1.tif
Fig. 1 Schematic diagram for growth of rod-like La2O3 thin film on SS substrate. (a) Nucleation, (b) aggregation, (c) coalescence and (d) growth of particles.

X-ray diffraction (XRD) data of La2O3 thin film was collected to characterize the structural and phase identification using X-ray diffractometer (Bruker AXS D8 Advance) with Cu-K radiation. The Fourier Transform Raman (FT-Raman) spectrum was recorded using FT-Raman spectrometer (Bruker Multi RAM, Germany). The surface morphology was visualized with the help of field emission scanning electron microscopy (SEM, JSM-6700F, JEOL, Japan). X-ray photoelectron spectroscopy (XPS) measurement was performed on Thermo Scientific, K-alpha set up by using monochromatic Al Kα X-ray source. Active surface area was measured by Brunauer–Emmett–Teller (BET) (Quantachrome Nova Win) measurement. The CO2 gas sensing properties of La2O3 films were studied in a computerized gas sensor assembly as described in ref. 22. The electrical resistance of La2O3 film in air (Ra) and in the presence of CO2 gas (Rg) was measured to evaluate the CO2 gas response (S) defined as follows:


image file: c6ra22118a-t3.tif(3)
where, Ra and Rg are the electrical resistances of La2O3 thin film in air and in CO2 gas, respectively. The response and recovery time periods are defined as the time required for a change in the resistance to reach 90% of the equilibrium value after injecting and that for removing the CO2, respectively.

3. Results and discussion

The crystal structure of La2O3 thin film is identified using XRD pattern as shown in Fig. 2(a). The La2O3 thin film shows orientations along (100), (101), (002) and (110) planes of hexagonal crystal structure La2O3 (JCPDS card no. 00-002-0618). Yadav et al.23 observed hexagonal phase for chemically deposited La2O3 thin film. Similarly, Michel et al.24 also observed the hexagonal phase for La2O3 thin film synthesized by co-precipitation method. The Scherrer's relation is used to calculate the grain size of La2O3 thin film. The crystallite size of 35.48 nm is calculated for (002) plane of La2O3 thin film.25
image file: c6ra22118a-f2.tif
Fig. 2 (a) The XRD pattern and (b) FT-Raman spectrum of La2O3 thin film, and (c) XPS spectra of Lanthanum (La3+) region and oxygen (O2−) regions.

The FT-Raman study showed nature of the bonding present in the La2O3 thin film. The Raman spectrum in the range of wave number for the 200–800 cm−1 is shown in Fig. 2(b). In the present study, bands at 400, 284, and 241 cm−1 are observed at all excitations. These bands have been identified as Raman bands. The band at 400 cm−1 is assigned to the Eg ν1 mode and is consistent with band observed for La2O3 by Denning and Ross.26

The composition analysis of La2O3 is done using XPS measurement. The XPS spectra confirmed the presence of La and O. The La 3d states in the XPS spectra as shown in Fig. 2(c) possess doublets and the peaks appearing on the high energy side of the 3d5/2 peak is a satellite peak. The doublet of La 3d5/2 having peak maxima at 833.35 and 838.0 eV are related to La2O3.27 The state of O 1s indicates that two distinct oxygen species for O 1s showing that oxygen is present in the metal oxide. The main peak at 530.0 eV in the O 1s spectrum corresponds to oxygen ions.28

The morphology of La2O3 thin film is observed with SEM micrograph at 5000× magnification. Fig. 3(a) shows that La2O3 thin film has rod-like morphology. Such morphology provides more surface area due to which the desorption of gas a increases. Gurav et al.29 observed similar result for the chemically deposited ZnO films.


image file: c6ra22118a-f3.tif
Fig. 3 (a) The SEM image at magnification 5000×, (b) TEM image and (c) selected area electron diffraction pattern (SEAD) of La2O3 thin film.

The La2O3 thin film was further investigated by transmission electron microscopy (TEM). Fig. 3(b) shows the typical TEM image of La2O3 thin film. TEM observation revealed that La2O3 thin film exhibits rod-like morphology. The crystallinity of La2O3 thin film is further studied by selected-area electron diffraction (SAED) pattern as shown in Fig. 3(c). The SAED pattern shows lattice fringes, which are oriented randomly with respect to each other. The high crystallinity of the powder leads to its corresponding well-pronounced Debye–Scherrer's diffraction rings in the selected-area electron diffraction (SAED) pattern.29

The specific surface area and porosity of microstructure are investigated using BET technique. Nitrogen adsorption and desorption isotherms of La2O3 thin film are shown in Fig. 4. The isotherms can be categorized as the type IV isotherm with distinct hysteresis loop. The curves of pore volume distribution versus pore diameter exhibit that La2O3 thin film has mesoporous structures. The relatively large pores may have been originated from the interconnected network structures. This unique morphology could enable to fast penetration of target gas to the layer of sensing materials resulting in a considerable improvement in their sensing performance.23


image file: c6ra22118a-f4.tif

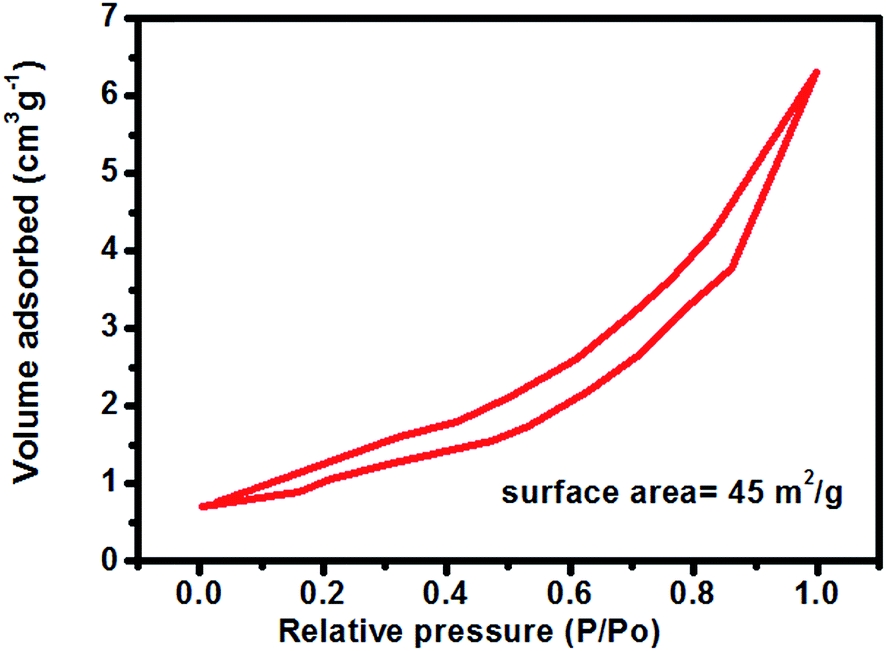

Fig. 4 Nitrogen adsorption–desorption isotherm of La2O3.

4. CO2 gas sensing properties

Before exposing to CO2 gas, La2O3 films were allowed to be stable for electrical resistance for 30 min and the stabilized resistance was taken as Ra. In the present study, initially the gas response to 350 ppm of CO2 gas was measured as a function of operating temperature for La2O3 film and the result is shown in Fig. 5(a). From the figure, it is found that the sensor response reaches maximum at 523 K (gas response = 48%) and then decreases at 623 K (gas response = 29%). The optimum temperature for La2O3 based CO2 gas sensor is lower than that of the CO2 sensor based on CO-doped ZnO.9 Therefore, the temperature 523 K was taken as an optimum operating temperature for further study. The sensitivity of these sensor increases with increasing operating temperature obtaining maximum value and then decreases with further increasing in operating temperature. These behavior based on the adsorption and desorption kinetics on the surface of La2O3. If the operating temperature is relatively low, the chemical activity of La2O3 is low which leads the low response. At high temperature, some of the gas molecules escape from the surface before reaction because of strong thermal motion due to high temperature, and thus response decreases.10 Therefore, the optimum temperature is required for good response.
image file: c6ra22118a-f5.tif
Fig. 5 The variation of CO2 gas response of La2O3 thin film with (a) different operating temperatures under exposure of 350 ppm CO2 gas, (b) CO2 gas response at different concentrations of CO2, at operating temperature at 523 K. (c) Variation of response and recovery time periods at different concentrations of CO2 gas and (d) variation of CO2 gas response at different relative humidity.

Once the operating temperature was fixed the sensor response was studied to different CO2 gas concentrations. Fig. 5(b) shows the response of La2O3 film as a function of CO2 concentration at 523 K. The figure reveals that the response increased from 4.8 to 48% as CO2 concentration increased from 100 to 350 ppm. Further increase in concentration the increase in CO2 gas response was gradual and saturated at concentrations more than 350 ppm. The response of a sensor depends on removal of adsorbed oxygen molecules by reaction with a target gas and generation of electrons. For a small concentration of gas, exposed to a fixed surface area of a sample, there is a lower coverage of gas molecules on the surface and hence lower surface reaction occurs. An increase in gas concentration, increases the surface reaction due to a larger surface coverage.29 A further increase in surface reaction is gradual when the saturation point on the coverage of molecules is reached. The response and recovery plots of La2O3 thin film upon exposure of different concentrations of CO2 gas at 523 K are represented in Fig. 5(c). La2O3 thin film shows the response and recovery time periods of 50 and 73 s, respectively.

During practical operating conditions of CO2 sensor in both indoor and outdoor applications, it is in contact with a humid environment. The presence of humidity may interact strongly with the gas detection. Although it is not always the case, generally humidity leads to a degradation of metal oxides-based sensor performance. In fact, the water molecules could react with the chemisorbed oxygen species or adsorb on the metal oxide surface in both cases, limiting the availability of active sites for the adsorption of the gas molecules. If these active sites are the ones involved in the sensing mechanism of the analyte species to detect, their limited availability leads to a reduced sensitivity.9 The behavior of mixed gas (CO2 gas and humidity) is shown in Fig. 5(d). The sensitivity of CO2 gas is reduced with increasing relative humidity (RH), the sensor response Smix% is given by,


image file: c6ra22118a-t4.tif(4)
where, RCO2 is the sensor resistance at a given RH and CO2 level, and RWet is the sensor resistance at the same RH level, but in an atmosphere containing 0 ppm CO2. The Smix represents the resistance change due to the response of the sensor to CO2 gas, when it is added to an already humid atmosphere. The CO2 sensitivities at 350 ppm are seen to reduce in an approximately linear fashion as RH increases. This may arise if the humidity is preferentially adsorbed at the sensor interface, progressively inhibiting access to CO2 sites.9

The selectivity study of CO2 sensor with respect to other gasses such as N2, LPG, ethyl alcohol (C2H2OH) and acetone ((CH2)3CO) at 523 K is shown in Fig. 6(a). The response for CO2 gas is greater than that of the other gasses at the same concentration of 350 ppm. To confirm the stability of La2O3 sensor the response was studied at 300 ppm over a month. Stability of this material is good enough to detect CO2 over a long time as shown in Fig. 6(b). The CO2 sensor also shows good response to N2 gas. The N2 gas is considered as chemically inert gas at high temperature. While, CO2 is an oxidizing gas and it reacts with oxides at elevated temperatures.30 Therefore, La2O3 thin film shows more selectivity towards CO2 gas.


image file: c6ra22118a-f6.tif

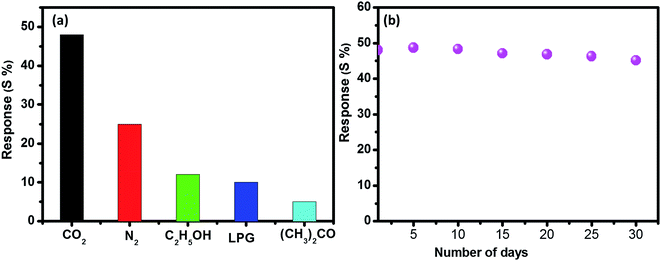

Fig. 6 (a) The gas responses of La2O3 films to various gases with concentrations of 350 ppm at 523 K, and (b) stability of La2O3 and Pd–La2O3 thin film at 523 K and 500 ppm for 30 days.

The mechanism of CO2 gas sensing of La2O3 explained with help of schematic diagram as shown in Fig. 7. La2O3 is a p-type semiconductor metal oxide in which holes are majority charge carriers as Fig. 7(a). At the higher temperature, the excited electrons from the valance band come at the surface due to which the resistance of La2O3 surface decreases [Fig. 7(b)]. When this surface is exposed to air, the oxygen from the air is adsorbed on La2O3 surface by trapping electrons from surface [Fig. 7(c)] and oxygen is ionized in to O and O2−. Due to the accumulation on the surface, the resistance of surface decreases.31 When reducing CO2 gas is introduced, it reacts with the adsorbed oxygen ions and chemisorbed by donating electrons to the oxygen. The electrons are increased and the recombination of electrons–holes takes place which results in the increase of sensor resistance [Fig. 7(d)].32 The absorbed CO2 acts as an acceptor in accordance with the following reversible process,


CO2 + e → CO2, (5)
and

CO2 + O2 + 2e → CO2 + 2O (6)


image file: c6ra22118a-f7.tif

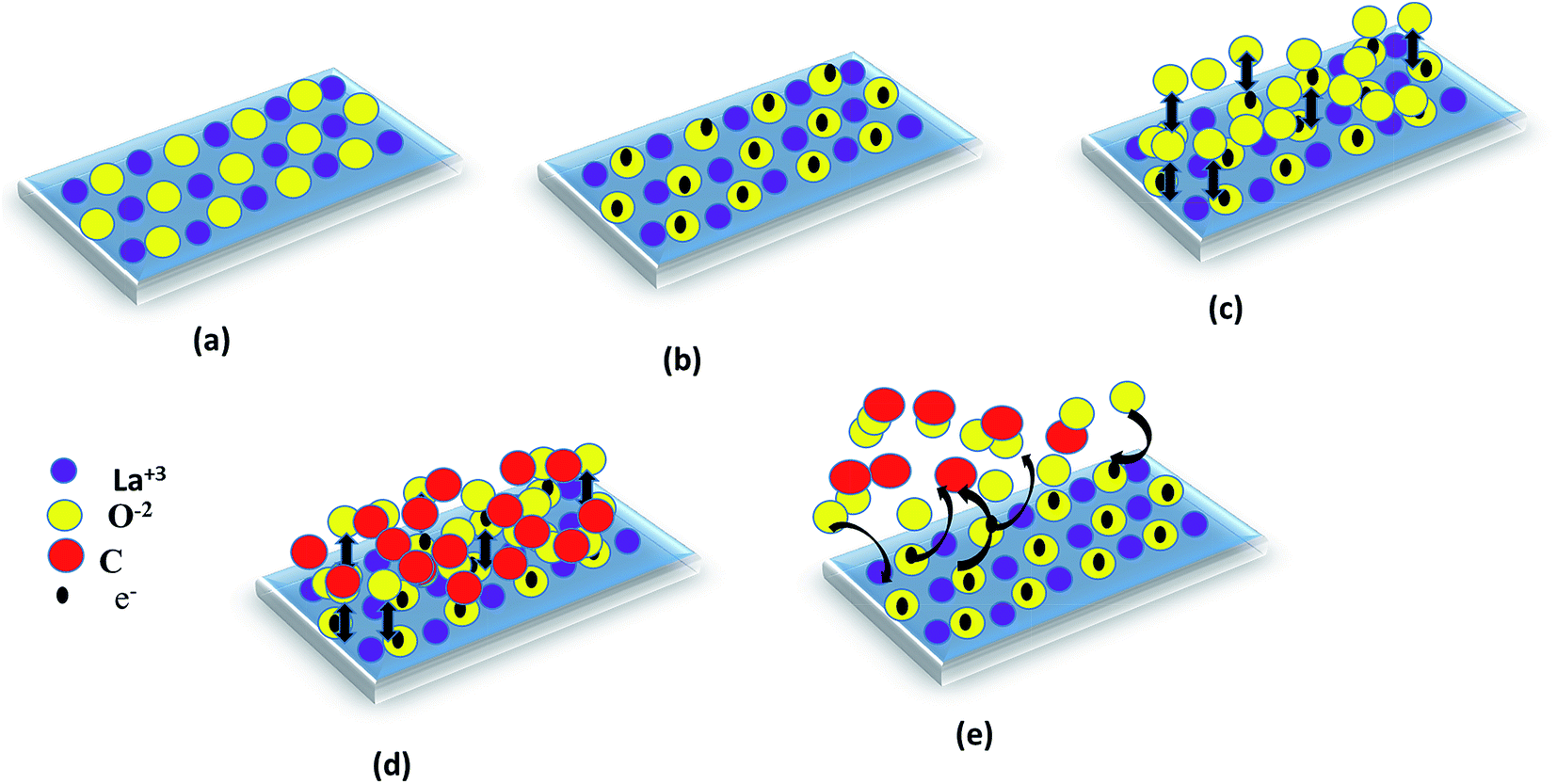

Fig. 7 Schematics diagrams of La2O3 showing the corresponding CO2 gas sensing mechanism. (a) The conduction of thermally exited electrons, (b) donation of electron metal oxide to oxygen, (c) chemisorption of oxygen on the surface of metal oxide, (d) under the exposure of CO2 gas molecule, reacts with the chemisorbed oxygen, and (e) under the exposure of fresh air, CO2 gas is removed and oxygen are chemisorbed on metal oxide surface.

In desorption of CO2 gas molecules, the charge carriers in the accumulation layer are restored and cause decrease in the sensor resistance as shown in Fig. 7(e). The activation energy of adsorption and desorption depends on the sensor temperature on which the response and recovery times of the sensor signal depend.31 From the literature, it is seen that the surface reaction mechanisms at the low and high operating temperature are different. This depends on the interaction between the surface molecule and gas molecule. At the high temperature surface is sufficiently active, so probability of CO2 gas molecule regeneration is low.33,34 At higher temperature, the required activation energy is gained thermally and hence catalytic conversion takes place.

5. Conclusions

The rod-like La2O3 thin films are synthesized using chemical bath deposition method. The synthesis of La2O3 thin film is confirmed by the XRD, FT Raman, XPS, SEM, TEM and BET studies. La2O3 thin film is used as a sensing layer for chemoresistive CO2 gas sensor. The sensor response showed a linear relationship with CO2 gas concentration. The best sensing performance with a maximum response of 48% is obtained at 523 K and 350 ppm. The experimental results indicate the good potential of using La2O3 thin film for CO2 gas sensing.

Acknowledgements

This work was supported by the Human Resources Development program (No. 20124010203180) of the Korea Institute of Energy Technology Evaluation and Planning (KETEP) Grant funded by the Korea government Ministry of Trade, Industry and Energy and supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT and Future Planning (NRF-2015R1A2A2A01006856).
