An AIE based tetraphenylethylene derivative for highly selective and light-up sensing of fluoride ions in aqueous solution and in living cells

Abstract

An AIE based tetraphenylethylene derivative (MOTIPS-TPE) with a pyridinium pendant was synthesized for light-up sensing of F⁻ in aqueous solution without additives. The fluoride ion promoted cleavage reaction gave MOTIPS-TPE high selectivity toward F⁻ over other common anions. Moreover, MOTIPS-TPE can be used to monitor F⁻ in living HeLa cells.

---

The development of methods to sense fluoride ions has emerged as a topical target in the field of chemical sensors,¹ not only because of the preventive and protective roles it plays in dental health and in the treatment of osteoporosis,² but also because of the risks of overexposure to high levels of fluoride, which may result in dental and skeletal fluorosis, neurological and metabolic dysfunctions, osteosarcoma, lower IQ, and more recently also cancers.³ Among the well-established fluoride sensing techniques, including ion chromatography,^{4 19}F NMR,⁵ electrochemical method,⁶ colorimetric and fluorescent sensing, HPLC⁷ and fluorimetry,⁸ fluorescent sensors are of great interest for their convenience, high sensitivity, simple handling procedure, and inexpensive instruments. Up to now, scientists have developed various fluoride fluorescent sensors or sensing systems based on the interactions between fluoride and Lewis acids, using the hydrogen-bond interactions, and also reaction based sensors.¹ Reaction based sensors for fluoride, usually making use of fluoride promoted cleavage reaction, is characterized by their irreversibility and high selectivity.¹ Unfortunately, most of these reported fluorescent sensors can only detect fluoride ion in a tetrabutylammonium fluoride (TBAF) salt in organic solvents or aqueous solutions with the presence of a certain amount of surfactant, which will limit their applications in the living cells. Only a few reported fluorescent sensors can detect inorganic fluoride in fully aqueous systems or biological systems without any additives, probably because of the small size, high electronegativity, and high hydration enthalpy of fluoride ion.⁹ Thus, to make sensors applicable in aqueous solution or biological samples remains one of the most challenging problems in the field of fluoride sensing.

Most reported fluorescent sensors for fluoride ion are designed using traditional fluorophores whose emission is often quenched at high concentration, which is well known as the aggregation caused quenching (ACQ). Researchers are forced to use dilute solutions of sensors to avoid the quenching of emission at high concentrations, which significantly reduced the label-to-analyte ratio.¹⁰ In recent years, tetraphenylethylene (TPE) compounds are attracting increasing interest because of their unique emission properties opposite to ACQ molecules. In contrast to traditional fluorophores which show aggregation-induced quenching of fluorescence, TPE derivatives are weakly or non-emissive in the solution state, while highly emissive in the aggregation state. This phenomenon is called aggregation induced emission (AIE) effect by Tang and co-workers.¹¹ By manipulating aggregation/disaggregation, various fluorescent turn-on sensors based on TPE derivatives were fabricated for sensitively detection of metal ions, sugars, proteins or anions.¹²

Herein, we report a tetraphenylethylene based AIE light-up sensor for fluoride ion detection in aqueous samples and in living cells. As shown in Scheme 1, MOTIPS-TPE is designed to bear a positively charged pyridinium pendant, which rendered the whole fluorophore solubility in water. A triisopropylsily group, which can be cleaved specifically by fluoride ion, was conjugated to the terminal of the pyridinium pendant. Fluoride ion promoted cleavage of the triisopropylsily group resulted in phenolate intermediate, which can spontaneously undergo 1,6-elimination of p-quinone-methide to generate the water insoluble MOPy-TPE. As a result, aggregation will occur and turn on the fluorescence of the TPE moiety based on the AIE effect.

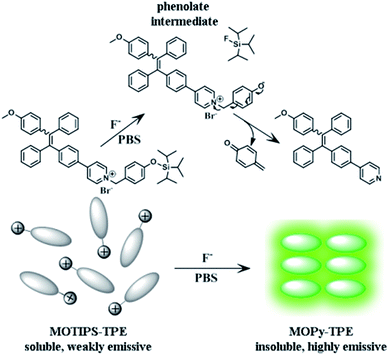

Scheme 1 Schematic representation of reaction based sensing of fluoride ion.

The synthesis of MOTIPS-TPE started with the preparation of monobromo-, monomethoxy-substituted tetraphenylethylene derivative (compound 1) according to reported method.¹³ Palladium-catalysed Suzuki coupling reaction of 1 and 4-pyridinylboronic acid yielded MOPy-TPE (compound 2), which was allowed to further react with (4-(bromomethyl)phenoxy)triisopropylsilane (compound 3) in toluene to afford MOTIPS-TPE (Scheme 2). The chemical structure of MOTIPS-TPE was confirmed by ¹H NMR, ¹³C NMR, and HRMS.

Scheme 2 Synthetic route of MOTIPS-TPE.

As expected, the solution of MOTIPS-TPE showed very weak emission in PBS buffered solution (Fig. 1a, curve i). The fluorescence intensity gradually enhanced as the incubation time of MOTIPS-TPE with F⁻ increased and levelled off after 15 min, accompanied by the emission peak progressively blue-shifted from 536 nm to 504 nm (Fig. S1†). As anticipated, the fluoride ion promoted cleavage of the triisopropylsily group in MOTIPS-TPE would generate MOPy-TPE. To verify this, absorption spectra of MOTIPS-TPE before and after incubation with fluoride ion were compared to those of MOPy-TPE. As shown in Fig. S2,† the spectra of MOTIPS-TPE and MOPy-TPE exhibited absorption peaks at 384 nm and 343 nm respectively; while after incubation with F⁻ at 37 °C for 15 min in PBS, the absorption peak of MOTIPS-TPE shifted to 341 nm, which is in accordance with that of MOPy-TPE. High resolution MS also exhibited the [M + H]⁺ peak of MOPy-TPE after 15 min incubation of MOTIPS-TPE with F⁻ (Fig. S3†).

Fig. 1 (a) Fluorescence emission spectra of MOTIPS-TPE (4 μM in 5 mM PBS) before and after incubation with different concentrations of F⁻ (in NaF salt) at 37 °C for 15 min. (b) The fluorescence intensity ratio ((I − I₀)/I₀) at 504 nm as a function of the concentration of F⁻ (0–20 μM). Inset showed the plot and linear fitting of fluorescence intensity ratio ((I − I₀)/I₀) at 504 nm vs. the concentration of F⁻ (2.5–5 μM) (E_ex = 344 nm, E_ex/E_em slit = 5.0/10.0 nm).

When MOTIPS-TPE was incubated with increasing concentrations of fluoride ion in PBS, the emission intensity at 504 nm, which is the characteristic emission peak of MOPy-TPE, was gradually enhanced. The plot of fluorescence intensity ratio (I − I₀)/I₀ at 504 nm versus the fluoride ion concentration displayed a good linear relationship (R² = 0.996) with a fluoride ion concentration range from 2.5 to 5 μM (Fig. 1b and the inset), resulting the detection limit of fluoride ion in PBS low to 90 nM (n = 12, S/N = 3). Obviously, MOTIPS-TPE is a very promising probe for detection of fluoride ion in environmental and biological systems since exposure to high concentration of fluoride ion is quite dangerous (0.1 mM for drinking water and over 3 mM for biological systems).¹⁴

We then evaluated the selectivity of MOTIPS-TPE toward other common anions under the same experimental condition. As shown in Fig. 2, addition of various anions such as Cl⁻, Br⁻, I⁻, Ac⁻, H₂PO₄⁻, HPO₄²⁻, BrO₃⁻, NO₂⁻, NO₃⁻, OH⁻, and SO₄²⁻ had negligible effect on the fluorescence spectra of MOTIPS-TPE, indicating the high selectivity of MOTIPS-TPE for fluoride anion.

Fig. 2 The fluorescence responses of MOTIPS-TPE (4 μM in 5 mM PBS) in PBS toward various anions (20 μM in 5 mM PBS) (E_ex = 344 nm, E_ex/E_em slit = 2.0/5.0 nm).

As shown in Scheme 1, we have expected that the fluorescence turn on sensing of fluoride ion in aqueous solution results from the fluoride ion promoted cleavage of triisopropylsily group in MOTIPS-TPE and the subsequent generation of the water insoluble MOPy-TPE, which can form fluorescent aggregates in aqueous solution. To verify this, both fluorescence imaging and dynamic light scattering (DLS) experiments were carried out. As illustrated in Fig. S4,† the solution of MOTIPS-TPE exhibited negligible emission before incubation with fluoride ion. However, after incubation, green emissive aggregates can be clearly observed from the fluorescence images. DLS data also indicated the formation of 400–1100 nm aggregates for the solution of MOTIPS-TPE incubated 15 min with fluoride ion (Fig. S5†).

Based on the abovementioned results, we try to test the applicability of MOTIPS-TPE for sensing fluoride ion in living cells. Firstly, we evaluated the cytotoxicity of MOTIPS-TPE for HeLa cells using MTT method. As displayed in Fig. S6,† cell viability was barely affected by 5 μM of MOTIPS-TPE, and the IC₅₀ value was estimated to be 15 μM, much higher than those used in our detection experiments. Based on the relatively low cytotoxicity of MOTIPS-TPE, we tested the applicability of MOTIPS-TPE in monitoring fluoride ion in living HeLa cells using confocal fluorescence microscopy. As we can see from Fig. 3b, MOTIPS-TPE showed little green emission in the absence of fluoride ion. While after incubation with 20 μM of fluoride ion, intensive emission can be observed within HeLa cells (Fig. 3e). Overlay of the confocal fluorescence and bright-filed images demonstrated that the bright emission was evident in the cytoplasm (Fig. 3f), which was further confirmed by Z-scan confocal microscopy (Fig. 3g). All these results demonstrated that MOTIPS-TPE had good cell membrane permeability and can easily enter the living cells, indicating that MOTIPS-TPE can be used to monitor fluoride ion in living cells.

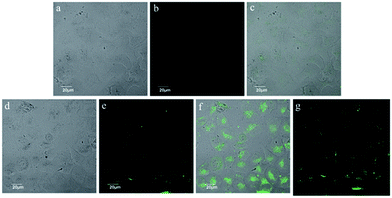

Fig. 3 Confocal fluorescence microscope images of MOTIPS-TPE (4 μM) before and after incubation with F⁻ (20 μM). (a) Bright-filed and (b) fluorescence microscope images of HeLa cells incubated with MOTIPS-TPE only for 50 min at 37 °C. (c) Overlay of (a) and (b). (d) Bright-filed and (e) fluorescence microscope images of HeLa cells incubated with MOTIPS-TPE for 30 min at 37 °C, washed with PBS twice and further incubated with F⁻ for 20 min. (f) Overlay of (d) and (e). (g) Overlap Z-scan confocal image of the living HeLa cells with the same conditions of (e) (E_ex = 405 nm).

Furthermore, we also used MOTIPS-TPE for the detection of fluoride ion in tap water. Tap water was diluted properly and analysed with MOTIPS-TPE method. The results were shown in Table 1, which agree well with those obtained by fluoride ion selective electrode (ISE) standard method.

Table 1 Results of determination of fluoride ion in tap water

	MOTIPS-TPE method^a (mg L^−1)	ISE method^a (mg L^−1)
a Mean of three replicates (±S.D.).
Tap water	0.21 ± 0.15	0.20 ± 0.12

---

Conclusions

A tetraphenylethylene derivative with a pyridinium pendant has been synthesized. The pyridinium moiety rendered MOTIPS-TPE some solubility in water, and as a result, the solution of MOTIPS-TPE exhibited weak emission in PBS. The fluoride ion promoted cleavage of the triisopropylsily group in MOTIPS-TPE accompanied by the subsequent elimination of p-quinone-methide generated MOPy-TPE with poor water solubility. Thus, aggregation occurred and turned on the emission of the solution. The fluorescence turn-on detection of fluoride possesses the following features: (1) the probe MOTIPS-TPE can be easily prepared; (2) the detection of fluoride ion can be applied in aqueous solution without any surfactant additives; (3) 90 nM of fluoride ion (in NaF salt) can be detected and the interference of other common anion can be avoided; (4) MOTIPS-TPE can also be used to detect fluoride ion in living HeLa cells. All these results indicated high application potential of MOTIPS-TPE for fluoride ion sensing in environmental and biological systems.
