DOI:
10.1039/C6RA07088D
(Paper)
RSC Adv., 2016,
6, 46089-46099
Electrospinning of polymer-free cyclodextrin/geraniol–inclusion complex nanofibers: enhanced shelf-life of geraniol with antibacterial and antioxidant properties†
Received
17th March 2016
, Accepted 3rd May 2016
First published on 4th May 2016
Abstract
Free-standing nanofibrous webs of cyclodextrin/geraniol–inclusion complex (CD/geraniol–IC-NF) showing antibacterial, antioxidant activity and slow release of geraniol were developed as flavour/fragrance releasing materials via electrospinning. The electrospinning of CD/geraniol–IC-NFs with uniform and bead-free morphology was achieved without using a polymer matrix. Three types of CDs modified with hydroxypropyl and methyl groups (HPβCD, MβCD, and HPγCD) were used to obtain CD/geraniol–IC-NFs. The polymer-free CD/geraniol–IC-NFs allow us to attain much higher geraniol loading (∼11%, w/w) when compared to electrospun polymeric nanofibers containing CD/geraniol–IC (∼5%, w/w). Geraniol has a volatile nature, yet, a significant amount of geraniol (∼60–90%) was preserved in CD/geraniol–IC-NFs due to the complexation, whereas evaporation of geraniol was unavoidable for polymeric nanofibers incorporating geraniol without cyclodextrin. Short-term (3 h) temperature dependent release (37 °C, 50 °C, and 75 °C) and long-term open air (50 days, at RT) release tests revealed that MβCD/geraniol–IC-NF released less geraniol compared to HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF, indicating that much stronger inclusion complexation was formed between MβCD and geraniol. The release of geraniol from CD/geraniol–IC-NFs prevented the colonization of Gram-negative (Escherichia coli) and Gram-positive (Staphylococcus aureus) bacteria to a great extent, as observed in the antibacterial activity results. It was observed that CD/geraniol–IC-NFs had higher antioxidant activity compared to pure geraniol due to the solubility increase. In brief, the results reported here may open a new door to enhance the performance of essential oils and flavour/fragrances, to preserve volatile compounds from evaporation and to better understand the potential of CD/IC-NFs as carrier systems for guest compounds in the food, cosmetic and household cleaning industries.
1. Introduction
Cyclodextrins (CDs) are supramolecular structures classified as cyclic oligosaccharides that are typically formed from six to eight glucopyranose units bound via α-1,4 glycosidic linkages (Fig. 1a–c).1,2 The hydrophobic carbon backbones of glucopyranose units form the inner walls of CDs, thus the cavity of CDs is relatively hydrophobic. The unique characteristics of CDs come from their inclusion complexation ability with a variety of hydrophobic molecules owing to their hydrophobic cavity.1,2 Electrostatic interactions, van der Waals contributions, and hydrogen bonding are the driving forces of inclusion complex (IC) formation.1 CDs are more resistant to non-enzymatic hydrolysis compared to analogous linear dextrins and they are chemically stable under neutral and basic conditions.1 Another significant feature of CDs is their non-toxicity, which is why they have been used in numerous formulations of pharmaceutical products as well as in a large number of food products.1 In addition to parent CDs (α-CD, β-CD, and γ-CD), chemically-modified CDs (hydroxypropyl and methylated CDs) have been synthesized to enhance the solubility, complexation ability and toxicological profiles in comparison to their parent CDs.1
 |

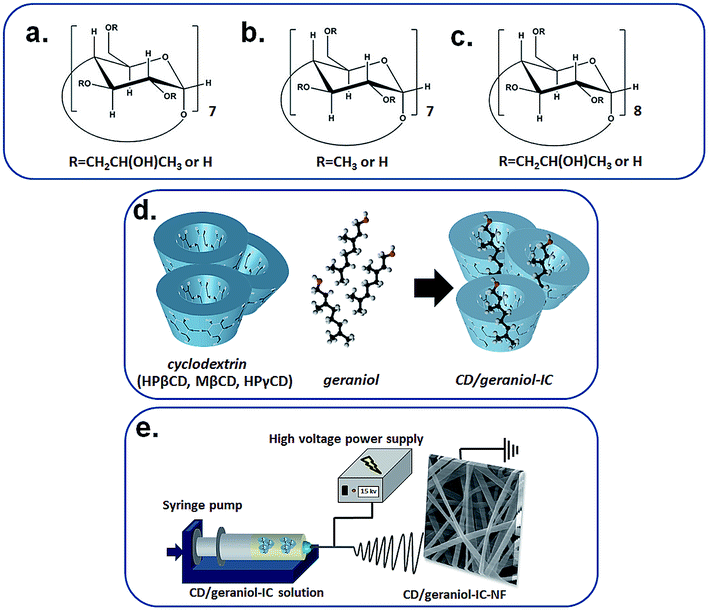

| Fig. 1 The chemical structure of (a) HPβCD, (b) MβCD, (c) HPγCD; the schematic representation of (d) CD/geraniol–IC formation, and (e) electrospinning of nanofibers from CD/geraniol–IC aqueous solution. | |
Essential oils (EOs) are an important category of hydrophobic agents and they are volatile compounds characterized by a strong odour.3 Known for their antibacterial, antioxidant, antifungal, antiseptic properties and fragrance, EOs are used in preservation and flavouring of foods and as fragrance in cosmetic and household cleaning products.3 Because of their low water solubility and highly volatile nature, encapsulation is of great importance for EOs to be used efficiently.3 Geraniol is a terpene alcohol found in EOs of various aromatic plants and it is used in cosmetics, shampoos, soaps, toiletries, household cleaners, and detergents (Fig. 1d).4 Beside its characteristic rose-like odour, it also exhibits insecticidal, antimicrobial, antioxidant, antifungal and anti-inflammatory properties.4 However, its insolubility in water reduces its efficiency as flavour/fragrance in certain applications.4 Supramolecular host–guest complexes can be designed in order to enhance the solubility of EOs with CDs. In addition to solubility issue, administering volatile compounds for various purposes often require development of novel carrier systems. One of the ways that we achieve this goal is incorporating CD–IC of active agents into electrospun polymeric nanofibers.5–11 Therefore, the need for biodegradable polymers have occurred. A number of our recent studies have dealt with the use of biodegradable/biocompatible polymeric nanofibers in encapsulating EOs.7–11
Electrospinning is one of the most common techniques to produce polymeric nanofibers. The unique characteristics of electrospun nanofibers such as high surface-to-volume ratio, controllable fiber diameter and morphologies (core–shell, hollow, and porous) can be obtained by changing the process parameters.12,13 The nanofiber production through electrospinning is usually carried out by dissolving polymers in organic solvents; however there exist some drawbacks like solvent costs and environmental hazards when organic solvents are used, especially in healthcare and food applications. So, the use of water-soluble polymers is an alternative choice to avoid such organic solvent issues by using water as a solvent for the electrospinning. The electrospinning of nanofibers from small molecules14–17 and cyclic oligosaccharides such as CDs18–24 is quite a challenge when compared to polymeric systems due to the lack of chain entanglement and overlapping. The formation self-assembly and aggregates in highly concentrated solutions of CDs via intermolecular hydrogen bonding enables the production of nanofibers from CD solutions.18–24 Moreover, CDs are advantageous over other small molecules that are being used to produce nanofibers by electrospinning since CDs are capable of forming CD–ICs with various compounds. In our group, we had previously produced polymeric nanofibers to incorporate CD–ICs of volatile compounds such as menthol,5–7 vanillin,8 eugenol,9 geraniol,10 and allyl isothiocyanate.11 However, the weight loading of volatile compound was always limited (up to 5% (w/w), with respect to polymer matrix) since the incorporation of higher amount of CD–IC disturbs the electrospinnability of the system to obtain uniform nanofibers. In our recent studies, we have also demonstrated the electrospinning of polymer-free nanofibers from triclosan/cyclodextrin inclusion complexes by using modified CDs (HPβCD and HPγCD) without using polymeric carrier matrix.23,24
In this contribution, we have formed inclusion complexes of geraniol (which is a well-known volatile essential oil compound) with three modified CDs (HPβCD, MβCD, and HPγCD) (Fig. 1d), and we have produced free-standing CD/geraniol–IC nanofibrous web via electrospinning without using polymeric carrier matrix (Fig. 1e). The solubility improvement in geraniol by complexation was confirmed by phase solubility test. The uniform and bead-free morphology of the CD/geraniol–IC nanofibers was observed by SEM imaging. Further chemical, structural and thermal characterizations of CD/geraniol–IC nanofibers were performed by 1H-NMR, XRD, FTIR, TGA, and DSC. The short-term temperature dependent release of geraniol from CD/geraniol–IC-NF at 37 °C, 50 °C, and 75 °C was examined using HS GC-MS for 3 h, whereas the long term release of geraniol from nanofibers at room temperature was measured by TGA for 50 days. The antibacterial activity of CD/geraniol–IC nanofibers against model Gram-negative (Escherichia coli (E. coli)) and Gram-positive (Staphylococcus aureus (S. aureus)) bacteria was tested using colony counting method. Furthermore, antioxidant (AO) activity of nanofibers was monitored by 2,2-diphenyl-1-picrylhydrazyl (DPPH) radical scavenging assay.
2. Experimental
2.1. Materials
Geraniol (97%, Sigma Aldrich), 2,2-diphenyl-1-picrylhydrazyl (DPPH, Sigma-Aldrich) methanol (extra pure, Sigma-Aldrich) and deuterated dimethylsulfoxide (DMSO-d6, deuteration degree min 99.8% for NMR spectroscopy, Merck), polyvinyl alcohol (PVA, Mw ∼ 85
000–146
000 g mol−1, Sigma Aldrich, 87–89% hydrolyzed) were purchased and used as received without any further purification. Hydroxypropyl-beta-cyclodextrin (HPβCD), methylated-beta-cyclodextrin (MβCD), and hydroxypropyl-gamma-cyclodextrin (HPγCD) was kindly donated by Wacker Chemie (Germany). The water used in the experiments was distilled-deionized from a Millipore Milli-Q ultrapure water system.
2.2. Preparation of the solutions
In order to prepare the CD/geraniol–IC solutions; HPβCD, MβCD, and HPγCD (200%, w/v) was dissolved in water and afterwards geraniol was added. The amount of geraniol was determined as 1
:
1 molar ratio with each CD type. The resulting solutions were stirred at room temperature (RT) for overnight. Finally, electrospinning was performed and HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF webs were obtained. The viscosity and conductivity of CD/geraniol–IC solutions and the average fiber diameter (AFD) values of CD/geraniol–IC-NF are shown in Table 1. Electrospinning of pure CD nanofibers without geraniol (HPβCD-NF, MβCD-NF, and HPγCD-NF) were produced for comparative measurements according to our previous reports.18,19 10% (w/w, with respect to polymer) geraniol encapsulated PVA solution was prepared in aqueous solution and nanofibers (PVA/geraniol-NF) was produced via electrospinning.
Table 1 The properties of the solutions used for electrospinning and morphological characteristics of the resulting nanofibers
Solutions |
% CDa (w/v) |
% geraniolb (w/w) |
Viscosity (Pa s) |
Conductivity (μS cm−1) |
Average fiber diameter (nm) |
Fiber morphology |
With respect to solvent (water). With respect to total weight of the sample. |
HPβCD/geraniol–IC |
200 |
9.502 |
0.522 |
212 |
520 ± 220 |
Bead free nanofibers |
MβCD/geraniol–IC |
200 |
11.894 |
0.306 |
768 |
600 ± 220 |
Bead free nanofibers |
HPγCD/geraniol–IC |
200 |
8.676 |
0.904 |
4.92 |
930 ± 370 |
Bead free nanofibers |
2.3. Electrospinning
CD, CD/geraniol–IC, and PVA/geraniol solutions were loaded into a 1 mL plastic syringe with metallic needle of 0.4 mm inner diameter. Then, the solutions were pumped at a constant rate (0.5 mL h−1) via syringe pump (KD Scientific, KDS-101, USA). A grounded metal covered by aluminium foil placed at a distance of 10 cm from the needle tip was used as a collector. 15–20 kV was applied from the high voltage power supply (AU Series, Matsusada Precision Inc., Japan). CD/geraniol–IC-NFs were kept in refrigerator until the analyses. All experiments were carried out in an enclosed Plexiglas box at 25 °C and 18% relative humidity.
2.4. Characterizations and measurements
Phase-solubility measurements for CDs (HPβCD, MβCD, and HPγCD) and geraniol systems were performed in aqueous solution according to the method of Higuchi and Connors.25 An excess amount of geraniol was added to CD solutions and the suspensions were shaken at RT. After the equilibrium was achieved at the end of 24 hours, the suspensions were filtered through 0.45 μm membrane filter and finally dilution was done with water. UV spectroscopy measurements were done at 241 nm (Varian, Cary 100). The experiments were carried out in triplicate and each data point is the average of the three determinations.
The viscosity measurements of HPβCD/geraniol–IC, MβCD/geraniol–IC, and HPγCD/geraniol–IC solutions were performed at RT via Anton Paar Physica MCR 301 rheometer equipped with a cone/plate accessory (spindle type CP 40-2) at a constant shear rate of 100 s−1. The solution conductivity for these CD/geraniol–IC systems was measured by Inolab® pH/Cond 720-WTW.
The morphological characterization of HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF, and PVA/geraniol-NF was examined by scanning electron microscopy (SEM, FEI – Quanta 200 FEG). The nanofibrous web samples were placed on metal stubs by using double-sided copper tape prior to taking SEM images and the samples were sputtered with 5 nm of Au/Pd (PECS-682) to minimize charging problem during SEM imaging of the samples. SEM images were also used to calculate the average fiber diameter (AFD) and fiber diameter distribution of the nanofibrous webs by measuring the diameter of about 100 fibers.
The proton nuclear magnetic resonance (1H-NMR) spectra were recorded at 400 MHz (Bruker DPX-400). 10 mg of HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were dissolved in 0.5 mL of d6-DMSO to calculate the molar ratio of CDs and geraniol in each system by integrating the peak ratio of the characteristic chemical shifts corresponding to CD and geraniol. Integration of the chemical shifts (δ) was calculated by using Mestrenova software.
Thermogravimetric analysis (TGA, TA Q500, USA) analyses were performed for geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF. TGA was conducted under nitrogen atmosphere by heating the samples from 25 °C to 450 °C at the heating rate of 20 °C min−1. Differential scanning calorimetry (DSC, TA Q2000, USA) analyses were performed on HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF with a heating rate of 20 °C min−1 from 25 °C to 200 °C under nitrogen flow.
X-ray diffraction (XRD) measurements of HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were recorded at PANalytical X'Pert powder diffractometer using Cu Kα radiation in powder diffraction configuration and the spectra were collected in the 5–30° 2θ range. XRD was not carried out for geraniol since it is a liquid compound at RT.
The infrared spectra of geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were obtained by using a Fourier transform infrared spectrometer (FTIR) (Bruker-VERTEX 70). The samples were mixed with potassium bromide (KBr) and pressed as pellets for the measurement. The scans (64 scans) were recorded between 4000 cm−1 and 400 cm−1 at resolution of 4 cm−1.
The amount of geraniol released from HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF was determined through headspace gas chromatography-mass spectrometry (HS GC-MS, Agilent Technologies 7890A gas chromatograph equipped with 5975C mass spectrometer) for 3 h. The capillary column was HP-5MS (Hewlett-Packard, Avondale, PA) (30 m × 0.25 mm i.d., 0.25 m film thickness). CD/geraniol–IC-NFs (10 mg) were placed in 20 mL headspace glass vials and the vial was agitated at 500 rpm and 37 °C, 50 °C, and 75 °C. The release experiments were carried out in triplicate and the results were reported as average ± standard deviation. The syringe temperature was 37 °C, 50 °C, and 75 °C as well. The vapour which was injected by headspace injector from vial to HS GC-MS was 250 μL. The oven temperature was initially held at 40 °C for 3 min. Then the temperature was raised with a gradient of 10 °C min−1 until 200 °C. The oven was held for 3 min at 200 °C. The instrument was operated in a splitless and selected ion monitoring mode (SIM). NIST MS Search 2.0 library was used to decide the geraniol peak.
In order to evaluate the long term release of HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, HPγCD/geraniol–IC-NF, and PVA/geraniol-NF were kept separately at room temperature and 18% relative humidity for 50 days in open air in the laboratory. Then, TGA measurements were done at predetermined time intervals (1st day, 25th day, and 50th day).
The antibacterial properties of the HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were evaluated against Escherichia coli (E. coli, ATCC 10536) and Staphylococcus aureus (S. aureus, ATCC 25923) bacteria by using colony counting method. Prior to use, exponentially growing cultures of E. coli, and S. aureus were obtained by allowing each strain to grow in nutrient broth medium at 37 °C for 24 h. After bacterial activation, UV sterilized nanofibers were immersed into the culture suspension and incubated at 37 °C for 24 h. Finally, inocula were prepared by diluting the exponentially growing cultures with physiological solution (0.9% sodium chloride) to obtain approximately 108 colony forming unit (cfu mL−1). Different dilutions (101 to 109) were made by successively adding 1 mL culture into 9 mL of phosphate buffer solution. Then, 0.1 mL of the diluted culture was spread on a nutrient agar plate and incubated at 37 °C for 24 h. The number of the colonies was counted and three repeats were performed for each sample.
The antibacterial activity of the CD/geraniol–IC-NFs was defined as follows:
|
Antibacterial activity (%) = (A − B)/A × 100
| (1) |
where
A and
B are the number of colonies (cfu mL
−1) before and after CD/geraniol–IC-NF were added, respectively.
Antioxidant (AO) activity of geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were tested according to 2,2-diphenyl-1-picrylhydrazyl (DPPH) radical scavenging assay. 10−4 M DPPH solution was prepared by dissolving DPPH in methanol
:
water (1
:
1). 40 mg HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF and 4.76 mg geraniol (which is the maximum amount in CD/geraniol–IC-NFs) were immersed in 3 mL of DPPH solution. The resulting solutions were incubated in dark at RT for 72 h. The absorbance of the solutions was measured (24 h, 48 h, and 72 h) via UV-Vis spectroscopy (Varian, Cary 100) at 525 nm. The absorbance of DPPH solution was defined as 100% and the AO activities (%) of each system were calculated with the following equation:
|
Antioxidant activity (%) = (Acontrol − Asample)/Acontrol × 100
| (2) |
where
Acontrol and
Asample represent the absorbance of DPPH solution and DPPH solution with samples, respectively. The photographs of the solutions were taken after 24 h, 48 h, and 72 h of the incubation. The experiments were performed in triplicate and the results were given as average values ± standard deviation.
3. Results and discussion
3.1. Phase solubility studies
Phase solubility profiles of HPβCD/geraniol, MβCD/geraniol, and HPγCD/geraniol systems are given in Fig. 2a–c. As seen from the diagrams, the aqueous solubility of geraniol increased linearly by complexation. CD/geraniol systems exhibited AL type diagram which is also indication of 1
:
1 stoichiometry between each CD and geraniol.
 |

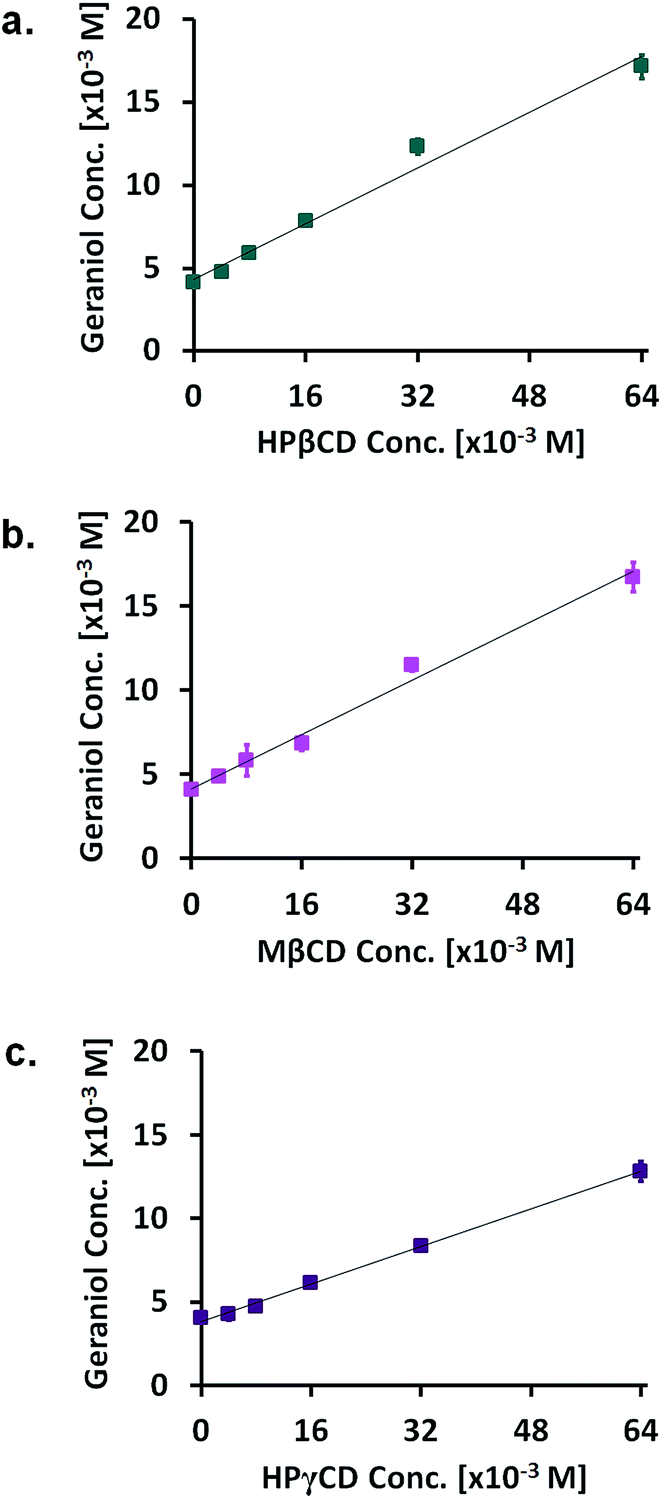

| Fig. 2 Phase solubility diagram of (a) HPβCD/geraniol, (b) MβCD/geraniol, (c) HPγCD/geraniol systems in water (n = 3). | |
3.2. Morphology analysis of nanofibers
Fig. 3a–f shows scanning electron microscopy (SEM) images of HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF. SEM image of PVA/geraniol-NF is shown in ESI Fig. S1.† Bead-free and uniform nanofibers were obtained as seen from SEM images. The average fiber diameter (AFD) of HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were calculated as 910 ± 510 nm, 845 ± 425 nm, 1640 ± 545 nm, 520 ± 220 nm, 600 ± 220 nm, and 930 ± 370 nm from SEM images, respectively. There is no significant difference between AFDs of HPβCD/geraniol–IC-NF and MβCD/geraniol–IC-NF. The viscosity of HPγCD/geraniol–IC solutions was higher than HPβCD/geraniol–IC and MβCD/geraniol–IC solutions; whereas HPγCD/geraniol–IC solutions exhibited lowest conductivity among all solutions (Table 1). Therefore, AFD of HPγCD/geraniol–IC-NF was highest among all CD/geraniol–IC-NFs due to higher solution viscosity and much lower solution conductivity which results in less stretching of the jet during electrospinning.12,13 Furthermore, the photographs of free-standing HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF webs which can be easily-handled showed that all CD/geraniol–IC-NF webs have mechanical integrity despite their main components were amorphous small molecules (Fig. 3g–f).
 |
| Fig. 3 SEM images of electrospun nanofibers obtained from the aqueous solutions of (a) HPβCD, (b) MβCD, (c) HPγCD, (d) HPβCD/geraniol–IC, (e) MβCD/geraniol–IC, and (f) HPγCD/geraniol–IC; the photographs of (g) HPβCD-NF, (h) MβCD-NF, (i) HPγCD-NF, (j) HPβCD/geraniol–IC-NF, (k) MβCD/geraniol–IC-NF, and (l) HPγCD/geraniol–IC-NF webs. | |
3.3. The molar ratio of C/D geraniol–Cl
Proton nuclear magnetic resonance (1H-NMR) was employed to further explore the molar ratio of HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF (Fig. 4a–c). In order to make the molar ratio calculations, the integration of peak at 1.0 ppm (HPβCD and HPγCD) and 2.0 ppm (geraniol) were used. The molar ratio was calculated as 1.00
:
0.60 and 1.00
:
0.65 for HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF, respectively. The molar ratio of MβCD
:
geraniol in MβCD/geraniol–IC-NF was calculated as 1.00
:
0.64 by taking the integration of the protons of MβCD at 3.5–3.7 ppm and geraniol at 2.0 ppm. From the 1H-NMR results, it can be concluded that the substantial amount of geraniol was preserved in HPβCD/geraniol–IC-NF (60%, w/w), MβCD/geraniol–IC-NF (64%, w/w), and HPγCD/geraniol–IC-NF (65%, w/w) during the preparation, electrospinning and storage. It is worth mentioning that, in our long term release study, we have seen that geraniol could not be preserved when electrospun with polyvinyl alcohol (PVA) polymeric matrix without cyclodextrins.
 |

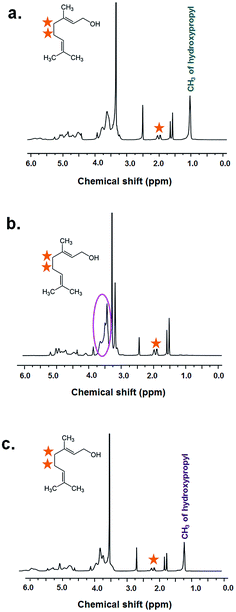

| Fig. 4 1H-NMR spectra of (a) HPβCD/geraniol–IC-NF, (b) MβCD/geraniol–IC-NF, and (c) HPγCD/geraniol–IC-NF dissolved in d6-DMSO. | |
3.4. Thermal analysis of nanofibers
The thermal stability of geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were investigated by thermal gravimetric analysis (TGA) (Fig. 5a–c). Pristine HPβCD-NF, MβCD-NF and HPγCD-NF exhibited two weight losses below 100 °C and above 275 °C which belong to the water loss and main thermal degradation of cyclodextrins (CDs), respectively.23 The first weight loss below 100 °C observed in HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF attributed to water loss. In addition to water loss, two additional weight losses were seen in HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF. The second weight loss in HPβCD/geraniol–IC-NF was between 75 °C and 240 °C; whereas the second weight loss for HPγCD/geraniol–IC-NF started from 95 °C and continued till 250 °C. The shifting of thermal evaporation onset of geraniol from 70 °C to higher temperature suggested the existence of inclusion complex between CDs (HPβCD and HPγCD) and geraniol. The third weight loss in HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF which is above 275 °C belong to the main thermal degradation of CDs. MβCD/geraniol–IC-NF exhibited four stages of weight loss which was below 100 °C, 70–170 °C, 170–290 °C, and above 295 °C. These stages belong to water loss, evaporation of geraniol in the complex in 2 steps, the main thermal degradation of MβCD, respectively. There is a slight shift in the onset temperature of evaporation of geraniol as seen in the second stage and shifting to much higher temperature was observed in the third stage of TGA curve of MβCD/geraniol–IC-NF. These results showed the presence of two types of complexes with a stronger interaction in the third step compared to second step. In addition, thermal stability of the complex in MβCD/geraniol–IC-NF was higher compared to the complexes in HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF and this result suggested stronger complexation between MβCD and geraniol. From TGA data, the calculated geraniol amount in HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF was found to be 83%, 89%, and 82% of the initial amount of geraniol, respectively. Accordingly, the molar ratio of HPβCD, MβCD, and HPγCD to geraniol was calculated as 1.00
:
0.83, 1.00
:
0.89 and 1.00
:
0.82, respectively. The molar ratio of CD
:
geraniol in CD/geraniol–IC-NF samples calculated from the TGA data were not exactly same values with the data obtained from 1H-NMR, but they were comparable indicating that significant amount of geraniol was preserved in these CD based nanofibers. On the other hand, in long term release study, we observed that geraniol could not be preserved in electrospun polymeric nanofiber (PVA) without CD–IC.
 |
| Fig. 5 TGA thermograms of (a) geraniol, HPβCD-NF, HPβCD/geraniol–IC-NF; (b) geraniol, MβCD-NF, MβCD/geraniol–IC-NF; (c) geraniol, HPγCD-NF, HPγCD/geraniol–IC-NF. | |
Differential scanning calorimetry (DSC) curves of HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF are given in Fig. 6a. HPβCD-NF, MβCD-NF, and HPγCD-NF exhibited typical broad endothermic peaks between 25 and 160 °C, 25–155 °C, and 25–155 °C, respectively and these peaks correspond to the dehydration of CDs. DSC curves of CD/geraniol–IC-NF indicated endothermic peaks in the range of 65–150 °C, 60–150 °C, and 65–170 °C for HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF, respectively. The enthalpies of endothermic transitions of HPβCD-NF, MβCD-NF, and HPγCD-NF were 329 J g−1, 99 J g−1, and 255 J g−1, while the enthalpies of HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were 84 J g−1, 42 J g−1, and 147 J g−1, respectively. The reduction in the enthalpy of HPβCD-NF, MβCD-NF, and HPγCD-NF with the complexation of geraniol indicated that certain amount of water molecules in the cavity of CDs are displaced with geraniol which is an indication of complexation between CD and geraniol.26
 |
| Fig. 6 (a) DSC thermograms of HPβCD-NF, HPβCD/geraniol–IC-NF, MβCD-NF, MβCD/geraniol–IC-NF, HPγCD-NF, and HPγCD/geraniol–IC-NF; (b) XRD patterns of HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF; (c) FTIR spectra of geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF. | |
3.5. Structural characterization of nanofibers
X-ray diffraction (XRD) patterns of HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF are shown in Fig. 6b. It is known that HPβCD-NF, MβCD-NF, and HPγCD-NF are amorphous like HPβCD, MβCD, and HPγCD molecules. HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were amorphous as well. Moreover, there is no crystal formation of geraniol in HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF and this result confirms the formation of CD–IC.
The chemical structures of geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF was also investigated by FTIR spectroscopy (Fig. 6c). The FTIR spectrum of geraniol was characterized by absorption peaks at 3326 cm−1, 1416 cm−1 (OH), 2978 cm−1, 2933 cm−1, 1371 cm−1 (CH2), 1650 cm−1, 1022 cm−1, 946 cm−1, 863 cm−1 (C
C), 1100 cm−1, 1155 cm−1 (C–C–C) and 1707 cm−1 (C–O).27 The characteristic absorption peaks of pure CDs observed at around 1030, 1080, and 1157 cm−1 due to the coupled C–C and C–O stretching vibrations and antisymmetric stretchingvibration of the C–O–C glycosidic bridge, 1638 cm−1, 2925 cm−1, and 3401 cm−1 corresponding to H–OH bending, C–H stretching and O–H stretching, respectively overlap with the geraniol peaks.28 Therefore, the geraniol peaks at around 1380 cm−1 and 1450 cm−1 in CD/geraniol–IC-NFs indicated the presence of geraniol in the nanofibers. In addition, shifting of these absorption bands toward higher frequency suggested the formation of the complex between geraniol and CDs. Similar peak shifts were also reported in the literature for geraniol/CD complexes.27
3.6. Release study
The release results of geraniol from HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF are depicted in Fig. 7a–c. When the temperature increases, the diffusion coefficient of the molecules increases;29 so, the amount of geraniol released from HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF was increased with increasing temperature from 37 °C to 75 °C. The total released amount of geraniol from MβCD/geraniol–IC-NF was lower when compared to HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF at 37 °C, 50 °C, and 75 °C. This correlates with the higher thermal stability of MβCD/geraniol–IC-NF as observed in TGA results (Fig. 5) when compared to HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF. In addition, although the total amount of preserved geraniol was almost same in HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF as calculated from TGA results; the release amount of geraniol at 37 °C, 50 °C, and 75 °C from HPγCD/geraniol–IC-NF was much less compared to HPβCD/geraniol–IC-NF. The reason for the less amount of geraniol released from HPγCD/geraniol–IC-NF than that of HPβCD/geraniol–IC-NF could be the higher complexation strength between HPγCD and geraniol.
 |
| Fig. 7 The cumulative release of geraniol from (a) HPβCD/geraniol–IC-NF, (b) MβCD/geraniol–IC-NF, and (c) HPγCD/geraniol–IC-NF at 37 °C, 50 °C, 75 °C (n = 3). The error bars in the figure represent the standard deviation (SD). | |
TGA measurements were carried out in order to evaluate the long term release of HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, HPγCD/geraniol–IC-NF and geraniol encapsulated PVA nanofibers (PVA/geraniol-NF) (ESI Fig. S2†). The results are given in Table 2. Most of the geraniol did not release from MβCD/geraniol–IC-NF in parallel with the short term release experiments. This might be attributed to the high thermal stability of complex formed in MβCD/geraniol–IC as shown in Fig. 5b. Only 24% (w/w) of geraniol was released from MβCD/geraniol–IC-NF at the end of 50 days. So, it can be concluded that MβCD/geraniol–IC-NF is a better candidate for the long term release when compared to HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF. The amount of released geraniol was almost same for HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF; thus, about 50% of geraniol was released from HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF at the end of 50 days. In our long term release study, geraniol was incorporated in PVA electrospun nanofibers for the comparative study to investigate the effect of cyclodextrin inclusion complexation for the stability of geraniol during and after electrospinning. PVA nanofiber matrix is a good comparison for CD nanofibers in terms of its electrospinnability in aqueous system and the presence of hydroxyl groups in its structure. However, we observed that geraniol could not be well preserved without CD–IC during electrospinning or during storage, and, evaporation of geraniol in PVA/geraniol-NF was unavoidable even after one day of its electrospinning. At the end of 50 days 71% of geraniol evaporated from PVA/geraniol-NF. On the contrary, here we observed that significant amount of geraniol was preserved in nanofibrous matrix of CD/geraniol–IC-NF even after a long time of storage.
Table 2 The amount of geraniol in CD/geraniol–IC-NFs at room temperature for 50 days
Samples |
Theoretical amount of geraniola (%) |
1st day (%) |
25th day (%) |
50th day (%) |
With respect to total weight of the sample. |
HPβCD/geraniol–IC-NF |
9.502 (100%) |
7.233 (76%) |
5.258 (55%) |
4.228 (45%) |
MβCD/geraniol–IC-NF |
11.894 (100%) |
9.768 (82%) |
9.381 (79%) |
9.037 (76%) |
HPγCD/geraniol–IC-NF |
8.676 (100%) |
5.541 (64%) |
4.869 (56%) |
4.289 (49%) |
PVA/geraniol-NF |
9.774 (100%) |
4.415 (45%) |
3.281 (34%) |
2.866 (29%) |
3.7. Antibacterial activity
There are several studies in the literature about antimicrobial effect of geraniol. For example, Friedman et al. showed that geraniol was found to be bactericidal against E. coli O157:H7 and Salmonella enterica.30 Further, Tampieri et al. reported the antimicrobial activity of geraniol for S. aureus and various fungi.31 As can be indicated from Fig. 8a–d which shows the data obtained from cfu results, prepared CD/geraniol–IC-NFs possessed strong antibacterial activity against two model bacteria (Escherichia coli (E. coli) and Staphylococcus aureus (S. aureus)). Namely, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF exhibited 87 ± 0.6%, 100 ± 0.6%, and 85 ± 0.3% and 100 ± 0.3%, 100 ± 0.8%, 100 ± 0.4% antibacterial activity against E. coli and S. aureus, respectively. Antibacterial activities (%) of CD/geraniol–IC-NFs were found to be more against S. aureus compared to E. coli. Gram-negative bacteria were more resistant than Gram-positive bacteria because they have an additional protective barrier of the outer membrane.32
 |
| Fig. 8 (a) Exemplary images of Escherichia coli (E. coli), Staphylococcus aureus (S. aureus) colonies. The growth inhibition rate (%) and exemplary images of E. coli and S. aureus colonies treated by (b) HPβCD/geraniol–IC-NF, (c) MβCD/geraniol–IC-NF, and (d) HPγCD/geraniol–IC-NF (n = 3). | |
3.8. Antioxidant activity
Free radicals with one or more unpaired electrons and reactive oxygen species (ROS) including superoxide radicals, hydroxyl radicals, singlet oxygen and hydrogen peroxide cause membrane damage, decreasing membrane fluidity, leading to cancer via DNA mutation and induce oxidation of lipids. Therefore, free radicals/ROS might lead to aging, cancer, Alzheimer's disease, diabetes and asthma by causing molecular alterations in the biological systems or spoiling of foods because of the oxidation in the biomolecules.33,34 Essential oils (EOs) might have antioxidant (AO) properties and the mechanism rely on preventing further damage of mitochondrial DNA that ultimately leading to accumulation of ROS by interacting with them.35 It has been reported that geraniol decline the lipid peroxidation and inhibit ROS generation in the cells.4 In order to prevent potential diseases and food spoilage, AO compounds are being used in various applications; so detecting the AO capacity of materials is of importance. There exist many methods to evaluate AO capacity of materials.36 However, 2,2-diphenyl-1-picrylhydrazyl (DPPH) radical scavenging assay is one of the most widely used methods to decide the potential of AO molecules to scavenge free radicals. DPPH is a stable free radical in a deep purple colour. When it interacts with an AO molecule purple colour of the solution turns into colour of hydrazine which is yellow.37
The AO activity of geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF was calculated as 55 ± 2%, 58 ± 4%, 41 ± 2%, 59 ± 1%, 75 ± 2%, 59 ± 2%, and 57 ± 1% at the end of 72 h, respectively. The photographs of the DPPH solutions in which geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF were immersed up to for 72 h are shown in Fig. 9. In a study of Stobiecka et al., AO activity of geraniol comparative to geranylacetone was evaluated with DPPH assay in methanol, ethanol and toluene. It was concluded that geranylacetone exhibited higher AO activity than geraniol in methanol and ethanol systems in 30 minutes. However, AO activity of both geranylacetone and geraniol was quite low due to the slow kinetics of DPPH radical-scavenging caused by the steric inaccessibility.38 In addition, it has been deduced that the reaction between DPPH and geranylacetone and geraniol was very slow irrespective of the solvent used and high amount of compound had to be applied in order to observe any measurable effects. Similarly, Zyl et al. presented that geraniol has little activity according to DPPH assay performed in methanol for 30 min.39 On the contrary, Choi et al. performed DPPH assay for 30 min and claimed that geraniol had shown quite high AO activity (88%, 236 mg of Trolox equiv. per mL).40 Thus, our result in which the reaction was very slow and the activity was not high as much as observed in the study of Choi et al. is agreed with the study of Stobiecka et al. and Zyl et al. HPβCD-NF, MβCD-NF and HPγCD-NF exhibited moderate AO activity due to the presence of hydroxyl groups in the structure.41 An improvement was observed in the AO activity of CD-NFs with the addition of geraniol in the system. Only HPγCD/geraniol–IC-NF showed similar AO activity with HPγCD-NF, this might be due to higher strength of the complex and the position of geraniol in the cavity which is not allowing the donation of hydrogen from the system easily. AO activity (%) of HPβCD/geraniol–IC-NF was much more as compared to AO activity of geraniol, MβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF. The aqueous solubility increment of geraniol as shown in phase solubility diagrams could be the reason for the better AO activity of HPβCD/geraniol–IC-NF as compared with geraniol. Moreover, higher AO activity of HPβCD/geraniol–IC-NF than MβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF might be related with the higher strength of the complexes formed with MβCD and HPγCD that is inhibiting the release of geraniol and the orientation of geraniol in the cavity of CDs which might make hydrogen donation difficult. The colour of the solution in which HPβCD/geraniol–IC-NF was immersed turned from purple to yellowish at the end of 72 h. So, DPPH molecules in that solution converted into diphenyl-picrylhydrazine (DPPH-H).42
 |

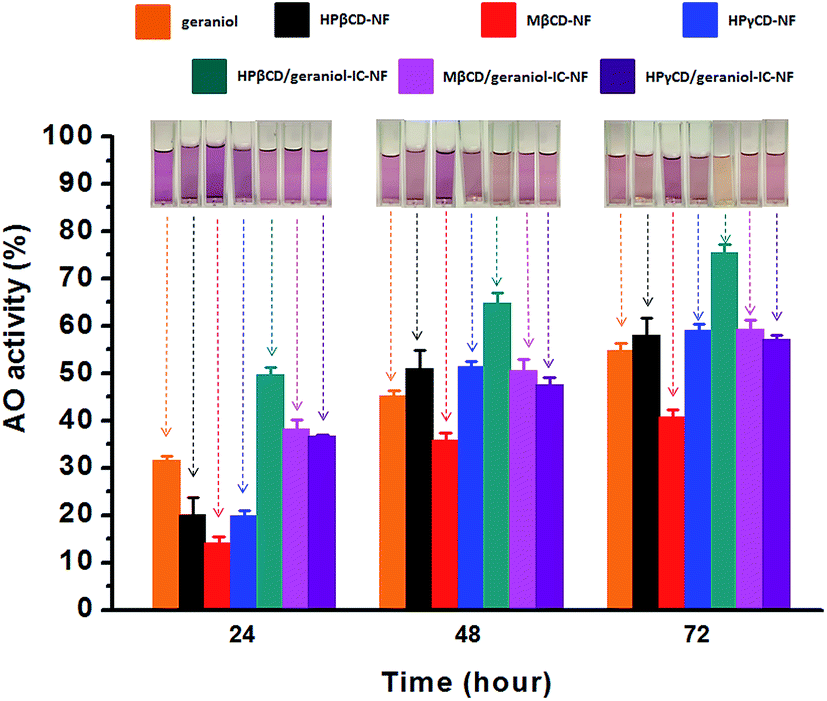

| Fig. 9 The antioxidant (AO) activity (%) of geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, and HPγCD/geraniol–IC-NF and the photographs of DPPH solutions in which geraniol, HPβCD-NF, MβCD-NF, HPγCD-NF, HPβCD/geraniol–IC-NF, MβCD/geraniol–IC-NF, HPγCD/geraniol–IC-NF were immersed, respectively (n = 3). The error bars in the figure represent the standard deviation (SD). | |
4. Conclusions
Free-standing nanofibrous webs of geraniol/cyclodextrin-inclusion complexes (CD/geraniol–IC-NFs) were successfully produced by electrospinning without using a polymeric carrier matrix. We have obtained bead-free and uniform nanofibers from these non-polymeric systems of CD/geraniol–ICs for three different types of CDs (HPβCD, MβCD, and HPγCD). After electrospinning, significant amount of geraniol (∼60–90%) was well preserved by CD/geraniol–IC-NFs due to the inclusion complexation ability of CDs. The short-term (3 h) temperature dependent release (37 °C, 50 °C, and 75 °C) and long-term open air (50 days, at RT) release tests for geraniol from CD/geraniol–IC-NFs were performed. Much less amount of geraniol was released from MβCD/geraniol–IC-NF when compared to HPβCD/geraniol–IC-NF and HPγCD/geraniol–IC-NF in short-term temperature release and long-term open air release tests, which indicated that MβCD/geraniol–IC-NF was the most stable inclusion complex among the three CD/geraniol–IC-NFs web samples. The antibacterial activity test results of CD/geraniol–IC-NFs proved quite high antibacterial activity of geraniol against Gram-negative (Escherichia coli (E. coli)) and Gram-positive (Staphylococcus aureus (S. aureus)) bacteria. Moreover, CD/geraniol–IC-NFs exhibited efficient antioxidant (AO) activity when compared to pure geraniol. In brief, electrospun CD/geraniol–IC nanofibrous webs have shown enhanced shelf-life of geraniol along with antibacterial and antioxidant properties, hence, cyclodextrin inclusion complex nanofibers with variety of flavour/fragrances may have potentials to be used as prolonged releasing systems for various applications including food, cosmetic, household, cleaning products, etc.
Acknowledgements
We would like to thank Dr Asli Celebioglu for her continuous help for the electrospinning of cyclodextrin nanofibers. Dr Uyar acknowledges The Scientific and Technological Research Council of Turkey (TUBITAK)-Turkey (Project # 213M185) for funding this research. The Turkish Academy of Sciences – Outstanding Young Scientists Award Program (TUBA-GEBIP)-Turkey is also acknowledged for partial funding of the research. Z. Aytac, Z. I. Yildiz and F. Kayaci thank to TUBITAK-BIDEB for the PhD scholarship; and Z. Aytac and Z. I. Yildiz also thank to TUBITAK (project no. 213M185) for the PhD scholarship.
Notes and references
- S. V. Kurkov and T. Loftsson, Int. J. Pharm., 2013, 453, 167–180 CrossRef CAS PubMed.
- J. Szejtli, Chem. Rev., 1998, 98(97), 1743–1753 CrossRef CAS PubMed.
- F. Bakkali, S. Averbeck, D. Averbeck and M. Idaomar, Food Chem. Toxicol., 2008, 46, 446–475 CrossRef CAS PubMed.
- W. Chen and A. M. Viljoen, S. Afr. J. Bot., 2010, 76, 643–651 CrossRef CAS.
- T. Uyar, Y. Nur, J. Hacaloglu and F. Besenbacher, Nanotechnology, 2009, 20(12), 125703 CrossRef PubMed.
- T. Uyar, J. Hacaloglu and F. Besenbacher, React. Funct. Polym., 2009, 69(3), 145–150 CrossRef CAS.
- T. Uyar, Y. Nur, J. Hacaloglu and F. Besenbacher, J. Nanosci. Nanotechnol., 2011, 11, 3949–3958 CrossRef CAS PubMed.
- F. Kayaci and T. Uyar, Food Chem., 2012, 133, 641–649 CrossRef CAS.
- F. Kayaci, Y. Ertas and T. Uyar, J. Agric. Food Chem., 2013, 61(34), 8156–8165 CrossRef CAS PubMed.
- F. Kayaci, H. S. Sen, E. Durgun and T. Uyar, Food Res. Int., 2014, 62, 424–431 CrossRef CAS.
- Z. Aytac, S. Y. Dogan, T. Tekinay and T. Uyar, Colloids Surf., B, 2014, 120, 125–131 CrossRef CAS PubMed.
- S. Ramakrishna, K. Fujihara, W. Teo, T. Lim and Z. Ma, An Introduction to Electrospinning and Nanofibers, World Scientific Publishing Company, 2005 Search PubMed.
- T. Uyar and F. Besenbacher, Polymer, 2008, 49, 5336 CrossRef CAS.
- M. G. McKee, J. M. Layman, M. P. Cashion and T. E. Long, Science, 2006, 311, 353–355 CrossRef CAS PubMed.
- G. Singh, A. M. Bittner, S. Loscher, N. Malinowski and K. Kern, Adv. Mater., 2008, 20, 2332–2336 CrossRef CAS.
- M. P. Cashion, X. Li, Y. Geng, M. T. Hunley and T. E. Long, Langmuir, 2010, 26, 678–683 CrossRef CAS PubMed.
- X. Yan, M. Zhou, J. Chen, X. Chi, S. Dong, M. Zhang, X. Ding, Y. Yu, S. Shaod and F. Huang, Chem. Commun., 2011, 47, 7086–7088 RSC.
- A. Celebioglu and T. Uyar, Chem. Commun., 2010, 46(37), 6903–6905 RSC.
- A. Celebioglu and T. Uyar, Nanoscale, 2012, 4, 621–631 RSC.
- A. Celebioglu and T. Uyar, J. Colloid Interface Sci., 2013, 404, 1–7 CrossRef CAS PubMed.
- A. Celebioglu and T. Uyar, RSC Adv., 2013, 3, 22891–22895 RSC.
- A. Celebioglu and T. Uyar, RSC Adv., 2013, 3, 10197–10201 RSC.
- A. Celebioglu and T. Uyar, Langmuir, 2011, 27(10), 6218–6226 CrossRef CAS PubMed.
- A. Celebioglu, O. C. O. Umu, T. Tekinay and T. Uyar, Colloids Surf., B, 2014, 116, 612–619 CrossRef CAS PubMed.
- T. Higuchi and A. K. Connors, Adv. Anal. Chem. Instrum., 1965, 4, 117–212 CAS.
- V. B. Kadam, G. S. Bamane and G. S. Raut, Int. Curr. Pharm. J., 2014, 1(1), 6–12 Search PubMed.
- P. P. Menezes, M. R. Serafini, B. V. Santana, R. S. Nunes, L. J. Quintans, G. F. Silva, I. A. Medeiros, M. Marchioro, B. P. Fraga, M. R. V. Santos and A. A. S. Araújo, Thermochim. Acta, 2012, 548, 45–50 CrossRef CAS.
- L. F. Chen, Q. Shen, J. P. Shen, D. T. Shi, T. Chen and H. R. Yu, Colloids Surf., A, 2012, 411, 69–73 CrossRef CAS.
- C. Y. Hu, M. Chen and Z. W. Wang, Packag. Technol. Sci., 2012, 25, 97–106 CrossRef CAS.
- M. Friedman, P. R. Henika, C. E. Levin and R. E. Mandrell, J. Agric. Food Chem., 2004, 52, 6042–6048 CrossRef CAS PubMed.
- M. P. Tampieri, R. Galuppi, F. Macchioni, M. S. Carelle, L. Falcioni, P. L. Cioni and I. Morelli, Mycopathologia, 2005, 159, 339–345 CrossRef CAS PubMed.
- P. L. Yeagle, The Structure of Biological Membranes, CRC Press, United States, 2011 Search PubMed.
- A. E. Edris, Phytother. Res., 2007, 21, 308–323 CrossRef CAS PubMed.
- B. Prakash, A. Kedia, P. K. Mishra and N. K. Dubey, Food Control, 2015, 47, 381–391 CrossRef CAS.
- Y. Bhalla, V. K. Gupta and V. Jaitak, J. Sci. Food Agric., 2013, 93, 3643–3653 CrossRef CAS PubMed.
- D. Huang, B. Ou and R. L. Prior, J. Agric. Food Chem., 2005, 53, 1841–1856 CrossRef CAS PubMed.
- K. Pyrzynska and A. Pękal, Anal. Methods, 2013, 5, 4288–4295 RSC.
- A. Stobiecka, Flavour Fragrance J., 2015, 30(5), 399–409 CrossRef CAS.
- R. L. Van Zyl, S. T. Seatlholo, S. F. Van Vuuren and A. M. Viljoen, J. Essent. Oil Res., 2006, 18, 129–133 CrossRef CAS.
- H. S. Choi, H. S. Song, H. Ukeda and M. Sawamura, J. Agric. Food Chem., 2000, 48(9), 4156–4161 CrossRef CAS PubMed.
- A. Corciova, C. Ciobanu, A. Poiata, C. Mircea, A. Nicolescu, M. Drobota, C. D. Varganici, T. Pinteala and N. Marangoci, J. Inclusion Phenom. Macrocyclic Chem., 2015, 81(1–2), 71–84 CrossRef CAS.
- I. Gulcin, Arch. Toxicol., 2012, 86, 345–391 CrossRef PubMed.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c6ra07088d |
|
