Synthesis and characterization of chitosan–zinc composite electrodeposits with enhanced antibacterial properties

Abstract

Zinc electrodeposits are one of the most popular safeguard procedures for steel constructions. However, in natural aquatic environments, especially marine environments, zinc electrodeposits suffer significantly from microbial induced corrosion and biofouling which lead to metal failure. To better confront the microbial induced problems, a biocide-zinc electrodeposit was synthesized based on chelating action. In this paper, nontoxic and biocidal natural polysaccharide, chitosan, was successfully incorporated into the zinc electrodeposit matrix, synthesizing a kind of chitosan–zinc composite electrodeposit. The addition of chitosan in the electrolyte influenced the surface morphology and crystalline structure of the resultant electrodeposits significantly, while a chitosan–zinc chelation complex was also found in the electrodeposits. A synthesis model was proposed in which a chitosan molecule could chelate zinc ions in the electrolyte by means of its N atoms in amino groups and O atoms in hydroxide radicals, which promoted the codeposition of zinc and chitosan during synthesis. Furthermore, remarkably enhanced broad-spectrum bactericidal properties of the chitosan–zinc electrodeposits were revealed through Escherichia coli, Pseudomonas aeruginosa and Shewanella oneidensis exposure. The best antibacterial properties of the resultant electrodeposits were obtained when the chitosan concentration was 0.6 g L⁻¹ in the electrolyte.

---

1. Introduction

A zinc electrodeposit applied on a steel construction surface is one of the most extensively used techniques for providing sacrificial protection and barrier effects against corrosion at low cost.^1–3 Various synthesis baths have been developed and employed in industry for zinc electrodeposits. The basic constituents of the baths are metal ions, conducting salts, buffers and additional agents. Because the additional agents and deposition conditions significantly influence the electrodeposit's properties,^4,5 considerable interest has been generated for composite electrodeposits incorporating both inorganic and organic components within the zinc matrix.

With respect to the inorganic functional components, researchers have found that enhanced corrosion resistance was obtained by alloying Al, Cr, and Mn^6,7 as well as incorporating nanoparticles such as CeO₂,⁸ TiO₂,⁹ graphene oxide¹⁰ and halloysite nanotubes¹¹ in zinc electrodeposits. Regarding to the organic ingredients, organic additives such as gelatin,¹² trisodium nitrilotriacetic¹³ and ethylenediaminetetraacetate¹⁴ were also researched in electrolytes to obtain deposits with specific property. Furthermore, some organic–inorganic hybrid materials, such as carbon fiber reinforced plastic with zinc-coated steel¹⁵ and 5,5′-dimethylhydantoin with copper,¹⁶ were successfully synthesized for metals protection and barrier.¹⁷

The ultimate aim of these researches on electrodeposits with particular property was to make these electrodeposits applicable in natural environment. One of the most unsatisfactorily handled problems was considered to be the application of the zinc electrodeposits in moist environment accompanied by bacteria and fungi, especially the marine environment. In marine environment, microbiological induced corrosion and biofouling influenced the steel constructions seriously, leading to mechanical failure.¹⁸ In these processes, the attachment of bacteria plays an important role leading to the metal failure including the zinc electrodeposits break.¹⁹ To mitigate this severe problem, we've incorporated an organic biocide 4,5-dichloro-2-n-octyl-4-isothiazolin-3-one^20,21 into zinc electrodeposit, aiming at inhibiting the bacteria attachment.

On account of environment concerns, nontoxic organic components in metal electrodeposit should be developed. In this respect, as a natural polysaccharide with intrinsic antibacterial property, chitosan is considered to be a good choice. According to relevant reports,^22,23 the antibacterial property of chitosan could be attributed to its cationic amino groups which interrupt the bacterial membrane and disrupt mass transport across bacterial cells. Chitosan has been applied to various biocidal composite films due to its natural, green and effective biocidal properties.^24,25

As a result, chitosan was performed to be the organic component in the zinc composite electrodeposits for antibacterial properties in this study. The objective of this investigation was to synthesize and characterize chitosan–zinc composite electrodeposits, propose a reasonable synthesis model and then assess the antibacterial property by bacteria attachment research.

2. Experimental

2.1 Synthesis of the chitosan–zinc electrodeposits

A non-toxic sulfate zinc electrolyte, which is composed of 250 g L⁻¹ ZnSO₄·7H₂O, 80 g L⁻¹ Na₂SO₄, 26 g L⁻¹ H₃BO₃ and 40 g L⁻¹ Al₂(SO₄)₃·18H₂O, was used in this research. Pure zinc electrodeposit was deposited from this sulfate zinc electrolyte. To synthesis chitosan–zinc electrodeposits, chitosan added electrolyte were prepared by mixing gradient concentrations (0.2, 0.6 and 1.0 g L⁻¹) of chitosan [(C₆H₁₁NO₄)_n, cat. no. C8320, Solarbio, China] into the sulfate zinc electrolyte. Analytical-grade reagents and distilled water were used to prepare high-purity solutions.

Carbon steel (wt%: C 0.19, Si 0.31, Mn 0.55, P 0.04, S 0.043) specimens with dimensions of 50 mm × 13 mm × 2 mm were used as the electrodeposits substrates. Prior to deposition, steel specimens were ground with sandpaper to 2000# and oscillated by ultrasound in ethanol for 10 min. A carbon steel specimen was served as both the cathode and the working electrode during electrodeposition, whilst a pure zinc specimen of 50 mm × 20 mm × 5 mm was served as both the anode and the counter electrode. A saturated calomel electrode (SCE) was applied as the reference electrode connected by a salt bridge to the electrolyte. Under the control of a DJS-292E potentiostat, a current density of 5 mA cm⁻² was utilized for synthesis and the deposition time was controlled to be 219 min. After deposition, the resultant coupons were washed with distilled water and dried.

The pure zinc electrodeposit obtained from sulfate zinc electrolyte was named C₀, while the chitosan–zinc composite electrodeposits synthesized from 0.2, 0.6 and 1.0 g L⁻¹ chitosan added electrolytes were named C_CS1, C_CS2 and C_CS3, respectively. The mass of the coupon was measured before and after electrodeposition using an analytical balance to calculate the current efficiency, η_c, according to eqn (1):

where η_c is the cathode current efficiency; m₁ is the mass before electrodeposition, g; m₂ is the mass after electrodeposition, g; e is the electric quantity of one electron, C; j is the current density, mA cm⁻²; S is the area exposed in electrolyte, cm²; t is the deposition time, s; M_Zn is the molar mass of Zn; and N_A is Avogadro constant.

2.2 Characterization on the chitosan–zinc electrodeposits

The phase structures of these electrodeposits were determined using an X-ray diffraction (XRD, Rigaku D/max-Ultima IV, Japan) under the following conditions: 40 kV, 30 mA, graphite-filtered Cu Kα radiation (l = 0.1542 nm). The electrodeposits morphologies and element distribution maps were analyzed using a scanning electron microscope (SEM, S-3400N, Hitachi, Japan) with an energy-dispersive spectrometer (EDS, INCAx, Oxford, UK) system. The molecule structure of chitosan in the composite electrodeposits was detected by a Fourier transform infrared spectroscopy (FT-IR, Nicolet iN10 IR Microscope, Thermo Fisher, US).

2.3 Electrochemical analysis during synthesis process

During the synthesis process, the depositing potential was monitored. The electrochemical impedance spectroscopy (EIS) and the cathodic potentiodynamic polarization curves were obtained when 10 μm and 20 μm electrodeposits were synthesized using a Solartron 1287/1260 electrochemical analyzer.

A three-electrode system²⁶ was applied with a 20 × 20 mm Pt specimen as the counter electrode and an SCE as the reference electrode connected by a salt bridge. EIS was performed when the 10 μm and 20 μm thick electrodeposits were synthesized. The impedance data was obtained at the depositing potential with the frequency interval analyzed from 100 kHz to 0.01 Hz. The width of the sinusoidal voltage signal applied to the system was 10 mV (rms). Cathodic potentiodynamic polarization curves were performed ranging from the open circuit potential to −200 mV versus SCE at a potential scanning rate of 5 mV s⁻¹. The EIS data was analyzed using Princeton ZSimpWin version 3.21 software.

2.4 Antibacterial property assessment

Escherichia coli (E. coli) strain JM109 from Hong Kong University as well as Pseudomonas aeruginosa (P. aeruginosa) strain PAO-1 and Shewanella oneidensis (S. oneidensis) strain MR-1 from Zhejiang University isolated from marine environment were cultured by Luria-Bertani (LB) medium (pH adjusted to 7) containing 10 g L⁻¹ NaCl, 10 g L⁻¹ peptone from fish and 5 g L⁻¹ yeast extract in distilled water. A bacterial colony on solid medium was inoculated into liquid LB medium and then cultured at 37 °C (for E. coli) and 30 °C (for P. aeruginosa and S. oneidensis), respectively, for 12 h. After culture, the concentrations of E. coli, P. aeruginosa and S. oneidensis in the medium were determined by colony-forming units (CFU).²⁷

Centrifugation at the speed of 4000 rpm for 5 min was performed to separate the bacterial body from the medium.²⁸ Bacteria were then diluted and suspended in 0.1 mol L⁻¹ phosphate buffer saline (PBS) (8.0 g L⁻¹ NaCl, 0.2 g L⁻¹ KCl, 1.44 g L⁻¹ Na₂HPO₄, 0.44 g L⁻¹ KH₂PO₄ in distilled water). PBS mediums containing 10⁶ cfu mL⁻¹ E. coli, P. aeruginosa and S. oneidensis were separately prepared for the immersion experiments.

The pure zinc electrodeposits and chitosan–zinc composite electrodeposits were then exposed in the 10⁶ cfu mL⁻¹ E. coli, P. aeruginosa and S. oneidensis PBS medium for 24 h, respectively. After exposure, the surfaces of the specimens were gently washed by sterile PBS and then immersed in PBS solution with 5% glutaraldehyde for 30 min. Subsequently the synthesized electrodeposits were dyed by 1 μg mL⁻¹ 4′,6-diamidino-2-phenylindole (DAPI) for 30 min. Fluorescent observation of bacteria was then performed by fluorescence microscopy (BX-51 with an image software of Cellsens, Olympus, Japan) at a magnification of 400×.

Analytical-grade reagents and distilled water were used to prepare LB and PBS media. All mediums were sterilized at 121 °C for 30 min before inoculation. Inoculation and system assembly were conducted in a sterile environment on an AIRTECH clean bench after 30 min ultraviolet light sterilization.

3. Results and discussion

3.1 Synthesis of the chitosan–zinc electrodeposits

3.1.1 Optical observation. An initial visual observation on the resultant electrodeposits was made to get a general acquaintance. Fig. 1 gives the optical photographs of these electrodeposits. The chitosan–zinc electrodeposits, especially C_CS1, revealed much more brightness as silver white, but they seemed to be more rough and uneven than C₀.

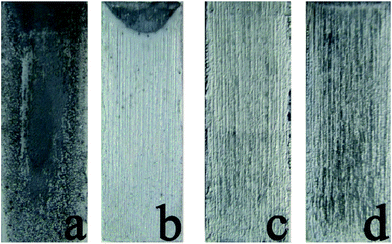

Fig. 1 The optical photographs of the electrodeposits C₀ (a), C_CS1 (b), C_CS2 (c), and C_CS3 (d).

3.1.2 Depositing potential. Under the continuous current synthesis, the depositing potentials of the coupons were monitored in both pure zinc electrolytes and chitosan-added electrolytes. The cathodic reaction during the synthesis process was considered to be Zn²⁺ to zinc crystal.

Fig. 2 displays that the depositing potential of C₀ remained stable at −1.01 V vs. SCE, while the depositing potentials of C_CS1, C_CS2 and C_CS3 reached −1.04 V, −1.06 V and −1.08 V vs. SCE, respectively. The apparent potential negative shifts during the chitosan–zinc synthesis process illustrated that chitosan molecule participated in the reducing reaction and adsorbed on the electrodepositing surface. Due to the absorption effect, chitosan molecule covered the electrodepositing surfaces, leading to a decrease of the effective surface area. So under continuous current, the depositing potential moved negatively. Therefore, chitosan effectively reduced the deposition potential, and higher concentration of chitosan revealed stronger influence.

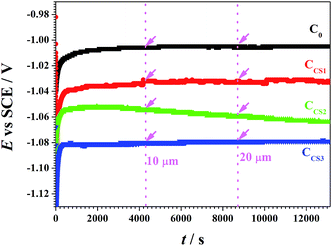

Fig. 2 Variations in the electrodepositing potentials of the electrodeposits with time.

3.1.3 Cathodic current efficiency. Current efficiency, η_c, of the synthesis expresses the utilization efficiency of electricity, which is a significant parameter in industrial application. By measuring the mass gained by synthesis and calculating, the current efficiency is demonstrated in Fig. 3.

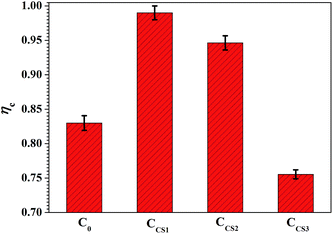

Fig. 3 Current efficiency of the C₀, C_CS1, C_CS2, and C_CS3 electrodeposits.

The pure zinc electrodeposit C₀ revealed a normal current efficiency at 82.5%.²¹ The η_c of chitosan–zinc composite electrodeposits C_CS1 and C_CS2 reached relatively high values of 99.0% and 94.5%. On one hand, this phenomenon would be attributed to the high depositing potential (Fig. 2), which facilitated Zn²⁺ reduction; on the other hand, the inclusion of chitosan molecule inside the chitosan–zinc electrodeposits also led to the η_c increase. However, relatively high concentration of chitosan in electrolyte resulted in a decreased η_c of C_CS3, which was attributed to the high absorption area of chitosan on the electrodepositing surfaces and the relative high reaction resistance (discussed in the latter section). Therefore, a proper concentration of chitosan addition into the electrolyte, in which C_CS1 and C_CS2 was synthesized, increased the current efficiency effectively.

3.2 Characterization of the chitosan–zinc electrodeposits

3.2.1 Surface morphologies. To better define the micromorphologies, SEM images at the magnification of 1000 are shown in Fig. 4. Obvious morphology diversities are found on these SEM images. The zinc electrodeposit C₀ revealed a normal pure zinc crystal as irregular arrangement of compact and thin hexagonal platelets.²⁹ On C_CS1, a spot of chitosan–zinc complex was observed in analogous pure zinc crystalline matrix. C_CS2 revealed a totally different morphology from C₀ and C_CS1. Distinct large and well crystallographic chitosan–zinc complex was found in the zinc matrix, which showed a unique compact surface. Due to the high concentration of chitosan added into the electrolyte, C_CS3 showed a loose surface with big slices of chitosan–zinc complex covered on the zinc substrate matrix. Above all, various concentrations of chitosan greatly impacted the morphologies of the synthesized electrodeposits.

Fig. 4 SEM images of the electrodeposits C₀ (a), C_CS1 (b), C_CS2 (c), and C_CS3 (d).

3.2.2 Phase structure. The phase structures of the electrodeposits were studied using XRD. Organic additives play important roles in the phase structures of the synthesized electrodeposits.^14,30 As Fig. 5a demonstrated, all the zinc electrodeposits revealed (101) (102) (112) (002) (100) (103) crystal orientations from the matrix as reported previously.^30–32 The addition of chitosan obviously enhanced the (100) orientation peak but weakened the (002) and (102) peaks, which indicated that certain phases had increased by chitosan.

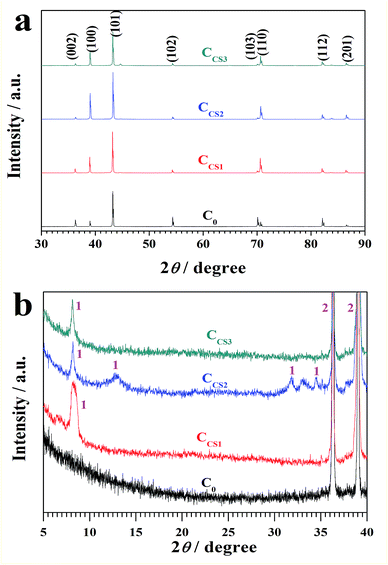

Fig. 5 XRD results of the electrodeposits for zinc matrix (a) and chitosan–zinc chelation complex (b).

To figure out the existence of the chitosan–zinc complex, a detailed XRD spectrum ranging from 5 to 40 degree is shown in Fig. 5b. Wang et al. synthesized pure chitosan–zinc chelation complex and analyzed its XRD results.³³ On chitosan added zinc electrodeposits, especially C_CS2, the main orientation peaks from chitosan–zinc chelation complex, which corresponded to Wang's reports, were found, proving the existence of chitosan–zinc chelation complex in the chitosan–zinc electrodeposits.

As a result, chitosan influenced the phase structure of the zinc matrix mainly by enhancing the (100) orientation and created a new chitosan–zinc complex phase. These influences were most obvious on C_CS2 electrodeposit.

3.2.3 Existence form of chitosan. FT-IR spectrum was subsequently performed to research on the existence form of chitosan in the electrodeposits. Fig. 6 displays definite results. On the spectrum of C_CS1, C_CS2 and C_CS3, all the representative peaks of chitosan were found, proving that chitosan existed in the electrodeposits by its entire and effective structure. Differences between chitosan–zinc electrodeposits spectrum and chitosan spectrum were as follows: (1) the wide peak at 3443 cm⁻¹ shifted to lower frequencies; (2) the absorption band at 1636 cm⁻¹ shifted upward and (3) the peak at 1096 cm⁻¹ shifted to lower wave numbers. These shifts proved that chitosan–zinc chelation complex did exist in the electrodeposits by interacting with zinc. Furthermore, the chelating active sites of chitosan were supposed to be the N atoms in amino groups and the O atoms in hydroxide radicals,³³ which, on the other hand, explained the chelating behavior of chitosan and zinc ion in the synthesis process.

Fig. 6 FT-IR spectrums of C₀, C_CS1, C_CS2, C_CS3, and chitosan (CS).

3.2.4 Chitosan contents. Aiming at identifying the chitosan contents in various chitosan–zinc composite electrodeposits, EDS map was performed to observe the chitosan distribution and determine the chitosan contents in these electrodeposits.

Since all the chitosan–zinc electrodeposits showed the same characteristic, only the EDS map of C_CS1 is given in Fig. 7 to provide a visual result. Besides the main element Zn from the matrix, the typical elements C, N, and O from chitosan, emerged on the cross section. Furthermore, it could be found that C, N and O elements existed in all layers of the electrodeposit, indicating the successful chitosan incorporation inside the electrodeposit. Meanwhile, these elements appeared more in the surface layers than those in the inner layers, illustrating that more chitosan molecule were embedded in or absorbed on the surface layers than in the inner layers.

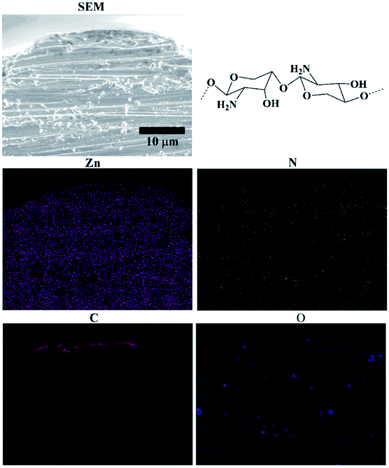

Fig. 7 EDS map of the C_CS1 electrodeposit cross section.

Nitrogen is one of the main elements constituting chitosan. As nitrogen is relatively stable and can be precisely detected by normal methods, the contents of chitosan in the electrodeposits were revealed by the N/Zn atomic ratio shown in Fig. 8. The data shown was calculated by EDS results and double checked by X-ray Photoelectron Spectroscopy measurements.

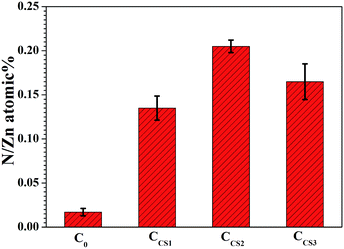

Fig. 8 Variations in the N/Zn atomic ratios of the electrodeposits.

The N/Zn ratio of C₀ was 0.015, approaching 0, revealing that hardly any nitrogen was found. Little nitrogen detected may be contributed to the N₂ adsorbed on the samples. The N/Zn ratios of C_CS1, C_CS2 and C_CS3 were calculated to be 0.14, 0.21 and 0.17, respectively, which is remarkably higher than that of C₀. Among these three chitosan–zinc composite electrodeposits, C_CS2 showed the highest N/Zn ratio, displaying the highest chitosan content.

By the EDS map research, chitosan was proved to be embedded inside the synthesized chitosan–zinc electrodeposits and gathered more in the surface layers. Furthermore, when the chitosan concentration was 0.6 g L⁻¹ in the electrolyte, relatively high contents of chitosan in C_CS2 was obtained.

3.3 Electrochemical synthesis model research

3.3.1 EIS research on the synthesizing process. To study the chitosan–zinc electrodeposits synthesis process, EIS was conducted at the electrodepositing potential. The Nyquist plots are shown in Fig. 9. A high-frequency capacitive loop and a low-frequency inductive loop showed up in all these zinc electrodeposits Nyquist plots. The capacitive reactance arc in high frequency area was related to the charge transfer process of the double layer in the zinc reduction reaction. The obvious low frequency inductive reactance illustrated the birth and growth of monolayers formed on the facets of crystallites.^29,34

Fig. 9 The Nyquist plots of the electrodeposits during the electrodeposition process at 10 μm (a) and 20 μm (b).

The circuit shown in Fig. 10 was applied to fit the EIS data. The main fitting parameters are displayed in Table 1.

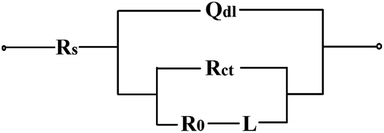

Fig. 10 The fitting circuit for EIS during electrodeposition. R_s represents the solution resistance; Q_dl represents the constant phase element (CPE) of the double layer capacitance; R_ct represents the charge transfer resistance; R₀ represents the microcrystalline resistance; and L represents the inductive reactance.

Table 1 Variations of fitted parameters from the EIS results of C₀, C_CS1, C_CS2, and C_CS3

	C0		CCS1
	10 μm	20 μm	10 μm	20 μm
Rs/ohm cm^2	4.3	4.2	4.3	4.4
Rct/ohm cm^2	1.2	1.4	4.6	3.9

---

	CCS2		CCS3
	10 μm	20 μm	10 μm	20 μm
Rs/ohm cm^2	3.9	4.5	4.5	4.1
Rct/ohm cm^2	4.1	4.5	5.5	4.9

---

As Table 1 shown, the solution resistance R_s values of the chitosan-added electrolytes were as same as that of the pure zinc electrolyte, which were approximately 4 ohm cm². R_ct represents the charge transfer resistance of the zinc reduction reaction. The R_ct values of the pure zinc electrodeposit when 10 μm and 20 μm thick films synthesized shared the similar value of 1.2–1.4 ohm cm². While R_ct values of the chitosan–zinc electrodeposits when 10 μm thick films synthesized were 3.9–5.5 ohm cm², which were much higher than that of the pure zinc electrodeposit. They remained similar at 20 μm within 4.1–4.9 ohm cm². The R_ct values increased with the chitosan adding concentration. The high R_ct values of the chitosan–zinc electrodeposits illustrated that the chitosan molecule participated in the zinc reduction process by its chelation and adsorption effect. The EIS results indicated that the addition of chitosan dramatically influenced the synthesis process.

3.3.2 Cathodic polarization curves on the synthesizing process. Cathodic polarization curves were also performed to research the effect of chitosan on the synthesizing process as Fig. 11 shown. Under the same depositing potential, the addition of chitosan decreased the current density and inhibited the electrodepositing process, which meant the formation of the chitosan–zinc complex made the electrodepositing process difficult. When the chitosan–zinc complex reduction completed, the chitosan molecule would also adsorb on the deposition surface, which hindered the Zn²⁺ reducing reaction. The polarization curves of both the pure zinc electrodeposits and the chitosan–zinc composite electrodeposits revealed linear characteristic at weak polarization region. The curve slop of C₀ was higher than those of C_CS1, C_CS2 and C_CS3, revealing a lower reaction resistance, which corresponded to the EIS results.

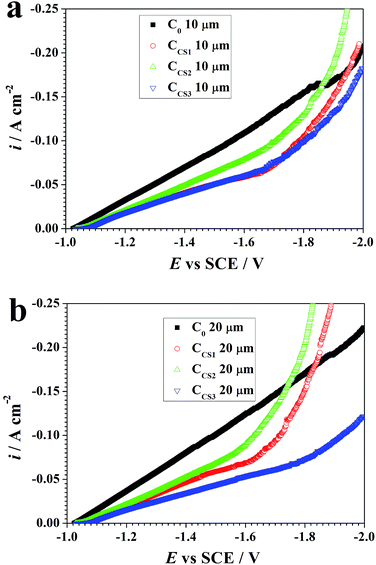

Fig. 11 Cathodic polarization curves at the 10 μm (a) and 20 μm (b) synthesis process.

Both EIS and polarization curve results shared the same conclusion that chitosan dramatically influenced the synthesis process by its interaction with zinc ion in the electrolyte, thus increased the reducing reaction resistance.

3.3.3 Synthesis model. By analyzing all the above results, a synthesis model is proposed in Fig. 12. When chitosan was added into electrolyte, chitosan molecule chelated Zn²⁺ by its active sites as the N atoms in amino groups and the O atoms in hydroxide radicals. Both Zn²⁺ and chitosan–Zn²⁺ chelation complex would participate in the synthesis process. This resulted in the chitosan–zinc chelation complex embedded inside the electrodeposits. As electrodeposition went on, more chitosan–Zn²⁺ took part in the synthesis process. When synthesis finished, chitosan molecules would absorb on the surface as well, leading to a relatively high chitosan contents in the surface layers.

Fig. 12 Synthesis model of chitosan–zinc composite electrodeposits.

3.4 Antibacterial property of the chitosan–zinc electrodeposits

3.4.1 Fluorescence images observation. The prepared chitosan–zinc electrodeposits were exposed to PBS with 10⁶ cfu mL⁻¹ E. coli, P. aeruginosa and S. oneidensis separately for 24 h to study bacterial attachment on the electrodeposits surfaces, investigating the broad-spectrum bactericidal properties in marine environment of these synthesized chitosan–zinc electrodeposits. The blue points in the fluorescence images in Fig. 13 represents the bacteria bodies attached to the electrodeposits surfaces in E. coli,³⁵ while the images of electrodeposits exposed in P. aeruginosa and S. oneidensis showed similar results.

Fig. 13 Fluorescence microscopy images of C₀ (a), C_CS1 (b), C_CS2 (c) and C_CS3 (d) after 24 h exposure in 10⁶ cfu mL⁻¹ E. coli PBS medium.

After 24 h of exposure, large amounts of bacteria bodies attached on C₀ surface, and many of them accumulated into multiple colonies, tending to form biofilm. By contrast, only a small amount of bacteria bodies got attached on the chitosan–zinc electrodeposits individually and dispersedly, illustrating an initial stage of attachment.

3.4.2 Quantification analyses of the attached bacteria. By quantifying the density of the attached bacteria bodies on these zinc electrodeposits after 24 h immersion in 10⁶ cfu mL⁻¹ E. coli, P. aeruginosa and S. oneidensis PBS medium, the bacteria attaching density is shown in Fig. 14. As a kind of typical fouling bacteria in marine environment, P. aeruginosa showed higher attaching density than E. coli and S. oneidensis. For E. coli, the bacteria attaching density on C₀ surface showed a high value reaching 2700 cfu mm⁻². The bacteria attaching density on C_CS1, C_CS2 and C_CS3 remained relatively low, which were 280 cfu mm⁻², 190 cfu mm⁻², and 490 cfu mm⁻², respectively. Similarly, for P. aeruginosa, the bacteria attaching density on C₀ surface showed the highest value reaching 7600 cfu mm⁻², while the bacteria attaching density on C_CS1, C_CS2 and C_CS3 were 2800 cfu mm⁻², 760 cfu mm⁻², and 2100 cfu mm⁻², respectively. For S. oneidensis, the bacteria attaching density on C₀ surface approached 5900 cfu mm⁻², and the bacteria attaching density on C_CS1, C_CS2 and C_CS3 remained at 1100 cfu mm⁻², 500 cfu mm⁻², and 800 cfu mm⁻², respectively. These three kinds of bacteria showed consistent attaching tendency on the electrodeposits with the lowest bacteria attaching density showing up on C_CS2 electrodeposit. Compared with C₀, the bacteria attaching density of C_CS2 achieved a 93% decrease for E. coli, a 90% decrease for P. aeruginosa and a 92% decrease for S. oneidensis. As a result, C_CS2 revealed the best antibacterial property, which was probably attributed to its compact surface morphology and relatively high chitosan content.

Fig. 14 Quantification of bacteria attached on C₀, C_CS1, C_CS2 and C_CS3 after 24 h exposure in 10⁶ cfu mL⁻¹ E. coli, P. aeruginosa and S. oneidensis PBS medium.

4. Conclusions

In summary, aiming at improving the properties of zinc electrodeposits applied in marine environment with aggressive microorganisms, chitosan–zinc composite electrodeposits with enhanced antibacterial properties against marine bacteria were successfully synthesized based on chelating action.

As an organic additive in electrolyte, chitosan brightened the electrodeposits surfaces and effectively increased η_c by 16.5% at most. Meanwhile, chitosan obviously influenced the surfaced morphology and phase structure. Further FT-IR and XRD results showed that chitosan–zinc chelation complex was embedded inside the electrodeposits. Chitosan was also found to exist in the composite electrodeposits with effective structure. By further electrochemical analysis, chitosan increased the reaction resistance dramatically. Based on the electrochemical mechanism and characterization results, a synthesis model was proposed that chitosan molecule chelated zinc ion by the N atoms in amino groups and the O atoms in hydroxide radicals, which promoted the chitosan embedment in the zinc electrodeposits during the synthesizing process.

Antibacterial properties of the chitosan–zinc composite electrodeposits were analyzed through fluorescence microscopy observation in three kinds of bacteria suspended PBS medium over 24 h. The composite electrodeposits showed effectively enhanced broad-spectrum bactericidal properties. The C_CS2 synthesized in electrolyte with the chitosan concentration of 0.6 g L⁻¹ obtained the best antibacterial property with the bacteria attachment decreased by 90%. The resultant chitosan–zinc composite electrodeposits would supply a potential resolution for extending the service life of zinc electrodeposits on steel structures applied in microbial marine environments.

Acknowledgements

The present work was supported by the National Key Basic Research Project (No. 2014CB643304) and the Public Science and Technology Research Funds Projects of Ocean (No. 201405013-4).
