Chemical and pharmaceutical evaluation of the relationship between triazole linkers and pore size on cyclodextrin–calixarene nanosponges used as carriers for natural drugs

Abstract

Mixed cyclodextrin–calixarene nanosponges were used to prepare some composites with the well known polyphenolic bioactive compounds quercetin and silibinin. The composites were characterized by means of different techniques (UV-vis, FT-IR, microcalorimetry, thermogravimetry), in order to assess their loading and thermal stability. The kinetics of release of the bioactive molecules into aqueous solution were studied at two different pH values (1.0, 6.4), which mimic typical physiological conditions. Finally the possible antiproliferative effects in vitro were assayed towards three triple negative breast cancer cell lines (SUM 149, SUM 159 and MDA-MB-23). Our results point out the role assumed by the triazole linkers, present in the nanosponge network, in affecting both the adsorption abilities of the materials towards the bioactive molecules, and the antiproliferative activity of the composites. This work puts forward an efficient strategy to prepare nanosponge based nanocarriers with three different cavities that could encapsulate two or more drug molecules with different physico-chemical properties.

---

Introduction

Natural phenolic compounds such as flavonoids and flavono-lignanes are a widespread group of constituents universally distributed among vascular plants. Interest in them has increased in recent years, due to compelling evidence of their health benefits and impact on food quality. Epidemiological studies have shown that flavonoids and flavonolignanes possess anti-oxidant, anti-inflammatory and anti-ageing activities.^1–3 Among the phenolic compounds known to date, quercetin (Que) and silibinin (Sil) have attracted great attention (Fig. 1). In particular Que, a flavonoid mainly distributed in fruits, vegetables and teas,⁴ has been shown to have a variety of biological and pharmacological actions,⁵ including decreasing blood lipid levels,⁶ anti-platelet aggregation,⁷ anti-anemic action and anti-anaphylaxis effects.⁸ Sil is the main flavono-lignan of silymarin, a standardized extract from Silybum marianum L. (Asteraceae), used for its hepatoprotective effects.⁹ Its anti-oxidant and membrane-stabilizing properties are well documented in vitro, being assessed as the main protective mechanisms.¹⁰ Sil has been reported to possess anti-inflammatory and antifibrotic effects, and to decrease the risk factors of atherosclerosis.^11,12

Fig. 1 Structures of quercetin (Que) and silibinin (Sil).

There is a growing interest in the potentially beneficial effects on the chemical prophylaxis and therapeutic effects of Que and Sil for cancer treatment. Indeed, many studies have shown that these compounds have anticancer activities against various cancer cells such as colon, prostate, skin, glioma and breast cancer cells.^13–15 However pharmaceutical applications of phenolic compounds in general are severely hampered by their unsatisfactory bioavailability, due to poor water solubility, low stability and short half-life.^15,16 In addition, the biological activity of these natural products can be affected by physico-chemical factors such as light, oxygen/air, humidity or other reactive compounds from the environment. In order to protect these bioactive compounds against degradation and to enhance their bioavailability, in recent years various encapsulation and complexation methods have been explored. Several possibilities have been successfully tested, in particular nanoparticle composites available in various forms like lipids,^17,18 bio-compatible polymers,¹⁹ nanotubes,²⁰ and finally nanosponges.

Nanosponges (NSs) are a new class of materials obtained by polymerizing potential supramolecular hosts with colloidal and nanosized cavities. Their hyper-reticulated three-dimensional network enables the capture, transportation and prolonged release of a large variety of substances.²¹ The most known examples are the cyclodextrin-based NSs, obtained by reacting native β-cyclodextrin (βCD) with double electrophiles such as epichloridrin, bis-isocyanates or carbonic acid derivatives.^22,23 These materials are biocompatible, cheap, easy to obtain and show several advantageous properties compared to parent cyclodextrin molecules.²⁴ In principle, their binding abilities and controlled release properties might be tailored and targeted by means of a suitable choice of the linker.²⁵ This distinctive structure organization promotes molecule complexation and might be responsible for the enhanced solubility, dissolution and stabilization of biomolecules^26–28 as well as improves the drug bioavailability by modifying the pharmacokinetic parameters of active constituents.²⁹ In addition, NSs have the ability to load both hydrophilic and hydrophobic drug molecules because of their inner hydrophobic cavity and external hydrophilic branching, thereby offering unparalleled flexibility.²⁴

NSs have already found various applications such as removal of organic pollutant,^30,31 oxygen and drug delivery systems.^32,33 In particular, a few recent studies have focused on their inclusion/release properties towards flavonoids such as resveratrol and Que itself.^22,30

We have recently reported the synthesis of a new class of nanosponges, obtained by co-polymerization of two different supramolecular hosts having potentially complementary binding abilities, namely βCD and calix[4]arene (CA), covalently linked by means of triazole units.³⁴ Different materials have been obtained, with different porosity and hydrophobic properties, by simply changing the co-monomer combination ratio. Tests have positively assessed the actual ability of our materials to sequester organic molecules from an aqueous solution. Moreover, the presence of a triazole linker could play a crucial role in their use as drug carrier. It is known that triazoles possess several interesting biological and pharmaceutical activities such as antibacterial, antifungal, antitumor, plant growth regulating and cytotoxic effects.^35–37

In the present work we investigated the feasibility of utilizing three βCD–CA–NSs, prepared with different co-monomer combination ratios, as possible carrier/delivery systems for Sil and Que. In particular, we explored the supramolecular binding abilities of these materials, and verified whether the biological activities of Que and Sil are synergistically improved by the possible concomitant cellular uptake of the triazole-containing material. In this study we prepared the six possible Que/NSs and Sil/NSs composites (Fig. 2), which were characterized by means of FT-IR spectroscopy, Isothermal Calorimetric Titration (ITC) and thermogravimetric analysis (TGA). Then, we studied the kinetics of release of the bioactive molecules from the NS composites and their anti-proliferative activity towards three triple negative breast cancer cell lines (namely MDA-MB-231, SUM-149 and SUM-159).

Fig. 2 Cartoon depiction of the composites hypothesized.

The advantages of nanosponges with “three” different cavities, namely βCD, CA and nanochannels could offer the remarkable possibility for a simultaneous encapsulation of two or more drug molecules with different physico-chemical properties, followed by a different path release in agreement with the cavity that interacts with the drugs.

Results and discussion

The preparation of the three different nanosponges was accomplished according to literature reports.³⁴ In particular, the NSs were obtained by the CuAAC reaction (Fig. 3) between the heptakis-(6-deoxy)-(6-azido)-βCD (βCDA) and the tetrakis-(25,26,27,28-propargyloxy)-(5,11,17,23-tert-butyl)-calix[4]arene (CX) in different molar ratio. It is interesting to note that the nanosponges were prepared with an excess of the azide component, that could undergo further functionalizations. Three different polymeric compounds were isolated and their compositions were determined by ¹³C{¹H}CP-MAS NMR (see Fig. S1 in ESI†).³⁴ The amount of triazole linkers per g of material, and the average pore size obtained by analysis of the desorption branch using the BJH calculation method (see Fig. S2 in ESI†), are summarized in Table 1.

Fig. 3 Synthesis of the nanosponges.

Table 1 Analytical data relevant to NSs

Nanosponge	βCDA : CX mole ratio	Triazole linkers^a^,^b	Average pore size^b (nm)
a mmoles per g of material.b See ref. 34.
NS1	0.91 : 1	1.69	3.5 ± 0.4
NS2	0.57 : 1	2.02	2.7 ± 0.3
NS3	0.29 : 1	1.46	1.9 ± 0.2

---

It is worth noting that the amount triazole linkers and the porous structure significantly change on increasing the βCDA/CX ratio. These parameters are crucial in determining the host–guest interactions and in affecting the biological activity of the new drug carriers. The drug molecules, indeed, may be included into the cavities of both βCDA or CX and, due to crosslinking, simultaneous interaction of the guest molecules with two co-monomer subunits units is possible. Moreover, crosslinking may also form nanochannels within the NS structure of the polymer mesh.³⁸

Investigations of the binding abilities of the nanosponges in solution

Previous investigations had shown that native βCD and modified βCDA can effectively include quercetin, whereas silibinin does not interact with the βCDA.^20,39 In order to verify whether quercetin and silibinin interact with the calixarene cavity, supramolecular interactions with the tetrakis-(25,26,27,28-((1-carboxymethyl)-1H-1,2,3-triazol-4-yl)methoxy)-(5,11,17,23-tert-butyl)-calix[4]arene sodium salt (CS, Fig. 4), chosen to model in solution the calixarene units of the NSs, have been studied. The formation of 1 : 2 quercetin/calixarene complexes has been demonstrated by isothermal titration calorimetry (ITC).

Fig. 4 Structure of the model calixarene CS.

The ITC data showed endothermic effects with a sigmoidal profile of the interaction heat vs. Que : CS mole ratio (see Fig. S3 in ESI†). Data analysis provided the equilibrium constant and the enthalpy change for the quercetin–calixarene inclusion complex formation by assuming the equilibria:

and the procedure reported elsewhere.⁴⁰

It was found β₂ = K₁K₂ = (1.4 ± 0.6) 10⁶ M⁻² and an enthalpy change (ΔH°) of 14.8 ± 0.6 kJ mol⁻¹. Then, an entropic contribution (TΔS°) as large as 50 ± 15 kJ mol⁻¹ can be computed, highlighting the hydrophobic effect as the driving force for Que incorporation within the calixarene cavity. The silibinin interactions with calixarenes has been reported.⁴¹

In order to evaluate the binding abilities of the NSs towards Que and Sil, we performed some sequestration texts by mechanically shaking weighed amounts of the NSs in the presence of diluted solutions of Que and Sil at different pH values (namely 1.0, 4.4 and 6.7). The loading efficiency for each nanosponge was estimated by UV-vis spectrophotometry. Results are represented in Fig. 5. As it can be easily seen, all the nanosponges can absorb both guests in different extent depending on the pH considered. In particular, silibinin was more efficiently absorbed than quercetin, suggesting the occurrence of stronger supramolecular interactions with the cavities of the NSs. As long as quercetin is concerned, NS2 showed the best binding abilities at each pH. This may be explained by the presence of a larger amount of triazole rings, which enhances the hydrogen bond donor/acceptor abilities of the NS matrix.

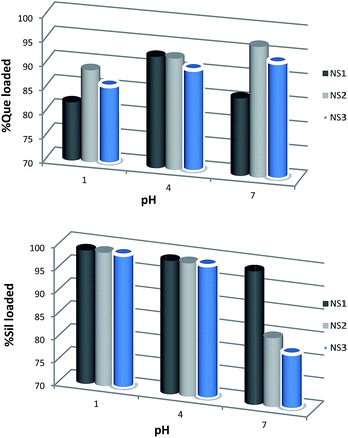

Fig. 5 Amount of Que or Sil loaded in the nanosponges.

Indeed, the importance of hydrogen bonding in affecting the inclusion properties of native βCDs has been positively assessed, as it has been previously reported for poly-hydroxylated p-nitroaniline derivatives.^42–44 On the other hand, on increasing the pH NS2 and NS3 showed a decrease in its ability to interact with silibinin. This behavior is probably due to the lesser porosity of the two nanosponges in comparison with the other material (see Table 1). Variations in the porosity of the NSs can be attributed to the cross-linked network, which forms nanochannels in the NS framework. Our data clearly point out that a key factor in controlling the binding abilities of the nanosponges is strictly correlated to the size of the pores, and therefore to the presence of the interstitial channels. Indeed, the formation of nanochannels enables a large amount of drug to be incorporated in the inner structure of the NS.

Investigations of solid state composites

With the final aim to reach the most effective loading of both drugs in NSs, we decided to perform loading from a solution buffered at pH 4.4. The loading efficiencies of Que/NSs and Sil/NSs estimated spectrophotometrically after extraction with methanol, are reported in Table 2 as the percent amounts of drug in the final composite and as drug encapsulation efficiency. It is worth noting that data perfectly mirror the results obtained in the aforementioned binding tests. The solid composites were then characterized by means of different techniques.

Table 2 Percent loading amounts and encapsulation efficiency of Que and Sil in the NSs

	Loading amount (%)			EE (%)
	NS1	NS2	NS3	NS1	NS2	NS3
Que	6	7	5	80	93	67
Sil	24	10	9	74	32	28

---

As a representative example, in Fig. 6 the FT-IR spectrum of Que/NS1 and, for comparison, the spectra of the NS1 and Que are depicted. Our nanosponges are reported to show intense bands in the region around 3300 cm⁻¹, due to the hydroxyl groups of the βCDs subunits, and a peak in the region around 2100 cm⁻¹, which can be attributed to the presence of unreacted azide or alkyne groups. Moreover, the fingerprint region shows the presence of signals attributable to both the βCD (1295, 1156, 1078, 1049 cm⁻¹) and the CA (1364 and 1189 cm⁻¹) scaffolds, the intensity of which changes according to the different composition of the material. Finally, it is possible to identify a tiny band at 1239 cm⁻¹ and a shoulder at ca. 1015 cm⁻¹ accounting for the formation of the triazole ring linkers. The IR spectra of some flavonoids have been carefully analyzed by Heneczkowski et al.,⁴⁵ so the main features in the spectrum of Que are well assessed. In particular, the main signals are due to the stretching of the hydroxyl groups (3336 cm⁻¹) and the carbonyl group (1664 cm⁻¹). Moreover, there are three bands at 1612, 1562 and 1514 cm⁻¹ accounting for aromatic rings vibrations and, among the various signals in the rich fingerprint region, a peak at 1317 cm⁻¹ (attributed to C–OH bending) and a peculiar system of three peaks at 820, 808 and 788 cm⁻¹.

Fig. 6 FT-IR spectra of Que (green), NS1 (blue) and Que/NS1 composite (red). The peaks outlined are relevant to: (*) the CD scaffold; (+) the CA scaffold; (×) the triazole moiety; (A–C) aromatic Que stretching; (D–F) Que fingerprints.

In the IR spectrum of the composite, the main Que signal at 1664 cm⁻¹ is completely concealed by signals attributable to the polymer matrix (the same occurs for the –OH stretching at 3336 cm⁻¹). However, it is possible to notice three peaks at 1606, 1538 and 1514 cm⁻¹ which are clearly due to the presence of the guest and, most important, show significant shifts accounting for a strong interaction between the aromatic rings and the co-polymer matrix. Similarly, although other Que fingerprints are hardly visible, a signal at 1323 cm⁻¹ and two further signals at 826 and 787 cm⁻¹ clearly mirror the aforementioned Que peak systems, again with small but significant shifts. The complete collection of FT-IR spectra is reported in ESI (Fig. S4†). In brief, spectra of composites NS2/Que and NS3/Que show tiny but clear signals accounting for the presence of the guest at 1606, 1323, 826 and 808 cm⁻¹. A similar analysis can be carried out for the spectra of the NS/Sil composites. Pure Sil has, in particular, a sharp carbonyl band centered at 1638 cm⁻¹, which undergoes a significant enlargement and bathochromic shift in the composites. Among its other fingerprint bands, Sil possesses also a signal at 1510 cm⁻¹ that is apparent also in the composites (slightly shifted up to 1513 cm⁻¹), and two tiny signals at 850 and 824 cm⁻¹ respectively, mirrored in the composites by a weak convolution band centered at ca. 834 cm⁻¹.

The thermal stability of the NS/Sil and NS/Que systems was determined by means of TGA. The thermoanalytical curves for pristine components NS³⁴ and Sil or Que²⁰ are multi steps and the mass losses occur in a comparable temperature range. Although the identification of each degradation step in the composite material is hardly possible, conclusions on the degradation features of the composites and the effects of each component were straightforward. Fig. 7 shows that the effect of Que and Sil loading on thermal stability was polymer specific. As long as NS1 is concerned, Que and Sil generated an additional mass loss to the pristine NS1 data starting from 500 °C. As both drugs should already degrade below 500 °C (see ESI, Fig. S5†), one may argue that the loading into NS1 strongly enhance the thermal stability of Que and Sil. NS2/drug samples do not show any significant alteration of the TGA profile compared to the pristine NS2 behavior. The case of NS3 is peculiar, because the thermal stability was oppositely influenced by the two drugs. In particular, Que loading enhanced the degradation of the composite while Sil incorporation reduces the mass loss upon heating. In principle the TGA data might be used to calculate the drug loading in a complex mixture, although this is straightforward for inorganic nanocarrier,⁴⁶ it is not generally valid. In fact, it is known that inclusion in macrocycle cavities alters the thermal stability of a compound and the residual charcoal depends on specific interactions,⁴⁷ therefore, rule of mixture is not generally valid as this is clearly the case here (Fig. 5). Notwithstanding, TGA data showed that the amount of CD in the NS is crucial for the Que protection.

Fig. 7 TGA data for NS and NS/drug complexes.

This result is consistent with the strong binding between Que and the βCD cavity (β = 1.5 ± 0.4 × 10⁶ M⁻²) evidenced by fluorescence experiments (see details in ESI, Fig. S6†). In other word, both the βCD presence and the larger size of the cavity enhances the thermal protection of the drug.

The controlled release of Que and Sil from the complexes Que/NS and Sil/NS was studied in aqueous buffers at both pH 1.0 and 6.4, i.e. in such a way to mimic the typical physiological conditions of either gastric or intestinal fluids. Regarding the quercetin release, it is important to notice that in all the cases considered the spectrum of the released molecule showed a significant bathochromic shift (from 370 to 290 nm) of the main UV-vis absorption peak. This shift, however, cannot be attributed to a chemical modification of the Que molecule subsequent to inclusion, due for instance to the unexpected occurrence of oxidation or hydration processes. As a matter of fact, after each release experiment, the residual composite was carefully collected, repeatedly washed with methanol, and the combined methanolic extracts were analyzed by UV-vis, showing the unchanged spectrum of the pure guest. This provides sufficient proof that quercetin undergoes no alteration during the release experiment. By the way, spectrophotometric determination of the residual amount of guest in the composite recovered after the test allowed us to determine the cumulative release. On the other hand, we noticed that, after shaking and equilibrating the pristine nanosponges with the same buffers, the UV-vis spectrum of the aqueous phase shows a broad weak absorption band in the region below 300 nm. This indicates that the nanosponge matrix undergoes slow disgregation, probably due to mechanical shaking. Therefore, it may be reasonably assumed that Que is indeed released into solution as an inclusion complex with the NS fragments. A similar phenomenon has been already noticed in other release systems,⁴⁸ and of course complicates data analysis, because UV-vis absorbances cannot be converted into real concentrations.

As a representative example, cumulative percent release curves for NS1 at both pH 1.0 and 6.4 are shown in Fig. 8. As we can easily see, the pH conditions have a large outcome on the release. Under acidic conditions, data points can be suitably subjected to fitting analysis by means of an equation of the form:

F_t = M_∞⌊1 − e^(−k₁t)⌋ + k₀t (1)

i.e. providing the sum of an exponential and a linear term. This indicates the superimposition of two distinct processes, namely a relatively faster first-order and a zeroth-order ones. By contrast, under nearly neutral conditions the first-order term appears nearly suppressed. The complete values of the apparent kinetic constants k₁ and k₀ are summarized in Table 3.

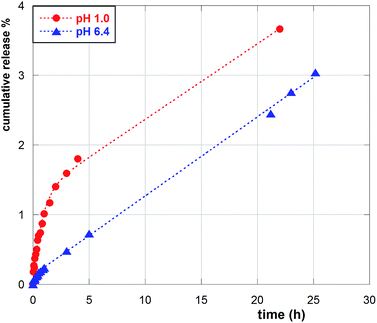

Fig. 8 Kinetics of Que release from NS1 at pH 1.0 and 6.4.

Table 3 Kinetic parameters

Composite	pH 1.0		pH 6.4
	k1 × 10^4 s^−1	k0 × 10^6 s^−1	k1 × 10^4 s^−1	k0 × 10^6 s^−1
Que/NS1	3.6 ± 0.4	30.2 ± 1.5	10 ± 4	31.5 ± 0.2
Que/NS2	1.4 ± 0.6	15.3 ± 1.8	1.5 ± 0.4	30 ± 3
Que/NS3	3.7 ± 0.6	20.8 ± 0.9	—	37.5 ± 0.6

---

The occurrence of double-term release kinetics is quite common, and may be interpreted in different ways. For instance, it might be due to fast dissolution of the guest absorbed in the more superficial region of the polymer matrix, followed by slower diffusion and release from the inner regions. This hypothesis, however, seems ruled out by the fact that the pH affects so deeply the kinetic course of the process. More likely, it may outline a release from different (but similarly accessible for the solvent) absorbing sites of the NS. As long as the first-order process is concerned, under acidic conditions, the slower release from Que/NS2 complex seems to parallel the most effective sequestering ability of NS2 found in the binding tests. Once again, this may be interpreted as a consequence of the better ability of NS2 to function as a hydrogen bond donor, consequent to the larger amount of triazole residues present in the NS matrix. On the other hand, under neutral conditions the speed of release seems directly linked to NS porosity.

The k₀ values relevant to the apparent zeroth-order process, are less easy to interpret. Indeed, these values may be the outcome of a subtle interplay between the actual guest loading, the different composition in co-monomers and the different porosity of the nanosponges. Under acidic conditions, the larger k₀ value for NS1 can be related to its larger porosity, which counterbalances the hydrogen bond abilities of the protonated triazole units. On the other hand, under neutral conditions, when triazole protonation does not occur, release becomes comparable in the three cases. Therefore, everything considered, the experimental results seem to indicate that the different opposite effects nearly compensate each other under neutral conditions.

Finally, no release of Sil from its composites was observed, probably due to the strong interaction of the molecule with the polymer matrix.

Antiproliferative activity in vitro

Triple negative breast cancers (TNBCs) are highly aggressive and cytotoxic chemotherapy resistant tumors, thus available treatments are often ineffective.^49,50

In order to verify whether the functionalized nanosized composites are good delivery systems of Que and Sil for inhibiting cell proliferation, the cytotoxic effects of the two drugs encapsulated in the NSs, compared to free Que and Sil, were tested on three cell lines of triple negative breast cancer (SUM 149, SUM 159 and MDA-MB-231) by MTS tests. Cell viability was estimated at 72 h under different concentrations of the compounds (1–100 μM range).

It was observed that cell viability decreases in a concentration and time dependent way (Fig. 9). As expected, the survival rates of the tumor cells incubated with free quercetin and silibinin at each concentration were found in the range of 96–100%, indicating that they have no effect on the viability of the tumor cell lines under the concentration conditions investigated. This is probably due to their insolubility in physiological medium.

Fig. 9 MTS test on three cell lines of triple negative breast cancer for the Que/NS3 composites.

It is interesting to notice that each nanosponge showed a cytotoxic effect on the tumoral cell lines investigated; in particular, NS2 seems to be the more active material on all cell lines. This behaviour may be due to the presence of triazole linker in the nanosponge, that it is known to possess very interesting biological activities, in particular antitumoral effect. By contrast, all cell lines showed a dose dependent cytotoxic profile when subjected to the treatment of Que/NS3. This increase in the cytotoxicity of Que/NS3 compared with free quercetin was probably due to the enhanced aqueous solubility of Que/NS3 and to the synergistic effect by the presence of quercetin and triazole. Surprisingly, the composites Que/NS1 and Que/NS2 seemed to be less active in comparison to the free nanosponges. This different behaviour, also in this case, could be due both to the pore dimensions and to the supramolecular interactions between Que with the inner structure of the NS. The Que/NS1–2 composites showed comparable or less antiproliferative activity than the free nanosponges, with greater pore dimensions than NS3, as a consequence of specific π–π interactions between quercetin and the triazole units present in the interstitial channels that masked the antiproliferative activity of the triazoles themselves. By contrast, the increase in the antiproliferative activity observed for Que/NS3 complex is due, as described above, to a synergistic effect with triazole and Que, that interacted, in this case, predominantly with βCDs and calix cavities.

Finally, no cytotoxic effects for the several cell lines in the presence of the complexes Sil/NSs were observed. In our opinion, the availability of silibinin encapsulated in the nanosponges is low, so it is not released in these conditions as highlighted from release studies.

Experimental

Materials and method

All needed reagents were used as purchased (Aldrich), without further purification. Nanosponges NS1–NS3 were prepared as previously reported.³⁴

Thermogravimetric analyses were performed on a Q5000 IR apparatus (TA Instruments) under a nitrogen flow of 25 cm³ min⁻¹ for the sample and 10 cm³ min⁻¹ for the balance. The weight of each sample was ca. 10 mg. Measurements were carried out by heating the sample after equilibration at 100 °C up to 900 °C at a rate of 10 °C min⁻¹.

FT-IR spectra (KBr) were recorded using an Agilent Technologies Cary 630 FT-IR spectrometer. Specimens for measurements were prepared by mixing 5 mg of the sample powder with 100 mg of KBr.

The ITC experiments were carried out at 25 °C in a nano-ITC200 calorimeter (MicroCal). An amount of approximately 40 mL of quercetin solution was injected into the cell (202 μL) filled with the calix solution. A mixture H₂O/MeOH (6 : 4) was used as the solvent. The heat effect was measured after each addition of 1 μL and corrected by dilution effects.

Synthesis of the model calixarene tetrakis-(25,26,27,28-((1-carboxymethyl)-1H-1,2,3-triazol-4-yl)methoxy)-(5,11,17,23-tert-butyl)-calix[4]arene sodium salt (CS)

The tetrakis-(25,26,27,28-propargyloxy)-(5,11,17,23-tert-butyl)-calix[4]arene (200 mg, 0.25 mmoles) was dissolved in 4 mL of DMSO; then CuSO₄ hydrate (40 mg, 0.16 mmoles), sodium ascorbate (62 mg, 0.31 mmoles) and ethyl azidoacetate (240 mg, 2 mmoles) were added. The mixture, placed in a dark vial, was kept under magnetic stirring at 70 °C for 18 h. The crude was then poured into water (50 mL) and centrifuged. The solid residue was dissolved in 5 mL of warm methanol, then 5 mL of aqueous 1 M NaOH were added, and the mixture was stirred overnight. The crude was concentrated in vacuo, re-suspended with 2 mL of methanol and filtered off. Yield 265 mg (82%). IR (nujol): 1625 cm⁻¹. ¹H NMR (DMSO) δ (ppm): 1.00 (s, 36H, tBu), 3.31 (s, 8H, –CH₂–COO–), 4.03 (br s, 12H, –OCH₂– overlapped with Ar-CH₂-Ar), 4.25 (br s, 4H, Ar-CH₂-Ar), 6.89 (s, 8H, Ar-H), 8.13 (s, 4H, triaz-H). ¹³C NMR δ (ppm): 31.6, 32.0, 34.2, 61.0, 78.2, 126.1, 129.1, 133.3, 143.8, 146.4, 152.8, 187.2. Elem. anal. found: C 59.41, H 5.66, N 12.96, Na 7.08 (calcd: C 59.44, H 5.61, N 13.00; Na 7.11).

General procedure for the binding tests

For the preliminary absorption/sequestration tests, stock solutions of the guests 50 μM were prepared at the proper pH value. A carefully weighed amount (4 ± 0.05 mg) of nanosponge and 2 mL of guest solution were mixed in a vial and shaked mechanically at r.t for 90 min to ensure equilibration. Then, the solution was filtered off with a common 0.45 μM Millipore filter. The amount of residual guest was evaluated spectrophotometrically by comparing the absorbances of the filtered solution with the starting stock solution.

General procedure for the nanosponges loading

A weighed amount (60 mg) of nanosponge was placed in a small beaker and wetted with 1 mL of methanol; then, 20 mL of a 0.05 M phosphate buffer at pH 4.4 were added and the suspension was placed under magnetic stirring. By means of a Chemetron-type micrometric syringe 1 mL of a 10 mM or 40 mM solution of quercetin and silibinin, respectively, were slowly introduced into the suspension (ca. 5 μL min⁻¹), in order to avoid supersaturation of the solution. After completion of the addition, the suspension was kept under stirring overnight; then the solid was centrifugated at 5000 rpm for 15 min, re-suspended in few mL of water, collected by vacuum filtration, washed with 1 mL of ice-cold methanol and dried at 50 °C under vacuum for three hours. Loading was determined as follows. ca. 2 mg of composite were carefully weighed and washed with four portions of methanol (2 mL each). The organic extracts were quantitatively transferred in a volumetric flask (20 mL) and diluted up to mark with aqueous buffer at pH 4.4; the concentration of the resulting solution was then determined spectrophotometrically.

Drug encapsulation efficiency (EE) was determined with the following equation:

Kinetic release

The release of quercetin and silibinin from the Que/NS and Sil/NS composites was performing as follows. 25 mg of the sample were placed in a dialysis membrane (Medicell International Ltd MWCO 12–14 000 with diameter of 21.5 mm), wetted with two drops of methanol and dispersed with 1 mL of the chosen extraction medium. The membrane was then put in a round bottom flask containing 20 mL of the release medium at 37 °C under magnetic stirring. Two different media (0.1 M HCl and phosphate buffer pH 6.4, respectively) were considered in order to evaluate the influence of pH on the release behavior of the drug.

At fixed times, 1 mL of the release medium was withdrawn and analyzed. To keep constant the volume of the release medium 1 mL of fresh solution (0.1 M HCl, pH 6.4 buffer) was added each time to replace the withdrawn one. After the experiment, the total amount of guest released from the composite was determined by washing repeatedly the collected residue composite with methanol, and determining spectrophotometrically the concentration of the washing solution.

Total amounts of drug released (F_t) were calculated as follows:

Cell cultures

MDA MB 231 cell lines were cultured in RPMI 1640, SUM 159 and SUM 149 cell lines were cultured in DMEM/F-12 supplemented with insulin (5 μg mL⁻¹). All media were supplemented with 10% heat-inactivated fetal calf serum, 2 mM L-glutamine, 100 units per mL penicillin and 100 μg mL⁻¹ streptomycin (all reagents were from HyClone Europe Ltd, Cramlington, UK). The cells were cultured in a humidified atmosphere at 37 °C in 5% CO₂. Cells having a narrow range of passage number were used for all experiments.

MTS assay

To test the effects of the agents, the cells were seeded at 2 × 10⁴ cells per well onto 96-well plates and then incubated overnight. At time 0, medium was replaced with fresh complete medium and thereof were added quercetin, NSs, Que/NSs and Sil/NSs in concentrations as indicated. At the end of treatment, 16 μL of a commercial solution (obtained from Promega Corporation, Madison, WI, USA) containing 3-(4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulphophenyl)-2H-tetrazolium (MTS) and phenazine-ethosulfate were added. The plates were incubated for 2 h in a humidified atmosphere at 37 °C in 5% CO₂. The bioreduction of the MTS dye was assessed by measuring the absorbance of each well at 490 nm. Cytotoxicity was expressed as a percentage of the absorbance measured in the control cells.

Conclusions

Six composites were prepared by including polyphenolic natural compounds quercetin and silibinin in three mixed cyclodextrin–calixarene nanosponges characterized by a different co-monomer composition. Loadings were studied under different pH conditions and were rationalized in terms of the porosity and the hydrogen bond donor–acceptor abilities of the materials, as well as of the intrinsic affinity of the guest molecule for the cavities of the co-monomers. For the latter purpose, binding in solution with a model calixarene was studied by means of microcalorimetry. The composites were also subjected to spectroscopic (FT-IR) and thermogravimetric investigation, which confirmed the strong interaction of the guest molecules with the polymer matrix. Finally, both release studies at different pH values and antiproliferative assays in vitro towards tumor cell lines converged in indicating the importance of the porosity of the material and in particular role assumed by the presence of the triazole linkers in affecting the possible exploitation of the composites for clinical applications.

Acknowledgements

The work was financially supported by the University of Palermo, FIRB 2012 (prot. RBFR12ETL5), PON-TECLA (PON03PE_00214_1).
