Synthesis of polygonal Co₃Sn₂ nanostructure with enhanced magnetic properties

Abstract

A one-pot solvothermal route is employed to fabricate polygonal Co₃Sn₂ nanostructures. The obtained product exhibits anisotropic structure and morphology, which endow the Co₃Sn₂ nanostructure with enhanced coercivity of 131.5 Oe, four times as high as the cubic cobalt sample (31.3 Oe).

---

In recent decades, metallic cobalt (Co) and Co-based intermetallics have received increasing attention due to their potential applications in very wide fields, especially as magnetic materials in magnetic resonance imaging, information storage and magnetic refrigeration, etc.^1,2 Many recent approaches reveal that the functional Co-based materials can be fabricated via different routes and controlled with various shapes and structures. For instance, a variety of techniques including hydrothermal process,³ aerosol-assisted⁴ and template-assisted^5,6 methods have been exploited for the assembly of Co-based materials. Various dimensionalities and morphologies such as zero-dimensional (0D) nanoparticles,⁷ 1D nanowires,^6,8 2D and 3D nanostructures^9–11 have also been widely introduced to the developing of Co-based materials and application for the magnetic material field. In addition, several studies have focused on the Co–Sn intermetallics as anode materials in lithium-ion batteries by using the inert Co matrix to resolve the problem of rapid capacity fading over extended cycling.^12–14

More and more recent investigations reveal that the shape anisotropy has a pivotal effect on the magnetic properties of metal-based materials. For example, Yao J. et al. reports that the cubic cobalt nanoskeletons exhibit enhanced coercivity in comparison with cube-like Co aggregates and cubic Co nanocages.³ Analogously, many researchers have also discovered the shape anisotropies in 1D, 2D and 3D morphologies all have pronounced influences on the magnetic properties.^15–18 Apart from the shape anisotropies, numerous literatures have shown that the magnetic properties are highly dependent on the structure characteristics. As a representative example, the FeSn₅ intermetallic form only a 1D network along the c-axis display drastically different magnetic properties compared with the 3D case of FeSn₂ phase.¹⁹ Briefly summarize that the magnetic properties of metal-based materials intensively lie on their shape anisotropies and structure characteristics.

Metallic Sn doping is considered as a promising route to change structure characteristics of the metal-based materials, and thus improve their magnetic properties in a special application.^19,20 Interestingly, during our preparation of the Co–Sn system, we find that the tin doping has not only an influence on its structure characteristics, but also an impact on its shape anisotropies. Together with the lack of magnetization data in the literature has motivated us to study the magnetic properties of the Co₃Sn₂ intermetallic and compare it with metallic Co alone. In our one-pot solvothermal route (see ESI†), the Sn-doped Co₃Sn₂ intermetallic and pure metallic Co are fabricated in a similar process but show entirely different structural and morphological characteristics. The Sn-doped Co₃Sn₂ intermetallic exhibits 3D polygonal morphology and anisotropic crystal structure, while the metallic Co without doping displays a 0D quasi-spherical morphology and a standard face-centred cubic (FCC) structure. In addition, based on the structural and morphological advantages, the magnetic measurement results reveal that the Sn-doped Co₃Sn₂ intermetallic displays the ferromagnetic behaviour with a higher coercivity compared with the Co alone. Furthermore, because of the obtained Co₃Sn₂ intermetallic with a higher Sn content and effective polygonal​ morphology also motivates us to explore its anode performances for lithium ion batteries.

One-pot solvothermal method gives the Co₃Sn₂ intermetallic nanostructure. Scanning electron microscope (SEM), transmission electron microscopy (TEM) and high-resolution transmission electron microscopy (HRTEM) provide insight into the nanostructure and morphology of the obtained product. As presented in Fig. 1a and b, the Co₃Sn₂ intermetallic exhibits identical polygonal morphology and relatively uniform size. A single Co₃Sn₂ nanostructure is shown in Fig. 1c. It can be seen that the nanostructure unit is with grain size of approximately 150 nm. The X-ray diffraction (XRD) pattern of the product is presented in Fig. 1d. All diffraction peaks of as-prepared sample agree well with the characteristic peaks of the Co₃Sn₂ alloy (JCPDS no. 27-1124), indicating the pure phase of the Co₃Sn₂ nanostructure. The HRTEM image further implies the phase structure of the Co₃Sn₂ intermetallic. As shown in Fig. 1e, the measured d-spacing of the selected portion is 0.29 nm, in good agreement with the (101) plane of Co₃Sn₂. The highly distributed structure of the Co₃Sn₂ intermetallic is proven by the uniform distribution of Co and Sn elements from energy-dispersive X-ray spectroscopy (EDS) mapping (Fig. 1f and g). It can be seen that the Co and Sn elements are uniform dispersed and coexisted over a whole polygonal Co₃Sn₂ nanostructure unit.

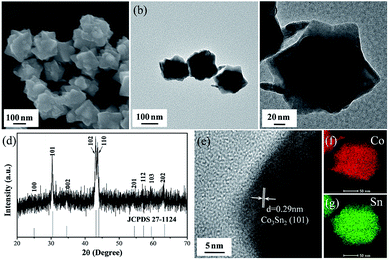

Fig. 1 (a) SEM image, (b) TEM image, (c) HRTEM image, (d) XRD pattern, (e) HRTEM image with measured d-spacing of the selected portion of the Co₃Sn₂ polygon, EDS mapping of (f) Co and (g) Sn.

The formation process of the polygonal Co₃Sn₂ nanostructure is investigated by characterizing the products acquired at different reaction times. The time-dependent morphology of the products is demonstrated in Fig. 2a–e. Before heating, the Co(OH)₂ nanoplates are obtained (Fig. 2a). When the time exceeds 1 h (Fig. 2b), a heap of congregated products are gathered. Keeping under observation the surface of the congregated products, a few polygonal nanostructures begin to form. With the time going on (Fig. 2c to e), the congregated products is continuously separated to monodispersed polygons. When the times reach to 12 h, the completely monodispersed polygons are exhibited. Corresponding to the morphology evolution, the XRD patterns of the samples obtained at different duration times are displayed in Fig. 2f. It can be seen that the solid products formed before heating are Co(OH)₂ and SnO. However, with the heating time increasing to 1 h, the peaks of Co(OH)₂ disappear thoroughly while the peaks of SnO decrease. At the meantime, the peaks of Co and Co₃Sn₂ arise with strong intensity. When the time exceeds 3 h, the peaks of Co₃Sn₂ are obviously remarkable than that of Co and SnO. With the time increasing to 8 h and even 12 h, there are nearly the peaks of Co₃Sn₂ alone.

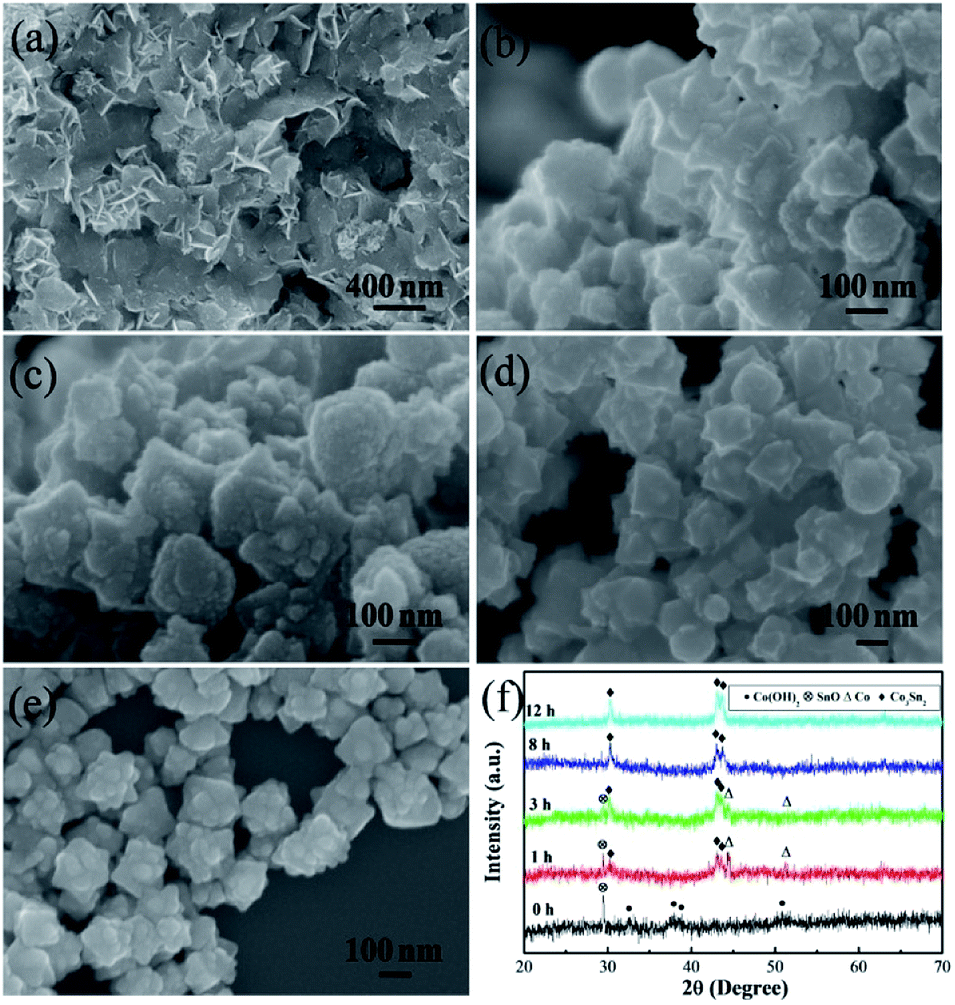

Fig. 2 (a–e) The formation process of the Co₃Sn₂ polygon with different heating times (a) 0 h, (b) 1 h, (c) 3 h, (d) 8 h and (e) 12 h; (f) the corresponding XRD patterns of the products obtain at different heating times.

The SEM images and XRD patterns imply the formation process of the Co₃Sn₂ polygon. Firstly, after mixing of the solutions, the Co(OH)₂ nanoplates and SnO are created. Then the Co nanoplates is in situ transformed derived from the Co(OH)₂ under the solvothermal condition and the reducing action of hydrazine hydrate. Subsequently, the Sn is reduced on the surface and the corners of heaped Co nanoplates by the reducing action of hydrazine hydrate and the catalytic action of formed Co as well as the PVP-assisted active agent. Under the solvothermal condition, atomic migration is occurred between reduced Sn atoms and Co matrixes to form alloyed Co₃Sn₂, meanwhile, separated to form monodispersed polygons. With the continuous reaction times, the Co₃Sn₂ polygons are fully formed with increased crystallinity and monodispersity.

Notably, the XRD patterns (Fig. 2f) present that the Co is reduced in advance of the Sn, and then acted as a catalyst to assist the reduction of Sn from SnO. In our experimental results, only the Sn dichloride in the precursor system is hard to be reduced to metallic Sn without adding of Co dichloride. Furthermore, although the designed atomic ratio of Sn : Co greater than 2 : 3, the obtained products are still Co₃Sn₂. The two results reveal that the pre-reduced Co in the synthetic process is instrumental to the formation of Sn and Co–Sn alloy. However, this helpfulness is not unlimited.

In addition, the PVP-assisted active agent is also a significant effect to the formation of Co₃Sn₂ polygon. The obtained products with different addition of PVP are shown in Fig. S1 (ESI†). Without PVP, the formation of Co₃Sn₂ polygon is accompanied by many small granules, while with PVP, these small granules disappear. This result suggests that the PVP absorbed on the surface of Co, as a surfactant, help the reduction of Sn onto the surface of pre-reduced Co. Moreover, as presented in Fig. S2 (ESI†), different reducing agents like NaH₂PO₂, propylene glycol and hydrazine hydrate all gain the Co₃Sn₂ alloys, but only the hydrazine hydrate gives the polygonal Co₃Sn₂ intermetallic. Analogously, in different solvent system like ethyl alcohol, ethylene glycol and mixed solvent of ethyl alcohol and ethylene glycol in a volume ratio of 1 : 1, only the ethylene glycol gives the polygonal Co₃Sn₂ intermetallic (Fig. S3, ESI†). Furthermore, no polygonal Co₃Sn₂ formation at 100 °C confirms that the solvothermal condition is a key factor for the formation of Co₃Sn₂ polygon. Notely, in this one-pot synthesis approach, the particle size of the Co₃Sn₂ polygon can be adjusted by changing the concentration of CoCl₂·6H₂O, as shown in Fig. S4 (ESI†).

Significantly, our experimental results present that the Sn doping has not only an influence on its structural characteristics, but also an impact on shape anisotropies of Co. As shown in Fig. 3a and b, the Co and Co₃Sn₂ prepared with similar solvothermal method exhibit extremely different structural characteristics. A standard FCC structure with lattice parameters refined as a = b = c = 3.545 Å and α = β = γ = 90° is possessed by the Co sample. It is obvious that the Co has the superduper tetragonality in structure. However, the Co₃Sn₂ has a Ni₂In type hexagonal lattice in the P6₃/mmc space group with lattice parameters of a = b = 4.109 Å, c = 5.180 Å, α = β = 90° and γ = 120°.^21–23 Distinctly, the Co₃Sn₂, in comparison with the Co, exhibits appreciable changes in tetragonality along the c lattice and the γ crystal plane angle. Such the changes in tetragonality gives the anisotropic crystalline structure in Co₃Sn₂, drastically different from the isotropous case of Co. Apart from the structural anisotropies, the shape anisotropies also occur on the Co₃Sn₂ polygons compared with the Co case, as revealed in Fig. 3c and d. The Co sample displays the quasi-spherical 0D morphology with the particle sizes ranging from 1 to 2 μm. But to Co₃Sn₂, after Sn-doping, it presents 3D polygonal morphology with reduced particle sizes of approximately 100–200 nm. Summarize that the Sn-doping endows the Co₃Sn₂ with structural and morphological anisotropies as well as reduced gain sizes. As to be shown below, such the anisotropic structure and morphology lead to improved magnetic properties of this material.

Fig. 3 XRD patterns and unit cell of (a) Co and (b) Co₃Sn₂; SEM images of (c) Co and (d) Co₃Sn₂ prepared with similar solvothermal process.

The magnetic behavior of as-synthesized samples is measured using a vibrating sample magnetometer at 300 K. As shown in Fig. 4, the saturation magnetization (M_s) of the Co₃Sn₂ polygon is 134.01 emu g⁻¹, higher than that of the Co sample with M_s of 74.57 emu g⁻¹. In the low-field region, a hysteresis loop exists in both the Co₃Sn₂ and Co products, indicating a ferromagnetic component. As shown in the lower-right inset of Fig. 4, the coercivity (H_C) of the Co₃Sn₂ sample is determined as 131.5 Oe (1 Oe = 10³/(4π) A m⁻¹), which is a great enhancement from the Co microsphere (H_C = 31.3 Oe). Furthermore, the H_C becoming as large as 131.5 Oe, it is also higher than that of other Co-, Sn-based and isostructural Ni₂In-typed materials, as listed in the Table 1. By comparing the Co case, the enhancement of coercivity of Co₃Sn₂ sample is owing to the following factors. Firstly, the structural anisotropy from cubic FCC to hexagonal Ni₂In type could be considered an essential factor; analogously, W. Han et al. find that the anisotropic FeSn₅ with quasi-one dimensional crystal structure leads to different magnetic properties in comparison with the 3D case of FeSn₂.¹⁹ Secondly, the increase in shape anisotropy from 0D quasi-spherical aggregates to 3D polygons may contribute to the enhanced coercivity, which is in agreement with the previous reported literature.^15,17,18 Besides, the high coercivity can also be attributed to the reduced gain size of as-prepared samples from micrometer to nanometer.

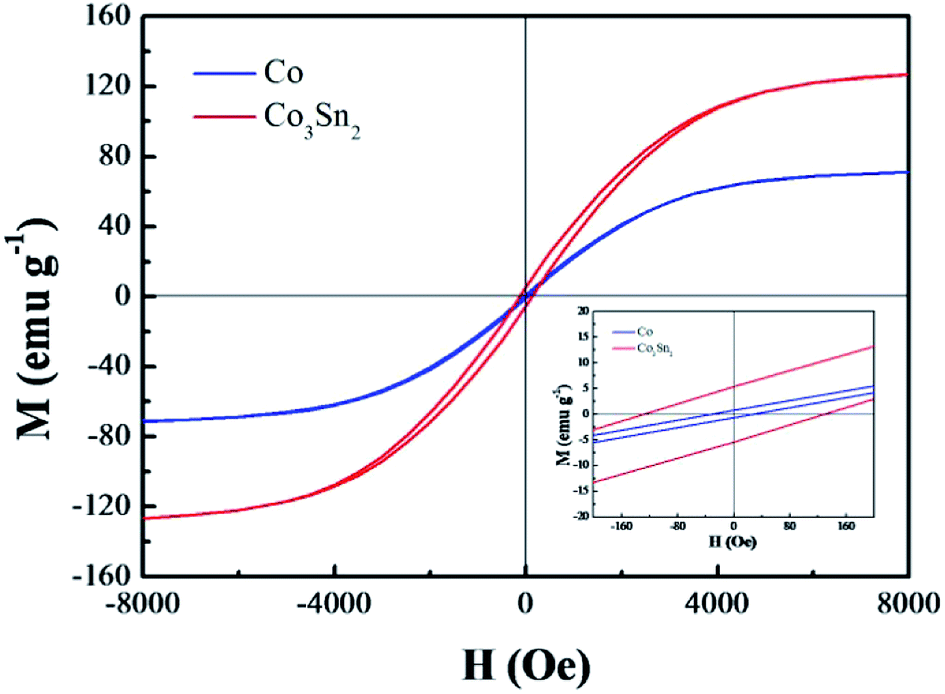

Fig. 4 Magnetic hysteresis loop of the Co microsphere and Co₃Sn₂ polygon measured at 300 K; the inset shows the low field part of the hysteresis loop.

Table 1 Comparison of the magnetic performances of the as-prepared Co₃Sn₂ polygon with previously reported materials measured at 300 K

Type	Materials	Coercivity (Oe)	Reference
Co-based	Bulk Co	10	24
	Co nanoparallelepipeds	120	25
	Hollow cobalt mesospheres	66	26
	Handkerchief-like Co48Ni52	31.18	9
	Hierarchical CoNi spheres	52.71	27
	Flower-like Ni48Co52 spheres	84.27	27
Sn-based	FeSn2 nanospheres	∼0	19
	Fe2CoSn Heusler alloy	48	28
Ni2In-type	Mn1.05Ni0.85−xCoxGe (x < 0.85)	<100	29
	MnCo1−xGe (x = 0.1 or 0.2)	<4	30
	Co3Sn2 polygon	131.5	This work

---

We also study the cell performance of the Co₃Sn₂ polygon as an anode material for lithium ion batteries. The electrochemical cycle performances of the Co₃Sn₂ polygon are shown in Fig. S5 (ESI†). Because of the low Sn concentration, a lower specific discharge capacity of Co₃Sn₂ polygon has been achieved. The first discharge and charge capacity are 758 and 360 mA h g⁻¹, with high irreversible capacity loss in the first cycle which may be attributed to the formation of solid electrolyte interphase (SEI) film on increased surface of prepared sample. The high Co concentration endows the excellent cycling stability and rate capacities of the Co₃Sn₂ polygon. A reversible discharge capacity of 240 mA h g⁻¹ is retained with high coulombic efficiency even after 200 cycles, which is higher than that of the Co sample without electrochemical lithium activity. Furthermore, even at the high current density of 1600 mA g⁻¹, average discharge capacities of 168 mA h g⁻¹ can still be delivered. Although the specific capacity of this material is low, it is also encouraging in consideration of its excellent cycling stability and rate capacities.

In summary, monodispersed polygonal Co₃Sn₂ intermetallic and Co microsphere have been successfully synthesized via a facile one-pot solvothermal route free of any template. Compared with the pure Co sample, the Co₃Sn₂ intermetallic exhibits structure anisotropy from cubic FCC to hexagonal Ni₂In type and shape anisotropy from 0D quasi-spherical aggregates to 3D polygons. In addition, the multidimensional and anisotropic morphology and structure endow the Co₃Sn₂ intermetallic with enhanced magnetic properties in comparison with cubic cobalt alone. Moreover, the high Co concentration also reinvest the Co₃Sn₂ intermetallic with low specific capacity but good cycling life and rate capability when used as an anode material in lithium ion batteries.
