Morphology-controlled synthesis of SrTiO₃/TiO₂ heterostructures and their photocatalytic performance for water splitting

Abstract

Different morphologies of SrTiO₃/TiO₂ heterostructures like nanocubes, nanoparticles, nanospheres, and nanofibers were synthesized via a facile hydrothermal process using TiO₂ as both a template and precursor in Sr(OH)₂ solution. Their structure, interface and composition can be rationally tailored by simply adjusting the Sr(OH)₂/TiO₂ (Sr/Ti) mole ratios and the morphology of SrTiO₃/TiO₂ heterostructures can be controlled easily using TiO₂ with different morphologies. A SrTiO₃ crystal thin layer was grown on an anatase TiO₂ substrate to fabricate a heterostructure interface contact between SrTiO₃ and TiO₂ and the lattice mismatch had an effect on the electrical transport properties. The SrTiO₃/TiO₂ heterostructures are beneficial for the fast separation of photogenerated electrons and holes so as to suppress the recombination of photogenerated electrons and holes at the interface of SrTiO₃ and TiO₂. Besides this, the different morphologies of the SrTiO₃/TiO₂ heterostructures allowing facile electron transfer, the hierarchical structure promoting mass transfer and allowing more light reflection and absorption, and the large specific surface area providing more reaction sites to facilitate the reactants to the desired oxidation places all together create a synergistic effect to improve the photocatalytic activity of the hierarchical SrTiO₃/TiO₂ heterostructures. Under the irradiation of UV light, in a water/methanol sacrificial reagent system, the SrTiO₃/TiO₂ NP heterostructures at a Sr/Ti mole ratio of 40% with the highest BET and smallest crystallite size achieve the highest photocatalytic activity generating 0.731 mmol of H₂. The SrTiO₃/TiO₂ heterostructures exhibit better photocatalytic activity by generating three times more H₂ than bare TiO₂ and pure SrTiO₃.

---

Introduction

Nowadays, fossil fuels are still the main energy resource for our society. However, the shortage of fossil fuels and the growing environmental concerns due to the emission of large amounts of CO₂ during the combustion of fossil fuels have become global problems. How to provide clean, affordable, and reliable energy without causing climate change is a common concern in the world.¹ Hydrogen (H₂) energy has proved to be a promising clean energy source owing to its intrinsic properties, such as being pollutant-free and having a high energy density, and thus has attracted a huge amount of research efforts all over the world.² Photocatalytic water splitting with catalyst particles suspended in water has been intensively studied because the process presents a clean and renewable source for hydrogen energy.³ TiO₂ was the first material used for an electrochemical water splitting reaction by Fujishima and Honda in 1972 under ultra-violet radiation.⁴ However, the high recombination of the photo-generated charge carriers leads to the low photocatalytic activity of TiO₂-based nanomaterials. In order to overcome this drawback, forming a heterojunction structure by combining TiO₂ with another semiconductor is considered to be one of the efficient ways to suppress the recombination of photo-excited electron–hole pairs and to enhance the photocatalytic efficiency.^5,6 Particularly, the fabrication of TiO₂-based heterostructures such as TiO₂/Ag,⁷ CdS/TiO₂,⁸ TiO₂/CeO₂,⁹ Nb₂O₅/TiO₂,¹⁰ CdSe/TiO₂,¹¹ TiO₂/SnO₂,¹² and TiO₂/Bi₂WO₆,¹³ has received increasing attention recently due to their promotion of the separation of photogenerated electron–hole pairs and thus their enhancement of the photocatalytic activity of pure TiO₂.

Besides, SrTiO₃ is a well-known cubic-perovskite-type photocatalyst with a band gap of 3.2 eV and possesses superior chemical stability.^14,15 Coupling SrTiO₃ to TiO₂ can be expected to introduce a strong interface electric field by band-edge offset,^16–21 which will effectively accelerate the separation of photo-generated carriers and improve the photocatalytic performance of TiO₂. SrTiO₃ has been synthesized through a variety of methods, including sol–gel methods,²² hydrothermal synthesis,^23,24 conventional solid-state reactions,²⁵ inverse micelle micro-emulsion methods,²⁶ molten salt synthesis,²⁷ and nonaqueous routes.²⁸ Recently, compounds with perovskite-type structures have emerged from hydrothermal reactions as an important conformation. Therefore, it would be highly desirable to develop a general approach to fabricate SrTiO₃/TiO₂ heterostructures with controllable morphology and size. Furthermore, the activity of heterogeneous catalysts is essentially influenced by the crystal phase, size, surface area, crystallinity, and especially the exposed crystal facets.^29–32 Their morphology and outer surface also affect their photocatalytic activity.³³ In this regard, the precise control of the size and shape of SrTiO₃ is critically important for evaluating the shape-dependent photo-reactivity and developing a high-performance photocatalyst. However, in spite of the previous extensive efforts, such a precise control of their size and shape has been fragmented and limited. The studies on the effect of the SrTiO₃/TiO₂ heterostructure interface thickness and different morphologies for hydrogen generation have not been reported.

Herein, we would like to report the synthesis of different interface thicknesses of SrTiO₃/TiO₂ nanoparticles by adjusting the Sr/Ti mole ratios, and morphology-controlled SrTiO₃/TiO₂ nanocube (NC), nanoparticle (NP), nanosphere (NS), and nanofiber (NF) heterostructures, via a facile hydrothermal process using the different morphologies of TiO₂ as both templates and precursors in Sr(OH)₂ solution. The synthesis process is facile, low cost, and environmentally-friendly. In addition, the effects of the interface thickness and different morphologies on the photocatalytic activity of SrTiO₃/TiO₂ heterostructures for hydrogen production from water have been investigated. Under the irradiation of ultra-violet (UV) light, in a water/methanol sacrificial reagent system, the SrTiO₃/TiO₂ heterostructures exhibit much better efficiency on hydrogen production compared with the bare TiO₂ and pure SrTiO₃.

In a typical experiment, a series of SrTiO₃/TiO₂ NP heterostructures with different mole ratios, Sr/Ti = 0, 20, 40, 60, 80, and 100%, and different morphology-controlled SrTiO₃/TiO₂ NC, NP, NS, and NF heterostructures with mole ratios of Sr/Ti = 40%, were prepared by a hydrothermal method at 160 °C for 12 h. The well-prepared SrTiO₃/TiO₂ heterostructures were investigated for photocatalytic H₂ generation in a methanol/water sacrificial reagent system under the irradiation of UV light. Finally, the H₂ gas generated from the photocatalytic reaction was analyzed using TCD-type gas chromatography (GC-7900 with a 5A molecular sieve column) (ESI S1†).

Results and discussion

XRD patterns

XRD analysis was conducted to reveal the crystal structures of SrTiO₃/TiO₂ heterostructures. Fig. 1a shows the XRD patterns of SrTiO₃/TiO₂ NP samples prepared by a hydrothermal process with different mole ratios of Sr/Ti = 0, 20, 40, 60, 80, and 100%. From the XRD measurements, it can be seen that the XRD data of the SrTiO₃/TiO₂ NPs match exactly with the standard TiO₂ anatase (space group I41/amd, Ref. code 01-089-4921) and cubic perovskite SrTiO₃ (space group Pm3m, Ref. code 01-074-1296). The XRD pattern of bare TiO₂ NPs (Sr/Ti = 0%) in Fig. 1a shows diffraction peaks at 2θ = 25.39°, 37.99°, 48.09°, 53.95°, 55.11°, and 62.77°, which could be perfectly indexed to the (1 0 1), (0 0 4), (2 0 0), (1 0 5), (2 1 1), and (2 0 4) crystal faces of anatase TiO₂, respectively. After being hydrothermally treated in Sr(OH)₂ solution with Sr/Ti = 20, 40, 60, 80 and 100% at 160° for 12 h, additional diffraction peaks with 2θ = 22.68°, 32.34°, 39.88°, 46.43°, 57.74°, and 77.12° appeared, corresponding to (1 0 0), (1 1 0), (1 1 1), (2 0 0), (2 1 1), (2 2 0), and (3 1 0) crystal planes of cubic perovskite SrTiO₃, respectively. It was indicated that part of TiO₂ successfully converted into SrTiO₃.³⁴ Besides, when the mole ratio of Sr/Ti increases, the diffraction peaks of anatase decline and the diffraction peaks of SrTiO₃ appear gradually and become stronger. With the mole ratio of Sr/Ti = 100%, the diffraction peaks of anatase completely disappeared and only pure SrTiO₃ diffraction peaks were present. A SrTiO₃ crystal thin layer was grown on an anatase TiO₂ substrate to fabricate the heterostructure interface contact between SrTiO₃ and TiO₂. This result solidly confirmed that the SrTiO₃/TiO₂ heterostructures have formed through the hydrothermal process. Moreover, when the mole ratio of Sr/Ti increased, the SrTiO₃ layer was thicker, affecting the electrical transport properties. Through adjusting the Sr/Ti mole ratios and morphology, we can easily control the SrTiO₃/TiO₂ interface and SrTiO₃ nano-layer.

Fig. 1 (a) XRD patterns of SrTiO₃/TiO₂ heterostructures prepared with different Sr/Ti mole ratios, (b) XRD patterns of the different morphologies of the SrTiO₃/TiO₂ heterostructures.

Fig. 1b shows the XRD patterns of the hydrothermally synthesized different morphologies of the SrTiO₃/TiO₂ NC, NP, NS, and NF heterostructures with mole ratios of Sr/Ti = 40%. It was evident that all of the patterns showed good crystallinity with the diffraction peaks fitting well with the peak positions of standard TiO₂ anatase and standard cubic perovskite SrTiO₃ structures. From the XRD analysis in Table 1, it can be seen that the smallest crystallite size of the SrTiO₃/TiO₂ NP heterostructures was 45.04 nm. The results could correspond to the highest photocatalytic performance below and according to previous research^35,36 this may be because small crystallites have a larger external surface, which offers a higher number of active sites and enhances the reaction occurring above the active sites compared with large crystallites.

Table 1 BET surface area and crystallite size of SrTiO₃/TiO₂

Catalyst SrTiO3/TiO2 heterostructures	2-Theta (degree)	d1 1 0 (nm)	Crystallite size (nm)	BET surface area (m^2 g^−1)	Total pore volume (cm^3 g^−1)
	Rietveld structure refinement for SrTiO3
NC	32.397	0.276	71.652	11.783	0.040
NP	32.335	0.277	45.041	23.195	0.079
NS	32.334	0.277	93.489	15.947	0.082
NF	32.342	0.277	50.811	17.560	0.060

---

The specific surface area, pore structures, and size distributions of the SrTiO₃/TiO₂ NC, NP, NS, and NF heterostructure samples were characterized by nitrogen adsorption–desorption isotherms at 77 K (Fig. 2 and Table 2 S1†). It is seen that the SrTiO₃/TiO₂ heterostructure samples showed a mesoporous structure for all of the different morphologies. The nitrogen adsorption–desorption isotherms can be classified as type III isotherms, typical of mesoporous materials. According to IUPAC classification, the hysteresis loop is type H3. This type of hysteresis is usually found for solids consisting of aggregates or agglomerates of particles forming slit shaped pores, with a non-uniform size and/or shape. The BET specific surface area of the SrTiO₃/TiO₂ NP heterostructures is the highest at 23.195 m² g⁻¹, and characteristic of mesoporous materials, with an average Barrett–Joyner–Halenda (BJH) pore diameter of 13.63 nm and a total pore volume of 0.079 cm³ g⁻¹. The high BET surface area and large total pore volume strongly support the fact that the SrTiO₃/TiO₂ NPs have a mesoporous structure. The enlarged specific surface area would create more reaction sites to facilitate the access of reactants. Considering the abovementioned advantages, it is reasonable to believe that the hierarchical SrTiO₃/TiO₂ NP heterostructures would be favorable for the improvement of the photocatalytic activity more than SrTiO₃/TiO₂ NC, NS, and NF heterostructures.

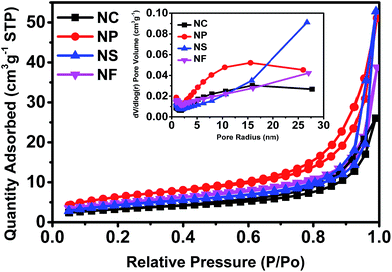

Fig. 2 Nitrogen adsorption–desorption isotherm plot and pore size distribution of SrTiO₃/TiO₂ NC, NP, NS, and NF structures.

SEM images

The morphologies of SrTiO₃/TiO₂ NC, NP, NS and NF heterostructures were observed using SEM. Fig. 3 shows the SEM images of the TiO₂ precursors (left side) and SrTiO₃/TiO₂ samples (right side) that were obtained at different morphologies. The bare anatase TiO₂ NC, NP, and NS structures are highly ordered with sizes of about 650, 295, and 390 nm, respectively. Anatase TiO₂ NF structure appears to be a long tube structure with a length of about five micrometres and a diameter of less than 310 nm. From the SEM images, it can be clearly seen that the SrTiO₃/TiO₂ samples (right side) keep the same morphology compared with the corresponding precursors (left side), and the final samples became thicker and rougher. This indicated that in the hydrothermal reaction process, using TiO₂ precursor as a template, the SrTiO₃ nanoparticle layer could gradually grow on the TiO₂ precursor surface and these samples have homogeneous morphologies.

Fig. 3 SEM images of (a) TiO₂ NC, (b) SrTiO₃/TiO₂ NC, (c) TiO₂ NP, (d) SrTiO₃/TiO₂ NP, (e) TiO₂ NS, (f) SrTiO₃/TiO₂ NS, (g) TiO₂ NF, and (h) SrTiO₃/TiO₂ NF structures.

From our experimental results, we proposed that the formation of the SrTiO₃/TiO₂ heterostructures might be governed by a dissolution and precipitation mechanism, followed by the Ostwald ripening process. The evolution process is illustrated in Fig. 4. During the first stage, tiny SrTiO₃ nanoparticles were produced when the TiO₂ nanostructures were immersed in Sr(OH)₂ solution. The formation of SrTiO₃ nanoparticles by the TiO₂ precursor in alkaline solution is proposed to be due to a dissolution and precipitation mechanism that involves the dissolution of titanium oxide followed by the nucleation of the perovskite SrTiO₃ crystal.^37–39 The Ti–O bonds on the TiO₂ precursor must be broken via a hydrolytic attack to form soluble [Ti(OH)₆]²⁻ and then the as-formed [Ti(OH)₆]²⁻ reacted with Sr²⁺ to form SrTiO₃ that nucleated onto the surface of the TiO₂ nanostructures. As the reaction proceeded, the in situ generated SrTiO₃ nanoparticles accumulated on the surface of the TiO₂ nanostructures to form a SrTiO₃ nanoparticle layer. Meanwhile, the larger nanocubes grew at the cost of the small particles, and the reduction in surface energy is the primary driving force for the crystal growth and morphology evolution, which is due to the difference in solubility between the larger particles and small particles, according to the well-known solid-solution-solid process named the Ostwald ripening process. Finally, as the reaction continued further, the nanoparticles vanished due to diffusion into the growing nanocubes, and larger nanocubes were finally formed on the surface of the TiO₂ nanoprecursors.

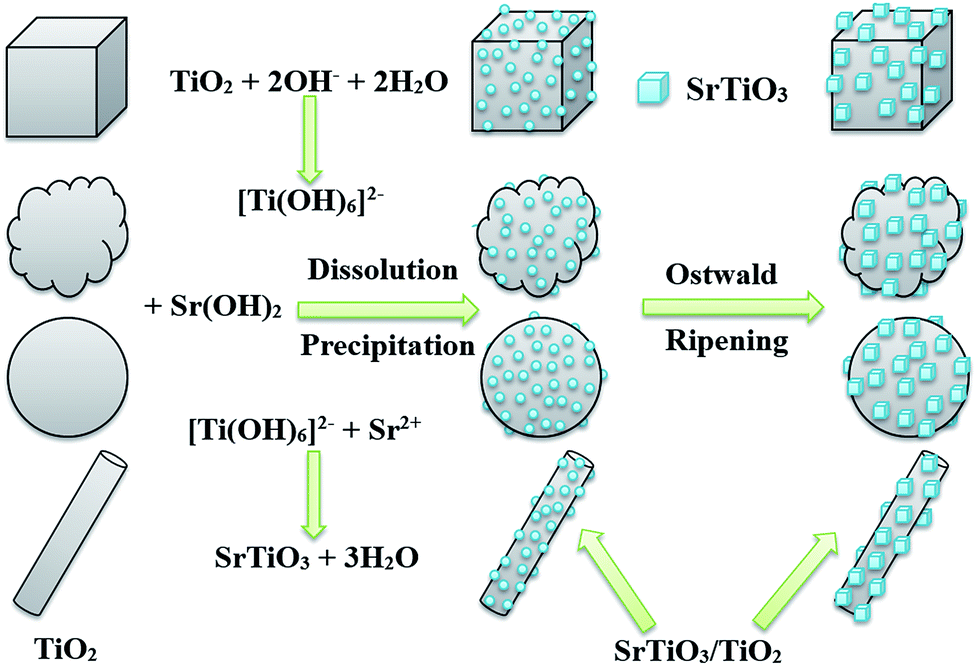

Fig. 4 Schematic illustration of the formation process of SrTiO₃/TiO₂ heterostructures from TiO₂ precursors via a hydrothermal reaction with Sr(OH)₂.

The formation process of the SrTiO₃/TiO₂ heterostructures from TiO₂ precursors via a hydrothermal reaction with Sr(OH)₂ is described in eqn (1)–(3).

TiO₂ + 2OH⁻ + 2H₂O → [Ti(OH)₆]²⁻ (1)

Sr²⁺ + [Ti(OH)₆]²⁻ → SrTiO₃ + 3H₂O (2)

TiO₂ + Sr(OH)₂ → SrTiO₃ + H₂O (3)

TEM images

The TEM images of the SrTiO₃/TiO₂ heterostructures are shown in Fig. 5. It can be observed from Fig. 5a, d, g and k that the small SrTiO₃ nanoparticles with an average size of 20–50 nm were well-distributed on the surface of the TiO₂ NC, NP, NS, and NF structures. In combination with the XRD, SEM and the EDS analysis below, it can be inferred that the SrTiO₃ nanoparticles were well crystallized on the surface of the bare TiO₂.

Fig. 5 TEM images and EDS map images of (a–c) SrTiO₃/TiO₂ NC, (d–f) SrTiO₃/TiO₂ NP, (g–i) SrTiO₃/TiO₂ NS, and (j–l) SrTiO₃/TiO₂ NF structures.

Moreover, it can be seen in Fig. 5b, e, h and k that there is a clear interface between SrTiO₃ and TiO₂, which may correspond to the heterostructures of the SrTiO₃/TiO₂ NCs, NPs, NSs, and NFs. The TEM images in Fig. 5b, e, h and k also show two kinds of clear lattice fringes. The spacing of one of the fringes was 0.35 nm, corresponding to the (1 0 1) plane of the anatase crystal structure of TiO₂. The other kind of fringe spacing was 0.27 nm, corresponding to the (1 1 0) lattice spacing of the cubic phase of SrTiO₃.

A Bruker-AXS 133 eV XFlash 4010 Detector attached to the SEM was used to measure the element composition and distribution of the SrTiO₃/TiO₂ heterostructures. From the EDS spectrum and the element mapping images of O (red), Ti (green) and Sr (blue) in Fig. 5c, f, i and l, it can be clearly seen that O, Sr, and Ti dominate the composition of the SrTiO₃/TiO₂ heterostructures. Those mapping images are solid proofs that O, Sr and Ti are uniformly distributed in the SrTiO₃/TiO₂ heterostructures. This further consolidates that SrTiO₃ and TiO₂ are in close contact to each other, which is in favor of the separation of photogenerated electrons and holes to promote the photocatalytic activity improvement.⁴⁰

UV-vis analysis

The optical properties of the different morphologies of the SrTiO₃/TiO₂ heterostructure samples were investigated using UV-vis diffuse absorption spectra. Fig. 6a shows the diffuse absorption spectra of the SrTiO₃/TiO₂ NC, NP, NS, and NF heterostructures. The band gap energy (E_g) of the SrTiO₃/TiO₂ heterostructure samples was calculated from the absorption data using the Tauc relation. The average band gap was estimated from the intercept of the linear portion of the (εhν)^1/2 vs. hν plots on the hν axis as shown in Fig. 6b. The band gap of the SrTiO₃/TiO₂ heterostructures with a mole ratio of Sr/Ti = 40% is estimated to be 3.09, 3.12, 3.04, and 3.10 eV for NC, NP, NS, and NF heterostructure samples, respectively. Fig. 6b also shows that the band gap of pure anatase TiO₂ NPs is 2.95 eV and 3.18 eV for pure SrTiO₃ NPs. The band gap of the different morphologies of the SrTiO₃/TiO₂ heterostructure samples is larger than the band gap of pure anatase TiO₂ and smaller than pure SrTiO₃. Their photocatalytic properties might exist under the UV light irradiation. The SrTiO₃/TiO₂ heterostructures were considered an indirect band gap semiconductor.^41,42 Interestingly, the SrTiO₃ crystal thin layer was grown on an anatase TiO₂ substrate to fabricate the heterostructure interface, which changed the lattice mismatch. The Sr-doping into the lattice of TiO₂ and the formation of Sr-doped SrTiO₃/TiO₂ heterostructures or self-doped SrTiO₃ may favor creating an impurity energy level, modifying the optical response properties and narrowing the band gap for a wide light absorption.^43,44

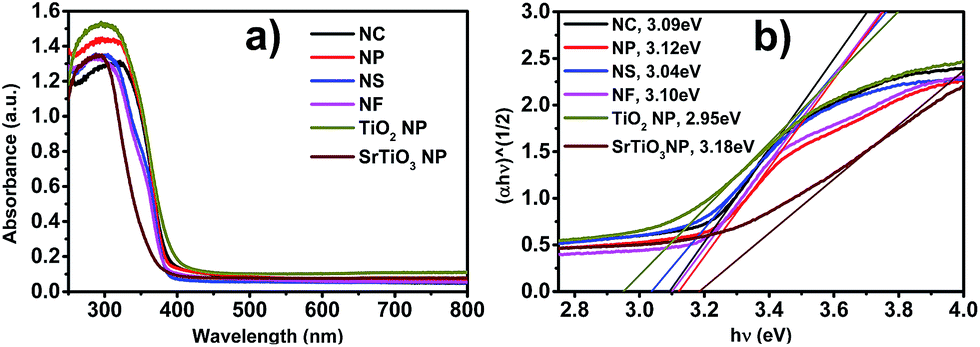

Fig. 6 UV-vis spectra (a) and (b) Tauc plots for the determination of optical band gap for SrTiO₃/TiO₂ NC, NP, NS and NF heterostructures.

Photocatalytic performance

The H₂ generation activities of the SrTiO₃/TiO₂ heterostructures were evaluated under the irradiation of UV light in a water/methanol sacrificial reagent system. Fig. 7a displays the H₂ evolution curves of SrTiO₃/TiO₂ NP heterostructure samples synthesized with different Sr/Ti = 0, 20, 40, 60, 80, and 100% mole ratios under the same conditions. The observed H₂ generation activities of the SrTiO₃/TiO₂ NP heterostructures were in the order of the mole ratios (40% > 60% > 80% > 100% > 0%). Obviously, the SrTiO₃/TiO₂ NP heterostructures exhibit better photocatalytic H₂ generation activity than pure SrTiO₃ with Sr/Ti = 100% and pure TiO₂ with Sr/Ti = 0%. During the same reaction period, the SrTiO₃/TiO₂ NP heterostructures with mole ratios of Sr/Ti = 40% showed the highest photocatalytic activity. Three times more H₂ was generated than with pure TiO₂. The SrTiO₃/TiO₂ NP heterostructures with Sr/Ti = 100% (pure SrTiO₃) produced a larger amount of hydrogen from water than SrTiO₃/TiO₂ NP heterostructures with Sr/Ti = 0% (pure TiO₂). The result may suggest that both the pure SrTiO₃ and TiO₂ have similar band gaps. The valence band level is also identical in both materials. Since the valence band levels are the same, the water oxidation efficiency will be the same. The only major difference is that the conduction band level of SrTiO₃ is slightly more negative than that of TiO₂. It means that the thermodynamic driving force for the transfer of photoexcited electrons will be slightly higher in SrTiO₃. So, hydrogen production by water reduction may be more efficient on SrTiO₃ compared to TiO₂. What is more, the synthesized SrTiO₃/TiO₂ heterostructure NPs with different Sr/Ti mole ratios changed the interface thickness, facilitated electron transfer, and affected the photocatalytic activity, and the structural defects in the particles of the heterostructures are believed to play an essential role in the photocatalytic reaction.

Fig. 7 (a) H₂ evolution of the SrTiO₃/TiO₂ NP heterostructures at different Sr/Ti mole ratios and (b) H₂ evolution of the SrTiO₃/TiO₂ NC, NP, NS and NF heterostructures under the irradiation of UV light in a water/methanol sacrificial reagent system.

Fig. 7b shows the photocatalytic H₂ generation of the different morphologies of the SrTiO₃/TiO₂ NC, NP, NS, and NF heterostructures prepared with mole ratios of Sr/Ti = 40% under the same reaction conditions. The different morphologies of the SrTiO₃/TiO₂ heterostructures influence the amount of H₂ evolution. On the other hand, the different morphologies also give a different crystallite size, surface area, bandgap, and interface promotion effect on the catalytic activity in the following sequence of the SrTiO₃/TiO₂ heterostructures, NP > NF > NC > NF, as we already observed. The SrTiO₃/TiO₂ NP heterostructures show the highest amount of H₂ generation, 0.731 mmol, under UV irradiation for 8 h, more details in Table 3 (ESI S1†). Moreover, the band gap energy is also correlated to the photocatalytic activity.⁴⁵ The lower band gap has a positive effect on the photocatalytic activity because a lower source energy is needed for inducing a photocatalytic reaction. It means that less energy is needed to activate the nanoparticles to generate excited electron/hole pairs and then induce photocatalytic reactions. In this study, the band gap values of the SrTiO₃/TiO₂ NC, NP, NS, and NF heterostructures are smaller than reported for pure SrTiO₃ nanoparticles of 3.2 eV.¹⁵ In addition, the BET specific surface area of the SrTiO₃/TiO₂ NP heterostructures is 23.195 m² g⁻¹, which is the largest and its crystallite size is the smallest at 45.04 nm. It was known that the size of the nanoparticles had significant effects on the photocatalytic properties due to the variation of surface area, the number of active sites, and so on.⁴⁶ The smaller particle size of the nanoparticles would induce a larger surface area (more active sites) to enhance the photocatalytic activity. The results indicate that the SrTiO₃/TiO₂ heterostructures with a larger surface area, small crystallite size and band gap energy that changed to smaller values than pure SrTiO₃ can efficiently improve the water splitting photocatalytic performance.

Mechanism of photocatalytic water splitting

A schematic diagram of the energy-level configuration and the photogenerated charge-transfer process in the SrTiO₃/TiO₂ heterostructures is illustrated in Fig. 8 according to previous reports.^43,47,48 The SrTiO₃/TiO₂ heterostructures with different morphologies and hierarchical structure all play positive roles in the separation process of the photogenerated electrons and holes. The enhanced photocatalytic performance of the SrTiO₃/TiO₂ heterostructures can be attributed to the presence of nano–nano heterojunctions,³⁴ which may accelerate the separation of photogenerated electron–hole pairs in the SrTiO₃/TiO₂ heterostructures. Under the irradiation of UV light, electrons (e⁻) in the conduction band of SrTiO₃ were excited and fast transferred to that of TiO₂ in the SrTiO₃/TiO₂ heterostructures. The electrons were scavenged by protons (h⁺), forming H₂. Meanwhile, the remaining holes in the valence band of TiO₂ were transferred to that of SrTiO₃. Because of the higher conduction bond minimum (CBM) and valence bond maximum (VBM) of SrTiO₃ than those of TiO₂, under the excitation of ultraviolet light, the photogenerated electrons on the CBM of SrTiO₃ can be readily injected into the CBM of TiO₂, while the photogenerated holes on the VBM of TiO₂ can directly transfer to the VBM of SrTiO₃. The efficient charge separation can increase the lifetime of the charge carriers and improve the efficiency of the interfacial charge transferred to the adsorbed substrates, resulting in a higher activity of the SrTiO₃/TiO₂ heterostructure photocatalyst. In addition, the hydrothermal growth of SrTiO₃ in situ by employing TiO₂ as one of the precursor materials guarantees the close contact of SrTiO₃ nanoparticles with TiO₂, which can effectively facilitate the charge transport process.⁴⁷ In this water/methanol sacrificial reagent system, methanol acts as a scavenger to scavenge the holes and was finally mineralized.⁴⁸ In such a way, the presence of a heterostructure interface meant that the recombination of photogenerated electrons and holes was suppressed effectively, and the photocatalytic activity was greatly enhanced. Furthermore, the hierarchical structure promoting mass transfer and allowing more light reflection and absorption, along with the large specific surface area and small crystallite size providing more reaction sites to facilitate the reactants to the desired oxidation places, all together create a synergistic effect to improve the photocatalytic activity of the hierarchical SrTiO₃/TiO₂ heterostructures.

Fig. 8 Schematic of the photoexcited electron transfer and H₂ evolution on the SrTiO₃/TiO₂ NP photocatalyst under UV irradiation (H⁺ scavenged by CH₃OH as a sacrificial reagent).

Conclusions

In this study, we successfully prepared SrTiO₃/TiO₂ NC, NP, NS, and NF heterostructures via a facile hydrothermal process using TiO₂ both as templates and initial reactants under 160 °C for 12 h in Sr(OH)₂ solution. Their structure, interface, phase components and surface area can be rationally tailored by simply adjusting the molar ratio of the Sr and Ti precursors, and the morphology of the SrTiO₃/TiO₂ heterostructures was controlled using TiO₂ with different morphologies. The chemical composition of the components and nanostructures of the SrTiO₃/TiO₂ heterostructures were investigated using XRD, SEM, TEM, EDS, BET and UV-vis characterization techniques. Compared with pure TiO₂ and SrTiO₃, the SrTiO₃/TiO₂ heterostructures exhibit better photocatalytic activity in water splitting, generating three times the amount of H₂. The particle size, interface and morphology of the SrTiO₃ nanostructures were found to dominate the photocatalytic activity of the SrTiO₃/TiO₂ heterostructures through regulating the adhesion and aggregation of TiO₂ as well as the number of active reaction sites. Under the irradiation of UV light, in a water/methanol sacrificial reagent system, the SrTiO₃/TiO₂ NP heterostructures at a Sr/Ti mole ratio of 40% with the highest BET and smallest crystallite size achieved the highest photocatalytic activity, generating 0.731 mmol of H₂ in 8 h. The research reported here proposes a novel method to fabricate SrTiO₃/TiO₂ heterostructures on limited two-dimensional NCs, NPs, NSs, and NFs in situ, which is beneficial for understanding the growth of SrTiO₃ from TiO₂ in the initial period, to fabricate a heterostructure interface contact between SrTiO₃ and TiO₂ causing lattice mismatch which has an effect on the electrical transport properties. These results may further promote the applications of SrTiO₃/TiO₂ heterostructures in catalysis, environment cleanup, solar cells, sensors, and photonic and optoelectronic devices.

Acknowledgements

We gratefully acknowledge financial support by the program for young scientists (YangFan Program, 14YF1410800) at the Science and Technology Commission of Shanghai Municipality, young teachers training scheme of the Shanghai Municipal Education Commission (ZZyy15085, ZZyy15086), the program of introducing talents of the Shanghai Institute of Technology (YJ2014-42) and the special fund to support the development of local colleges of the Ministry of Finance of China.

Notes and references

1. S. Chu and A. Majumdar, Nature, 2012, 488, 294–303.
2. M. Ashokkumar, Int. J. Hydrogen Energy, 1998, 23, 427–438.
3. Z. Zou, J. Ye and H. Arakawa, Chem. Phys. Lett., 2000, 332, 271.
4. A. Fujishima and K. Honda, Nature, 1972, 238, 37–38.
5. Y. B. Chen, L. Z. Wang, G. Q. Lu, X. D. Yao and L. J. Guo, J. Mater. Chem., 2011, 21, 5134–5141.
6. Y. B. Chen and L. J. Guo, J. Mater. Chem., 2012, 22, 7507–7514.
7. Z. Shan, J. Wu, F. Xu, F. Huang and H. Ding, J. Phys. Chem. C, 2008, 112, 15423.
8. X. F. Gao, W. T. Sun, Z. D. Hu, G. Ai, Y. L. Zhang, S. Feng, F. Li and L. M. Peng, J. Phys. Chem. C, 2009, 113, 20481.
9. T. Cao, Y. Li, C. Wang, L. Wei, C. Shao and Y. Liu, Mater. Res. Bull., 2010, 45, 1406.
10. H. Cui, K. Dwight, S. Soled and A. Wold, J. Solid State Chem., 1995, 115, 187.
11. S. C. Lo, C. F. Lin, C. H. Wu and P. H. Hsieh, J. Hazard. Mater., 2004, 114, 182–190.
12. Z. Y. Liu, D. D. L. Sun, P. Guo and J. O. Leckie, Nano Lett., 2007, 7, 1081.
13. M. Shang, W. Wang, L. Zhang, S. Sun, L. Wang and L. Zhou, J. Phys. Chem. C, 2009, 113, 14727.
14. B. Reihl, J. G. Bednorz, K. A. Müller, Y. Jugnet, G. Landgren and J. F. Morar, Phys. Rev. B: Condens. Matter Mater. Phys., 1984, 30, 803–806.
15. V. Subramanian, R. K. Roeder and E. E. Wolf, Ind. Eng. Chem. Res., 2006, 45, 2187–2193.
16. J. Y. Zhang, Y. H. Wang, J. Jin, J. Zhang, Z. Lin, F. Huang and J. G. Yu, ACS Appl. Mater. Interfaces, 2013, 5, 10317–10324.
17. Y. Yang, K. Lee, Y. Kado and P. Schmuki, Electrochem. Commun., 2012, 17, 56–59.
18. Y. T. Zheng, Z. L. Zhang and Y. L. Mao, J. Alloys Compd., 2013, 554, 204–207.
19. Z. B. Jiao, T. Chen, J. Y. Xiong, T. Wang, G. X. Lu, J. H. Ye and Y. P. Bi, Sci. Rep., 2013, 3, 2720.
20. S. Park, S. Kim, H. J. Kim, C. W. Lee, H. J. Song, S. W. Seo, H. K. Park, D. W. Kim and K. S. Hong, J. Hazard. Mater., 2014, 275, 10–18.
21. E. Y. Guo and L. W. Yin, J. Mater. Chem. A, 2015, 3, 13390.
22. A. F. Demirörs and A. Imhof, Chem. Mater., 2009, 21, 3002–3007.
23. Z. K. Zheng, B. B. Huang, X. Y. Qin, X. Y. Zhang and Y. Dai, J. Colloid Interface Sci., 2011, 358, 68–72.
24. Y. Li, X. P. Gao, G. R. Li, G. L. Pan, T. Y. Yan and H. Y. Zhu, J. Phys. Chem. C, 2009, 113, 4386–4394.
25. S. W. Kim, H. I. Choi, M. H. Lee, J. S. Park, D. J. Kim, D. Do, M. H. Kim, T. K. Song and W. J. Kim, Ceram. Int., 2013, 39, 487–490.
26. Y. Wang, H. Xu, X. Wang, X. Zhang, H. Jia, L. Zhang and J. Qiu, J. Phys. Chem. B, 2006, 110, 13835–13840.
27. Y. B. Mao, S. Banerjee and S. S. Wong, J. Am. Chem. Soc., 2003, 125, 15718–15719.
28. M. Niederberger, G. Garnweitner, N. Pinna and M. Antonietti, J. Am. Chem. Soc., 2004, 126, 9120–9126.
29. H. G. Yang, G. Liu, S. Z. Qiao, C. H. Sun, Y. G. Jin, S. C. Smith, J. Zou, H. M. Cheng and G. Q. Lu, J. Am. Chem. Soc., 2009, 131, 4078–4083.
30. J. A. Enterkin, K. R. Poeppelmeier and L. D. Marks, Nano Lett., 2011, 11, 993–997.
31. A. Fujishima, X. T. Zhang and D. A. Tryk, Surf. Sci. Rep., 2008, 63, 515–582.
32. J. Zhang, Y. P. Zhang, Y. K. Lei and C. X. Pan, Catal. Sci. Technol., 2011, 1, 273–278.
33. T. Kimijima, K. Kanie, M. Nakaya and A. Muramatsu, Appl. Catal., B, 2014, 144, 462–467.
34. T. P. Cao, Y. J. Li, C. H. Wang, C. L. Shao and Y. C. Liu, Langmuir, 2011, 27, 2946–2952.
35. S. B. Pu and T. Inui, Zeolites, 1996, 17, 334–339.
36. D. S. Kim, S. J. Han and S. Y. Kwak, J. Colloid Interface Sci., 2007, 316, 85–91.
37. K. Y. Chen and Y. W. Chen, Powder Technol., 2004, 141, 69–74.
38. Y. Xin, J. Jiang, K. Huo, T. Hu and P. K. Chu, ACS Nano, 2009, 3, 3228–3234.
39. C. W. Kim, S. P. Suh, M. J. Choi, Y. S. Kang and Y. S. Kang, J. Mater. Chem. A, 2013, 1, 11820–11827.
40. J. W. Ng, S. P. Xu, X. W. Zhang, H. Y. Yang and D. D. Sun, Adv. Funct. Mater., 2010, 20, 4287–4294.
41. Y. Yamada and Y. Kanemitsu, Phys. Rev. B: Condens. Matter Mater. Phys., 2010, 82, 121103R.
42. E. Guo and L. W. Yin, J. Mater. Chem. A, 2015, 3, 13390–13401.
43. R. Tang and L. W. Yin, J. Mater. Chem. A, 2015, 3, 17417.
44. K. Xie, N. Umezawa, N. Zhang, P. Reunchan, Y. J. Zhang and J. H. Ye, Energy Environ. Sci., 2011, 4, 4211–4219.
45. L. Manna, E. C. Scher and A. P. Alivisatos, J. Cluster Sci., 2002, 13, 521–532.
46. W. C. Lin, W. D. Yang and S. Y. Jheng, J. Taiwan Inst. Chem. Eng., 2012, 43, 269–274.
47. H. W. Bai, J. Juay, Z. Y. Liu, X. X. Song, S. S. Lee and D. D. Sun, Appl. Catal., B, 2012, 125, 367–374.
48. S. Xu, J. Ng, A. J. Du, J. Liu and D. D. Sun, Int. J. Hydrogen Energy, 2011, 36, 6538–6545.

---

Footnote

† Electronic supplementary information (ESI) available. See DOI: 10.1039/c6ra03472a

---
