Revisiting the oxidation peak in the cathodic scan of the cyclic voltammogram of alcohol oxidation on noble metal electrodes

Yangzhi Zhao, Xuemin Li, Joshua M. Schechter and Yongan Yang*
Department of Chemistry, Colorado School of Mines, Coolbaugh Hall, 1012 14th Street, Golden, CO 80401, USA. E-mail: yonyang@mines.edu

Received 16th November 2015 , Accepted 4th January 2016

First published on 7th January 2016


Abstract

This work reports straightforward, intuitive, and convincing evidence to elucidate the origin of the oxidation peak in the cathodic scan of the cyclic voltammogram of alcohol oxidation on noble metal electrodes. Consequently, three new indicators are also proposed for assessing the electrocatalytic performance of electrodes.


1. Introduction

Direct alcohol fuel cells (DAFCs), which “burn” alcohols (such as methanol CH3OH) at ambient temperatures to generate electricity, are important energy conversion and storage devices for clean and sustainable technologies.1–5 The electrooxidation of alcohols relies on the catalytic effect of anodes, which are predominantly noble metals and their alloys.3 In acidic solutions, platinum (Pt) is the most efficient electrocatalyst among all monometallic electrodes.3 In alkaline solutions, palladium (Pd) turns out to be the most efficient one.3 Being consistent with the fact that the alcoholic electrooxidation is a multi-electron reaction, a variety of carbonaceous chemicals have been identified as intermediates, among which carbon monoxide (CO) is widely believed to strongly adsorb on the electrode surface and impair the catalytic performance due to the poisoning effect.6,7 The seriousness of the CO poisoning has long been indexed by an oxidation peak in the cathodic scan of the cyclic voltammogram (CV).6–8 More specifically, the intensity ratio (Jf/Jb) of the peak current in the anodic (forward) scan (Jf) versus that in the cathodic (backward) scan (Jb) is used to describe the “CO-tolerance”;6 the higher the value, the better the tolerance.9–17 This criterion is generally attributed to a paper published in 1992.6 The conjecture was based on (1) an assumption that the anodic current beyond the methanol oxidation peak Jf results from oxidation of surface-adsorbed CO to CO2;6 and (2) a fact that Jb weakened when the anodic switching potential in the CV was increased.6,9 Later on, the CO adsorption on electrode surfaces was confirmed by spectroscopic measurements;7–9 since then, the “Jf/Jb” criterion for indexing the “CO-tolerance” has been widely used in the literature for alcohol fuel cells and referred to when searching for high-performance electrocatalysts.9–21

In 2012, Tong et al. published a pioneering article to question the validity of this criterion for methanol oxidation on Pt/C and PtRu/C electrodes in acidic solutions.22 By using in situ surface enhanced infrared spectroscopy, they observed that both Jf and Jb presented opposite correlations with the amount of methanol (but not CO) adsorbed on electrode surfaces.22 The observed correlations underlay the conclusion that both oxidation peaks originated from the oxidation of surface-adsorbed methanol and the peak intensity ratio was an inadequate parameter to gauge CO-tolerance.22 However, to date, this opinion has not been well adopted in the community;23–34 the vast majority of subsequent publications still embrace the old opinion.10–14,18,35–84 Some papers quoted both opinions without preference.85–88 Thus, further clarification on this question is needed.

Herein we provide simple, intuitive, and convincing evidence to clarify the origin of Jb, by revealing the cause-and-effect relationship straightforwardly on the basis of adding alcohol only during the cathodic scan (Fig. 1). That is, the apparent Jb is the net current of fresh alcohols' oxidation (Jb) triggered and counteracted by the reduction of catalyst oxides (JMOx→M), because (1) the peak potential Eb emerges right after EMOx→M and shifts correspondingly when EMOx→M changes; (2) Jb is strongly dependent on JMOx→M, essentially with Jb = Jb + JMOx→M; and (3) the occurrence of Jb needs the alcohol to be present only before EMOx→M during the cathodic scan, where it is impossible to generate CO. Thus, opposite to the conventional criterion, a higher ratio of Jb/Jf is believed to index higher reactivation efficiency, which could actually be more desirable for an electrocatalyst. Additionally, we also propose two other performance indicators to index the activity of a given catalyst, that is, the intensive activity and the extensive activity.


image file: c5ra24249e-f1.tif

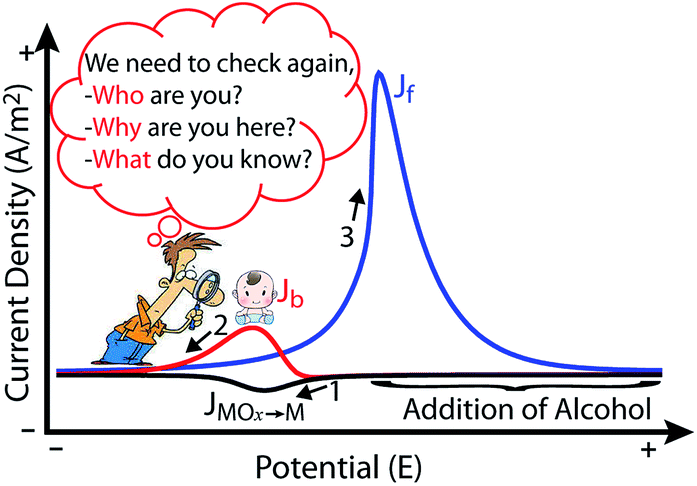

Fig. 1 Typical cyclic voltammograms to study the origin of Jb by adding alcohol during the potential window indicated.

2. Experimental section

Chemicals

Pd wire (4 N, 0.5 mm in diameter), Au wire (4 N, 0.5 mm in diameter), and Pt wire (4 N, 0.5 mm in diameter) were purchased from ESPI Metals. Sodium hydroxide (NaOH, 99%, Mallinckrodt), methanol (CH3OH, Pharmco-AAPER, ACS reagent), ethanol (CH3CH2OH, Pharmco-AAPER, ACS reagent), were purchased from Fisher. Perchloric acid (HClO4, 70%) was purchased from Sigma-Aldrich. All chemicals were used as received. The nano-pure water (18.2 MΩ cm−1) was from a Barnstead water purification system.

Data collection

All electrochemical data were collected by using a conventional three-electrode cell controlled by a Reference 600 electrochemical workstation (Gamry Instruments, Inc., USA). The working electrode was a Pd (Au, or Pt) wire with only 5 mm in length exposed in the electrolyte solution; the counter electrode was a coiled Pt wire; and the reference electrode was a saturated calomel electrode (SCE), relying on which the potential versus standard hydrogen electrode (SHE) was calculated. Before being presented in figures, all potentials in the Pd system were further corrected by the IR drop compensation, where R (the solution resistance) was determined via electrochemical impedance spectroscopy (EIS). The EIS was conducted at −0.34 V vs. SHE, by applying an alternating voltage of 5 mV in the frequency range of 100 kHz to 10 mHz. As indicated respectively in the manuscript, the electrolyte solution was 0.5 M NaOH, 0.5 M NaOH + 1.0 M CH3OH, 0.5 M NaOH + 1.0 M CH3CH2OH, or 0.1 M HClO4 + 1.0 M CH3OH. Before the measurement, the electrolyte solution was deaerated by argon for 15–20 min and maintained with a slight overpressure afterwards. All cyclic voltammograms (CVs) were collected at the potential scan rate of 20 mV s−1.

3. Results and discussion

The origin of the referred oxidation peak

We initiated our study from observing methanol oxidation on a polycrystalline Pd electrode in alkaline solutions. Fig. 2A shows a typical CV of methanol oxidation on Pd in 0.5 M NaOH + 1.0 M CH3OH, featured with a large Jf and a small Jb. Compared with the CV taken from 0.5 M NaOH without CH3OH (Fig. 2B), two interesting features can be noticed: (1) the anodic current at the potential beyond Jf decreases to virtually zero, which can be assigned to the loss of activity induced by the oxidation of Pd;33 and (2) the onset (peak) potential of Jb in Fig. 2A nicely matches the onset (peak) potential of JPdOx→Pd in Fig. 2B. From this observation, we hypothesize that the oxidation peak Jb originates from but not merely the oxidation of fresh methanol, and also that the trigger is the reactivation of the previously deactivated electrode surface via reduction of PdOx.
image file: c5ra24249e-f2.tif
Fig. 2 Study on the origin of the oxidation peak (Jb) in the cathodic scan of CV of methanol oxidation on Pd, by preparing the electrolyte solutions in different ways. (A) The premade solution of 0.5 M NaOH + 1.0 M CH3OH; (B) the premade solution of 0.5 M NaOH; (C) the online made solution of 0.5 M NaOH + 1.0 M CH3OH by adding 10.0 mL of 2.0 M CH3OH/0.5 M NaOH into 10.0 mL of 0.5 M NaOH solution during the indicated potential window; and (D) the online made solution of 0.5 M NaOH + 1.0 M CH3OH by adding 10.0 mL of 2.0 M CH3OH/0.5 M NaOH into 10.0 mL of 0.5 M NaOH solution at the indicated potential.

To prove the hypothesis, we conducted two experiments to monitor their CVs before and after the addition of methanol into the electrolyte solution. In the first case (Fig. 2C), one cycle of CV was first collected in 0.5 M NaOH to confirm the normal behavior of Pd as in Fig. 2B. Then, after the second anodic scan (line 1), the solution was quickly converted to 0.5 M NaOH + 1.0 M CH3OH by adding an equal volume of 0.5 M NaOH + 2.0 M CH3OH into the electrochemical cell. During the potential window of adding methanol (line 2, as indicated), there is no generation of CO from the oxidation of methanol within the instrument sensitivity, because the corresponding current is actually zero. Once the potential reached the onset of JPdOx→Pd (−0.03 V), an oxidation wave burst and peaked at −0.10 V (line 2), exactly as in Fig. 2A. In the subsequent cycles (lines 3 and 4) the JE profiles are virtually identical and both are well consistent with that in Fig. 2A. The complete scenario of the CVs before and after the methanol addition is shown in ESI-Fig. 1. In the second case (Fig. 2D), methanol was not added until the JPdOx→Pd peak emerged half way; the cathodic current was immediately reversed into an anodic current.

These results clearly suggest that: (1) JPdOx→Pd triggers the occurrence of Jb; (2) the oxidation of CH3OH but not of CO is responsible for Jb; (3) the pure oxidation current of fresh CH3OH (Jb, shown in ESI-Fig. 2A) is larger than the apparent current Jb, essentially Jb = Jb + JPdOx→Pd; (4) the JPdOx→Pd process is not actually suppressed by the Jb process, but just concealed in the CV; and (5) the oxidized surface is not capable of oxidizing CH3OH, as supported by the zero anodic current beyond 0.36 V in the anodic scan and between 0.66 V and 0.0 V in the cathodic scan.33 The last point is also further supported by the fact that there is no oxidation current in the anodic scan even if switching the cathodic potential before the occurrence of JPdOx→Pd (ESI-Fig. 3). Further evidence to support the first four points would be to study the direct electrooxidation of CO. Coincidently, Mota-Lima et al. have reported recently that the JPdOx→Pd profile during the repeated CV scans showed no change when the solution was saturated with CO,89 which suggested no oxidation of CO in the cathodic scan and its irrelevance to Jb in the presence of CH3OH. This supports our conclusions above. While some correlation between JMOx→M and Jb was proposed by several researchers before,23,26,33,34 explicit evidence and quantitative analysis of the trigger-consequence relationship were not provided. When studying the oxidation of formic acid in acidic solutions, Conway et al. proposed that the observed Jb resulted from an autocatalytic reduction of Pd oxide by formic acid or CO.90 Thus, the evidence we have presented is convincing and original to prove our hypothesis and elucidate the origin of Jb. Nevertheless, please note that our conclusions here do not conflict with the generation and tolerance of CO during the forward scan, as demonstrated many times in the literature.9–21 Also, we do not mean that there is absolutely no component of CO oxidation in Jb during the repeated CV scans in the presence of CH3OH, but rather we believe that the CO contribution (if any at all) would be below the instrumental detection limit. The CO generated during the forward scan must have been essentially desorbed from the oxidized electrode surface before the potential reaches EPdOx→Pd. Evidently, a large Jb may not be a bad indication. It would be desirable to establish new criteria associated with Jb for searching high-performance electrocatalysts.

Performance indicators associated with the referred peak

Next, we would like to understand what more information this peak can disclose for understanding a catalyst's performance. Three interesting questions could be asked: (1) how does this peak (in terms of peak potential and intensity) respond to the oxidation extent of Pd? (2) Is there any correlation between peak Jb (or Jb) and peak Jf to indicate the catalytic performance of Pd? (3) Can the trigger-consequence relationship be generalized to other alcohols, other catalysts, and acidic solutions?

To answer the first two questions, two series of CV experiments in both the CH3OH-containing solution and the NaOH-only solution were conducted, by changing the switching potentials in anodic (Fig. 3) and cathodic (ESI-Fig. 4) scans, respectively. The first glance on Fig. 3A (the CH3OH-containing solution) and Fig. 3B (the NaOH-only solution), which study the anodic switching potential (E+), could come to the following summary: with increasing E+ (that is, the oxidation extent), Eb and EPdOx→Pd both shifted towards more negative, Jb became smaller, JPdOx→Pd grew larger; Ef stayed no shift at 0.03 V and Jf grew larger; and the hydrogen adsorption/desorption current due to water-decomposition (below −0.3 V) shrank in the presence of CH3OH and grew larger in the absence of CH3OH. As shown in ESI-Fig. 4 with changing the cathodic switching potential (E), none of the three peaks showed appreciable changes; the only change was the expected diminishing of the hydrogen adsorption/desorption current. We note that the dependence of Jb and JPdOx→Pd on E+ is not new in the literature;6,9,90 however, all explanations are in the context of CO-tolerance but not of Jb. A further quantitative analysis of the effect of E+ herein is desired.


image file: c5ra24249e-f3.tif
Fig. 3 Study on the effect of oxidation extent of the Pd electrode on Jb and Jf, by tuning the switching potential in anodic scans (E+ = 0.66 V, 0.56 V, 0.46 V, 0.36 V, and 0.26 V). (A) CVs in 0.5 M NaOH + 1.0 M CH3OH and (B) CVs in 0.5 M NaOH.

Fig. 4 displays the dependence of various factors on E+. As shown in Fig. 4A, less (or more) positive E+ induces less (or more) negative EPdOx→Pd and Eb as well as larger (or smaller) potential gaps between them. Referring to the literature,91 the hysteresis for EPdOx→Pd can be assigned to the activation energy involved in the place exchange between Pd, OH, and O during both the oxidation and reduction processes. Fig. 4B shows that the error of using the apparent peak current Jb instead of the actual methanol oxidation current Jb could be significant for large E+. Likewise, the difference between Jb/Jf and Jb/Jf is also obvious (Fig. 4C). The results in Fig. 4A–C show that Jb would be more appropriate than Jb to index a catalyst's performance and that fair comparisons between different catalysts (particularly across different research groups) require the same experimental conditions, such as the potential window. Since Jb is induced by and synchronizes with the E+ dependent JPdOx→Pd, we term Jb/Jf as the reactivation efficiency to index how efficient the PdOx-derived Pd surface is, when compared with the pristine Pd surface. As reported in the literature, Jb/Jf could be bigger than one.22,92–94 While the underlying reason is unclear at this moment and also beyond the scope of this work, it might be associated with the formation of advantageous grain boundaries; which have been observed to account for the much superior activity of the oxide-derived copper catalysts to their pristine counterparts in CO reduction.95,96 Thus, among different catalysts whose other properties are comparable, the one with higher Jb/Jf might actually be more desirable.


image file: c5ra24249e-f4.tif
Fig. 4 The dependence of various factors on E+. (A) Eb and EPdOx→Pd; (B) Jb and Jb; (C) Jb/Jf and Jb/Jf; and (D) JS = Jb + Jf (red) and QS = Qb + Qf (blue).

With the elucidation of Jb to also result from MOR, Jb needs to be included for indexing the catalytic activity. Different from the conventional style of using only Jf, we propose using JS = Jb + Jf and name it as the intensive activity, since current density is an intensive variable. While current density is used for calculating the power density of a fuel cell, charge density (Q) is required for calculating the energy density. Because JS could not differentiate catalysts that have comparable peak intensities but different peak widths, we propose a new term – extensive activity (QS = Qb + Qf), to index a catalyst's activity from a different angle than JS. As shown in Fig. 4D, both JS and QS are strongly dependent on E+, but in opposite trends. According to JS, the best E+ is 0.56 V; according to QS, the best E+ is 0.36 V. This means that both JS and QS are needed to index the activity of a catalyst. The desirable E+ could then be assigned to a balanced range of [0.36 V, 0.56 V], as indicated by the shadow. In addition, it is noteworthy that the peak potentials in CVs do not describe steady states but dynamic states. Thus, further studies on other properties of the Jf and Jb peaks are worthwhile.

Then, we calculated the Tafel slopes (ST) for Jf and Jb and employed the technique of differential pulse voltammetry (DPV, ESI-Scheme 1).97,98 ESI-Fig. 2 shows the Jb profiles and the corresponding Tafel plots by fitting the linear ranges with EEo′ = ST[thin space (1/6-em)]log(J/Jo), where Eo′ is the formal potential, and Jo is the exchange current density.97 ESI-Fig. 5 shows the Jf profiles and the corresponding Tafel plots. The calculated ST values are graphed against E+ in Fig. 5A. In the range of 0.26 V to 0.36 V, ST is 115 mV dec−1 for both Jf and Jb. With increasing E+, ST for Jf increases gradually to 130 mV dec−1, consistent with the literature value;99,100 in contrast, ST for Jb decreases to 89 mV dec−1. The change of ST with E+ reflects the E+ dependent surface properties.91,97 Eo′ for Jf and Jb are −0.22 V and −0.34 V (ESI-Fig. 6A), respectively. The corresponding Jo for Jf increases slightly in the range of 10−1.54 A m−2 to 10−1.20 A m−2 with increasing E+; and the Jo for Jb is around 10−1.72 A m−2 (ESI-Fig. 6B). Different values of Eo′ and Jo for Jb and Jf are due to the E+ dependent oxidation/reduction hysteresis.91 Now we understand that a larger Jb associated with a smaller E+ is essentially due to a larger overpotential η = EbEo′ in addition to a smaller JPdOx→Pd, despite a larger ST.97 Fig. 5B shows the plot of current density versus potential measured by DPV, a technique to measure steady states and minimize the capacitive background currents.97,98 Ef and Eb are observed at 0.03 V and −0.11 V, respectively, which are consistent with those (0.03 V and −0.10 V) in typical CVs. In contrast, the corresponding ST for Jf has different values in two potential regions (ESI-Fig. 7A), that is, 170 mV dec−1 for [−0.15 V, −0.04 V] and 73 mV dec−1 for [−0.04 V, −0.01 V]. The corresponding ST for Jb is 67 mV dec−1 (ESI-Fig. 7B). The different ST values indicate different rate determining steps involved in the MOR.101,102 Overall, this implies that CV seems less sensitive than DPV to determine ST for multi-electron reactions. Smaller ST and more negative Eo′ for Jb than for Jf indicate that the oxide-derived surface generated during the cathodic scan is more active than the pristine surface in the anodic scan. On the other hand, however, smaller Jb than Jf could mean that the oxide-derived surface is less stable, as their overpotentials of 0.24 V (η = −0.10 V − (−0.34) V) for Jb and 0.25 V (η = −0.03 V − (−0.22) V) for Jf are comparable.


image file: c5ra24249e-f5.tif
Fig. 5 (A) Tafel slopes for the Jf and Jb peaks in Fig. 2A; and (B) differential pulse voltammogram to determine the relationship of current density versus potential under steady states for Pd in 0.5 M NaOH + 1.0 M CH3OH.

Generalization of our understanding to other systems

Furthermore, we would like to test the generality of the trigger-consequence relationship between JMOx→M and Jb for other systems. In the case of electrooxidation of ethanol (CH3CH2OH) on Pd in an alkaline solution (Fig. 6A), we observed the same behavior as for methanol oxidation, except that Jb occurred at a more negative potential (−0.18 V) and Jb/Jf was much larger (0.80), illustrating the high activity of Pd for ethanol oxidation as reported in the literature.13 Similar phenomenon was also observed for the electrooxidation of CH3CH2OH on Au (ESI-Fig. 8). In the case of electrooxidation of methanol on Pt in an acidic solution (Fig. 6B and ESI-Fig. 9),22 the trigger-consequence relationship between JPtOx→Pt and Jb was clearly observed as well. Moreover, as expected, Jb was observed at a more negative potential (0.65 V) than that of JPtOx→Pt (0.78 V). The sharp rise of the oxidation current at the methanol addition moment was due to the methanol oxidation on PtOx surface.22
image file: c5ra24249e-f6.tif
Fig. 6 CVs for electrooxidation of ethanol on Pd electrode in 0.5 M NaOH solution (A) and electrooxidation of methanol on Pt electrode in 0.1 M HClO4 (B). (A) During the first cycle (lines 1 and 2) the solution is 10.0 mL of 0.5 M NaOH. In the second cycle (lines 3 and 4) 10.0 mL of 2.0 M CH3CH2OH/0.5 M NaOH is added during the cathodic scan as indicated. Afterwards, another anodic scan (line 5) is conducted. (B) During the first cycle (lines 1 and 2) the solution is 10.0 mL of 0.1 M HClO4. In the second cycle (lines 3 and 4) 10.0 mL of 1.0 M CH3OH/0.1 M HClO4 is added during the cathodic scan as indicated. Afterwards, another cycle (lines 5 and 6) is conducted.

Last, the scanning electron microscope (SEM) images in Fig. 7 show the morphologies of the polycrystalline Pd and Pt electrodes used in this work. It is noteworthy that, when using monometallic electrodes, whether the Jb peak occurs or not does not depend on the electrode morphology and feature scale, but its intensity does.1–4,14–19,22,68,92


image file: c5ra24249e-f7.tif
Fig. 7 SEM images of polycrystalline Pd and Pt electrodes used in this study.

4. Conclusions

In summary, we have reported clear-cut and convincing evidence to elucidate the origin of the oxidation peak (Jb) observed in the cathodic scan of cyclic voltammogram of alcohol oxidation on noble metal electrodes. This work corrects a long-held misapprehension of Jb as the oxidation of carbon monoxide and Jf/Jb (Jf is the peak current in the anodic scan) as the indicator of carbon monoxide tolerance, critically amending the previous work by Tong et al.22 In fact, the peak originates from the oxidation of fresh alcohols (Jb), being triggered and counteracted by the reduction of electrode oxides (JMOx→M) formed in the proceeding anodic scan. Jb essentially synchronizes with JMOx→M. Jb does not involve the oxidation of the anodically produced CO. During our preparation of this manuscript, Tong et al. further demonstrated that the CO-tolerance is totally irrelevant to the CH3OH oxidation even in the forward CV scan for a PtRu electrocatalyst.103 The peak intensity ratio Jb/Jf, which is strongly dependent on the anodic switching potential (E+), can indicate the reactivation efficiency of a given electrocatalyst. Two other E+ dependent performance indicators are also proposed, that is, the intensive activity JS = Jb + Jf and the extensive activity QS = Qb + Qf. Thus, the same experimental conditions, particularly the potential window, are imperative for comparing different catalysts. Smaller Tafel slope (ST), more negative formal potential (Eo′) and lower current intensity for Jb than for Jf indicate that the oxide-derived surface has higher activity but lower stability than the pristine surface. This work suggests new criteria and directions for searching high-performance electrocatalysts used in direct alcohol fuel cells. Intriguing questions for future studies include how the electrode morphology and interface species evolve during the CV scan and how to improve the stability of oxide-derived surfaces.

Acknowledgements

This material is based upon work supported by the Start-up Fund for YY from the Colorado School of Mines and National Science Foundation through the REU program from the Renewable Energy Materials Research Science and Engineering Center under Grant no. DMR-0820518.

References

  1. S. Wasmus and A. Kuver, J. Electroanal. Chem., 1999, 461, 14–31 CrossRef CAS .
  2. H. S. Liu, C. J. Song, L. Zhang, J. J. Zhang, H. J. Wang and D. P. Wilkinson, J. Power Sources, 2006, 155, 95–110 CrossRef CAS .
  3. C. Bianchini and P. K. Shen, Chem. Rev., 2009, 109, 4183–4206 CrossRef CAS PubMed .
  4. X. Zhao, M. Yin, L. Ma, L. Liang, C. P. Liu, J. H. Liao, T. H. Lu and W. Xing, Energy Environ. Sci., 2011, 4, 2736–2753 CAS .
  5. Z. Jusys and R. J. Behm, J. Phys. Chem. B, 2001, 105, 10874–10883 CrossRef CAS .
  6. R. Manoharan and J. B. Goodenough, J. Mater. Chem., 1992, 2, 875–887 RSC .
  7. Y. Zhu, H. Uchida, T. Yajima and M. Watanabe, Langmuir, 2001, 17, 146–154 CrossRef .
  8. T. Yajima, H. Uchida and M. Watanabe, J. Phys. Chem. B, 2004, 108, 2654–2659 CrossRef CAS .
  9. Z. Liu, X. Y. Ling, X. Su and J. Y. Lee, J. Phys. Chem. B, 2004, 108, 8234–8240 CrossRef .
  10. Y. S. Yang, L. Wang, A. Li, Z. J. Jia, Y. Wang and T. Qi, J. Solid State Electrochem., 2015, 19, 923–927 CrossRef .
  11. W. Y. Zhang, H. J. Huang, F. Li, K. M. Deng and X. Wang, J. Mater. Chem. A, 2014, 2, 19084–19094 CAS .
  12. R. Gupta, S. K. Guin and S. K. Aggarwal, Electrochim. Acta, 2014, 116, 314–320 CrossRef .
  13. H. L. Liao, Z. P. Qiu, Q. J. Wan, Z. J. Wang, Y. Liu and N. J. Yang, ACS Appl. Mater. Interfaces, 2014, 6, 18055–18062 CAS .
  14. Y. Wang, Y. Zhao, W. He, J. Yin and Y. Su, Thin Solid Films, 2013, 544, 88–92 CrossRef CAS .
  15. Y. Y. Mu, H. P. Liang, J. S. Hu, L. Jiang and L. J. Wan, J. Phys. Chem. B, 2005, 109, 22212–22216 CrossRef CAS PubMed .
  16. Z. X. Liang, T. S. Zhao, J. B. Xu and L. D. Zhu, Electrochim. Acta, 2009, 54, 2203–2208 CrossRef CAS .
  17. Y. Zhao, L. Zhan, J. Tian, S. Nie and Z. Ning, Electrochim. Acta, 2011, 56, 1967–1972 CrossRef CAS .
  18. M. Sawangphruk, A. Krittayavathananon and N. Chinwipas, J. Mater. Chem. A, 2013, 1, 1030–1034 CAS .
  19. J. Liu, J. Ye, C. Xu, S. P. Jiang and Y. Tong, Electrochem. Commun., 2007, 9, 2334–2339 CrossRef CAS .
  20. J. Sun, J. Shi, J. Xu, X. Chen, Z. Zhang and Z. Peng, J. Power Sources, 2015, 279, 334–344 CrossRef CAS .
  21. Z. Qi, H. Geng, X. Wang, C. Zhao, H. Ji, C. Zhang, J. Xu and Z. Zhang, J. Power Sources, 2011, 196, 5823–5828 CrossRef CAS .
  22. A. M. Hofstead-Duffy, D.-J. Chen, S.-G. Sun and Y. J. Tong, J. Mater. Chem., 2012, 22, 5205–5208 RSC .
  23. C. S. Sharma, A. S. K. Sinha and R. N. Singh, Int. J. Hydrogen Energy, 2014, 39, 20151–20158 CrossRef CAS .
  24. E. N. El Sawy, H. M. Molero and V. I. Birss, Electrochim. Acta, 2014, 117, 202–210 CrossRef .
  25. B. J. Plowman, M. E. Abdelhamid, S. J. Ippolito, V. Bansal, S. K. Bhargava and A. P. O'Mullane, J. Solid State Electrochem., 2014, 18, 3345–3357 CrossRef CAS .
  26. P. Hernandez-Fernandez, P. B. Lund, C. Kallesoe, H. F. Clausen and L. H. Christensen, Int. J. Hydrogen Energy, 2015, 40, 284–291 CrossRef CAS .
  27. M. Rana, M. Chhetri, B. Loukya, P. K. Patil, R. Datta and U. K. Gautam, ACS Appl. Mater. Interfaces, 2015, 7, 4998–5005 CAS .
  28. Y. Zhao, R. Wang, Z. Han, C. Li, Y. Wang, B. Chi, J. Li and X. Wang, Electrochim. Acta, 2015, 151, 544–551 CrossRef CAS .
  29. R. Ojani, J.-B. Raoof and S. Safshekan, Electrochim. Acta, 2014, 138, 468–475 CrossRef CAS .
  30. D. Zhang, C. Zhang, Y. Chen, Q. Wang, L. Bian and J. Miao, Electrochim. Acta, 2014, 139, 42–47 CrossRef CAS .
  31. X. Xu, Y. Zhou, J. Lu, X. Tian, H. Zhu and J. Liu, Electrochim. Acta, 2014, 120, 439–451 CrossRef CAS .
  32. B. Luo, X. Yan, S. Xu and Q. Xue, Electrochem. Commun., 2013, 30, 71–74 CrossRef CAS .
  33. Y. Fan, Z. Yang, P. Huang, X. Zhang and Y.-M. Liu, Electrochim. Acta, 2013, 105, 157–161 CrossRef CAS .
  34. X. Xu, Y. Zhou, T. Yuan and Y. Li, Electrochim. Acta, 2013, 112, 587–595 CrossRef CAS .
  35. D. Pan, X. Wang, J. Li, L. Wang, Z. Li, Y. Liu, H. Liao, C. Feng, J. Jiao and M. Wu, Catal. Commun., 2015, 62, 14–18 CrossRef CAS .
  36. T. Tomai, Y. Kawaguchi, S. Mitani and I. Honma, Electrochim. Acta, 2013, 92, 421–426 CrossRef CAS .
  37. N. Kakati, J. Maiti, S. H. Lee, S. H. Jee, B. Viswanathan and Y. S. Yoon, Chem. Rev., 2015, 114, 12397–12429 CrossRef PubMed .
  38. C. Peng, Y. Hu, M. Liu and Y. Zheng, J. Power Sources, 2015, 278, 69–75 CrossRef CAS .
  39. A. Renjith and V. Lakshminarayanan, J. Mater. Chem. A, 2015, 3, 3019–3028 CAS .
  40. Q. Dong, Y. Zhao, X. Han, Y. Wang, M. Liu and Y. Li, Int. J. Hydrogen Energy, 2014, 39, 14669–14679 CrossRef CAS .
  41. Y.-W. Lee and K.-W. Park, Catal. Commun., 2014, 55, 24–28 CrossRef CAS .
  42. J. Cai, Y. Huang, B. Huang, S. Zheng and Y. Guo, Int. J. Hydrogen Energy, 2014, 39, 798–807 CrossRef CAS .
  43. L. Dong, X. Tong, Y. Wang, X. Guo, G. Jin and X. Guo, J. Solid State Electrochem., 2014, 18, 929–934 CrossRef CAS .
  44. A. Liu, M. Yuan, M. Zhao, C. Lu, T. Zhao, P. Li and W. Tang, J. Alloys Compd., 2014, 586, 99–104 CrossRef .
  45. J. R. Rodriguez, R. M. Felix, E. A. Reynoso, Y. Gochi-Ponce, Y. V. Gomez, S. F. Moyado and G. Alonso-Nunez, J. Energy Chem., 2014, 23, 483–490 CrossRef .
  46. L. Wang, Y. Wang, A. Li, Y. Yang, Q. Tang, H. Cao, T. Qi and C. Li, J. Power Sources, 2014, 257, 138–146 CrossRef CAS .
  47. L. Wang, Y. Wang, A. Li, Y. Yang, J. Wang, H. Zhao, X. Du and T. Qi, Int. J. Hydrogen Energy, 2014, 39, 14730–14738 CrossRef .
  48. Y. Wang, Y. Zhao, J. Yin, M. Liu, Q. Dong and Y. Su, Int. J. Hydrogen Energy, 2014, 39, 1325–1335 CrossRef .
  49. H. Yan, C. Tian, L. Sun, B. Wang, L. Wang, J. Yin, A. Wu and H. Fu, Energy Environ. Sci., 2014, 7, 1939–1949 CAS .
  50. C. Feng, T. Takeuchi, M. A. Abdelkareem, T. Tsujiguchi and N. Nakagawa, J. Power Sources, 2014, 242, 57–64 CrossRef .
  51. V. Kepeniene, L. Tamasauskaite-Tamasiunaite, J. Jablonskiene, J. Vaiciuniene, R. Kondrotas, R. Juskenas and E. Norkus, J. Electrochem. Soc., 2014, 161, F1354–F1359 CrossRef CAS .
  52. E. I. Papaioannou, A. Siokou, C. Comninellis and A. Katsaounis, Electrocatalysis, 2014, 4, 375–381 CrossRef .
  53. C.-S. Chen and F.-M. Pan, J. Power Sources, 2012, 208, 9–17 CrossRef CAS .
  54. J. Masud, M. T. Alam, Z. Awaludin, M. S. El-Deab, T. Okajima and T. Ohsaka, J. Power Sources, 2012, 220, 399–404 CrossRef CAS .
  55. Z. Yin, M. Chi, Q. Zhu, D. Ma, J. Sun and X. Bao, J. Mater. Chem. A, 2013, 1, 9157–9163 CAS .
  56. B. Choi, W.-H. Nam, D. Y. Chung, I.-S. Park, S. J. Yoo, J. C. Song and Y.-E. Sung, Electrochim. Acta, 2015, 164, 235–242 CrossRef CAS .
  57. M. E. Scofield, C. Koenigsmann, L. Wang, H. Liu and S. S. Wong, Energy Environ. Sci., 2015, 8, 350–363 CAS .
  58. L. Zhang, A. Gao, Y. Liu, Y. Wang and J. Ma, Electrochim. Acta, 2014, 132, 416–422 CrossRef CAS .
  59. C.-W. Kuo, I. T. Lu, L.-C. Chang, Y.-C. Hsieh, Y.-C. Tseng, P.-W. Wu and J.-F. Lee, J. Power Sources, 2013, 240, 122–130 CrossRef CAS .
  60. P. Liu, D. Yang, H. Chen, Y. Gao and H. Li, Electrochim. Acta, 2013, 109, 238–244 CrossRef CAS .
  61. Y. Okawa, T. Masuda, H. Uehara, D. Matsumura, K. Tamura, Y. Nishihata and K. Uosaki, RSC Adv., 2013, 3, 15094–15101 RSC .
  62. O. Sahin and H. Kivrak, Int. J. Hydrogen Energy, 2013, 38, 901–909 CrossRef CAS .
  63. Y.-Y. Yang, J. Ren, H.-X. Zhang, Z.-Y. Zhou, S.-G. Sun and W.-B. Cai, Langmuir, 2013, 29, 1709–1716 CrossRef CAS PubMed .
  64. S. Ghosh, A.-L. Teillout, D. Floresyona, P. de Oliveira, A. Hagege and H. Remita, Int. J. Hydrogen Energy, 2015, 40, 4951–4959 CrossRef CAS .
  65. F. Munoz, C. Hua, T. Kwong, L. Tran, T. Q. Nguyen and J. L. Haan, Appl. Catal., B, 2015, 174, 323–328 CrossRef .
  66. M. I. Prodromidis, E. M. Zahran, A. G. Tzakos and L. G. Bachas, Int. J. Hydrogen Energy, 2015, 40, 6745–6753 CrossRef CAS .
  67. C.-L. Sun, J.-S. Tang, N. Brazeau, J.-J. Wu, S. Ntais, C.-W. Yin, H.-L. Chou and E. A. Baranova, Electrochim. Acta, 2015, 162, 282–289 CrossRef CAS .
  68. Y. Wang, Q. He, J. Guo, H. Wei, K. Ding, H. Lin, S. Bhana, X. Huang, Z. Luo, T. D. Shen, S. Wei and Z. Guo, ChemElectroChem, 2015, 2, 559–570 CrossRef CAS .
  69. P. Mukherjee, P. S. Roy, K. Mandal, D. Bhattacharjee, S. Dasgupta and S. K. Bhattacharya, Electrochim. Acta, 2015, 154, 447–455 CrossRef CAS .
  70. W. Chen, Y. Zhang and X. Wei, Int. J. Hydrogen Energy, 2015, 40, 1154–1162 CrossRef CAS .
  71. T. Gunji, T. Tanabe, A. J. Jeevagan, S. Usui, T. Tsuda, S. Kaneko, G. Saravanan, H. Abe and F. Matsumoto, J. Power Sources, 2015, 273, 990–998 CrossRef CAS .
  72. W. Wang, Y. Yang, Y. Liu, Z. Zhang, W. Dong and Z. Lei, J. Power Sources, 2015, 273, 631–637 CrossRef CAS .
  73. P. Wu, Y. Huang, L. Zhou, Y. Wang, Y. Bu and J. Yao, Electrochim. Acta, 2015, 152, 68–74 CrossRef CAS .
  74. K. Kakaei and M. Dorraji, Electrochim. Acta, 2014, 143, 207–215 CrossRef CAS .
  75. Y.-H. Qin, Y. Li, R.-L. Lv, T.-L. Wang, W.-G. Wang and C.-W. Wang, Electrochim. Acta, 2014, 144, 50–55 CrossRef CAS .
  76. Y. Li, L. Yao, L.-Q. Zhang, A.-R. Liu, Y.-J. Zhang and S.-Q. Liu, J. Electroanal. Chem., 2014, 730, 65–68 CrossRef CAS .
  77. A. Sadiki, P. Vo, S. Hu, T. S. Copenhaver, L. Scudiero, S. Ha and J. L. Haan, Electrochim. Acta, 2014, 139, 302–307 CrossRef CAS .
  78. Q. Cui, S. Chao, Z. Bai, H. Yan, K. Wang and L. Yang, Electrochim. Acta, 2014, 132, 31–36 CrossRef CAS .
  79. W. Hong, J. Wang and E. Wang, ACS Appl. Mater. Interfaces, 2014, 6, 9481–9487 CAS .
  80. J. Friedl and U. Stimming, Electrochim. Acta, 2013, 101, 41–58 CrossRef CAS .
  81. R. C. Sekol, M. Carmo, G. Kumar, F. Gittleson, G. Doubek, K. Sun, J. Schroers and A. D. Taylor, Int. J. Hydrogen Energy, 2013, 38, 11248–11255 CrossRef CAS .
  82. Z. Yan, J. Xie, P. K. Shen, M. Zhang, Y. Zhang and M. Chen, Electrochim. Acta, 2013, 108, 644–650 CrossRef CAS .
  83. S. J. Ye, D. Y. Kim, S. W. Kang, K. W. Choi, S. W. Han and O. O. Park, Nanoscale, 2014, 6, 4182–4187 RSC .
  84. Z. Yin, Y. Zhang, K. Chen, J. Li, W. Li, P. Tang, H. Zhao, Q. Zhu, X. Bao and D. Ma, Sci. Rep., 2014, 4, 4288 Search PubMed .
  85. S. K. Meher and G. R. Rao, J. Phys. Chem. C, 2013, 117, 4888–4900 CAS .
  86. R. Wang, D. C. Higgins, M. A. Hoque, D. Lee, F. Hassan and Z. Chen, Sci. Rep., 2013, 3, 2431 Search PubMed .
  87. S. K. Meher and G. R. Rao, ACS Catal., 2012, 2, 2795–2809 CrossRef CAS .
  88. Z. J. Mellinger, T. G. Kelly and J. G. Chen, ACS Catal., 2012, 2, 751–758 CrossRef CAS .
  89. A. Mota-Lima, E. R. Gonzalez and M. Eiswirth, J. Braz. Chem. Soc., 2014, 25, 1208–1217 CAS .
  90. M. Tian and B. E. Conway, J. Electroanal. Chem., 2005, 581, 176–189 CrossRef CAS .
  91. B. E. Conway, Prog. Surf. Sci., 1995, 49, 331–452 CrossRef CAS .
  92. K. Ding, Y. Zhao, L. Liu, Y. Li, L. Liu, Y. Wang, H. Gu, H. Wei and Z. Guo, Electrochim. Acta, 2015, 176, 1256–1265 CrossRef CAS .
  93. Y. Wang, Q. He, K. Ding, H. Wei, J. Guo, Q. Wang, R. O'Connor, X. Huang, Z. Luo, T. D. Shen, S. Wei and Z. Guo, J. Electrochem. Soc., 2015, 162, F755–F763 CrossRef CAS .
  94. K. Ding, Y. Wang, H. Yang, C. Zheng, Y. Cao, H. Wei, Y. Wang and Z. Guo, Electrochim. Acta, 2013, 100, 147–156 CrossRef CAS .
  95. C. W. Li, J. Ciston and M. W. Kanan, Nature, 2014, 508, 504–507 CrossRef CAS PubMed .
  96. A. Verdaguer-Casadevall, C. W. Li, T. P. Johansson, S. B. Scott, J. T. McKeown, M. Kumar, I. E. L. Stephens, M. W. Kanan and I. Chorkendorff, J. Am. Chem. Soc., 2015, 137, 9808–9811 CrossRef CAS PubMed .
  97. A. J. Bard and L. R. Faulkner, Electrochemical Methods: Fundamentals and Applications, John Wiley and Sons Inc., 2001 Search PubMed .
  98. A. Molina, E. Laborda, E. I. Rogers, F. Martinez-Ortiz, C. Serna, J. G. Limon-Petersen, N. V. Rees and R. G. Compton, J. Electroanal. Chem., 2009, 634, 73–81 CrossRef CAS .
  99. R. N. Singh and R. Awasthi, Catal. Sci. Technol., 2011, 1, 778–783 Search PubMed .
  100. L. V. Kumar, S. A. Ntim, O. Sae-Khow, C. Janardhana, V. Lakshminarayanan and S. Mitra, Electrochim. Acta, 2012, 83, 40–46 CrossRef CAS PubMed .
  101. E. Herrero, K. Franaszczuk and A. Wieckowski, J. Phys. Chem., 1994, 98, 5074–5083 CrossRef CAS .
  102. M. T. M. Koper, Fuel Cell Catalysis: A Surface Science Approach, John Wiley & Sons, Inc., Hoboken, New Jersey, 2009 Search PubMed .
  103. D.-J. Chen and Y. J. Tong, Angew. Chem., Int. Ed., 2015, 54, 9394–9398 CrossRef CAS PubMed .
