Modeling and simulation of an ultrasensitive electron tunneling position/force nanosensor
Received
10th November 2015
, Accepted 15th December 2015
First published on 18th December 2015
Abstract
An ultrasensitive position/force nanosensor model was constructed and theoretically characterized. This model is based on a core–shell nanostructure with an inter-segment nanogap embedded, which forms an alignment-free metal–insulator–metal (MIM) junction. The occurrence of the tunneling effect enables the exponential scaling of the change of the displacement or force using tunneling current, which guarantees an ultrasensitive transduction. The simulation indicates that the combination of proper core materials and optimized design of the nanostructure could highly enhance the transduction performance. The simulation results provide instructions for the implementation of such ultrasensitive tunneling nanosensors, which in turn open new ground for tunneling-effect-based sub-nanoscale or even picoscale position/force detection.
Introduction
It has been 31 years since the invention of the scanning tunneling microscope (STM), which has incomparable spatial resolution based on the electron quantum tunneling effect.1 However, there have been no other significant applications wherein the same principle of STM in implemented in high resolution transducers. An early attempt can be traced back to the first prototype of the atomic force microscope (AFM), in which an STM was used as the deflection detector, but it was soon replaced with the routinely used laser-lever system due to its large measurement range and readiness for fabrication and alignment. Herein, we report an alignment-free, nanogap-embedded nanowire tunneling picoscope model. Compared with conventional piezoresistive/piezoelectric-effect-based nanoscale position/force transducing,2–7 sensing based on the tunneling effect could serve the purpose for sub-nanoscale or even picoscale detection due to its exponential dependence on barrier height and width. The proposed model has the potential to serve as an essential foundation for transducers such as pico-newton force sensors, atto-gram mass flow sensors, and single molecule detectors.
Modeling
The model is composed of two parts – a mechanical model to determine the relation between the displacement/force and the separation and a tunneling model to obtain the current for the corresponding change in separation. The models are then combined to determine the relation between the displacement/force and the tunneling current. The proposed structure and separation change with the application of force are schematically demonstrated (Fig. 1(a)) and an expanded view of the separation is also illustrated (Fig. 1(b)).
 |

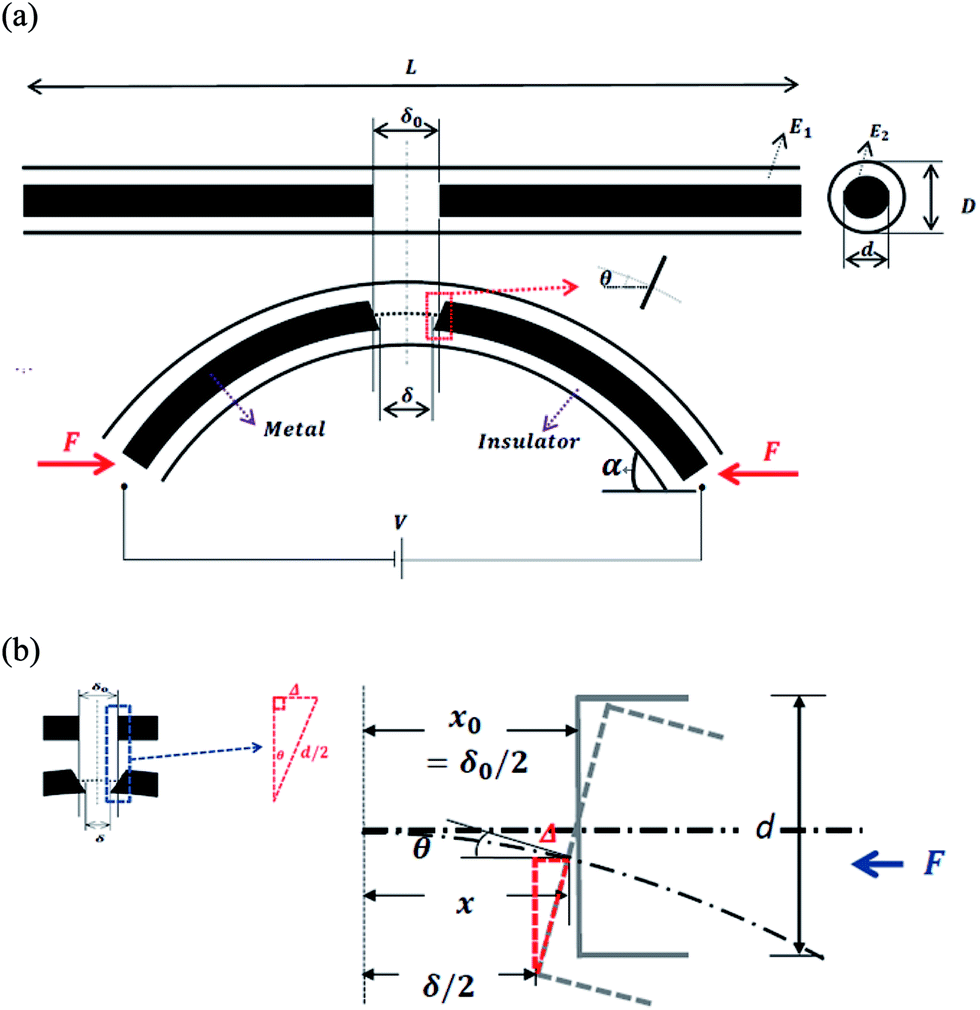

| Fig. 1 Schematic of the internal tunneling nanostructure. (a) Proposed structure and the decrease in separation as the nanowire is subjected to external buckling force. E1 and E2 are the Young's modulus of the insulating and metallic regions, respectively; δ0 is the initial separation between the metallic regions; δ is the separation between the lower edges, θ is the angle of rotation of the plane of the metallic region and α is the terminal deflection angle under the action of force; D and d are the outer and inner diameters of the core–shell structure. (b) An expanded schematic for the geometric analysis to obtain relation between separation and angle of rotation. | |
As shown in the schematic of the device (Fig. 1(a)), two conductive nanowires are placed in a row and wrapped concentrically by an insulating nanotube. The area between these two nanowires is a vacuum and the distance is limited to the sub-nanometer range, thus forming a self-aligned nanoconstriction.8,9 A dc bias can be applied to the two ends of both the nanowires, and electrical properties can be measured simultaneously. As the uniaxial loads are applied to the compound concentric nanocylinder from the two ends, the column will remain in equilibrium when the load is smaller than the critical load, Fcr,10 and the elastic deformation along the nanowire will cause a decrease in the inter-nanorod separation due to compression. Furthermore, under a force stronger than or equal to the critical load, the column will ultimately buckle and the inner conductive nanorods are deflected accordingly. This is shown in the red box of Fig. 1(a) and a detailed schematic is shown in Fig. 1(b), because the cross-section of the embedded nanorods will rotate accordingly when the nanowire is bent or released. The distance between two corners is then shrunk or expended via the change of external force/strain. The buckle modeling of the proposed architecture is performed using the Timoshenko model.
In the model, the critical force Fcr, which is also known as the Euler force, is defined as the axial force that is sufficient to keep the column slightly bent. This can be expressed as11
|
 | (1) |
where
|
 | (2) |
l is the chord length of the buckled beam,
E1/
E2 is the Young's modulus of the external/internal nanowire, and
D/
d is the diameters of the external/inner nanowire. d
s represents the differential length of the beam (
Fig. 1(a)), then the expression of the length of the deformed beam can be given by
12 |
 | (3) |
where
θ is the angle at the differential segment d
s,
α is the angle at the terminal of the beam, and
F is the magnitude of the buckling force. If we define

and

, and
α defines
θ changing from 0 →
α, which symbolizes the variation of the terminal angle
α, then
eqn (3) can be reduced to
|
 | (4) |
In order to determine the curve of the deformed beam, the coordinates of a differential segment on the deformed axis are given by
|
dxi = ds cos θ
| (5) |
and
|
dyi = ds sin θ.
| (6) |
Therefore,
|
 | (7) |
Moreover, because the incomplete elliptic integral of the first type is given by
and the incomplete elliptic integral of second type is
13then
eqn (7) becomes
|
 | (8) |
and in the same way,
|
 | (9) |
Herein, since the parameters p, Φ, K(p), E(Φ,p) and F(Φ,p) are all correlated to the terminal buckling angle α, the buckling curves (which are symbolized by a series of coordinated points xi and yi) can be plotted according to different values of α. The normalized deformed axes
correspond to the terminal angles of α = 20°, 40°, and 60° (Fig. 2(a)).
 |

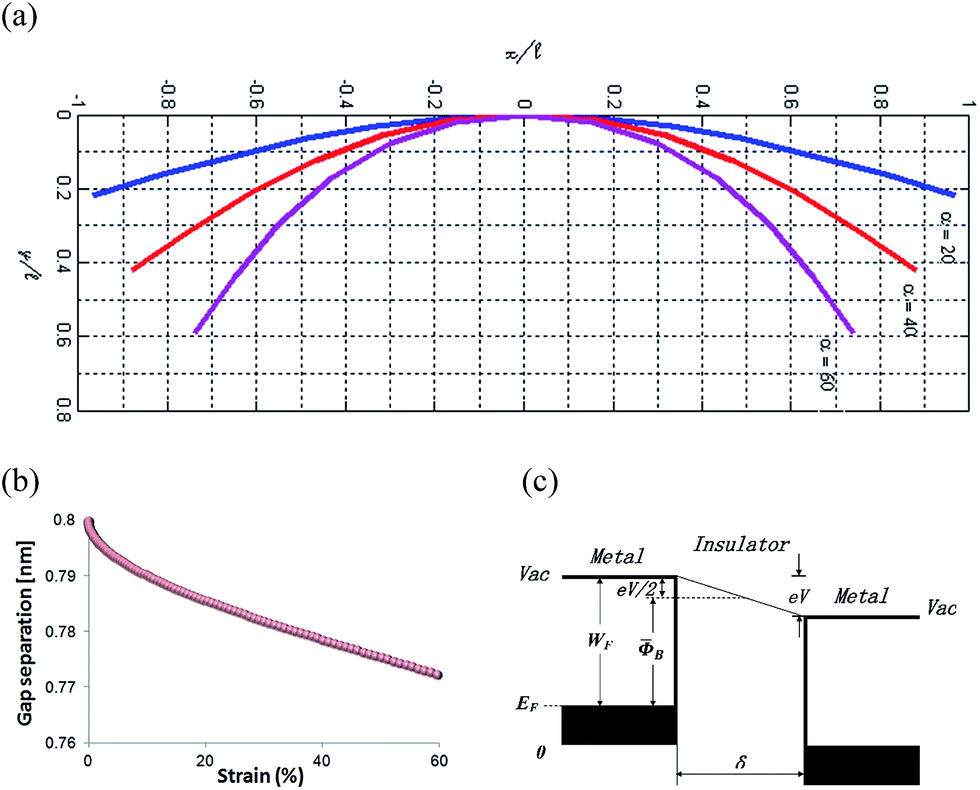

| Fig. 2 (a) Normalized deformed axes of the nanowire corresponding to terminal angles of α = 20°, 40°, and 60°. (b) Strain-gap separation characterization obtained from the nanowire with the different initial width of 0.8 nm. (c) Potential profile of the metal–insulator–metal junction under the application of a low bias, V. B is the average barrier height. EF and WF are the Fermi energy and the work function of the conductive material, respectively. | |
The buckling of the nanowire induces the deflection of the embedded rods, which in turn modulates the inter-nanorod separation and forms a variable tunneling barrier. The spacing, δ, (Fig. 1(b)) is given by
|
δ = 2xi − d sin θ,
| (10) |
where
xi is the coordinate of the point of interest on the deformed axis corresponding to the terminal angle,
αi, and
|
 | (11) |
where
|
 | (12) |
and
|
sin Φ = sn(u),
| (13) |
where sn(
u) is a Jacobi elliptic function, and

.
Herein, the nominal strain, ε, is defined as Δl/l, which is given by
|
 | (14) |
As we substitute eqn (8) and (11–14) into (10), the relation between the separation, δ, and strain, ε, is found as
|
 | (15) |
The strain-gap separation characterizations are obtained from nanowires with the initial width of δ0 = 0.8 nm (Fig. 2(b)). The curve illustrates a separation decrease tendency corresponding to the increase of strain, which confirms that the gap width can be modulated by simple buckling. Since the gap geometry caused by a specific strain is distinguishable, in principle, each gap is electrically unique at different strain status. This provides the potential to use the unique electrical performance to indicate the dynamics of the displacement.
Moreover, from expression (4) and (10), we can also obtain the relation between the separation and force:
|
 | (16) |
Since the gap distance between each of the two nanorods is within the sub-nanometer range, and the nanowire schematic forms a unique metal–insulator–metal (MIM) architecture, the electron tunneling effect could be addressed.8,9,14 As we apply the MIM tunneling model here, the approximate expression of the tunneling current density is given by
|
 | (17) |
where
m is the mass of the electron,
![[h with combining macron]](https://www.rsc.org/images/entities/i_char_0068_0304.gif)
is the Plank constant,
V is the voltage applied between the two electrodes, and
B is the average barrier height between the two electrodes. Then, the potential profile of an MIM junction under a low bias is demonstrated (
Fig. 2(c)). The average barrier height is given by

, where
WF is the work function of the inner conductive material. Substituting
eqn (15) or
(16) into
(17) gives the tunneling current
vs. displacement/force relation.
Result and discussion
Our simulation results have demonstrated the initiation of the tunneling current by the proposed concentric nanostructure. The influence of the external/inner-wire diameter (D/d), initial gap separation (δ0), nanowire length (L), and material work function (WF) on the tunneling current under different displacement situations is demonstrated (Fig. 3(a)–(d)). The simulation results indicate the exponential correspondence of the tunneling current to the geometric or electrical properties changes, which indicates the potential of using the proposed nanostructure as a displacement nanosensor.
 |
| Fig. 3 Simulation results (a) influence of nanorod diameter, d, on tunneling current density. D = 50 m and d ranges from 1 to 40 nm. (b) Influence of initial separation, δ0, on tunneling current density. δ0 ranges from 0.7 to 0.8 nm. (c) Influence of nanowire length, l, on tunneling current density. l ranges from 200 to 1200 nm. (d) Influence of work function, WF, on tunneling current density. WF ranges from 4 to 5 eV. | |
The force–current curve is also numerically obtained (Fig. 4). It is evident that the maximum current change occurs during the initial stages of buckling, which results in an enormous sensitivity
of about 6.5 nA nN−1 (Fig. 4, inset (ii)) and implies a current increase of 65 pA for every 10 pN increase in force value. This reflects a higher resolution in force sensing as compared to that which works only for a transverse bending force.15 For the inter-segment structure, in addition to axial force, separation change can also be effected by a transverse force. Versatility in sensing is therefore implicit. Although the sensitivity for this structure is found to have a non-linear curve, a specific region can be selected from the force range depending on the application, and the corresponding sensitivity variation could be linearized. The closed form expression (15) also provides an explanation for the non-zero initial force and the extent of the decrease in separation. The initial force is non-zero because δ equals the initial value δ0 when
|
 | (18) |
which is referred to as the critical force,
16–18 i.e. the minimum force required to induce buckling and hence cause a change in separation. Since the current enhancement needs to be pronounced, a greater reduction in separation is required. For the same nanowire, this can be achieved by reducing the length while keeping all the other parameters fixed. The effect of reducing the length to one-fourth of its original value is shown in
Fig. 5. The reduction in separation is from 1 to 0.92 nm as compared to the reduction from 1 to 0.98 nm for the initial case (
Fig. 4, insert (i)). This can also be easily understood from
(16) – a smaller length implies greater critical force hence much larger force values are required to cause the same deflection thereby resulting in a much greater reduction in the separation.
 |
| Fig. 4 Current vs. force. Insert, (i) current vs. force (ii) sensitivity vs. force. | |
 |
| Fig. 5 Greater reduction in separation with a simultaneous shift in the critical force and increased force range compared to the result in Fig. 4, inset (i). | |
Simulations were also carried out for different inner and outer diameters in order to understand their effect on force sensitivity. The current density–force plot for a fixed outer diameter (D = 20 nm) and different inner diameters (d = 7, 7.5 and 8 nm) are shown in Fig. 6(a). An interesting crossover region is also evident (Fig. 6(a), inset (i)). Also shown is the corresponding separation–force plot (Fig. 6(a), inset (ii)). The cross over region is a result of the combined flexural rigidity, as in expression (2).
 |

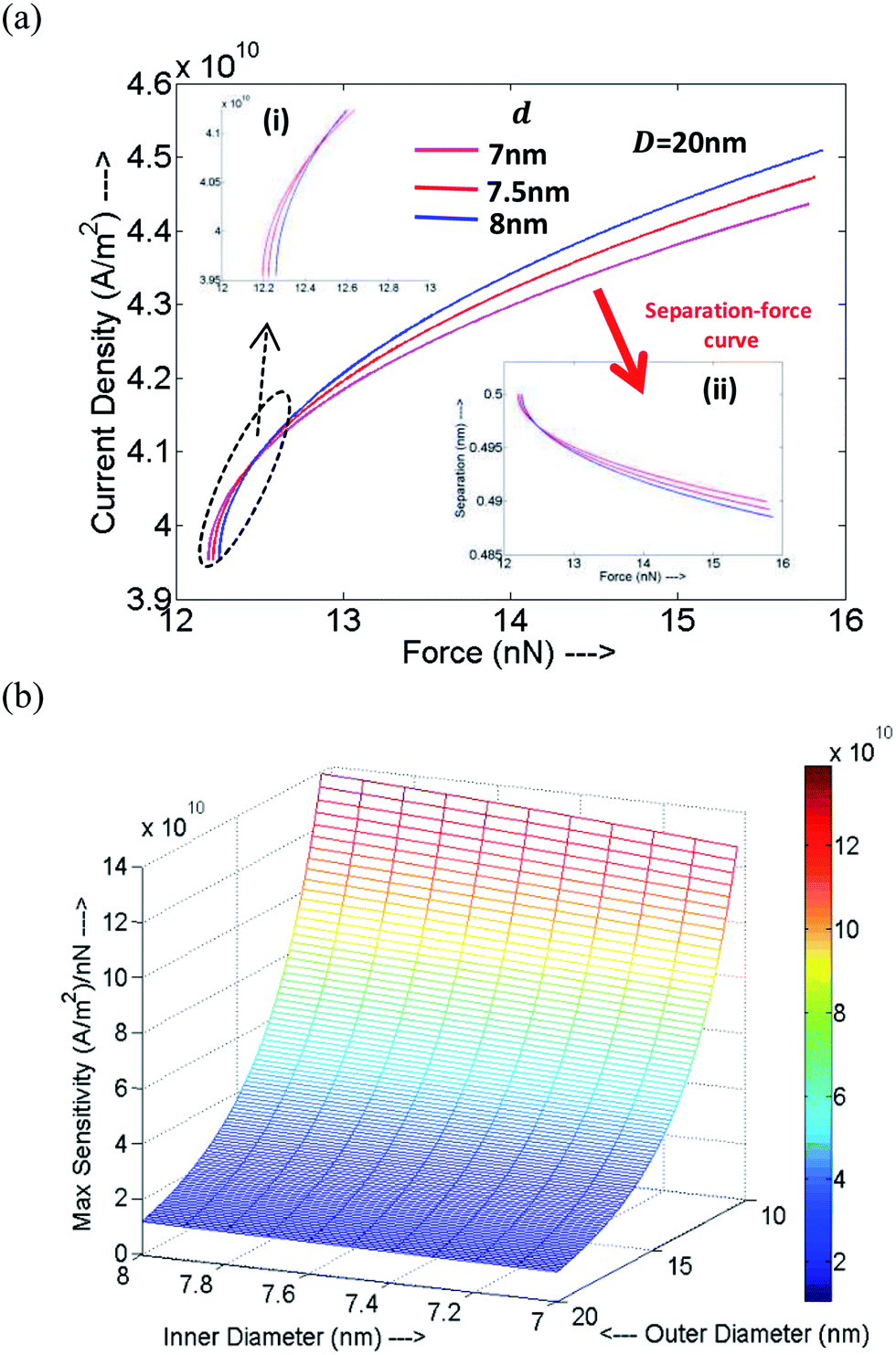

| Fig. 6 (a) Current density–force variation for a fixed outer diameter, D, and different inner diameters, d, insert (i) expanded crossover region, (ii) corresponding separation–force variation. (b) Surface plot showing variation of maximum sensitivity for different inner and outer diameters for the shell–core structure. | |
Below the crossover point, the increase in current density is found to be greater for the structure with a smaller inner diameter (Fig. 6, inset (i)), which seems surprising since the opposite effect is expected based on expression (1). However, this can be understood in terms of the critical force in expression (18), which is smaller for a smaller inner diameter (due to the reduced combined flexural rigidity). Beyond the crossover point, the bigger inner diameter structure causes a greater increase in current, which is understood from expression (1). The effect of varying both inner and outer diameters is revealed in the surface plot shown in Fig. 6(b). From this figure, it is evident that the structure with smaller inner and outer diameters has the maximum sensitivity. This can be understood from the previous discussions. Analysis of the current–force and the sensitivity relations for a small difference in inner diameter dimensions is significant when an array of these structures is used for collective sensing. As shown, a difference of even 0.5 nm has a tremendous effect on sensitivity and could therefore result in measurement errors, which can be understood from this model.
Future work
The simulation results indicate the exponential correspondence of the tunneling current to the geometric or electrical property changes of the concentric nanowire. Among them, the change in the initial gap separation and work function of the core materials show a remarkable influence on the tunneling. This information is important for the implementation of the nanowire-based ultrasensitive displacement/force sensor.
In future studies, we plan to synthesize a type of peapod nanostructure based on a boron carbide (B4C) nanowire,19 which is encapsulated with a conductive nickel compound nanorod. The distance between each nanorod could be restricted to be smaller than 1 nm, which forms an alignment-free tunneling junction. By applying the TEM nanomanipulator,20–36 we can select a single nanowire for the in situ characterization of its electromechanical properties. Then, the tunneling performance in such proposed inter-segment nanostructure could be studied both theoretically and practically.
Conclusions
In summary, we carried out the modeling and simulation of an ultrasensitive displacement/force nano-transducer based on a nanogap-involved concentric nanostructure. The simulation results indicate that the tunneling performance could be tuned via geometric or electrical property changes in the nanowire, especially the core materials and initial gas distance. As a result, by using a combination of carefully chosen core materials and optimized design of the nanostructure, the tunneling performance could be highly enhanced, which in turn improves the sensitivity of such nanowire-based tunneling sensors. The theoretical study provides instructions for the implementation of such nanowire-based sensors. Based on the proposed nanowire architecture as well as the characterization techniques, a nanowire-based inter-segment displace/force nanosensor will be soon realized.
Acknowledgements
This study is supported by the NSF (IIS-1054585), the NSFC (51002138), the Zhejiang Provincial NSF of China (Y4090420), the NSF (CMMI-0968843, CMMI-0824728, CMMI-0653651), the Qianjiang Talent Project (2010R10029), the ‘Qianjiang Scholars’ program and the project sponsored by the Project sponsored by SRF for ROCS (2010609), SEM.
References
- D. M. Eigler and E. K. Schweizer, Nature, 1990, 344, 524–526 CrossRef CAS.
- Y. S. Zhou, R. Hinchet, Y. Yang, G. Ardila, R. Songmuang, F. Zhang, Y. Zhang, W. H. Han, K. Pradel, L. Montes, M. Mouis and Z. L. Wang, Adv. Mater., 2013, 25, 883–888 CrossRef CAS PubMed.
- J. Zhou, Y. D. Gu, P. Fei, W. J. Mai, Y. F. Gao, R. S. Yang, G. Bao and Z. L. Wang, Nano Lett., 2008, 8, 3035–3040 CrossRef CAS PubMed.
- R. R. He, X. L. Feng, M. L. Roukes and P. D. Yang, Nano Lett., 2008, 8, 1756–1761 CrossRef PubMed.
- C. Stampfer, A. Jungen, R. Linderman, D. Obergfell, S. Roth and C. Hierold, Nano Lett., 2006, 6, 1449–1453 CrossRef CAS PubMed.
- P. Neuzil, C. C. Wong and J. Reboud, Nano Lett., 2010, 10, 1248–1252 CrossRef CAS PubMed.
- R. R. He and P. D. Yang, Nat. Nanotechnol., 2006, 1, 42–46 CrossRef CAS PubMed.
- S. E. Kubatkin, A. V. Danilov, A. L. Bogdanov, H. Olin and T. Claeson, Appl. Phys. Lett., 1998, 73, 3604–3606 CrossRef CAS.
- D. L. Klein, P. L. McEuen, J. E. B. Katari, R. Roth and A. P. Alivisatos, Appl. Phys. Lett., 1996, 68, 2574–2576 CrossRef CAS.
- M. Riaz, O. Nur, M. Willander and P. Klason, Appl. Phys. Lett., 2008, 92, 103118 CrossRef.
- S. P. Timoshenko and J. M. Gere, Theory of elastic stability, Tata McGraw-Hill Education, New York, 2nd edn, 1961 Search PubMed.
- L. D. Landau, E. Lifshitz, J. Sykes, W. Reid and E. H. Dill, Theory of elasticity: Vol. 5 of course of theoretical physics, Pergamon, Oxford, 1959, vol. 5 Search PubMed.
- T. F. Lemczyk and M. M. Yovanovich, Comput. Math. Appl., 1988, 16, 747–757 CrossRef.
- J. G. Simmons, J. Appl. Phys., 1963, 34, 1793–1803 CrossRef.
- Y. S. Zhou, R. Hinchet, Y. Yang, G. Ardila, R. Songmuang, F. Zhang, Y. Zhang, W. Han, K. Pradel, L. Montes, M. Mouis and Z. L. Wang, Adv. Mater., 2013, 25, 883–888 CrossRef CAS PubMed.
- C.-L. Hsin, W. Mai, Y. Gu, Y. Gao, C.-T. Huang, Y. Liu, L.-J. Chen and Z.-L. Wang, Adv. Mater., 2008, 20, 3919–3924 CrossRef CAS.
- C.-L. Hsin, W. Mai, Y. Gu, Y. Gao, C.-T. Huang, Y. Liu, L.-J. Chen and Z.-L. Wang, Adv. Mater., 2008, 20, 3919–3924 CrossRef CAS.
- G.-F. Wang and X.-Q. Feng, Appl. Phys. Lett., 2009, 94, 141913 CrossRef.
- X. Y. Tao, L. X. Dong, X. N. Wang, W. K. Zhang, B. J. Nelson and X. D. Li, Adv. Mater., 2010, 22, 2055–2059 CrossRef CAS PubMed.
- L. Dong, X. Tao, Z. Fan, L. Zhang, X. Zhang and B. Nelson, Nanorobotic spot welding, in Encyclopedia of nanotechnology, ed. B. Bhushan, Springer, Netherlands, 2012, pp. 1692–1700 Search PubMed.
- Z. Fan, X. Fan, A. Li and L. Dong, Nanoscale, 2013, 5, 12310–12315 RSC.
- Z. Fan, X. Tao, X. Fan, X. Zhang and L. Dong, Carbon, 2015, 86, 280–287 CrossRef CAS.
- Z. Fan, X. Y. Tao, X. D. Cui, X. D. Fan, X. B. Zhang and L. X. Dong, Nanoscale, 2012, 4, 5673–5679 RSC.
- Z. Fan, X. Tao, X. Fan, X. Li and L. Dong, IEEE Trans. Robot., 2015, 31, 12–18 CrossRef.
- T. Fukuda, M. Nakajima, P. Liu and H. ElShimy, Int. J. Robot. Res., 2009, 28, 537–547 CrossRef.
- Z. Fan, X. Tao, X. Li and L. Dong, Proceedings of IEEE/RSJ 2011 International Conference on Intelligent Robots and Systems (IROS2011), 2011, pp. 1705–1710 Search PubMed.
- L. X. Dong, X. Y. Tao, Z. Fan, L. Zhang, X. B. Zhang, H. Huang, M. Hamdi and A. Ferreira, Nanorobotic mass transport, in Nanorobotics: Current approaches and techniques, ed. C. M. A. A. Ferreira, Springer, 2012 Search PubMed.
- L. X. Dong, X. Y. Tao, Z. Fan, L. Zhang, X. B. Zhang and B. J. Nelson, Nanorobotic spot welding, in Encyclopedia of nanotechnology, ed. B. Bharat, Springer, 2012 Search PubMed.
- Z. Fan, X. D. Fan, A. Li and L. Dong, Proceedings of the 12th IEEE Conference on Nanotechnology (IEEE-NANO 2012), 2012 Search PubMed.
- Z. Fan, X. Y. Tao, X. B. Zhang and L. Dong, Proceedings of the 12th IEEE Conference on Nanotechnology (IEEE-NANO 2012), 2012 Search PubMed.
- J. Du, Y. C. Yang, Z. Fan, Y. Xia, X. J. Cheng, Y. P. Gan, H. Hang, L. X. Dong, X. D. Li, W. K. Zhang and X. Y. Tao, J. Alloys Compd., 2013, 560, 142–146 CrossRef CAS.
- Z. Fan, M. Yu, X. Y. Tao, R. Shanmugam, X. Fan, W. Lai and L. Dong, Proceedings of the 14th IEEE Conference on Nanotechnology (IEEE-NANO 2014), 2014 Search PubMed.
- G. Dharuman, Z. Fan and L. Dong, Proceedings of the 13th IEEE Conference on Nanotechnology (IEEE-NANO 2013), 2013 Search PubMed.
- X. Y. Tao, J. Du, Y. P. Li, Y. C. Yang, Z. Fan, Y. P. Gan, H. Huang, W. K. Zhang, L. X. Dong and X. D. Li, Adv. Energy Mater., 2011, 1, 534–539 CrossRef CAS.
- Z. K. Weng, L. Dong, M. Yu, F. B. Rao, Z. Fan and Z. B. Wang Proceedings of the 13th IEEE Conference on Nanotechnology (IEEE-NANO 2013), 2013 Search PubMed.
- X. Tao, Z. Fan, B. J. Nelson, G. Dharuman, W. Zhang, L. Dong and X. Li, Nano Lett., 2015, 15, 7281–7287 CrossRef CAS PubMed.
