Investigation of luminescence properties and the energy transfer mechanism of tunable emitting Sr₃Y₂(Si₃O₉)₂:Eu²⁺,Tb³⁺ phosphors

Abstract

A series of Eu²⁺ and Tb³⁺ singly-doped and co-doped Sr₃Y₂(Si₃O₉)₂ (SYSO) phosphors have been synthesized via a conventional high-temperature solid-state reaction. The crystal structures, photoluminescence properties, fluorescence lifetimes, thermal properties and energy transfer of SYSO:Eu²⁺,Tb³⁺ were systematically investigated in detail. Rietveld structure refinement of the obtained phosphors indicated that the SYSO host crystallized in a monoclinic system with the space group C2/c (15) and there are three kinds of cation sites for the doped ions to occupy forming emission centers. The photoluminescence (PL) emission bands of SYSO:xEu²⁺ show a red-shift tendency with increasing Eu²⁺ content which should be attributed to more Eu²⁺ ions entering into Sr2/Y2 and Sr3/Y3 sites from the Sr1/Y1 site. For the co-doped SYSO:Eu²⁺,Tb³⁺ samples, tunable colors from cyan to green can be realized by varying the doping concentration of the Tb³⁺ ions. The intense green emission was realized in the SYSO:Eu²⁺,Tb³⁺ phosphors on the basis of the highly efficient energy transfer from Eu²⁺ to Tb³⁺ with an efficiency of over 89%. As a result, the emission intensity of SYSO:0.01Eu²⁺,0.21Tb³⁺ is about 2.5 times higher than that of SYSO:0.21Tb³⁺ under 340 nm UV excitation. The energy transfer mechanism from Eu²⁺ to Tb³⁺ in the SYSO host was ascribed to the quadrupole–quadrupole interactions. These results indicated that the SYSO:Eu²⁺,Tb³⁺ phosphors can act as single-phase green emitting phosphors for possible applications in ultraviolet light-based white light-emitting diodes (w-LEDs).

---

1. Introduction

Inorganic luminescent materials have found extensive applications in cathode ray tubes (CRTs), plasma display panels (PDPs), field emission displays (FEDs), X-ray imaging scintillators and white light-emitting diodes (w-LEDs), etc.^1–6 As a new lighting source for the next generation, w-LEDs have received a lot of attention in the solid-state lighting area because of their high luminous efficiency, long lifetimes, and environmentally friendly features.^1,7 At present, the commercial w-LED devices suffer from the problems of low color rendering index (R_a < 80) and high correlated color temperature (T_c > 4500 K), restricting their application. In order to overcome these disadvantages, single-phase multi-color phosphors have been introduced and have attracted much attention.⁸ Simultaneously, efficient energy transfers can obviously improve the luminescence efficiency and color reproducibility as well as widen the emission spectra of phosphors. The energy transfer mechanism from a sensitizer to an activator has been investigated in many hosts,⁹ such as Ca₂Gd₈(SiO₄)₆O₂:Ce³⁺,Mn²⁺,¹⁰ Ca₅(PO₄)₂SiO₄:Ce³⁺/Tb³⁺/Mn²⁺,¹¹ Na₂Gd₂B₂O₇:Ce³⁺,Tb³⁺,¹² β-Na₂Ca₄(PO₄)₂(SiO₄):Ce³⁺,Tb³⁺,¹³ BaCa₂MgSi₂O₈:Eu²⁺,Tb³⁺/Mn²⁺,¹⁴ KCaGd(PO₄)₂:Eu²⁺,Tb³⁺,Mn²⁺,¹⁵ and BaMg₂Al₆Si₉O₃₀:Eu²⁺,Tb³⁺,Mn²⁺.¹⁶

In the above single-phase phosphors, the Tb³⁺ ion has been used frequently as the green emission activator because it shows sharp lines at about 488, 543 and 582 nm due to the 4f–4f transition.^3,17 However, the major problem for the Tb³⁺ ion is the lack of an efficient and broad excitation band from the near-ultraviolet (n-UV) region to the visible range, which limits its application in w-LEDs. Moreover, since the f–f transition is spin-forbidden, the emission intensity of the Tb³⁺ ion is weak.¹⁸ To enhance the Tb³⁺ absorption intensity in the n-UV region, the general method is to induce a sensitizer which has intense absorption in the n-UV region into Tb³⁺-doped materials. Because the f–d transitions of Ce³⁺ and Eu²⁺ ions are spin-allowed, Ce³⁺ and Eu²⁺ ions are usually co-doped into the host as sensitizers to transfer excitation energy to Tb³⁺ ions.^19–21 As a common sensitizer for Tb³⁺ ions, Eu²⁺ has been widely used frequently as an activator ion for various host lattices due to the broad excitation and emission bands derived from its dipole-allowed 4f–5d electronic transitions.^22,23 Strong ligand–activator bonding interactions will cause a small energy difference between the 4f⁶5d¹ and 4f⁷ states, thus leading to a red shift of the emission band of the Eu²⁺ ions.^24,25 Moreover, for Eu²⁺ ions, the Stokes shift is relatively small and the decay time is short, making Eu²⁺ a popular activator.^26,27 Therefore, the luminescence originating from Eu²⁺/Tb³⁺ couples means that they could act as green n-UV convertible phosphors.^28,29 Furthermore, the energy transfer phenomenon of Eu²⁺/Tb³⁺ has been investigated in many hosts, including Mg₂Al₄Si₅O₁₈:Eu²⁺,Tb³⁺,⁸ Sr₂LiSiO₄F:Eu²⁺,Tb³⁺,²¹ Ba₃LaNa(PO₄)₃F:Eu²⁺,Tb³⁺,²⁸ Sr_3.5Y_6.5O₂(PO₄)_1.5(SiO₄)_4.5:Eu²⁺,Tb³⁺,³⁰ BaB₂Si₂O₈:Eu²⁺,Tb³⁺,³¹ and so on.

As an important phosphor host, silicate has been widely used due to its several merits, such as facile synthesis, stable crystal structures, excellent long-term stability and environment friendly characteristics.^32,33 Rare earth-doped silicate phosphors have been considered in w-LEDs.^34,35 As a member of the silicate family, the crystal structure of the cyclosilicate Sr₃Y₂(Si₃O₉)₂ (SYSO) has been determined, which has three different cation sites for doped ions to occupy and thus attracted researchers' attention.³⁶ In our previous work, we studied the energy transfer between the cerium ion and other rare earth ions in the cyclosilicate host.³⁷ However, energy transfer from Eu²⁺ to Tb³⁺ has not been studied in detail yet. Therefore, in the present work, we have synthesized and studied the optical properties of SYSO:Eu²⁺ and SYSO:Eu²⁺,Tb³⁺ phosphors for their possible applications in w-LEDs. After co-doping with Eu²⁺, the emission intensity of Tb³⁺ was enhanced and a series of tunable cyan-green colors can be obtained by varying the relative ratio of Eu²⁺/Tb³⁺ under 350 nm irradiation. Moreover, the photoluminescence spectra, concentration quenching, fluorescence lifetimes, CIE chromaticity, thermal properties and the energy transfer mechanism between Eu²⁺ and Tb³⁺ have been investigated systematically.

2. Experimental

Chemicals and materials

SrCO₃ (A.R.), Y₂O₃ (A.R.), SiO₂ (A.R.) and H₃BO₃ (A.R.) were purchased from Sinopharm Chemical Reagent Co., Ltd. Eu₂O₃ (≥99.99%) and Tb₄O₇ (≥99.99%) were purchased from the Science and Technology Parent Company of Changchun Institute of Applied Chemistry. All of the initial chemicals were used without further purification. Aluminum oxide crucibles were used in the sintering process of the samples.

Synthesis

A series of polycrystalline Sr_3−3xY_2−2y(Si₃O₉)₂:3xEu²⁺,2yTb³⁺ powder samples were prepared by a conventional high-temperature solid-state reaction process. In order to facilitate the expression, in the following sections, Sr_3−3xY_2−2y(Si₃O₉)₂:3xEu²⁺,2yTb³⁺ are abbreviated as SYSO:xEu²⁺,yTb³⁺ (x and y represent mol% in this article). For example, Sr_2.97Y_1.90(Si₃O₉)₂:0.03Eu²⁺,0.10Tb³⁺ is denoted as SYSO:0.01Eu²⁺,0.05Tb³⁺. On the basis of the similar effective ionic radius and valence of the cations, we suggested that Tb³⁺ ions prefer to occupy Y³⁺ sites,^38,39 while Eu²⁺ ions more easily replace Sr²⁺ ions. The doping concentrations of Eu²⁺ and Tb³⁺ were chosen to be 0–0.07 of Sr²⁺ and 0–0.21 of Y³⁺ in SYSO, respectively. Typically, stoichiometric amounts of SrCO₃, Y₂O₃, SiO₂, Eu₂O₃ and Tb₄O₇ and an excess of 5 mol% H₃BO₃ as a flux were thoroughly mixed for 30 min in an agate mortar to form a homogeneous mixture. Then, the mixtures were transferred into alumina crucibles and calcined at 1300 °C for 8 h under a reducing atmosphere of 85% N₂–15% H₂ in a horizontal tube furnace. After the furnace was slowly cooled to room temperature, the sintered products were ground again, yielding the resulting phosphor powders.

Characterization

The finely ground powders were used in all of the measurements. The crystal structure and phase purity of the as-prepared samples were characterized by X-ray powder diffractometer (XRD) (Bruker D8 Focus, Bruker, Karlsruhe, Germany) with Ni-filtered Cu-Kα (λ = 1.540598 Å) radiation at 40 kV tube voltage and 40 mA tube current. The XRD data were collected in a 2θ range from 10° to 120°, with the continuous scan mode at the speed of 0.05 s per step with a step size of 0.01°. XRD Rietveld profile refinements of the structural models and texture analysis were performed with the use of Fullprof software. Photoluminescence excitation (PLE) and emission (PL) spectra were measured by using a fluorescence spectrometer (Fluoromax-4P, Horiba Jobin Yvon, New Jersey, U.S.A.) equipped with a 450 W xenon lamp as the excitation source and both excitation and emission spectra were set up to be 1.0 nm with the width of the monochromator slits adjusted to 0.50 nm. The photoluminescence decay curves were obtained from a Lecroy Wave Runner 6100 digital oscilloscope (1 GHz) using a tunable laser (pulse width = 4 ns, gate = 50 ns) as the excitation source (Continuum Sunlite OPO). All the measurements were carried out at room temperature.

3. Results and discussion

3.1 Phase identification, XRD refinement and crystal structure

The phase purity and structural type of the as-prepared powder samples were first identified by XRD. Fig. 1 demonstrates the typical powder XRD patterns of representative SYSO:0.01Eu²⁺, SYSO:0.10Tb³⁺ and SYSO:0.01Eu²⁺,yTb³⁺ (y = 0.01, 0.05, 0.13, 0.14, 0.17, 0.21) samples. It is obvious that all the diffraction peaks of the samples were well indexed to the reported Sr₃Y₂(Si₃O₉)₂ phase,³⁶ indicating the formation of a single phase and that the doped ions were completely dissolved in the SYSO host without inducing significant changes in the crystal structure. This demonstrates that the crystal structure of the SYSO host has excellent stability and accommodation capacity for doped ions.

Fig. 1 XRD patterns of SYSO:0.10Tb³⁺ and SYSO:0.01Eu²⁺,yTb³⁺ (y = 0, 0.01, 0.05, 0.13, 0.14, 0.17 and 0.21). The Sr₃Y₂(Si₃O₉)₂ phase reported by Tyutyunnik³⁶ is shown as a reference.

To further investigate the crystal structure of the host, the XRD pattern of the representative SYSO:0.01Eu²⁺ sample was used to perform the Fullprof refinement. The starting model was built with crystallographic data taken from Tyutyunnik et al.³⁶ The experimental, calculated and difference XRD profiles and Bragg positions for the Fullprof refinement of SYSO:0.01Eu²⁺ at room temperature are shown in Fig. 2(a). The pure SYSO:0.01Eu²⁺ crystallizes in a monoclinic phase with the space group C2/c (15), a = 13.512 Å, b = 7.984 Å, c = 14.815 Å, α = γ = 90.000°, β = 90.111°, V = 1598.220 ų and Z = 4. All atom positions, fraction factors, and thermal vibration parameters were refined by convergence and satisfied well the reflection conditions, R_p = 6.03%, R_wp = 8.47%, as shown in Table 1. Therefore, the refinement result further verifies that the generation of a single-phase pattern and the crystal structure of the SYSO host are unchanged with the doping of luminescent ions. Fig. 2(b) shows the coordination environments of the cation sites. In the SYSO host, there are three kinds of cation sites which are named Sr1/Y1, Sr2/Y2 and Sr3/Y3 here for easier identification.³⁶ Three independent Sr/Y sites are coordinated by eight, seven and six oxygen atoms, respectively. The coordination diversity of the Sr/Y sites in the host is beneficial to the multiple 5d–4f transition emission of the activator ions and the design of energy transfer.⁴⁰

Fig. 2 (a) Experimental (crosses) and calculated (red solid line) XRD patterns and their difference (blue solid line) for the Rietveld fit of the SYSO:0.01Eu²⁺ XRD pattern using the Fullprof program. The short vertical lines show the positions of Bragg reflections of the calculated pattern. (b) Crystal structure schematic diagram of Sr₃Y₂(Si₃O₉)₂ (from ref. 32).

Table 1 Final refined structural parameters of SYSO:0.01Eu²⁺ derived from the Fullprof refinement of X-ray diffraction data

Atom	Wyckoff position	X	Y	Z	Occ
Cell parameters: a = 13.512 Å, b = 7.984 Å, c = 14.815 Å; α = γ = 90.000°, β = 90.111°; V = 1598.220 Å^3; Z = 4; Space group: C2/c (15); Reliability factor: Rp = 6.03%, Rwp = 8.47% and χ^2 = 14.9.
Sr1/Eu1	8f	0.16073(0)	0.12070(0)	0.41270(0)	0.63
Y1/Eu1	8f	0.16073(0)	0.12070(0)	0.41270(0)	0.37
Sr2/Eu2	8f	0.34103(0)	0.12660(0)	0.07852(0)	0.74
Y2/Eu2	8f	0.34103(0)	0.12660(0)	0.07852(0)	0.26
Sr3/Eu3	4e	0.00000(0)	0.37730(0)	0.25000(0)	0.26
Y3/Eu3	4e	0.00000(0)	0.37730(0)	0.25000(0)	0.74
Si1	8f	0.09850(0)	0.06570(0)	0.10990(0)	1.000
Si2	8f	0.27160(0)	0.37040(0)	0.26110(0)	1.000
Si3	8f	0.40620(0)	0.17870(0)	0.39690(0)	1.000
O1	8f	0.00610(0)	0.17740(0)	0.13660(0)	1.000
O2	8f	0.05290(0)	0.12960(0)	0.58320(0)	1.000
O3	8f	0.15770(0)	0.37890(0)	0.30150(0)	1.000
O4	8f	0.15990(0)	0.10220(0)	0.02120(0)	1.000
O5	8f	0.17870(0)	0.03510(0)	0.18950(0)	1.000
O6	8f	0.29390(0)	0.37960(0)	0.16590(0)	1.000
O7	8f	0.32150(0)	0.20790(0)	0.31390(0)	1.000
O8	8f	0.34040(0)	0.10560(0)	0.48670(0)	1.000
O9	8f	0.50990(0)	0.06590(0)	0.13180(0)	1.000

---

3.2 Luminescence properties of Eu²⁺-doped phosphors

The PL and PLE spectra of the as-prepared SYSO:0.01Eu²⁺ at room temperature are shown in Fig. 3. Monitored at 474 nm, the sample shows a broad intense band from 250 to 450 nm with a maximum at 346 nm due to the 4f⁷ → 4f⁶5d¹ transition of the Eu²⁺ ions. Under 346 nm UV excitation, SYSO:0.01Eu²⁺ shows an asymmetric emission band extending from 400 to 620 nm with the maximum at 474 nm, indicating a possible spectral overlap originating from different luminescence centers. To investigate the relationship between the coordinative environments and PL properties of the Eu²⁺ ion, the PL spectrum of SYSO:0.01Eu²⁺ is deconvoluted into at least three Gaussian components with peaks at 463, 489 and 521 nm, as shown in Fig. 3. These components can be ascribed to the contributions of the transitions from the lowest excited states to the ground states of Eu²⁺ ions at three different Eu²⁺ luminescence centers, which is in accordance with the number of Sr/Y sites in the host. The excitation spectra of 463, 489 and 521 nm emission bands are shown in Fig. S1 (ESI†). The excitation spectra of the three emission bands have a noticeable difference. Furthermore, similar phenomena have been observed by Seo H. J. and the results are in accordance with our experimental conclusions.⁴¹ Therefore, the doped Eu²⁺ ions can randomly enter into three kinds of Sr/Y cation sites.

Fig. 3 The typical PLE (black solid line) and PL spectra (blue solid line) of SYSO:0.01Eu²⁺, together with the Gaussian peak fitting (cyan dashed lines) of the PL spectrum.

Fig. 4(a) exhibits the dependence of the Eu²⁺ luminescence intensity on its doping concentration. It can be observed that the emission intensity of the Eu²⁺ ions first increases with increasing doping concentration, reaching a maximum at x = 0.01, and then decreases sharply with enhancing doping content due to the concentration quenching effect. In general, the concentration quenching of luminescence is due to the energy migration among the activator ions at high concentrations. The critical distance R_C between Eu²⁺ ions can be estimated using the equation given by Blasse:⁴²

where V is the volume of the unit cell, X_c is the critical concentration of Eu²⁺ ions, and N is the number of host cations in the unit cell. In this case, N = 20, V = 1598.220 ų, and the critical doping concentration of Eu²⁺ in the SYSO host is 0.01. Therefore, the critical distance (R_C) was calculated to be about 24.81 Å. In addition, it is noticed that the emission peaks have a slight red shift with increasing Eu²⁺ concentration in Fig. 4(b), which could be attributed to the enhancement of the crystal field magnitude surrounding the Eu²⁺ ions. In order to understand the red-shift mechanism, Fig. 4(c–e) show the Gaussian peak fitting of SYSO:mCe³⁺ at 463, 489 and 521 nm. Table S1 (ESI†) summarizes the integrated intensity and ratio of the Gaussian peak fitting of the samples. It is found that the emission intensity ratios of Eu²⁺ at 489 and 521 nm are relatively higher than that at 463 nm with the increase of x in the SYSO:xEu²⁺ samples. This indicates that more Eu²⁺ ions occupy the Sr2/Y2 and Sr3/Y3 sites when the Eu²⁺ doping concentration is enhanced, and thus the PL spectra show a slight red shift (up to 16 nm). The red shift behavior is common in many phosphors with multi-cation sites for activator ions,^21,43,44 which is beneficial for tuning the luminescence properties of phosphors by simply changing the doping concentration for application in w-LEDs.

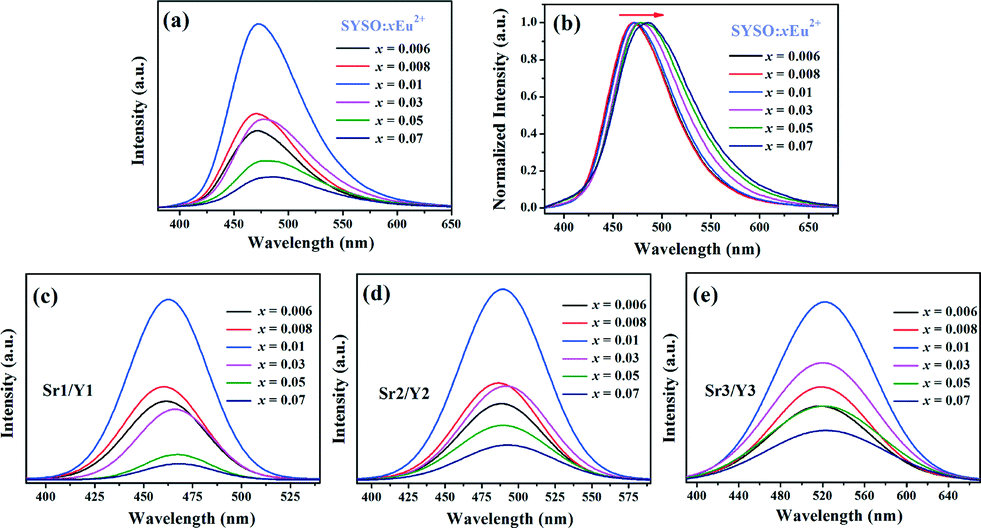

Fig. 4 (a) The PL spectra of SYSO:xEu²⁺ phosphors (x = 0.006, 0.008, 0.01, 0.03, 0.05 and 0.07). (b) Normalized PL spectra of SYSO:xEu²⁺ samples with various Eu²⁺ contents. The Gaussian peak fitting of SYSO:xEu²⁺ at (c) 463 nm, (d) 489 nm and (e) 521 nm.

As we know, non-radiative energy transfer usually occurs as a result of exchange interaction or multipole–multipole interaction. Since the exchange interaction comes into effect only when the distance between activators is shorter than 4 Å, the concentration quenching mechanism of Eu²⁺ in the phosphor is dominated by the multipole–multipole interaction. According to Van Uiter's report, the emission intensity (I) per activator ion follows the equation:

I/x = k[1 + β(x)^θ/3]⁻¹ (2)

where x is the activator concentration, I/x is the emission intensity per activator concentration, k and β are constants for a given host under the same excitation conditions and θ = 6, 8 and 10 represent the dipole–dipole, dipole–quadrupole and quadrupole–quadrupole interactions, respectively. By modifying eqn (2), log(I/x) acts as a linear function of log(x) with a slope of −θ/3. To get the value of θ, the relationship between log(I/x) and log(x) is plotted with x ranging from 0.01 to 0.07. From Fig. 5, −θ/3 is found to be −1.89, and accordingly, θ is calculated to be 5.67 which is close to 6. The result indicates that the concentration quenching mechanism involves dipole–dipole interactions.

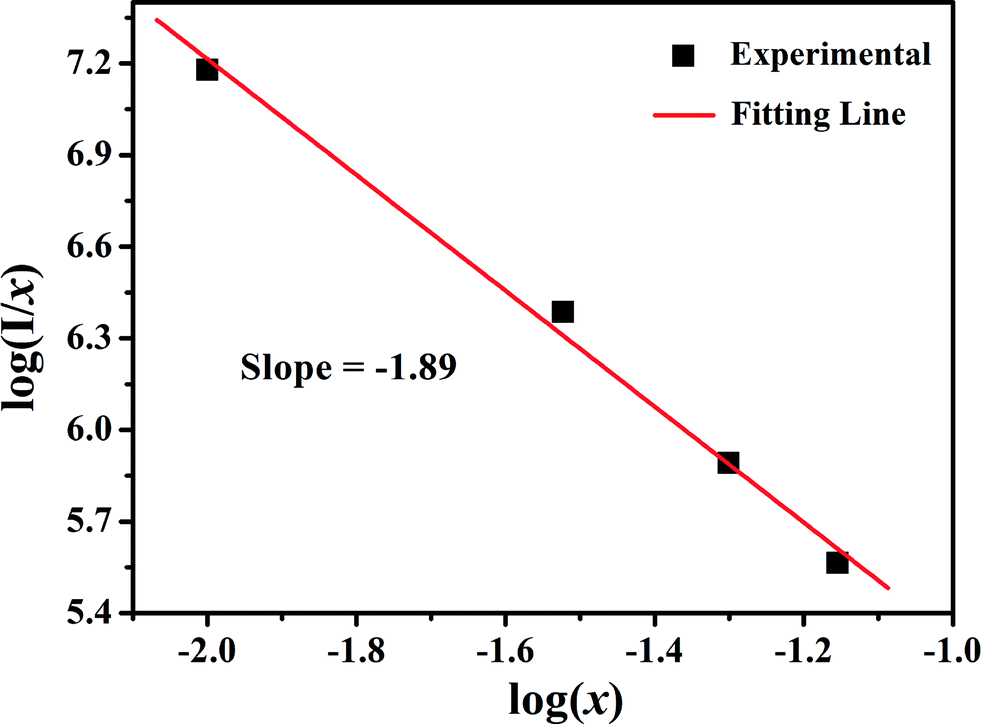

Fig. 5 Dependence of log(I/x) on log(x) in SYSO:xEu²⁺ phosphors.

3.3. Luminescence properties and energy transfer in SYSO:Eu²⁺,Tb³⁺

The Tb³⁺ ion as an important activator can be well incorporated into many host lattices giving intense emission. It is known to us that Tb³⁺ has a simple 4f-configurational energy level structure with low-energy state ⁷F_J (J = 6, 5, 4, 3) and excited states ⁵D₃ and ⁵D₄. Generally, the blue emissions resulting from ⁵D₃ → ⁷F_J transitions will dominate at a very low doping concentration of the Tb³⁺ ion. As the Tb³⁺ concentration increases, the cross-relaxation between ⁵D₃—⁵D₄ and ⁷F₀—⁷F₆ occurs, which can increase the population of the ⁵D₄ energy level, correspondingly enhancing the transition of ⁵D₄ to ⁷F_J and producing green light. Fig. 6(a) presents the PLE and PL spectra of the SYSO:0.10Tb³⁺ sample. The PLE spectrum shows a broad band from 230 to 300 nm and a series of peaks in the range of 310–400 nm with a maximum at 378 nm. Upon excitation at 378 nm, several narrow emission peaks of SYSO:0.10Tb³⁺ appear in the range of 400–650 nm. The highest peak at 541 nm is ascribed to the ⁵D₄ → ⁷F₅ transition. The other peaks at 487, 584 and 622 nm correspond to the traditional ⁵D₄ → ⁷F_J (J = 6, 4, 3) transitions of Tb³⁺ ions, respectively.^37,45,46Fig. 6(b) demonstrates the PLE and PL spectra of the Eu²⁺ and Tb³⁺ co-doped phosphor. It is observed that the PLE spectrum monitoring the emission of Tb³⁺ at 543 nm is similar to that monitoring the cyan emission of Eu²⁺, demonstrating the existence of energy transfer from Eu²⁺ to Tb³⁺.

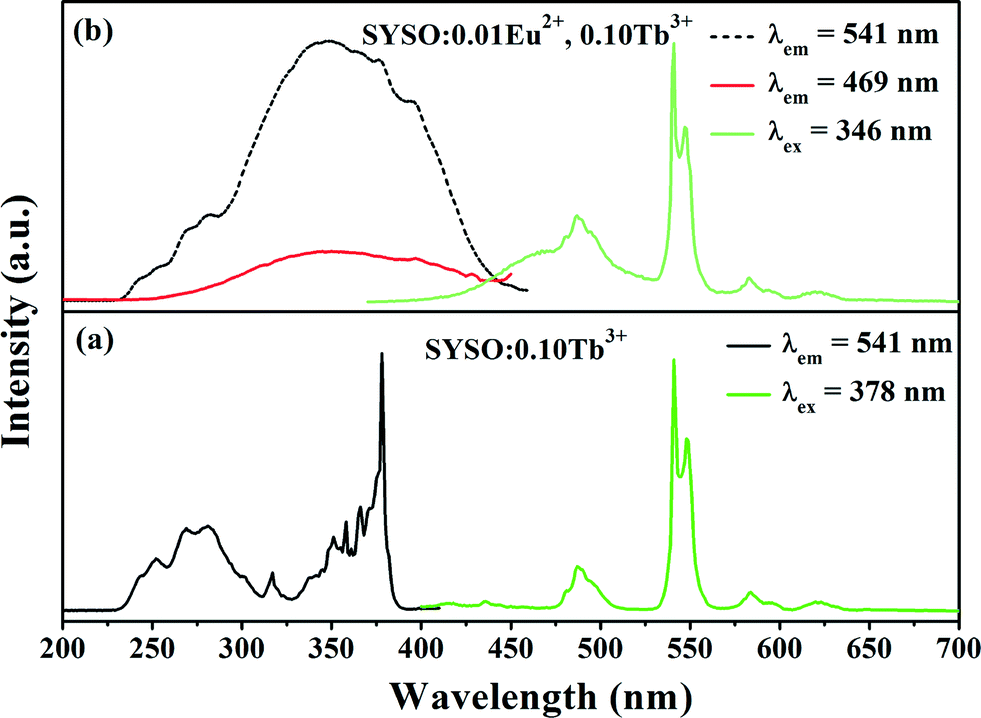

Fig. 6 PL and PLE spectra of (a) SYSO:0.10Tb³⁺ and (b) SYSO:0.01Eu²⁺,0.10Tb³⁺ phosphors.

In order to explain the energy transfer process from Eu²⁺ to Tb³⁺ in the SYSO host, the corresponding energy level diagrams and the possible optical transition involved in the energy transfer processes from Eu²⁺ to Tb³⁺ are presented in Fig. 7. From this diagram, it is necessary to note that the energy level of the lowest excited state (4f⁶5d¹ ~23 529 cm⁻¹) of the Eu²⁺ ion is 2953 cm⁻¹ higher than that of the excited state (⁵D₄ ~20 576 cm⁻¹) of the Tb³⁺ ion, which indicates a small mismatch.⁴⁷ Hence, it is predicated that the energy transfer process from Eu²⁺ to Tb³⁺ can be divided into two processes.⁴⁸ One is the resonant process in which the electrons of Eu²⁺ non-radiatively or radiatively relax from the lowest excited state (4f⁶5d¹) to the ground state (4f⁷(⁸S_7/2)) and simultaneously the electrons of Tb³⁺ migrate from the ground state to the excited state (⁵D₄). The other is the temperature-dependent process in which the energy mismatch between the excited state (4f⁶5d¹) of Eu²⁺ and the excited state (⁵D₄) of Tb³⁺ is overcome by a phonon in the host.

Fig. 7 The schematic diagram of energy transfer in SYSO:Eu²⁺,Tb³⁺.

In order to further optimize the green emission of Tb³⁺ ions, the concentration-dependent emission intensity of SYSO:0.01Eu²⁺,yTb³⁺ is studied. Fig. 8 gives the PL spectra of selected SYSO:0.01Eu²⁺,yTb³⁺ phosphors (y = 0, 0.01, 0.05, 0.13, 0.14, 0.17 and 0.21). Upon excitation into the Eu²⁺ absorption band, it is clearly observed that the emission intensity of Eu²⁺ gradually decreases while the emission intensity of Tb³⁺ gradually increases with the increase of Tb³⁺ concentration. When the y value is higher than 0.13, the Tb³⁺ and Eu²⁺ emission intensities decrease remarkably. This can be attributed to the Tb³⁺–Tb³⁺ internal concentration quenching effect, which occurs when the activator concentration is high.^49,50 These results also confirm the existence of Eu²⁺ → Tb³⁺ energy transfer in SYSO:Eu²⁺,Tb³⁺. Fig. S2 (ESI†) shows the emission intensity of SYSO:0.01Eu²⁺,0.21Tb³⁺ is about 2.5 times higher than that of SYSO:0.21Tb³⁺ under 340 nm UV excitation. This not only proves again that energy transfer from Eu²⁺ to Tb³⁺ really occurs but also demonstrates that the green emission of SYSO:Eu²⁺,Tb³⁺ should mainly originate from the energy transfer of Eu²⁺ → Tb³⁺.

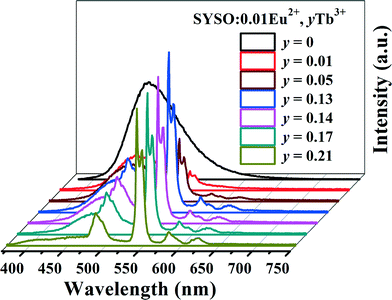

Fig. 8 The PL spectra of SYSO:0.01Eu²⁺,yTb³⁺ phosphors (y = 0, 0.01, 0.05, 0.13, 0.14, 0.17 and 0.21).

The decay curves of SYSO:0.01Eu²⁺,yTb³⁺ phosphors (y = 0, 0.01, 0.05, 0.13, 0.14, 0.17 and 0.21) excited at 340 nm and monitored at 474 nm are shown in Fig. 9. Since there are three Eu²⁺ luminescence centers in the SYSO host, the decay curves are successfully fitted using the following three-exponential equation:^37,43

I(t) = I₀ + A₁ exp(−t/τ₁) + A₂ exp(−t/τ₂) + A₃ exp(−t/τ₃) (3)

where I(t) and I₀ are the luminescence intensities at times t, A₁, A₂ and A₃ are fitting constants and τ₁, τ₂ and τ₃ are the decay times for the exponential components. Using these parameters, the average decay times (τ*) can be determined using the formula as follows:⁵¹

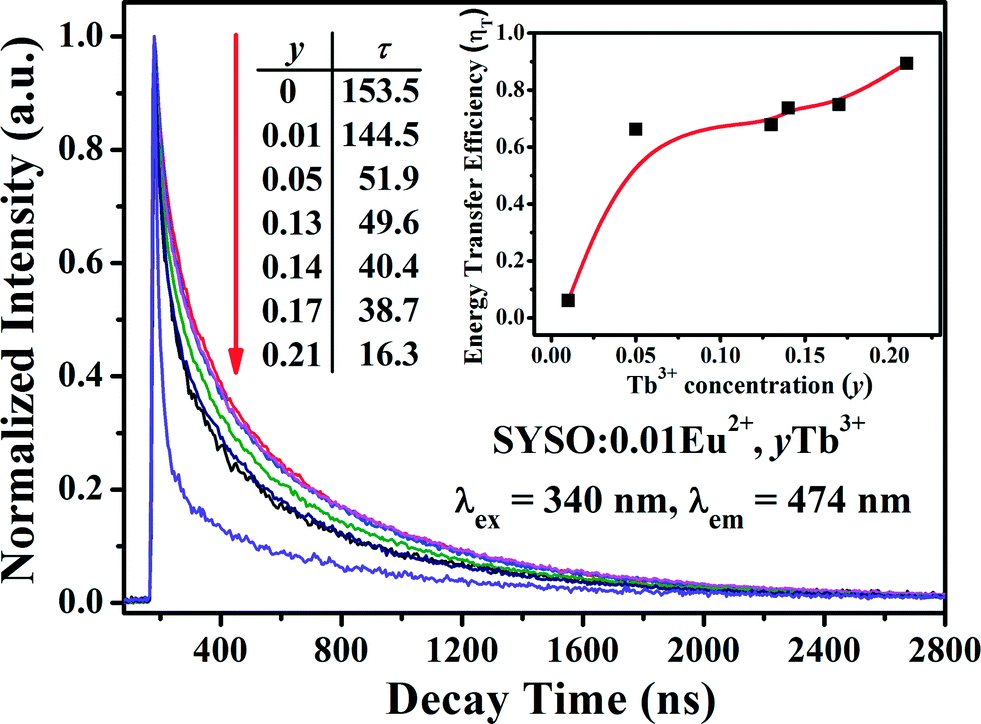

Fig. 9 Decay curves of Eu²⁺ emission monitored at 474 nm for SYSO:0.01Eu²⁺,yTb³⁺ phosphors (y = 0, 0.01, 0.05, 0.13, 0.14, 0.17 and 0.21) under excitation at 340 nm. The inset shows the dependence of energy transfer efficiency (η_T) on the Tb³⁺ content.

The average decay times (τ*) were calculated to be 153.5, 144.5, 51.9, 49.6, 40.4, 38.7 and 16.3 ns for SYSO:0.01Eu²⁺,yTb³⁺ with y = 0, 0.01, 0.05, 0.13, 0.14, 0.17 and 0.21, respectively. Obviously, the decay times of Eu²⁺ emission gradually decrease with increasing Tb³⁺ doping content, indicating the existence of the Eu²⁺ → Tb³⁺ energy transfer process in the SYSO host lattice. η_T can be calculated using the following equation derived by Paulose et al.⁵²

As a consequence, the η_T values for SYSO:0.01Eu²⁺,yTb³⁺ were calculated to be 6.2%, 66.2%, 67.8%, 73.7%, 74.9% and 89.4% as a function of y (y = 0.01, 0.05, 0.13, 0.14, 0.17 and 0.21), respectively, as shown in the inset of Fig. 9. The above results indicate that the energy transfer from Eu²⁺ to Tb³⁺ in the SYSO:Eu²⁺,Tb³⁺ system is very efficient.

As we know, there are two main aspects that are responsible for the resonant energy transfer mechanism: one is exchange interactions and the other is multipolar interactions.⁵³ The critical distance R_C for energy transfer from the Eu²⁺ to Tb³⁺ ions can also be calculated using eqn (1). Here, X_c is the total concentration of Eu²⁺ and Tb³⁺ ions, and the critical concentration (X_c) is that at which the luminescence intensity of the sensitizer (Eu²⁺) is half that in the sample in the absence of an activator (Tb³⁺). Therefore, the critical distance (R_C) of energy transfer was calculated to be about 20.39 Å. Because the calculated R_C value is much longer than 4 Å, there is little possibility of energy transfer via the exchange interaction mechanism. Thus, the electric multipolar interaction is responsible for energy transfer between the Eu²⁺ and Tb³⁺ ions. According to Dexter's energy transfer formula of multipolar interaction and Reisfeld's approximation, the following relation can be obtained:

η_SO/η_S ∝ y^n/3 (6)

where y is the sum of the content of Tb³⁺, η_SO and η_S are the luminescence quantum efficiency of Eu²⁺ in the absence and presence of Tb³⁺, and n = 6, 8 and 10 corresponding to dipole–dipole, dipole–quadrupole and quadrupole–quadrupole interactions, respectively. The η_SO/η_S value is approximately calculated using the ratio of relative luminescence intensities as:

I_SO/I_S ∝ y^n/3 (7)

where I_SO is the intrinsic luminescence intensity of Eu²⁺ and I_S is the luminescence intensity of Eu²⁺ in the presence of Tb³⁺. The relationships between I_SO/I_S and y^n/3 are plotted in Fig. 10(a–c). The linear relationship reaches the optimal one for I_SO/I_S ∝ y^10/3 by comparing the fitting factors of R values in Fig. 10(c). Therefore, the energy transfer mechanism from the Eu²⁺ to Tb³⁺ ions in SYSO host is determined to be the electric quadrupole–quadrupole interaction.

Fig. 10 Dependence of I_SO/I_S of Eu²⁺ on (a) y^6/3, (b) y^8/3 and (c) y^10/3.

Energy transfer makes it possible to obtain both the cyan emission of the Eu²⁺ ions and the green emission of the Tb³⁺ ions in a single host, which is a feasible route to realize the color-tunable emission under excitation of UV radiation. This result is also confirmed by the CIE chromaticity coordinates shown in Fig. 11. Fig. 11 depicts the chromaticity coordinates for SYSO:0.01Eu²⁺,yTb³⁺ (y = 0, 0.01, 0.05, 0.13, 0.14, 0.17 and 0.21) calculated based on the corresponding emission spectra excited at 346 nm. We can find that the color tone of the phosphors shifts gradually from cyan (0.1603, 0.2432) to green (0.2662, 0.4699) with an increase in the doping content of Tb³⁺, confirming that the CIE chromaticity coordinates are tunable. It is found that the quantum efficiency of the as-prepared SYSO:0.01Eu²⁺,0.17Tb³⁺ sample is 25.6%. Moreover, it can be further improved by process optimization. Based on these results, it is clear that these SYSO:Eu²⁺,Tb³⁺ phosphors can be efficiently excited in the UV range. This indicates that SYSO:Eu²⁺,Tb³⁺ can act as potential cyan-green tunable phosphors for their possible applications in w-LEDs.

Fig. 11 The CIE chromaticity diagram of SYSO:0.01Eu²⁺,yTb³⁺ phosphors excited at 346 nm.

3.4. Thermal quenching properties

Aside from high luminescence, the thermal stability of phosphors is also one of the important issues to be considered in high-power LEDs. Fig. 12(a) depicts the temperature dependence of the luminescence intensity of SYSO:0.01Eu²⁺,0.17Tb³⁺ excited at 350 nm in the temperature range of 298 K to 473 K. The maximum peak is constantly located at 541 nm even at higher temperature. The emission intensity progressively decreased as the temperature increased due to thermal quenching and it showed poor thermal stability. Similar phenomena have been observed by other researchers, and it may be accounted for the fact that deficiencies formed due to the radii mismatch of rare earth ions and cation ions.⁵⁴ As a result, the probability of a non-radiative process increased, leading to worse thermal stability. The temperature quenching mechanism could be explained by the configuration coordinate diagram shown in Fig. 12(b). With the increase in temperature, the phonon vibration is strengthened and more electrons located at the lowest excited state B can absorb the phonon energy and are excited to state C. Electrons at state C can go back to ground state A by relaxation and give no emission, decreasing the number of electrons which can go back to the ground state through radiation. Thus, the emission intensity of the phosphor will decrease with the increment of temperature.

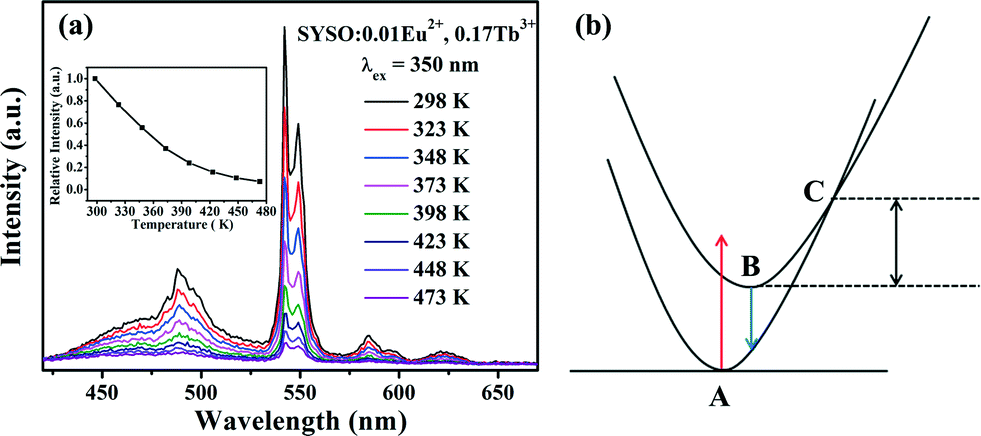

Fig. 12 (a) The temperature dependence of the emission spectra of SYSO:0.01Eu²⁺,0.17Tb³⁺. The inset shows the dependence of normalized PL intensity on working temperature. (b) The schematic configuration coordinate diagram for the explanation of temperature quenching.

4. Conclusions

In summary, a series of Eu²⁺ single-doped phosphors (SYSO:xEu²⁺) and Eu²⁺–Tb³⁺ co-doped phosphors (SYSO:0.01Eu²⁺,yTb³⁺) were synthesized and investigated for the first time via solid-state reactions. By structure refinement, it is found that there are three kinds of cation sites in the SYSO host lattice, which are coordinated by eight, seven and six O atoms for Sr1/Y1, Sr2/Y2 and Sr3/Y3 sites, respectively. The SYSO:0.01Eu²⁺ sample presents a broad emission band centered at 474 nm, which can be resolved into three symmetrical bands peaking at 463, 489 and 521 nm, attributed to Eu²⁺ occupying three kinds of Sr/Y sites under UV excitation. A red-shifted emission at the higher Eu²⁺ concentration should be attributed to more Eu²⁺ ions entering into Sr2/Y2 and Sr3/Y3 sites from the Sr1/Y1 site. The critical distance for Eu²⁺ has been calculated to be 24.81 Å and the concentration quenching is dominated by dipole–dipole interactions. For the co-doped SYSO:0.01Eu²⁺,yTb³⁺ samples, tunable colors from cyan to green can be realized by singly varying the doping concentration of the Tb³⁺ ions. The energy transfer mechanism from Eu²⁺ to Tb³⁺ in the SYSO host has been demonstrated to be quadrupole–quadrupole interactions, and the energy transfer efficiency obtained through the decay curves gradually increased from 6.2% to 89.4% by increasing the Tb³⁺ doping content from 0.01 to 0.21. In conclusion, these results indicate that the color-tunable SYSO:Eu²⁺,Tb³⁺ phosphor can be a promising candidate to serve as a potential phosphor for w-LEDs.
