Xinjian Xie†
a,
Mengyin Liu†b,
Changhong Wangb,
Lei Chenb,
Jianping Xuc,
Yahui Chengb,
Hong Dongb,
Feng Lub,
Wei-Hua Wangb,
Hui Liub and
Weichao Wang*b
aSchool of Material Science and Engineering, Hebei University of Technology, Tianjin 300130, China
bDepartment of Electronics and Key Laboratory of Photo-Electronic Thin Film Devices and Technology of Tianjin, Nankai University, Tianjin 300071, China. E-mail: weichaowang@nankai.edu.cn; Fax: +86 22 23509930; Tel: +86 22 23509930
cInstitute of Material Physics, Key Laboratory of Display Materials and Photoelectric Devices, Ministry of Education, Tianjin University of Technology, Tianjin 300384, China
First published on 9th December 2015
CuWO4 is a promising photocatalytic material, responding in the visible light range, to enhance the utilization of solar energy. Here, CuWO4 nanoparticles have been synthesized via a polyol-mediated synthesis method and subsequently characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), UV-Vis Spectrophotometery combined with theoretical density functional theory (DFT) calculations. For the as-prepared CuWO4 samples, a strong adsorption capacity for the organic pollutant MB rather than photodegradation has been observed. The first-principle calculation with Heyd–Scuseria–Ernzerhof (HSE) screened coulomb hybrid functional results indicate that localization of hybridization of O 2p-orbitals and Cu 3d-orbitals, large electron effective mass and more positive conduction band edge of CuWO4 lead to low carrier mobility and thus the high recombination of excited carriers. Meanwhile, the optical absorption spectrum of experimental observation is consistent with theoretical calculations of pristine CuWO4, demonstrating few defects inhibiting light absorption. To avoid the high rate of recombination of the excited carriers, electron sacrificial agents (H2O2, Na2S2O8) are utilized to suppress the recombination. The photocatalytic activity is thus largely improved.
The semiconductor materials have been used to generate oxidants for several years15,16 since the photocatalytic splitting of water was discovered on the TiO2 electrodes by Fujishima and Honda in 1972.17 To date, anatase TiO2 dominates the photocatalysis market owing to its low cost, non-toxicity, highly catalytic activity and chemical stability.18,19 Whereas, TiO2 with a band gap of 3.2 eV displays a low efficiency (∼5%) of utilizing solar energy. In order to ultimately harvest solar energy, it is important to continue searching for visible light driven photocatalysts.20,21
CuWO4, as a ternary narrow band gap semiconductor (Eg ∼ 2.2 eV), is an ideal high-efficiency semiconductor photocatalyst due to its absorption of visible-light22,23 with reasonable valence band alignments with ·OH/H2O energy level. Moreover, the catalytic performances could also be influenced by other factors such as crystallinity, defects and interface, which introduce various electronic structures including band tails,24 defect states,25 and interfaces states.26 These states significantly impact on carrier mobility,27 carrier's recombination,28 electronic conductivity29 and etc.,30 resulting in the variations of the catalytic activity. Without full understanding of the microscopic electronic structures, it would be difficult to further improve the photocatalytic performance. Here, we combined theoretical calculations and experimental methods to link the electronic structures and the catalytic performance of CuWO4. Based on the DFT calculations, the catalytic activity has been improved with the presence of electron capture agents. In such a way, these findings provide insights into further promising photocatalyst design.
In this work, CuWO4 was prepared by polyol-mediated synthesis method. The synthesized samples are characterized by the X-ray diffraction (XRD), scanning electron microscope (SEM), transmission electron microscopy (TEM) and UV-Vis Spectrophotometer. As-prepared powder displays a strong adsorption capacity of organic pollutant MB rather than photodegradation. First-principle calculations point out that the disadvantage of localized band edge states of hybridization of O 2p-orbitals and Cu 3d-orbitals causes the high recombination of excited carrier. On the other hand, the experimental optical absorption spectrum of sample is consistent with theoretical calculation of pristine CuWO4 which indicates no problem for our synthesized samples to absorb light. In the presence of electronic sacrificial agent, the excited holes are survived and thus CuWO4 displayed a high photocatalytic performance to degrade the MB dye.
![]() | ||

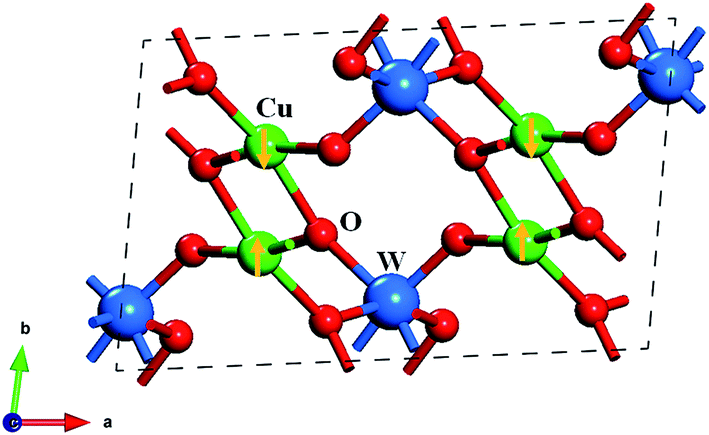

Fig. 1 The crystal structure of CuWO4, the green, blue and red balls represent Cu, W and O atoms, respectively. Arrows represent the spin directions of Cu. |
The as-prepared CuWO4 powder shows green color (inset in Fig. 2) and the according XRD peaks (Fig. 2) are broadened which indicates the amorphous phase of the sample power. After heating the sample under 500 °C for 1 hour, the color turned into dark grey (inset in Fig. 2) and the XRD pattern displays the formation of the pure phase of CuWO4 (Fig. 2). The color change before and after sample annealing results from the typical quantum size effect.
Fig. 3(a)–(c) describe morphologies of as-prepared sample. Irregular nanoparticles have been observed by SEM (Fig. 3(a)), the grain size varying from 10–20 nm has been verified by TEM (Fig. 3(b) and (c)) and the specific surface area is expected to be large. The selected area electron diffraction (SAED) (Fig. 3(c)) shows the blurry spots corresponding to low degree of crystallinity of as-prepared CuWO4. For the annealed sample, SEM and TEM (Fig. 3(d)–(f)) show that the particle size significantly grows up to ∼50 nm and nanoparticles seriously reunite due to regrowth and recrystallization during the annealed process. On the other hand, clear spots of SAED (Fig. 3(f)) also identify the improvement of crystallinity after the sample was annealed.
![]() | ||
Fig. 3 SEM, TEM images of as-prepared sample (a) and (b) and annealed sample (d) and (e); (c) and (f) are magnified high-resolution TEM images of red boxes in (b) and (e), respectively. |
For the photodegradation of MB, the as-prepared powder displays a strong adsorption capacity of organic pollutant MB within the first 10 min (Fig. 4(a)). No photodegradation phenomenon has been observed during this period. When continuing increasing observing time larger than 10 min, no more adsorption is displayed since as-prepared CuWO4 has reached its adsorption equilibrium. For the annealed sample, the particle size significantly grows up to ∼50 nm and nanoparticles reunite seriously which have been observed by SEM and TEM (Fig. 3(d)–(f)). Consequently, the decrease of the surface areas leads to the decrease of MB adsorption, as shown in Fig. 4(b). Also, the annealed sample displays no photocatalytic behavior. Little variation of the photocatalytic behaviors for the as-prepared sample and the annealed one proves that particle size is not the key to impact the catalytic activity for this case.
Intrinsically, two critical factors would govern the photocatalytic activity, i.e. carrier conductivity and optical absorption. For the former one, it is governed by the band edge shapes of CuWO4. The later one is influenced by light absorption spectrum. In order to access the failure mechanism of the photocatalytic performance of CuWO4, electronic structure and optical spectrum should be calculated.
With the advantage of the start-of-art supercomputer and computational algorithm, it is now feasible to access the fundamental electronic structures at the atomic level. In this work, we employed density functional theory (DFT) to explore the electronic structure and optical spectrum of the CuWO4.
Fig. 5 illustrates the calculated band structure along high symmetric k-point B (0.5, 0, 0) – Γ (0, 0, 0) – F (0, 0.5, 0) – Q (0, 0.5, 0.5) – G (0, 0, 0.5) in the first Brillouin zone. The conduction band minimum (CBM) and valence band maximum (VBM) are located at Γ k-point and Q k-point, respectively, indicating an indirect band gap. The gap value is ∼2.2 eV which is highly consistent with experimental result.37 Also, in the bottom region of conduction band at Γ point, the band is rather flat. By extracting the curvature of the CBM and VBM, we obtained a large the effective mass of electron and hole (m*e = 59 m0, m*h = 57 m0, m0 is free electron mass), resulting in the poor electron and hole conductivity, respectively.23
![]() | ||
Fig. 5 The band structure diagram (left panel) and the spin-dependent density of states (right panel) for CuWO4. Fermi level is set at zero eV in both panels. |
Fig. 5 also shows the normalized total and projected density of states (PDOS). The spin-up states are identical to the spin-down ones. Thus, CuWO4 presents an anti-ferromagnetic (AFM) ground state with the magnetic moment of 0.68 μB for Cu atoms and 0.05 μB for O atoms, being consistent with experiment observations of μCu = 0.67 μB, μO = 0.06 μB35 and PBE + U calculation of μCu = 0.74 μB, μO = 0.07 μB.40
In Fig. 5, the O-2p and Cu-3d orbitals hybrid and dominate the band edges. More specifically, valance band maximum is mainly composed of the orbital hybridization of oxygen 2p-orbitals and copper 3d-orbitals, leading to the more positive position of the VBM,41 and the strong oxidizing property of the excited holes. Therefore, we speculate that O and Cu could be the activity sites for photocatalysis. The excited hole either directly reacts with organic pollutant molecular to decompose it or reacts with OH− to produce strong oxidant hydroxyl radicals. Hybridization of Cu-3d and O-2p results in more positive CBM and narrow band gap which improves the visible-light absorption. Nevertheless, Hybridization of Cu-3d and O-2p also lead to more positive conduction band edge of CuWO4 compared to H+/H2 reduction level in solution.42 In other words, there is no excited electron acceptor in this photocatalytic system, as a result, excited electrons will gather on the CuWO4 surface and cause more severe surface recombination. Moreover, the localized states of hybridization of O 2p and Cu 3d orbitals could lead to the lower carrier mobility, high recombination rate of excited carrier and essentially result in low efficient photocatalytic behavior.
In addition to the material intrinsic electronic properties, optical adsorption is another important factor to govern the photocatalytic activity. For the absorption spectrum of bulk material, it is formatted as:
ε2 and ε1 are imaginary part and real part of dielectric function, respectively, ω is angular frequency. In order to obtain the absorption spectrum, dielectric constant was calculated via DFT. Fig. 6(a) and (b) show the calculated results of the imaginary part and real part of dielectric function for CuWO4 along three Cartesian directions, respectively. The optical anisotropy is due to low crystal symmetry and the peculiarities in the crystal structure, i.e., the existence of the bridge-oxygen ions connecting with neighboring CuO6 and WO6 complexes. Based on the calculated dielectric function curves, we obtained the theoretical absorption spectrum, as shown in Fig. 6(c). The light absorption begins about 2.0 eV, corresponding to the electron excitation from the VBM to the CBM (Fig. 6(c)). Experimentally, the as-prepared and annealed CuWO4 has been used to test the absorption spectrum by UV-Vis Spectrophotometer. For the as-prepared sample, the localized absorption peak appeared at 1.5 eV as the subgap absorption,43 which originates from bonding defects induced located states in the forbidden energy gap.44 This specific subgap absorption helps to improve the visible-light absorption. Compared the theoretical and pure annealed sample absorption spectrum, it is found that they are consistent with each other.45 This means the light absorption of sample is close to the theoretical value attributed to few defects and impurities hindrance light absorption.46,47 In other words, our sample shows bulk-like absorption behavior without impacting by defect levels.
On the basis of the theoretical analysis, charge carrier separation would be the key to influence the photocatalytic activity. Thus, promoted separation of the excited carriers would be an effective method to achieve the photocatalytic degradation of MB. In this work, we utilized electron sacrificial agents to examine the charge separation effect on the photocatalytic performance.48 To confirm the electron capture agent's boost effect on enhancing the photodegradation by as-prepared CuWO4, 1 mmol H2O2 or Na2S2O8 was dispersed into the MB solution to check the catalytic activity. Fig. 7(a) indicates that individual H2O2 or Na2S2O8 displays a limited degraded performance. Surprisingly, in as-prepared CuWO4 (40 mg) combined with 1 mmol H2O2 or Na2S2O8, we found that MB decomposes rapidly and the MB concentrations reaches to zero within 60 min (see Fig. 7(a)). As a comparison, the as-prepared CuWO4 with electronic capture agents (H2O2 or Na2S2O8) shows superiority over the same amount of P25 and P25 together with H2O2 rather than Na2S2O8 in weight in terms of the decomposition of MB. In any case, P25 with Na2S2O8 shows the highest efficiency because of the stronger oxidation of Na2S2O8 in regards to H2O2 (Fig. 7(a)). To examine the role of hole to decompose MB, we utilized (NH4)2C2O4 to exhaust the supply of excited holes, and we found that MB degradation with (NH4)2C2O4 is identical with the self-degradations under UV-Vis light. In other words, hole is the key to decompose MB in our case.
![]() | ||
Fig. 7 The photodegradation of MB (a) as-prepared CuWO4 sample, P25 and (b) annealed sample added electron sacrificial agents, and only electron sacrificial agent without any catalyst. |
In order to access the role of electron sacrificial agent to assist in the catalytic performance of the as-prepared CuWO4, we proposed the following schematic diagram to address how electron sacrificial agents improve the photocatalytic efficiency (Fig. 8(a)).
![]() | ||
Fig. 8 (a) Photocatalytic process in the presence of electron sacrificial agents. (b) CuWO4 band alignments with H+/H2, O2/H2O2, O2/H2O and ·OH energy levels. |
When the CuWO4 absorbs the photon energy larger than its band gap, the excited electrons (e−) jump from the valence band to the conduction band and form electron–hole pairs. Parts of them recombine in the as-prepared CuWO4 particles and the others move to the surfaces (Fig. 8(a)). Meanwhile, owing to the improper band alignment with water redox potentials, as presented in Fig. 8(b), severe surface recombination occurs as discussed above. Consequently, no enough h+ combines with OH− and forms ·OH because reactive time (about 10−3 s) is much longer than the surface recombining time (about 10−12 s). When the electron sacrificial agent (H2O2 or Na2S2O8) is introduced into MB solution, the excited electrons on surface are captured by electron sacrificial agents. The carrier recombination is thus suppressed and the excited holes have enough time to oxidize the H2O molecules and generate the strong oxidant ·OH. In addition to the role of charge separation from electron sacrificial agents, the strong MB adsorption on the as-prepared CuWO4 surface could be another factor to enhance the photodegradation.
For any photocatalyst, crystallinity, electronic structure and possibly surface charge would be crucial to determine the catalytic performance. In the annealed CuWO4 sample with diameter of ∼50 nm, even in the presence of electron sacrificial agent, very limited catalytic activity was observed in Fig. 7(b). The limited activity could be attributed to the lower adsorption capacity arising from the high crystallinity (Fig. 4(b)). Compared to as-prepared sample, the localized absorption peak at 1.5 eV disappeared in the absorption spectrum of annealed sample (Fig. 6(c)), decreasing the visible-light absorption and photocatalytic efficiency. From the perspective of surface charge, as an n-type semiconductor,49 band will upper bend when contacting with solution.50 As a result, the exited holes tend to transfer to the nanoparticles surface, then directly react with MB or produce ·OH which leads to the decomposition of MB pollutants. For the as-prepared amorphous phase, it provide more active sites for surface photogenerated carriers and prevent them from rapid recombination due to high disorders, thus promoting carrier transfer and photocatalytic reactions.51 After annealing the sample, the particle size increases and thus the active sites significantly reduce. Consequently, the carrier recombination became severe, and the photocatalytic efficiency decreased.
Footnote |
† These authors contribute equally. |
