S.
Fernandes‡
a,
C. M.
Eichenseer‡
a,
P.
Kreitmeier
a,
J.
Rewitzer
b,
V.
Zlateski
c,
R. N.
Grass
c,
W. J.
Stark
c and
O.
Reiser
*a
aInstitute for Organic Chemistry, University of Regensburg, Universitätsstr. 31, 93053 Regensburg, Germany. E-mail: oliver.reiser@chemie.uni-regensburg.de
bInstitute of Bioanalytical Chemistry, University of Regensburg, Germany
cInstitute for Chemical and Bioengineering, ETH Zurich, Vladimir-Prelog-Weg 1, 8093 Zürich, Switzerland
First published on 15th May 2015
A facile and efficient way to decontaminate mercury(II) polluted water with the aid of magnetic, highly stable and recyclable carbon coated cobalt (Co/C) nanoparticles is reported. Comparing non-functionalised Co/C nanomagnets with particles that were functionalised with amino moieties, the latter one proved to be more effective for scavenging mercury with respect to extraction capacity and recyclability. A novel nanoparticle–poly(ethyleneimine) hybrid (Co/C–PEI) prepared by direct ring opening polymerization of aziridine initiated by an amine functionalised nanoparticle surface led to a high capacity material (10 mmol amino groups per g nanomaterial) and thus proved to be the best material for scavenging toxic mercury at relevant concentrations (mg L−1/μg L−1) for at least 6 consecutive cycles. On a large-scale, 20 L of drinking water with an initial Hg2+ concentration of 30 μg L−1 can be decontaminated to the level acceptable for drinking water (≤2 μg L−1) with just 60 mg of Co/C–PEI particles.
Facing the above-mentioned harms, different methodologies have been used for water treatment such as centrifugation, ultrafiltration, crystallisation, sedimentation, solid-phase extraction and chemical precipitation.1,2 Usually, the extraction of particular heavy metals is performed by using insoluble adsorbents.7 However, this method requires further filtration which involves energy-intensive pumping and tedious recovery of the materials.8
In an attempt to develop more sensitive, simple and cost-effective materials, nanotechnology has attracted much attention in this field.2,5 Magnetic nanoparticles in particular might contribute to such applications due to their distinct advantages like high surface area-to-volume ratio and therefore higher extraction capacity compared to micrometer-sized particles. The most important benefits are the facile and convenient separation by applying an external magnetic field enabling an easy recovery and recycling of the scavenger,1,4,6 potentially even in the open environment.
Additionally, materials that selectively bind Hg2+ in the presence of other metals are needed in order to prove feasibility in a real water decontamination situation. For instance, studies with 1-naphthylthiourea–methyl isobutyl ketone9 and mesoporous crystalline material functionalised with mercaptopropyl10 showed that these selectively extract Hg(II) from aqueous samples. Nevertheless, recovery and regeneration of the chelating agent is not practical. Considering this, a selective magnetic mercury scavenger would make the entire process much easier and faster as well as enhance the reusability of the chelating agent.
Indeed, functionally modified magnetic nanobeads have already been used for the extraction of different metal ions from aqueous solution based on cadmium,11,12 copper,11,13 lead,11,12 zinc,13 mercury12,14,15 cobalt16,17 and nickel16 under various conditions. However, concerning mercury limitations related to selectivity in the presence of other metals and reusability of the scavengers are being encountered. Iron oxide nanoparticles were primarily considered as an attractive solution for magnetic separation. Recently, Pang et al.15 reported the synthesis of functionalised iron oxide nanoparticles which efficiently remove mercury(II) from water samples (380 mg Hg2+ extracted per mol adsorbent) but selectivity in combination with other metals or recyclability of this scavenger material was not studied. On the other hand, Khani et al.14 have developed magnetite nanoparticles functionalised with triazene groups showing selectivity towards mercury in binary systems, which could be used in 2 cycles with an extraction capacity of 10.26 mg Hg2+ per gram nanomaterial. Mandel et al. have reported that thiol-modified magnetic microparticles are capable of extracting mercury(II) preferentially over other metal ions. However, coadsorption of copper(II) and cadmium(II) was also observed in some cases. The release of adsorbed mercury(II) in order to recycle the scavenger was possible to an extent of about 30%, and the estimated extraction capacity was around 74 mg Hg2+ per g microparticles.18 Magnetic Co/C nanoparticles, which exhibit excellent thermal and chemical stability as well as higher magnetization, recently appeared as a promising alternative11,19 for improving the extraction capacity and reusability of scavengers. Such nanoparticles provide an additional carbon surface that stabilizes the metal core and allows for functionalisation using established diazonium chemistry.20,21
Herein, we report the potential of Co/C nanomagnets to be used as magnetic scavengers for mercury extraction from water. In addition, we studied the influence of amino functionalities on the nanoparticles to improve the extraction efficiency and selectivity, arriving at functional nanomagnets that show an extraction capacity for Hg2+ of up to 550 mg g−1 NP.
In order to remove Hg2+ ions from contaminated water, firstly pristine Co/C NPs 1, being commercially available,20 were initially investigated as a possible scavenger. Two mercury solutions with different concentrations were prepared (15 and 30 mg L−1) and the progress of extraction was monitored by ICP-OES during 10 minutes, aiming at practical decontamination times in real case scenarios and to study the adsorption kinetics and estimate the maximum extraction capacity of the nanobeads. From these results, using 5 mg of NPs to decontaminate 5 mL HgCl2 solution, it was concluded that approximately 13 mg Hg2+ can be scavenged using 1 g of nanoparticles within 10 minutes, even at low initial mercury concentrations of 15 mg L−1. However, also considerable leaching of Co ions from the nanoparticle core was observed. The adsorption of Hg2+ onto the carbon layer of the nanoparticles was confirmed by X-ray photoelectron spectroscopy (XPS) analysis (see ESI†) and is in agreement with the results obtained for multi-walled carbon nanotubes (MWCNTs).31
Although the extraction of mercury(II) ions using unmodified Co/C nanoparticles 1 proved to be efficient to some extent, there are three major limitations: (1) the occurring cobalt leaching leads to an undesired contamination that needs to be prevented. (2) The extraction capacity (13 mg Hg2+ per g NPs) is relatively low requiring a high amount of nanoparticles to remove Hg2+ on large scale. (3) An efficient release of mercury from the particles, thus allowing their recycling was not possible under various conditions tried (aqua regia; heating at 150 °C; aqua regia combined with high temperature).
Therefore, the surface of the nanomagnets was functionalised to improve the extraction capacity, also aiming to avoid cobalt leaching and ensuring recyclability. Non-magnetic amino-functionalised materials have been reported for their extraction capability towards mercury(II), and especially Masri and Friedman have demonstrated the high affinity of polyamine derivatives towards Hg2+ ions in aqueous solutions.32 Furthermore, amino-functionalised carbon nanotubes have been successfully applied for extracting mercury(II) from water samples.33 However, selectivity studies with these materials were either not performed or limited to binary systems. Taken these precedents as a lead, we aimed on developing high capacity amino-polymers, such as poly(ethyleneimine) (PEI) and poly(amidoamine) (PAMAM), supported on readily recyclable magnetic nanobeads for selective Hg2+ removal.
Thus, propargylated PAMAM dendrimer G2 having four terminal amino groups was connected in two different ways to the surface of the NPs (Scheme 1): benzylazide functionalised Co/C nanoparticles 2 (ref. 21 and 26) (0.1 mmol azide per g nanomaterial) or a Wang type resin having azide end groups covalently attached to Co/C nanoparticles 3 (ref. 34) (2.4 mmol azide per g nanomaterial), were found to be suitable platforms to accommodate PAMAM dendrimers via ligation by a copper catalyzed azide/alkyne cycloaddition using conditions previously described by us.21,26 The reaction was conveniently followed by monitoring the characteristic azide peak at 2100 cm−1 with attenuated total reflection infrared spectroscopy (ATR-IR) spectroscopy (see Fig. S1, ESI†), to give rise to 4 (0.02 mmol PAMAM per g nanomaterial) and 5 (0.57 mmol PAMAM per g nanomaterial), respectively (see Fig. S2, ESI†). Higher magnetization values (Fig. S3, ESI†) were observed for Co/C–PAMAM G24 (106 emu g−1) when compared to higher loaded Co/C–PS–PAMAM G25 (50 emu g−1), reflecting the different amounts of non-magnetic material attached to the nanobeads.
![]() | ||

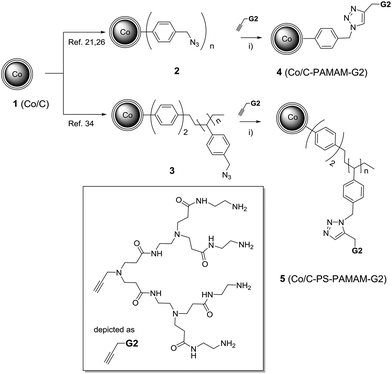

Scheme 1 Covalent immobilization of PAMAM dendron G2 on Co/C nanoparticles via click chemistry. Reagents and conditions: (i) CuSO4·5H2O (10 mol%), Na ascorbate (30 mol%), THF–H2O (3![]() ![]() |
PEI-functionalised Co/C nanobeads were prepared starting from 6 (ref. 20) (0.15 mmol amine per g nanomaterial) following a procedure for the functionalization of carbon nanotubes described elsewhere (Scheme 2).35 Using 1000 equivalents of aziridine, high loadings of approximately 10 mmol amine per g nanomaterial 7 were obtained by growing the PEI polymer on the nanoparticle surface. These nanoparticles form stable dispersions in water,36 thus avoiding agglomeration (see Fig. S6B and S7, ESI†), which is a general problem for unmodified Co/C nanoparticles. The saturation magnetization of this material was found to be still high (39 emu g−1, Fig. S6A, ESI†), rivaling that of low-loading magnetite particles.37 Therefore, an easy and effective recovery by magnetic separation is still possible within seconds.
![]() | ||

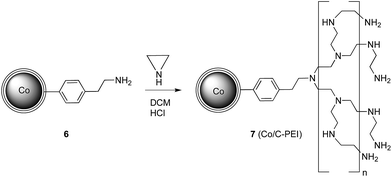

Scheme 2 Synthesis of poly(ethyleneimine) functionalised nanoparticles 7.36 |
A comparison of the extraction efficiency of all nanobeads (Fig. 1) using 5 mL of an aqueous solution of HgCl2 (30 mg L−1) and 5 mg of nanomaterial during 10 minutes for benchmarking purposes showed that Co/C–PAMAM G24 was found to extract mercury (50%) comparable to unmodified Co/C NPs, which is attributed to the low loadings obtained during the functionalization. Improved extraction capacity (73%) was found for Co/C–PS–PAMAM G25, which can be ascribed to increased loadings of terminal amino groups made possible through the additional polystyrene layer on the surface of the NPs.24,25,29,34,38 For both materials no significant cobalt leaching was detected. The Hg(II) removal efficiency was found to be even better (≥98%, reaching the detection limit [100 μg L−1] of the inductively coupled plasma optical emission spectrometry (ICP-OES) measurement) for Co/C–PEI 7, while still avoiding cobalt leaching from the nanoparticles into the solution. The maximum extraction capacity of Co/C–PEI 7 was subsequently estimated by extracting solutions of higher mercury concentration: the scavenging of Hg2+ from 5 mL of a 2.9 mM solution with 5 mg nanomaterial was still possible within 10 minutes to an extent of 95%, corresponding to 550 mg Hg2+ extracted per g nanomaterial 7, which compares favourably to the results obtained for Co/C 1 (15 mg Hg2+ extracted per g NPs) and for previously reported magnetic mercury scavengers (5.6–152 mg Hg2+ extracted per g nanomaterial).4,14,39
![]() | ||

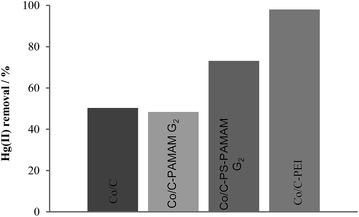

Fig. 1 Comparison of the extraction capacity from the different nanobeads (cf.Schemes 1 and 2). Reaction conditions: 5 mg of NPs, 5 mL of Hg2+ solution (30 mg L−1), 10 min extraction time, solution pH 6.53. |
Mercury(II) could also be efficiently removed from much more diluted solutions using 7: starting from 100 mL of an aqueous solution containing 1.87 mg L−1 mercury(II) chloride, just 3 mg Co/C–PEI nanoparticles 7 are sufficient to bring down again the mercury concentration to the detection limit (100 μg L−1) of the ICP-OES analysis within 10 minutes (Fig. 2).

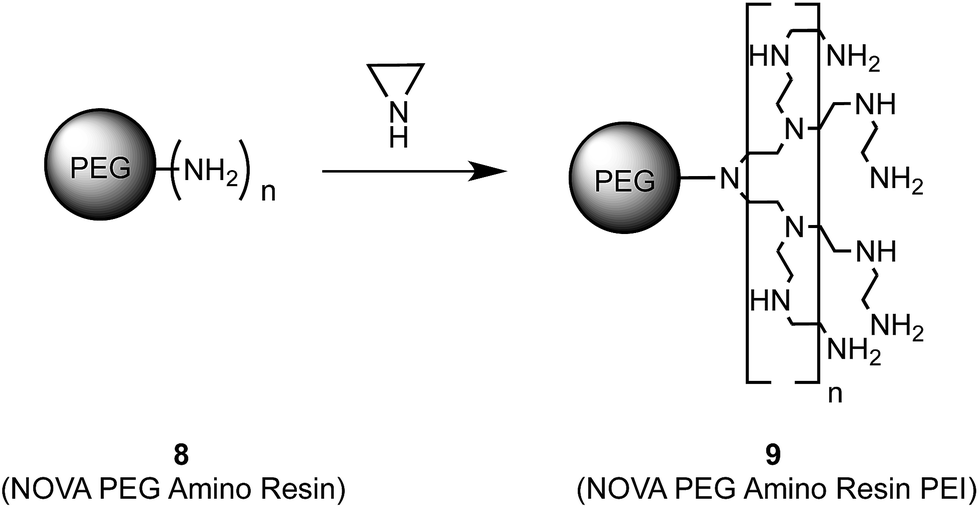

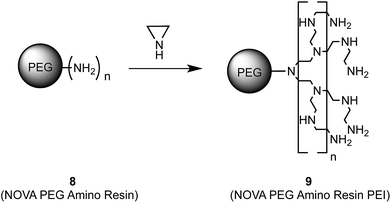

To validate that the mercury(II) uptake occurs due to a complexation of the metal ions by the amino groups we tested the extraction capacity of the PEI-polymer itself. A commercially available PEG-resin with terminal amino groups 8 was functionalised with PEI in the same manner (Scheme 3) as for the Co/C–phenylethylamine particles 6 described above.
The so obtained PEI-resin 9 (10.9 mmol N per g resin) was used for extraction, applying identical conditions as in the previous experiments. A similar extraction capacity for the PEI-functionalised resin 9 when compared to the Co/C–PEI nanobeads 7 was determined, while the PEG-amino resin 8 itself showed nearly no ability to extract mercury. These findings suggest that indeed the amino functionalities on the surface of the NPs are responsible for the removal of mercury(II), which is in agreement with literature reports for amino functionalised multi-wall carbon nanotubes33 or chitosan based absorbents39 as well as polyamine derivatives.32

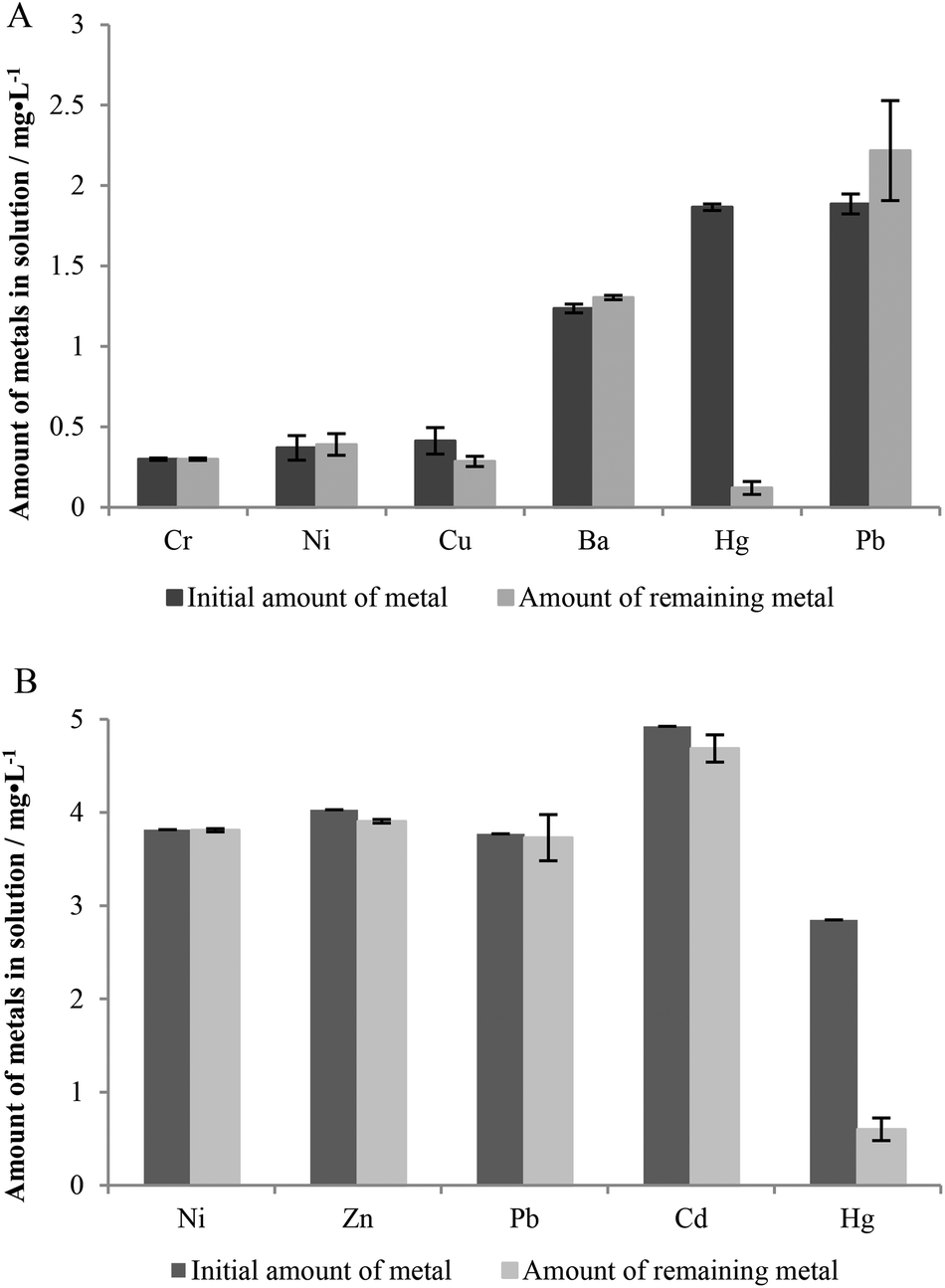

It is known that PEI can also chelate metal ions such as Ni2+, Cu2+, Zn2+, Cd2+ and Pb2+.40 However, to the best of our knowledge no selectivity studies using PEI for extracting mercury in the presence of other metal ions are reported. Testing the extraction of Hg2+ against other competitive metals when they are in solution at the same time, indeed we found that Co/C–PEI nanomagnets 7 show a high preference for mercury(II) (Fig. 3). Experiments were done with an extraction time of 10 minutes and 3 hours in a pH range of 5.6–6.2, representing the range that is obtained upon dissolving the metal salts in pure water. No significant differences were observed between these two time points indicating that under the conditions employed, after 10 minutes of extraction the equilibrium time for all metals tested has been reached. This result is supported by the selective extraction of mercury(II) shown also for the PEI-resin 9 (Fig. S9, ESI†). Moreover, X-ray photoelectron spectroscopy (XPS) analysis on the NPs used to obtain the results in Fig. 3A confirmed the preferential uptake of mercury against the other metals (see ESI†).
In addition, an experiment at basic pH 8.3 was performed to evaluate the influence of the pH on the adsorption of the metals. Again, a preferential uptake of mercury was detected (68%), however absorption of copper(II) (51%) and lead(II) (17%) (Fig. S10, ESI†) occurred to a significant extent as well.
Having developed a scavenger that combines the advantages of using a selective adsorbent with the magnetic properties of a solid support, we tested the performance of nanobeads 7 in tap water samples. For these experiments water from the facilities of the University of Regensburg was used and artificially contaminated with Hg2+ (2 mg L−1). Especially, the water sample was analyzed with respect to the content of mercury, magnesium and iron before and after treatment with nanobeads 7. The concentration of Ca2+ was also measured to be around 100 mg L−1, thus being present in large excess with respect to the extraction capacity of 7 used in this experiment. However, the values obtained from ICP measurements for calcium before and after extraction were somewhat erratic, which might be due to aging of the samples caused by carbon dioxide absorption. Despite the presence of those other ions that are naturally occurring in drinking water mercury was still efficiently removed (Table 1, Sample 1).
Metal ions before/after extraction (mg L−1) | |||
---|---|---|---|
Hgc | Fec | Mgc | |
a Hg2+ artificially added to the tap water samples (the source of mercury used was HgCl2). In addition, the sample contained approx. 100 mg L−1 Ca2+ (see text). b Fe2+ and Hg2+ artificially added to the tap water samples (the source of iron used was FeCl2·4H2O). c Values determined for tap water samples from the University of Regensburg. Extraction conditions: 3 mg Co/C–PEI NPs 7 were used to decontaminate 100 mL aqueous solution (pH 6.71) within 10 minutes. | |||
Sample 1a – Regensburg drinking water spiked with Hg2+ | 2.2/0.3 | ≤0.1/≤0.1 | 19.1/19.1 |
Sample 2b – Regensburg drinking water spiked with Fe2+ and Hg2+ | 2.2/0.2 | 35/32.5 | — |
As iron can occur in higher concentrations in water of different areas41 an additional experiment was performed in the presence of an excess of iron. Still 90% Hg2+ is successfully extracted even if the content of iron is approximately 20 times higher than that of mercury (Table 1, Sample 2).
Having proven the feasibility of the nanomagnets for extracting mercury in real water samples, a simple recycling methodology of the magnetic scavenger had to be established. More specifically mercury has to be released after extraction in order to regenerate the nanomaterial and reuse it. Considering the fact that the amino groups in 7 are responsible for scavenging the mercury ions, a logical approach is the protonation of these groups using acidic conditions to reverse their complexation ability. For the release the following procedure was established: after the extraction time, the nanobeads were collected with a magnet and the aqueous decontaminated solution was completely decanted, followed by the addition of 20 mL of the corresponding acid. In the course of determining the conditions for the release of mercury different acids (0.01 M) were tested. These experiments showed that strong acids like H2SO4, HCl and HNO3 are suitable for achieving high mercury release, while weak acids like acetic acid are less effective. Further optimizations were performed with H2SO4 solutions differing in molarity and thus in the pH. The best conditions were found to be 0.5 M H2SO4, corresponding to a pH value of approximately 0.4. Noteworthy, ICP measurements revealed that no significant cobalt leaching from the core of the nanomaterial is detected during the release of mercury.

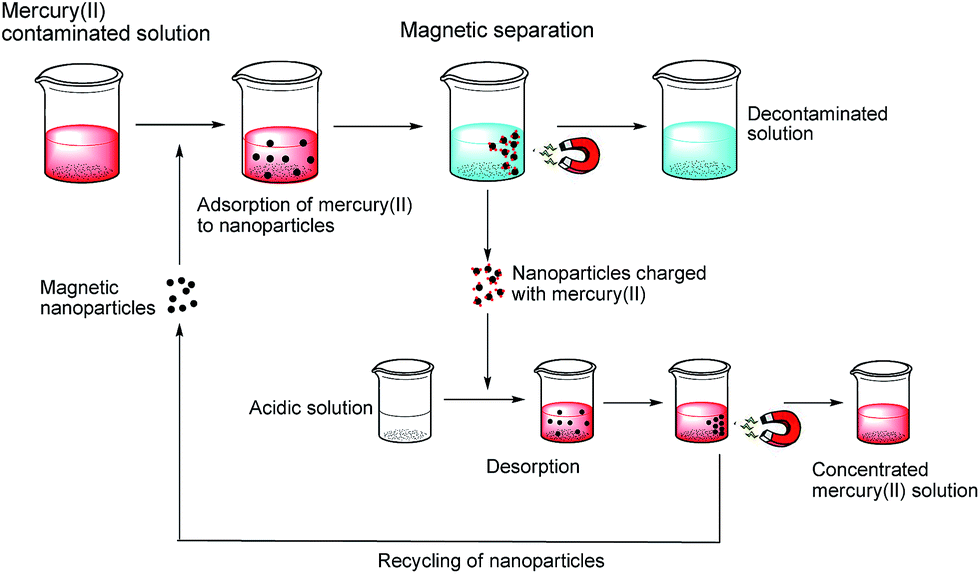

Thus, a multicycle extraction/recycling protocol was established (Fig. 4) for aqueous solutions (tap water) containing mercury. Briefly, the mercury(II) contaminated water containing the nanomagnets 7 is shaken for 10 minutes and then the NPs are recovered applying an external magnet. The decontaminated water is then decanted and the NPs 7 are subsequently treated with H2SO4 (20 mL, 0.5 M, 20 minutes) in order to release the mercury. Finally, a magnet is used once more to collect the NPs and decant the acidic solution which is followed by washing with a 0.5 M potassium carbonate solution and water to regenerate the amino groups of 7, and the nanobeads are used in the next cycle.

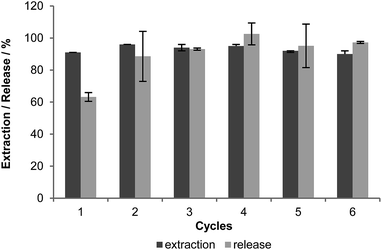

Following the scheme in Fig. 4, we demonstrate that in six consecutive cycles more than 90% of the mercury could be extracted from tap water samples (6× 100 mL spiked with 2 mg L−1 Hg2+ each) within 10 minutes (Fig. 5). Even though the release step was not complete each time, the extraction capacity remained nearly unchanged during the six runs. In some cases the release is higher than 100% as mercury from a previous incomplete release step was apparently set free in the next cycle. In addition, TEM analysis (Fig. S11, ESI†) proved that there are no significant changes or damage in the appearance of the nanoparticles after the recycling process. These results have encouraged us to study the applicability of these magnetic scavengers in a large-scale experiment aiming to prove their use in a realistic industrial application. For this purpose a 20 L reactor was used (see Fig. 6) and filled with normal Zurich drinking water artificially contaminated with 30 μg L−1 Hg(II). An even lower concentration of particles than in the previous recycling experiments was employed (3 mg L−1), gratifyingly, after one hour reaction time the water was detoxified from mercury to 93%, leaving behind a mercury content of 2 μg L−1 as determined by atomic fluorescence spectroscopy (AFS), which is within the limit for drinking water according to World Health Organization.41 Thus, the simple and efficient scavenger developed here has proved its potential to decontaminate water samples from mercury(II) poisoning, which also might be applicable in the open environment due to the facile recovery of the magnetic support.
First, the nanobeads in solution were dispersed for one minute in the ultrasonic bath and then the dispersion was agitated in a mechanical shaker for the rest of the extraction time. Afterwards the nanobeads were collected with the help of a magnet and the remaining solution was decanted. The remaining mercury in solution was determined by inductively coupled plasma optical emission spectrometry analysis (ICP-OES, detection limit: 0.1 mg L−1). For the large scale experiment the remaining solution was analysed by atomic fluorescence spectroscopy (AFS) with a detection limit of 1 μg L−1.
To determine the amount of mercury desorbed, the acid solution used above was diluted with aqua regia 32% (v/v), filtered and analyzed by ICP-OES.

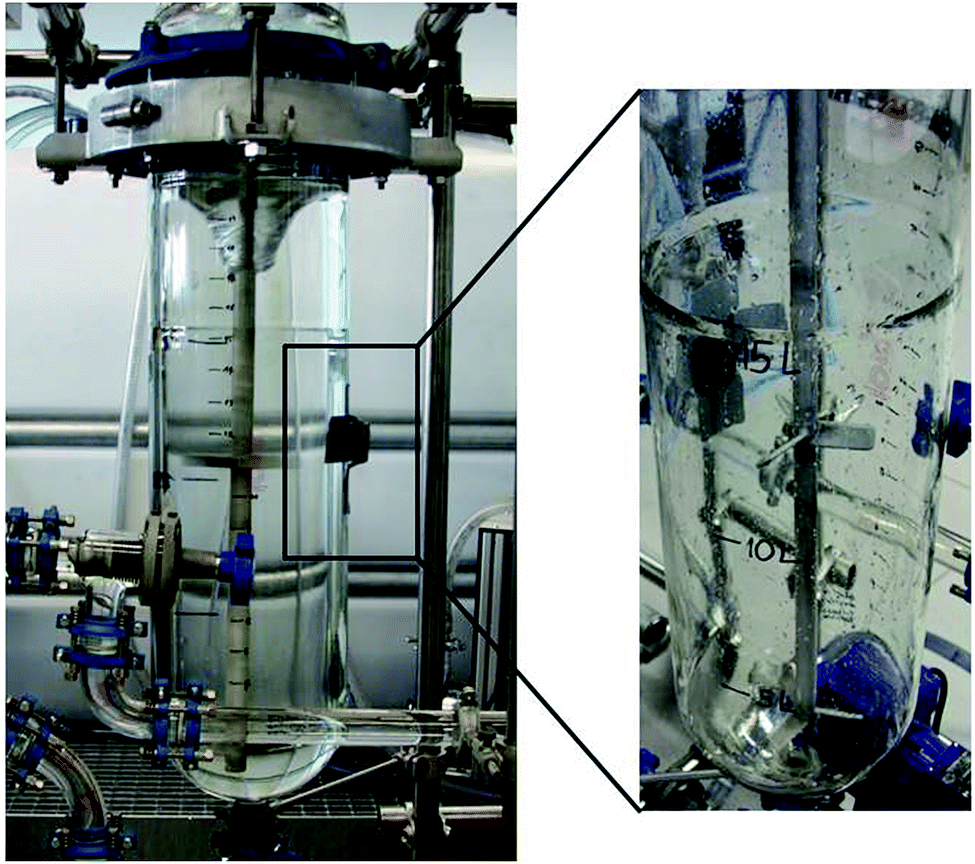

The recyclability of the nanoparticles was ensured for at least 6 consecutive cycles with no loss of extraction capacity. The particles 7 showed as well the ability of extracting from a 20 L reactor, which proved the potential of 7 for the detoxification of drinking water in realistic applications.
In summary, we have developed a simple and efficient scavenger to decontaminate water samples from mercury(II) poisoning, which might also be applicable in the open environment due to the facile recovery of the magnetic support.
Footnotes |
† Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra04348d |
‡ These authors contributed equally. |
