Polyoxometalate-based layered nano-tubular arrays: facile fabrication and superior performance for catalysis

Abstract

Keggin-type polyoxoanion PW₁₂O₄₀³⁻-containing one-dimensional nano-tubular arrays, with the structure polyethylenimine/polystyrenesulfonate/(poly(allylammonium)/polystyrenesulfonate)₃(poly(allylammonium)/PW₁₂O₄₀³⁻)₈, were fabricated as a prototype using a layer-by-layer deposition technique in porous anodic aluminum oxide and polycarbonate templates with a pore diameter of 200 nm, and characterized by IR, UV-vis and SEM. The resulting nano-tubes have a uniform diameter of 180 ± 20 nm and a uniform wall thickness of 30 ± 5 nm. These arrays have shown superior performance in the UV light irradiated photo-degradation of Rhodamine B (selected as a representative dye) under mild conditions with respect to both the catalytic efficiency and operating convenience due to the confinement within the nano-tubes both in the latitudinal and radial direction. Remarkably, the catalytic activity of the nano-tubular arrays could be recovered by means of simple immersion in the polyoxoanion solution when the catalytic reactivity became reduced, which is vital in view of practical applications. The total organic carbon content changes and GC-MS measurements were conducted to identify the degradation products. The hydroxyl radical mechanism was found to be adopted by the photo-degradation reaction.

---

Introduction

Polyoxometalates (POMs) are a class of discrete transition metal anionic clusters with abundant compositions, structures and versatile properties leading to their successful application in various fields.^1–3 Among the important/potential applications, the catalytic activities of POMs are the most fascinating feature and they are outstanding for use in homo-/heterogeneous acid or redox catalyses^4–8 with advantages such as photo-/thermal stability,^9,10 non-toxicity,¹¹ low cost and environmentally friendly behavior.¹² However, most POMs are highly-soluble in aqueous solution and form a homogeneous catalyst which is often inconvenient for industrial purposes.^13,14 In contrast, heterogeneous catalysis is easier to run and separate, yielding a sustainable catalytic process. Many efforts have been made towards the heterogenization of homogeneous POM-based catalysts such as the syntheses of heterogeneous catalysts by combining POMs with counter cations such as K⁺, Cs⁺ and NH₄⁺,^15–17 or formation of nanoparticles and/or preparation of films by coating POMs onto inorganic/organic composites such as TiO₂, SiO₂, activated carbon or organic polymer.^18–21 However, the exploration of new approaches to synthesise POM catalysts that can be separated more conveniently from reaction systems and have a more convenient recycling process as well as an enhanced superior catalytic performance still remains challenging.

Inspired by the continuing great success of nanotubular materials in various fields,^22,23 incorporating polyoxometalates into nano-tubular arrays may be expected to overcome limitations i.e., small surface area²⁴ and difficulty in recycling and reuse due to water solubility,¹³ as well as to realize upgraded catalytic activity because of the specific characteristics such as the nanotubular shape with controllable wall thickness and aperture, high specific surface area exhibiting more active sites, confinement both in the latitudinal and radial direction within the nano-tubes and the possible synergistic and coupling effects of arrays. In this work, we report the fabrication and characterization of nano-tubular arrays based on the well-known α-Keggin-type H₃PW₁₂O₄₀, which is selected as a representative due to its superior performance as a catalyst^15,25–33 (1882 references were found containing the concept “tungstophosphoric acid catalysis” in the SciFinder database on Jan 16, 2015). The nano-tubular arrays showed an excellent performance as a photo-catalyst to degrade RhB (difficult to degrade completely by conventional methods and also suspected to be carcinogenic) under UV-vis light irradiation. Importantly, the catalytic activity of the POM nano-tubular arrays can be renewed by simple immersion in a H₃PW₁₂O₄₀-containing solution when the catalytic reactivity is reduced after recycling many times, which is very important in view of practical applications.

Experimental

Polyethylenimine (PEI, MW 50 000) and sodium polystyrenesulfonate (PSS, MW 70 000) were purchased from Aldrich. Poly(allylammonium chloride) (PAH, MW 70 000) was purchased from Alfa Aesar. The solution of PEI (10 mg mL⁻¹), PSS (2 mg mL⁻¹) and PAH (1 mg mL⁻¹), each containing 0.1 mol L⁻¹ of NaCl to enhance the ionic strength, was prepared at pH 1.5 adjusted by dilute HCl. H₃PW₁₂O₄₀·nH₂O and RhB were purchased from Sinopharm Chemical Reagent Beijing Co., ltd. All reagents used in this work were of analytical grade and used as received. Deionized water was used throughout the experiments. Porous anodic aluminium oxide membrane (AAO template: diameter 25 mm, pore diameter 200 nm, average film thickness 60 μm) and nucleporetrack-etched polycarbonate membranes (PC template: diameter 25 mm, pore diameter 200 nm, average film thickness 20 μm) were purchased from Whatman corp. The structures of the reactants used are shown in Fig. 1.

Fig. 1 Structures of the polyelectrolyte PEI (a), PSS (b), PAH (c), dye RhB (d), and the anion PW₁₂O₄₀³⁻ (e).

Instruments and techniques of measurement

The FT-IR spectra were recorded on a MAGNA-IR 750 (Nicolet) spectrophotometer with KBr pellets in the range of 400–4000 cm⁻¹. Light intensity was recorded by a radiometer FZ-A (the photoelectric instrument factory of Beijing Normal University, China). Scanning electron microscopy (SEM) and energy dispersive X-ray spectroscopy were carried out on a Zeiss Supra 55 scanning electron microscope. The UV-vis spectra were recorded on a SHIMADZU UV-2550 spectrometer. The photo-reaction was conducted under a 250 W high-pressure mercury lamp with a light intensity of 22 mW cm⁻². GC/MS analyses were carried out on a Shimadzu GC/MS QP2010 system equipped with a DB-5 MS capillary column (30 mm × 0.25 mm). The temperature program of the column was set as follows: at 60 °C, hold time = 1 min; from 60 to 250 °C, rate 20 °C min⁻¹. The TOC measurement was performed on a Shimadzu TOC-5000A analyser. Photoluminescence spectra were obtained on a Hitachi F-7000 fluorescence spectrophotometer with an emission slit of 5 nm using a 150 W xenon lamp as the light source. The millipore filter setup for preparing the nano-tubular array and carrying out the photo-catalysis reaction was purchased from Auto science Co., Ltd (40 mL in volume and 25 mm in diameter) (Fig. S1†).

Preparation of PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ nano-tubular arrays within porous templates

The AAO template was kept on the millipore filter (Fig. S1†) and the pressure was adjusted to 0.020 MPa by a buffering device to prevent it from breaking. Firstly, 20 mL deionized water was flowed through the template from each side under low pressure conditions, then a 20 mL PEI solution was flowed through the template from each side. Subsequently, the template was immersed into deionized water for 10 min and then washed with 10 mL deionized water. Similarly, PSS and PAH were alternately adsorbed onto the inner wall of the porous template forming a precursor film with the structure (PEI/PSS)/(PAH/PSS)₃. Then, PAH and PW₁₂O₄₀³⁻ were alternately adsorbed onto the precursor film from a PAH and a H₃PW₁₂O₄₀ solution (10⁻³ mol L⁻¹), respectively, resulting in the formation of layered nano-tubular arrays with the structure PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ within the pores of the AAO template (denoted PW₁₂-AAO). All the preparation processes were performed under ambient conditions. The same procedure was performed when a PC template was used, resulting in the formation of nano-tubular arrays with the structure PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ within the pore of the PC template (denoted PW₁₂-PC). The fabrication process of POM/polyelectrolyte nano-tubular arrays through LBL coating and the sequential release of nano-tubes are shown in Fig. 2. Release and collection of the nano-tubes from the PC template for characterization was carried out by dissolving the PC template in chloroform followed by centrifugation of the solution. The method used for release and collection of the nano-tubes from the AAO template is given in the ESI.†

Fig. 2 Schematic diagram illustrating the fabrication process of PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂)₈ nano-tubular arrays within the PC/AAO template through the LBL coating method and release of the nano-tubes from the template for characterization.

Preparation of PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)_n multi-layered nanofilms on a substrate

A quartz plate was immersed into a fresh piranha solution (conc. H₂SO₄/30% H₂O₂ = 7 : 3 (v/v)) at 80 °C for 1 h, then rinsed with a copious amount of deionized water and dried in a nitrogen atmosphere. After immersion in PEI and PSS, then alternately in PAH and PSS for three cycles and finally alternately in PAH and H₃PW₁₂O₄₀ (10⁻³ mol L⁻¹) each for 20 min, the coated quartz was characterized by UV-vis in order to monitor and determine the growth of (PAH/PW₁₂O₄₀³⁻) bilayers.

Photo-degradation of RhB by PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ nano-tubular arrays

For the photo-catalytic reaction, a high-pressure mercury lamp was used as the light source. 40 mL of RhB solution (2 mg RhB per liter of solution) was filtered through the PW₁₂-AAO and PW₁₂-PC catalyst, respectively, which were placed on the millipore filter (Fig. S1†). The entire degradation process was carried out under ambient conditions. The characteristic absorbance changes at λ_max = 554 nm of RhB were monitored and the decoloration efficiency (DE) was calculated by the equation: DE = [(A₀ − A_t)/A₀] × 100%, where A₀ stands for the absorbance before the reaction, and A_t stands for the absorbance at given filtration times.

Results and discussion

Fabrication and characterization of PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂)₈ nano-tubular arrays

Despite the so-called layer-by-layer (LBL) technique (viz., immersing a porous template such as AAO and PC alternately into different reactant-containing solutions) having been commonly adopted for preparing polyelectrolyte-involving nano-tubes, this method usually suffers from an unavoidable drawback, viz., the entrance of nano-/microsized pores of the template are easily blocked due to the strong interaction between the charged polyelectrolyte and the oppositely charged template surface, which prevents the polyelectrolyte molecules and other reactants from entering the pores and anchoring to the inner template walls.³⁴ Consequently, the desired nano-/microtubes cannot be formed inside the pores of the template in the process of alternate immersion.

In our present work, the blockage problem has been effectively solved by using a reduced pressure filtration process, where the pressurized flow of solutions of alternately charged polyelectrolytes/polyoxoanions and the neutral washing steps between them results in the LBL deposition of a PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂)₈ multilayer on the inner walls of the template.

UV-vis spectrum measurement is an effective method to monitor the growth of a film which is formed by the LBL technique. Since it is very difficult to directly monitor the growth of each bilayer of (PAH/PW₁₂) in the nanopores of the template, the growth of a POM film (PAH/PW₁₂O₄₀³⁻)_n on a quartz plate was monitored instead.³⁵ It was found that while the characteristic absorption^35,36 of the Keggin-type PW₁₂ appearing at 266 nm attributed to the W ← O_b,c charge transition does not change in position during the whole deposition process, the absorbance intensity increases linearly with the increasing number of bilayers, (PAH/PW₁₂O₄₀³⁻)_n (n = 1–8) (Fig. 3). This not only confirms the alternate deposition of negatively charged PW₁₂O₄₀³⁻ anions and positively charged PAH but also demonstrates that the thickness of the films is precisely controllable. Though this result is obtained from a flat surface and may not be directly extended to a cylindrical type substrate, however, we expect that the same linear relationship exists for the growth of (PAH/PW₁₂O₄₀³⁻)_n nano-tubes.

Fig. 3 The UV-vis spectra of PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)_n (n = 1–8) multilayered films. The inset shows the linear relationship between absorbance intensity at 266 nm and the number of (PAH/PW₁₂O₄₀³⁻) bilayers.

The SEM images of the PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ nano-tubes released from the PC template (Fig. 4) show that the tubes have a uniform diameter of 180 ± 20 nm and a uniform wall thickness which reaches 30 ± 5 nm. The average thickness of each (PAH/PW₁₂O₄₀³⁻) bilayer is roughly calculated to be ca. 2 nm (Fig. 4b). The SEM images of nano-tubes released from AAO template (Fig. S2†) illustrates tubular structures with uniform diameter of 180 nm ± 20 nm and a wall thickness of 20 ± 5 nm which is a little thinner than nano-tubes released from PC template because of partial dissolution during release process in phosphoric acid (ESI†).

Fig. 4 The SEM images of PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ nano-tubes released from the PC template: (a) the side view of the nano-tubes; (b) the cross-section view of the nano-tubes.

The FT-IR spectra of PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ nano-tubes (Fig. S3†) show the four characteristic peaks^15,16,35,36 of α-Keggin-type PW₁₂O₄₀³⁻: P–O bond in PO₄ (ν_as = 1083 cm⁻¹), W–O_b–W bond (ν_as = 890 cm⁻¹), W–O_c–W bond (ν_as = 800 cm⁻¹) (O_b is the oxygen atom between the two different W₃O₁₃ groups, O_c is the oxygen atom in the same W₃O₁₃ group) and W=O_d bonds (ν_as = 952 cm⁻¹). The red/blue shift of peaks compared to the parent PW₁₂O₄₀³⁻ can be attributed to the strong attraction between negatively charged PW₁₂O₄₀³⁻ and positively charged PAH. The semi-quantitative EDX analyses (Fig. S4†) show that the P/W atom ratio of the nano-tubes released from the templates is 1.13 : 10.52, which is relatively close to the ratio of PW₁₂O₄₀³⁻ (P/W = 1 : 12). The above analyses further confirm that the PW₁₂O₄₀³⁻ structure remains intact in the tubular arrays.

Photo-degradation of RhB solution by PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ nano-tubular arrays

In the preliminary experiments, a PW₁₂-AAO was first immersed into the dye solution for 0.5 h to ensure absorption–desorption equilibrium between the dye and the catalyst under dark conditions in order to avoid the effect of adsorption of the dye before all the measurements.²⁸ Initially, the influence of the light source on the degradation efficiency was discussed. Four types of experiments were conducted: (1) under daylight irradiation with bare AAO, (2) under UV light irradiation with bare AAO, (3) under daylight irradiation with the PW₁₂-AAO and (4) under UV light irradiation with the PW₁₂-AAO. Under each of the four conditions, 40 mL of RhB solution was filtered 5 times circularly through a bare AAO template and a PW₁₂-AAO. The results showed that RhB was more remarkably degraded (Fig. 5, Table S1†) under UV irradiation in the presence of the nano-tubular arrays as compared to the other conditions (Fig. S5†). The decoloration efficiency reached a maximum of 94.5% after circular filtration 5 times under UV light irradiation with the PW₁₂-AAO catalyst at pH 5. The results indicated that UV irradiation and the nano-tubular array catalyst are compulsory for the degradation of RhB.

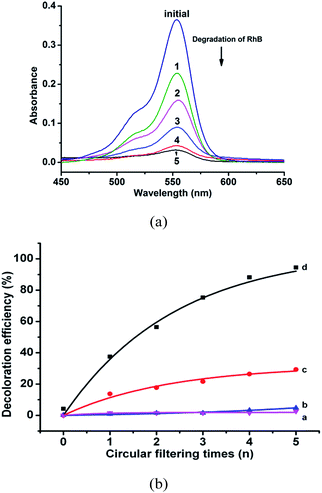

Fig. 5 UV-vis absorption spectral changes of RhB vs. circular filtering times at pH 5 under UV light with PW₁₂-AAO (where the repeated filtration process of filtered RhB solution through the catalyst is called circular filtering). The arrow mark shows the degradation of the RhB with increasing number of circular filtering (initial, original RhB solution; 1, first time filtering; 2, second time filtering; 3, third time filtering; 4, fourth time filtering; and 5, fifth time filtering) (a) and the degradation effect of RhB under four different conditions: daylight with bare AAO (line a), UV light with bare AAO (line b), daylight with PW₁₂-AAO (line c) and UV light with PW₁₂-AAO (line d) (b).

As shown in Fig. 6 and Fig. S6,† the photo-degradation efficiency varies at different pH values of RhB solution (pH = 3.0, 4.0, 5.0, and 6.0) under the optimal conditions, viz., UV light irradiation with PW₁₂-AAO (Table 1). The results show that PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ nano-tubular arrays have a higher photo-catalytic activity at a lower pH value of the reaction system (decoloration efficiency rises from 79.6% (pH = 6.0) to 97.8% (pH = 3.0)), which suggests that the acidic condition is favorable to the degradation of RhB molecules in the presence of the catalyst. It should be noted that the observation of effect of the pH on photocatalytic RhB degradation is analogous to those previously reported.³¹ However, when the pH value decreases below 2.5, the acid–base equilibrium of RhB in solution, H₂RhB²⁺ ↔ HRhB⁺ ↔ RhB, will change and RhB may combine with more protons to form the protonated structure H₂RhB²⁺, which causes a blue shift³⁷ of the peak from 554 nm for RhB to 495 nm for H₂RhB²⁺ and consequently it gets difficult to monitor the catalytic efficiency at 554 nm using UV-vis spectral measurements. Therefore, conditions at pH < 2.5 are not considered in this study.

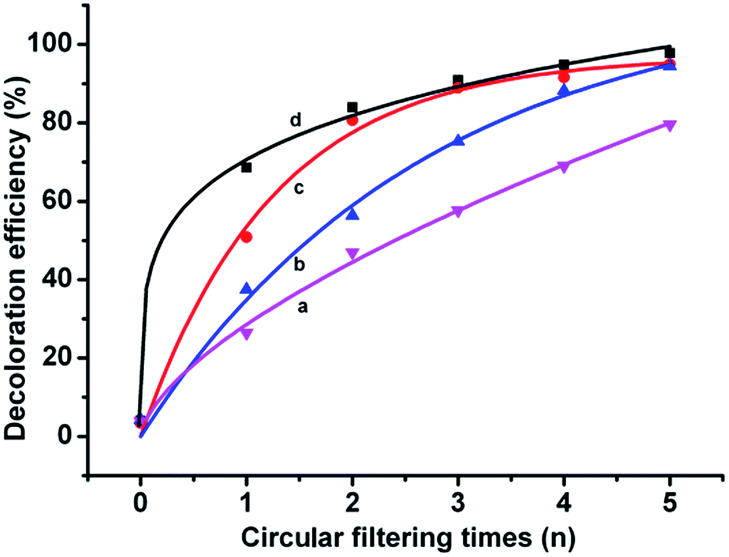

Fig. 6 Effect of pH on photo-degradation of RhB (line a, pH 6.0; line b, pH 5.0; line c, pH 4.0 and line d, pH 3.0) vs. circular filtering times for RhB solution with PW₁₂-AAO under UV light.

Table 1 The effect of pH values on RhB degradation under UV light irradiation with PW₁₂-AAO

Group	pH	Circulation times	Degradation efficiency (%)
1	6.0	5	79.6
2	5.0	5	94.5
3	4.0	5	95.0
4	3.0	5	97.8

---

The above results clearly demonstrate that the new nano-tubular array system shows high-efficient catalytic ability under the optimal conditions, viz., UV light irradiation and pH = 3. In addition, since the AAO template has better parallel array morphology, larger pore density and greater thickness (Fig. S2c and d†) than the PC template (Fig. S7a†), the total number of nano-tubes and catalyst loading capacity within the AAO template is subsequently larger than that within the PC template, and the nano-tubular arrays obtained from AAO are better than those from PC in terms of both quantity and regularity. Consequently, much better photo-catalytic decoloration results were obtained when PW₁₂-AAO was used (decoloration efficiency DE = 98%) (Fig. 7 and S8†) as compared with PW₁₂-PC (decoloration efficiency DE = 91%) under the same optimal conditions.

Fig. 7 The comparison of RhB decoloration efficiency with PW₁₂-PC (line a) and with PW₁₂-AAO (line b) after 5 circular filtering times under the optimal conditions.

Interestingly, it was observed that when 5 PW₁₂-AAOs and 5 PW₁₂-PCs were overlapped respectively and used once at the optimal catalytic conditions, the photo-catalytic decoloration efficiency (DE = 91% for 5 PW₁₂-AAOs, 77% for 5 PW₁₂-PCs) was a little bit weaker than that for filtering 5 times using a single PW₁₂-AAO (DE = 98%) and a single PW₁₂-PC (DE = 90%) (Fig. 8), respectively. This result could be tentatively attributed to the fact that the middle nanotubular arrays cannot be well irradiated by UV light when five PW₁₂-AAOs/PW₁₂-PCs overlap tightly together. Despite this moderate decrease in photo-degradation efficiency, remarkable convenience is achieved when 5 overlapped PW₁₂-AAOs and 5 overlapped PW₁₂-PCs were used for one circular filtration as compared to using single PW₁₂-AAO and single PW₁₂-PC and filtering 5 times.

Fig. 8 UV-vis absorption spectral changes of RhB by filtering once through 5 overlapped PW₁₂-PCs (line b) and 5 overlapped PW₁₂-AAOs (line c), and filtering 5 circular times through one PW₁₂-AAO (line e) and one PW₁₂-PC (line d) at the optimal catalytic conditions. Line a is the UV-vis spectrum of the original RhB solution.

Total organic carbon (TOC) measurement in the degradation of RhB and identification of the final products

Fig. 9 shows the TOC changes during photo-degradation of RhB with circular filtering times with a PW₁₂-AAO under the optimal conditions. Prior to degradation, the PW₁₂-AAO was immersed in the dye solution (40 mL, 2 mg L⁻¹) for 0.5 h in the dark. The maximum TOC removal of RhB was observed to be 42.6% (from 1.77 to 1.02 ppm) at the point when the solution was almost decolorized after 5 circular filtering times. Therefore, it can be concluded that around half of the dye was mineralized into CO₂ during the degradation process. However, CO₂ was not the only product as some other organic products were also generated. Under the same conditions, the maximum TOC removal of RhB was 37.7% with PW₁₂-PC used as the photo-catalyst, which is a little inferior to PW₁₂-AAO.

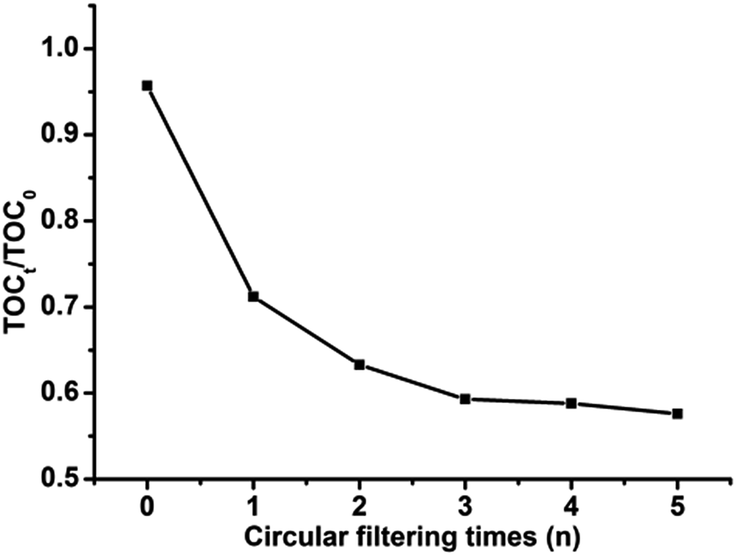

Fig. 9 TOC changes during photo-degradation of RhB versus circular filtering times with PW₁₂-AAO as the catalyst under the optimal conditions.

A GC/MS technique was used to analyse the final products of RhB degradation. The listed products in Table 2 are the main parts of the RhB framework besides CO₂ while the other products with greatly lower intensities are neglected. From the above results, it can be concluded that the conjugated xanthene structure of RhB was partially split up during the degradation reaction^{25,26,28,29,31,37,38} in the presence of PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂)₈ nano-tubular arrays under the UV light. The relative amount of each degradation product was calculated according to the TOC changes (Table 2).

Table 2 Final major products of the photo-degradation of RhB and their respective amounts detected by GC/MS

Retention time (min)	Detected product	Relative amount
1.0		0.18
1.25		0.06
5.2	CH3(CH2)6COOH	1.00

---

Photo-catalysis mechanism study

Photo-degradation of RhB has been performed by PW₁₂O₄₀³⁻ under various conditions, e.g., sunlight with H₂O₂,^15,25,26 sunlight^27–30 and UV light.^31,33 Generally, it is accepted that under UV irradiation, the excited POM molecule induces an electron transition from the highest occupied molecular orbital (HOMO) to the lowest unoccupied molecular orbital (LUMO). The excited state of the POM (POM*) can generate ˙OH radicals in a water solution, which are extremely powerful oxidizing agents to oxidize organic substrates. While the reduced POM (POM⁻) produced from the POM* by abstracting an electron from electron-donating substances can deliver the electron to electron acceptors such as O₂, metal ions and re-change to oxidized POM.^33,39 Nevertheless, it needs to be confirmed whether or not the photo-catalytic processes in our work adopt a similar hydroxyl radical mechanism. It is known that hydroxyl radicals can be detected by the photoluminescence (PL) technique using terephthalic acid (TA) as a probe molecule since the hydroxyl radicals can readily react with TA to produce a highly fluorescent product 2-hydroxyterephthalic acid.³³ This method is based on the PL signal of 2-hydroxyterephthalic acid at 425 nm. Moreover, the PL intensity of 2-hydroxyterephthalic acid is proportional to the concentration of ˙OH radicals which are produced from POM catalysis. So, a similar procedure for the measurement of photo-catalytic activity was carried out whereby just the RhB aqueous solution was replaced by the 5 × 10⁻⁴ M TA aqueous solution (TA was dissolved in 2 × 10⁻³ M NaOH solution). A gradual increase in PL intensity at about 425 nm (excited by 315 nm UV-light) is observed with an increasing irradiation time for the nano-tubes released from PC templates (Fig. 10), while no PL increase is observed in the absence of UV light or the nano-tubes. This suggests that the fluorescence is due to the chemical reactions between terephthalic acid and ˙OH produced at the catalyst/water interface under UV illumination.³³ Further observation indicates that the PL intensity change is not linear with the irradiation time. This can be ascribed to the fact that the PW₁₂ catalyst is not stable in such high basic conditions and can be decomposed gradually.

Fig. 10 Photoluminescence spectral changes (λ_max = 425 nm) versus UV light irradiation time on the nano-tubes released from PC templates in a 5 × 10⁻⁴ M basic solution of terephthalic acid (excitation light λ = 315 nm, voltage = 500 V, EX-Slit = 10 nm, EM-Slit = 10 nm).

Though it is difficult to demonstrate quantitatively how the microstructure has helped the catalysis, it can be said that due to the high specific surface area exhibiting more active sites and the fact that the ˙OH radicals are produced at the catalyst/water interface under UV light illumination, the density of ˙OH radicals becomes greater and greater in the direction from the center of the nano-tubes to the inner surface of the nano-tubes. Meanwhile, the confinement both in the latitudinal and radial direction within the arrays forces the RhB molecules to flow through the nano-tubes leading to more opportunities to access the produced reactive ˙OH radicals which can decompose RhB into different species (Table 2) besides CO₂. As a result, the nano-tubular arrays present unique capabilities.

Renewable catalytic activity of the PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂)₈ nano-tubular arrays

Under the obtained optimal conditions, renewal and reuse of the nano-tubular arrays was tested. In the experiment, 5 overlapped PW₁₂-AAOs and 5 overlapped PW₁₂-PCs were used as catalysts for filtering a RhB solution, respectively. It was observed that the catalytic activity of the nano-tubular arrays in both AAO and PC faded after successive reuse (Fig. S9†). This could be due to the loss of the POMs on the inner surface of the nano-tubes indicating that POMs leached into the solution can not carry out catalysis as effectively as those within the nano-tubular arrays because of the absence of confinement both in the latitudinal and radial direction. Importantly, the catalytic activity of the POM nano-tubular arrays can be fully renewed by simple immersion in a H₃PW₁₂O₄₀-containing mother solution (Fig. 11) and can be reused as efficiently as a fresh catalyst. Obviously, this is very important in view of practical applications.

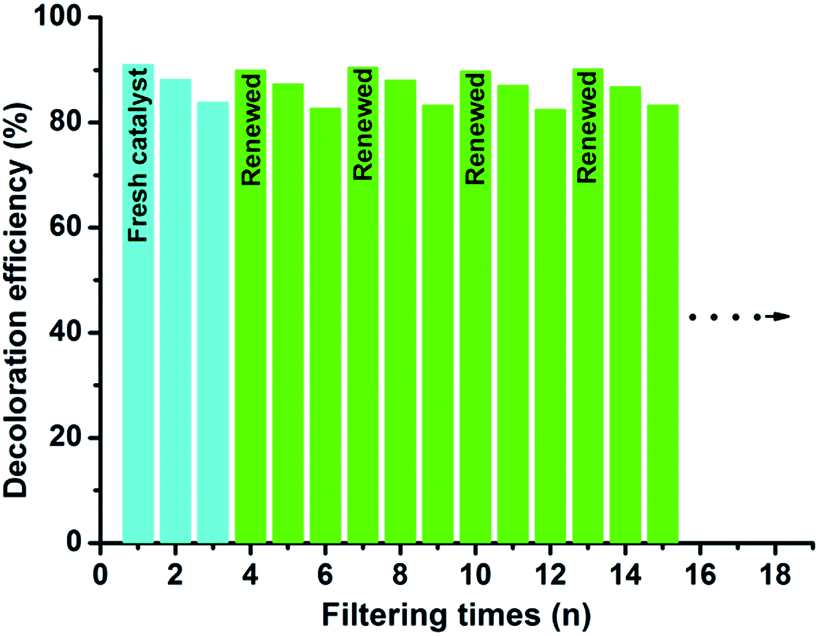

Fig. 11 Catalytic activity of fresh catalyst (5 overlapped PW₁₂-PCs) (cyan column) and the renewed catalysts (green column). Each renewal process was conducted after the catalyst had been used to photo-degrade fresh RhB solution three times.

Conclusion

In summary, we successfully prepared PEI/PSS/(PAH/PSS)₃(PAH/PW₁₂O₄₀³⁻)₈ nano-tubular arrays in the porous templates, AAO and PC, using the LBL method as a prototype, which not only allowed the precise structural design (controllable wall thickness and aperture) and control of the geometrical features (linear growth and smooth surface) but also solved the template pore blocking problem by a combination of the reduced pressure filtration process and neutral washing steps. The fabricated POM nano-tubular arrays exhibited excellent effects on the photo-degradation of RhB under mild conditions and the catalytic activity of the POM nano-tubular arrays can be fully renewed by simple immersion in a H₃PW₁₂O₄₀-containing mother solution when the catalytic reactivity fades. From an economic and environmental viewpoint, efforts to get POMs anchored onto the inner tube surface by relatively strong covalent bonds were also undertaken to avoid leaching of POMs. Given the large number of polyoxometalates of various structures and properties reported in the literature, this work may provide new concepts for catalyst design and regeneration based on polyoxometalates with a nano-confinement effect, array effect and coupling effect, which show extensive potential/practical applications for the design of reactors with specific sizes for specific reaction systems.

Acknowledgements

The financial support of the Natural Science Foundation of China, PCSIRT (no. IRT1205), the Fundamental Research Funds for the Central Universities (YS1406) and Beijing Engineering Center for Hierarchical Catalysts is greatly acknowledged. Prof. Xue Duan of Beijing University of Chemical Technology is greatly acknowledged for his kind support.
