Expedient and efficient one pot synthesis of trifluoroethyl ethers from metal free 2,4,6-tris-(2,2,2-trifluoro-ethoxy)-[1,3,5] triazene

Shrawan Kumar Mangawa, Chiranjeev Sharma, Ashawani kumar Singh and Satish K. Awasthi*
Chemical Biology Laboratory, Department of Chemistry, University of Delhi, India. E-mail: awasthisatish@yahoo.com; skawasthi@chemistry.du.ac.in

Received 12th January 2015 , Accepted 7th April 2015

First published on 7th April 2015


Abstract

An efficient synthesis of fluorinated alkyl and aryl ethers was achieved by the use of s-triazene derived fluorinated reagent 2,4,6-tris-(2,2,2-trifluoro-ethoxy)-[1,3,5] triazene (TriTFET). The procedure offers a very attractive alternative for the synthesis of fluorinated motifs that are found in various bioactive molecules. Moreover, TriTFET is a synthetic non-toxic, non-ozone depleting and stable reagent. All compounds were characterized by 1H, 13C and 19F NMR.


Fluorinated ethers (FEs) are one of the most important classes of organic compounds.1 It is well known that the trifluoroethoxy (CF3CH2O–) group increases metabolic stability and lipophilicity.2 High molecular weight fluorinated ethers are extensively used in industry as lubricants, dielectric fluids, and diffusion pump oils.3 Due to high O2 solubility of fluorinated ethers these are also used as blood substitutes.4 Low molecular weight fluorinated ethers such as desflurane, enflurane and sevofluorane are used as anaesthetics. Further, some blockbuster drugs viz., lansoprazole (used as antibacterial), silodosin (treatment of benign prostatic hyperplasia) and flecainide (introduced into the treatment of arrhythmias in thepediatric population) bearing a trifluoroethyl aryl ether pharmacophore are commercially available (Fig. 1).5 Fluorinated ethers (FEs) have a lower ozone depletion potential (ODP) and low global warming potential (GWP).6 Chlorofluorocarbons (CFCs), hydrochlorofluorocarbons (HCFCs), hydrofluorocarbon (HFCs) and perfluorocarbons (PFCs) are replaced by fluorinated ethers due to their vast industrial applications such as use in cleaning solvents, heat transfer agents, refrigeration and carrier fluids.7
image file: c5ra00618j-f1.tif

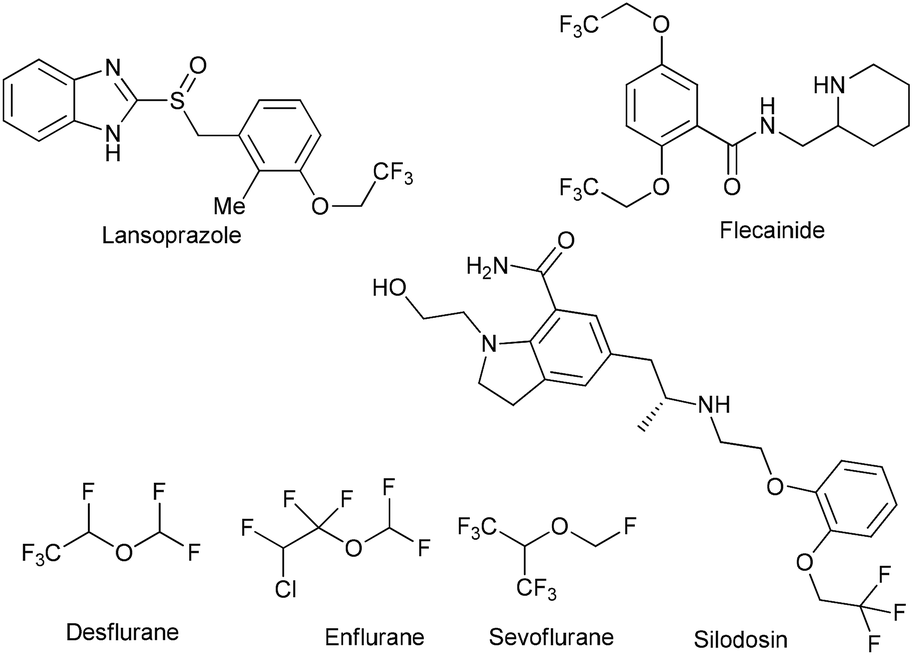

Fig. 1 Example of drugs which have fluorous motifs.

The popular fluorous analogues t-butyl, benzyl, and fluorenylmethyloxycarbonyl groups are used for fluorous protection of amino groups.8 Trifluoroethanol (TFE) can be used as an efficient substitute for fluorous protecting groups. It is also used in the total synthesis of Vinigrol proposed by Njardarson et al.9

Generally, fluorinated ethers are prepared by nucleophilic addition of alcohols and fluorinated substrates using strong base.10 Other choice for synthesizing fluorinated ethers are direct fluorination of chlorinated ethers with fluorine gas,11a 2,2,2-trifluorodiazoethane,11b Cobalt trifluoride,12 alkenes under the catalysis of boron tetrafluorodiethyl ether complex catalyst13a or by electrochemical methods.13b Williamson etherification is the most simple and convenient method for preparing fluoroethers using alcohols and alkyl halides.14 However, these fluorinated alkyl halides are responsible for ozone layer depletion. Another simple method is etherification i.e., alkoxylation of tosylate esters (perfluoroalkanesulfonate) with alkoxide (phenoxide) anions.15 Fluorinating reagent, fluorous silanes, THP, ethoxyethyl ether acetals, fluorous methoxymethyl ether (FMOM) fluorous benzyl groups and acyclic polyfluoro siloxanes are also used for fluorous protection of alchohols.16 In these reports, reactions proceed at elevated temperature in high boiling point solvents. Few research articles have also reported the synthesis of trifluoroethyl aryl/alkyl ethers, in which harsh conditions were used in the presence of aryl/alkyl halides at high temperatures.10 However, there is still need for mild and efficient reaction conditions. In this context, we now report a general process for the synthesis of an acid catalyzed fluorinated alkylating reagent and its use in the synthesis of alkyl/aryl TFE ethers (Fig. 2).


image file: c5ra00618j-f2.tif

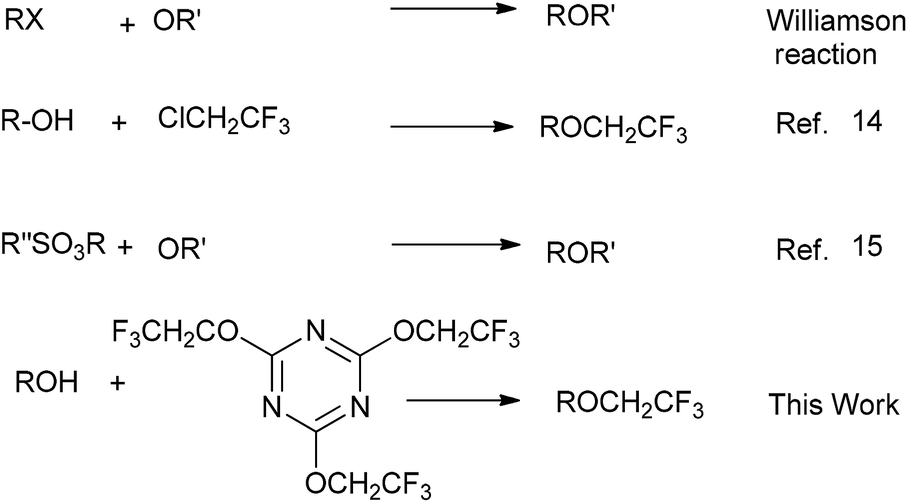

Fig. 2 Procedure for the synthesis of fluorinated ethers.

Synthesis of fluorinated alkylating reagent TriTFET (2,4,6-tris-(2,2,2-trifluoro ethoxy)-[1,3,5] triazene) is shown in Scheme 1. Chang et al.17 in 1961 introduced the reactions of cyanuric chloride with several electronegative substituted primary alcohols in which the electronegative substituents were fluoro, bromo, nitro, or nitroxy groups. Here we report the synthesis of TriTFET with slight modification in previously reported methods using the trifluoroethanol and NaOH as base. The side product cyanuric acid can be easily removed by filtration because of its low solubility in organic solvents. Further, during the synthesis and using TriTFET, we did not observe any irritating properties in our laboratory while its precursor cyanuric chloride is harmful, corrosive to skin and irritating to the respiratory tract. These features classify this reagent as an eco- and user friendly. TriTFET was characterized by 1H NMR, 13C NMR and 19F NMR. In 1H NMR spectra only one multiplet is observed at 4.8 due to –OCH2– protons. 13C NMR spectra shows one singlet at δ 172 due to triazene carbons, quartet at δ 126–118 is due to –CF3 carbon and multiplet at δ 64 is due to –CH2 carbons. 19F NMR show a singlet at δ −73 is due to fluorine atom of –CF3 groups.


image file: c5ra00618j-s1.tif
Scheme 1 Synthesis of TriTFET.

To optimize the reaction conditions for fluorinated etherification, we choose different equivalents (0.4 and 0.6) of TriTFET in different solvents using n-butanol as substrate (Scheme 2). We found that 0.6 equivalent of TriTFET gave the optimum yield. Further, while performing this reaction in different solvents viz. ACN, AcOEt, DMF, 1,4-dioxane and toluene, the best result was obtained in CH3CN. Thus, the reaction of n-butanol in the presence of 0.6 equivalent TriTFET in acetonitrile was found to be the optimum condition for the synthesis of fluorinated ethers (Table 1) and all reaction were carried out in this conditions.


image file: c5ra00618j-s2.tif
Scheme 2 Synthesis of fluorinated ether using TriTFET.
Table 1 Optimization of reaction conditions for the synthesis of fluorinated ethers using TriTFET

image file: c5ra00618j-u1.tif

Entry Solvent TriTFET (equiv.) Yielda
a Experimental yield determined by 1H NMR. All reactions carried at room temperature, TsOH; p-toluenesulphonic acid.
1 CH2Cl2 0.6 20
2 CH2Cl2 0.4 10
3 CH3CN 0.6 94
4 CH3CN 0.4 68
5 DMF 0.6 78
6 DMF 0.4 60
7 AcOEt 0.6 52
8 AcOEt 0.4 40
9 1,4-Dioxane 0.6 84
10 1,4-Dioxane 0.4 72
11 Toluene 0.6 45
12 Toluene 0.4 32


19F NMR of TriTFET and all synthesized fluorinated ethers showed identical peaks at ca. −73 ppm, which can be attributed to the presence of –OCH2CF3 group (see ESI). The scope of the use of TriTFET for fluorinated alkylation was investigated with various substrates (Table 2). Simple alcohols such as primary and secondary alcohols (Table 2, entries 1–7) gave desired TFE protected ethers 1a–7a in excellent yields. Propargyl alcohol also yielded corresponding TFE ether in good yield (82%, Table 2, entry 8). Benzyl and benzil alcohols also provided TFE protected ethers in moderate yields (Table 2, entries 9–11). Interestingly, reaction of α-hydroxy acetophenones, phenols, biologically active hydroxy coumarin and natural product menthol also afforded corresponding TFE protected ethers in moderate to good yields (62–94%, Table 2, entries 12–17). Further, α and β-naphthols also undergo TFE etherification with TriTFET, although the yields are lower than hydroxy acetophenones (Table 2, entries 15 and 16). It is noteworthy that our method is more superior and economic for fluorinated ether synthesis in comparison with the other results reported earlier in literature because in our method no metal and aryl/alkyl halides are used.

Table 2 Scope of various alcohol and phenols for the synthesis of fluorinated ethers using TriTFET

image file: c5ra00618j-u2.tif

S. no. Substrate (R–OH) Product TriTFET Time Yielda
a Experimental yield determined by 1H NMR; solvent acetonitrile; TsOH = p-toluenesulphonic acid.
1 image file: c5ra00618j-u3.tif 1a 0.6 4 h 94

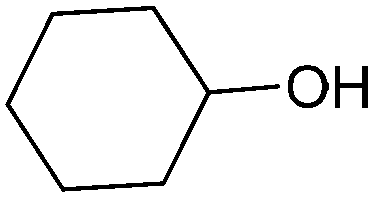

2 image file: c5ra00618j-u4.tif 2a 0.6 4 h 96
3 image file: c5ra00618j-u5.tif 3a 0.6 4 h 90
4 image file: c5ra00618j-u6.tif 4a 0.6 4 h 94
5 image file: c5ra00618j-u7.tif 5a 0.6 4 h 80
6 image file: c5ra00618j-u8.tif 6a 0.6 4 h 89
7 image file: c5ra00618j-u9.tif 7a 0.6 4 h 88
8 image file: c5ra00618j-u10.tif 8a 0.6 4 h 82
9 image file: c5ra00618j-u11.tif 9a 0.6 4 h 78
10 image file: c5ra00618j-u12.tif 10a 0.6 5 h 80
11 image file: c5ra00618j-u13.tif 11a 0.6 4 h 86
12 image file: c5ra00618j-u14.tif 12a 0.6 4 h 92
13 image file: c5ra00618j-u15.tif 13a 0.6 4 h 94
14 image file: c5ra00618j-u16.tif 14a 0.6 6 h 79
15 image file: c5ra00618j-u17.tif 15a 0.6 3 h 83
16 image file: c5ra00618j-u18.tif 16a 0.6 3 h 85
17 image file: c5ra00618j-u19.tif 17a 0.6 5 h 78


TriTFET is protonated with the help of p-toluenesulphonic acid (PTSA) to form the trifluoroethyl cation, which reacts with alcohols via SN1 mechanism to form trifluoroethane ethers. Further, the final concomitant leaving group isocyanuric acid is obtained and easily removed by filtration. However, reaction did not proceed in the absence of PTSA. Mechanistic results were rationalized on the basis of previous reports,18 which is shown as following plausible mechanism (Fig. 3).


image file: c5ra00618j-f3.tif

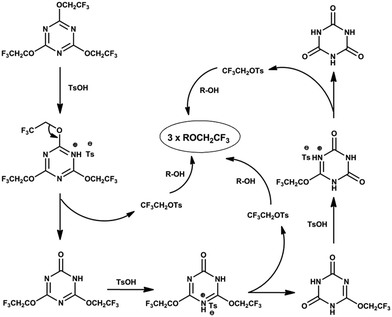

Fig. 3 Reaction mechanism of TFE alkylation using TriTFET.

Conclusions

In conclusion, the present study introduces the 1,3,5-triazine based TriTFET as a new reagent for the synthesis of various fluorinated ethers in higher yield. The inexpensive and easily available cyanuric chloride and 2,2,2-trifluoroethanol in one step gives TriTFET. Its use in the protection of alcohol and phenols by TFE group allows the synthesis of fluorinated ethers without using a large amount of halogenated alkyl halides as previously reported. Thus it is an expedient and eco-friendly approach. Further, TriTFET is also suitable for the conversion of sterically hindered secondary hydroxyl groups and converts menthol into the corresponding fluorinated ether.

Acknowledgements

SKM, CS, AKS are thankful to CSIR and UGC, India for providing fellowship. SKA acknowledges the University of Delhi, Delhi, India for financial support. Authors are thankful to USIC, University of Delhi for spectral data.

Notes and references

  1. M. Hudlicky, in Chemistry of Organic fluorine Compounds, ed. E. Horwood, Wiley, New York, 2nd edn, 1976 Search PubMed.
  2. F. Leroux, P. Jeschke and M. Schlosser, Chem. Rev., 2005, 105, 827–856 CrossRef PubMed.
  3. J. Pacansky, M. Miller, W. Halton, B. Liu and A. Scheiner, J. Am. Chem. Soc., 1991, 113, 329–343 CrossRef.
  4. D. D. Lawson, J. Moacanin, K. V. Scherer Jr, T. F. Terranova and J. D. Ingham, J. Fluorine Chem., 1978, 12, 221 CrossRef.
  5. P. Jeschke, E. Baston and F. R. Leroux, Mini-Rev. Med. Chem., 2007, 7, 1027–1034 CrossRef.
  6. (a) I. Bravo, D.-D. Mera, Y. Aranda, K. Smith, K. P. Shine and G. Marston, Phys. Chem. Chem. Phys., 2010, 12, 5115–5125 RSC; (b) D. A. Good and J. S. Francisco, J. Geophy. Res., 1998, 103, 28181–28186 CrossRef.
  7. A. Sekiya and S. Misaki, J. Fluorine Chem., 2000, 101, 215–221 CrossRef.
  8. (a) Z. Y. Luo, J. Williams, R. W. Read and D. P. Curran, J. Org. Chem., 2001, 66, 4261–4266 CrossRef PubMed; (b) D. P. Curran, M. Amatore, D. Guthrie, M. Campbell, E. Go and Z. Y. Luo, J. Org. Chem., 2003, 68, 4643–4647 CrossRef PubMed; (c) D. V. Filippov, D. J. Van Zoelen, S. P. Oldfield, G. A. Vander Marel, H. S. Overkleeft, J. W. Drijfhout and J. H. Van Boom, Tetrahedron Lett., 2002, 43, 7809–7812 CrossRef.
  9. Q. Yang, C. Draghici, J. T. Njardarson, F. Li, B. R. Smith and P. Das, Org. Biomol. Chem., 2014, 12, 330–344 Search PubMed.
  10. (a) Q. Yang and J. T. Njardarson, Tetrahedron Lett., 2013, 54, 7080–7082 CrossRef PubMed; (b) C. E. Morelli, L. Duri, A. Saludino, G. Speranza and P. Manitto, Synthesis, 2004, 3005–3010 CrossRef CAS PubMed; (c) P. V. Ramachandran and A. Chatterjee, Org. Lett., 2008, 10, 1195–1198 CrossRef CAS PubMed.
  11. (a) S. Akira and U. Kunimasa, Chem. Lett., 1991, 8, 1421–1424 Search PubMed; (b) K. L. Koller and H. C. Dorn, Anal. Chem., 1982, 54, 529–533 CrossRef.
  12. (a) S. Kurosawa, T. Arimura and A. Sekiya, J. Fluorine Chem., 1997, 88, 111–114 CrossRef; (b) J. Burdon, L. Garwer and R. L. Powell, J. Chem. Soc., Perkin Trans. 2, 1996, 625–631 RSC; (c) D. D. Moldavskii, G. G. Furin, L. V. Shkul'ttskaya and B. Y. Eifman, Russ. J. Appl. Chem., 2002, 75, 959–961 CrossRef.
  13. (a) D. F. Shellhamer, R. P. Callahan, V. L. Heasley, M. L. Druelinger and R. D. Chapman, Synthesis, 1997, 1056–1060 CrossRef PubMed; (b) Fluorine Chemistry, ed. J. H. Simmons, Academic Press, New York, 1950, vol. 1, pp. 414–420 Search PubMed.
  14. P. Tarrant and J. A. Young, J. Am. Chem. Soc., 1952, 75, 932–934 CrossRef.
  15. Q.-Y. Chen, R.-X. Zhu, Z.-Z. Li, S.-D. Wang and W. X. Huang, Acta Chim. Sin., 1982, 40, 337–352 Search PubMed.
  16. (a) A. Studer, S. Hadida, R. Ferritto, S.-Y. Kim, P. Jeger, P. Wipf and D. P. Curran, Science, 1997, 275, 823–826 CrossRef; (b) D. P. Curran and T. Furukawa, Org. Lett., 2002, 4, 2233–2235 CrossRef PubMed; (c) D. P. Curran and C. Ogoe, QSAR Comb. Sci., 2006, 25, 732–735 CrossRef PubMed; (d) N. R. Patel, J. Chen, Y. F. Zhang, R. L. Kirchmeier and J. M. Shreeve, Inorg. Chem., 1994, 33, 5463–5470 CrossRef.
  17. A. J. Matuszko and M. S. Chang, J. Org. Chem., 1962, 77, 677 CrossRef.
  18. K. Yamada, H. Fujita and M. Kunishima, Org. Lett., 2012, 14, 5026–5029 CrossRef CAS PubMed.

Footnote

Electronic supplementary information (ESI) available. See DOI: 10.1039/c5ra00618j

This journal is © The Royal Society of Chemistry 2015
