Metal-free synthesis of cyano acrylates via cyanuric chloride-mediated three-component reactions involving a cascade consists of Knoevenagel condensation/cyano hydration/esterification

Abstract

The synthesis of cyano acrylates has been achieved via an organocatalytic domino Knoevenagel reaction, hydration and esterification under metal-free conditions without using any additional solvent. During the reaction, the in situ produced water from the Knoevenagel condensation promotes the hydration of the cyano group and initiates the subsequent esterification, which makes up a novel, clean and atom economical route towards the synthesis of cyano acrylates.

---

Achieving multiple chemical transformations in a one-pot, one-step operation is a longstanding and central task of modern organic synthesis. Those reactions which allow multiple chemical transformations in one step under one set of reaction conditions are known as domino (also known as cascade or tandem) reactions.¹ Because of their unique advantage of step economics, during the past several decades, domino reactions have been extensively investigated and exhibited enormous utilities in the synthesis of natural products, biologically functional molecules, fine chemicals as well as material precursors.

On the other hand, organocatalysis which is free of the reliance on metal catalyst is currently one of the most favourable and promising strategies for sustainable organic synthesis owing to its cleanness, atom economics and versatile catalytic models.² Under this inspiration, a synthetic concept known as organocatalytic domino reaction which combines the advantages of both organocatalysis and domino reaction is emerging as a powerful tool in the synthesis of organic proudcts.³ Cyanuric chloride, also known as 2,4,6-trichloro-1,3,5-triazine (TCT) is a solid organocatalyst of low cost and broad functions.⁴ Besides acting as a conventional acid source to catalyze various organic reactions,⁵ TCT has displayed more valuable utilities in mediating or promoting a large number of unconventional organic transformations which are hardly possible with common organic or inorganic acid catalysts. For example, TCT has been found as the first organocatalyst to enable the Beckmann rearrangement reactions of ketoximes to provide amides,^6a the direct conversion of alkyl alcohols to corresponding chlorides,^6b the carboxylic acid-based Friedel–Crafts acylation,^6c direct oxidation of alkyl alcohols to carboxylic acids,^6d formation of formate esters as protection of primary alcohols,^6e the direct synthesis of isocyanides from formamides,^6f among others.⁷ Despite the availability of all these decent catalytic applications, however, multicomponent domino reactions that allowing fast generation of structurally diverse products using TCT as catalyst or promoter are rarely available.⁸

During our research process in the field of organocatalytic multicomponent domino reactions,⁹ we have identified that TCT could mediate the three-component reactions of aldehydes, malonitrile and alcohols to yield cyano acrylates without using additional solvent. While the dehydration-based transformation of cyano group has been known as tough work which frequently relys on harsh acidic or basic conditions for a long period,¹⁰ developing alternative mild and benign catalytic methods of improved sustainability to realize these transformations is therefore an issue of significant concern.¹¹ For example, Dong and co-worker has recently established a useful copper-catalyzed approach for the selective mono hydration of methylenemalonitriles 1 to provide corresponding cyano amides 2 in HOAc medium (eqn (1), Scheme 1).¹² Considering the urgent necessity in developing sustainable protocol for versatile cyano transformation, we report herein a metal-free organocatalytic version on the three-component synthesis of cyano acrylates 6 starting from aldehydes 3, malonitrile 4 and alcohols 5 (eqn (2), Scheme 1). To the best of our knowledge, this is the first example on the direct synthesis of cyano acrylates with multicomponent reactions involving the domino transformation of Knoevenagel condensation and cyano esterification.

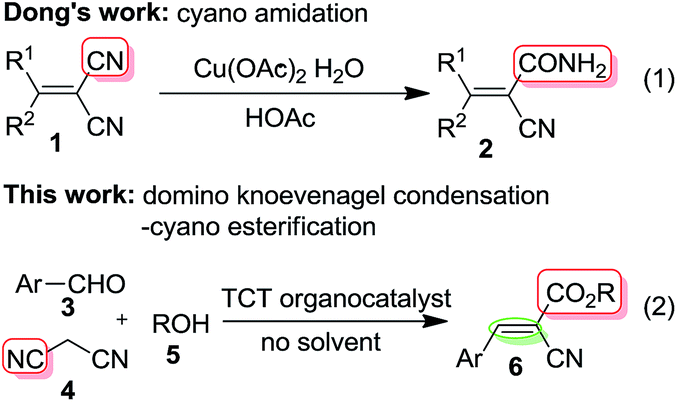

Scheme 1 Cyano hydration-based transformation for the synthesis of amides and esters.

Originally, the incorporation of benzaldehyde 3a, malonitrile 4 and EtOH 5a was run as a model reaction, and the product 6a was obtained by simply heating the combined substrates in the presence of TCT.¹³ With this interesting result initiated by TCT organocatalysis, we then conducted systematic optimization on the reaction conditions. The results from the optimization experiments were shown in Table 1. The main efforts focus on examining the effect of the TCT amount, the temperature as well as the amount of ethanol. First, the reactions in the presence of different amounts of TCT suggested that the yield 6a increased following the increase of TCT amount from 30 mol% to 70 mol%, and no further increase was observed when 90 mol% of TCT was employed (entries 1–4, Table 1). Subsequently, varying reaction temperatures from rt to 90 °C disclosed that 80 °C was the most appropriate (entries 5–10, Table 1). Later on, altering the amount of ethanol displayed an impact on the efficiency of providing 6a, and 2 mL EtOH gave the best result (entries 11 and 12). Finally, other acidic catalysts such as cerium ammonium nitrate (CAN) and p-tolsulfonic acid were found incapable of catalyzing this reaction (entries 13 and 14).

Table 1 Optimizing the reaction addition for the domino synthesis of 6a^a

Entry	T (°C)	Catalyst	EtOH (mL)	Yield^b (%)
a General conditions: benzaldehyde 3a (1.0 mmol), malonitrile 4 (1.0 mmol), catalyst (0.7 mmol) and EtOH, stirred at 80 °C for 12 h.b Yield of isolated products based on aldehyde.c 0.3 mmol TCT.d 0.5 mmol TCT.e 0.9 mmol TCT.
1^c	70	TCT	2	51
2^d	70	TCT	2	74
3	70	TCT	2	84
4^e	70	TCT	2	76
5	rt	TCT	2	51
7	50	TCT	2	57
8	65	TCT	2	60
9	80	TCT	2	86
10	90	TCT	2	72
11	80	TCT	1	65
12	80	TCT	3	84
13	80	p-TSA	2	Trace
14	80	CAN	2	Trace

---

In light of the optimized reaction conditions, the application scope of this three-component domino reaction was subsequently investigated. As expected, the organocatalytic protocol was found applicable for synthesizing a variety of different cyano acrylates by simply varying the aldehyde and alcohol components. As showing in Table 2, when EtOH was employed, the aryl aldehydes containing diverse functional groups such as halide, alkyl, alkoxyl, amino and nitro were able to undergo the domino transformation to produce corresponding products with good to excellent yields (6a–j, Table 2). In addition, heteroaryl aldehydes, including both electron deficient and enriched ones could also incorporate malonitrile and the EtOH to provide corresponding heteroaryl functionalized cyano acrylates 6k and 6l with good yields. More notably, different alkyl alcohols, including linear (6a–u), branched linear (6v–y) and cyclic (6z and 6aa) ones, had also been discovered well tolerable to this protocol to provide more diversified cyano acrylate products. Due to the steric hindrance effect to the esterification step, bulky alcohol such as i-PrOH was found to provide corresponding products with evidently lower yields (6v–y, Table 2). On the other hand, the properties of the substituent in the aldehyde component showed no clear impact on the reaction. Meanwhile, the attempts on employing aliphatic aldehyde to run similar reaction were not successful under the standard catalytic conditions.

Table 2 Three-component synthesis of different cyano acrylates

Ar	R	Product	Yield^a (%)
a Yield of isolated products based on aldehyde.
Ph	Et	6a	86
4-ClC6H4	Et	6b	70
4-BrC6H4	Et	6c	70
4-MeC6H4	Et	6d	73
4-MeOC6H4	Et	6e	59
4-Me2NC6H4	Et	6f	75
2-ClC6H4	Et	6g	64
2-BrC6H4	Et	6h	69
2-NO2C6H4	Et	6i	76
3-NO2C6H4	Et	6j	74
2-Chloropyridin-3-yl	Et	6k	79
Furyl-2-yl	Et	6l	80
Ph	n-Pr	6m	76
4-ClC6H4	n-Pr	6n	66
4-MeC6H4	n-Pr	6o	64
4-MeOC6H4	n-Pr	6p	65
Ph	n-Bu	6q	65
4-MeC6H4	n-Bu	6r	64
Ph	n-pentyl	6s	65
4-ClC6H4	n-pentyl	6t	66
4-MeC6H4	n-pentyl	6u	69
Ph	i-Pr	6v	51
4-ClC6H4	i-Pr	6w	54
4-MeC6H4	i-Pr	6x	53
4-MeOC6H4	i-Pr	6y	56
4-MeC6H4	Cyclohexyl	6z	63
4-BrC6H4	Cyclohexyl	6aa	61

---

Following the extensive investigation on alcohol-based esterification, we also examined the reactivity of phenols as alternative reaction partners, and conventional substrates of the type such as phenol failed to undergo the expected three-component transformation. However, it was interesting that the salicaldehyde could incorporate malonitrile 4 and EtOH 5a to yield 2H-chroemene 7 (eqn (3)). According its structure, the production of 7 involved in the double esterification of the two cyano groups and a further transesterification initiated by the phenol hydroxyl group, which demonstrated the high potential of the present organocatalytic system in not only the synthesis of cyano acrylates, but also in the synthesis of useful heterocyclic products.

According to the reaction results as well as the known literature on TCT catalysis,⁶ the mechanism for the present domino reaction is postulated as showing in Scheme 2. Originally, the acidic reaction conditions allow for the Knoevenagel condensation between aryl aldehydes 3 and malonitrile 4 to provide intermediates 8 by releasing water. In the presence of TCT, the water in the reaction system promotes the hydration of a cyano group to give amide intermediates 9 which incorporate TCT to yield intermediates 10 via a formal nucleophilic substitution. Finally, the further nucleophilic substitution of alcohols to 10 led to the production of target products 6.

Scheme 2 Proposed mechanism for the three-component domino reaction.

Conclusions

In conclusion, we have established a novel three-component methodology for the synthesis of cyano acrylates starting from aldehydes, alcohols and malonitrile. The products are generated via the domino transformations of Knoevenagel condensation, cyano hydration and esterification. This method is particularly advantageous for the metal-free reaction conditions requiring no additional solvent and allows for easy and rapid synthesis of cyano acrylates libraries.

Experimental

General procedure for the three-component synthesis of cyano acrylates

To a 25 mL round bottom flask equipped with stirring bar and water condenser were located aldehyde 3 (1.0 mmol), malonitrile 4 (1.0 mmol), TCT (0.7 mmol) and alcohol 5 (2 mL). The resulting mixture was stirred at 80 °C for 12 h (TLC). After completion, the mixture was allowed to cool down to room temperature, and was added with 5 mL water. The resulting mixture was extracted with EtOAc (3 × 10 mL). The organic layer was combined and dried with anhydrous MgSO₄. After filtration, the solvent in the acquired solution was removed under reduced pressure. The residue was subjected to silica gel column chromatography to provide target products using mixed petroleum ether (PE) and ethyl acetate (EA) (v/v PET–EA = 80 : 1, then 40 : 1) as eluent.

Ethyl 2-cyano-3-phenylacrylate (6a)¹³. ¹H NMR (400 MHz, CDCl₃): δ = 8.26 (s, 1H), 8.00 (d, J = 7.2 Hz, 2H), 7.59–7.49 (m, 3H), 4.40 (q, J = 7.2 Hz, 2H), 1.41 (t, J = 7.2 Hz, 3H); ¹³C NMR (100 MHz, CDCl₃): δ = 162.5, 155.1, 133.4, 131.5, 131.1, 130.1, 115.5, 103.0, 62.8, 14.2.

Acknowledgements

The work is financially supported by NSFC of China (no. 21102059), a project from the Department of Education of Jiangxi Province (no. GJJ13245).

Notes and references

1. For selected reviews on domino reactions, see: (a) L. F. Tietze, Chem. Rev., 1996, 96, 115; (b) M. Ruiz, G. Giorgi, P. López-Alvarado and J. C. Menéndez, Chem. Soc. Rev., 2011, 40, 3445; (c) K. C. Nicolaou, D. J. Edmonds and P. G. Bulger, Angew. Chem., Int. Ed., 2006, 45, 7134; (d) L.-Q. Lu, J.-R. Chen and W.-J. Xiao, Acc. Chem. Res., 2012, 45, 1278.
2. For selected reviews on organocatalysis, see: (a) D. W. C. MacMillan, Nature, 2008, 455, 304; (b) K. N. Houk and B. List, Acc. Chem. Res., 2004, 37, 487; (c) D. Enders, O. Niemeier and A. Henseler, Chem. Rev., 2007, 107, 5606; (d) W. Notz, F. Tanaka and C. F. Barbas III, Acc. Chem. Res., 2004, 37, 580; (e) D. Enders and T. Balensiefer, Acc. Chem. Res., 2004, 37, 534; (f) P. I. Dalko and L. Moisan, Angew. Chem., Int. Ed., 2004, 43, 5138; (g) A. Dondoni and A. Massi, Angew. Chem., Int. Ed., 2008, 47, 4638.
3. (a) C. Grondal, M. Jeanty and D. Enders, Nat. Chem., 2010, 2, 167; (b) D. Enders, C. Grondal and M. R. M. Hüttl, Angew. Chem., Int. Ed., 2007, 46, 1570; (c) C. M. R. Volla, I. Atodiresei and M. Rueping, Chem. Rev., 2014, 114, 2390; (d) H. Pellissier, Adv. Synth. Catal., 2012, 354, 237; (e) A.-N. Alba, X. Companyo, M. Viciano and R. Rios, Curr. Org. Chem., 2009, 13, 1432.
4. For a review on the chemistry of TCT, see: G. Blotny, Tetrahedron, 2006, 62, 9507.
5. (a) M. Sharma, S. Pandey, K. Chauhan, D. Sharma, B. Kumar and P. M. S. Chauhan, J. Org. Chem., 2012, 77, 929; (b) F. Hamon, G. Prié, F. Lecornué and S. Papot, Tetrahedron Lett., 2009, 50, 6800; (c) E. Siddalingamurthy, K. M. Mahadevan, J. N. Masagalli and H. N. Harishkumar, Tetrahedron Lett., 2013, 54, 5591; (d) M. A. Bigdeli, G. H. Mahdavinia, S. Jafari and H. Hazarkhani, Catal. Commun., 2007, 8, 2229; (e) A. Sharma, M. Singh, N. N. Rai and D. Sawant, Beilstein J. Org. Chem., 2013, 9, 1235; (f) Z.-H. Zhang and X.-Y. Tao, Aust. J. Chem., 2008, 61, 77; (g) C.-W. Kuo, C.-C. Wang, V. Kavala and C.-F. Yao, Molecules, 2008, 13, 2313.
6. (a) L. D. Luca, G. Giacomelli and A. Porcheddu, J. Org. Chem., 2002, 67, 6272; (b) Y. Furuya, K. Ishihara and H. Yamamoto, J. Am. Chem. Soc., 2005, 127, 11240; (c) L. D. Luca, G. Giacomelli and A. Porcheddu, Org. Lett., 2002, 4, 553; (d) C. O. Kangani and B. W. Day, Org. Lett., 2008, 10, 2645; (e) L. D. Luca, G. Giacomelli, S. Masala and A. Porcheddu, J. Org. Chem., 2003, 68, 4999; (f) L. D. Luca, G. Giacomelli and A. Porcheddu, J. Org. Chem., 2002, 67, 5152; (g) A. Porcheddu, G. Giacomelli and M. Salaris, J. Org. Chem., 2005, 70, 2361.
7. (a) S. Gao, Z. Tu, C.-W. Kuo, J.-T. Liu, C.-M. Chu and C.-F. Yao, Org. Biomol. Chem., 2006, 4, 2851; (b) M. Tatina, S. K. Yousuf and D. Mukherjee, Org. Biomol. Chem., 2012, 10, 5357; (c) M. N. S. Rad, A. Khalafi-Nezhad, Z. Asrari and S. Behrouz, Synthesis, 2010, 2599; (d) B. Das, M. Srilatha, B. Veeranjaneyulu and B. R. Rao, Synthesis, 2010, 803.
8. For a tutorial review on the sustainability of multicomponent reactions as a, see: R. C. Cioc, E. Ruijter and R. V. A. Orru, Green Chem., 2014, 16, 2958.
9. (a) J.-P. Wan, Y. Lin, Q. Huang and Y. Liu, J. Org. Chem., 2014, 79, 7232; (b) J.-P. Wan, Y. Lin, K. Hu and Y. Liu, Beilstein J. Org. Chem., 2014, 10, 287; (c) J.-P. Wan, Y. Lin, Y. Jing, M. Xu and Y. Liu, Tetrahedron, 2014, 70, 7874; (d) J.-P. Wan, R. Zhou, Y. Liu and M. Cai, RSC Adv., 2013, 3, 2477; (e) J.-P. Wan and Y.-J. Pan, Chem. Commun., 2009, 2768; (f) J.-P. Wan, S.-F. Gan, G.-L. Sun and Y.-J. Pan, J. Org. Chem., 2009, 74, 2862; (g) J. Wan, Y. Zhou, Y. Liu, Z. Fang and C. Wen, Chin. J. Chem., 2014, 32, 219.
10. (a) H. R. Sydner and C. T. Elston, J. Am. Chem. Soc., 1954, 76, 3039; (b) N. Kornblum and S. Singaram, J. Org. Chem., 1979, 44, 4727.
11. For recent examples on the catalytic green cyano hydration, see: (a) H. Chen, W. Dai, Y. Chen, Q. Xu, J. Chen, L. Yu, Y. Zhao, M. Ye and Y. Pan, Green Chem., 2014, 16, 2136; (b) M. B. Gawande, A. K. Rathi, I. D. Nogueira and R. S. Varma, Green Chem., 2013, 15, 1895; (c) R. García-Álvarez, P. Crochet and V. Cadierno, Green Chem., 2013, 15, 46.
12. X. Xin, D. Xiang, J. Yang, Q. Zhang, F. Zhou and D. Dong, J. Org. Chem., 2013, 78, 11956.
13. S.-I. Murahashi, T. Naota, H. Taki, M. Mizuno, H. Hakaya, S. Komiya, Y. Mizuho, N. Oyasato, M. Hiraoka, M. Hirano and A. Fukuoka, J. Am. Chem. Soc., 1995, 117, 12436.

---

Footnote

† Electronic supplementary information (ESI) available: General experimental information, full characterization data as well as ¹H/¹³C NMR spectra of all products. See DOI: 10.1039/c4ra13826k

---
