Metal-based magnetic functional fluids with amorphous particles

Abstract

Two metal-based magnetic functional fluids, Ga–Sn and Ga–In magnetic liquids, were fabricated by doping with Fe_73.5Nb₃Cu₁Si_13.5B₉ metallic glass particles and nanoscale Fe₃O₄ particles, respectively. The saturation magnetization of the metallic glass particles, Fe_73.5Nb₃Cu₁Si_13.5B₉, is about 125 emu g⁻¹, nearly 50% larger than that of Fe₃O₄ crystalline particles which are usually used in water-based magnetic fluids. It is discovered that functional fluids, Ga_85.8In_14.2 and Ga_91.6Sn_8.4 alloy liquids, with Fe_73.5Nb₃Cu₁Si_13.5B₉ particles exhibit high saturation magnetization as well as low coercivity and remanence. Furthermore, the magnetic hysteresis curves confirm that the liquid metal-based magnetic functional fluids with Fe_73.5Nb₃Cu₁Si_13.5B₉ particles have higher magnetization than the metal-based Fe₃O₄ fluids. Owing to the high alloy boiling point more than 2000 K, the metal-based functional fluids should be useful materials for engineering applications when the surrounding temperature is relatively high. Interestingly, these functional fluids offer the properties of superior thermal or electrical conductivity over conventional water-based fluids.

---

Introduction

Magnetic functional fluids have been subjected to extensive studies in the past few decades owing to their unique magnetic properties and fluidity as well as promising potential in advanced applications.^1–4 The carrier liquid is a highly significant component of the functional fluid. When selecting a carrier liquid, of significance is the consideration of the melting point, boiling temperature and evaporation rate. Historically, the most widely studied carrier liquids are organic or polar solvents, such as oil, toluene, hexane or water. However, typical organic solvents exhibit relatively high toxicity and volatility. Water-based magnetic controllable fluids have been widely applied in organic tissue cell separation, thermal therapy and drug delivery.^5–7 Unfortunately, they are not useful for applications where the surrounding temperature is relatively high because of the lower boiling temperature of the water-based fluids.⁸ Liquid metals, such as gallium and its alloys, have a low melting point, very low evaporation pressure, and an extremely high boiling point of more than 2000 K. In particular, gallium and its alloys have the advantages of remaining in the liquid state over a wide temperature range. These liquid metals exhibit a high electrical and thermal conductivity as well as fluidity. Although the mercury-based magnetic fluids have been investigated,⁹ the practical application is rather limited due to its safety issue of serious toxicity. Thus, the environmentally-friendly liquid gallium and its alloys become a good choice for the carrier liquid in a functional fluid. The functional fluids-based on liquid metal formulations may offer the merit of superior thermal or electrical conductivity over the current conventional functional fluids. However, published literatures on this aspect are scarce. Relevant examples are a study of movement of liquid gallium dispersing low concentration of magnetic particles¹⁰ and a recent study of fabrication of magnetic fluid through loading Ni particles into gallium.¹¹

Magnetic nanoparticles,^12–14 especially Fe₃O₄ iron oxides, bear many intriguing properties such as superparamagnetism and biocompatibility, which has stimulated great interest and research into magnetic fluids. However, the weak magnetic properties of current functional fluids constrain their practical use in some areas, such as elevated-temperature seals and high temperature cooling applications. The Fe-based metallic glasses (MGs) have broad prospects for industry applications due to low cost of raw materials together with their uniquely high magnetic properties relating to the short-range ordered and long-range disordered atomic structures.^15,16 Nowadays, the use of ferromagnetic amorphous alloys for efficient transformer cores is becoming more widespread, as they are the most magnetically soft commercially available materials.¹⁷ The Fe-based metallic glass particles have an excellent development potential in the application of magnetic functional fluids. Detailed research of Fe-based MG particles and their soft magnetic properties applied to functional fluids have not been yet significantly reported.

Two metal-based magnetic functional fluids, Ga–Sn and Ga–In magnetic functional liquids, were investigated by doping with Fe_73.5Nb₃Cu₁Si_13.5B₉ metallic glass particles and nanoscale Fe₃O₄ particles, respectively. Ga–Sn eutectic alloy and Ga–In eutectic alloy exhibit low melting points of 20.5 °C and 15.3 °C, respectively.¹⁸ This makes them suitable for selection as carrier liquids. Considering the excellent magnetic properties and fluidity with high thermal and electrical conductivity, these metal-based magnetically controllable fluids could offer opportunities in a variety of emerging applications such as magneto-caloric energy conversion devices,¹⁹ elevated-temperature seals,²⁰ high temperature cooling applications,⁸ as well as printed electronics²¹ etc.

Experimental

The Fe₃O₄ nanoparticles were synthesized by a chemical co-precipitation method. The black Fe₃O₄ nanoparticles were obtained using the following reaction:

2Fe³⁺ + Fe²⁺ + 8NH₃·H₂O = Fe₃O₄ + 8NH₄⁺ + 4H₂O

The Fe_73.5Nb₃Cu₁Si_13.5B₉ MG ribbons were prepared by melting, then spinning. The ribbons were milled 12 h, 24 h, 36 h and 48 h with a rotation speed of 360 rpm while using a high purity Ar gas protection shield to obtain the Fe_73.5Nb₃Cu₁Si_13.5B₉ MG powders. The samples of Ga_85.8In_14.2 and Ga_91.6Sn_8.4 liquid metal alloys used as base fluids in this study were prepared with pure Ga, In and Sn of 99.99% purity.

Certain amounts of Ga, In, and Sn metals were weighed and melted to obtain the Ga_85.8In_14.2 and Ga_91.6Sn_8.4 liquid metals. Then appropriate Fe₃O₄ nanoparticles and Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles were added to the liquid metal. Next, the mixed fluids were stirred constantly by mechanical stirring and supersonic dispersion in air at room temperature. It has been found that the wettability and compatibility of gallium and its alloys with various materials can be improved with a slight oxidization processing.¹¹ With vigorous stirring, more and more Ga_85.8In_14.2 and Ga_91.6Sn_8.4 liquid metal were oxidized. The Fe₃O₄ nanoparticles and Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles were gradually mixed uniformly within the liquid metal. Here liquid metal alloys and magnetic particles were physically blended and compatible with each other. Fig. 1 displays the schematic of preparation processing of the liquid metal-based functional fluids. Metal-based magnetic functional fluids with a mass fraction of 2%, by doping with Fe_73.5Nb₃Cu₁Si_13.5B₉ particles and Fe₃O₄ nanoparticles were prepared, respectively.

Fig. 1 The sketch of preparation of liquid metal-based functional fluids.

Results and discussion

Fig. 2 shows the SEM (scanning electron microscope) images of the Fe_73.5Nb₃Cu₁Si_13.5B₉ MG powders. The MG particle size reduces with increasing milling time. The particle size of the MG particles is 10–50 um after being milled 12 hours. However, the size of MG particles could reach 2–8 um or smaller after being milled 48 hours.

Fig. 2 SEM images of Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles and Fe₃O₄ nanoparticles. (a and b) MG powders after being milled 12 h. (c) (d) MG powders after being milled 24 h. (e and f) MG powders after being milled 36 h. (g and h) MG powders after being milled 48 h. (i) Fe₃O₄ nanoparticles.

The EDX (energy dispersive X-ray) spectrograms of Fe_73.5Nb₃Cu₁Si_13.5B₉ MG ribbons and particles after being milled for 48 hours are shown in Fig. 3, which indicates that elements of MG ribbons and particles are almost the same.

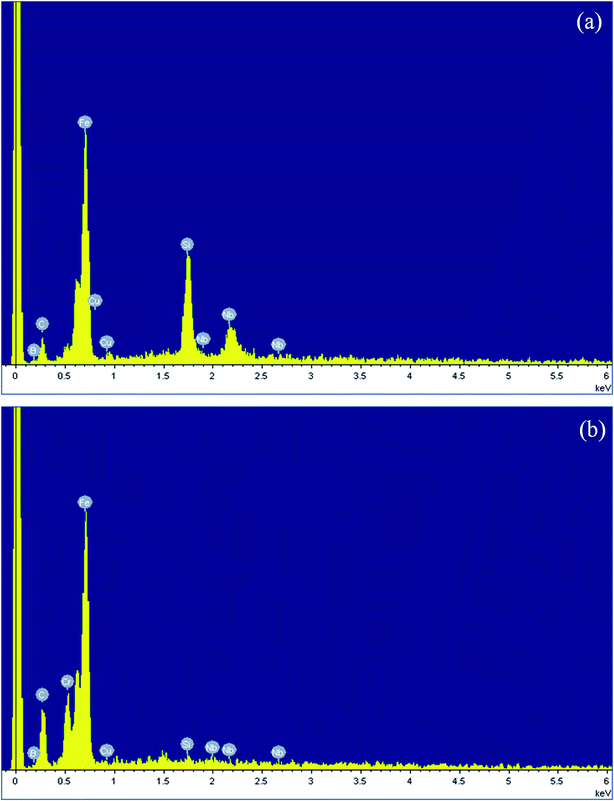

Fig. 3 The SEM-EDX spectrograms of Fe_73.5Nb₃Cu₁Si_13.5B₉ MG ribbons (a) and powders (b) after being milled for 48 h.

The XRD (X-ray diffraction) patterns of Fe₃O₄ nanoparticles and Fe_73.5Nb₃Cu₁Si_13.5B₉ particles are shown in Fig. 4. It indicates a series of diffraction peaks for (220), (311), (400), (422), (511) and (440) planes, which are related to Fe₃O₄ phase [JCPDS card no. 84-1436]. No obvious impurity peaks can be observed. Typical broad peaks are found for the Fe_73.5Nb₃Cu₁Si_13.5B₉ particles at about 2θ = 45°. No distinct diffraction peaks corresponding to crystalline phases are observed, which verifies that all Fe_73.5Nb₃Cu₁Si_13.5B₉ particles after being milled, are still amorphous.

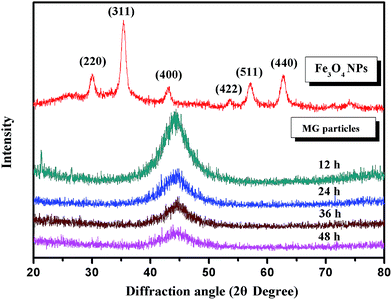

Fig. 4 The XRD patterns of Fe₃O₄ nanoparticles and Fe_73.5Nb₃Cu₁Si_13.5B₉ particles after being milled for 12 h, 24 h, 36 h and 48 h.

The DSC (differential scanning calorimeters) curves of the Fe_73.5Nb₃Cu₁Si_13.5B₉ particles at a heating rate of 20 K min⁻¹ are shown in Fig. 5. Two exothermic peaks during heating indicate two stages crystallization of the ribbons and powders. The two peaks reveal that the particles remain amorphous even after being milled for 48 h. The results correspond well with the XRD patterns of Fe_73.5Nb₃Cu₁Si_13.5B₉ particles as mentioned above.

Fig. 5 DSC curves of Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles after being milled with a heating rate of 20 K min⁻¹.

The magnetic properties of Fe₃O₄ nanoparticles and Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles after being milled have been investigated by using a vibrating sample magnetometer (VSM) at room temperature. The results in Fig. 6 show that the saturation magnetization of the Fe₃O₄ nanoparticles is about 68 emu g⁻¹. Zero remanence and zero coercivity indicate that the Fe₃O₄ particles have superparamagnetism. There has not been a significant change in saturation magnetization of the Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles before or after being milled as shown in Fig. 6(a) and (b). However, the value is about 124.2 emu g⁻¹, which is two times larger than that of the Fe₃O₄ nanoparticles shown in ref. 22 The Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles have relatively high saturation magnetization compared with various types of ferrite such as Ni–Zn and Mn–Zn ferrite etc.^23,24

Fig. 6 Hysteresis curves of Fe₃O₄ nanoparticles and Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles after being milled for different hours (a) 12 h, 24 h. (b) 36 h, 48 h.

The hysteresis curves of liquid metal-based magnetic functional fluids with Fe₃O₄ nanoparticles and Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles are shown in Fig. 7. As for the Ga_85.8In_14.2 and Ga_91.6Sn_8.4-based Fe_73.5Nb₃Cu₁Si_13.5B₉ fluids, both of them exhibit good magnetization, which indicates that the MG particles have good compatibility with the liquid metal. The saturation magnetization of Ga_91.6Sn_8.4-based magnetic functional fluids is about 0.4 emu g⁻¹, as shown in Fig. 7(a), while the corresponding value is about 0.6 emu g⁻¹ for the Ga_85.8In_14.2-based magnetic functional fluids. Both of Ga_91.6Sn_8.4 and Ga_85.8In_14.2-based magnetic functional fluids have relatively low coercivity and remanence as shown in Table 1.

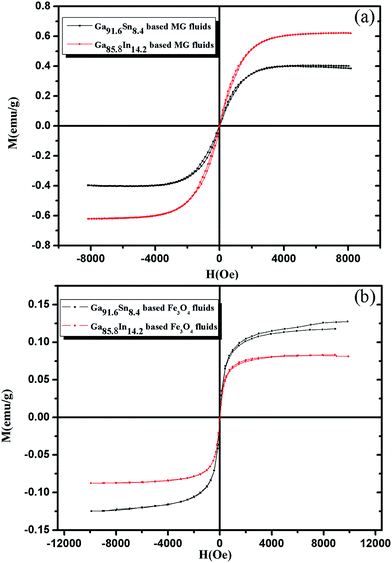

Fig. 7 Hysteresis curves of liquid metal-based Fe_73.5Nb₃Cu₁Si_13.5B₉ magnetic functional fluids (a) and liquid metal-based Fe₃O₄ magnetic fluids (b).

Table 1 Parameters of Ga_91.6Sn_8.4 and Ga_85.8In_14.2 based functional fluids

Samples	Saturation magnetization (emu g^−1)		Coercivity (Gs)		Remanent magnetization (emu g^−1)
	Negative	Positive	Negative	Positive	Negative	Positive
Ga91.6Sn8.4 + MG	−0.39	0.40	−28.40	28.38	−0.03	0.03
Ga85.8In14.2 + MG	−0.62	0.62	−24.28	−24.31	−0.04	0.04
Ga91.6Sn8.4 + Fe3O4	−0.13	0.13	−11.25	11.28	−0.003	0.003
Ga85.8In14.2 + Fe3O4	−0.08	0.08	−7.14	7.13	−0.001	0.001

---

The magnetic properties of Ga_85.8In_14.2 and Ga_91.6Sn_8.4-based Fe₃O₄ magnetic fluids were also investigated as shown in Fig. 7(b). It can be seen that both of Ga_85.8In_14.2 and Ga_91.6Sn_8.4-based Fe₃O₄ magnetic fluids exhibit superparamagnetism with saturation magnetization of 0.08 emu g⁻¹ and 0.13 emu g⁻¹, respectively. Almost zero remanence and zero coercivity can be observed. The saturation magnetization of Ga_91.6Sn_8.4-based Fe₃O₄ magnetic fluid is higher than that of Ga_85.8In_14.2-based Fe₃O₄ magnetic fluid.

Controlled manipulation of small volumes of functional liquid, as either flow or droplets, is extremely important in miniaturized systems for chemical and biological applications, such as purification and high-throughput microarrays analysis.²⁵ To further evaluate the magnetic effects of the liquid metal-based fluids, experiments on the behavior of fluid droplets were performed. A fluid droplet of a water-based Fe₃O₄ magnetic fluid with a mass fraction of 2% was also tested for comparison. The fluid droplets of water-based fluids and Ga_85.8In_14.2-based magnetic functional fluids with Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles were placed on the cover glass, respectively. The behaviors of the droplets are shown in Fig. 8. Fig. 8(a) and (b) are the droplets without the magnetic field being present. At initial conditions, the MG particles were mixed uniformly within the Ga_85.8In_14.2 liquid metal as shown in Fig. 8(a). Using a permanent magnet, we are able to observe the basic features of the droplet behavior. From Fig. 8(c) we can see that the whole droplet of the Ga_85.8In_14.2-based fluids could be attracted upwards onto the cover glass by the permanent magnet, while the water based droplet suffered component separation by the interplay between the magnetic and gravitational forces as shown in Fig. 8(d). The results demonstrate that the liquid metal-based functional fluids with MG particles exhibit better magnetic properties over conventional water-based Fe₃O₄ magnetic fluids. As magnetic droplets can be assembled into well-defined geometric patterns under equilibrium conditions, this droplet methodology of liquid metal-based functional fluids would have potential application to droplet-based microfluidics and possibly e-paper technology. The magnetic parameters of all Ga_91.6Sn_8.4 and Ga_85.8In_14.2-based magnetic functional fluids can be seen in Table 1.

Fig. 8 The behaviors of the fluid droplets of Ga_85.8In_14.2-based magnetic functional fluids (a and c) and water-based fluids (b and d).

The temperature dependent magnetization properties of the metal-based MG functional fluids have been investigated using superconducting quantum interference device. Fig. 9 shows the magnetization curves of (a) Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles, (b) Ga_85.8In_14.2 based MG fluids and (c) Ga_91.6Sn_8.4 based MG fluids, measured between 293 K and 333 K in 10 K steps. From Fig. 9(a), it can be seen that the magnetization value of the MG particles decreases with increasing temperature, which shows temperature sensitive magnetic property. Moreover, the MG particles have relatively high temperature dependency as well as high saturation magnetization when compared with various types of temperature sensitive ferrite such as Ni–Zn ferrite and Mn–Zn ferrite.^23,24

Fig. 9 Magnetization curves of (a) Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles, (b) Ga_85.8In_14.2 based MG fluids and (c) Ga_91.6Sn_8.4 based MG fluids, measured between 293 K and 333 K in 10 K steps.

Fig. 9(b) and (c) shows the temperature dependency of the MG functional fluids. The magnetization values of both Ga_85.8In_14.2 based MG fluids and Ga_91.6Sn_8.4 based MG fluids decrease, which are caused by the low magnetic property of liquid metal and low solid fraction of magnetic MG particles. However, the magnetization values of the synthesized functional fluids show the temperature dependence, i.e. decrease with increase increasing temperature.

Fig. 10 shows the saturation magnetization for (a) Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles, (b) Ga_85.8In_14.2 based MG fluids and (c) Ga_91.6Sn_8.4 based MG fluids as a function of temperature when the magnetic flux density was kept constant at 0.8 T. We found that there is a temperature dependency of the magnetization for Ga_85.8In_14.2 based MG fluids and Ga_91.6Sn_8.4 based MG fluids within the testing temperature range of 293–333 K. Considering the temperature sensitive magnetic properties, these liquid metal-based functional fluids can be used in magneto-caloric energy conversion devices or heat exchange devices, where continuous heat diffusion and cooling can be achieved and the elastic properties can be kept at all times.¹⁹

Fig. 10 Saturation magnetization as a function of temperature for (a) Fe_73.5Nb₃Cu₁Si_13.5B₉ MG particles, (b) Ga_85.8In_14.2 based MG fluids and (c) Ga_91.6Sn_8.4 based MG fluids, measured at 0.8 T.

Conclusion

By doping Fe-based MG particles into liquid metal alloys, we have successfully prepared Ga_85.8In_14.2 and Ga_91.6Sn_8.4-based Fe_73.5Nb₃Cu₁Si_13.5B₉ functional fluids. The experimental results indicate that the Fe_73.5Nb₃Cu₁Si_13.5B₉ particles have high saturation magnetization. As for the Ga_85.8In_14.2 and Ga_91.6Sn_8.4-based MG magnetic functional fluids, both of them exhibit good magnetization. The saturation magnetization of Ga_85.8In_14.2-based MG fluids is about 0.6 emu g⁻¹, which is higher than that of the Ga_91.6Sn_8.4-based MG fluids. Ga_85.8In_14.2 and Ga_91.6Sn_8.4-based Fe₃O₄ magnetic fluids exhibit superparamagnetism, however the saturation magnetizations of the Ga_91.6Sn_8.4 and Ga_85.8In_14.2-based Fe₃O₄ magnetic fluids are lower than that of Ga_85.8In_14.2 and Ga_91.6Sn_8.4-based MG functional fluids. We found that both of Ga_85.8In_14.2 based MG fluids and Ga_91.6Sn_8.4 based MG fluids showed a temperature sensitive of magnetization within the testing temperature range of 293–333 K.

Considering the excellent temperature sensitive magnetic properties and fluidity as well as high thermal and electrical conductivity, these liquid metal-based magnetically controllable fluids should have potential applications in a variety of emerging applications, especially in elevated-temperature seals, high temperature cooling and magneto-caloric energy conversion devices.

Acknowledgements

The authors are grateful for the financial support from the National Natural Science Foundation of China (Grant no. 51371107) and Scientific and Technological Project of Shandong Province (Grant no. 2013GGX1027).

References

1. R. E. Rosensweig, Ferrohydrodynamics, Cambridge University Press, Cambridge, England, 1985.
2. G. Jia, W. L. Yang and C. C. Wang, Adv. Mater., 2013, 25, 5196.
3. M. Molazemi, H. Shokrollahi and B. Hashemi, J. Magn. Magn. Mater., 2013, 346, 107.
4. C. C. Yang, X. F. Bian and J. F. Yang, Funct. Mater. Lett., 2014, 7, 1450028.
5. P. Tartaj, M. D. P. Morales, S. V. Verdaguer, T. G. Carreno and C. J. Serna, J. Phys. D: Appl. Phys., 2003, 36, 182.
6. O. Veiseh, J. W. Gunn and M. Zhang, Adv. Drug Delivery Rev., 2010, 62, 284.
7. H. Shokrollahi, Mater. Sci. Eng., C, 2013, 33, 2476.
8. Y. H. Tian, G. H. Su, J. Wang, W. X. Tian and S. Z. Qiu, Prog. Nucl. Energy, 2013, 68, 177.
9. E. Dubois, J. Chevalet and R. Massart, J. Mol. Liq., 1999, 83, 243.
10. T. Fujita, H. S. Park, K. Ono, S. Matsuo, K. Okaya and G. Dodbiba, J. Magn. Magn. Mater., 2011, 323, 1207.
11. M. Xiong, Y. Gao and J. Liu, J. Magn. Magn. Mater., 2014, 354, 279.
12. X. Wang, J. Zhuang, Q. Peng and Y. D. Li, Nature, 2005, 437, 121.
13. S. H. Sun, C. B. Murray, D. Weller, L. Folks and A. Moser, Science, 2000, 287, 1989.
14. X. Q. Xu, C. H. Deng, M. X. Gao, W. J. Yu, P. Y. Yang and X. M. Zhang, Adv. Mater., 2006, 18, 3289.
15. R. X. Zheng, H. Yang, T. Liu, K. Ameyama and C. L. Ma, Mater. Des., 2014, 53, 512.
16. H. Zohdi, H. R. Shahverdi and S. M. M. Hadavi, Electrochem. Commun., 2011, 13, 840.
17. A. Inoue and A. Takeuchi, Acta Mater., 2011, 59, 2243.
18. X. L. Zhao, X. F. Bian, Y. W. Bai and X. X. Li, J. Appl. Phys., 2012, 111, 103514.
19. E. Auzans, D. Zins, E. Blums and R. Massart, J. Mater. Sci., 1999, 34, 1253.
20. R. N. Singh, J. Mater. Eng. Perform., 2006, 15, 422.
21. Y. Zheng, Z. Z. He, J. Yang and J. Liu, Sci. Rep., 2014 DOI:10.1038/srep04588.
22. H. J. Chen, Y. M. Wang, J. M. Qu, R. Y. Hong and H. Z. Li, Appl. Surf. Sci., 2011, 257, 10802.
23. P. Poddar, J. Gass, D. J. Rebar, S. Srinath, H. Srikanth, S. A. Morrison and E. E. Carpenter, J. Magn. Magn. Mater., 2006, 307, 227.
24. R. Arulmurugan, G. Vaidyanathan, S. Sendhilnathan and B. Jeyadevan, J. Magn. Magn. Mater., 2006, 298, 83.
25. Y. Zhao, J. Fang, H. X. Wang, X. G. Wang and T. Lin, Adv. Mater., 2010, 22, 707.

---
