A rhodamine–quinoline based chemodosimeter capable of recognising endogenous OCl in human blood cells

Shyamaprosad Goswami*a, Sangita Dasa, Krishnendu Aicha, Prasanta Kumar Nandia, Kakali Ghoshalb, Ching Kheng Quahc, Maitree Bhattacharyyab, Hoong-Kun Funcd and Hatem A. Abdel-Azizde
aDepartment of Chemistry, Indian Institute of Engineering Science and Technology, Shibpur, Howrah-711103, India. E-mail: spgoswamical@yahoo.com; Fax: +91 33 2668 2916; Tel: +91 33 2668 2961 Tel: +91 33 2668 2962 Tel: +91 33 2668 2963
bDepartment of Biochemistry, University of Calcutta, Kolkata, 700019, India. E-mail: bmaitree@gmail.com
cX-ray Crystallography Unit, School of Physics, Universiti Sains Malaysia, 11800 USM, Penang, Malaysia
dDepartment of Pharmaceutical Chemistry, College of Pharmacy, King Saud University, Riyadh 11451, Saudi Arabia. E-mail: hfun.c@ksu.edu.sa; Fax: +966-146-76220; Tel: +966-146-77335
eDepartment of Applied Organic Chemistry, National Research Center, Dokki, Cairo 12622, Egypt

Received 9th April 2014 , Accepted 22nd May 2014

First published on 23rd May 2014


Abstract

A rhodamine–quinoline based chemodosimeter (RHQ) has been designed, synthesized and characterized in this paper. The structure of the sensor is confirmed through single crystal X-ray study. It detects hypochlorite (OCl) selectively among other analytes studied. It showed colorimetric and orange-red fluorescence “turn-on” upon addition of OCl. The OCl-promoted ring opening of the rhodamine spirolactam ring in RHQ evokes a large absorbance as well as fluorescence enhancement in water–acetonitrile (1/1, v/v) medium with no significant response to other competitive analytes. Furthermore, we demonstrate here that RHQ can endogenously detect OCl in human blood cells (peripheral blood mononuclear cells). It also exhibits excellent performance in the “dip stick” method. The optimized structure of the probe is calculated by density functional theory calculations. Moreover, the limit of detection of the probe is in the 10−8 M range.


Introduction

Hypochlorous acid (HOCl) is known to be one of the biologically important ROS (reactive oxygen species),1 which is weakly acidic. It partially dissociates into the hypochlorite ion (OCl) in physiological pH solutions.2 In living organisms, hypochlorous acid is generated by the reaction of hydrogen peroxide with chloride ions under the catalysis of the heme enzyme myeloperoxidase (MPO), which is synthesized and secreted by activated phagocytes.3–5
image file: c4ra03200d-t1.tif

On the other hand, the concentrated hypochlorite solution is a potential hazard to humans and animals. It involves oxidation of important biomolecules such as plasma membrane ATPases, collagen, ascorbate, proteins including α1-antiproteinase, nucleotides, sulfhydryls, thioethers, DNA and DNA-repair enzymes, depletes intracellular ATP and reduced glutathione (GSH), ultimately enhancing cell death.6 Abnormal levels of hypochlorite lead to a series of complications including cardiovascular diseases, neuron degeneration, diabetes, arthritis, cancer and ageing.7

In this paper, we have established that RHQ fluorescence probe has successful potential of sensing endogenous HOCl for imaging of living human peripheral blood mononuclear cells (PBMCs).

Colorimetric, luminescent, electrochemical and chromatographic methods have been reported to monitor hypochlorite.8 In the past few years, fluorescence sensors are widely regarded as one of the most effective ways for sensor design due to the high sensitivity, specificity, simplicity of implementation and ability for real-time monitoring. Even though there are a number of HOCl sensors available, real biological applications of probes which enable us to monitor microbe-induced HOCl production are rare. Therefore, it is a challenging task to develop imaging probe for HOCl with a high selectivity and sensitivity, which can be applicable to various biological systems.

In recent years, a large number of sensors based on rhodamine platform have been reported due to their excellent photophysical properties, high quantum yields, good water solubility and high photostability.9 The sensing mechanism of the rhodamine based dyes involves the opening of the spirolactam ring to give a pink color along with a fluorescence ‘turn-on’ response. In continuation of our work,10 herein we present, such a HOCl induced ‘turn-on’ fluorescent probe (RHQ) using rhodamine–quinoline moiety in aqueous acetonitrile (1/1, v/v, 25 °C) media.

The synthetic scheme of the receptor is shown in Scheme 1. Intermediate compounds B (ref. 11) and C (ref. 12) are prepared according to the literature procedures. Treatment of compound B with compound C affords the receptor. The detailed experimental procedure and characterization data are explained in the following.


image file: c4ra03200d-s1.tif
Scheme 1 Synthetic scheme of the probe RHQ. Reagents and conditions: (i) ethyl chloroacetate, K2CO3, TBAB, acetone, reflux, 4 h. (ii) Hydrazine hydrate, EtOH, reflux, 2 h. (iii) POCl3, 1,2 dichloroethane, reflux, 4 h. (iv) Acetonitrile, reflux, 12 h.

Experimental

General

Unless otherwise mentioned, materials were obtained from commercial suppliers and were used without further purification. Thin layer chromatography (TLC) was carried out using Merck 60 F254 plates with a thickness of 0.25 mm. Melting points were determined on a hot-plate melting point apparatus in an open mouth capillary and are uncorrected. 1H and 13C NMR spectra of RHQ were recorded on JEOL 400 MHz and 100 MHz instruments respectively. For NMR spectra, CDCl3 was used as solvent using TMS as an internal standard. Chemical shifts are expressed in δ units and 1H–1H and 1H–C coupling constants in Hz. Fluorescence spectra were recorded on a PerkinElmer LS55 spectrophotometer and UV-vis titration experiments were performed on a JASCO UV-V530 spectrophotometer.

UV-vis method

For UV-vis titration, we used the solution of the host in the order of 10 μM. The solution was prepared in CH3CN[thin space (1/6-em)]:[thin space (1/6-em)]H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v, 25 °C). The solutions of the guest analytes using their sodium salts in the order of 2 × 10−4 M, were prepared in de-ionized water. Now, different concentrations of host and increasing concentration of analytes were prepared separately and the spectra of these solutions were recorded by means of UV-vis method.

Fluorescence method

Now, for the fluorescence titration, the solution of the receptor was prepared (10 μM) in CH3CN[thin space (1/6-em)]:[thin space (1/6-em)]H2O (1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v, 25 °C) medium. The solutions of the guest analytes using their sodium salts in the order of 2 × 10−4 M, were prepared in deionised water. Here also various concentrations of guest and increasing concentration of analytes were prepared and the fluorescence spectra were recorded.

Synthesis of the receptor (RHQ)

To a stirred solution of rhodamine B (500 mg, 1.04 mmol) in 1,2-dichloroethane (20 ml), POCl3 (0.5 ml, 5.22 mmol) was added in a drop-wise manner over 5 minutes at 0 °C. After complete addition, whole reaction mixture was refluxed for 4 hours. The reaction mixture was cooled to room temperature and the solvent was evaporated to get the crude acid chloride of rhodamine B (C). The compound was used directly in the next step. Acetonitrile was added to dissolve the acid chloride (C) and a mixture of compound B (250 mg, 1.15 mmol) and triethyl amine (2 ml) in acetonitrile was added drop-wise to it. The reaction mixture was refluxed under N2-atm for 12 hours. Solvent was evaporated and water was added to it when a pink colored solid was precipitated. The crude solid was purified through column chromatography using 2% CH3OH in CHCl3 as eluent to get a light pink colored solid (Yield = 400 mg, 60%). Mp = 138–140 °C.
Solubility. Soluble in CHCl3, CH2Cl2, CH3CN, DMSO, MeOH (partly), EtOH (partly), THF.
1H NMR (400 MHz, CDCl3). δ 1.20 (t, J = 5.6 Hz, 12H), 3.45 (q, J = 5.6 Hz, 8H), 4.72 (s, 2H), 10.25 (s, 1H), 6.44 (m, 6H), 7.11 (m, 4H), 7.48 (m, 4H), 8.20 (m, 3H).
13C NMR (100 MHz, CDCl3). δ 15.3, 44.5, 66.0, 77.4, 97.6, 104.57, 107.74, 108.42, 109.05, 121.58, 123.38, 123.84, 124.18, 124.87, 126.94, 128.20, 129.09, 129.56, 132.97, 135.85, 148.72, 153.76, 154.03, 154.34, 164.58, 167.18.
HRMS (ESI positive). Calcd. for C39H39N5NaO4 [M + Na]+ (m/z): 664.2900; found: 664.2900.

Fluorescence imaging of living human PBMCs

3 ml of venous blood was obtained from volunteer donors (age > 50 years) with their informed consent. Peripheral blood mononuclear cells (PBMCs) were isolated by density gradient centrifugation by histopaque-1077 obtained by SIGMA. PBMCs were washed and suspended in PBS. RHQ samples were prepared in 50% DMSO and 50% PBS. PBMCs were then incubated with 50 μmol l−1 RHQ sample for 15 minutes at 37 °C. Cells were observed under fluorescence microscope (Carl Zeiss HBO 100) with fluorescence emission at 580 nm.

Fluorescence lifetime method

Fluorescence lifetimes were measured using a time-resolved spectrofluorometer from HORIBA Scientific. The instrument uses a picoseconds diode laser (NanoLed-07, 284 nm) as the excitation source and works on the principle of time-correlated single photon counting. The goodness of fit was evaluated by χ2 criterion and visual inspection of the residuals of the fitted function to the data.

Method of crystallization

An amount of 5 mg of RHQ was dissolved in a vial in 10 μl CHCl3, then about 1 ml of CH3CN was added to it. Keep the vial gently in a cool place without any perturbation. After 2 days, fine colorless crystals were obtained.

Results and discussions

UV-vis study

To examine the selectivity of the sensor (RHQ, 10 μM, water–acetonitrile 1/1, v/v, 25 °C), UV-vis and fluorescence titration experiments were performed using common interfering analytes (S2−, N3, NO2, NO3, H2O2, O2˙, SO32−, Cl, I, F and SO42−) in water.

The analyte binding properties of the chemodosimeter are studied by employing the sodium salts of the anions. The solution of the receptor in this mixed aqueous media showed two absorption spectral bands at 270 and 308 nm. There was no detectable band at 500–600 nm to ensure the presence of spirolactam ring of the receptor under the experimental condition (Fig. 1). Upon addition of OCl to a colourless solution of RHQ (10 μM), a low-energy strong absorption band centred at 560 nm is observed.


image file: c4ra03200d-f1.tif

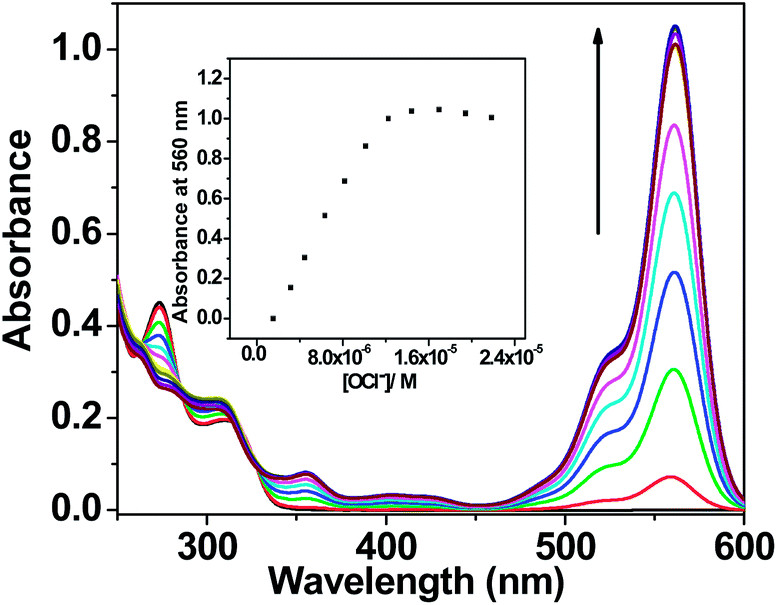

Fig. 1 Absorption spectra of RHQ (10 μM) upon titration with OCl (0 to 2.5 equivalents) in CH3CN–H2O (1/1, v/v, 25 °C) solution. Inset: plot of absorbance of RHQ at 560 nm depending on the OCl concentration.

The intensity of the band increases regularly as the amount of OCl is added progressively (up to 2.5 equiv.). The mechanism behind this kind of sensing phenomenon is the OCl promoted oxidation, which actually leaves the rhodamine-B in its open ring platform (Scheme 2). This exhibits a colour change from colourless to pink-red. As shown in Fig. 2, other competing analytes showed insignificant effect on the absorption spectra of the receptor. A large enhancement of absorbance at 560 nm was observed upon addition of 1.2 equivalents of OCl.


image file: c4ra03200d-s2.tif

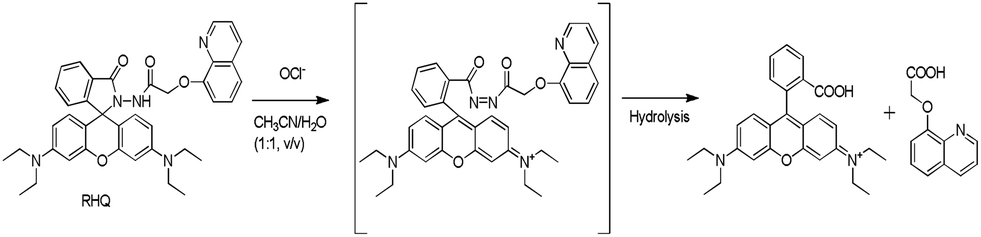

Scheme 2 The chemodosimetric approach of OCl after addition in RHQ.

image file: c4ra03200d-f2.tif
Fig. 2 Changes of absorption spectra of RHQ (10 μM) upon addition of different anions (5 equivalents) in (CH3CN–H2O, 1/1, v/v, 25 °C) solution. Inset: visible colour change of RHQ upon addition of 2 equivalents of OCl in ambient light.

This phenomenon indicates that the sensor can be employed conveniently for OCl detection by simple visual inspection. From the UV-vis titration experiments, it was illustrated that upon addition of OCl up to 1.2 equivalents, the absorbance at 560 nm increases linearly and it reached maxima. Further addition of OCl (up to 2.5 equiv.) produces insignificant changes in absorption spectra.

Emission study

The fluorogenic response of RHQ was examined by monitoring the fluorescence behavior upon addition of several analytes (S2−, N3, NO2, NO3, H2O2, O2˙, SO32−, Cl, I, F and SO42− in H2O, 2 × 10−4 M) in water–acetonitrile (1/1, v/v, 25 °C, pH = 7.2). The free receptor (10 μM) exhibits a very weak emission (Φ = 0.005) band at 580 nm upon excitation at 530 nm. With the addition of OCl, there arises a remarkable enhancement of fluorescence with an emission band at 580 nm, which is accompanied with the opening of the spirolactam ring of the receptor to form a intermediate product upon reaction with OCl (Scheme 2). In aqueous acetonitrile solution, the intermediate product was hydrolyzed and finally gives the rhodamine-B itself which is proven by the mass spectrum (Fig. S8, ESI). The fluorescence quantum yield calculated in this stage is 0.64, using rhodamine-B as reference (Φ = 0.68 in ethanol). Notably, addition of other co-existing analytes, even in excess amount, caused insignificant change in the emission intensity of the receptor. Addition of other examined analytes even in excess amount leads no significant change in the emission spectrum of the receptor.

These do not affect the OCl detection of the probe by means of fluorescence spectroscopy. From fluorescence titration experiment (Fig. 3) it revealed that a linear enhancement with increasing [OCl] up to 16 μM was observed. Higher OCl concentrations only caused insignificant emission enhancement for RHQ at 580 nm.


image file: c4ra03200d-f3.tif

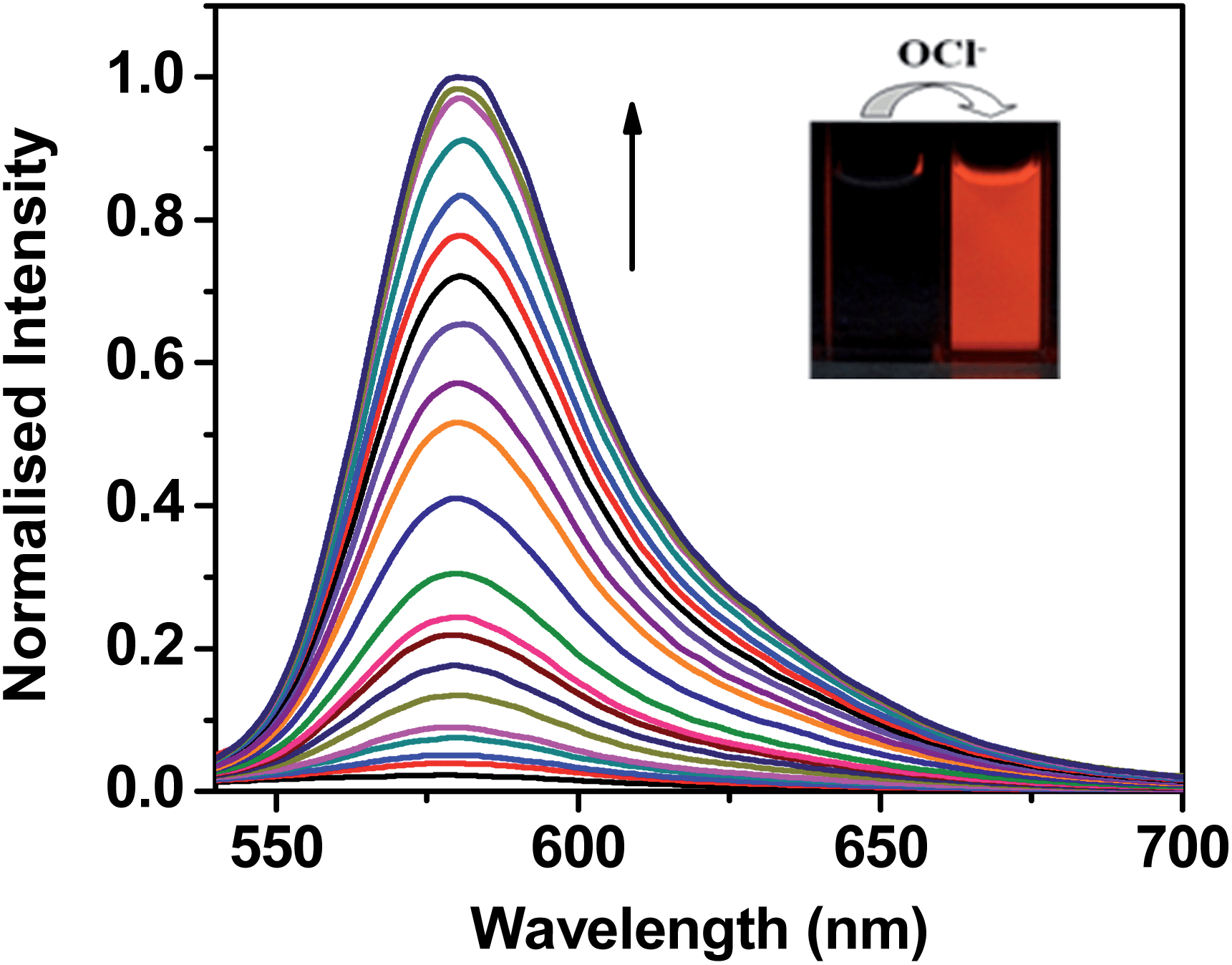

Fig. 3 Fluorescence spectra of RHQ (10 μM) upon titration with OCl (0 to 3 equivalents) in CH3CN–H2O (1/1, v/v, 25 °C) solution. λex = 530 nm. Inset: emission colour change of RHQ upon addition of 2 equivalents of OCl after illumination under UV light.

The detection limit of the probe for OCl was evaluated from the fluorescence titration and determined to be 5.5 × 10−8 M, using the equation DL = K × Sb1/S, where K = 3, Sb1 is the standard deviation of the blank solution and S is the slope of the calibration curve13 (see ESI). Fig. 4 shows a comparative view of emission intensity of the probe after adding 5.0 equiv. each of the guest analytes.


image file: c4ra03200d-f4.tif

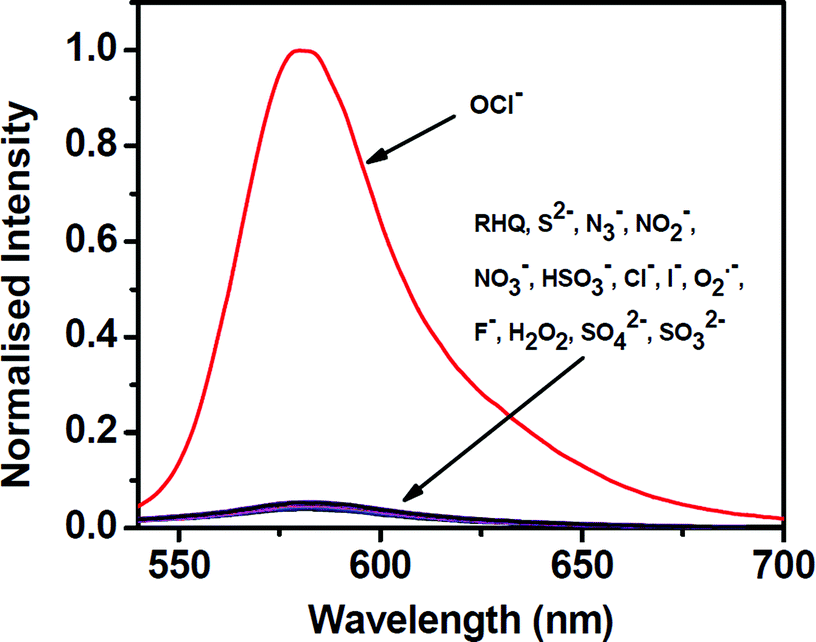

Fig. 4 Changes of emission spectra of RHQ (10 μM) upon addition of different metal ions (5 equivalents) in (CH3CN–H2O, 1/1, v/v) solution.

A nano second time-resolved fluorescence technique has been adapted in order to examine the excited state behavior of our probe RHQ and its reaction based product with hypochlorite in CH3CN–H2O (1/1, v/v) solvent (Fig. 6). According to the equations τ−1 = kr + knr, where kr = Φ/τ, the radiative rate constant kr and the total non-radiative rate constant knr of RHQ and reaction based species were calculated. For RHQ, τ = 0.573 ns (x2 = 1.073) and RHQ + OCl, τ = 2.317 ns (x2 = 2.084) (Fig. S9 and S10, ESI, Table S1).

To utilize the receptor as a selective sensor for OCl, a competing experiment was also performed by adding OCl (2.0 equiv.) in presence of 5.0 equivalents of different analytes in RHQ solution. As shown in Fig. 5, the studies revealed that OCl can be detected by the sensor in presence of almost all the analytes studied. In this way it was concluded that RHQ can be used potentially for the quantitative detection of OCl with high selectivity.


image file: c4ra03200d-f5.tif
Fig. 5 A comparative study of emission intensity after addition of different analytes (5 equivalents) in the solution of RHQ in presence of OCl (2 equivalents).

image file: c4ra03200d-f6.tif
Fig. 6 Color changes of RHQ on test paper in the absence (a) and presence of OCl (b) 2 × 10−3 M (c) 1 × 10−4 M and (d) 1 × 10−6 M under ambient light.

Dip-stick method

There is a number of sensors which can detect OCl only in the solution phase, which would restrict their sensitivity. So in order to investigate a practical application of this sensor, we perform an experiment called “dip-stick” method. It is a very simple but very important experiment because it gives instant qualitative information without resorting to the instrumental analysis. In order to perform this experiment, we prepared TLC plates which were immersed into the solution of RHQ (2 × 10−4 M) in acetonitrile, and then the solvent was completely evaporated.

Now to investigate OCl, we immersed the TLC plate to different concentrations of OCl (2 × 10−3, 10−4 M, 10−6 M) solution and then exposing it in air to evaporate the solvent. The colour of the TLC plates changes from colourless to pink and the fluorescence changes from colourless to red. Now this experiment evokes a real time monitoring and devoid of using any instrumental analysis, just via naked-eye detection.

Crystal structure study

The molecular structure of RHQ showing 30% probability displacement ellipsoids and atom labelling scheme is depicted in Fig. 7. The asymmetric unit of the RHQ contains two crystallographically independent molecules with similar geometries. The xanthenes ring system of molecule A forms dihedral angles of 29.27 and 87.68° with the quinoline and isoindoline ring systems, respectively. The corresponding dihedral angles for molecule B are 35.74 and 88.12°. The dihedral angle between the quinoline and isodoline ring systems for molecules A and B is 58.97 and 60.55°, respectively. The molecule B is stabilized by an intramolecular C–H⋯O hydrogen bond, forming an S(6) ring motif. The crystal packing is consolidated by pairs of intermolecular C–H⋯O hydrogen bonds, which link the molecules A into centrosymmetric dimers with R22(24) ring motifs and stacked along the c axis. Intermolecular C–H⋯O, N–H⋯O and N–H⋯N hydrogen bonds further link these dimers with the molecules B, generating R21(5) and R22(8) ring motifs.
image file: c4ra03200d-f7.tif
Fig. 7 The molecular structure of RHQ. The minor disorder components are indicated with open bonds. An intramolecular hydrogen bond is drawn as dashed line.

Computational study

The calculated spectroscopic quantities obtained for RHQ is reported in ESI Table S2. As can be seen, the absorption peak appears in the near ultraviolet region with moderate intensity of transition. The molecular orbitals involved in the electronic transition are displayed in ESI Fig. S11 & S12. The lobes of HOMO are mostly concentrated over the two benzene rings and on the two adjacent nitrogen atoms around the central xanthene ring. The LUMO extends on the xanthene ring and the carbon atoms of two adjacent benzene rings. Thus, the lowest energy transition involves nitrogen lone pair → π* charge transfer within a short range. The uppermost moiety does not have any effect on this electronic transition (Fig. 8).
image file: c4ra03200d-f8.tif
Fig. 8 B3LYP/6-31G** optimized electronic structure of RHQ obtained in acetonitrile solution.

Bio imaging

Use of RHQ probe for imaging of biological samples is a significant addition to the technical knowhow for certain reasons: first of all, it is a non-invasive technique, thus small volume of blood sample or other tissue sample is well enough to estimate the generation of HOCl within the biological system, and subjects do not necessarily require consuming the product, which is a safe, non-toxic technology. Secondly, a very small amount of sample is required (as minimum as 3 ml of blood sample) (Fig. 9).
image file: c4ra03200d-f9.tif
Fig. 9 (Left) bright field image of PBMCs (40×), (right) fluorescence image of PBMCs (40×) treated with 50 μM RHQ (fluorescence emission 580 nm).

Thirdly, the dye is easily taken up by the cells without causing lysis or morphological changes. Finally, and most importantly, HOCl, an important oxidative stress product can be detected using this technique separately from the other reactive oxygen species. Till now, there are few suitable techniques to detect total ROS of cells, collectively like detection of cellular ROS by DCFDA dye14 and lucigenin15 but there is less evidence to detect the cellular HOCl directly. Thus, we report that RHQ fluorescence probe is highly useful for the imaging of biological sample as well as an effective technique to detect cellular HOCl, a toxic ROS product.

Conclusions

In summary, we report here the design, synthesis and sensing property of a rhodamine–quinoline based probe. It showed highly selective and sensitive response towards OCl over other competing analytes in acetonitrile–water (1[thin space (1/6-em)]:[thin space (1/6-em)]1, v/v, 25 °C) media. A pink coloration and large enhancement of emission intensity were observed after the chemodosimetric approach of OCl. The detection limit was found to be 10−8 M level, which indicates our probe RHQ is a highly efficient sensor of OCl in mixed aqueous media. Moreover, RHQ can detect OCl endogenously in human blood sample.

Acknowledgements

Authors thank CSIR and DST, Govt of India for financial supports. S.D., K.A. and K.G. acknowledge CSIR for providing them fellowship. CKQ thanks Universiti Sains Malaysia for APEX DE2012 grant (no. 1002/PFIZIK/910323) and Association of Commonwealth Universities (ACU) for Early Careers Academic Grant. The authors extend their appreciation to The Deanship of Scientific Research at King Saud University for funding the work through the research group project no. RGP-VPP-321. We would like to thank Mr. Turban Kar for performing the life-time experiment in Department of Biochemistry, University of Calcutta.

Notes and references

  1. (a) A. Gomes, E. Fernandes and J. L. F. C. Lima, J. Biochem. Biophys. Methods, 2005, 65, 45 CrossRef CAS PubMed.
  2. J. Shepherd, S. A. Hilderbrand, P. Waternan, J. W. Heinecke, R. Weissleder and P. Libby, Chem. Biol., 2007, 14, 1221 CrossRef CAS PubMed.
  3. Y. Kawai, Y. Matsui, H. Kondo, H. Morinaga, K. Uchida, N. Miyoshi, Y. Nakamura and T. Osawa, Chem. Res. Toxicol., 2008, 21, 1407 CrossRef CAS PubMed.
  4. Y. W. Yap, M. Whiteman and N. S. Cheung, Cell. Signalling, 2007, 19, 219 CrossRef CAS PubMed.
  5. Y. YannWan, M. Whiteman, B. Boon Huat, L. Yuhong, S. Fwu-Shan, R. Z. Qi, T. Chee Hong and C. Nam Sang, J. Neurochem., 2006, 98, 1597 CrossRef PubMed.
  6. M. Whiteman, D. C. Hooper, G. S. Scott, H. Koprowski and B. Halliwell, Proc. Natl. Acad. Sci. U. S. A., 2002, 99, 12061–12066 CrossRef CAS PubMed.
  7. (a) W. Y. Lin and L. L. Long, Chem.–Eur. J., 2009, 15, 2305 CrossRef CAS PubMed.
  8. (a) X. Chen, K.-A. Lee, E.-M. Ha, K. M. Lee and J. Yoon, Chem. Commun., 2011, 47, 4373 RSC; (b) X. Chen, X. Tian, I. Shin and J. Yoon, Chem. Soc. Rev., 2011, 40, 4783 RSC; (c) T.-I. Kim, S. Park, Y. Choi and Y. Kim, Chem. – Asian J., 2011, 6, 1358 CrossRef CAS PubMed; (d) J. Shepherd, S. A. Hilderbrand and P. Libby, Chem. Biol., 2007, 14, 1221 CrossRef CAS PubMed; (e) X. Q. Chen, W. Shi, K. Wang and H. M. Ma, Chem.–Eur. J., 2008, 14, 4719 CrossRef CAS PubMed; (f) X. Chen, X. Wang and S. Wang, Eur. J. Org. Chem., 2008, 14, 4719 CrossRef CAS PubMed; (g) S. Kenmoku, Y. Urano, H. Kojima and T. Nagano, J. Am. Chem. Soc., 2007, 129, 7313 CrossRef CAS PubMed; (h) Y. Koide, Y. Urano, K. Hanaoka, T. Terai and T. Nagano, J. Am. Chem. Soc., 2011, 133, 5680 CrossRef CAS PubMed; (i) P. Panizzi, M. Nahrendorf, R. Weissleder and S. A. Hilderbrand, J. Am. Chem. Soc., 2009, 131, 15739 CrossRef CAS PubMed; (j) D. Yang, Y. Chen and P. K. Tam, Methods Mol. Biol., 2010, 591, 93 CrossRef CAS; (k) Z. N. Sun, P. K. H. Tam and D. Yang, Org. Lett., 2008, 10, 2171 CrossRef CAS PubMed; (l) Y. K. Yang and J. Tae, Org. Lett., 2009, 11, 859 CrossRef CAS PubMed.
  9. (a) H. N. Kim, M. H. Lee, H. J. Kim, J. S. Kim and J. Yoon, Chem. Soc. Rev., 2008, 37, 1465 RSC; (b) X. Chen, T. Pradhan, F. Wang, J. S. Kim and J. Yoon, Chem. Rev., 2012, 112, 1910 CrossRef CAS PubMed; (c) S. Goswami, K. Aich, S. Das, A. K. Das, A. Manna and S. Halder, Analyst, 2013, 138, 1903 RSC; (d) S. Goswami, S. Das, K. Aich, D. Sarkar, T. K. Mondal, C. K. Quah and H.-K. Fun, Dalton Trans., 2013, 42, 15113 RSC; (e) G. Sivaraman, T. Anand and D. Chellappa, Analyst, 2012, 137, 5881 RSC; (f) G. Sivaraman and D. Chellappa, J. Mater. Chem. B, 2013, 1, 5768 RSC; (g) G. Sivaraman, V. Sathiyaraja and D. Chellappa, J. Lumin., 2014, 145, 480 CrossRef CAS PubMed.
  10. (a) S. Goswami, S. Das and K. Aich, Tetrahedron Lett., 2013, 54, 4620 CrossRef CAS PubMed; (b) S. Goswami, S. Das, K. Aich, D. Sarkar and T. K. Mondal, Tetrahedron Lett., 2013, 54, 6892 CrossRef CAS PubMed; (c) S. Goswami, K. Aich, S. Das, S. B. Roy, B. Pakhira and S. Sarkar, RSC Adv., 2014, 4, 14210 RSC; (d) S. Goswami, K. Aich and D. Sen, Chem. Lett., 2012, 41, 863 CrossRef CAS.
  11. J.-F. Zhu, W.-H. Chan and A. W. M. Lee, Tetrahedron Lett., 2012, 53, 2001 CrossRef CAS PubMed.
  12. P. Du and S. J. Lippard, Inorg. Chem., 2010, 49, 10753–10755 CrossRef CAS PubMed.
  13. (a) W. Lin, L. Yuan, Z. Cao, Y. Feng and L. Long, Chem.–Eur. J., 2009, 15, 5096 CrossRef CAS PubMed; (b) S. Goswami, K. Aich, S. Das, A. K. Das, D. Sarkar, S. Panja, T. K. Mondal and S. K. Mukhopadhyay, Chem. Commun., 2013, 49, 10739 RSC; (c) S. Goswami, S. Das, K. Aich, B. Pakhira, S. Panja, S. K. Mukherjee and S. Sarkar, Org. Lett., 2013, 15, 5412 CrossRef CAS PubMed; (d) S. Goswami, K. Aich, A. K. Das, A. Manna and S. Das, RSC Adv., 2013, 3, 2412 RSC.
  14. E. Eruslanov and S. Kusmartsev, Methods Mol. Biol., 2010, 594, 57 CAS.
  15. H. Gyllenhammar, J. Immunol. Methods, 1987, 97, 209 CrossRef CAS.

Footnote

Electronic supplementary information (ESI) available: Detection limit determination, 1H NMR, 13C NMR, HRMS spectroscopy, X-ray data, Computational data. CCDC 982181. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c4ra03200d
