Photobase generating monomers: synthesis, evaluation and utilization for fabricating fluorescence patterns

Abstract

In this study, we fabricated four new photobase generating monomers, in which carbamate units functioned as the photobase generating moieties, methacrylate units served as the polymerizable groups and four different groups, succinimido, camphorquinone 3-oximino, di-2-thienyl ketoximino and difuril dioximino units, acted as photosensitive species. The effect of different photosensitive species on the photochemical behavior of the monomers was investigated in detail. The results demonstrate that, among the four monomers, succinimido methacryloxyethyl carbamate (SMC) exhibits the most stable photobase generating property. Furthermore, a copolymer containing SMC is used for a fluorescence imaging material. The fluorescence spectrum of the fluorescamine-treated irradiated copolymer film showed a strong fluorescence in the range of 420–650 nm with a fluorescence maximum at 476 nm. The patterns in the copolymer films exhibit very distinct fluorescence images with colors of blue, green and red at certain observation wavelengths.

---

1. Introduction

In recent years, the formation of fluorescent images in thin polymer films has attracted considerable interest due to their potential application in the areas of displays,^1,2 optical memory devices³ and molecular switches,⁴ as well as in the sensor^5,6 and imaging industries.⁷ A variety of techniques exist for creating patterned fluorescence images on solid substrates, including photoirradiation,⁸ micro-contact printing,⁹ inkjet/screen printing¹⁰ and vapor deposition.^11,12 Among these methods, the photoirradiation technique represents the most popular and practical approach for fluorescence image generation. The fluorescence imaging in polymer films with this technique can be effectively manipulated by photochromism,^4a,4b,7a,13 photoinduced polymerization,^1,14 photoinduced oxidative degradation or molecular orientation,¹⁵ photoacid induced protonation,^3a,3b,16 and the use of a prefluorescent radical probe.¹⁷

Bases originating from photobase generating systems upon irradiation¹⁸ are being increasingly used in the development of new technologies. For example, this system has been applied to the photolithographic micropatterning of electroluminescent polymers¹⁹ and the patterning of conductive polyaniline films,²⁰ as well as various types of photoresists.²¹ However, there are few reports on photobase-generating systems for the formation of fluorescence patterns compared with photo-radical and photoacid generators. Won et al.²² reported a fluorescence imaging process based on a polymeric photobase generator containing oxime–urethane groups through the use of fluorescamine, in which fluorescamine enabled the sensitive fluorometric determination of primary amines and amino acids. Eun and collaborators¹ constructed a film emitting red, green, and blue fluorescence selectively, in which green-fluorescent fluorescein molecules were encapsulated in red-fluorescent PDA vesicles, and then a blue-fluorescent component was introduced through the reaction between the terminal amine groups on the PDA vesicle surfaces and fluorescamine. Kyu and co-workers²³ used a polymer film containing phthalimido carbamate groups as a bicolor fluorescent imaging material. The polymer film was irradiated with 254 nm UV light through a photomask and then treated with fluorescamine and rhodamine B consecutively. Various colors of fluorescent micropatterns – green, red, or red-yellow – were obtained on a single polymer film by varying the excitation wavelength. Furthermore, Kyu et al.²⁴ also reported that irradiation of a polymer film bearing anilide groups led to photo-anilide rearrangement to form aromatic amino groups in the irradiated area; then, after reacting with fluorescamine, a fluorescent micropattern was formed. Although many reports have focused on different approaches with the aim of fabricating fluorescent images using photobase generators, there are only a few on the study of improving the photosensitivity of the photosensitive groups.²³

In this study, we fabricated four novel photobase generating monomers, including succinimido methacryloxyethyl carbamate (SMC), camphorquinone 3-oximino methacryloxyethyl carbamate (ACMC), di-2-thienyl ketoximino methacryloxyethyl carbamate (TKMC) and difuril dioximino methacryloxyethyl carbamate (DFMC), in which carbamate units acted as the photobase generating moieties and methacrylate units served as the polymerizable groups. Herein, we used four kinds of groups, succinimido, camphorquinone 3-oximino, di-2-thienyl ketoximino and difuril dioximino, as photosensitive species which were different from the widely investigated benzophenoneoxime²² and phthalimido²³ species. The influence of photosensitive moieties on the photochemical characteristics of the four monomers were thoroughly addressed by observing their changes in UV-Vis absorption spectra, FT-IR spectra, fluorescence spectra after treatment with fluorescamine and their changes of pH values. Based on the above studies, SMC was chosen to synthesize a copolymer for the preparation of multi-color fluorescence patterns. The fluorescence images obtained in this experiment show blue, green and red fluorescence patterns depending on the observation wavelengths. This copolymer material is of potential interest in the preparation of fluorescent images for photonic and optical applications.

2. Experimental

2.1 Materials

N-Hydroxysuccinimide (98%) was purchased from Heowns Biochem Technologies. Camphorquinone 3-oxime (99%) and 2-isocyanatoethyl methacrylate (98%) were bought from Tokyo Chemical Industry Co. Ltd. Bis(2-thienyl) ketoxime (97%), 2,2′-azo-bis(isobutyronitrile) (AIBN, 99%) and α-furil dioxime (99%) were obtained from Alfa Aesar. Fluorescamine (98%) and 1-methoxy-2-propyl acetate (PMA, AR) were purchased from J&K Scientific Co. Ltd. Triethylamine (TEA, AR), methyl methacrylate (MMA), acetone (AR), cyclohexane (AR) and methanol (AR) were supplied by Beijing Chemical Works, and were all used as received. Tetrahydrofuran (THF, anhydrous, AR) was purchased from Heowns Biochem Technologies and stored in 4 Å molecular sieves. Analytical thin layer chromatography (TLC) was performed on commercially coated 60 mesh GF254 glass plates.

2.2 Synthesis of photobase generating monomers

The general procedure for the synthesis of the four photobase generating monomers is similar to that of the previous report,²² here we present a simple description. To a solution of R–OH (5 mmol) and TEA (0.03 mL) in THF (50 mL), 2-isocyanatoethyl methacrylate (5.2 mmol) in THF (10 mL) was added dropwise with stirring at room temperature for 12 h. R represents four different photosensitive groups as described in Scheme 1. After the completion of the reaction, the solvent was removed under reduced pressure at 40 °C. Crude products were recrystallized from methanol.

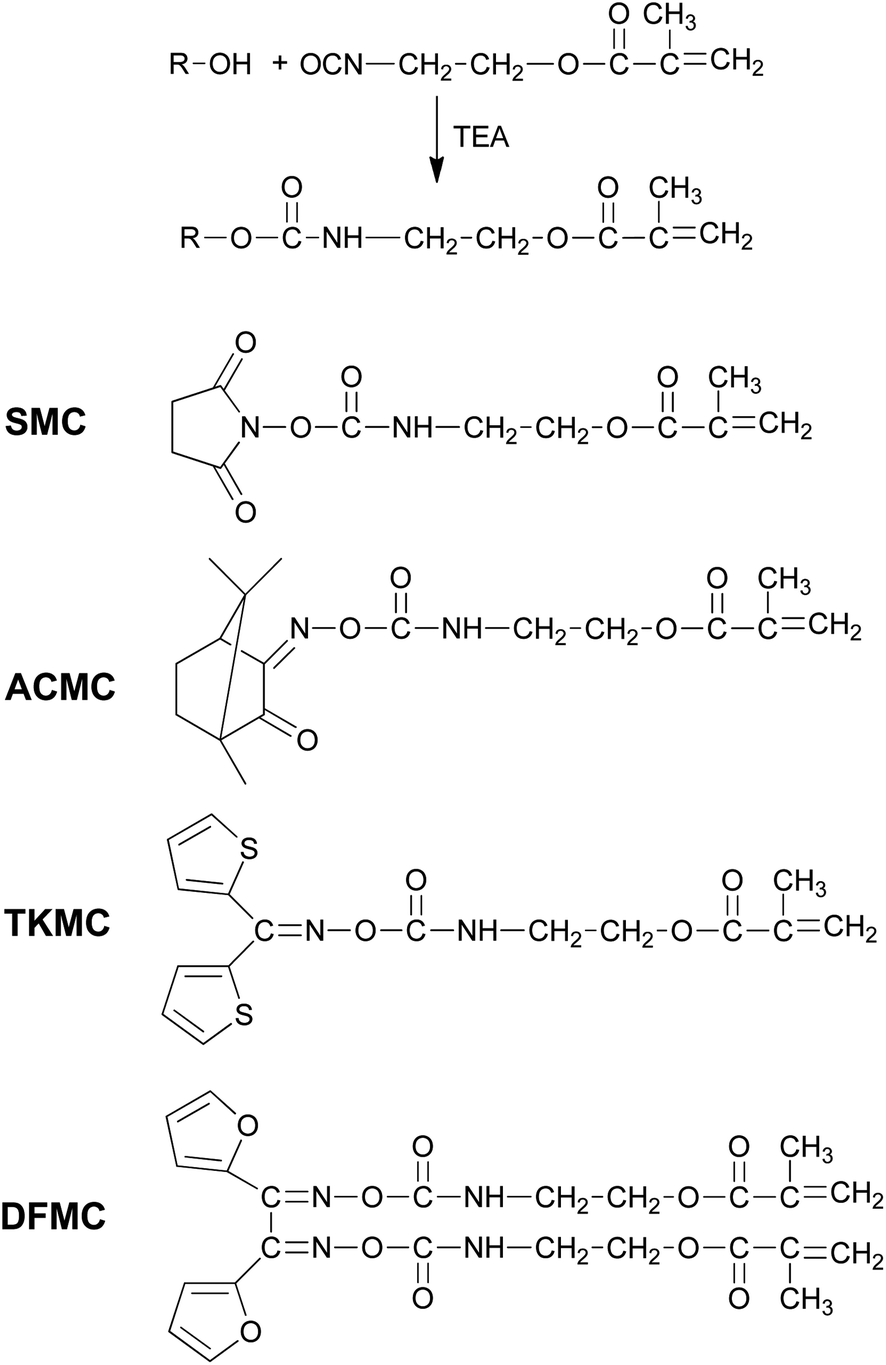

Scheme 1 Reaction process for the synthesis of photobase generating monomers used in this experiment along with their chemical structures.

Succinimido methacryloxyethyl carbamate (SMC). 89% yield. IR (KBr, cm⁻¹): 3347 (N–H stretching), 2957 (C–H asym stretching), 1793, 1781, 1712 (C=O stretching), 1636 (C=CH₂ stretching), 1510 (C–H asym stretching), 1296, 1217 (C–O–C asym stretching), 1101 (C–O–C sym stretching), 941 (N–O stretching). ¹H NMR (400 MHz, DMSO-d₆): δ = 8.47 (t, J = 5.62 Hz, 1H, NH), 6.08 (s, 1H, C=CH₂), 5.69 (s, 1H, C=CH₂), 4.14 (t, J = 5.26 Hz, 2H, CH₂–CH₂), 3.40 (m, 2H, CH₂–CH₂), 2.77 (m, 4H), 1.89 (s, 3H, CH₃). ¹³C NMR (400 MHz, DMSO-d₆): δ = 170.76, 166.46, 152.03, 135.58, 126.17, 62.86, 40.01, 25.23, 17.89.

Camphorquinone 3-oximino methacryloxyethyl carbamate (ACMC). 75% yield. IR (KBr, cm⁻¹): 3260 (N–H stretching), 3059, 2964 (C–H asym stretching), 1753, 1730, 1710 (C=O stretching), 1642 (C=C stretching), 1544 (C–H asym stretching), 1316, 1294, 1250 (C–O–C asym stretching), 1167, 1104 (C–O–C sym stretching), 965 (N–O stretching). ¹H NMR (400 MHz, DMSO-d₆): δ = 7.79 (t, J = 5.64 Hz, 1H, NH), 6.06 (s, 1H, C=CH₂), 5.69 (s, 1H, C=CH₂), 4.16 (t, J = 5.46 Hz, 2H, CH₂–CH₂), 3.40 (m, 2H, CH₂–CH₂), 3.26 (t, J = 4.4 Hz, 1H), 2.13–2.06 (m, 1H), 1.92–1.86 (m, 1H), 1.55–1.43 (m, 1H), 1.88 (s, 3H, CH₃), 0.97 (s, 3H, CH₃), 0.81 (s, 3H, CH₃). ¹³C NMR (400 MHz, DMSO-d₆): δ = 202.76, 166.45, 162.42, 154.29, 135.72, 125.94, 62.97, 58.27, 47.84, 44.24, 39.61, 29.61, 23.28, 20.34, 17.92, 16.94, 8.80.

Di-2-thienyl ketoximino methacryloxyethyl carbamate (TKMC). 68% yield. IR (KBr, cm⁻¹): 3366 (N–H stretching), 3088, 2955 (C–H asym stretching), 1746, 1705 (C=O stretching), 1637 (C=C stretching), 1497 (C–H asym stretching), 1301 (C–O–C asym stretching), 1179 (C–O–C sym stretching), 937 (N–O stretching), 716 (C–S stretching). ¹H NMR (400 MHz, DMSO-d₆): δ = 8.06 (d, J = 5.00 Hz, 1H), 7.83 (d, J = 5.04 Hz, 1H), 7.76 (t, J = 5.64 Hz, 1H, NH), 7.65 (d, J = 3.20 Hz, 1H), 7.49 (d, J = 3.04 Hz, 1H), 7.27 (t, J = 4.46 Hz, 1H), 7.22 (t, J = 4.38 Hz, 1H), 6.08 (s, 1H, C=CH₂), 5.69 (s, 1H, C=CH₂), 4.20 (t, J = 5.46 Hz, 2H, CH₂–CH₂), 3.45 (m, 2H, CH₂–CH₂), 1.89 (s, 3H, CH₃). ¹³C NMR (400 MHz, DMSO-d₆): δ = 166.49, 154.01, 149.51, 135.75, 134.25, 132.96, 131.21, 129.71, 127.70, 126.94, 125.94, 62.89, 39.67, 17.95.

Difuril dioximino dimethacryloxyethyl carbamate (DFMC). 84% yield. IR (KBr, cm⁻¹): 3376 (N–H stretching), 3143 (HC=CH, CH stretching), 2949 (C–H asym stretching), 1753, 1696 (C=O stretching), 1632 (C=C stretching), 1519 (C–H asym stretching), 1324, 1222 (C–O–C asym stretching), 1177 (C–O–C sym stretching), 954 (N–O stretching). ¹H NMR (400 MHz, DMSO-d₆): δ = 8.14 (t, J = 5.68 Hz, 2H, NH), 7.90 (d, J = 0.88 Hz, 2H), 7.85 (d, J = 3.56 Hz, 2H), 6.86 (d, J = 1.92 Hz, 2H), 6.08 (s, 2H, C=CH₂), 5.69 (s, 2H, C=CH₂), 4.20 (t, J = 5.34 Hz, 4H, CH₂–CH₂), 3.45 (m, 4H, CH₂–CH₂), 1.89 (s, 6H, CH₃). ¹³C NMR (400 MHz, DMSO-d₆): δ = 166.50, 153.64, 146.29, 143.05, 142.74, 135.72, 126.00, 121.66, 113.20, 62.94, 39.59, 17.94.

2.3 Synthesis of photobase generating copolymer and preparation of fluorescence patterns

Polymerization of SMC. A solution containing MMA (0.700 g, 7.0 mmol), SMC (0.810 g, 3.0 mmol), and AIBN (7.5 mg, 0.5 wt% of monomers) in 10 mL of THF was charged into a cap tube and purged with nitrogen for 15 min. After sealing the cap tube containing the reaction mixture, polymerization was carried out at 60 °C for 20 h. The polymer was isolated by double precipitation from THF solution into methanol. ¹³C NMR (400 MHz, DMSO-d₆): δ = 177.74, 170.83, 152.34, 67.81, 62.85, 52.02, 44.65, 40.51, 25.75, 16.46. M̄n = 10076, M̄_w/M̄_n = 1.34, T_g = 210 °C.

Preparation of fluorescence patterns. A 10 wt% solution of copolymer containing SMC was prepared by dissolving 0.5 g of the copolymer in 5 mL of a 1 : 1 (v/v) THF–PMA mixture. The solution was spin-coated onto glasses for 7 s at 1500 rpm followed by 10 s at 2000 rpm to form copolymer films. The films were dried at 40 °C for 5 h under reduced pressure. The thickness of the obtained films ranged from 0.9 to 1.2 μm. The films on the glass were covered with dot/line array photomasks and irradiated with 254 nm UV light (1.05 J cm⁻²). The irradiated films on the glass were dipped in a 3.0 mM fluorescamine solution (8.62 mg in 10 mL of a 4 : 1 (v/v) cyclohexane–acetone mixture) for 1 min and subsequently dried at 50 °C for 1 h. The fluorescence images were observed using confocal microscopy.

2.4 Instruments and measurements

Attenuated total refraction Fourier-transform infrared spectroscopy (ATR FT-IR) was obtained using a Perkin Elmer RX1 spectrometer produced by Thermo Corporation at frequencies from 500 to 4000 cm⁻¹. The fractional transmittance changes (ΔT) in FT-IR spectra of the four monomers were determined from the difference in transmittance at certain wavenumbers after irradiation for a given period. The ΔT was determined from the following equation:where T₁ represents the transmittance peak of SMC at 2236 cm⁻¹ for the isocyanato group, 3307 cm⁻¹ for the amino group, 1781 cm⁻¹ for the carbonyl group; ACMC at 2236 cm⁻¹ for the isocyanato group, 3342 cm⁻¹ for the amino group, 1761 cm⁻¹ for the carbonyl group; TKMC at 2236 cm⁻¹ for the isocyanato group, 3346 cm⁻¹ for the amino group, 1728 cm⁻¹ for the carbonyl group; DFMC at 2236 cm⁻¹ for the isocyanato group, 3318 cm⁻¹ for the amino group, 1748 cm⁻¹ for the carbonyl group. T_C=O represents the transmittance peak of SMC at 1737 cm⁻¹, ACMC at 1719 cm⁻¹, TKMC at 1705 cm⁻¹ and DFMC at 1696 cm⁻¹. Proton nuclear magnetic resonance (¹H and ¹³C NMR, 400 MHz) spectra were recorded on a Bruker AV400 spectrometer using DMSO-d₆ as solvent. Ultraviolet-visible (UV-Vis) absorption spectra were recorded on a Hitachi U-3010 spectrophotometer. The absorbance of SMC, ACMC, TKMC and DFMC solutions in THF at λ_max were adjusted to 0.90–1.10 before irradiation with 254 nm UV light. The relative fluorescence intensity of the irradiated solutions after treatment with fluorescamine was measured on a Hitachi F-4500 fluorescence spectrophotometer. Gel permeation chromatography (GPC) analysis was carried out on a Waters 515-2410 system using polystyrene standard as the molecular weight reference and THF as the eluent. Differential scanning calorimetry (DSC) measurements were performed on a TA Q20 system at a heating rate of 20 °C min⁻¹ under a nitrogen atmosphere. The thickness of the polymer films was measured using an α-step surface profiler (Tencor Instruments, Model AS-500). A Philips lamp (PL-L18W), equipped with a 254 nm fluorescent lamp, was placed in a horizontal position and used for the irradiation process. The light intensity measured by a radiometer was 3.50 mW cm⁻². The fluorescence images were observed using an Olympus-IX81 fluorescence microscope with an exposure time of 1.2 s.

3. Results and discussion

3.1 Photobase generating properties of the four monomers

Scheme 1 shows the reaction process for the synthesis of the four monomers used here along with their chemical structures. The photobase generating properties of the monomers have been studied by observing changes in their UV-Vis absorption spectra, FT-IR spectra and fluorescence spectra after treatment with fluorescamine, and changes in pH values.

Fig. 1 shows changes in the UV-Vis absorption spectra of the four monomers in THF upon irradiation with 254 nm UV light. The absorption band at 250–300 nm decreases upon irradiation owing to the photodecomposition of the carbamate group.^21–24 Correspondingly, the band at 300–350 nm increases upon UV irradiation due to the formation of photoproducts. The photodecomposition rate of the carbamate group for the four monomers can be suggested by the rate constant (k), which was determined from the following equation:

where A represents the absorbance at 276, 237, 287 and 277 nm for SMC, ACMC, TKMC and DFMC, respectively; t represents the UV light exposure time. Fig. 2A shows the absorbance changes of the four monomers at the wavelength A, and Fig. 2B shows their k values at different exposure times. The k values for the four monomers follow the order of ACMC > SMC > DFMC > TKMC after irradiation for the same time before a decrease to zero. This result indicates that the relative reaction rate for the photodecomposition of ACMC was the fastest. This seems to be due to the high photosensitivity of the camphorquinone group.²⁵ It is worth mentioning that the photodecomposition reactions of the four monomers were complete after 200 s irradiation, which corresponds to the exposure dose of 0.7 J cm⁻². This suggests that the four photobase generating monomers have high photosensitivity.^21–24

Fig. 1 Changes in the UV-Vis absorption spectra of (A) SMC, (B) ACMC, (C) TKMC and (D) DFMC in THF upon irradiation with 254 nm UV light for 0–600 s.

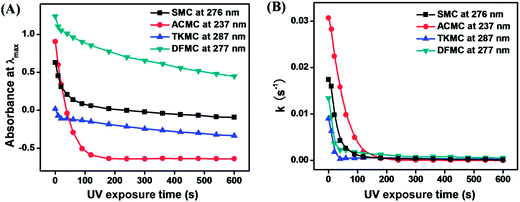

Fig. 2 (A) Changes in the UV-Vis absorption spectra of the four monomers at 276, 237, 287 and 277 nm for SMC, ACMC, TKMC and DFMC, respectively, in THF upon irradiation with 254 nm UV light. (B) The k values of the four monomers during the UV exposure time.

To confirm the photolysis products, FT-IR was performed. The FT-IR spectra of the solvent THF and fluorescamine solution in THF (lines 1 and 2 in Fig. 3(A–D)) were introduced as references. Lines 3 and 4 in Fig. 3(A–D) show changes of FT-IR spectra for 5 mM solutions of the monomers in THF before and after irradiation with 254 nm UV light. After irradiation for 30 min, the peak at 3307 cm⁻¹ increased for SMC (line 4 in Fig. 3A) compared with that before irradiation (line 3 in Fig. 3A). This demonstrates the formation of amino groups after UV irradiation. The decrease of the peak at 1781 cm⁻¹ results from the photodecomposition of carbonyl units. After treatment with fluorescamine (line 5 in Fig. 3A), the appearance of the peak at 1565 cm⁻¹ indicates the formation of fluorescamine–amine adducts. Similarly, after UV irradiation the peak at 3342 cm⁻¹ increased, whereas the peak at 1761 cm⁻¹ decreased for ACMC (line 4 in Fig. 3B). However, it is worth mentioning that a new peak at 2237 cm⁻¹ was observed after UV irradiation for ACMC (line 4 in Fig. 3B), which suggests the formation of isocyanato groups. This may result from the thermal instability of the camphorquinone carbamate group.²⁶ The FT-IR changes for TKMC (Fig. 3C) and DFMC (Fig. 3D) are similar to those of SMC. The FT-IR spectra demonstrate the photodecomposition process and confirm the photoproducts, which suggest stable photochemical properties of the four monomers.

Fig. 3 Changes in the FT-IR spectra of THF, fluorescamine in THF, the monomers in THF before and after irradiation with 254 nm UV light for 30 min, and after treatment with fluorescamine. (A) SMC, (B) ACMC, (C) TKMC and (D) DFMC.

Fig. 4A shows UV-Vis absorption spectral changes in the fluorescamine solution in THF before and after reacting with amino groups arising from the irradiated solution of the four monomers in THF. The UV-Vis absorption spectrum of the fluorescamine solution after reacting with amino groups presented a new absorption band around 400 nm (inset of Fig. 4A). Its appearance demonstrates the formation of fluorescamine–amine adducts.²¹ In order to investigate the properties of fluorescamine–amine adducts, fluorescence spectra were obtained. Fig. 4B shows the relative fluorescence intensities of fluorescamine treated monomer solutions in THF at 476 nm as a function of UV exposure time. The fluorescence intensity of ACMC and DFMC increases as the irradiation time increases and reaches a peak at 6 min before gradually decreasing, whereas that of SMC reaches a peak at 10 min and keeps stable even after irradiation for 30 min. The obvious and quick decrease for ACMC is possibly caused by the formation of isocyanato groups during the irradiation.²³ Isocyanato groups can react with amino groups, which leads to a decrease of amino groups in the solution before treatment with fluorescamine. However, the relatively slow decrease for DFMC may be due to the self-quenching reaction of the fluorescamine–amine adducts at high concentrations of the amino groups²³ since there are no isocyanato groups observed after irradiation for DFMC.

Fig. 4 (A) UV-Vis absorption spectral changes of fluorescamine solution in THF before and after reaction with amino groups arising from the irradiated solution of the monomers. (B) Relative fluorescence intensities of the monomer solutions after treatment with fluorescamine as a function of UV exposure time. The excitation wavelength is 410 nm and the emission wavelength is 476 nm. (The exposure dose is 1.05 J cm⁻² at 254 nm).

To study the effect of the isocyanato group on the fluorescence intensity of the monomers, we compared the fractional transmittance changes (ΔT) among the four monomers at different wavenumbers in Fig. 5 (A–C). As is known, the reaction process can be monitored by the decrease of the carbonyl peaks and the increase of the amino peaks in the FT-IR spectra. The ΔT of carbonyl peaks (Fig. 5A) indicates that ACMC has higher reaction rate than SMC, which is in agreement with the order of k values and the fluorescence spectral data for the four monomers. However, the ΔT of amino peaks (Fig. 5B) of ACMC is lower than that of SMC. Meanwhile, the isocyanato peak (Fig. 5C) increases at 6 min for ACMC, whereas no isocyanato peak is observed even after irradiation for 30 min for SMC. Therefore, it is reasonable to conclude that the isocyanato groups consume the amino groups during the irradiation, which results in the decrease of amino groups and the decrease of the fluorescence intensity after treatment with fluorescamine.²³

Fig. 5 Fractional transmittance changes of the monomer solutions for carbonyl (A), amino (B) and isocyanato (C) peaks. (D) Changes in the pH values of 1 mM THF solutions of the monomers.

Self-quenching experiments of fluorescamine–amine adducts using alkylamines show that the maximum fluorescence intensity is observed at an alkylamine concentration of 0.1 mM, in which solution the pH value is about 8.5–9.0.²³ So the relative concentrations of amines formed from the photobase generating monomers upon UV irradiation have been further studied by observing changes in their pH values. Fig. 5D shows the pH changes of a 1 mM THF solution for the four monomers. The pH values of their solutions increase from ca. 6.2–7.1 to ca. 7.9–8.8 after UV irradiation, suggesting the generation of amines. The pH values for DFMC are higher than those of SMC, ACMC and TKMC after UV irradiation. This difference originates from the two carbamate groups in DFMC. It is worth mentioning that only the pH value of DFMC solution reaches 8.7, which is in the self-quenching pH value range of the alkylamine. Therefore, the explanations regarding the decreasing trend for the relative fluorescence intensity of ACMC and DFMC are reasonable.

3.2 Fluorescence patterning based on copolymer from photobase generating monomer

In order to apply the photobase generating properties of the monomers to a fluorescence image recording material, a copolymer containing both SMC and MMA with the mole ratio of 3 : 7 has been prepared. Here SMC was chosen due to its relatively quick rate of photodecomposition and most stable photobase generating property among all monomers as discussed above, and MMA was introduced to decrease the steric effect^23,24 of the succinimido groups in SMC. The copolymer shows good solubility in THF, so a uniform thin transparent film was obtained from the copolymer solution in THF.

Fig. 6 shows a schematic depiction of the process for the formation of fluorescence patterns. A thin copolymer film formed on a glass substrate via spin-coating is covered with a dot or line array photomask and irradiated with 254 nm UV light. A latent image is formed in the irradiated area through the formation of amino groups, which arise from the photodecomposition of the SMC groups in the copolymer. The consecutive treatment of this latent image with fluorescamine leads to the formation of a dyed image. The dyed image can be observed by confocal microscopy. Different colored fluorescence patterns are observed via the selection of different observation wavelengths.

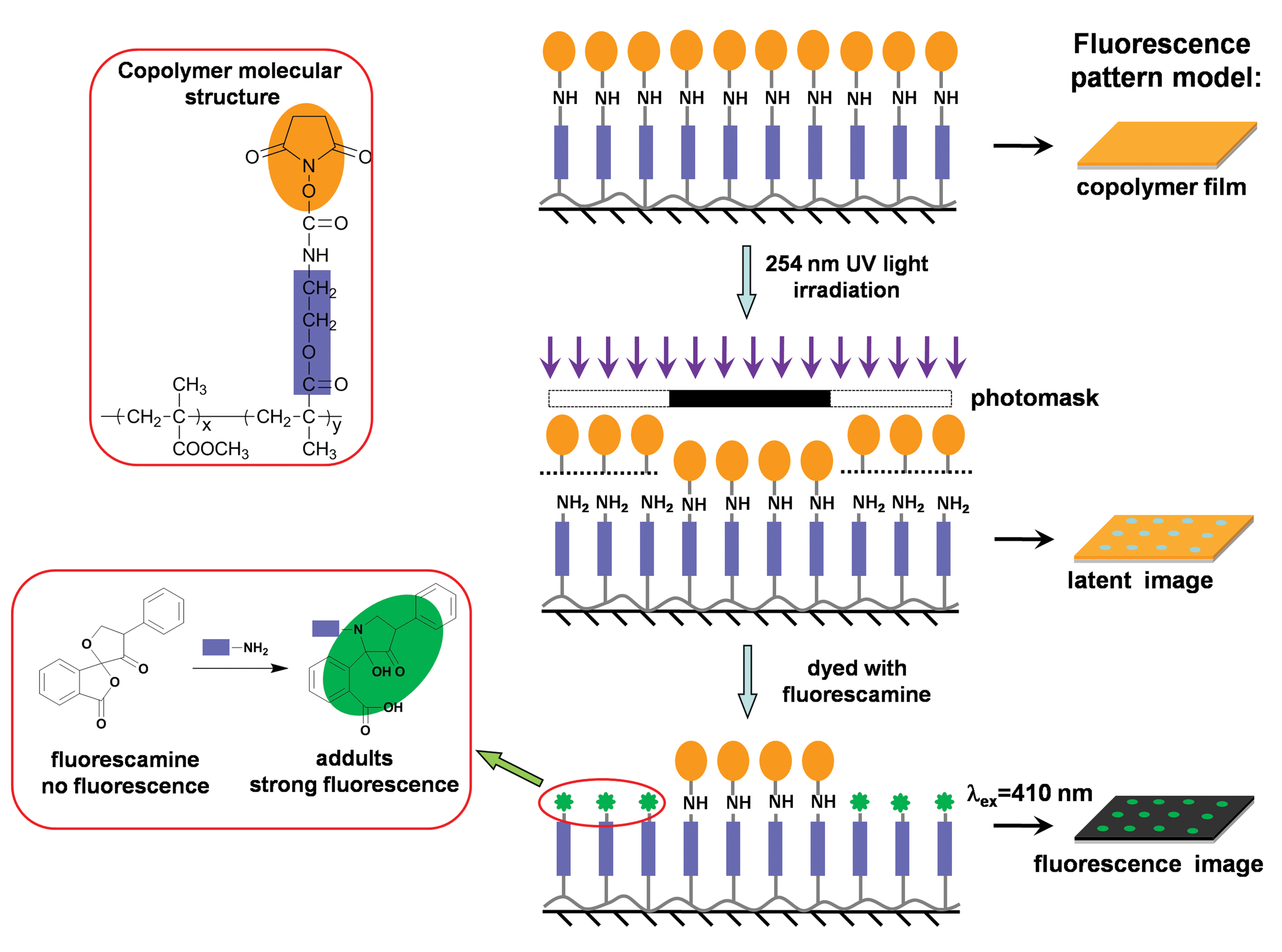

Fig. 6 Schematic depiction of the process for the formation of a fluorescence pattern.

The fluorescence spectrum of the copolymer film (Fig. 7A), upon irradiation with 254 nm UV light followed by reaction with fluorescamine, is characterized by a fluorescence band in the range of 420–650 nm with a fluorescence maximum at 476 nm. This result indicates that amino groups are produced upon irradiation, since fluorescamine itself is not fluorescent and only becomes fluorescent after reaction with the amino groups. According to the emission filter used in the confocal microscopy, we divided the emission spectrum of the fluorescamine–amine adducts into three parts: 420–470, 470–550 and 550–650 nm,²⁴ which correspond to blue, green and red observation colors, respectively. Fluorescence patterns obtained with the copolymer films on glasses demonstrate blue, green and red colors in certain observation wavelength ranges as shown in Fig. 7(B–G). The fluorescence patterns based on our photobase generating system appeared as visible fluorescence with high contrast and resolution under a smaller exposure dose compared with those in literature.^21–24 This system may be useful in the preparation of fluorescence images in polymer films for photonic and optical applications.

Fig. 7 (A) Relative fluorescence intensity of the irradiated copolymer film after treatment with fluorescamine. (B–G) Fluorescence images obtained from the copolymer films on glasses. The exposure dose is 1.05 J cm⁻² at 254 nm. The excitation wavelength is 410 nm. The observation wavelength is 420–470 nm (B and E), 470–550 nm (C and F), and 550–650 nm (D and G). The inset images of B and E are the photomasks used for the irradiation process. The scale bars for B–G are 200 μm.

4. Conclusions

To sum up, four novel carbamate functional photobase generating monomers, SMC, ACMC, TKMC and DFMC, have been synthesized successfully for fluorescence imaging applications. The photochemical characteristics of the synthesized monomers can be adjusted by altering the photosensitive groups. The experimental results indicated by the changes in UV-Vis spectra, FT-IR spectra, fluorescence intensities, and pH values suggest that SMC has the best properties for producing amines upon irradiation with 254 nm UV light among the four monomers. Furthermore, a copolymer containing SMC and MMA is used as a fluorescence imaging material. The fluorescence images formed on the copolymer film show different visible fluorescence colors, such as blue, green or red, depending upon the observation wavelength. This kind of material may be useful in the preparation of fluorescence images in polymer films for photonic and optical applications.
