Drug loaded multilayered gold nanorods for combined photothermal and chemotherapy

Abstract

In this study, gold nanorods (AuNRs) were first stabilized by hexadecyltrimethylammonium bromide (CTAB) and then coated with two kinds of polyelectrolytes (PE) and BSA to obtain multi-layered AuNRs (AuNRs-PE-BSA). Furthermore, the anti-cancer drug doxorubicin (DOX) was encapsulated into AuNRs-PE-BSA by the electrostatic force and the nanocomposites formed were named AuNRs/DOX-PE-BSA. The success of coating was verified by transmission electron microscopy (TEM), zeta potential, gel-electrophoresis and thermogravimetric analysis (TGA). The MTT assay indicated that the cytotoxicity of AuNRs decreased dramatically after multi-layer capping. The time-dependent nucleus-targeting capability of AuNRs/DOX-PE-BSA was confirmed in cell affinity evaluations. The in vitro and in vivo experiments demonstrated that AuNRs/DOX-PE-BSA, which combined photothermal and chemotherapy for tumor therapy, bears a markedly improved curative effect and holds promising prospects in the field of nanomedicine.

---

1. Introduction

Hyperthermia or thermotherapy, applying heat to selectively eradicate tumor cells, is a kind of non-invasive and widely acknowledged treatment method in tumor therapy.^1,2 In hyperthermia, a variety of sources, such as lasers, electromagnetic waves, ultrasound and infrared lamps, could induce an increase of localized temperature.^3,4 Near infrared (NIR) light is poorly absorbed by endogenous chromophores including water, melanin and hemoglobin. Thus, NIR light-activated tumor therapies have attracted extensive attention.^5,6 Conceivably, the employment of NIR irradiation holds great potential to propel the development of hyperthermia and non-invasive diagnostic techniques.

Gold nanorods (AuNRs) are promising optical contrast agents and NIR photothermal transducers, due to their good biocompatibility and favorable optical properties.^7,8 AuNRs have two surface plasmon resonance bands. One is the transverse extinction band (usually around 520 nm) and the other is the longitudinal extinction band (tunable from 600 to 900 nm),⁹ which can be adjusted to a desired region by controlling their effective size and aspect ratio (ratio of length to diameter).¹⁰ The excellent surface plasma resonances of AuNRs endow them with the capability to convert light energy to heat with a high efficiency when excited by a NIR laser. A deep tissue penetration and reduced photo-damage could be simultaneously achieved when NIR laser irradiation is carried out.

Current techniques based on chemical and electrochemical methods have been employed for the synthesis of AuNRs. The most convenient and popular synthesizing strategy is hexadecyltrimethylammonium bromide (CTAB)-templated growth for AuNRs in aqueous dispersion media.^11,12 However, CTAB is a well-known toxic cationic surfactant. Therefore, it is essential to develop AuNRs with safe surface coatings. Although PEGylated AuNRs have been reported to perform well in both in vitro and in vivo tests due to their biocompatibility and photothermal effect, their further development was obstructed by the short circulating time in vivo (half-life 1 h).¹³ Meanwhile, the facile surface modification of AuNRs by alternately introducing anionic and cationic polyelectrolyte (PE) multilayers¹⁴ could significantly lower the cellular toxicity of AuNRs.¹⁵ Alkilany et al. reported that bovine serum albumin (BSA) from biological media could be adsorbed onto AuNRs, which effectively mediated the receptor-mediated endocytosis due to the cellular recognition of BSA.¹⁶

Attracted by the lower toxicity of AuNRs in comparison with other inorganic nanomaterials, a number of studies have been carried out with a focus on the biomedical applications of AuNRs including diagnosis,¹⁷ imaging¹⁸ and photothermal therapy,¹⁹ as well as developing AuNRs as new releasing systems for photoactivated release of biomolecules.²⁰ These studies revealed the potential to construct a new tumor therapeutic system based on drug-loading AuNRs with simultaneous functions of hyperthermia and chemotherapy. Hence, we aim to develop a multifunctional tumor therapeutic system, which utilizes the therapeutic efficacy of AuNRs functioning as photothermal transducers and antitumor drugs that could be released from the system under the excitation of NIR light. Herein, as an attractive and alternative approach to achieve a uniform coating and decrease the bio-toxicity of CATB-capped AuNRs, the surface of AuNRs was modified with the layer-by-layer coating of PE and BSA. Doxorubicin (DOX) was subsequently encapsulated into multilayered AuNRs by the electrostatic force. The in vitro and in vivo therapy effect was comprehensively evaluated among free DOX, AuNRs/DOX-PE-BSA with or without NIR light irradiation to demonstrate the improved curative effect of DOX-loading multilayered AuNRs led by the combination of hyperthermia and chemotherapy.

2. Materials and methods

2.1 Materials

Chloroauric acid (HAuCl₄·3H₂O, ≥99.9% purity), CTAB, sodium borohydride (NaBH₄), L-ascorbic acid (L-AA), and silver nitrate (AgNO₃) were all purchased from Shanghai Chemicals Co. Ltd (Shanghai, China). Sodium poly(styrene sulfonate) (PSS, M_w: 70 kDa) and poly(diallyldimethylammonium chloride) (PDDA, M_w: 15 kDa) were obtained from Sigma-Aldrich (Tianjing, China). DOX was purchased from Jiangsu Research Institute (Wuxi, China). 3-(4,5-Dimethylthialzol-2-yl)-2,5-diphenyltetrazolium bromide (MTT), RPMI 1640, fetal bovine serum (FBS), streptomycin, penicillin and trypsin-EDTA were purchased from commercial sources. All chemicals were of analytical reagent grade and were used as received without further purification. Deionized water (18.2 MΩ cm⁻¹) was used in all experiments.

2.2 Synthesis of AuNRs capping with PSS, PDDA and BSA

AuNRs were synthesized by an improved seed-mediated growth method.²¹ Firstly, CTAB solution (5.0 mL, 0.1 M) was mixed with HAuCl₄ (5.0 mL, 0.0005 M). Then, ice-cold NaBH₄ (0.6 mL, 0.1 M) was added under stirring, while the resulting seed solution turned into brownish yellow color. The seed solution was kept at room temperature (25 °C) and used within 5 h. Secondly, the growth solution was prepared as follows: CTAB (100.0 mL, 0.1 M), HAuCl₄ (100.0 mL, 0.1 M) and AgNO₃ (5.0 mL, 10.0 mM) were gently mixed at 25 °C. Ascorbic acid (1.4 mL, 0.0788 M) was added to the solution, and the solution color changed from dark yellow to colorless. Thirdly, 0.24 mL of the seed solution was added to the growth solution. As-grown AuNRs were further subjected to overgrowth, and AuNRs with an enhanced absorption peak around 765 nm were obtained. After 1 h, the reaction was stopped by centrifugation (12 000 rpm, 10 min). The precipitates were collected and re-dispersed in deionized water. Finally, a suspension of AuNRs with the aspect ratio of 3.9 was obtained.

A positively charged CTAB bilayer on the surface of the as-prepared AuNRs served as the basis for layer-by-layer (LbL) deposition of PE (PSS and PDDA) and BSA. The PSS and PDDA stock solutions were prepared in 1.0 mM NaCl (3.0 mg mL⁻¹). 200 μL of PSS stock solution was added into 1.0 mL of the as-prepared AuNRs solution. After gently mixing for 30 min, the excess polymer in the supernatant fraction was removed by centrifugation (14 500 rpm, 10 min), and the precipitate was re-dispersed in 1.0 mL of 1.0 mM NaCl solution. PSS-coated rods were incubated with 200 μL of PDDA stock solution for 20 min at room temperature. The rods were then washed by centrifugation (14 500 rpm, 10 min) and resuspended in 1.0 mL of NaCl (1.0 mM) solution. The PSS and PDDA adsorption process was repeated once again, and then PE coated multilayered AuNRs (AuNRs-PE) were obtained. Subsequently, the pH of the resulting rods solution was adjusted to 4.0. Before further coating AuNRs-PE with BSA, the PSS layer was adsorbed onto the surface of AuNRs-PE firstly according to the method mentioned above. 200 μL of BSA aqueous solution (2.0 mg mL⁻¹) was then mixed with AuNRs-PE solution and incubated together for 20 min. The rods were then washed by centrifugation (14 500 rpm, 10 min) and re-suspended in 1.0 mL of NaCl (1.0 mM) solution. The PSS and BSA absorption process was repeated two more times. Finally, PE and BSA multilayered AuNRs (AuNRs-PE-BSA) were obtained.

2.3 Preparation of DOX loaded AuNRs-PE-BSA

For DOX loading, AuNRs-PE-BSA were first suspended in PBS solution (pH = 7.4). DOX was then added into AuNRs-PE-BSA solution (2.0 mL) with a final concentration of 50 μg mL⁻¹ and then stirred for 24 h at 37 °C. During the incubation, DOX was self-absorbed into the multilayers of AuNRs-PE-BSA by electrostatic interaction. Subsequently, the DOX-loaded AuNRs-PE-BSA (AuNRs/DOX-PE-BSA) was washed by centrifugation (14 000 rpm, 10 min) and the surfactant was suspended in PBS solution. The process was repeated four times. The obtained product was lyophilized and weighted.

2.4 Characterization

2.4.1 Size and morphology. Transmission electron microscopy (TEM) images of the AuNRs were taken by a JEM-2000 EX II transmission scanning electron microscope (JEOL Company, USA) using an accelerating voltage of 160 kV. The size distribution analysis was performed by manually measuring the length and width of each rod (at least 200 AuNRs for each sample), and the aspect ratio was also calculated.

2.4.2 Optical properties. The images of the rods solution obtained from different synthesis conditions were collected by a digital camera in white light. The absorbance spectra of AuNRs, AuNRs-PE and AuNRs-PE-BSA were also acquired using a UV-Vis spectrophotometer. AuNRs/DOX-PE-BSA were dispersed in PBS solution with different concentrations (6.0–80 μg mL⁻¹) and measured using a UV-Vis spectrometer at a wavelength of 481.5 nm.

2.4.3 Zeta potential (ζ). Zeta potential of the nanorods was measured using a Zetasizer (Brookhaven Instruments Corporation, USA) at a temperature of 25 °C. All the samples were dispersed in deionized water and the surface charge of the products was investigated using a potential analyzer.

2.4.4 Characterization of BSA binding. BSA binding was assayed by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE). Each solution containing AuNRs (1.0 mM) was mixed with loading buffer containing 10% SDS, 50% glycerol, 5% β-mercaptoethanol, 0.5% bromophenol blue and 250 mM Tris-HCl (pH 6.8) and then heated to 95 °C for 5 min. The adsorbed BSA was then identified by electrophoresis using separating gel containing 12% polyacrylamide.

Thermogravimetric analysis (TGA) of AuNRs-PE-BSA was performed using a TG209C thermogravimetry analyzer (NETZSCH, Germany). Samples were heated at the scanning rate of 10 K min⁻¹ over a temperature range from 30 °C to 400 °C.

2.5 Cell studies

2.5.1 Cell culture. The human cell line MCF-7 (breast cancer) was purchased from ATCC. The cell line was cultured at 37 °C under a humidified atmosphere containing 5% CO₂ in DMEM and RPMI 1640 medium supplemented with 10% fetal bovine serum, 100 U mL⁻¹ penicillin, and 100 mg mL⁻¹ streptomycin.

2.5.2 Cellular uptake and cell apoptosis. The affinity of free DOX, AuNRs/DOX-PE and AuNRs/DOX-PE-BSA to cells was investigated by laser confocal fluorescence microscopy (LCFM, FV1000, Olympus). Briefly, MCF-7 cells were seeded in LCFM culture dishes (diameter: 35 mm; base thickness: 0.13 mm–0.17 mm) with a density of 4 × 10⁴ cells cm⁻² and subsequently incubated at 37 °C under a humidified atmosphere containing 5% CO₂. After the confluency of cells became 75%, the cells were treated with 50 μL of free DOX, AuNRs/DOX-PE and AuNRs/DOX-PE-BSA respectively for 45 min. Subsequently, the cells were washed three times with Dulbecco's phosphate buffered saline (PBS, pH 7.0). For Hoechst staining of the nucleus, the cells were incubated with 50 μL of Hoechst solution (10 μg mL⁻¹) for 30 min and then washed three times with PBS before the subsequent LCFM examination. The red fluorescence from DOX was collected, and the excitation light (488 nm) and the emission filter (570 ± 15 nm) were used for the fluorescence detection.

In addition, the time-dependent cell uptake study was performed by incubating AuNRs/DOX-PE-BSA with MCF-7 cells at different incubation times (15 min, 35 min and 1 h). The fluorescence images were collected by the same method as that mentioned above.

To evaluate the therapeutic efficacy of free DOX, AuNRs/DOX-PE-BSA and AuNRs/DOX-PE-BSA (NIR light), the induction of apoptosis in MCF-7 cells was studied by determining the cell number and cell morphology. Specifically, cells were plated at a density of 4 × 10⁴ cells cm⁻² in a LCFM culture dish and subsequently incubated under the culture conditions for 36 h. The cells were treated with 100 μL of the sample solution (50 μg mL⁻¹) for 20 min. The photothermal treatment was performed using a 765 nm high power multimode pump laser (diameter: 2.0 cm, 1.8 W cm⁻²). The cells were exposed to the 765 nm laser for 5 min and then washed three times with PBS (pH = 7.0). After another 12 h of incubation, the residual cells and the morphological changes were displayed by the differential interference contrast (DIC) mode of LCFM.

2.5.3 Cytotoxicity assay. To evaluate the biotoxicity of AuNRs, AuNRs-PE-BSA and AuNRs/DOX-PE-BSA, the MTT assay was conducted on the MCF-7 cell line following standard protocols. Cells were plated at a density of 1 × 10⁴ cells per well in 96-well plates. After 24 h of incubation, the samples of a wide concentration range (0.005 μg mL⁻¹ to 1.0 μg mL⁻¹) were subsequently added into the cells. Each concentration was tested in 6 wells. About 24 h after incubation, each well was replaced and the cells were washed three times with Dulbecco's phosphate buffered saline (PBS, pH 7.0) before addition of 180 μL of fresh DMEM and 20 μL of MTT solution (5 mg mL⁻¹). After incubation for another 4 h, the medium containing MTT was carefully removed from each well and 150 μL of DMSO was added into each well. The optical density (OD) was measured using a multi-well plate reader.

In addition, the anti-tumor effects of free DOX with and without NIR light irradiation and AuNRs/DOX-PE-BSA with and without NIR light irradiation were estimated and compared following the same procedure as that mentioned above except that the sample incubation time was set at 4 h. Laser exposure experiments were carried out after the cells were incubated with the sample solutions of a wide concentration range (0.5 μg mL⁻¹ to 20.0 μg mL⁻¹) for 4 h. The parameters of light irradiation conditions were set as laser (765 nm), time (5 min per well) and power (1.8 W cm⁻²) and the cell medium was heated to about 42 °C. The cell viability was calculated using the following equation:

Viable cells (%) = (OD_treated/OD_control) × 100%,

where OD_treated was obtained in the presence of the samples; OD_control was obtained from the incubation medium.

2.6 Animal studies

2.6.1 Animal subjects and the tumor model. Normal (Kunming) mice were purchased from Charles River Laboratories (Shanghai, China) for in vivo imaging investigation. All animal experiments were carried out in compliance with the Animal Management Rules of the Ministry of Health of People's Republic of China (document no. 55, 2001) and the Guidelines for the Care and Use of Laboratory Animals of China Pharmaceutical University.

The S180 tumor model for therapy evaluation was established by subcutaneously inoculating S180 cells (∼8 × 10⁶) into the upper left axillary fossa of the mice (n = 48). The mice were investigated when the tumor had grown to a diameter of 5 mm.

2.6.2 In vivo imaging. AuNRs/DOX-PE-BSA (0.2 mL, 8 mg kg⁻¹) and PBS (0.2 mL) were intratumorally injected into each mouse. The mice were then immobilized on a Lucite jig. The images of the mice were collected at 15 min post-injection using a NIR fluorescence imaging system, which is equipped with a 765 nm laser, a highly sensitive NIR CCD camera, an 800 nm (±5 nm) band pass filter and a condenser.

2.6.3 Tissue distribution. After 16 days of intratumoral injection of DOX and AuNRs/DOX-PE-BSA respectively, the mice were sacrificed and the main organs (heart, liver, spleen, lung and kidney) and tumors were collected. The tissues were cut into slices (8 μm thickness) by a freezing microtome (CM1850, Leica) and observed by LCFM immediately. The red fluorescence emitted from DOX was detected.

2.6.4 Therapeutic efficacy. The mice were randomly divided into six groups and then treated with different injections as follows: (1) PBS (the control group, n = 8); (2) PBS with NIR light excitation (n = 8); (3) DOX (n = 8); (4) DOX with NIR light irradiation (n = 8); (5) AuNRs with NIR light irradiation (n = 8); (6) AuNRs/DOX-PE-BSA with NIR light irradiation (n = 8). Each mouse underwent 4 intratumoral injections once every three days in 12 days. The tumors were irradiated 1 h post-injection with a 765 nm laser (1.8 W cm⁻²) for 5 min each time. The localized temperature increased to ∼43 °C. The tumor volume was calculated as length × (width)² × 1/2.

To further investigate the therapeutic effects of AuNRs/DOX-PE-BSA on S180 tumor bearing mice and its possible toxicity on other organs, the tumors and the organs (heart, liver, spleen, lung and kidney) of the control group and the group treated with PBS, AuNRs-PE-BSA, DOX and AuNRs/DOX-PE-BSA were excised for pathological analysis at 16 day post-injection. The tissues were dissected from the mice, fixed with 10% neutral buffered formalin and embedded in paraffin. The sliced tissues (8 mm) were then stained with Hematoxylin and Eosin (H&E) and examined using an Olympus optical microscope.

2.7 Statistical analysis

Significant differences were determined using the Student's t-test where differences were considered significant (p < 0.05). All data are expressed as mean ± standard error of the mean.

3. Results and discussion

3.1 Structure, morphology and size

A highlighted feature of plasmonic nanoparticles (Au, Ag, Cu) is their structure-dependent optical properties, which facilitate tailoring the longitudinal surface plasmon resonance (LSPR) of AuNRs to a desirable wavelength with optimal light penetration for in vivo applications. Meanwhile, anti-cancer drugs could be loaded into multi-layers of AuNRs. Thus, drug loaded AuNRs were favorable nanocomposites for combinational photo-thermal therapy and chemotherapy of tumors.

The synthesis routine of DOX loaded multilayered AuNRs is illustrated in Fig. 1. AuNRs were firstly coated with PE (PSS and PDAC) through the LbL assembly method. BSA was selected for further capping AuNRs-PE to form AuNRs-PE-BSA. An anti-cancer drug, DOX, was finally loaded on AuNRs-PE-BSA by the self-absorption process.

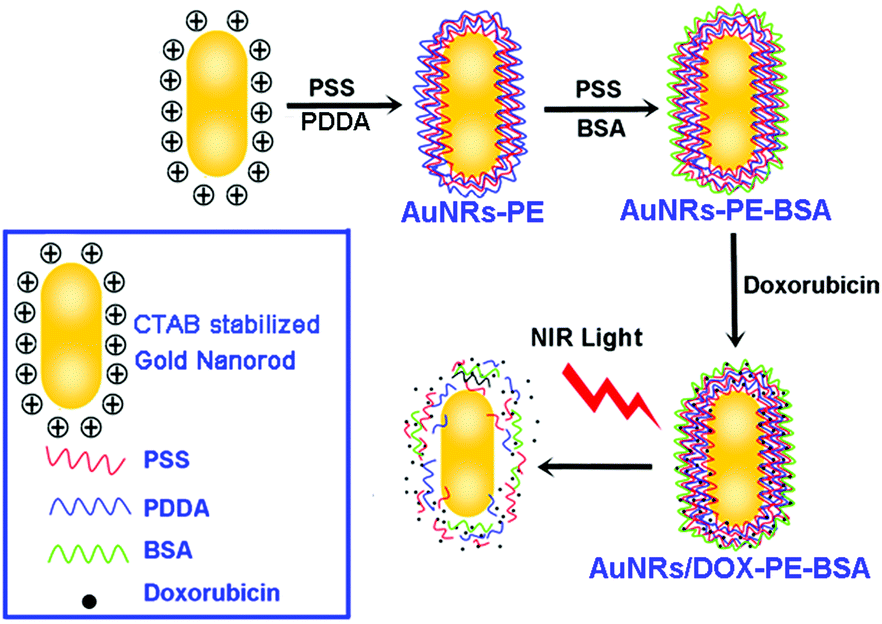

Fig. 1 Illustration of AuNRs-PE-BSA formation, DOX encapsulation and release study.

The white light images of AuNRs solutions are shown in Fig. 2A, where a is the seed solution, b is the Au nanoparticles solution and c to e are the solutions of AuNRs with different aspect ratios. Fig. 2B is the white light images of AuNRs with LSPR bands at 765 nm (a) and 808 nm (b), respectively. The as-prepared AuNRs before and after centrifugation were also characterized by TEM (Fig. 2C): (a) there are a lot of spherical Au nanoparticles contained in the sample of AuNRs before post-synthesis centrifugation; (b–d) the post-processing AuNRs with different magnification times (×50 000, ×75 000 and ×100 000) are of uniform size and morphology. The average aspect ratio of AuNRs is about 4 (length/diameter = ∼49/12 in nm).

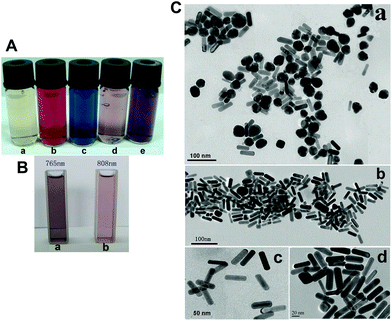

Fig. 2 (A) The solution colors and morphologies of gold nanomaterials (a: seed solution; b: aqueous solution of Au nanoparticles; c to e: AuNRs with different aspect ratios); (B) AuNRs with the longitudinal surface plasmon resonance bands at 765 nm (a) and 808 nm (b); (C) the TEM photo of as prepared AuNRs before centrifugation (a); (b) the TEM photos (×50 000) of as prepared AuNRs after centrifugation; (c) the TEM photos (×75 000) of as prepared AuNRs after centrifugation; (d) the TEM photos (×100 000) of as prepared AuNRs after centrifugation.

The absorbance spectra of AuNRs change as a function of the AgNO₃ volume, aspect ratio, and reaction time (Fig. S1 and S2†). These results confirmed previously published reports.^22–25 The experimental conditions for the synthesis of well-defined AuNRs are often difficult to control. Thus, the post-synthesis separation is necessary for the preparation of nanoparticles with monodispersity and uniform size. Based on their shape-dependent sedimentation behavior, Sharma et al. utilized theoretical analysis and experiments to demonstrate the viability of using centrifugation to separate colloidal AuNRs from a mixture of nanorods and nanospheres.²⁶ Xiong et al. reported that relatively heavier but longer and thinner rods could precipitate slower than certain sizes of lighter spheres, and AuNRs with diverse aspect ratios can be separated using density-gradient centrifugation.²⁷ Correspondingly, the post-synthesis centrifugation method was adopted in our experiments to purify the as-prepared AuNRs and the effectiveness of the reported method was validated.

Due to the toxicity of surfactants such as CTAB, SDS and so on, much effort has been devoted to decreasing the toxicity and improving the biocompatibility of AuNRs. CTAB molecules on the surface of the gold nanorods are exchangeable with similar surfactants that have a positively charged headgroup, and surfactant polymerization on the surface of the gold nanorods enhances both the stability and biocompatibility of these nanomaterials.²⁸ Ye et al.²⁹ proposed an improved method for the synthesis of colloidal AuNRs by using aromatic additives (5-bromosalicylic acid or 2,6-dihydroxybenzoic acid). Thus, the concentration of the CTAB surfactant decreased to ∼0.05 M. Choi et al.³⁰ validated that the use of heat or an acid could help completely remove CTAB from the synthesized Au nanorods while their stability was still maintained by pluronic F-127. Therefore, the well-established synthetic protocols of CTAB stabilized AuNRs could be further improved by replacing CTAB with a less toxic or non-toxic surface stabilizer.

3.2 The multi-layer coating on the surface of AuNRs

Direct visualization of the layers coating on AuNRs can be achieved by TEM observations. Fig. 3A shows the high-resolution TEM micrographs of the AuNRs coated with different layers. After four layers of polymer coating (PSS + PDDA + PSS + PDDA), the thickness of layers was approximately 2 nm. The layer thickness increased to ∼6 nm for AuNRs-PE-BSA. The UV-Vis-IR absorbance spectra of the AuNRs coated with different layers are shown in Fig. 3B. The absorption peak around 520 nm is ascribed to the transverse surface plasmon band of the nanorods, and the absorption peak around 765 nm is attributed to the LSPR band. The LSPR peak was slightly blue-shifted as the nanorods were coated with the first four layers of polymer. However, the LSPR maximum reverted to the original position (765 nm) when AuNRs-PE-BSA was formed.

Fig. 3 (A) The high resolution TEM micrographs of the AuNRs coated with different layers (CTAB, PE, PE and BSA); (B) the UV-Vis-IR absorbance spectra of the AuNRs of different layers (CTAB, PE, PE and BSA).

Zeta potential is usually used to confirm the surface charge and stability of nanoparticles in solution. The sequential absorption of oppositely charged molecules onto nanorods’ surfaces reversed the charge of nanorods after each deposition step. As shown in Fig. 4A, the zeta potential of AuNRs is ca. +38.2 mV due to the presence of a bilayer of CTAB on the nanorod surface. PDDA-coated AuNRs are positively charged (steps 2 and 4) while PSS-coated AuNRs are negatively charged (steps 1, 3, 5, 7, and 9). After incubating with BSA solution under acidic conditions, surface charges of all AuNRs were observed to become positive immediately (steps 6, 8 and 10). It can be clearly seen that the charge reversed upon sequential molecular adsorption. SDS-PAGE measurements were employed to evaluate the amount of BSA adsorbed by each sample (Fig. 4B). The BSA adsorption was reflected by the band intensity in the SDS-PAGE gel. Numbers 1 to 5 correspond to the marker, AuNRs-PE, AuNRs, AuNRs-PE-BSA and BSA, respectively. Obviously, no BSA bands appeared in AuNRs-PE or AuNRs. The bands of gel electrophoresis were semi-quantified using Scion Image software. The band area of the BSA control is 46 110 (pixel), and the band area of BSA adsorbed on AuNRs-PE-BSA is 25 476 (pixel). This indicated that AuNRs-PE have a strong capability to adsorb BSA, which is related to the easy internalization by cells. The TGA curve (Fig. 4C) shows a significant weight loss of AuNRs-PE-BSA (25.2%) from 30 °C to 400 °C, which could be attributed to the decomposition of the layers as the heating temperature increases.

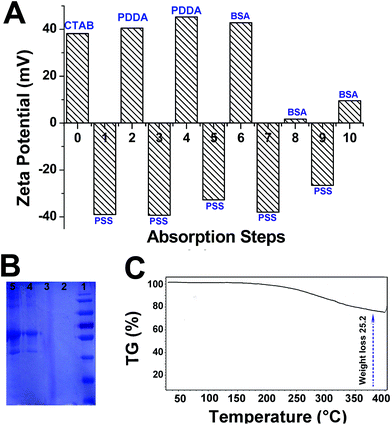

Fig. 4 (A) Zeta potentials of as-prepared AuNRs dispersed in aqueous solution; (B) SDS-PAGE measurement of BSA adsorbed by various samples (1: marker; 2: AuNRs-PE; 3: AuNRs; 4: AuNRs-PE-BSA; 5: BSA); (C) TGA curve of AuNRs-PE-BSA in the temperature range of 30 °C to 400 °C.

AuNRs-PE-BSA was prepared by a versatile LbL assembly approach. PE coating of gold nanoparticles has been studied specifically by Caruso and co-workers,^31,32 who validated that the polymers should be flexible with a chain length comparable to the dimensions of the nanoparticles. Gittins et al. proved that a low salt concentration (1 mM) and a polymer of 15–20 kDa are ideal for coating of nanoparticles with a size of ∼30 nm.³³ As the AuNRs dimension in our case is 50–60 nm in length, we chose polymers with M_w = 15 000–70 000 g mol⁻¹ and salt concentration = 1 mM. Alkilany et al. reported that BSA from the growth media was found to adsorb on gold nanoparticles and convert the surface charge of nanoparticles to that of BSA, which may facilitate cellular uptake of nanomaterials via receptor-mediated endocytosis.¹⁶ Furthermore, there are at least four known receptors on the cell surface that can independently bind with BSA alone and then endocytose it into cells.³⁴ Therefore, further BSA absorption is favorable for achieving uniform coating and efficient cell uptake.

The as-prepared positively charged AuNRs were firstly coated with a layer of anionic polymer (PSS). Multilayers of oppositely charged polymers were formed based on LbL assembly (PSS–PDDA–PSS–PDDA). BSA and PSS were then adsorbed sequentially onto the nanorods’ surface. Caruso et al. utilized the analytical ultracentrifugation method to characterize the polymer-coating nanorods.³⁵ Gole et al. observed PE-coated AuNRs by TEM and SEM detection.³⁶ Multilayer growth can also be monitored by UV-Vis spectroscopy that determines the cumulative absorption attributed to stepwise deposition of UV-active colloids.³⁷ Accordingly, TEM measurements and absorbance spectra were also employed in this study to characterize AuNRs, AuNRs-PE and AuNRs-PE-BSA. A blue-shift in the gold nanoparticle plasmon band that resulted from polymer unwrapping was reported by Gittins et al.³⁸ Chen et al. also found that the longitudinal plasmon band of a CTAB-capped AuNRs peak would slightly blue-shift to 790 nm from 800 nm after PSS substitution.³⁹ However, the blue-shift of the LSPR maximum did not appear for AuNRs-PE-BSA, suggesting that BSA and PE were wrapped on the surface of the AuNRs. In addition, zeta potential, SDS-PAGE measurements and TGA analysis further confirmed the multi-layer coating on the surface of AuNRs-PE-BSA.

The LbL self-assembly of multiple layers on nanoparticles resulted in the production of multifunctional hybrid carrier systems for probes, drugs, sensors, enzymes and other multiple components.^40,41 Ma et al. loaded anti-cancer drugs into the mesopores of AuNR-capped magnetic core/mesoporous silica shell nanoellipsoids, demonstrating the advantages of this delivery system in cancer therapy over conventional individual thermo-therapeutic systems.⁴² Recently, AuNRs and Au nanoparticles were successfully conjugated with a hydrophilic photosensitizer to achieve synergistic therapy by photodynamic therapy (PDT) and photothermal therapy (PTT).⁴³ In this work, an anti-cancer drug (DOX) was self-adsorbed into the multi-layers by electrostatic interaction. The loading process was simple, facile and transient. Thanks to the BSA layer, the effective charge on the surface of AuNRs-PE-BSA was stable in the surrounding environment, which improved the drug loading efficiency and cell affinity of the nanorods.

3.3 The distinct cell nucleus affinity of AuNRs/DOX-PE-BSA

Fig. 5A shows the LCFM images of MCF-7 cells, which had been incubated with DOX, AuNRs/DOX-PE and AuNRs/DOX-PE-BSA for 45 min and then had been marked with Hoechst for nuclei staining specifically. In line with the intensity of red fluorescence, only a small quantity of free DOX and AuNRs/DOX-PE bound to the cell membrane, and little drug arrived at the cytoplasm in the short incubation time. By contrast, a much stronger intensity of red fluorescence on the cell membrane was detected among the cells incubated with AuNRs/DOX-PE-BSA. Moreover, it is noteworthy that red fluorescence of DOX was abundant not only in the cytoplasm but also in the cell nucleus. BSA is the main protein component in the serum-containing media. BSA alone has at least four known cell surface receptors that can independently bind and endocytose it into cells.⁴⁴ BSA adsorbed on the surface of AuNRs endows the nanorods with the physiochemical characteristics of biological macromolecules. Accordingly, AuNRs/DOX-PE-BSA exhibited much faster endocytosis via receptor mediation. The results also suggest that physiochemical surface properties of nanomaterials are a determining factor for their behavior in biological systems. Such changes should be taken into consideration when exploiting the biological application of nanoparticles.

Fig. 5 (A) LCFM images of MCF-7 cells incubated with DOX, AuNRs/DOX-PE and AuNRs/DOX-PE-BSA for 45 min. Hoechst was used for nuclei staining; (B) the LCFM images of MCF-7 cells incubated with AuNRs/DOX-PE-BSA at different time intervals (15 min, 35 min and 1 h).

To further examine the cell nucleus affinity of AuNRs/DOX-PE-BSA, the LCFM images of MCF-7 cells incubated with AuNRs/DOX-PE-BSA at different time intervals (15 min, 35 min and 1 h) were collected (Fig. 5B). A time-dependent nucleus-targeting capability of AuNRs/DOX-PE-BSA was demonstrated. The strongest red fluorescence in the nucleus could be observed among the cells treated with AuNRs/DOX-PE-BSA for 60 min. Alkilany et al.¹⁶ demonstrated that the amount of BSA adsorbed on AuNRs had a positive correlation with the capacity of AuNRs to enter cells. The adsorbed BSA (or other serum proteins) may facilitate the uptake of nanomaterials via receptor-mediated endocytosis. It is well known that the intracellular targeting location of DOX is the nucleus.⁴⁵ Then the anti-cancer efficacy of DOX can be enhanced by their effective delivery into cancer cells as well as the high accumulation in the nucleus.

3.4 The fine combined therapeutic efficacy of AuNRs/DOX-PE-BSA on cells

Fig. 6A shows a slightly dose-dependent reduction in MTT absorbance for the cells incubated with AuNRs, AuNRs-PE-BSA and AuNRs/DOX-PE-BSA, respectively. The cell viability percentage for AuNRs was 65% at lower dose (0.1 μg mL⁻¹), and reduced to 45% at high dose (1.0 μg mL⁻¹). AuNRs-PE-BSA caused a minor reduction in cell viability (>80%) even at the highest dose (1.0 μg mL⁻¹). After being loaded with DOX, AuNRs/DOX-PE-BSA caused the viability of treated cells to decrease to 52% at high dose (1.0 μg mL⁻¹). A distinction in cell viability existed between AuNRs, AuNRs@PE and AuNRs/DOX@PE when the incubation concentration was larger than 0.1 μg mL⁻¹.

Fig. 6 (A) In vitro cytotoxicity studies of AuNRs, AuNRs-PE-BSA and AuNRs/DOX-PE-BSA performed on the MCF-7 cell line by MTT assays (incubation time: 24 h, n = 6, p < 0.05); (B) the cell inhibition rates of free DOX, free DOX with laser excitation, AuNRs/DOX-PE and AuNRs/DOX-PE-BSA with 765 nm laser irradiation (incubation time: 4 h, n = 6, p < 0.05); (C) the single or combined chemotherapeutic and thermotherapeutic effects of AuNRs/DOX-PE-BSA under NIR light were compared by the cell morphology and amounts, which were shown by the DIC mode of LCFM.

To compare the combined therapy with each single therapy, the inhibition rates of free DOX, AuNRs/DOX-PE without laser irradiation, as well as AuNRs/DOX-PE-BSA with laser irradiation were measured by the MTT assay (Fig. 6B). The viability of the cells treated with AuNRs/DOX-PE-BSA under the excitation of NIR light is the lowest (26% at a concentration of 20 μg mL⁻¹). Free DOX with or without light irradiation shows similar cell viability at different concentrations. For the treatment of AuNRs/DOX-PE without NIR light excitation, the cell viability is higher than 80% even at the highest dose (20 μg mL⁻¹). The combined chemotherapeutic and thermotherapeutic effect of AuNRs/DOX-PE-BSA under NIR light was also observed by the DIC mode of LCFM, which is shown in Fig. 6C. After light irradiation, cell apoptosis was obviously observed among the cells incubated with AuNRs/DOX-PE-BSA. Specifically, most of the cells were washed away by PBS buffer solution, and the cells in the field of vision were scanty, comparable to those incubated with free DOX. By contrast, while some cells became rounded and were detached from the dish, a relatively large number of cells still remained in the AuNRs/DOX-PE-BSA incubated dish (without laser irradiation) after the PBS wash. All these results revealed the preferable therapeutic effects of AuNRs/DOX-PE-BSA combined with NIR light irradiation.

The toxicity of CTAB-encapsulated AuNRs was mainly caused by CTAB on the surface of AuNRs.⁴⁶ Alkilany et al.’ study has demonstrated a shape-independent but coating-dependent cytotoxicity of AuNRs,¹⁶ in which the inhibition rates of AuNRs reduced dramatically after being coated with multi-layers of PE and BSA. However, the cytotoxicity displayed by AuNRs/DOX-PE-BSA under the excitation of NIR light was similar to that of free DOX though the amount of DOX encapsulated in AuNRs/DOX-PE-BSA was much lower than that of free DOX. Therefore, the meliority of the synergistic anti-cancer therapeutic effect of chemo- and thermal therapy was demonstrated in AuNRs/DOX-PE-BSA with NIR light irradiation at the cell level.

3.5 The NIR light absorption capability of AuNRs/DOX-PE-BSA in the tumor-bearing mouse model

To demonstrate the high LSPR effect of AuNRs/DOX-PE-BSA, normal mice were injected via axillary with 0.2 mL of AuNRs/DOX-PE-BSA and then exposed to laser irradiation. The NIR fluorescence images of the mice for the control (before injection) and the mice treated with AuNRs/DOX-PE-BSA are displayed respectively (Fig. 7A). It is easy to notice a deep black circle region in the mouse axillary fossa, which was ascribed to the high NIR light absorption of the nanocomposites.

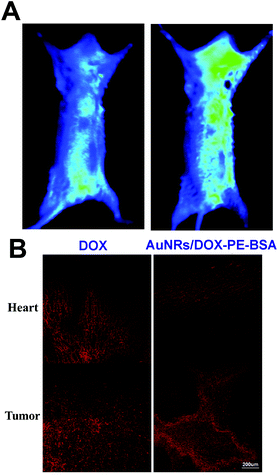

Fig. 7 (A) The NIR fluorescence images of the mice for the control (before injection) and the mice treated with AuNRs/DOX-PE-BSA; (B) the tissue distribution of DOX and AuNRs/DOX-PE-BSA after 16 days of intratumoral injection as demonstrated by the red fluorescence signals in heart and tumor.

The tissue distribution of DOX and AuNRs/DOX-PE-BSA after 16 days of intratumoral injection is indicated in Fig. 7B. The red fluorescence was absent in liver, spleen and kidney, and the fluorescence was only observed from heart and tumor in both groups. The red fluorescence observed from heart of DOX treated mice was obviously stronger than that of the AuNRs/DOX-PE-BSA treated group. The result implied that free DOX was prone to enter blood circulation even if they were located in the interstitial space of the tumor at the initial stage.

The LSPR band of AuNRs is around 765 nm. This NIR absorption peak enabled AuNRs to have strong absorption under 765 nm laser irradiation, as indicated by the in vivo optical images of the mice treated with AuNRs/DOX-PE-BSA via intratumoral injection. Owing to the enhanced permeability and retention (EPR) effect of tumors, nanoparticles have longer retention time in tumors than in normal tissues. Moreover, the EPR effect has been proved to be strongly associated with the biophysicochemical properties of the nanoparticles,⁴⁷ meaning that non-targeted nanoparticles can be engineered to accumulate specifically in tumor sites by optimizing their biophysicochemical properties. In this study, the BSA layer may have contributed to the long retention time of AuNRs/DOX-PE-BSA in the tumor. In comparison with the biodistribution of DOX in S180 tumor-bearing mice, weaker fluorescence in the heart and stronger fluorescence in the tumor were the characteristics of the mice treated with AuNRs/DOX-PE-BSA, which could be distinctly expounded by the nonspecifically tumor targeting efficacy of AuNRs/DOX-PE-BSA.

3.6 The preferable therapeutic efficacy of AuNRs/DOX-PE-BSA in tumor-bearing mice

The synergistic thermo- and chemo-therapy effect on S180 tumor-bearing mice was investigated. As shown in Fig. 8A, the tumor volume of the mice treated with AuNRs/DOX-PE-BSA coupled with NIR light irradiation increased much more slowly than that of other groups (PBS, PBS with light excitation, free DOX with or without light irradiation and AuNRs-PE-BSA with laser excitation) within 16 days. In comparison, the tumor volume of the mice treated with free DOX increased faster than that of the synergistic therapy group but slower than that of the thermotherapy group. And there is no significant tumor volume difference between the mice treated with free DOX with or without NIR light irradiation.

Fig. 8 Thermo- and chemo-therapeutic efficacy of AuNRs/DOX-PE-BSA in S180 tumor-bearing mice. (A) The tumor volume of S180 tumor-bearing mice treated with PBS, PBS (NIR light), free DOX, free DOX (NIR light), AuNRs-PE-BSA (NIR light) and AuNRs/DOX-PE-BSA (NIR light), respectively; (B) H&E stained tumor tissues of the control mouse, the AuNRs-PE-BSA (NIR light) group, the free DOX group, and the AuNRs/DOX-PE-BSA (NIR light) group; (C) H&E stained tissue (heart, liver, spleen, lung and kidney) of the control mouse and the AuNRs/DOX-PE-BSA (NIR light) treated mouse, respectively.

Tumor sections stained with H&E at 16 day post-injection were histologically examined as shown in Fig. 8B. Significant necrosis appeared in groups treated with DOX and AuNRs/DOX-PE-BSA (NIR light irradiation), while only a little necrosis was observed in the tumor tissues belonging to the mice treated with AuNRs-PE-BSA (NIR light irradiation). Almost no damage appeared in the group treated with PBS. Moreover, a larger necrosis region with pathological calcification could be observed in the tumors of the synergistic treatment group in comparison with the DOX group, further confirming the superiority of the synergistic therapeutic effect of AuNRs/DOX-PE-BSA combined with NIR light. In addition, there were no signs of degenerative and necrotic changes in the parenchymatous cells, interstitial proliferation or inflammatory reaction in the organs (heart, liver, spleen, lung and kidney) for the mice treated with AuNRs/DOX-PE-BSA and PBS (Fig. 8C).

An enhanced anti-cancer efficacy was exhibited by the combination of chemo- and thermotherapy in recent clinical therapy investigations. Some researchers utilized mesoporous silica as a carrier for the co-delivery of gold nanoparticles and drugs to the targeted tumor, resulting in an apparently enhanced therapeutic efficacy compared with the therapeutic effect of single treatment.⁴⁸ Herein, the multi-layered AuNRs were non-covalently conjugated with an anti-cancer drug, and a superior therapeutic effect was achieved under NIR light irradiation. The dosage of DOX could be substantially lowered by simply heating the tumor up to ∼43 °C, which was contributed by the synergistic therapeutic effect of AuNRs/DOX-PE-BSA combined with NIR light, and in this way both the dosage-limiting toxicity of the drug and tissue damage by single thermal therapy could be effectively avoided.

4. Conclusion

In summary, multi-layer coated and DOX-loaded AuNRs-PE-BSA, as multifunctional nanomaterials for in vivo combined thermo- and chemo-therapy, were prepared via a facile approach mainly based on electrostatic adsorption. Surface modification with BSA improved the biocompatibility, promoted the endocytosis of nanocomposites and provided desirable layers to carry anti-cancer drugs. As the cell internalization of nanoparticles was proved to be surface-chemistry-dependent, AuNRs/DOX-PE-BSA showed a facilitated cellular uptake, which was favorable for enhancing its anti-tumor effect at cell levels. Furthermore, due to the deep tissue penetration of NIR light and the high LSPR absorbance of AuNRs, the in vivo synergistic thermotherapy and chemotherapy effect of AuNRs/DOX-PE-BSA was perfectly embodied in the S180 tumor-bearing mouse model. Such a multifunctional drug delivery system showed apparent superiority in cancer therapy over conventional individual thermo- or chemo-therapeutic systems, demonstrating promising prospects for combined anti-cancer therapeutic techniques.
