Multi-emitting properties of hybrid Langmuir–Blodgett films of amphiphilic iridium complexes and the exfoliated nanosheets of saponite clay

Abstract

Mono- and multi-layered films comprised of amphiphilic cationic iridium(III) complexes hybridized with the exfoliated nanosheets of synthetic saponite were prepared by the modified Langmuir–Blodgett method. Three iridium(III) complexes with different emission maxima (λ_max) were used as incorporated complexes: [Ir(dfppy)₂(dc9bpy)]⁺ (λ_max = 500 nm) (dfppyH = 2-(4′,6′-difluorophenyl)pyridine; dc9bpy = 4,4′-dinonyl-2,2′-bipyridine) [Ir(ppy)₂(dc9bpy)]⁺ (λ_max = 550 nm) (ppyH = 2-phenylpyridine) and [Ir(piq)₂(dc9bpy)]⁺ (λ_max = 590 nm) (piqH = 1-phenylisoquinoline) for blue, yellow and red emissions, respectively. Six triple-layered films with different layer sequences were fabricated by layer-by-layer deposition onto quartz substrates. Stationary emission spectra were recorded on the prepared films under vacuum and at various oxygen pressures. Notably the change in the spectral shape at surrounding oxygen pressure depended remarkably on the layer sequence. Quenching by oxygen molecules was analyzed by applying a two-site model to the Stern–Volmer plots. The present nanometer-thick films were regarded as a benchmark for an optical device emitting different visible lights in response to oxygen pressure.

---

Introduction

Luminescent transition metal complexes have been applied as emitting elements for photo-responsive devices.^1–9 Among them, cyclometalated iridium(III) complexes (denoted Ir(III) complexes) are attracting extensive attention due to their high emitting properties in the visible region. Various Ir(III) complexes are explored for tuning emission maxima.^10–38 They are used in optical devices such as photo-diodes and oxygen sensors.^6,7,13–15 Their functions are based on the properties that energy transfer takes place efficiently from the triplet excited state of an Ir(III) complex to semiconductors or an oxygen molecule in a triplet ground state.^13,20

The important properties that make them desirable as a sensing device are rapid and reversible responses together with mechanical strength. One approach to achieve these requisites is to fabricate Ir(III) complexes within organic or inorganic host materials such as synthetic polymers or mesoporous silica or alumina.^28–37 Such hybridization enhances robustness and reliability as sensing devices. Among inorganic supports, clay minerals are known to be a layered host intercalating photo-responsive molecules.^38–47 The extent of energy transfer between donor and acceptor molecules intercalated within the interlayer spaces was estimated previously.^45–47

In our recent work, the hybridization of an amphiphilic Ir(III) complex with a montmorillonite clay was performed by means of the modified Langmuir–Blodgett (LB) method.^28,47 According to this method, a floating monolayer of an amphiphilic cationic complex was formed on a subphase containing the exfoliated nanosheets of a clay mineral. Hybridization took place electrostatically between a cationic monolayer and negatively charged clay sheets at an air–water interface.²⁸ The floating hybrid film was deposited onto a solid substrate. The nanometer-thick films thus prepared achieved high emission efficiency and sensitivity for oxygen gas.⁴⁷

The present work employed three amphiphilic Ir(III) complexes with different emission maxima. The monolayer films of these complexes were hybridized with a clay mineral, synthetic sodium saponite. Its elemental composition was stated to be [(Na_0.25Mg_0.07)(Mg_2.98Al_0.01)(Si_3.6Al_0.4)O₁₀(OH)₂] with no heavy metal ion acting as a luminescent quencher.⁴⁸ Triple-layered hybrid films were constructed by the layer-by-layer deposition of floating hybridized monolayers onto quartz substrates. Attention was focused on how the spectral response of emission to oxygen was dependent on the layer sequence of three Ir(III) complexes. This work would be a benchmark to explore multi-emitting sensor films based on photo-responsive metal complexes.

Results and discussion

Preparation of hybrid single- or multi-layered films

The UV-visible spectra of the methanol solutions of the used iridium complexes are shown in the ESI† (Fig. S1). A chloroform solution containing a perchlorate salt of [Ir(ppy)₂(dc9bpy)]⁺ (denoted PPY) or [Ir(dfppy)₂(dc9bpy)]⁺ (denoted DFPPY) or [Ir(piq)₂(dc9bpy)]⁺ (denoted PIQ) was spread onto an aqueous dispersion of a synthetic saponite clay (denoted SAP) at a concentration of 10 mg L⁻¹. The cation-exchange capacity (CEC) of SAP was found to be 80 meq per 100 g. Upon compressing a trough surface, surface pressure started to increase around the molecular area of 1.5–2 nm². This suggested that the Ir(III) complexes formed a monomolecular film at an air–water interface (Fig. 1). The surface pressure–molecular area curves (denoted π–A curves) were compared with the ones obtained over pure water.²⁸ The monolayers of Ir(III) complexes over a clay dispersion were more expanded and rigid than those over pure water. The results supported the occurrence of hybridization of Ir(III) complexes with clay particles at an air–water interface. The hybrid floating film was transferred by the vertical deposition method onto a hydrophilic quartz plate at the surface pressure of 10 mN m⁻¹. Deposition took place only in the upward direction. The transfer ratio was found to be 0.9 ± 0.1 in all the cases. Six kinds of double- and triple-layered hybrid films with different layer sequences were prepared using the layer-by-layer method as shown in Scheme 1(A) and (B). The details of preparation of multi-layered films are provided in the experimental section.

Fig. 1 The π–A curves when the perchlorate salts of DFPPY (bold solid), PPY (dotted) and PIQ (broken) were spread onto an aqueous dispersion of SAP (10 mg L⁻¹).

Scheme 1 Six kinds of (A) double-layered and (B) triple-layered films with different layer sequences: (A) (a) {DFPPY/SAP/PPY/SAP}, (b) {DFPPY/SAP/PIQ/SAP}, (c) {PPY/SAP/DFPPY/SAP}, (d) {PIQ/SAP/DFPPY/SAP}, (e) {PPY/SAP/PIQ/SAP}, and (f) {PIQ/SAP/PPY/SAP} for double layered films; (B) (a) {PPY/SAP/DFPPY/SAP/PIQ/SAP}, (b) {PIQ/SAP/DFPPY/SAP/PPY/SAP} (c) {DFPPY/SAP/PPY/SAP/PIQ/SAP}, (d) {PIQ/SAP/PPY/SAP/DFPPY/SAP} (e) {DFPPY/SAP/PIQ/SAP/PPY/SAP}, and (f) {PPY/SAP/PIQ/SAP/DFPPY/SAP} for triple-layered films. Here {X/SAP} denotes the deposited layer of the hybrid film of an iridium(III) complex (X) with SAP, respectively.

The surfaces of the deposited films were observed by means of atomic force microscopy (AFM). As shown in the ESI† (Fig. S2 and S3), the hybrid films had nanometer-order thickness. There was little difference in the surface morphology among the observed films. The UV-visible spectra of single-, double- and triple-layered hybrid films are also shown in the ESI† (Fig. S4).

Emission properties of single-layered films

Fig. 2(a)–(c) show the emission spectra of the single-layered films, in which the surface of a quartz plate was modified with a single-layered hybrid film denoted {X/SAP} (X = DFPPY, PPY and PIQ). The films were irradiated at 430 nm either under vacuum or under an oxygen atmosphere. The peak wavelength (λ_max) of emission reflected the character of each Ir(III) complex incorporated in the film: λ_max = 500 nm, 550 nm, and 590 nm for {DFPPY/SAP}, {PPY/SAP} and {PIQ/SAP}, respectively. In the case of {PIQ/SAP}, the emission was more than ten times weaker than from {PPY/SAP} or {DFPPY/SAP} so that the background overlapped appreciably the emission spectrum in the wavelength region shorter than 500 nm. When oxygen gas was introduced into the cell, the intensity of the emission clearly decreased due to the quenching of excited Ir(III) complexes (denoted X*) by oxygen molecules (Fig. 2).

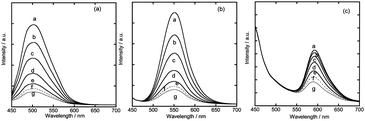

Fig. 2 The luminescence spectra of the single-layered hybrid LB films of (a) {DFPPY/SAP}, (b) {PPY/SAP}, and (c) {PIQ/SAP}. The excitation wavelength was 430 nm. The vertical axis denotes the intensity of luminescence at an arbitrary unit: a (under vacuum), b (at 1 kPa of oxygen pressure), c (at 4 kPa), d (at 11 kPa), e (at 27 kPa), f (at 53 kPa) and g (at 101.3 kPa), respectively.

In order to investigate the possibility of energy transfer within a single-layered film, a mixed monolayer containing DFPPY, PPY, and PIQ at a 1 : 1 : 1 ratio was hybridized with clay nanosheets at an air–water interface. The floating hybrid film (denoted {DFPPY, PPY, PIQ/SAP}) was transferred onto a quartz plate. As shown in Fig. S5 in the ESI,† the emission spectrum showed a sharp single peak at 590 nm with low intensity at 550 nm and 500 nm. The results implied that the energy transfer from excited DFPPY (or DFPPY*) and PPY* to PIQ took place efficiently when they were located in the same layer (or intra-layer energy transfer). From the results on the single-layered hybrid films, it was concluded that a nanometer-thick film exhibited high emitting properties characteristic of an adsorbed dye molecule.

Emission properties of heterogeneous double-layered films

Six double-layered hybrid films with different layer sequences were prepared as shown in Scheme 1(A). The absorption spectra of these films are shown in the ESI† (Fig. S4). It was confirmed that the absorbance was expressed as the sum of two composite monolayers.

Fig. 3(a) and (b) show the emission spectra of the quartz plates modified with (a) {DFPPY/SAP/PPY/SAP} and (b) {DFPPY/SAP/PIQ/SAP}, respectively, when they were irradiated at 430 nm under vacuum or at various oxygen pressures. The results obtained under vacuum showed the emission maximum (λ_max) at 550 nm (PPY*) and 590 nm (PIQ*), respectively. Although there was some emission observed at 500 nm from DFPPY*, it was very low in comparison to {DFPPY/SAP}. The results implied that the energy transfer took place efficiently from DFPPY* to PPY and PIQ in the double-layered films. The same conclusion was derived from the emission spectra of other double-layered films as given in Table S1, Fig. S6 and S7 in the ESI.† It was noted that the occurrence of inter-layer energy transfer made PIQ the weakest emitter in a single-layered film and the highly emitting species in the double-layered films.

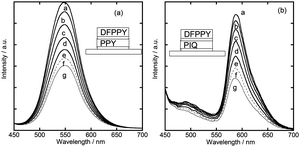

Fig. 3 The luminescence spectra of the double-layered hybrid films of (a) {DFPPY/SAP/PPY/SAP} and (b) {DFPPY/SAP/PIQ/SAP}, in which oxygen gas was introduced at various pressures. The excitation wavelength was 430 nm. The vertical axis denotes the intensity of luminescence at an arbitrary unit: a (in vacuum), b (at 1 kPa of oxygen pressure), c (at 4 kPa), d (at 11 kPa), e (at 27 kPa), f (at 53 kPa) and g (at 101.3 kPa), respectively.

The intensity of the spectra decreased over the whole wavelength region upon introducing oxygen gas. The results implied that oxygen molecules penetrated both the upper and lower layers, quenching the whole Ir(III) complexes in films.

The above results confirmed that inter-layer energy transfer took place efficiently between the metal complexes located in different layers.

Emission properties of heterogeneous triple-layered hybrid films

Six triple-layered hybrid films with different layer sequences were prepared as shown in Scheme 1(B). The UV-visible spectra of these films are shown in Fig. S4 in the ESI.†Fig. 4(a)–(f) show the emission spectra, when the films were irradiated at 430 nm either under vacuum or at various oxygen pressures.

Fig. 4 The luminescence spectra of the triple-layered hybrid LB films of (a) {PPY/SAP/DFPPY/SAP/PIQ/SAP}, (b) {PIQ/SAP/DFPPY/SAP/PPY/SAP}, (c) {DFPPY/SAP/PPY/SAP/PIQ/SAP}, (d) {PIQ/SAP/PPY/SAP/DFPPY/SAP}, (e) {DFPPY/SAP/PIQ/SAP/PPY/SAP}, and (f) {PPY/SAP/PIQ/SAP/DFPPY/SAP}. These films were prepared from a subphase of 10 mg L⁻¹ of SAP. Oxygen gas was introduced at various pressures. The excitation wavelength was 430 nm. The vertical axis denotes the intensity of luminescence at an arbitrary unit: a (in vacuum), b (at 1 kPa of oxygen pressure), c (at 4 kPa), d (at 11 kPa), e (at 27 kPa), f (at 53 kPa) and g (at 101.3 kPa), respectively.

The following features are noticed concerning the emission profiles under vacuum. For all of the films, no peak was observed at around 500 nm. The results implied that the excitation energy of DFPPY* transferred substantially to PPY and/or PIQ. Such inter-layer energy transfer took place irrespective of the location of {DFPPY/SAP} within the triple-layered films. The ratio of the emission intensity at 590 nm due to PIQ* (denoted I₅₉₀) to I₅₅₀ due to PPY* was dependent on the layer sequence remarkably. According to the magnitude of I₅₉₀/I₅₅₀, the investigated six films were classified into the following two groups: group A (small I₅₉₀/I₅₅₀ values) including (a) and (b) and group B (large I₅₉₀/I₅₅₀ values) including (c), (d), (e), and (f) in Scheme 1(B). In the films belonging to group A, {DFPPY/SAP} was located in between {PPY/SAP} and {PIQ/SAP}. Since PPY was remote from PIQ, the inter-layer energy transfer from PPY* to PIQ occurred less efficiently. Thus the emission from PPY* (or I₅₅₀) remained at a higher level, leading to the small value of I₅₉₀/I₅₅₀. In the films belonging to group B, {PPY/SAP} was in direct contact with {PIQ/SAP}. Thus the inter-layer energy transfer from PPY* to PIQ occurred efficiently, lowering the emission at 550 nm with the simultaneous increase of the emission at 590 nm. This resulted in the large value of I₅₉₀/I₅₅₀.

The above results on the heterogeneous triple-layered films were compared with the emission behavior of a single-layered mixed film {DFPPY, PPY, PIQ/SAP} (Fig. S5 in the ESI†). The occurrence of selective energy transfer as observed in the former films supported the elucidation of the layer-by-layer structures.

For all the triple-layered films, emission intensity decreased upon introducing oxygen gas. The effect of oxygen molecules on the change in the spectral shape, however, was different among the investigated films. These features are summarized as follows: in the case of (a) {PPY/SAP/DFPPY/SAP/PIQ/SAP}, the emission intensity decreased with the increase of oxygen pressure until the emission peak remained at around 590 nm. PPY* in the uppermost layer was expected to be quenched more efficiently than PIQ* in the lowest layer. Thus the emission from PIQ* (I₅₉₀) remained at higher oxygen pressure. In the case of (b) {PIQ/SAP/DFPPY/SAP/PPY/SAP} and (d) {PIQ/SAP/PPY/SAP/DFPPY/SAP}, the emission intensity decreased until the emission spectrum exhibited a broad peak at around 550 nm. PIQ* in the uppermost layer was expected to be quenched more efficiently than PPY* in the middle or lowest layer. Thus the emission from PPY* (I₅₅₀) remained at higher oxygen pressure. In the case of (c) {DFPPY/SAP/PPY/SAP/PIQ/SAP} and (e) {DFPPY/SAP/PIQ/SAP/PPY/SAP}, the emission intensity decreased uniformly with no drastic change in the spectral shape. DFPPY* in the uppermost layer was expected to be quenched most efficiently. The decrease of energy transfer from DFPPY* resulted in the simultaneous lowering of emission from both PPY* (I₅₅₀) and PIQ* (I₅₉₀). In the case of (f) {PPY/SAP/PIQ/SAP/DFPPY/SAP}, the emission intensity decreased uniformly with a little change in the spectral shape. The quenching of PPY* in the uppermost layer took place efficiently under the simultaneous energy transfer from DFPPY*. It was difficult to estimate how these two opposite effects affected the whole emission profiles.

The quenching efficiency of oxygen molecules might be dependent on their penetrating depth in the films. As a result, two emitting molecules located in different layers were quenched to different degrees at a given pressure. These situations lead to the appearance of multi-emission behaviour, depending on the oxygen pressure. In the case of (a), for example, the broad emission band (550–600 nm) changed to a sharp peak at 600 nm upon increasing oxygen pressure.

Analysis of energy transfer in triple-layered hybrid films under vacuum

The processes of inter-layer energy transfer in the triple-layered hybrid films were analysed on the basis of the Förster-type mechanism.⁴⁶ Three paths were assumed as energy transfer routes: DFPPY* to PIQ (route 1), DFPPY* to PPY (route 2), and PPY* to PIQ (route 3). Based on these, the following expressions were derived:in which F_total(ν) denotes the total emission profile in the case of a triple-layered film in the wavelength region from 450 nm to 700 nm. F⁰_df(ν), F⁰_ppy(ν) and F⁰_piq(ν) are the emission spectra of the single layered films of DFPPY, PPY and PIQ, respectively. η_1ET, η_2ET and η_3ET denote the energy transfer efficiency of routes 1, 2, and 3 from DFPPY* to PPY, DFPPY* to PIQ and PPY* to PIQ, respectively, and ϕ_n (n = 1–3) the quenching efficiency of the donor (or the acceptor), in which n = 1, 2 and 3 for DFPPY, PPY and PIQ, respectively. A_df, A_ppy and A_piq, are the absorbance of single-layered films of DFPPY, PPY, and PIQ at 430 nm, respectively. From separate experiments, the absorbance in the electronic spectra of a single-layered film, A_df, A_ppy, and A_piq was obtained as 0.00017, 0.00096 and 0.00165 at 430 nm, respectively. The baselines of the emission spectra of {PIQ/SAP} and triple-layered hybrid films were modified in order to achieve better agreement between the observed and calculated results.

The parameters, η_nET, and ϕ_n (n = 1–3), were determined to make the calculated F_total(ν) best fitted to the experimental emission spectra. In reproducing the experimental spectra, the values of η_nET (n = 1 and 2) and ϕ₁ were first selected under the condition of η_1ET + η_2ET + ϕ₁ = 1. This assumption was introduced on the basis of the fact that no emission from DFPPY* was observed in the experimental spectra. In the next stage, η_3ET and ϕ₂ were varied under the condition of η_3ET + ϕ₂ ≦ 1. This was assumed since the emission from PPY* remained in the observed spectra. The values of these parameters were chosen such that the calculated I₅₉₀/I₅₅₀ value was as close as possible to the observed one. Finally the value of ϕ₃ was selected so as to adjust the calculated I₅₉₀ in accord with the observed one. The parameters thus obtained are tabulated in Tables 1(A)–(C). The final simulated curves are shown in the ESI† (Fig. S8).

Table 1 (A) Energy transfer and quenching parameters of heterogeneous triple-layered films (a) and (b) shown in Fig. 4. (B) The energy transfer and quenching parameters of heterogeneous triple-layered films (c) and (d) shown in Fig. 4. (C) The energy transfer and quenching parameters of heterogeneous triple-layered films (e) and (f) shown in Fig. 4

(A)
Vacuum	(a)	(b)
η 1ET (DFPPY* → PPY)	0.20	0.20
ϕ 1	0.48	0.48
η 2ET (DFPPY* → PIQ)	0.32	0.32
ϕ 2	0.40	0.48
η 3ET (PPY* → PIQ)	0.00	0.00
ϕ 3	−5.10	−4.50
A df	0.00017	0.00017
A ppy	0.00096	0.00096
A piq	0.00165	0.00165

---

(B)
Vacuum	(c)	(d)
η 1ET (DFPPY* → PPY)	0.87	0.87
ϕ 1	0.08	0.00
η 2ET (DFPPY* → PIQ)	0.05	0.13
ϕ 2	0.60	0.60
η 3ET (PPY* → PIQ)	0.02	0.10
ϕ 3	−5.20	−3.80
A df	0.00017	0.00017
A ppy	0.00096	0.00096
A piq	0.00165	0.00165

---

(C)
Vacuum	(e)	(f)
η 1ET (DFPPY* → PPY)	0.00	0.00
ϕ 1	0.50	0.50
η 2ET (DFPPY* → PIQ)	0.50	0.50
ϕ 2	0.35	0.37
η 3ET (PPY* → PIQ)	0.37	0.37
ϕ 3	−4.70	−4.50
A df	0.00017	0.00017
A ppy	0.00096	0.00096
A piq	0.00165	0.00165

---

In the films belonging to group A ((a) and (b) in Fig. 4), the most part of excitation energy in DFPPY* was transferred directly to PPY (∼20%) and to PIQ (∼30%), while the contribution of the energy transfer from PPY* to PIQ was nearly zero. As a result, the emission from PPY* remained to be observed together with the emission from PIQ*. In the films of (c) and (d) in Fig. 4, both of which belonged to group B, the most part of excitation energy in DFPPY* was transferred to PPY (∼90%). The fraction of energy transferred from DFPPY* to PIQ was lower than 10%, probably because {PIQ/SAP} was remote from {DFPPY/SAP}.

When the same parameter set was assigned to the films of (e) and (f), both of which also belonged to group B, the most part of energy in DFPPY* was transferred to PIQ (∼50%). Since {PPY/SAP} was in direct contact with {PIQ/SAP} in this group, the energy transfer from PPY* to PIQ was efficient (∼40%). As a result, the emission from PPY* nearly disappeared in the observed emission spectra.

As for the values of ϕ_n (n = 1, 2 and 3), which indicated the effects of clay sheets on emission efficiency, ϕ_n (n = 1 and 2) was positive, while ϕ₃ was negative. In other words, the emission was lowered when DFPPY and PPY molecules were in contact with a clay sheet, while the effect was reversed for PIQ. The reason for this difference was unclear. The general features as derived from the analyses were in agreement with the qualitative views stated in the previous section.

Analysis of quenching by oxygen molecules in the case of triple-layered hybrid films

The quenching behavior of triple-layered hybrid films under an oxygen atmosphere was analysed according to the Stern–Volmer plots. In the plots, the total area of the emission in the wavelength region from 450 nm to 700 nm under vacuum or under an oxygen atmosphere was taken to be I₀ and I, respectively. The ratio of I₀/I was plotted as a function of oxygen pressure (P_O2) (Fig. 5). The change of the total emission contained the contribution from oxygen quenching of both PPY* and PIQ*. Thus the results presented in the tables compared the total quenching effects among the triple-layered films with different layer sequences.

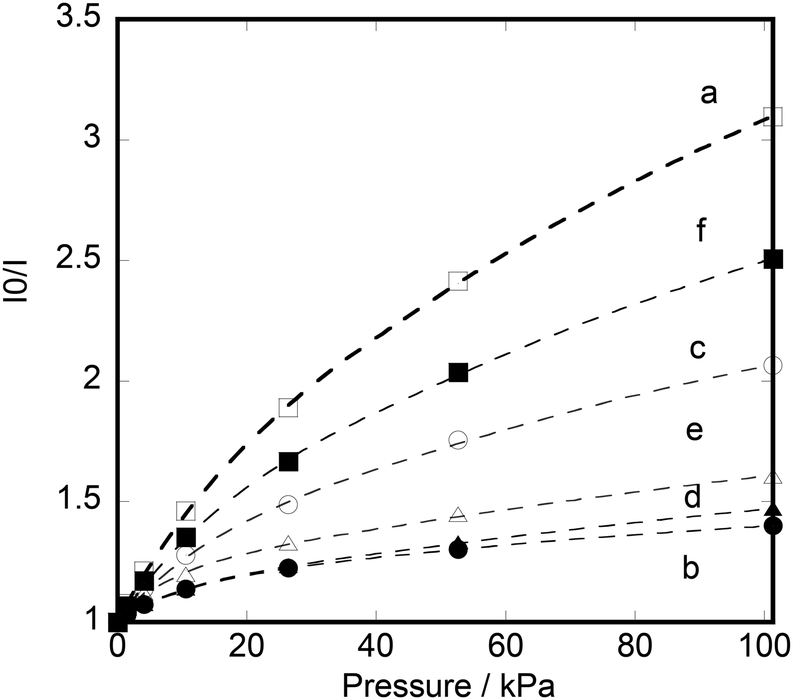

Fig. 5 Stern–Volmer plots for quenching by oxygen molecules in heterogeneous triple-layered films: (a) {PPY/SAP/DFPPY/SAP/PIQ/SAP}, (b) {PIQ/SAP/DFPPY/SAP/PPY/SAP}, (c) {DFPPY/SAP/PPY/SAP/PIQ/SAP}, (d) {PIQ/SAP/PPY/SAP/DFPPY/SAP}, (e) {DFPPY/SAP/PIQ/SAP/PPY/SAP}, and (f) {PPY/SAP/PIQ/SAP/DFPPY/SAP}. Curves were calculated according to eqn (2) by using the parameters in Table 2.

Since the plots curved downward as shown in Fig. 5, the results were analysed in terms of the two-site model as expressed by eqn (2).³¹ In the equation, two binding sites with different quenching constants (K_sv1 and K_sv2) were assumed:

in which f₁ and f₂ denote the fractions of sites 1 and 2, respectively. The best values for two quenching constants (K_sv1 < K_sv2) were chosen so as to reproduce the observed plots well. K_svav is the overall quenching constant. As a comparison, the same parameters were calculated for the single-layered and double-layered hybrid films and are given in the ESI† (Fig. S9 and Tables S2 and S3). According to the results, the upper-layer of PPY was most sensitive to quenching by oxygen molecules.

Table 2 shows the parameters determined for six triple-layered hybrid films. According to the results, the films contained strongly quenched (20–60%) and weakly quenched sites (80–40%). The strongly quenching constants were ca. 40–200 times as high as the weakly quenching ones. The overall quenching constants (K_sav) took nearly the same value (∼0.02–0.06) among the six films. In other words, the present triple-layered films exhibited a similar sensitivity for oxygen molecules irrespective of the difference in layer sequence.

Table 2 Stern–Volmer parameters for quenching by oxygen molecules in heterogeneous triple-layered films

Parameter	(a)	(b)	(c)	(d)	(e)	(f)
K sv1	0.004	0.001	0.003	0.002	0.002	0.004
K sv2	0.08	0.10	0.08	0.13	0.18	0.09
f 1	0.37	0.78	0.58	0.81	0.76	0.47
f 2	0.63	0.22	0.42	0.19	0.24	0.53
K svav	0.06	0.02	0.04	0.03	0.05	0.05

---

At present, it was not clear which structure was responsible for the strongly and weakly quenched sites. One possibility was that the strongly and weakly quenched sites corresponded to the edges and basal surfaces of a clay sheet, respectively. The former complexes might be more accessible to oxygen molecules than the latter, leading to a larger quenching constant. Apart from these uncertain aspects, however, the results demonstrated the applicability of the hybrid films organized within nanometer-order thickness as an element for photo-sensing oxygen molecules.

Conclusions

Multi-layered hybrid films consisting of three different kinds of amphiphilic cationic iridium(III) complexes and the exfoliated nanosheets of synthetic saponite were prepared by the modified Langmuir–Blodgett method. The emission spectra were recorded under vacuum or under an oxygen atmosphere. As a result, the spectral response to oxygen pressure was dependent on the layer sequence of iridium(III) complexes remarkably. For one film, for example, the broad emission band (550–600 nm) changed to a sharp peak at 600 nm upon increasing oxygen pressure. The results were rationalized in terms of the mechanism that the quenching by oxygen molecules was dependent on their penetrating depth in the films at a given pressure. The present nanometer-thick films were regarded as a benchmark for an optical device emitting different visible lights in response to oxygen pressure.

Experimental section

Materials

[Ir(ppy)₂Cl]₂ (ppyH = 2-phenylpyridine) was synthesized according to the reported method.⁵ [Ir(dfppy)₂Cl]₂ (dfppyH = 2-(4′,6′-difluorophenyl)pyridine) and [Ir(piq)₂Cl]₂ (piqH = 1-phenylisoquinoline) were purchased from Furuya Metal Co., Ltd, Japan. An amphiphilic cyclometalated Ir(III) complex, [Ir(ppy)₂(dc9bpy)]ClO₄ (dc9bpy = 4,4′-dinonyl-2,2′-bipyridine) was prepared by refluxing [Ir(ppy)₂Cl]₂ with an equal amount of dc9bpy in glycerol at 180 °C for 6 hours. The compound was purified chromatographically by being eluted on an HPLC column (CAPCELL PAK C18, MG (Shiseido Inc. Ltd, Japan)) with chloroform. [Ir(dfppy)₂(dc9bpy)]ClO₄ and [Ir(piq)₂(dc9bpy)]ClO₄ were prepared in the same way. They were identified by ¹H NMR in CDCl₃, mass spectra and UV-visible spectra in methanol (ESI,† Fig. S1). Synthetic saponite was purchased from Kunimine Ind. Co., whose elemental composition and cation-exchange capacity (CEC) are stated to be [(Na_0.25Mg_0.07)(Mg_2.98Al_0.01)(Si_3.6Al_0.4)O₁₀(OH)₂] and 80 meq per 100 g, respectively.⁴⁸ The average particle size was reported to be ca. 20 nm.

Instruments

¹H NMR spectra were recorded using a JNM-AL400 spectrometer (JEOL, Japan). UV-visible electronic spectra of the LB films deposited on quartz substrates were recorded using a Hitachi U-2810 spectrophotometer. Emission spectra were measured using a FP-6500 fluorophotometer (JASCO, Japan). The surface morphologies of hybrid films were investigated using an atomic force microscope (SPM-9600, Shimadzu, Co. Ltd, Japan).

Film preparation

Modified LB films were prepared using a LB trough (USI System, Japan). A trough with a surface area of 10.0 cm × 12.0 cm was maintained at 20 °C by circulating water. 0.2 mL of chloroform solution containing a perchlorate salt of iridium(III) complex (ca. 5 × 10⁻⁵ M) was spread over an aqueous dispersion of a saponite clay (10 mg L⁻¹). After 30 min, the surface was compressed at a rate of 10 cm² min⁻¹ until the surface pressure reached 10 mN m⁻¹. Keeping the surface pressure at 10 mN m⁻¹ for 30 minutes, the film was transferred onto a hydrophilic quartz plate (1 cm × 2 cm) by the vertical deposition method at a dipping rate of 10 mm min⁻¹. Double- or triple-layered films with different layer sequences were prepared by the layer-by-layer method. In this procedure, the quartz plates were dried under vacuum for 30 minutes after depositing each layer.

Emission measurements

For the measurements of emission spectra from a deposited film, the quartz substrate was placed at 45° with respect to the incident light. The emitted light was detected at 90° with respect to the incident light. The emission was measured either under vacuum (<0.1 kPa) or under an oxygen atmosphere at room temperature.

Acknowledgements

We thank late Mr Yasuhiko Nakatani (Ehime University) for his preparation of the LB films and Dr Kazuya Morimoto (Ehime University) for measuring AFM. Thanks are also due to Prof. Akihiko Yamagishi (Toho University) for his valuable suggestions. We appreciate the Integrated Center for Science, Ehime University for the mass spectral measurements. This work has been financially supported by the MEXT KAKENHI Grant-Aid-for Scientific Research (B) Number 23350069 of Japan, a Grant-in-Aid for Exploratory Research Number 23655200 and the Nippon Sheet Glass Foundation of Materials and Science and Engineering of Japan, JST A-STEP Number AS2421179M.

Notes and references

1. V. Balzani, A. Juris, M. Venturi, S. Campagna and S. Serroni, Chem. Rev., 1996, 96, 759.
2. W.-Y. Wong and C.-L. Ho, Coord. Chem. Rev., 2009, 253, 1709; Y. Hasegawa, T. Nakagawa and T. Kawai, Coord. Chem. Rev., 2010, 254, 2643.
3. Y. Chi and P.-T. Chou, Chem. Soc. Rev., 2010, 39, 638.
4. H. Sato and A. Yamagishi, J. Photochem. Photobiol., C, 2007, 8, 67.
5. M. Schäferling, Angew. Chem., Int. Ed., 2012, 51, 35322; K. A. McGee and K. R. Mann, J. Am. Chem. Soc., 2009, 131, 1896.
6. Y. Amao, Microchim. Acta, 2003, 143, 1.
7. B. Happ, A. Winter, M. D. Hager and U. S. Schubert, Chem. Soc. Rev., 2012, 41, 2222; K. K.-W. Lo, S. P.-Y. Li and K. Y. Zhang, New J. Chem., 2011, 35, 265.
8. J. Zhao, S. Ji, W. Wu, H. Guo, J. Sun, H. Sum, Y. Liu, Q. Li and L. Huang, RSC Adv., 2012, 2, 1712.
9. G. Zhou, W. Y. Wong and X. Yang, Chem.–Asian. J., 2011, 6, 1706.
10. C. Rothe, C.-J. Chiang, V. Jankus, K. Abdullah, X. Zeng, R. Jitchati, A. Batsanov, M. R. Bryce and A. P. Monkman, Adv. Funct. Mater., 2009, 19, 2038.
11. C. Ulbricht, B. Beyer, C. Friebe, A. Winter and U. S. Schubert, Adv. Mater., 2009, 21, 4418.
12. V. Guerchais and J.-L. Fillaut, Coord. Chem. Rev., 2011, 255, 2448.
13. M. S. Lowry and S. Bernhard, Chem.–Eur. J., 2006, 12, 7970.
14. N. Tian, D. Lenkeit, S. Pelz, L. H. Fischer, D. Escudero, R. Schiewek, D. Klink, O. J. Schmitz, L. Gomzález, L. M. Schäferling and E. Holder, Eur. J. Inorg. Chem., 2010, 4875.
15. Z. Xie, L. Ma, K. E. de Krafft Jin and W. Lin, J. Am. Chem. Soc., 2010, 132, 922.
16. K. A. King, P. J. Spellane and R. J. Watts, J. Am. Chem. Soc., 1985, 107, 1431.
17. A. Tsuboyama, H. Iwawaki, M. Furugori, T. Mukaide, J. Kamatani, S. Igawa, T. Moriyama, S. Miura, T. Takiguchi, S. Okada, H. Hoshino and K. Ueno, J. Am. Chem. Soc., 2003, 125, 12971.
18. A. B. Tamayo, B. D. Alleyne, P. I. Djurovich, S. Lamansky, I. Tsyba, N. N. Ho, R. Bau and M. E. Thompson, J. Am. Chem. Soc., 2003, 125, 7377.
19. A. B. Tamayo, S. Garon, S. T. Sajoto, P. I. Djurovich, I. M. Tsyba, R. Bau and M. E. Thompson, Inorg. Chem., 2005, 44, 8723.
20. T. Sajoto, P. I. Djurovich, A. B. Tamayo, J. Oxgaard, W. A. Goddard III and M. E. Thompson, J. Am. Chem. Soc., 2009, 131, 9813.
21. M. C. DeRosa, P. J. Mosher, G. P. A. Yap, K.-S. Focsaneanu, R. J. Crutchley and C. E. B. Evans, Inorg. Chem., 2003, 42, 4864.
22. M. C. DeRosa, D. J. Hodgson, G. D. Enright, B. Dawson, C. E. B. Evans and R. J. Crutchley, J. Am. Chem. Soc., 2004, 126, 7619.
23. S. Ladouceur, D. Fortin and E. Zysman-Colman, Inorg. Chem., 2010, 49, 5625.
24. M. Clemente-León, E. Coronado, Á. López-Muñoz, D. Repetto, T. Ito, T. Konya, T. Yamase, E. C. Constable, C. E. Housecroft, K. Doyle and S. Graber, Langmuir, 2010, 26, 1316.
25. H. J. Bolink, E. Baranoff, M. Clemente-León, E. Coronado, N. Lardiés, A. López-Muñoz, D. Repetto and M. K. Nazeeruddin, Langmuir, 2010, 26, 11461.
26. C. Roldán-Carmona, A. M. González-Delgado, A. Guerrero-Martínez, L. De Cola, J. J. Giner-Casares, M. Pérez-Morales, M. T. Martín-Romero and L. Camacho, Phys. Chem. Chem. Phys., 2011, 13, 2834.
27. H. Sato, K. Tamura, M. Taniguchi and A. Yamagishi, New J. Chem., 2010, 34, 617.
28. H. Sato, K. Tamura, K. Ohara, S. Nagaoka and A. Yamagishi, New J. Chem., 2011, 35, 394.
29. S. M. Borisov and I. Klimant, Anal. Chem., 2007, 79, 7501.
30. C. S. K. Mak, D. Pentlehner, M. Stich, O. S. Wolfbeis, W. K. Chan and H. Yersin, Chem. Mater., 2009, 21, 2173.
31. M. M.-S. Toro, J. F. Ferández-Sánchez, E. Baranoff, M. K. Nazeeruddin, M. Graetzela and A. Ferandez-Gutierrez, Talanta, 2010, 82, 620.
32. A. L. Medina-Castillo, J. F. Ferández-Sánchez, C. Klein, M. K. Nazeeruddin, A. Segura-Carretero, A. Fernández-Gutiérrez, M. Graetzel and U. E. Spichinger-Keller, Analyst, 2007, 132, 929.
33. M. Marín-Suárez, B. F. E. Curchod, I. Tavernelli, U. Rothlisberger, R. Scopelliti, I. Jung, D. Di Censo, M. Grätzel, J. F. Fernández-Sánchez, A. Fernándex-Gutiérrez, Md. K. Nazeeruddin and E. Baranoff, Chem. Mater., 2012, 24, 2330.
34. L. H. Fischer, M. I. J. Stich, O. S. Wolfbeis, N. Tian, E. Holder and M. Scäferling, Chem.–Eur. J., 2009, 15, 10857.
35. D. Aiello, A. M. Talarico, F. Teocoli, E. I. Szerb, I. Aiello, F. Testa and M. Ghedini, New J. Chem., 2011, 35, 141.
36. K. Mori, M. Tottori, K. Watanabe, M. Che and H. Yamashita, J. Phys. Chem. C, 2011, 115, 21358.
37. M. Waki, N. Mizoshita, T. Tani and S. Inagaki, Angew. Chem., Int. Ed., 2011, 50, 11667.
38. H. Sato, K. Tamura, M. Taniguchi and A. Yamagishi, Chem. Lett., 2009, 14; H. Sato, K. Tamura, R. Aoki, M. Kato and A. Yamagishi, Chem. Lett., 2011, 63.
39. S. A. Hussain, S. Chakraborty, D. Bhattacharjee and R. A. Schoonheydt, Spectrochim. Acta, Part A, 2010, 75, 664.
40. T. Shichi and K. Takagi, J. Photochem. Photobiol., C, 2000, 1, 113.
41. M. Ogawa and K. Kuroda, Chem. Rev., 1995, 95, 399.
42. H. Sato, Y. Hiroe, K. Tamura and A. Yamagishi, J. Phys. Chem. B, 2005, 109, 18935.
43. R. Sasai, T. Itoh, W. Ohmori, H. Itoh and M. Kusunoki, J. Phys. Chem. C, 2009, 113, 415.
44. Y. Umemura, A. Yamagishi, R. A. Schoonhedyt, A. Persoons and F. De Schryver, J. Am. Chem. Soc., 2002, 124, 992; Y. Umemura and E. Shinohara, Langmuir, 2005, 21, 4520; T. Shimada, H. Yamada and Y. Umemura, J. Phys. Chem. B, 2012, 116, 4484.
45. Y. Ishida, T. Shimada, D. Masui, H. Tachibana, H. Inoue and S. Takagi, J. Am. Chem. Soc., 2011, 133, 14280; Y. Ishida, D. Masui, H. Tachibana, H. Inoue, T. Shimada and S. Takagi, ACS Appl. Mater. Interfaces, 2012, 4, 811; Y. Ishida, D. Masui, T. Shimada, H. Tachibana, H. Inoue and S. Takagi, J. Phys. Chem. C, 2012, 116, 7879; Y. Ishida, T. Shimada, H. Tachibana, H. Inoue and S. Takagi, J. Phys. Chem. A, 2012, 116, 12065.
46. S. Takagi, D. A. Tryk and H. Inoue, J. Phys. Chem. B, 2002, 106, 5455; S. Takagi, M. Eguchi, D. A. Tryk and H. Inoue, Langmuir, 2006, 22, 1406.
47. K. Morimoto, T. Nakae, K. Ohara, K. Tamura, S. Nagaoka and H. Sato, New J. Chem., 2012, 36, 2467.
48. K. Okamoto, K. Tamura, M. Takahashi and A. Yamagishi, Colloids Surf., A, 2000, 169, 241.

---

Footnote

† Electronic supplementary information (ESI) available: ¹H NMR and mass spectroscopy data for iridium(III) complexes; the electronic absorption spectra of iridium(III) complexes in methanol; the AFM images of the hybrid films deposited onto glass substrates; the UV-vis spectra of single-, double- and triple-layered hybrid films; the emission spectra of a single-layered hybrid film containing a mixture of DFPPY, PPY and PIQ at a 1 : 1 : 1 ratio (denoted {DFPPY, PPY, PIQ/SAP}); emission spectra of heterogeneous double-layered films; quantitative analysis of energy transfer in heterogeneous double-layered hybrid film under vacuum; the reconstruction of emission spectra of the triple-layered heterogeneous hybrid films according to eqn (1) in the text; and the Stern–Volmer plots for quenching by oxygen molecules for the hybrid single- and double-layered films. See DOI: 10.1039/c3nj00879g

---
