A comparative cytotoxicity study of TiO2 nanoparticles under light and dark conditions at low exposure concentrations

Swayamprava Dalai , Sunandan Pakrashi , R. S. Suresh Kumar , N. Chandrasekaran and Amitava Mukherjee *
Centre for Nanobiotechnology, VIT-University, Vellore-632014, India. E-mail: amit.mookerjea@gmail.com

Received 23rd December 2011 , Accepted 2nd May 2012

First published on 16th May 2012


Abstract

The aim of the present study was to explore the difference in toxicity mechanism of TiO2 nanoparticles (NPs) at low concentrations (≤1 μg mL−1), in a freshwater bacterial isolate, Bacillus licheniformis, under light (UV-illuminated) and dark (non-illuminated) conditions. Standard plate count and MTT assays showed the dose dependent decrease in the bacterial cell viability. The difference in reduction of cell viability under light (20.7%) and dark conditions (21.3%) was statistically non-significant at 1 μg mL−1 concentration and 2 h interaction period. The fluorescence microscopy of the NP interacted cells (1.0 μg mL−1, 2 h) under light and dark conditions showed the mixture of live and dead cells. A significant dose dependent increase in intracellular ROS generation compared to control was noted. The ROS level after 2 h of interaction was significantly higher under light conditions (7.4 ± 0.13%) as compared to dark conditions (4.35 ± 0.12%). The LDH analyses confirmed a statistically significant increase in membrane permeability under dark conditions compared to the light conditions. The NPs were stable against aggregation in sterilized lake water matrix for a period of 24 h, under both light and dark conditions. However, in the presence of bacterial cells an elevated rate of sedimentation was noted under dark conditions. The electron microscopic (SEM, TEM) observations suggested the concentration buildup of NPs near the plasma membrane leading to internalization. The zeta-potential analysis proved that NP attachment was not charge based. The FTIR studies demonstrated the possible involvement of surface functional groups in the attachment. The concentration of dissolved Ti4+ ions was found to be negligible during the test period. The dominant cytotoxicity mechanism under light conditions was found to be ROS generation, whereas, NP attachment to the cell membrane leading to membrane damage significantly contributed in dark conditions.


Introduction

Titanium dioxide (TiO2) nanoparticles (NPs) have various consumer applications in food, cosmetics, filters, cleaning agents, plastics, electronics, glass and ceramics, light bulbs, batteries, ink and in textiles.1–4 Its high refractive index makes it an ideal material for light scattering and thereby they are extensively applied in paints, polymers, coatings and sunscreen lotions.5 Moreover, the efficient photoreactivity exhibited by nano-sized TiO2 makes it an excellent catalyst for waste water treatment and for combating air pollution.6,7 According to the estimates made by the United States Environmental Protection Agency (USEPA) in 2005, the annual production of TiO2 NPs was 2000 metric tons, with 65% of the product usage in cosmetics (USEPA, 2009).8 Due to ever-increasing market demand, the annual production of TiO2 NPs is predicted to reach 2.5 million tons by 2025.9

Owing to the increased industrial and consumer applications, there is growing concern regarding the possible risk associated with their environmental exposure. TiO2 NPs can enter the aquatic environment either through direct or indirect release from nano-paints, sunscreen lotions, food additives, medical use, dismantling of batteries, recycling of plastic/glass/metal with nano-coating, groundwater remediation etc.10 The effluents from wastewater treatment plants and waste incineration of products were reported to be the major entry points of TiO2 NPs to the aquatic environment.11–13 Kaegi et al. first documented a direct evidence for the leaching of synthetic TiO2 NPs into the surface water (Ti concentration of 16 μg L−1) from facade paints.14 The predicted environmental concentration (PEC) for released TiO2 NPs in surface water was modeled to be below 1 μg mL−1.15 The National Institute for Occupational Health and Safety (NIOSH) has proposed a draft permissible exposure level (PEL) of 1.5 mg m−3 and a recommended exposure level (REL) of 0.1 mg m−3 for TiO2 nanomaterials.16 Hence the possible risks to aquatic organisms due to the remarkably high annual release of TiO2 NPs to the surface water need to be assessed.17

Understanding the fate and behaviour of NPs released into aquatic ecosystems has become a prerequisite for the assessment of their environmental as well as human health risks. The reactivity of TiO2 NPs in the environment largely depends on their colloidal stability against aggregation.18,19 Our previous ecotoxicity study on Al2O3 NPs using lake water medium suggested that NP stability plays a key role in assessing ecotoxicity.20 The nature of the experimental matrix plays a crucial role in deciding the stability and hence reactivity of NPs. Keller et al. reported the diverse aggregation tendency of TiO2 NPs in different water matrices indicating the impact of the environmental matrix on the stability of the NPs contained in it.21 The role of pH, ionic strength and natural organic matter (NOM) including humic or fulvic acid in stabilizing TiO2 NPs in the aquatic environment has also been stressed.21,22

Microorganisms form the base of the food web and are indispensable agents in maintaining biogeochemical cycles. Since commercial NPs eventually enter the water-bodies, their interaction with aquatic microorganisms is of primary consideration. Microbial metabolism is vital in maintaining equilibrium of the major elements like C, N, S and P.23,24 The microbial processes also influence the distribution of metals in a water body.25 Any damage to the microbes may disturb the geochemical cycles. Hence, the negative impact of NPs, released to the environment, on microbes needs to be assessed. Adams et al. reported 72% reduction in growth of Escherichia coli at 5 g L−1 TiO2 NPs whereas Bacillus subtilis was found to be slightly more sensitive with a similar reduction in growth at 1 g L−1.26 In another experiment, upon exposure to TiO2 NPs (80 μg mL−1), significant reduction in viability (19%) of E. coli was observed.27 Acute toxicity of TiO2 NPs was assessed by Jiang et al. in E. coli labeled with green fluorescent protein and a 50% reduction in cell viability was observed after 135 min of exposure.28

From a detailed literature review, the interaction between the NPs and the bacterial cells leading to cytotoxicity can be hypothesized to involve two steps. The first one involves oxidative damage by the NPs attached to the cell membrane resulting in membrane permeabilization without significant reduction in cell viability. The second step includes leaking out of intracellular components, which is the leading cause of decreased viability, and internalization of NPs damaging cell organelles including the nucleus.29 The observed cytotoxic effects of TiO2 NPs under UV-illumination (light) have largely been related to the involvement of free radicals. Recent studies on the mechanistic aspect of NP toxicity indicated that the photocatalytic effect of TiO2 NPs occurred via the extracellular generation of ROS, membrane damage and subsequently cell death.30 Kumar et al. suggested a more detailed mechanism which involves ROS generation, glutathione depletion, lipid peroxidation, membrane permeability, and subsequently DNA damage leading to cell death in E. coli at 80 μg mL−1 NP concentrations.27 Burello and Worth emphasized that, TiO2 NP is capable of inducing oxidative stress without any irradiation.31 Another mechanistic study showed adsorption of NPs onto the cell wall, the interruption of transmembrane electron transfer, modification of the membrane potential, physical damage resulting in leakage of the cell contents and/or the production of reactive oxygen species.29,32 In a study on E. coli, Maness et al. reported lipid peroxidation as the underlying killing mechanism of TiO2 in light condition.33 Most of these findings are based on the photocatalytic property of TiO2 NPs whereas a handful of reports are only available on toxicity under dark conditions.30,34 Fenoglio et al. reported non-UV-induced free radical production from anatase phase of TiO2 NPs, by means of a spin-trapping/ESR spectroscopy.35 Thill et al. proposed that the extracellular adsorption of NPs may induce intracellular ROS production which is a possible reason for toxicity under dark conditions.36

Most of the studies on the potential ecotoxicity of TiO2 NPs towards microorganisms are carried out at elevated exposure concentrations and the observed effects may undermine the lower dose consequences. In addition, nature of the experimental matrix plays a vital role in deciding the oxidative stress. Enriched media were reported to suppress the formation of radicals.37 Previous reports on TiO2 NP toxicity are mostly based on effect of irradiation and there is a lack of insight into the definite mechanisms by which microbial species respond to NP toxicity under dark conditions. Hence the underlying toxicity mechanisms at low exposure concentrations of TiO2 NPs in a nutrient minimal media towards a bacterial species under both light and dark conditions need to be explored. Hence, the aim of the current study was elucidating the different mechanistic modes of TiO2 NP toxicity at low exposure concentrations (≤1 μg mL−1) towards a freshwater bacterial isolate, Bacillus licheniformis, in both the presence and absence of UV-illumination. All the experiments were carried out using lake water matrix. Mechanistic endpoints included oxidative stress analysis, membrane permeability assessment and sedimentation studies.

Materials and methods

Materials

Dry titanium(IV) oxide nanopowder (TiO2, 99.7% anatase, particle size: <25 nm, CAS No.: 637254) and DCFH-DA (2′,7′-dichlorofluorescin diacetate) was procured from Sigma Aldrich (St. Louis, MO, USA). MTT (3-[4,5-dimethylthiazol-2-yl]-2,5-diphenyl tetrazolium bromide) and Acridine Orange (AO) was purchased from Hi-Media Pvt. Ltd (Mumbai, India). Ethidium bromide (EtBr) was obtained from Medox Biotech India Pvt. Ltd. All other chemicals were of analytical reagent grade.

Fresh water, collected from VIT Lake, Vellore, India, without additional nutrients, was used for the study (conductance: 4.3 ± 0.13 mS cm−1; pH: 7.8; DO: 7.2 ± 0.46 μg mL−1; TDS: 800 ± 74 μg mL−1). Quantification of metal ions and other inorganic ions was carried out by ICP-OES (Perkin Elmer Optima 5300 DV, USA) by titrimetric methods respectively (details in our previous report, Pakrashi et al., 2011).20 Primary filtration through Whatman No. 1 filter paper was done, following sterilization to remove suspended dust particles, keeping the chemical composition of the water intact. This water was used as the experimental matrix throughout the study. A secondary filtration, through 0.22 μm membrane filter, was done to avoid the interference of large colloidal particles prior to hydrodynamic size measurement.

Characterization of as-received TiO2 NPs

Transmission electron microscopy (TEM). Particle size of as-received TiO2 NPs was analyzed using Transmission Electron Microscopy (Philips CM12, Netherlands). NPs at a concentration of 10 mg L−1 were dispersed in acetone using ultrasonic processor (130 W, 5 min, Sonics Corp., USA) to obtain uniform dispersion of the particles. Aerated samples (60 °C, 30 min) were then deposited onto the lacey-carbon coated copper grid and subjected to TEM analysis.
X-ray diffraction analysis. To characterize the crystal structure of as procured TiO2 nanoparticle, powdered X-ray diffraction analysis was carried out (Model D8, Advanced X-ray Diffractometer, Germany) using Cu-Kα1 wavelength (= 1.54059 Å) and scanning in 2θ range from 20° to 80°.
Particle size measurement. A stock dispersion of TiO2 NP (100 μg mL−1) was prepared in lake water and subjected to ultra-sonication at 130 W for 5 min (Sonics, USA). Test NP suspension of 1 μg mL−1 final concentration was prepared by diluting required volume of stock dispersion. Dynamic light scattering (90 plus Particle Size Analyzer, Brookhaven Instruments Corporations, USA) was used to measure the hydrodynamic size of the particles or particle agglomerates. Stability of the dispersion was analyzed for a period of 24 h.
SEM. Surface morphology, primary size and shape of TiO2 NPs, dispersed in lake water, were analyzed using Scanning Electron Microscope (Model S400, HITACHI). Natural colloids in lake water matrix were also observed through SEM.
UV-Vis spectroscopy. TiO2 is known to have a characteristic absorbance wavelength at near UV region. NP dispersed in lake water was found to show a peak at 336 nm, using a UV-Vis double beam spectrophotometer (Systronics, India Ltd).
TiO2 nanoparticle stability in lake water. Sedimentation tendency of TiO2 NPs in lake water matrix under light (UV-illuminated) and dark (non-illuminated) conditions was analyzed with respect to time. The dynamic aggregation process was monitored using Dynamic Light Scattering and UV-Visible spectrophotometer. The NP dispersion in lake water was allowed to settle down for analyzing the sedimentation behavior of the particles in an abiotic environment under static conditions, (Fig. 4A, B). Then, the sample was collected from undisturbed top layer of NP dispersion, prepared in 50 mL Falcon tubes were subjected to DLS and UV-Vis absorbance analysis at 0 h, 2 h, 6 h and 24 h. Experiments were carried out in triplicate to calculate the standard error.

Stability of the dispersion was examined with respect to time by analyzing the variation in particle size distribution at the top layer. Concentration of TiO2 NP at the top layer of dispersion was analyzed by measuring its UV absorbance at 336 nm (UV-Vis spectra of TiO2 NP dispersion in Millipore water and Lake water in ESI Fig. S1).

Toxicity assessment

Experimental set up. All the experiments were carried out on the dominant bacterial species Bacillus licheniformis, isolated from the lake water (details in our previous report, Pakrashi et al., 2011) and an initial cell count of 5 × 108 CFU mL−1 was maintained throughout the study.20

Bacteria were interacted with three different concentrations (0.05 μg mL−1, 0.5 μg mL−1, 1 μg mL−1) of TiO2 NP dispersion. All the experiments were carried out in parallel in two sets, under light and dark conditions. For light induced studies, test beakers were exposed to UV irradiation through UV lamps (Philips, 15 W) and for supporting non-illuminated studies, complete darkness was maintained. Control beakers without NP addition were kept for both light and dark conditions. Samples were analyzed after an interaction period of 2 h, 6 h and 24 h respectively.

Cell viability assessment. Percentage reduction in cellular viability after the interaction period (2 h, 6 h and 24 h) was determined using the standard plate count assay and MTT assay as described by Mossman (details in the ESI).38 In the recent past, the MTT assay has been employed as a method for analyzing cellular viability of prokaryotes.39 Interference shown by TiO2 NPs with MTT dye was subtracted from the results. The decrease in bacterial viability in test samples was calculated with respect to control. Cell culturability was determined using standard plate count assay on LB agar medium. EC50 value calculated (EPA Probit Analysis Program, Version 1.5) by plate count assay and MTT assay (ESI, Fig. S2).
Live–dead discrimination through fluorescence microscopy. Membrane permeability of treated cells was observed by fluorescence microscopy (Leica, DM-2500) after 2 h, 6 h and 24 h of NP interaction. Cells were stained with AO and EtBr following the protocol described by Jakopec et al. with minor modifications.40 To 500 μL of bacterial suspension, 4 μL of AO (15 μg mL−1 in PBS) and 4 μL of EtBr (50 μg mL−1 in PBS) were added. After 5 min incubation, the cell suspension was centrifuged, and the supernatant was discarded to eliminate unbound dyes. The cell pellet was resuspended in 500 μL PBS. The dark condition was maintained to avoid photobleaching of dyes. Fluorescence was detected through the BP 450-490, LP 590 filter; images were captured with a Leica-DFC-295 camera and processed using Leica-Application Suite 3.8.

Oxidative stress assessment

Determination of reactive oxygen species (ROS). The fluorescence probe DCFH-DA was used to quantify generation of reactive oxygen species (ROS). DCFH-DA is membrane permeable and oxidizes to form the green fluorescent DCF in the presence of cellular esterases and ROS. Intracellular ROS generation was monitored in control and NP interacted bacterial cells at 2 h, 6 h and 24 h following the protocol described by Wang and Joseph with minor modifications.41 Five milliliter of cell suspension was incubated with DCFH-DA with a final concentration of 100 μM at 37 °C for 30 min. Fluorescence was measured using a Spectrofluorometer (SL174, ELICO) with excitation and emission wavelengths of 485 nm and 530 nm, respectively.

A negative control of NPs without cells was also analyzed to find out the autofluorescence of TiO2 NPs that may interfere with the DCFDA dye.

Superoxide dismutase assay. Superoxide dismutase activity in interacted cells was measured by the method described by Wintherbourn et al. using riboflavin as the O2 generator.42 This method depends on the ability of the enzyme to inhibit the reduction of nitroblue tetrazolium (NBT) by superoxide, generated by the reaction of photo-reduced riboflavin and oxygen.
Reduced glutathione assay. Glutathione reductase catalyzes the reduction of oxidized glutathione (GSSH) to reduced glutathione (GSH). This enzyme enables the cell to sustain adequate levels of cellular GSH, which acts as an antioxidant, reacting with free radicals and organic peroxides. Activity of glutathione reductase in interacted cells was monitored spectrophotometrically using a commercially available Glutathione Reductase Assay Kit (Catalog No.: GRSA, Sigma Aldrich) as per the instructions. Data were reported as percentage release of GSH compared to control.

Membrane permeability assessment

LDH release. The level of extracellular LDH release was assessed as an indicator of membrane permeability and cytotoxicity. The interacted bacterial cell suspension was centrifuged (7000g, 10 min), and the LDH level in the supernatant was measured following the standard protocol.43 To 100 μL of supernatant, 100 μL of 30 mM sodium pyruvate and 2.8 mL of 0.2 M Tris-HCl was added. One hundred microliters of 6.6 mM NADH were added prior to use. The rate of decrease in absorbance at 340 nm was recorded using UV-Vis spectroscopy to determine the LDH activity.
Fluorescent spectroscopy. The interacted cells stained with EtBr (as described previously) were subjected to spectrofluorometric analysis (Spectrofluorometer, SL174, ELICO) with excitation wavelength 510 nm and emission wavelength 595 nm. The increase in fluorescence intensity was analyzed with respect to control.

Electron microscopic analyses

Scanning electron microscopy (SEM). The change in morphology of bacteria cells, NP attachment on the cell membrane leading to agglomeration/flocculation was observed by Scanning Electron Microscope (SEM). Aliquots of bacterial cell suspensions interacted with 1 μg mL−1 of TiO2 NPs (along with control) were withdrawn after 2 h of the experimental period. A drop of the sample was placed on the cover slip, and air dried. The film was coated with gold and loaded for SEM analysis (Model S400, HITACHI).
Transmission electron microscopy (TEM). Internalization and localization of NPs in the cell, and changes in cellular structure were observed by Transmission Electron Microscopy (TEM) (Philips CM12 Transmission Electron Microscope, Netherlands). Ultrathin sections of NP interacted bacteria (1 μg mL−1, 2 h) were taken on copper grid and subjected to TEM analysis.

Surface interactions with NPs

Surface charge: zeta potential measurement. The difference in surface charge may play an important role in bacteria-NP interaction. The charge distribution on bacterial cell, as well as surface potential of NP dispersion in lake water (under both light and dark conditions, 2 h) was measured.
Surface chemistry: FTIR analysis. The involvement of surface functional groups in bacteria-NP interaction was confirmed by Fourier Transform Infrared spectroscopy. 5 mL of the cell suspension after a 2 h interaction period were centrifuged for 10 min at 7000g. The pellet was washed twice with 1 mL phosphate buffered saline and lyophilized to remove moisture. The dried cells were then subjected to FTIR analysis by the potassium bromide technique (Nicolet 6700 FT-IR Spectrometer, Thermo Scientific Instruments Groups, Madison, Wisconsin).

Sedimentation analysis

Experimental setup. The aggregation and sedimentation tendency of NPs were found to be greater in the presence of bacteria. To study the sedimentation tendency of TiO2 NPs (with bacteria in the system) under light and dark conditions, experiments were carried out using a set up containing a top aqueous layer of NP dispersion and a bottom solid layer of immobilized bacteria. In 50 mL Falcon tubes 5 mL molten LB agar medium was poured. Just prior to its solidification (∼40 °C), 5 × 108 bacteria cells were added into the media, and minimal mixing was done to disperse the cells uniformly. The tubes were then incubated for 18 h at 37 °C allowing the cells to reach the exponential phase. Forty milliliters of 1 μg mL−1 NP dispersion in lake water were then poured slowly in the tubes without disturbing the agar layer. The tubes were then incubated in a static position for 2 h under light and dark conditions separately. The experiment also included a positive control (agar media devoid of bacteria) and a negative control (lake water without any NP). Samples were taken from 3 consecutive zones of the aqueous phase (i) topmost layer, (ii) middle layer and (iii) bottom layer (solid–liquid interface).

The concentration of NPs at these three layers was determined by the UV-Vis spectroscopic method (absorbance in terms of concentration).24 TiO2 NP dispersed in lake water gave an absorbance peak at 336 nm. We validated this method by comparing the absorbance data with Ti4+ metal ion concentration data obtained by conventional inductively coupled plasma optical emission spectrometry (ICP-OES) analysis.

ICP-OES analysis. The likelihood of cytotoxicity due to released Ti4+ ions from the nanoparticles during the test period (2, 6 and 24 h) was analyzed. NP dispersed in lake water (1 μg mL−1) was incubated in light and dark conditions. The dispersion was then centrifuged (10[thin space (1/6-em)]000g, 20 min) and filtered through a 0.1 μm membrane filter. A particle size analyzer ensured complete removal of nanoparticles from the filtrate. Concentration of Ti4+ ions was quantified using ICP-OES at 2nd, 6th and 24th h of incubation. Particle free suspension was interacted with bacterial culture to detect toxicity of released ions.
Statistical analysis. All in vitro toxicity tests were carried out in triplicates, and the data are presented as mean ± standard error. The data was processed using one-way ANOVA, followed by Dunnett's post-hoc test at p < 0.05 for the MTT assay and standard plate count assay. The data for the ROS, SOD, GSH and LDH assay and metal ion analysis, were processed through Student's t test at p < 0.05. Significant data points are denoted with the symbol *.

Results

Characterization of as-received TiO2 NPs

Transmission electron micrograph of as-received NPs (Fig. 1) demonstrated the particles to be within 20–100 nm size. The particles were nearly spherical and cubical in shape. The observed aggregates were composed of small cubical and spherical shaped particles of size between 10 and 20 nm. The large sized (50–100 nm) particles were observed to be mostly spherical in shape. The X-ray diffraction pattern of TiO2 NPs confirmed the predominance of the anatase phase (details in ESI, Fig. S3). TiO2 NP dispersion in Millipore water, at a concentration of 1 μg mL−1, showed the presence of more particles in the size range of 0–50 and 200–300 nm at 0 h (Fig. 2A). Within 2 h, the particles started aggregating, and the lower size range (0–50 nm) almost disappeared. With time, the aggregation tendency increased, and particle size moved towards micrometer size range, suggesting instability of NPs in Millipore water.
Transmission electron micrograph of as-received TiO2 NPs.
Fig. 1 Transmission electron micrograph of as-received TiO2 NPs.

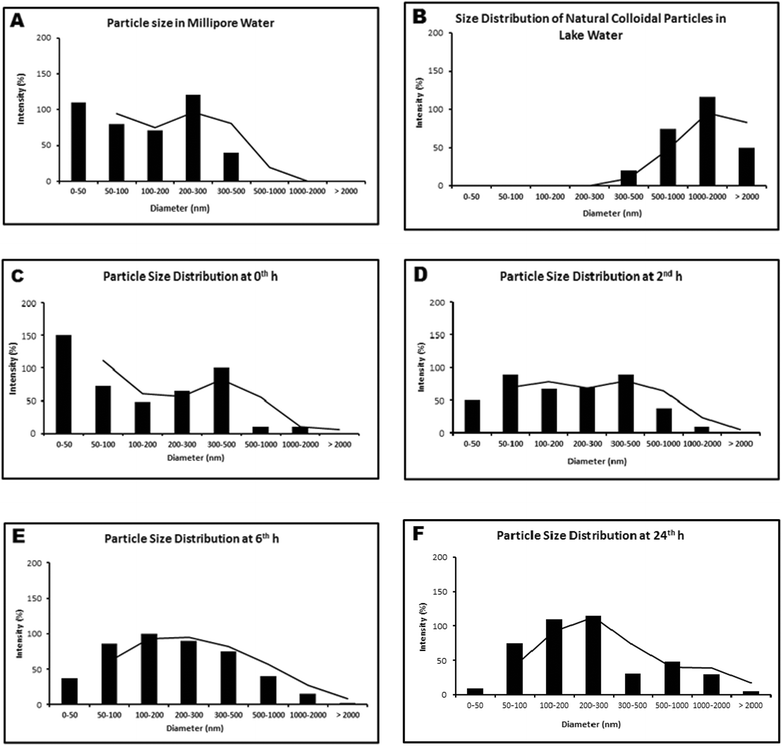

Hydrodynamic size distribution of (A): TiO2 NPs in Millipore water at 0 h; (B): Natural colloidal particles present in lake water; (C–F): TiO2 NPs in lake water (0 h–24 h).
Fig. 2 Hydrodynamic size distribution of (A): TiO2 NPs in Millipore water at 0 h; (B): Natural colloidal particles present in lake water; (C–F): TiO2 NPs in lake water (0 h–24 h).

TiO2 nanoparticle stability in lake water

The hydrodynamic size distribution of particles in lake water (devoid of NPs) suggested the presence of natural colloids mostly in the size range of 0.5–2 μm (Fig. 2B). NPs dispersed in lake water at a concentration of 1μg mL−1 were analyzed at 0th, 2nd, 6th and 24th h for particle size distribution and stability studies (Fig. 2C–F). The three size ranges: 50–100 nm, 100–200 nm and 200–300 nm remained stable till 24 h of the experimental period. The additional size range of 0.5–1 μm observed could be attributed to the existence of natural colloids in the lake water. The variation in particle size distribution under both light and dark conditions was found to be insignificant (at p > 0.05) in the experimental period.

To support the DLS data we studied the NP size distribution in lake water (after 2 h) through scanning electron microscopy. The SEM micrograph of TiO2 NP dispersion showed uniform distribution of 50–200 nm diameter particles (Fig. 3A). The nanoparticles appeared nearly spherical in shape. The SEM micrograph of the lake water suggested the presence of spherical natural colloids with 1–2 μm diameter (Fig. 3B). Another characterization process of TiO2 NPs is UV-Vis absorbance measurement. TiO2 NP dispersed in lake water gave a near-UV absorbance peak at 336 nm.


Scanning electron micrograph of (A): TiO2 NPs dispersed in lake water; (B): Natural colloids present in lake water.
Fig. 3 Scanning electron micrograph of (A): TiO2 NPs dispersed in lake water; (B): Natural colloids present in lake water.

The variation in particle size distribution in an abiotic environment (Fig. 4A, B) under both light and dark conditions was found to be insignificant till 24 h at a size range of 200–300 nm (Fig. 4C). Absorbance at 336 nm suggested steady concentration of NPs at the top layer (Fig. 4D) for both light and dark conditions. This result explains a stable dispersion of TiO2 NPs in lake water matrix, with a remarkably low rate of sedimentation.

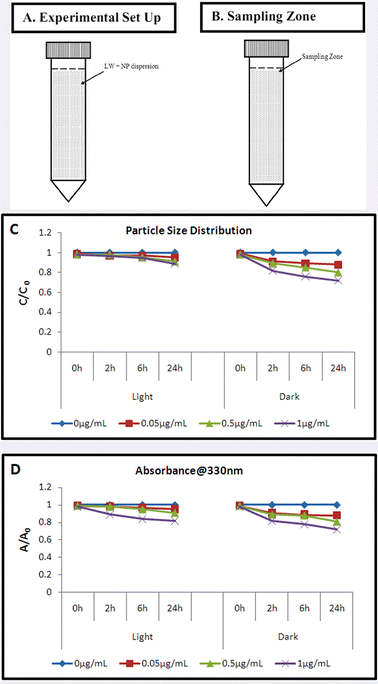

TiO2 nanoparticle stability in lake water (A): Experimental set up; (B): Sample collecting zone; (C): Particle size distribution (C/C0) at the top layer with respect to time; (D): Concentration at the top layer (A/A0) with respect to time.
Fig. 4 TiO2 nanoparticle stability in lake water (A): Experimental set up; (B): Sample collecting zone; (C): Particle size distribution (C/C0) at the top layer with respect to time; (D): Concentration at the top layer (A/A0) with respect to time.

Cell viability assessment

A concentration dependent reduction in cell viability of B. licheniformis upon NP interaction was observed through plate count assay and MTT assay. A plate count assay showed a significant decline in viability of NP interacted cells (21.3 ± 1.7% and 23.4 ± 1.2% under light and dark conditions respectively, 2 h), as compared to control, at 1 μg mL−1 concentration (Fig. 5A). The cytotoxicity of NPs measured in terms of the viability of cells was found to decrease with time. The difference in toxicity under both test conditions (light and dark) was detected to be insignificant at all the three concentrations (0.05, 0.5 and 1.0 μg mL−1). The MTT assay also corroborated with the plate count results showing similar dose dependent and time dependent response (Fig. 5B). Percentage reduction in viability at 1 μg mL−1 NP concentration, calculated under light and dark conditions (20.7 ± 1.5% and 22.3 ± 1.1% respectively, 2 h) was statistically significant (p < 0.05) as compared to the control. At lower concentrations, the difference in cell viability under light and dark conditions was found to be non-significant. One-way ANOVA followed by Dunnett's post-hoc test was performed to calculate the statistical significance in values. Interestingly, with an increase in exposure concentration (from 1 μg mL−1 to 20 μg mL−1), significant deviation in cell viability was noted between light and dark conditions. EC50 value calculated (EPA Probit Analysis Program, Version 1.5) by plate count assay and MTT assay varied significantly for light (5.228 μg mL−1, 4.983 μg mL−1) and dark (19.568 μg mL−1, 17.664 μg mL−1) conditions (ESI).

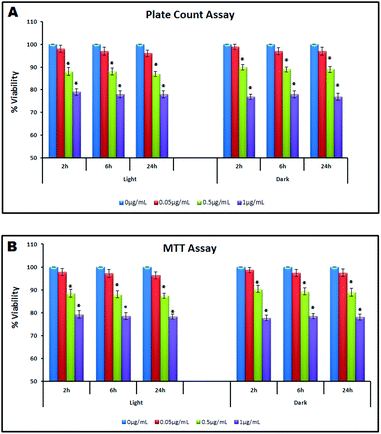

Cell viability assessment under light and dark conditions (0 h–24 h) (A): Plate count assay; (B): MTT assay.
Fig. 5 Cell viability assessment under light and dark conditions (0 h–24 h) (A): Plate count assay; (B): MTT assay.

Live–dead discrimination through fluorescence microscopy

To visualize the live/dead cells in the sample, we performed AO-EtBr fluorescence staining. Control and NP interacted cells (1 μg mL−1, 2 h) stained with AO and EtBr were visualized under a fluorescence microscope. Live cells appeared green (Fig. 6A), and cells with compromised membrane, were observed to be bright red in colour. Interacted samples were found to be a mixture of green and bright red cells for both light (Fig. 6B, C) and dark conditions (Fig. 6D, E). Some intermediate or injured cells having motility (orange red) were also observed in dark treated samples.
Fluorescence microscopic images of (A): untreated (control) cells showing no damage (green); (B, C): Treated cells under light conditions showing the presence of damaged (bright red) as well as undamaged cells (green); (D, E): Cells treated under dark conditions showing the presence of damaged (bright red), undamaged cells (green) and injured cells (orange red).
Fig. 6 Fluorescence microscopic images of (A): untreated (control) cells showing no damage (green); (B, C): Treated cells under light conditions showing the presence of damaged (bright red) as well as undamaged cells (green); (D, E): Cells treated under dark conditions showing the presence of damaged (bright red), undamaged cells (green) and injured cells (orange red).

Oxidative stress assessment

Determination of reactive oxygen species (ROS). TiO2 NPs showed a significant (p < 0.05) dose dependent increase (0.05 < 0.5 < 1.0 μg mL−1) in intracellular ROS generation as compared to control (Fig. 7A). The ROS level was significantly higher (p < 0.05) under light conditions as compared to dark conditions (7.4 ± 0.13% and 4.35 ± 0.12%, 2 h). Considerable ROS was also generated even under dark conditions. Not much difference in ROS generation was noted with the increase in exposure period.

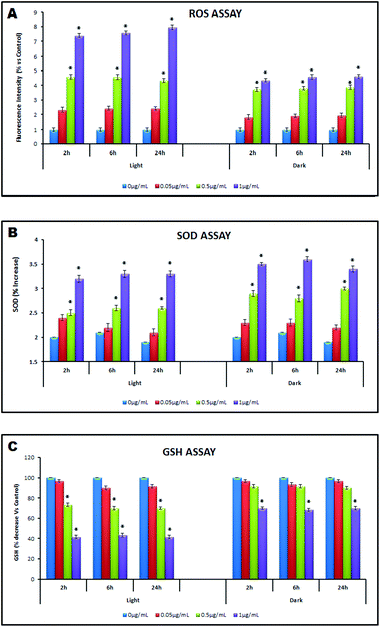

Oxidative stress assessment under light and dark conditions (0 h–24 h) by (A): ROS Assay; (B): SOD Assay; (C): GSH Assay.
Fig. 7 Oxidative stress assessment under light and dark conditions (0 h–24 h) by (A): ROS Assay; (B): SOD Assay; (C): GSH Assay.
Superoxide dismutase assay. A significant concentration dependent increase in superoxide dismutase level was detected (0.05 < 0.5 < 1.0 μg mL−1) for both light and dark conditions compared to control (Fig. 7B). Compared to light conditions the formation of SOD was more pronounced under dark conditions (p < 0.05) (6 ± 0.07% and 7.5 ± 0.03% respectively, 2 h). Difference in SOD production over time was found to be insignificant.
Reduced glutathione assay. The level of reduced glutathione was observed to deplete significantly (p < 0.05) in interacted bacterial cells compared to control (0.05 > 0.5 > 1.0 μg mL−1; Fig. 7C). The GSH level was found to be relatively less (p < 0.05) under light conditions compared to that under dark conditions (41.67 ± 1.7% 70 ± 1.3% respectively, 2 h). With the increase in NP interaction time, no significant decrease in GSH level was noted.
Membrane permeability assessment. Bacterial cells exposed to TiO2 NPs demonstrated a dose dependent LDH release (Fig. 8). A statistically significant LDH level was observed in both light and dark conditions as compared to control (10.2 ± 0.32% and 13.42 ± 0.25% respectively, 2 h). The difference in LDH level in light and dark conditions was also found to be significant (p < 0.05), which shows more membrane damage under dark condition. No notable difference was observed in LDH release over time.

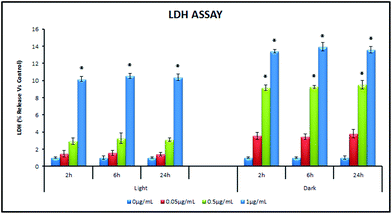

Assessment of membrane damage under light and dark conditions (0 h–24 h) by LDH Assay.
Fig. 8 Assessment of membrane damage under light and dark conditions (0 h–24 h) by LDH Assay.

The NP interacted (1 μg mL−1, 2 h) and control cells were analyzed for membrane permeability using spectrofluorimetry. The intensity of EtBr, staining both non-viable and damaged cells was measured compared to control. A higher emission peak intensity was noted for dark treated samples compared to light treated ones. The fluorescence spectrometric analysis suggested higher total cell membrane damage (owing to both the damaged cells as well as the dead cells) under dark conditions.

Electron microscopic analyses. To understand the cytotoxic mechanism of the TiO2 nanoparticles, the morphology of bacteria cells treated with NPs under light and dark conditions were investigated by SEM and TEM.
Scanning electron microscopy. Observations from scanning electron micrographs indicated changes in surface morphology before and after nanoparticle interaction. Control cells appeared to be smooth rod shaped structures (Fig. 9A). Interacted cells (1 μg mL−1 NP concentration, 2 h) under light conditions were observed to be attached with NPs on their surface (Fig. 9B). In Fig. 9C, light interacted cells were found to form clumps/agglomerations along with NPs. These agglomerations may have caused rapid sedimentation of nanoparticles in the system. Roughening of cell surface and signs of membrane damage were also evident from the figures of dark treated samples (Fig. 9D). Some bacterial cells in Fig. 9E were found to show bending morphology under dark conditions, possibly due to oxidative stress conditions.
Scanning electron micrograph of (A): untreated bacteria (control) showing intact cell; (B): NP attachment on bacterial cell surface; (C): Flocculation of NPs with the cell; (D): Roughening of cell surface and signs of membrane damage; (E): Bending of cells upon NP treatment.
Fig. 9 Scanning electron micrograph of (A): untreated bacteria (control) showing intact cell; (B): NP attachment on bacterial cell surface; (C): Flocculation of NPs with the cell; (D): Roughening of cell surface and signs of membrane damage; (E): Bending of cells upon NP treatment.
Transmission electron microscopy. To confirm the antibacterial activity of TiO2 NPs further, changes in morphology of cells and bio-distribution of NPs under light and dark conditions were observed by transmission electron microscopy. Fig. 10A shows the typical appearance of B. licheniformis before NP treatment. The well-defined cell wall and evenly stained interior of the cell were clearly visible. Drastic morphology changes were observed after NP interaction (1 μg mL−1, 2 h). Fig. 10B shows disrupted cells from the light experiment, indicating loss of cell integrity leading to the leakage of internal component, and therefore, the inactivation of the bacteria. In addition, the morphology of B. licheniformis cells was changed from regular cylindrical shape to irregular distorted shape. In Fig. 10C, formation of small vacuole like structures giving a patchy appearance to cells was noticed in the light treated samples. At the membrane interior and in cytoplasm, internalization and concentration build up of NPs was observed under light conditions (Fig. 10D). Accumulation of NPs on the outer and inner side of plasma membrane was detected in dark treated samples (Fig. 10E). Moreover in dark treated samples, bio-distribution of NPs and small clump formation was evident from the figures. In Fig. 10F, a dividing cell with NP accumulated near nuclear material was observed.
Transmission electron micrograph (A): showing the typical appearance of B. licheniformis before NP treatment; (B): interacted cells showing disrupted morphology under light conditions; (C): appearance of small vacuole like structures in light treated samples; (D): internalization of NPs under light conditions; (E): accumulation of NPs on the outer and inner side of plasma membrane in dark treated samples; (F): dividing cell with NP accumulated near nuclear material. [Notations used: Blue arrow indicates membrane damage; red arrow indicates cell distortion; yellow arrow marks internalization of NPs into cytoplasm; red box demarcates localization of NPs onto cell membrane; blue box demarcates localization of NPs in nucleus; Yellow box demarcates vacuole formation].
Fig. 10 Transmission electron micrograph (A): showing the typical appearance of B. licheniformis before NP treatment; (B): interacted cells showing disrupted morphology under light conditions; (C): appearance of small vacuole like structures in light treated samples; (D): internalization of NPs under light conditions; (E): accumulation of NPs on the outer and inner side of plasma membrane in dark treated samples; (F): dividing cell with NP accumulated near nuclear material. [Notations used: Blue arrow indicates membrane damage; red arrow indicates cell distortion; yellow arrow marks internalization of NPs into cytoplasm; red box demarcates localization of NPs onto cell membrane; blue box demarcates localization of NPs in nucleus; Yellow box demarcates vacuole formation].

Based on the investigation of SEM and TEM, it can be concluded that TiO2 NPs adsorbed on the surface of the bacteria, damaged the cell membrane under both light and dark conditions and subsequently resulted in the leakage of the intracellular substances, thus, causing the cell death.

Surface interactions with NPs

Surface charge: zeta potential measurement. A B. licheniformis culture in lake water matrix showed an average zeta potential of −28.47 ± 0.62 mV prior to interaction with NPs. TiO2 NP dispersed in lake water had an average surface potential of −25.72 ± 0.5 mV. These values suggested that the bacteria–NP interaction may not be charge based. Hence the contribution of surface chemical bonding in bacteria–NP interaction was investigated.
Surface chemistry: FTIR analysis. The FTIR spectra obtained for untreated (control) and nanoparticle treated (test) B. licheniformis cells were compared (Fig. 11). The spectrum for untreated cells, showed the presence of a broad band at 3391 cm−1, which corresponds to vibration of OH causing enhanced hydration of bacterial cells.44 The absorption peaks in the range of 1730–1737 cm−1 and at 1162 cm−1 related to C[double bond, length as m-dash]O or C–O bonds were noted. The peak corresponding to COO in hydrophobic glycerol was observed at ∼1365 cm−1.45 A characteristic peak attributed to PO2 vibrations present exclusively in nucleic acids with a little contribution from phospholipids of cell wall was evident at 1230 cm−1.45 A broad peak corresponding to glycogen units and polysaccharides in the cell wall was noted at the finger print region with peak intensity at 709 cm−1.46

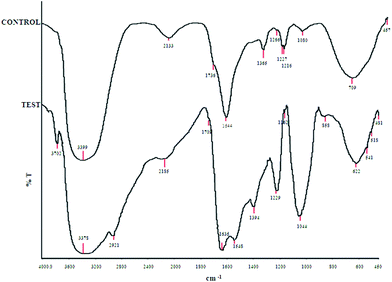

Comparative FTIR spectra for untreated (control) and NP treated (test) cells.
Fig. 11 Comparative FTIR spectra for untreated (control) and NP treated (test) cells.

After treatment of bacteria with nanoparticles, the bands at 3391, 1736, 1365, 1060 cm−1 were shifted to 3378, 1709, 1044 cm−1 respectively while a considerable decrease in peak intensity is observed at 1365 and 1227 cm−1. The band centered at about 3700 cm−1 shifted to lower frequencies (by 15–20 cm−1). A considerable increase in peak intensity at 1543 cm−1 suggested the involvement of amide II (protein N–H bending and C–N stretching) in the cell wall.47 A broad stretching peak noted around 2930 cm−1 was characteristic of weak C–H stretching band from alkyl groups. The characteristic Ti–O–Ti band appeared in the range of 500–900 cm−1 suggesting nanoparticles attachment to the cell wall.48

Sedimentation analysis. To find out the possible cause of toxicity under dark conditions, a simple sedimentation experiment was performed. Bacteria were immobilized by using molten agar to minimize their interference during sample analysis (Fig. 12A). The samples were collected from three different zones (Fig. 12B) of the suspension (initial concentration: 1 μg mL−1, experimental period: 2 h) and were subjected to the absorbance and the ICP-OES analysis. The absorbance readings at 336 nm (Fig. 12C) suggested a difference in NP concentration at the top layer (1st zone), concentration being less in dark compared to light (0.314 ± 0.032 μg mL−1, 0.241 ± 0.05 μg mL−1 for light and dark respectively). A reverse trend was observed at the bottom layer (3rd zone) (dark > light; 0.485 ± 0.044 μg mL−1, 0.391 ± 0.041 μg mL−1). These findings were corroborated with ICP-OES results (Fig. 12D).
Sedimentation analysis (A): experimental set up; (B): sampling zones; (C): absorbance measurement at different sampling zones; (D): metal ion concentration at different sampling zones.
Fig. 12 Sedimentation analysis (A): experimental set up; (B): sampling zones; (C): absorbance measurement at different sampling zones; (D): metal ion concentration at different sampling zones.

Toxicity due to Ti4+ ion dissolution was detected to be negligible. Concentration of dissolved Ti4+ ion in NP dispersion at 2nd, 6th and 24th h was measured to be below detection limit of the instrument (ICP-OES) under both the conditions.

Discussion

The anatase phase TiO2 NPs were selected for this study owing to their greater relevance to toxicity assessment.49 These NPs were found to be stable against aggregation at concentrations employed (0.05, 0.5 and 1 μg mL−1) in lake water matrix as observed through dynamic light scattering analysis (Fig. 2C–F). The presence of natural colloids (1–2 μm) and uniform distribution of TiO2 NPs (50–200 nm) was confirmed through scanning electron microscopic analysis. This suggests the involvement of natural organic matter (NOM) in stabilizing the NPs.20,21,50 The previous reports strongly suggest that the colloidal stability of NPs plays an essential role in the interaction with cells leading towards adverse effects like membrane damage and cytotoxicity.51

The dose and exposure dependent reduction in the cell viability was observed under both light and dark conditions (Fig. 5A, B). At low concentrations, the difference in cell viability reduction under light and dark conditions, was found to be non-significant. On the contrary, the EC50 value for the light reaction was found to be nearly 4 times less than the dark reaction (5.228 μg mL−1, 19.568 μg mL−1 respectively) confirming the concentration dependence of the photocatalytic effect of TiO2 NPs. The previous reports on photocatalytic toxicity of the TiO2 NP showed 19% reduction in E. coli cell viability at 8 μg mL−1 TiO2 NP concentration (experimental period: 60 min), using phosphate buffered saline as the experimental matrix.28 In another study, the nano-TiO2 suspension at 20 μg mL−1 was found to be not acutely toxic to V. fischeri.52 Brunet et al. also observed phototoxicity of 100 μg mL−1 TiO2 with 75% reduction in E. coli viability whereas no effect could be observed under dark conditions.37 In contrast, aggregation of E. coli cells and suppressed cell division induced by TiO2 NPs was reported at pH 4.0–4.5 and in the absence of any UV irradiation, demonstrating non photocatalytic mode of toxicity.34 Fenoglio et al. also reported that radicals generated from TiO2 NPs (anatase) under non-UV conditions may trigger cytotoxicity.35 Through fluorescence microscopy, live (green) and dead (bright red) cells were observed under both light and dark conditions. In dark treated samples, some intermediate/injured cells (orange red/pale red) were observed having motility which suggests membrane damaging property of TiO2 NPs. Battin et al. reported that, under dark conditions, nucleic acid stains and epifluorescence microscopy showed substantially damaged cell membranes after 24 h of exposure to nano-TiO2 (initial concentration, 5.3 μg mL−1).30

The oxidative stress induced by TiO2 NPs can be determined via production of reactive oxygen species (ROS), level of superoxide dismutase (SOD) and level of reduced glutathione (GSH).28 The cellular damage by ROS is a major contributor to its functional decline. Though the ROS level was found to be significantly higher under light conditions as compared to dark conditions (1 μg mL−1; 7.4 ± 0.13% and 4.35 ± 0.12%; 2 h), importantly a considerable amount of ROS was also generated even under dark conditions (Fig. 7A). The UV-excited TiO2 has long been known to generate ROS leading to cytotoxic effects.49,53 Another report by Burello and Worth suggests TiO2 is capable of inducing cytotoxicity due to oxidative stress irrespective of UV irradiation as the position of its conduction band lies in the range of biological redox potentials.31 A thorough literature survey reveals that the mechanism (s) explaining TiO2 NP toxicity under dark conditions is not well explored. The non-photocatalytic toxic effect may be attributed to (a) the extracellular adsorption of NPs inducing intracellular ROS generation36 (b) reactivity of TiO2 NPs (predominantly anatase) toward biomolecules producing carbon centered free radicals which exacerbate the oxidative damage of the bio-organics on the cell wall35 and (c) production of free radical species by TiO2 NPs even without irradiation.35 Several reports showing cytotoxicity and DNA damage (in prokaryotic cells) by TiO2 NPs irrespective of illumination conditions also support our finding.30,34 The observed ROS generation under dark conditions was supportive of such non photo-induced effects. The antioxidant enzyme superoxide dismutase (SOD) acts as a protective agent against increased oxidative stress due to ROS generation. The present study (Fig. 7B) shows an elevated level of SOD under dark conditions as compared to light conditions, suggesting strong resistance from bacteria against oxidative stress in the absence of light. Possibly, the dark treated cells were under enhanced stress conditions suggesting mechanistic modes other than ROS generation playing a significant role as oxidative stress triggers. Higher SOD levels indicate that bacteria could defend themselves against ˙OH attack to a greater extent.54,55 Reduced glutathione (GSH) is also engaged in cellular protection mechanism through chemical detoxification and antioxidant defence.56 According to a prior report, the depletion of GSH causes an imbalance of pro-oxidants (e.g. ROS) and antioxidants (e.g. GSH) leading to increased oxidative stress.57 In the present study the decreased GSH depletion (Fig. 7C) under dark conditions agrees well with the ROS data but, the rationale for higher SOD levels in dark treated samples need to be explained further. Thus in both light exposed and dark conditions, membrane permeability assessment was carried out to explore the possible toxicity mechanism.

The membrane permeability assessment through LDH release detection showed more membrane damage under dark conditions compared to light (Fig. 8). TiO2 NPs have been shown to cause membrane disorganization, increased membrane permeability as a result of perforation and finally leading to cell death.26,58 Previous study by our group on E. coli, B. subtilis and P. aeruginosa reported that the antibacterial mechanism of TiO2 NPs included the inner membrane permeabilization, destruction of cellular integrity and involvement of surface functional groups.59 The antibacterial effects of the NPs differed between the microbial strains due to the outer membrane structural differences. A recent study by Fang et al. also suggested that the TiO2 NPs attachment on Nitrosomonas europea cells caused apparent morphological damage making the cells heavier.60

The changes in surface morphology of the bacterial cells when exposed to the TiO2 NPs were studied through scanning electron microscopy. The smoothness of the membrane disappeared with NP interaction and the cells were found to form agglomerates along with NPs (Fig. 9) A previous report showed the membrane localization of TiO2 NPs on bacteria which was responsible for the cellular stress.61 The physiological adaptation of bacteria to stress conditions includes alteration of the membrane structure as a defence mechanism.62 The morphological changes of cells and the internalization and bio-distribution of NPs were further confirmed through transmission electron microscopy (Fig. 10). Recently, Pigeot-Rémy et al. examined the morphological damage caused by irradiated TiO2 to E. coli, using TEM.63 Bacteria were found to be non-viable after 1.5 h and membrane structure was observed to be disorganized. The membrane localization of TiO2 NPs was also observed in bacterial cells.32 A flow cytometric method was developed to quantify the amount of NP internalized by live bacterial cells.64 Ma et al. also observed time dependent adsorption of TiO2–Ag (2.0%) aggregates on E. coli cells through TEM imaging.65

The zeta potential measurement suggested no involvement of charge based interaction between NP and bacteria. Similar findings were reported by Jiang et al.66 The contribution of surface chemical groups in bacteria–NP interaction was investigated through FTIR analysis. The shifting of the band at about 3700 cm−1 to lower frequencies suggested OH stretching vibrations (due to water) and possible metal binding on amide groups in proteins.67 The TiO2 NPs attachment to the cell wall is evident from the characteristic Ti–O–Ti band appeared in the range of 500–900 cm−1.48 Our previous findings on TiO2 NP toxicity also suggested involvement of surface functional groups in cellular membrane damage upon NP interaction.59,68 The differences in NP attachment to the cell wall under light and dark conditions was also confirmed through a sedimentation experiment and quantified through ICP-OES analysis (Fig. 12). The faster sedimentation of TiO2 NPs in dark compared to light conditions related to enhanced bacteria-NP attachment and leading to cell damage/death.

To explain the differences in cytotoxicity mechanisms observed in this study under light and dark conditions, we propose (Fig. 13) that bacteria–NP interaction proceeded through different stages. For the light reaction, the sequence of events can be summarized as: sedimentation of nanoparticles to the bacterial zone, ROS generation and concentration buildup of NPs near the plasma membrane leading to membrane damage, internalization of NPs, leaking out of intracellular components leading to cell death. Under dark conditions, the cytotoxicity mechanism undergoes the following stages: sedimentation of NPs, agglomeration of NPs with bacteria, localization of NPs on the cell membrane, induction of the oxidative stress, increase in membrane permeability, internalization and bio-distribution of the NPs. While the ROS generated was the principal contributor for cytotoxicity in light condition, NP attachment to the cell membrane leading to membrane damage was the predominant effect in dark. A report by Maness et al. supported our findings, suggesting the likely reason to be the aggregation of TiO2 NPs with cells in the dark.33 Another study by Malato et al. reported a slight reduction in the concentration of bacterial colonies in the presence of TiO2 NPs in the dark, possibly due to agglomeration of TiO2 with the bacterial cells and subsequent sedimentation.69

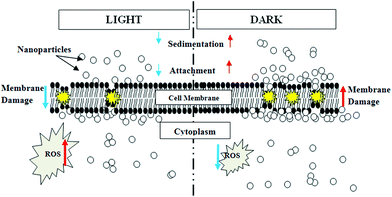

Schematic illustration of proposed TiO2 NP induced toxicity mechanisms under light and dark conditions.
Fig. 13 Schematic illustration of proposed TiO2 NP induced toxicity mechanisms under light and dark conditions.

Several physico-chemical parameters like size, shape, crystallinity, stabilizing agents, agglomeration and/or aggregation in the medium, play a key role in determining toxicity of NPs towards bacteria.51 Environmental factors i.e. the characteristics of the exposure media (pH, composition, ionic strength) also greatly influence the behaviour of NPs and their interaction with cells.12 There is a possibility that other toxicants can be associated with TiO2 nanoparticles and therefore likely synergistic effects must be examined for additional toxicological concerns.70

Conclusion

The present study explores the mechanistic aspects of cytotoxicity of photo catalytic TiO2 NP towards bacterial systems at low exposure conditions under non-irradiated or dark conditions, and compares with those at irradiated or light conditions. The findings from this study can be extrapolated to study the environmental risk of these nanoparticles given their increasing usage in consumer products. In this context understanding the underlying fundamental chemistry of the TiO2 NP–cell interaction in dark conditions will be helpful for future studies. Notwithstanding the implied scientific merit in the present study, and related other studies on ecotoxicity of NPs, which are slowly growing in number, (i) a lack of standardized characterization protocol to study physico-chemical characteristics of the NPs, which influence their reactivity as well as toxicity, in differing real systems, (ii) the scattered data on different microbial systems employed in absence of a common test strategy, (iii) an acute lack of emphasis on the environmental parameters prevent a meaningful comparative assessment from the hitherto available nanotoxicity data with the bacterial systems. In this context, concerted research efforts in near future should concentrate on correlating NP characterization and behaviour in environmental matrices with its toxicological endpoints, and evolving a common test strategy for ecotoxicity studies of NPs taking care of various confounding factors relating to the particles, bacterial systems, and the test environment.
