White light has been generated from dispersible lanthanide ion-doped LaVO4 core–shell nanoparticles by using a single UV excitation source. The core–shell nanoparticles are excited with single wavelength 280 nm UV light, in which the energy transfer from [VO4]3− groups to Ln3+ ions occurs to produce bright white light. The absolute quantum yields of LaVO4:Tm3+/Tb3+/Eu3+ (Type 1) and LaVO4:Tm3+/Dy3+ (Type 2) core–shell nanoparticles have been estimated as 5% and 7% respectively. The control core nanoparticles doped with all the lanthanide ions did not produce white light which proves the need of a core–shell structure. The core–shell structure of LaVO4 nanoparticles has been investigated by TEM, EDX, XRF, and PL spectroscopy techniques.
In this article, we report the generation of white light from dispersible lanthanide ion-doped LaVO4 core–shell nanoparticles via a ‘stokes’ shift fluorescence process by using a single excitation source (UV light). We note that direct excitation of lanthanide ions is an inefficient process due to the lesser extinction coefficient (1–10 M−1 cm−1) compared to energy transfer from a host material (LnVO4, LnPO4, TiO2, etc.) or other ions13,15 (Ce3+ and Yb3+).35–40 The vanadate charge transfer transition has several orders of magnitude of extinction coefficient and a broad absorption range (260–340 nm) compared to lanthanide ions.36 Additionally, thermally activated energy migration from [VO4]3− to lanthanide ions is very efficient and it has been universally used as a sensitizer for most of the lanthanide ions.41
Fig. 1 a) Schematic representation of the generation of white light from LaVO4:Tm3+/Tb3+/Eu3+ (Type 1) and LaVO4:Tm3+/Dy3+ (Type 2) core–shell nanoparticles and b) digital photographs of blue, green, red, yellow and white light emissions from colloidal dispersions of LaVO4:Tm3+, LaVO4:Tb3+, LaVO4:Eu3+, LaVO4:Dy3+ core nanoparticles and LaVO4:Tm3+/Tb3+/Eu3+ (Type 1) and LaVO4:Tm3+/Dy3+ (Type 2) core–shell nanoparticles in dichloromethane solvent (1 mg mL−1). The samples were excited with a 280 nm Xe lamp light. |
The LaVO4 core–shell particles stabilized with oleic acid were prepared by the co-precipitation method. Fig. 1a shows the schematic representation of type 1 (LaVO4:Tm3+/Tb3+/Eu3+) and type 2 (LaVO4:Tm3+/Dy3+) LaVO4 core–shell nanoparticles. In type 1, Tm3+ ions (20%) are doped in the LaVO4 core, Tb3+ (10%) and Eu3+ (0.5%) ions are doped in the second and fourth LaVO4 shell respectively. The first, third and fifth shells are inert shell (un-doped), which separate the lanthanide-ions from each other to prevent quenching due to internal energy transfer. The outer inert shell also prevents quenching from environmental effects such as solvents and OH groups. In type 2 Tm3+ (15%) and Dy3+ (0.5%) ions are doped in the LaVO4 core and second LaVO4 shell, respectively, whereas the first and third shells are inert shells. Fig. 1b shows the digital photographs of bright white light emissions from LaVO4:Tm3+/Tb3+/Eu3+ (Type 1), and LaVO4:Tm3+/Dy3+ (Type 2) core–shell nanoparticles dispersed in dichloromethane by excitation with 280 nm light. Additionally, bright blue, green, red, and yellow emissions have been observed by excitation with 280 nm light from LaVO4:Tm3+, LaVO4:Tb3+, LaVO4:Eu3+, LaVO4:Dy3+ core nanoparticles, respectively. The digital photographs clearly suggest that the bright white light from both the types of core–shell particles can easily be seen by naked eye.
Fig. 2a demonstrates the emission spectrum of LaVO4:Tm3+/Tb3+/Eu3+ (Type 1) core–shell nanoparticles dispersed in dichloromethane (λex = 280 nm). It is evident from the emission spectrum that the peaks corresponding to Tm3+, Tb3+, and Eu3+ emissions can easily be seen. The major emission peak at 475 nm is from 1G4 to 3H6 level of Tm3+ ions, and the one at 545 nm is from 5D4 to 7F5 level of Tb3+ ions. The peaks at 591, 612, 650, and 695 nm are from 5D0 to 7F1, 7F2, 7F3, and 7F4 levels of Eu3+ ions, respectively. The emission peak from Tb3+ ions (490 nm, 5D4 to 7F5) is overlapped with the 475 nm emission of Tm3+ ions. The emission peaks at 575 (5D4 to 7F4) and 625 nm (5D4 to 7F3) from Tb3+ ions also overlapped with Eu3+ ion emissions. The emission spectrum from the type 2 core–shell nanoparticles is shown in Fig. 2b. The emission peaks at 475 nm and 575 nm are from Tm3+ and Dy3+ (4F9/2 to 6H13/2) ions, respectively. The CIE co-ordinates of the emitted light from type 1 and 2 nanoparticles were found to be (0.35, 0.34) and (0.32, 0.34) respectively, compared to (0.33, 0.33) for pure white light (Fig. 2d). Excitation with a range of UV wavelengths (260–330 nm) has also produced bright white light and CIE colour co-ordinates were within the white light region (data not given). In order to prove the non-existence of internal energy transfer between lanthanide ions, both the core–shell type nanoparticles were excited (direct excitation of lanthanide ions) with 410 nm for Eu3+ ions (5D3), 488 nm for Tb3+ ions (5D4), 475 nm for Tm3+ ions (1G4), and 430 nm for Dy3+ ions (4G11/2) light and the emissions corresponding to the direct excitation of lanthanide ions were only observed. This clearly suggests that there was no internal energy transfer between lanthanide-ions suggesting the formation of a core–shell structure with inert LaVO4 shells in between the emissive layers. Our control experiment (doping all the lanthanide ions in the LaVO4 core nanoparticles) did not emit white light (Fig. 3). The emission spectrum (Fig. 3a) shows the presence of Tm3+, Tb3+, and Eu3+ ions emissions, however, the Eu3+ emission dominates compared to Tm3+ and Tb3+ emissions. Similarly, in Fig. 3b, the Dy3+ emission dominates compared to Tm3+ emission. We attribute this to the efficient energy transfer from [VO4]3− group to Eu3+ and Dy3+ ion compared to Tm3+ and Tb3+ ion. This clearly proves the need for a core–shell structure with the inert shell in between the emissive layers.
Fig. 2 Emission spectra a) LaVO4:Tm3+/Tb3+/Eu3+ (Type 1), b) LaVO4:Tm3+/Dy3+ (Type 2) core–shell nanoparticles (λex = 280 nm), c) excitation spectra of Tm3+, Tb3+, Eu3+, and Dy3+-doped LaVO4 nanoparticles, and d) CIE colour co-ordinates of the white light generated from type 1 and type 2 nanoparticles. |
Fig. 3 Emission spectra a) LaVO4:Tm3+/Tb3+/Eu3+ core nanoparticles (control experiment for type 1, λex = 280 nm) and b) LaVO4:Tm3+/Dy3+ core nanoparticles (control experiment for type 2, λex = 280 nm). |
Fig. 2c shows the excitation spectra of Tm3+, Tb3+, Dy3+, and Eu3+ ions doped in LaVO4 core nanoparticles. The broad band from 260 to 340 nm clearly proves that the emission from all the Ln3+ ions is mainly due to energy transfer from [VO4]3− group, by a charge-transfer transition in the V–O bond. We note that the excitation peaks of Eu3+, Tb3+, Tm3+, and Dy3+ ions have not been observed due to a dilution effect and efficient energy transfer. This also proves that the lanthanide ions can be excited through energy transfer by using a single UV excitation source with a broad range of wavelength. We have also measured the absolute quantum yield of generated white light as 5 ± 1% and 7 ± 1% for type 1 and type 2 nanoparticles, respectively by using an integrating sphere. The quantum yield of the generated white light is on the lower side compared to bulk material which may be due to the size effect and fluorescence quenching by water molecules involved in the synthesis procedure. We also note that the quantum yield of LaVO4:Eu3+ (5%) core–shell nanoparticles is estimated to be ~75%. It is well known that Tm3+ ion is a weak emitter and its quantum yield is very low (~0.008%). Since, Eu3+ (red) and Dy3+ (yellow) ions are strong emitters, we have reduced their doping concentration to ~0.5% which also limits our white light quantum yield. Furthermore, the average lifetimes of Tm3+, Tb3+, Eu3+, and Dy3+ ions are 0.45 ± 0.05, 1.4 ± 0.1, 1.6 ± 0.12, and 1.1 ± 0.15 ms respectively. (Fig. S1, ESI†) The X-ray powder diffraction pattern (Fig. 4d) of LaVO4 was refined in space group D194h with the Rietveld refinement method and it shows that LaVO4 core–shell nanoparticles are in the highly crystalline zircon type phase in contrast to the bulk monazite phase. This matches with the previous reports.18 Furthermore, FTIR (Fig. S2, ESI†) and 1H NMR (Fig. S3, ESI†) spectra prove the formation of LaVO4 nanoparticles with oleic acid as the stabilizing ligand. Broad bands at 789 and 3000 cm−1 in FTIR show the characteristic peak of the [VO4]3− and the CH stretching vibrations of oleic acid respectively (Fig. S2, ESI†). A broad band above 3000 cm−1 suggests that the surfaces of LaVO4 nanoparticles are terminated with V–OH bonds. Additionally, a broad NMR peak at 5.2 ppm, attributed to the CHCH protons clearly suggests the presence of oleic acid (Fig. S3, ESI†).

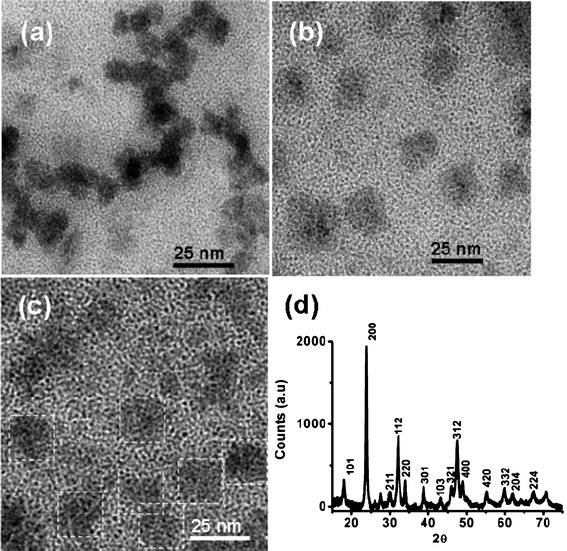

Fig. 4 a) TEM image of LaVO4:Eu3+ core nanoparticles, b) TEM image of LaVO4:Tm3+/Tb3+/Eu3+ core–shell nanoparticles, c) TEM image of LaVO4:Tm3+/Dy3+ core–shell nanoparticles (particles are identified with white dotted lines for clarity), and d) XRD pattern of LaVO4:Tm3+/Tb3+/Eu3+ core–shell nanoparticles. |
In order to prove the core–shell structure, LaVO4:Eu3+ core, type 1, and type 2 LaVO4 core–shell particles were investigated by point energy dispersive X-ray spectroscopy (EDX), X-ray fluorescence spectroscopy (XRF), fluorescence spectroscopy along with transmission electron microscopy. The TEM images clearly show that the average size of the LaVO4:Eu3+ core (Fig. 4a), type 1 core–shell (Fig. 4b) and type 2 core–shell (Fig. 4c) nanoparticles are 13 ± 2, 19 ± 2, and 23 ± 2 nm, respectively. The TEM images suggest that there is a clear shift in particle size distribution for core–shell particles (average shell thickness of 1 nm per each shell) compared to core particles which clearly suggests the formation of core–shell structure. We note that since the core and shells are made of the same host materials TEM images will not show any contrast between the core and shell structures. In order to further support the formation of the core–shell structure, EDX (Fig. S4 and S5, ESI†) and XRF (Fig. S6 and S7, ESI†) studies have been performed at various points and clearly show the presence of all the lanthanide ions along with carbon and oxygen (due to the presence of oleic acid) in the same composition in various places. This further supports the formation of the core–shell structure. Additionally, increase in the lifetime of Eu3+ ions in the LaVO4 core–shell particles (τav = 1.6 ± 0.12 ms) compared to core particles (τav = 0.98 ± 0.09 ms) suggests that the europium ions are in the core–shell structure and are protected from the external quenching events. This matches with the previous reports and further supports the formation of a core–shell structure. From the above observations, we can eliminate the doubt of formation of separate LaVO4 nanoparticles doped with different lanthanide ions. Moreover, the direct excitation of lanthanide ions (λex = 395 nm for Eu3+, λex = 488 nm for Tb3+, λex = 475 nm for Tm3+ nm for type 1 core–shell particles, and λex = 355 nm for Tm3+ nm for type 2 core–shell particles, and λex = 428 nm for Dy3+ nm) gives only the corresponding lanthanide ion emissions. This clearly proves that there is no internal energy transfer between the lanthanide ions, which also suggests that the shells could be homogeneous.
