Photocatalytic conversion of CO₂ and H₂O to fuels by nanostructured Ce–TiO₂/SBA-15 composites

Abstract

Cerium-doped titanium oxide (Ce–TiO₂) nanoparticles were prepared by a simple sol–gel method. Ce-doping decreased the crystal size of TiO₂, increased the catalyst surface area, and inhibited the growth of rutile TiO₂ crystals. Ce–TiO₂ nanoparticles were also dispersed on SBA-15, mesoporous silica with one-dimensional pores, forming a Ce–TiO₂/SBA-15 nanocomposite. The nanocomposite materials were well characterized and tested as photocatalysts to convert CO₂ and H₂O to value-added fuels, mainly CO and CH₄, under UV-vis illumination. Compared with pristine TiO₂, TiO₂ doped by 1 or 3% Ce improved the production of CO by four times. The reason may be due to the facilitated charge transfer induced by the doped Ce ions, the higher surface area of the catalyst, as well as the stabilization of anatase phase. However, too high a Ce concentration reduced the catalytic activity, likely due to the formation of recombination centers. Compared with unsupported Ce–TiO₂, Ce–TiO₂ supported on SBA-15 remarkably enhanced the CO₂ reduction rate. Ce–TiO₂/SBA-15 with a Ti : Si ratio of 1 : 4 demonstrated 8-fold enhancement in CO production and 115-fold enhancement in CH₄ production. By contrast, amorphous silica as the substrate was much inferior to SBA-15. The findings in this work reveal a promising nanostructured catalyst material for solar fuel production using CO₂ and H₂O as the feedstock.

---

1. Introduction

Photocatalytic reduction of CO₂ using sunlight as the energy input is a promising way to reduce CO₂ level in the atmosphere and in the meantime produce alternative fuels or building blocks for industrial chemicals. Semiconductor photocatalysts such as WO₃, ZrO₂, Ga₂O₃, and TiO₂^1–4 have been studied for such applications, and among them, TiO₂ has been considered the most appropriate photocatalyst due to its high photosensitivity, non-toxic nature, low cost, and easy availability.^5–9 However, the photoefficiency of CO₂ reduction on TiO₂ is usually very low, mainly due to the fast recombination of photo-excited electron–hole (e–h) pairs and the wide band gap of TiO₂ (3.2 eV for anatase) that does not allow the utilization of visible light.^10,11

To enhance the photoefficiency of TiO₂ for CO₂ photoreduction, several strategies have been reported in the literature by modifying the nanostructure of TiO₂. The first strategy is to harvest visible light by tailoring the band gap of TiO₂ or introducing impurity level with non-metal ion doping (e.g., I, N).^12,13 The second strategy is to lower the activation energy and to facilitate electron trapping by depositing noble metal nanoparticles (e.g., Pt, Rh, Ag)^14–17 on the TiO₂ surface. Finally, pairing of transition metal oxides (e.g., CuO, Cu₂O, Fe₂O₃)^4,11,18,19 with TiO₂ has been demonstrated to enhance CO₂ reduction by facilitating the separation of electrons and holes, although the exact mechanism has not been well understood.

Rare earth element modified TiO₂ has demonstrated enhanced photocatalytic oxidation ability than bare TiO₂.^7,20,21 Cerium (Ce) is one of the four most abundant rare earth elements, and composites of Ce–TiO₂ have shown enhanced photocatalytic activity for water splitting and degradation of organic compounds.^22–26 Ce-doping could result in smaller TiO₂ nanocrystals and thus enhance catalytic activity.²⁷ However, to the best of our knowledge, Ce-modified TiO₂ has not been studied for the photocatalytic CO₂ reduction with water.

Besides modifying the properties and nanostructures of TiO₂ itself, many approaches have been used to immobilize TiO₂ nanoparticles on mesoporous substrates such as molecular sieve 5 Å, amorphous silica, and SBA-15,^4,28–30 and the direct benefits include larger surface area and better dispersion of the nano-sized catalysts. It has been reported that Cu–TiO₂, Ru–TiO₂, and TiO₂ supported on amorphous silica showed higher CO₂ photoreduction rates than the catalysts without supports.^4,18,28 SBA-15, the well-known mesoporous silica with one-dimensional hexagonal pores, has been widely studied as a catalyst support and the ordered and uniform pore structures are normally advantageous over irregular pores in amorphous silica. Recently, a couple of studies have investigated TiO₂ and Cu–TiO₂ catalysts immobilized onto the SBA-15 matrix for photocatalytic CO₂ reduction. The Si–OH group was found to enhance the interaction of CO₂ and H₂O on the catalyst surface based on the results of an IR study.³¹ Experimental results also demonstrated an enhancement of CO₂ photoreduction to methanol on a 2%Cu–TiO₂/SBA-15 sample compared with 2%Cu–TiO₂, and the promotional effect was likely attributed to the synergistic effect between the metal species, TiO₂ and the support.³² However, the observed enhancement benefited from SBA-15 in that work was only 20%, maybe because the loading of TiO₂ was not optimized.

In this work, we aimed to utilize the co-benefits from Ce additives and SBA-15 as the substrate for TiO₂ nanoparticle catalysts. Hence, Ce–TiO₂/SBA-15 catalysts were synthesized and tested for CO₂ photoreduction with water to produce solar fuels. To the best of our knowledge, this is a new nanocomposite material that has not been prepared before and has not been tested for CO₂ photoreduction to fuels. Unsupported Ce–TiO₂ and Ce–TiO₂ loaded on amorphous silica was also prepared and tested as a comparison. Our results show more than 100-fold enhancement in CO₂ photoreduction to CH₄ compared with unsupported catalysts, demonstrating the superior photocatalytic activity of the prepared Ce–TiO₂/SBA-15 nanocomposite materials.

2. Experimental

2.1 Catalyst preparation

The Ce–TiO₂ nanoparticles were synthesized by a sol–gel method.^7,33 In a typical synthesis process, 10 mL titanium butoxide (Ti(OBu)₄, 99%) was ultrasonically dispersed in 40 mL absolute ethyl alcohol for 10 min (Solution A). A certain amount of Ce(NO₃)₃·6H₂O (99.5%) was dissolved in 10 mL H₂O, 10 mL absolute ethyl alcohol and 2 mL 62% nitric acid (Solution B). Then Solution A was added dropwise to Solution B (forming Solution C) with vigorous stirring for 3 h at room temperature. The obtained transparent sol was further aged for 6 h at room temperature, dried at 70 °C for 36 h and finally calcined in a muffle furnace at 500 °C for 2 h. Samples with molar ratios of Ce to Ti at 0.01, 0.03, 0.08 and 0.12 were prepared. For comparison, pristine TiO₂ was also prepared without adding the Ce precursor.

SBA-15 was prepared according to a well established procedure reported by Zhao et. al.³⁴ 4 g of Pluronic P123 (Aldrich) was dissolved in 125 g of 2 M HCl at 35 °C with stirring. Tetraethyl orthosilicate (TEOS, Aldrich) was then added into the solution after P123 was dissolved. The resultant solution was stirred for 20 h at 35 °C, after which the mixture was aged at 80 °C for 24 h in a sealed Teflon bottle. The solid product was recovered by filtration and air-dried at room-temperature overnight. SBA-15 was obtained by calcination of the solid product at 500 °C for 6 h.

Ce−TiO₂ was loaded on SBA-15 by adding SBA-15 particles to Solution C in the sol−gel process of preparing Ce−TiO₂ as previously described. The same aging, drying, and calcination procedure was applied. Ce−TiO₂/SBA-15 composites with a molar ratio of Ce : Ti : Si at 0.03 : 1 : 1, 0.03 : 1 : 2, and 0.03 : 1 : 4 were prepared. For comparison, Ce−TiO₂ loaded on amorphous silica was also prepared following the same procedure, and the amorphous mesoporous silica particles were prepared according to the process reported in our previous study.⁴ The prepared samples are denoted xCe_yTi, xCe_yTi_zSi, and xCe_yTi_zaSi, where Ce represents cerium, Ti represents titania, Si represents SBA-15, aSi represents amorphous silica, and the numbers of x, y, and z indicate the molar ratio of Ce, Ti, and Si. For example, 0.03Ce_1Ti_4Si represents Ce−TiO₂/SBA-15 sample with a Ce : Ti : Si molar ratio at 0.03 : 1 : 4.

2.2 Catalyst characterization

The Brunauer–Emmett–Teller (BET) specific surface area and pore size of the catalysts were measured by nitrogen adsorption–desorption isotherms using a Micrometrics ASAP 2020 Surface Area and Porosity Analyzer. The crystal structures of the powder catalysts were identified by X-ray diffraction (XRD) (Scintag XDS 2000) using Cu Kα irradiation at 45 kV and a diffracted beam monochromator operated at 40 mA in the 2θ range from 20° to 60° at a scan rate of 1° min⁻¹. The fractional phase contents of anatase, brookite, and rutile TiO₂ were calculated by the method reported in previous work.¹⁰ The Scherrer equation was applied to calculate the crystal size of TiO₂. The UV-vis diffuse reflectance spectra were recorded by a UV-vis spectrophotometer (Ocean Optic) using BaSO₄ as the background. Scanning electron microscopy (SEM) (Hitachi S4800) was used to obtain the catalysts surface morphology. The particle size and crystal lattice of TiO₂ and the pore structure of SBA-15 were analyzed by transmission electron microscopy (TEM) (Hitachi H9000NAR) and high resolution TEM (HR-TEM). X-ray photoelectron spectroscopy (XPS) (Perkin-Elmer PHI 5100) was used to examine the valance states of Ce in the Ce/TiO₂ samples before and after CO₂ photoreduction with water vapor. A thin layer of powder samples were loaded on a silicon substrate and subject to XPS analysis. Subsequently, the same samples were exposed to photoillumination in the presence of CO₂ and water vapor for 4 h and then subject to XPS analysis again.

2.3 Measurement of photocatalytic activity

The photocatalytic activity of CO₂ reduction with water vapor was investigated in an experimental system as shown in Fig. 1. Compressed CO₂ (99.999%, Praxair) regulated by a mass flow controller (at a flow rate of 4 mL min⁻¹) was passed through a deionized water bubbler to introduce CO₂ and water vapor mixture (volume fraction of H₂O ≈ 2.3%) into a photoreactor that has stainless steel walls and a quartz window. For each test, 200 mg powder catalyst was evenly dispersed on a glass–fiber filter and placed in the photoreactor facing the quartz window. A 450 W Xe lamp (Oriel) was used as the irradiation source with a light intensity around 400 mW cm⁻² (UV-vis region), measured by a spectroradiometer (International Light Technologies ILT950). Circulated cooling water was applied to absorb the infrared portion of the Xe lamp irradiation. The photoreactor was operating at a continuous-flow mode and the effluent gas sample was analyzed every 30 min by a gas chromatograph (GC, Agilent 7890A) equipped with an automated gas sampling valve, a thermal conductivity detector (TCD) and flame ionization detector (FID).

Fig. 1 Experimental setup for photocatalytic CO₂ reduction with water vapor.

3. Results and discussion

3.1 Crystal structures of the catalysts

Fig. 2 shows the XRD patterns of pristine TiO₂ and Ce–TiO₂ nanoparticles with different Ce : Ti molar ratios. The calculated fractional phase contents and crystal sizes of TiO₂ are summarized in Table 1. Pristine TiO₂ exhibited prominent characteristic peaks for anatase (JCPDS No. 21-1272) and rutile (JCPDS No. 21-1276), as well as a very weak peak for brookite (JCPDS No. 29-1360). The unique diffraction peak at 30.80° (2θ) represents the brookite (121) plane, while all other major brookite diffraction peaks overlap with anatase peaks, for example, brookite (120) at 25.34° and brookite (111) at 25.69° overlap with anatase (101) at 25.28°.^10,35–38 The pristine TiO₂ had the highest rutile phase fraction, 53.7%. With the addition of 0.01% Ce, the fraction of rutile phase remarkably decreased to 4.8% with significant increases in anatase and brookite phases. Further increasing the Ce : Ti ratio to 0.03 and 0.08 resulted in the disappearance of the rutile TiO₂. This result is in agreement with the literature reports that even a low concentration of ceria can stabilize the anatase phase and inhibit transformation of anatase to rutile.^39,40 The stabilization mechanism was attributed to the preferential nucleation of ceria on the oxygen vacancies of anatase TiO₂.^39,40 In addition, no obvious peaks corresponding to cubic Ce or cerium oxides were observed in the XRD patterns of Ce–TiO₂, probably due to the low concentration of Ce and the very small particle size of ceria, as well as its good dispersion on the TiO₂ surface.⁴¹

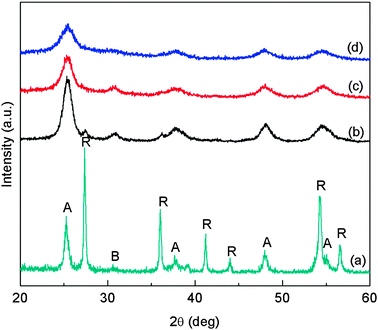

Fig. 2 XRD patterns of pristine TiO₂ and Ce–TiO₂ samples with different Ce/Ti molar ratios: (a) pristine TiO₂; (b) 0.01Ce_1Ti; (c) 0.03Ce_1Ti; and (d) 0.08Ce_1Ti. (A: Anatase; B: Brookite; R: Rutile).

Table 1 Fractional phase content, crystal size, and BET specific surface area of TiO₂, SBA-15, Ce–TiO₂, Ce–TiO₂/SBA-15 and Ce–TiO₂/aSiO₂ samples

Samples	Phase content (%)			Crystal size/nm			S BET/m^2 g^−1
	A	B	R	A	B	R
TiO2	34.5	11.7	53.7	17	9.5	10.3	25.2
0.01Ce_1Ti	66.3	28.9	4.8	7.6	7.2	9.9	139.9
0.03Ce_1Ti	71.5	28.5	0	5.7	5.2	—	136.7
0.08Ce_1Ti	100	0	0	3.6	—	—	179.0
SBA-15	—	—	—	—	—	—	871.9
0.03Ce_1Ti_1Si	100	0	0	—	—	—	334.2
0.03Ce_1Ti_2Si	100	0	0	—	—	—	509.7
0.03Ce_1Ti_4Si	100	0	0	—	—	—	443.3
0.03Ce_1Ti_4aSi	—	—	—	—	—	—	374.4

---

The diffraction peaks of Ce–TiO₂ are broadened compared with pristine TiO₂, suggesting smaller crystal size of TiO₂ due to Ce addition. As summarized in Table 1, the average crystal sizes of pristine TiO₂ were 17 nm for anatase and 9.5 nm for brookite, and they both decreased with the Ce concentration. It has been reported that the dopant in TiO₂ favors the formation of smaller crystals.^10,42 The smaller Ce–TiO₂ size in this work is an indirect evidence that Ce was partially doped in TiO₂ lattice. This also contributes to the reason that no Ce or CeO₂ peaks were observed in the XRD patterns. Fig. 3 shows the XRD patterns of Ce–TiO₂/SBA-15 samples. Only anatase TiO₂ diffraction peaks were observed and the noisy background was due to the silica substrate.

Fig. 3 XRD patterns of Ce–TiO₂/SBA-15 samples with different Ti : Si molar ratios: (a) 0.03Ce_1Ti_1Si; (b) 0.03Ce_1Ti_2Si; and (c) 0.03Ce_1Ti_4Si.

3.2 Textual properties and morphology of the catalysts

N₂ adsorption–desorption was applied to explore the textual property of the prepared nanocomposite catalysts. As shown in Fig. 4a, the Ce–TiO₂ samples showed typical type IV adsorption–desorption isotherms with a relatively wide H1-type hysteresis loop, an indicative of mesoporous structure. The mesopores may have resulted from the inter-space of aggregated nanoparticles. As shown in Fig. 4b, the Ce–TiO₂ samples showed similar narrow BJH pore-size distribution with an average pore diameter in the range of 4–6 nm. Table 1 compares the BET specific surface areas of the different catalyst samples. The pristine TiO₂ had the lowest surface area at 25.2 m² g⁻¹. The incorporation of a small concentration (1 or 3%) of Ce in TiO₂ remarkably increased the surface area to approximately 140 m² g⁻¹. Further increasing the Ce concentration to 8% increased the surface area to 179 m² g⁻¹. The increased surface area is likely because of the smaller TiO₂ particle size due to Ce doping, as evidenced in the crystal structure data (Table 1).

Fig. 4 N₂ adsorption–desorption isotherms (a) and BJH pore size distributions (b) of TiO₂ and Ce/TiO₂ samples.

Fig. 5 shows the N₂ adsorption–desorption isotherms and BJH pore size distribution of SBA-15 and Ce–TiO₂/SBA-15 samples. SBA-15 and Ce–TiO₂/SBA-15 samples exhibited typical type IV adsorption–desorption isotherms (Fig. 5a), which are characteristic of mesoporous materials.³⁰ For SBA-15, the P/P₀ range of the H₂-type hysteresis loop was from 0.55 to 0.80, while that of Ce–TiO₂/SBA-15 was from 0.45 to 0.70. Typically, a hysteresis loop starts at a higher P/P₀ for a material with a larger pore size.⁴³ These isotherms suggest that Ce–TiO₂/SBA-15 samples have smaller mesopores compared with that of SBA-15, very likely because some of the Ce–TiO₂ nanoparticles were dispersed in the SBA-15 1-D channels or integrated into the SBA-15 framework forming chemical bonds. As shown in Fig. 5b, SBA-15 exhibits a mono-modal pore size distribution with a diameter of 5.8 nm. In contrast, 0.03Ce_1Ti_4Si and 0.03Ce_1Ti_2Si display a bi-modal pore size distribution. Besides the mode at 5.5 nm representing the SBA-15 pores, a new mode at around 4 nm appeared due to the existence of the Ce–TiO₂ nanoparticles. When the TiO₂ content further increased, i.e. for the 0.03Ce_1Ti_1Si sample, the 5.5 nm mode completely disappeared with only a single mode at around 3.8 nm. Similar shift in pore size distribution was reported by Zhang et al.³⁰ that a smaller pore size was observed for a TiO₂/SBA-15 composite with an increased TiO₂ content. A possible reason is that the increased number of TiO₂ nanoparticles may block the pores of SBA-15, and thus the pore size distribution shifts to the one that represents only TiO₂ nanoparticles (single-mode and smaller size).

Fig. 5 N₂ adsorption–desorption isotherms (a) and BJH pore size distributions (b) of SBA-15 and Ce–TiO₂/SBA-15 samples.

As shown in Table 1, the specific surface area of Ce–TiO₂/SBA-15 was significantly increased compared with Ce–TiO₂ due to the presence of SBA-15. SBA-15 has the highest surface area at 871.9 m² g⁻¹. It is interesting to find that the 0.03Ce_1Ti_4Si sample had a slightly smaller surface area than that of 0.03Ce_1Ti_2Si, whereas more SBA-15 was in the 0.03Ce_1Ti_4Si sample. It may be because that the Ce–TiO₂ particles were better dispersed on the 0.03Ce_1Ti_4Si sample and partially blocked the pores of SBA-15, resulting in a smaller surface area.

Detailed morphological information of the Ce–TiO₂/SBA-15 sample (0.03Ce_1Ti_4Si) was examined by SEM and TEM. The SEM images in Fig. 6 show micrometer size particles with irregular shapes as a mixture of rods and spheres, which are assigned to SBA-15 particles. The TiO₂ nanoparticles are not discernible in the SEM images but are clearly shown in the TEM images in Fig. 7. Fig. 7a and b demonstrates the morphology of bare SBA-15 samples, where one-dimensional channels of ordered pores are clearly identified. The pore opening is around 5–7 nm, consistent with the pore size analysis data shown in Fig. 5. Fig. 7c demonstrates that for the Ce–TiO₂/SBA-15 sample, the TiO₂ nanoparticles are dispersed on the surface, at the edge, and possibly in the pores of the SBA-15 support. However, the fraction of TiO₂ nanoparticles embedded in the pores of SBA-15 is difficult to measure. These embedded particles may block a portion of the pores, which explains why the measured specific surface area of the 0.03Ce_1Ti_4Si sample is smaller than that of the 0.03Ce_1Ti_2Si sample (see Table 1). Aggregates of TiO₂ nanoparticles on the outer surface of SBA-15 were also identified, as shown in Fig. 7d. The TiO₂ crystal size is around 5 nm, as shown in the HR-TEM image in Fig. 8e, which matches the calculated crystal size listed in Table 1 for 3%Ce–TiO₂ sample. Clear lattice fringes of nanocrystal with an interplanar space of 0.350 nm were observed, which corresponds to the (101) plane of anatase TiO₂.⁴⁴ The lattice fringes of Ce or CeO₂ were not seen under the observed projections, consistent with the XRD results that no Ce or CeO₂ nanocrystals were formed.

Fig. 6 SEM images of the 0.03Ce_1Ti_4Si sample at lower (a) and higher (b) magnifications.

Fig. 7 TEM and HRTEM images of SBA-15 (a,b) and 0.03Ce_1Ti_4Si (c,d,e) samples.

Fig. 8 UV-vis diffuse reflectance spectra of TiO₂ and Ce–TiO₂ with different Ce : Ti molar ratios (a) and Ce–TiO₂/SBA-15 with different Ti : Si molar ratios (b).

3.3 UV-vis diffuse reflectance spectroscopy (DRS) analysis

Diffuse reflectance UV-vis spectra were recorded to explore the influence of Ce and SBA-15 addition on the optical property of TiO₂. As shown in Fig. 8a, pristine TiO₂ absorbs light at wavelength shorter than 400 nm, corresponding to a band gap of about 3.0 eV. Incorporation of Ce in TiO₂ resulted in a red-shift in the absorption edge, extending to the visible light region in the range of 400–500 nm. The red-shift was enhanced at an increased Ce concentration, but the enhancement was not significant when the Ce concentration exceeded 3%. The DRS results in this work agree with the literature report that Ce doping in TiO₂ could lead to formation of new energy levels within the band gap of TiO₂ and thus may enable the photocatalytic activity under visible light.^22–24

Fig. 8b shows the UV-vis spectra of Ce–TiO₂/SBA-15 samples. In contrast to the red-shift effect brought by the Ce doping, the incorporation of SBA-15 as the support resulted in a blue-shift of the absorption spectra, which is signified at a higher SBA-15 loading. The blue shift of the adsorption edge indicates the increasing of the forbidden band energy and thus a smaller semiconductor particle size, according to the quantum mechanics theory.⁴⁵ The result in this study is in agreement with the literature that a blue shift of light absorption edge of TiO₂/SBA-15 has been observed compared with pure anatase TiO₂ or P25.^46–48 The smaller TiO₂ nanoparticle size in the presence of the SBA-15 matrix is likely due to the confinement effect of the mesopores in SBA-15 that inhibit the growth of TiO₂ nanocrystals.⁴⁶ This blue-shift in absorption spectra caused the inability of the Ce–TiO₂/SBA-15 catalyst to respond to visible light excitation (λ > 400 nm), according to the result in this work, as opposed to the observed visible light activity for bare Ce–TiO₂ catalysts reported in the literature.^22–24 However, the absorption in the UV region (λ < 350 nm) was enhanced for all the Ce–TiO₂/SBA-15 samples compared to Ce–TiO₂ (Fig. 8b).

3.4 Oxidation states of doped cerium – XPS analysis

The results of XPS for the 0.03Ce_1Ti sample are shown in Fig. 9. The energy interval between approximately 882 eV and 903 eV was attributed by Ce 3d 5/2, while the Ce 3d 3/2 was at the 905 eV to 918 eV interval. To perform quantitative analysis, the background was first subtracted using Shirley approximation function in Augerscan software, and then the 3d 3/2 and 3d 5/2 peak structures were fitted. There were in total 10 peaks fitted for the XPS spectrum between 870 and 920 eV, where Ce⁴⁺ (CeO₂) has six peaks (#5–10) for the total 3d lines due to strong hybridization of the oxygen 2p valence band with the Ce 4f orbital, while Ce³⁺ (Ce₂O₃) has four peaks (#1–4).⁴⁹ Relative ratio/concentrations of Ce³⁺/Ce⁴⁺ were calculated based on the summation of the corresponding peak areas, which gives a Ce³⁺/Ce⁴⁺ ratio equal to 55.3%/44.7% before photoreaction and 49.5%/50.5% after photoreaction. The same analysis was done for the 0.08Ce_1Ti sample (XPS spectra not shown here), and the Ce³⁺/Ce⁴⁺ ratio was 51.8%/48.2% before photoreaction and 52.7%/47.2% after photoreaction. These results indicate that the Ce³⁺/Ce⁴⁺ ratios were similar for the different Ce/TiO₂ samples and almost did not change during the CO₂ photoreduction process.

Fig. 9 XPS spectra of Ce 3d of the 0.03Ce_1Ti sample before (a) and after (b) CO₂ photocatalytic reduction with water vapor.

3.5 Photocatalytic activity

A series of background tests were first conducted to prove that any carbon-containing compounds in the effluent gas measured by the GC indeed originated from CO₂ through photocatalytic reactions. First, tests were conducted using CO₂ and H₂O vapor as the purging and reaction gas for the cases of (1) empty reactor and (2) blank glass–fiber filter in the reactor. No carbon-containing compounds were produced under UV-vis irradiation in each of the two cases. This demonstrates that the reactor and the glass–fiber filter were clean and that CO₂ reduction cannot proceed without the photocatalyst. Second, pure helium (instead of CO₂) and water vapor were used as the purging and reaction gases tested with the catalyst loaded in the reactor. Again, no carbon-containing compounds were produced by the catalyst under UV-vis irradiation. This verifies that the catalyst was clean (i.e. no interference from organic residues) and that any produced C-containing gases must be derived from CO₂ in the reaction gases.

In this study, CO and CH₄ were identified as the main products of CO₂ photoreduction with H₂O on Ce–TiO₂ and Ce–TiO₂/SBA-15 nanocomposites. This was in line with our previous published work^4,10,36 that CO and CH₄ are the main products of CO₂ photoreduction with water vapor, although other studies reported the generation of methanol, formaldehyde, etc., when TiO₂ catalyst suspension in an aqueous phase was investigated.^28,50Fig. 10 shows the production rates of CO and CH₄ on selected photocatalysts as a function of photo-illumination time. For all catalysts, the production rates gradually decreased after reaching the maximum values, indicating a gradual deactivation of the catalytic performance. Similar trend in deactivation has been observed in our previous studies^4,19 and in the literature reports;^50,51 possible reasons are surface coverage of reaction intermediates or re-oxidation of the reaction products.⁵⁰ To better compare the activities of the different photocatalysts, accumulative yields during the 4 h photo-illumination were calculated by integrating the production rate with time. The comparison results are presented as follows.

Fig. 10 Production rate of (a) CO and (b) CH₄ over TiO₂, 0.03Ce_1Ti, 0.03Ce_1Ti_4Si and 0.03Ce_1Ti_4aSi catalysts under UV-vis illumination.

3.5.1 Photocatalytic activity of Ce–TiO₂. Fig. 11 shows the accumulative yields of CO and CH₄ production during the 4 h photo-illumination period using pristine TiO₂ and Ce–TiO₂ samples with different Ce : Ti ratios. Pristine TiO₂ exhibited very low photocatalytic activity, with a CO yield at 0.25 μmol g⁻¹ and a CH₄ yield at 0.05 μmol g⁻¹. Ce-modification in TiO₂ significantly influenced CO production. At 1% and 3% Ce concentration, the CO yield reached approximately 1.0 μmol g⁻¹, four times as high as the pristine TiO₂. However, further increasing the Ce concentration to 8% resulted in a lower CO yield, and at 12% Ce concentration, the CO yield was even lower than that of pristine TiO₂. The CH₄ yields of all the TiO₂ and Ce–TiO₂ samples remained in the same order and at least one magnitude lower than CO yields, indicating that CH₄ yield was not affected by the Ce addition.

Fig. 11 Product yields of CO and CH₄ over TiO₂ and Ce–TiO₂ catalysts under UV-vis illumination for 4 h.

The enhanced CO production due to low concentration Ce-modification on TiO₂ can be attributed to several reasons. First, Ce-dopant decreased the crystal size of TiO₂ and increased the surface area, as shown in Table 1, thus enhancing the catalytic activity. Second, Ce-dopant inhibited the transformation of anatase to rutile phase and promoted the growth of both anatase and brookite phases, as shown in Table 1. It is well known that anatase TiO₂ is photocatalytically more active than rutile, but a mixture of the two phases can be advantageous. Studies by Gray and co-workers^52,53 indicated that the enhanced photocatalytic activity of P25 (approximately 80% anatase and 20% rutile) is due to the presence of a nanostructured arrangement of interwoven anatase–rutile crystallites, unique interfacial trapping sites, as well as the electron transfer process across the interface from rutile to anatase. Similar mechanism may apply for the anatase–brookite mixture found in this work for the samples of 0.01Ce_1Ti and 0.03Ce_1Ti, considering the conduction band (CB) edge of brookite is slightly above that of anatase,⁵⁴ making it possible for electrons to transfer from brookite to anatase. Both 0.01Ce_1Ti and 0.03Ce_1Ti samples showed similar phase composition (approximately 70% anatase and 30% brookite), similar surface area, and similarly high photocatalytic activity compared to other Ce/TiO₂ samples (i.e., the 0.08Ce_1Ti sample that has pure anatase phase and the bare TiO₂ that has a mixture of anatase–brookite–rutile with a dominating rutile phase). The above results indicate that a binary anatase–brookite with dominating anatase phase at low Ce concentration could promote CO₂ photoreduction activity. This conclusion is in line with the literature reports^55,56 that anatase–brookite mixtures are more active than pure anatase for photo-degradation of organic compounds, and with our recent research findings that an anatase–brookite mixture of TiO₂ is active in CO₂ photoreduction with water vapor.^10,36

Another important reason for the enhanced activity may be related to the Ce³⁺/Ce⁴⁺ redox couple on TiO₂ that facilitates electron–hole separation. It is well known that Ce⁴⁺ ions can trap photo-excited electrons at the CeO₂/TiO₂ interface through reaction (1).^6,20,23,27 The Ce³⁺ ions can then react with gas-phase O₂, if any (reaction (2)) to regenerate Ce⁴⁺,^20,27 or react with CO₂ (reaction (3)) in the case of this study, to form surface adsorbed CO₂⁻ that can be further reduced to CO (reaction (4)). The formation of CO₂⁻ species as CO₂ reduction intermediates has been confirmed by our previous in situ DRIFTS study using Cu/TiO₂ catalysts.¹⁹ Hence, the presence of Ce⁴⁺ enhanced electron trapping and transfer to CO₂.

e⁻ + Ce⁴⁺ → Ce³⁺ (1)

Ce³⁺ + O₂ → Ce⁴⁺ + O₂⁻ (2)

Ce³⁺ + CO₂ → Ce⁴⁺ + CO₂⁻ (3)

CO₂⁻ + e⁻ → CO + O²⁻ (4)

Ce³⁺ + h⁺ → Ce⁴⁺ (5)

On the other hand, it is possible that Ce³⁺ ions can be directly oxidized back to Ce⁴⁺ by photo-excited holes, according to reaction (5),⁶ which may diminish the promoting effect of electron transfer as described above. However, the pre-existing Ce³⁺ ions on the TiO₂, in the case of Ce–TiO₂ samples prepared in this work, can provide abundant Ce³⁺ sites to promote reaction (3). Furthermore, the hole trapping effect of Ce³⁺ can also prevent holes from re-oxidizing the reaction product (i.e., CO) back to CO₂. Therefore, the Ce³⁺/Ce⁴⁺ redox couples are advantageous over Ce⁴⁺ or Ce³⁺ alone to promote charge separation and enhance CO₂ photoreduction. The XPS result that the Ce³⁺/Ce⁴⁺ ratio almost did not change during the photo-reaction was another evidence for the abovementioned Ce³⁺/Ce⁴⁺ redox reactions that remained at a dynamic equilibrium.

At a relatively high Ce loading (>8%), the CO production was not superior to pristine TiO₂, probably because the higher concentrations of Ce species become recombination centers and thus lead to accelerated electron–hole recombination. Similar findings have been reported in the literature that Cu-modified TiO₂ increased CO₂ photoreduction at low Cu concentrations but too high a Cu concentration resulted in decreased catalytic activity due to formation of recombination centers.⁴

3.5.2 Photocatalytic activity of Ce–TiO₂/SBA-15. In this set of experiments, a fixed amount of 200 mg Ce–TiO₂/SBA-15 was used for each test, while the Ce concentration relative to TiO₂ remained the same at 3% and the Ti : Si ratio varied from 1 to 4. Compared with the bare Ce–TiO₂ sample, dispersing the Ce–TiO₂ nanoparticles on the SBA-15 matrix resulted in a significant enhancement in the yields of CO and CH₄ production, as shown in Fig. 12. The enhancement seemed to be proportional to the loading of SBA-15 used. Among the three Ce–TiO₂/SBA-15 samples tested, the sample with the highest SBA-15 loading, 0.03Ce_1Ti_4Si, showed the highest activity for both CO and CH₄ production, reaching 7.5 and 7.9 μmol g⁻¹, respectively. Compared with the 0.03Ce_1Ti sample, the 0.03Ce_1Ti_4Si sample demonstrated 8-fold enhancement in CO production and 115-fold enhancement in CH₄ production.

Fig. 12 Product yields of CO and CH₄ over Ce–TiO₂/SBA-15 and Ce–TiO₂/aSiO₂ catalysts under UV-vis illumination for 4 h.

This superior activity of SBA-15 supported Ce–TiO₂ catalysts is believed to be mainly attributed to the higher surface area and better dispersion of the Ce–TiO₂ nanoparticles, as verified by the BET and TEM analyses. Moreover, SBA-15 as the support may enhance the stability of the TiO₂ anatase phase and prevent the grain growth of TiO₂ nanocrystals.⁵⁷ This mechanism was also supported by our XRD results that 100% anatase TiO₂ was present in Ce–TiO₂/SBA-15 samples and supported by our UV-vis DRS results that smaller TiO₂ nanoparticles were present due to the SBA-15 confinement effect leading to a blue-shift in light absorption. In addition, mesoporous silica is also a well-known CO₂ adsorbent that may increase the localized concentration of CO₂ near the surface of TiO₂, and thus improve CO₂ adsorption on TiO₂ and subsequent reduction. In a recent study by Yang et al.³² an enhanced photocatalytic CO₂ reduction was observed on a 2%Cu–TiO₂/SBA-15 sample (45 wt% TiO₂ loading) compared with 2%Cu–TiO₂; however, the enhancement due to the SBA-15 support was only 20%. In our work, the enhancement factor was much more significant on Ce–TiO₂/SBA-15, suggesting the superior effect of Ce addition. Furthermore, the dramatic 115-fold enhancement in CH₄ production observed in this study is very intriguing. Because eight protons are needed for generation of one CH₄ molecule in comparison with two electrons for CO generation, the surface Si–OH groups or active OH sites due to the presence of SBA-15 may be more readily available for CO₂ reduction and conversion to CH₄. Investigations on this high CH₄ selectivity as well as the potential synergies between the Ce species, TiO₂ and the SBA-15 support are in our future research plan.

Another important finding in this study was that Ce–TiO₂ dispersed on SBA-15 was much more active than that dispersed on amorphous mesoporous silica. As shown in Fig. 12, the CO yield on the amorphous silica supported sample, 0.03Ce_1Ti_4aSi was very small, even lower than the catalyst without silica support. The CH₄ yield of 0.03Ce_1Ti_4aSi was 1.5 μmol g⁻¹, higher than the catalyst without silica support but still much lower than the catalyst supported on SBA-15. The overall CO₂ reduction rate to CO and CH₄ was more than 10 times higher on 0.03Ce_1Ti_4Si than on 0.03Ce_1Ti_4aSi. Since the specific surface area of the 0.03Ce_1Ti_4Si sample was only slightly larger that of the 0.03Ce_1Ti_4aSi sample (Table 1), the much higher activity of the SBA-15 supported sample should result from other factors besides the surface area effect.

One possible reason is that ordered pores of SBA-15 are more accessible to TiO₂ precursors during the preparation process, leading to a better dispersion of TiO₂ nanoparticles. Amorphous silica with random arrays of pores and shapes in some cases are poor supports for functional agents because not all the volume of irregular pores is accessible to the incorporated species.⁵⁸ The second possible reason could be the stronger interactions between the SBA-15 and the TiO₂ nanoparticles confined inside the ordered pores, which favor the formation of interfacial active sites. Li et al.⁵⁹ identified a particular Ti–O–Si bond at the interface of nano-TiO₂ embedded in a mesoporous SiO₂ through FTIR analysis, and they reported that this Ti–O–Si bond attributed to a stronger light absorption in the UV region compared with bare TiO₂. Our UV-vis absorption results (Fig. 8b) also showed a similar stronger absorption for Ce–TiO₂/SBA-15 samples at λ < 350 nm, suggesting a possible formation of a Ti–O–Si bond at the TiO₂–SBA-15 interface. The third possible reason may be related to the larger CO₂ adsorption capacity of SBA-15⁶⁰ and easier diffusion of CO₂ into the ordered pores compared with the amorphous silica. The enhanced local concentration of CO₂ around the TiO₂ nanoparticles could then promote the subsequent CO₂ reduction reaction.

4. Conclusion

A novel Ce–TiO₂/SBA-15 nanocomposite was synthesized for the first time in the literature and tested as a photocatalyst for converting CO₂ and H₂O to fuels such as CO and CH₄ under photo-illumination. Modification of TiO₂ with Ce significantly stabilized the TiO₂ anatase phase and increased the specific surface area, which contributed to an improvement of CO production from CO₂ reduction. Dispersing Ce–TiO₂ nanoparticles on the mesoporous SBA-15 support further enhanced both CO and CH₄ production. Particularly the CH₄ production was enhanced by up to 115 times compared with unsupported Ce–TiO₂. The superior catalytic activity may be related to the partially embedded Ce–TiO₂ nanoparticles in the ordered 1-D pores in SBA-15 that form synergies between the different components of the catalysts and enhance the diffusion and adsorption of CO₂. This mechanism also correlates well the results that using SBA-15 as the support led to more than 10 times higher activity in CO₂ photoreduction than using amorphous silica as the support. Findings in this work demonstrate the feasibility of solar fuel production from CO₂ and H₂O using the prepared nanocomposite photocatalysts. On-going research is being dedicated to further improving the overall CO₂ conversion rate and control of product selectivity.
