Jean-Charles
Buffet
and
Jun
Okuda
*
Institut für Anorganische Chemie, RWTH Aachen, Landoltweg 1, D-52056, Aachen, Germany. E-mail: jun.okuda@ac.rwth-aachen.de; Fax: +49 241 80 94645
First published on 18th August 2011
Poly(lactides) (PLAs), or poly(lactic acid)s, are among the first commercial biodegradable polymers that have the potential to become commodity plastics. meso-Lactide, a by-product of L-lactide production, will become more easily available. Highly stereoregular poly(meso-lactides) should be crystalline and thus interesting as polymeric material. In this short review, initiators capable of inducing the stereoselective ring-opening polymerization of meso-lactide to ideally give syndiotactic or heterotactic PLAs will be discussed. Mechanistic discussions with regard to understanding the reactivity differences between the various lactide monomers are included.

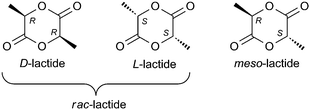

Scheme 1 Lactide monomers. |
The physical and mechanical properties of any polymeric material critically depend on the microstructure (tacticity) of the main chain. Polymers that have stereocenters in the repeat unit can exhibit two structures of maximum order; isotactic (from L-, D- or rac-LA) and syndiotactic (from meso-lactide). Adjacent stereocenters of isotactic polymers are of the same relative stereochemistry, whereas those of syndiotactic polymers are of opposite relative configuration. Due to their stereoregularity, isotactic (Tm > 180 °C) and syndiotactic polymers (Tm = 152 °C) are crystalline, an important feature for many applications. Heterotactic PLAs (obtained from rac- or meso-LA) have been reported to be amorphous and to show no melting temperature so far. Mixtures of poly(L-lactide), PLLA, and poly(D-lactide), PDLA, forming stereocomplexes (with Tm values up to 220 °C) are currently at the center of focus.3
Stereoregular PLA materials can be prepared from meso-LA by using metal complexes as single-site initiators. Two different mechanisms are conceivable. One is chain-end-control, where the insertion of the incoming meso-LA monomer is determined by the stereogenic center in the last repeating unit in the propagating chain. If the stereogenic center in the last unit is repeated, syndiotactic PLA will be obtained. If the stereogenic center of the last unit favors alternating enchainment through the opposite stereogenic center, heterotactic PLA will result. The other mechanism is enantiomorphic site-control where the insertion of the incoming meso-LA monomer is controlled by the ligand sphere. In this case, syndiotactic PLA will be obtained from meso-LA (Scheme 2).

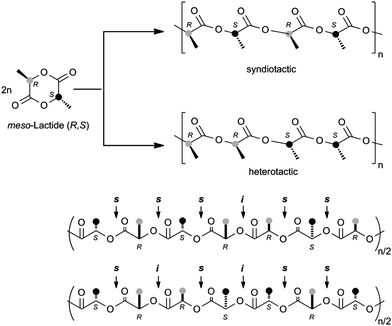

Scheme 2 Structures of PLAs synthesized from meso-lactide. |
In this review, we will summarize the current status of the synthesis of poly(meso-lactide) by ring-opening polymerization using single-site metal initiators.
Di(n-butyl)magnesium polymerized meso-lactide in toluene at room temperature with full conversion reached after 8 days resulting in nearly atactic polylactides.4b
Zinc, lead, antimony, or bismuth compounds were also used as initiators in the ring-opening polymerization of meso-lactide at 120 °C in xylene.4c The polymerizations using lead oxide and bismuth(2-ethylhexanoate) showed high conversion but resulted in low molecular weight polymers. When zinc stearate and antimony (2-ethylhexanoate) were used, meso-lactide was polymerized faster than rac-lactide to afford PLAs in similar yields and inherent viscosities.
Scheme 3 Aluminium initiators for the polymerization of meso-lactide. |
Feijen et al. showed that meso-lactide polymerization using chiral aluminium salan complexes in the presence of isopropanol (2a–c, Scheme 3) occurred in a controlled fashion (Mn,exp = 6000–7000 g mol−1 and Mw/Mn = 1.09–1.12), resulting in syndiotactically biased PLAs (Ps = 0.64, 0.70 and 0.69, respectively) (Table 1).8
They also demonstrated that achiral aluminium salen complexes (3a–c, Scheme 3) gave atactic polymers (Ps = 0.56, 0.57 and 0.53, respectively) in the presence of isopropanol.9 The minor difference in the tacticity of these polymers suggests that substituents on the ligand have little effect on the chain-end control during meso-lactide polymerization. In all cases, the polymerization rates for meso-lactide were lower than those for rac-lactide.
Scheme 4 Group 3 metal initiators for the polymerization of meso-lactide. |
Initiators based on group 3 bis(phenolate) complexes 5a–f (Scheme 4), active in heteroselective ROP of rac-LA, were found to polymerize meso-lactide, producing highly syndiotactic PLAs.11 These complexes contain a “temporary” chiral reaction site that apparently allows for selective ring-opening of one of the diastereotopic ester functions.11 The C3-linked complex 5e gave the highest syndiotacticity (Ps = 0.90) when the tert-butylortho-substituents complexes 5a, 5c, and 5f are compared with respect to their ROP activity. Fast conversion and high syndiotacticity were achieved using 5b and 5d, C2-bridged scandium derivative with ortho-cumyl (CMe2Ph) substituents in the phenoxy group (Ps > 0.92). Apparently, complexes with bulkier orthocumyl substituents showed better control over syndiotacticity than those with tert-butyl substituents.
Polymerizations of meso-lactide in melt (60–130 °C) using scandium complex 5f were rapid (50% monomer conversion in less than 10 min) and controlled. Tacticity control (Ps > 0.83) was as high as that observed in solution. The scandium complex 5d showed complete conversion within 30 min (Ps = 0.92), whereas the homologous yttrium complex led to 79% conversion (Ps = 0.71) (Table 2).11
Initiator | [Initiator]0/mol L−1 | [mon.]0/[init.]0 | % Conv. | P s | Ref. |
---|---|---|---|---|---|
a Polymerization conditions: 30 min, THF, 20 °C. b Polymerization conditions: 30 min, toluene, 25 °C. | |||||
4 | 0.004a | 100 | 97 | 0.75 | 10 |
5a | 0.002b | 100 | 99 | 0.88 | 11 |
5b | 0.002b | 100 | 88 | 0.93 | 11 |
5c | 0.002b | 100 | 99 | 0.89 | 11 |
5d | 0.002b | 100 | 99 | 0.92 | 11 |
5e | 0.002b | 100 | 99 | 0.90 | 11 |
5f | 0.002b | 100 | 99 | 0.89 | 11 |
6 | 0.002b | 100 | 99 | 0.72 | 13 |
7 | 0.002b | 100 | 99 | 0.73 | 13 |
The use of scandium amide complexes containing cyclen-derived (NNNN)-type macrocycle ligands 6 and 7 for meso-lactide polymerization was reported (Scheme 4). Complexes 6 and 7 were fast (full conversion at room temperature in less than 30 min), giving syndiotactic PLA (Ps = 0.73) with molecular weight efficiency values12 of 3.81 for 6 (Mn,exp = 46000–55000 g mol−1) and 0.85 for 7 (Mn,exp = 12250–15000 g mol−1).13
Scheme 5 Indium initiators for the polymerization of meso-lactide. |
Indium bis(phenolate) complex bearing tert-butylortho-substituent (9, Scheme 5) gave highly syndiotactic PLA with low polydispersity (Ps = 0.93 and Mw/Mn = 1.05) at room temperature, with full conversion reached after 16 h (Table 3).11
Initiator | [Initiator]0/mol L−1 | [mon.]0/[init.]0 | Time/h | % Conv. | P s | Ref. |
---|---|---|---|---|---|---|
a Polymerization conditions: [InCl3]0/[PhCH2OH]0 = 1, dichloromethane and triethylamine, 0 °C. b Polymerization conditions: [InCl3]0/[PhCH2OH]0 = 1, dichloromethane and triethylamine, 25 °C. c Polymerization conditions: [InCl3]0/[PhCH2OH]0 = 1, melt and triethylamine. d Polymerization conditions: toluene, 25 °C. | ||||||
InCl3 | 0.276a | 100 | 30 | >99 | 0.62 | 14 |
InCl3 | 0.276b | 100 | 5 | >99 | 0.56 | 14 |
InCl3 | 0.276c | 50 | 5 | >99 | 0.44 | 14 |
9 | 0.520d | 100 | 16 | >99 | 0.93 | 11 |
Scheme 6 Group 4 metal initiators for the polymerization of meso-lactide. |
Initiator | [Initiator]0/mol L−1 | [mon.]0/[init.]0 | Time/h | % Conv. | P s | Ref. |
---|---|---|---|---|---|---|
a Polymerization conditions: toluene, 100 °C. b Polymerization conditions: C6D6, 100 °C. c Polymerization conditions: toluene, 50 °C. | ||||||
10a | 0.520a | 100 | 24 | 38 | 0.63 | 16 |
10b | 0.520a | 100 | 24 | 73 | 0.73 | 16 |
10c | 0.520a | 100 | 24 | >99 | 0.71 | 16 |
10d | 0.520a | 100 | 24 | 8 | — | 16 |
10e | 0.520a | 100 | 24 | 71 | 0.70 | 16 |
11a | 0.520b | 50 | 24 | 71 | 0.62 | 16 |
11b | 0.520b | 50 | 24 | 94 | 0.71 | 16 |
12a | 0.520c | 100 | 48 | 79 | 0.18 | 17 |
12b | 0.520c | 100 | 48 | 85 | 0.25 | 17 |
12c | 0.520c | 100 | 48 | 93 | 0.62 | 17 |
The syndiotacticity is higher when the ortho-position is a cumyl (2-phenylpropyl) substituent in complex 10b (73% conversion, Ps = 0.73) when compared with complex 10a with tert-butyl substituent in the phenoxy moiety (38% conversion, Ps = 0.63). A change in the metal has a significant effect on the polymerization of meso-lactide. Zirconium complex 10c polymerized meso-lactide faster (>99% conversion) than the homolog titanium complex 10b (73%) with a monomer:initiator ratio of 100. Asymmetric group 4 metal initiators were obtained from [Ti(OiPr)n−xClx] (11a,b, Scheme 6).16
When complex 11a was used as an initiator 71% conversion was attained (Mw/Mn = 1.06 and Ps = 0.62) at 100 °C for 24 h, in C6D6 (monomer:initiator ratio of 50). However, 94% conversion was obtained with 11b (Mw/Mn = 1.07, Ps = 0.71).16 The efficiency values for these initiators were approximately 0.5.
C 2-Symmetric complexes of tetravalent metals containing two 1,ω-dithia-alkanediyl-bridged bis(phenolato) (OSSO)-type ligands polymerized meso-lactide to give heterotactic or syndiotactic polylactides depending on the metal center.17Polymers at 50 °C in toluene obtained by using zirconium complex 12a showed the lowest syndiotacticity (Ps = 0.18) compared with that of polymers obtained by the hafnium complex 12b (Ps = 0.25) and cerium complex 12c (Ps = 0.62), with the latest showing the highest monomer conversion. This was associated with the space available between the two (OSSO)-type ligands in the cerium complex, as indicated the results of single crystal analysis of 12c.17
Scheme 7 Zinc complexes for polymerization of meso-lactide. |
Scheme 8 Alkaline earth metal complexes for polymerization of meso-lactide. |
Scheme 9 NHC used for polymerization of meso-lactide. |
Fig. 1 Molecular structures of meso-lactide according to ref. 21: (a) side-on view and (b) side view. |
Polymerization of meso-lactide by the chiral aluminium initiator (R)-1 (Scheme 3) proceeded with a slow rate (kobs = 2.0 × 10−3 min−1). Interestingly, this is approximately half the rate of the formation of the heterotactic PLA, prepared from meso-lactide using rac-1 (kobs = 4.4 × 10−3 min−1). This result can be rationalized on the basis that (R)-1 can only attack meso-lactide at one of the two diastereotopic acyl-oxygen bonds (Scheme 10).7
Under the same conditions, aluminium complexes 3a–c (Scheme 3) polymerized meso-lactide with various rates (kobs of 29.4, 4.6 and 13.5 × 10−3 min−1, respectively).9 When the complexes 3a and 3c (R = R′) were used, rac-lactide was polymerized ca. 1.3 times faster than meso-lactide. However, using complex 3b (R ≠ R′), the polymerization of L-lactide is ca. 2.1 fold faster than rac-lactide and 5 times faster than meso-lactide; demonstrating a direct effect of the substituent on the mechanism of the polymerization. This was attributed to the chain-end selection caused by the presence of both stereogenic centers.9
When indium complex 8 (Scheme 5) was used, the polymerization rates for rac-lactide and meso-lactide (kobs = 13.8 × 10−3 min−1) were similar and approximately 10 times higher than that for L-lactide. These findings support a mechanism where both the rate of polymerization and selectivity of monomer enchainment are influenced by multiple stereocenters in the monomer and/or the polymer chain end.15
The polymerization of meso-lactide (kobs = 0.8 × 10−3 min−1) using titanium complex 10e demonstrated a rate comparable to that of rac-lactide which was ca. 2.2 times slower than L-lactide polymerization. This was explained by a reaction site with a preference for L-lactide.16 The asymmetric chlorinated analog titanium complex 11b indicated a polymerization of meso-lactide 4 times slower (kobs = 0.2 × 10−3 min−1) than when complex 10e was used.16
When the tetravalent complexes containing two (OSSO)-type ligand (12a–c) were compared, the cerium complex 12c showed the fastest polymerization rate for meso-lactide (kobs = 3.2 × 10−3 min−1) and ca. 2.1 times faster than rac- and L-lactide. Similar tendency was found using hafnium 12b, meso-lactide (kobs = 2.8 × 10−4 min−1) was polymerized twice as fast compared to rac- and L-lactide. However, zirconium complex 12a polymerized rac-lactide and L-lactide approximately 20 times faster than meso-lactide (kobs = 1.1 × 10−4 min−1).17
At room temperature, zinc complex 13a polymerized rac-lactideca. 1.6 times faster than meso-lactide (kobs = 37.0 × 10−3 min−1) (Table 5).18
Initiator | [Initiator]0/mol L−1 | [mon.]0/[init.]0 | Solvent | k obs/10−3 min−1 | T/°C | Ref. |
---|---|---|---|---|---|---|
R-1 | 0.200 | 100 | Toluene | 2.0 | 70 | 7 |
rac-1 | 0.200 | 100 | Toluene | 4.4 | 70 | 7 |
3a | 0.474 | 96 | Toluene | 29.4 | 70 | 9 |
3b | 0.474 | 96 | Toluene | 4.6 | 70 | 9 |
3c | 0.474 | 96 | Toluene | 13.5 | 70 | 9 |
8 | 0.840 | 100 | CD2Cl2 | 13.8 | 21 | 15 |
10e | 0.520 | 100 | C6D6 | 0.8 | 100 | 16 |
11b | 0.520 | 100 | C6D6 | 0.2 | 100 | 16 |
12a | 0.520 | 100 | C6D6 | 0.1 | 100 | 17 |
12b | 0.520 | 100 | C6D6 | 0.3 | 100 | 17 |
12c | 0.520 | 100 | C6D6 | 3 | 100 | 17 |
13a | 1.023 | 494 | CH2Cl2 | 37.0 | 25 | 18 |
In contrast, when rac-lactide is polymerized, chirality or rigidity of the backbone of the ligand was not necessary to obtain high tacticity.11,18 In most cases, metal complexes which polymerized rac-lactide to give highly heterotactic PLAs, also yielded highly syndiotactic PLAs from meso-lactide.10,11,18 Trivalent metal complexes appeared to afford higher syndiotacticity than the divalent or tetravalent metal complexes. Furthermore, metals (aluminium6,7 and indium11) having slower rates of polymerization than group 3 metals10,11 resulted in better polydispersities of the poly(meso-lactide).
Scheme 10 Formation of syndiotactic PLA according to ref. 6 and 7. |
Since meso-lactide is a by-product of L-lactide synthesis, it will become more easily available with increasing capacity of L-lactide production.23 Therefore, efficient and selective polymerization will be of considerable interest, provided crystalline poly(meso-lactides) can be obtained. This will give large benefits as it will be possible to use L-lactide to form isotactic PLAs and its by-product (meso-lactide) to form syndiotactic PLAs reducing the cost of production and increasing the interest towards biorenewable poly(lactic acid).
