A chirally helical coordination polymer self-assembled with the ligand 2-(2-carboxyphenyl)imidazo(4,5-f)(1,10)phenanthroline: crystal structure, SHG response and tunable photoluminescence

Abstract

A chirally helical coordination polymer [Zn(H₂O)(ONCP)Cl]_n self-assembled with ligand 2-(2-carboxyphenyl)imidazo(4,5-f)(1,10)phenanthroline displays second harmonic generation efficiency, which is approximately two times as much as that of potassium dihydrogen phosphate (KDP), and tunable photoluminescence images form yellow-green to white based on the variation of excitation light.

---

The rational design and construction of new coordination polymers based upon assembly of metal ions and multifunctional organic ligands is an interesting research field due to their intriguing structural diversities and potential applications in functional materials.¹ Especially, the construction of chiral coordination polymers has aroused a great deal of attention because of their utility in chiral synthesis, asymmetric heterogeneous catalysis, enantioselective separation, second-order non-linear optics, and so on.² Abundant chiral coordination polymers have been synthesized, including introduction of chiral organic ligands, chiral metal compounds, or spontaneous solution from achiral materials without any chiral auxiliaries.³ Apparently, the topological structures of resulting coordination polymer are mostly dependent on geometry of metal centers and bonding mode of bridging ligands.⁴ We have employed a designed long-conjugated ligand HNCP (2-(4-carboxyphenyl)imidazo(4,5-f)(1,10)phenanthroline) with phenanthroline nitrogen and carboxylate oxygen donors in either end to link tetrahedrally connected Mn(II) centers, creating a robust 7-fold interpenetration diamondoid network.⁵ By using another new designed ligand O-HNCP (2-(2-carboxyphenyl)imidazo(4,5-f)(1,10)-phenanthroline) (Scheme 1), a helical coordination polymer [Zn(H₂O)(ONCP)Cl]_n (1) with chiral space groupP2₁ was successfully self-assembled by ONCP⁻ anions with end phenanthroline nitrogen and side carboxylate oxygen donors alternately bridging Zn(II) ions. The non-linear optical property of 1 and tunable photoluminescence from green-yellow to white based on the variation of excitation light are discussed in this communication.

Scheme 1 Structure and synthetic route of O-HNCP.

The compound 1 was synthesized hydrothermally by treating ZnCl₂ and designed ligand O-HNCP at 140 °C.‡ All major peaks of experimental powder X-ray pattern (XRPD) match quite well with that of the simulated XRPD (Fig. S1 see ESI), indicating reasonable crystalline phase purity of compound 1.† Homochiral crystalline packing of right-handed or left-handed helices was revealed by X-ray single crystal diffraction investigations.† As shown in Fig. 1, the Zn(II) ion is pentacoordinate to one chlorine anion in an apical position and to the four N₂O₂ atoms from two phenanthroline nitrogen atoms, one coordination water and one carboxylate oxygen atom. Adopting a μ₂-η_N²:η_O¹ mode in N,N-chelating and O-monodentate fashion, ONCP⁻ anions, in which the phenyl ring and imidazole ring rotate around C–C bond in opposite direction with the dihedral angle of about 31°, alternately bridge Zn(II) ions to form 1D left-handed or right-handed helical chains along the 2₁ screw axes in the crystals of compound 1 (Fig. 2). Strikingly, four randomly selected crystals from the same batch all showed the chiral space groupP2₁ and nearly zero Flack parameters χ (0.04(2), 0.065(14), 0.02(3), 0.020(17), respectively), indicating homochirality in the crystals.⁶ In other words, we structurally identified both right-(P) and left-(M) handed helices of two different crystals from same batch, demonstrating a case of conglomeration (racemic mixture of chiral crystals).⁷ The homochirality in the crystals of 1 could be explained by strong supramolecular interactions between the single-helical chains. As shown in Fig. 3 and 4, the strong hydrogen bonding interactions between N–H group and chlorine atom, coordination water and chlorine atom or uncoordinated carboxylate oxygen atom make the single-helical chains array uniformly in crystallographic bc-plane, and π–π attraction between phenyl ring and pyridine ring, in offset face-to-face mode with the parallel distance of about 3.5 Å, make the single-helical chains array uniformly in crystallographic ab-plane. Thus, compound 1 possesses a chiral supramolecular architecture due to the existence of supramolecular interactions between the single-helical chains, through which the same chirality is preserved. Most coordination helices in the 3D crystal framework are formed by the self-assembly of achiral or racemic ligands with metal ions and therefore yield racemates of right-handed and left-handed helices.⁸ In a few cases, the use of enantiopure ligands leads to the formation of chiral helices.⁹ The compound 1 represents spontaneous resolution of chiral helices through supramolecular interactions.^7,10 Second-order non-linear optical effect for microcrystalline 1 was investigated by optical second harmonic generation (SHG) on the basis of the principles proposed by Kurtz and Perry.¹¹ The intensity of green light (frequency-doubled output: 532 nm) produced by microcrystalline 1 is approximately two times as much as that produced by KDP power. The SHG response is consist with the uniform array of single-helical chains along crystallographic b axis in the crystals of 1.

Fig. 1 ORTEP drawing with 30% probability ellipsoids of enantiomorph in the left-handed (a) and right-handed (b) helices of compound 1. Symmetry code: #1 − x + 1, y + 1/2, −z + 1; #2 −x, y − 1/2, −z + 1.

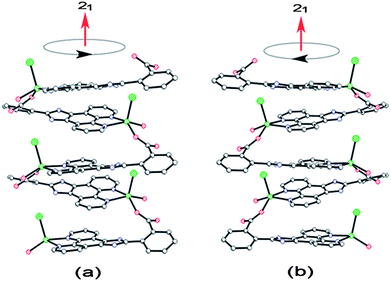

Fig. 2 1D right-handed (a) and left-handed (b) helical chains.

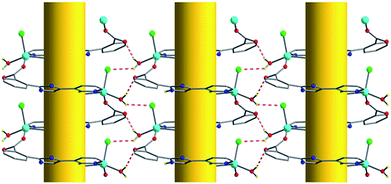

Fig. 3 H-bonding interactions (red dish lines) between single-helical chains, viewed from the crystallographic a-axis, golden cylinders representing 2₁ screw axes.

Fig. 4 π–π attraction between single-helical chains, viewed from the crystallographic c-axis.

Another important feature of 1 is the strong yellow-green luminescence. Fig. 5 shows the excitation and emission spectra of free ligand O-HNCP and compound 1 in the solid state. Compound 1 exhibits strong yellow-green emission with broad band in the range of 450–800 nm and the strongest wavelength λ_max at 550 nm. The excitation peak is located in the range of 380–420 nm, which is blue shifted compared with the free ligand. In addition, the luminescence lifetime is measured to be 22 ns, indicating its fluorescence characteristic. Notably, compound 1 exhibits different photoluminescence images to the naked eye upon variation of excitation light. When excited at 380 nm, compound 1 exhibits characteristic yellow-green emission light. Upon excitation in the range of 400–420 nm, the yellow-green emission light mixes with the purplish-blue excitation light, creating bright white image. The yellow-green emission of compound 1 is intraligand fluorescence emission in nature. But the excitation peak of 1 differ from the free ligand because of the interaction of Zn(II) ion and ONCP⁻ ligand, resulting in tunable photoluminescence images from yellow-green to white based on the variation of excitation light.

Fig. 5 Solid-state PL spectra of ligand O-HNCP and [Zn(H₂O)(ONCP)Cl]_n. Inset: PL images of the sample of [Zn(H₂O)(ONCP)Cl]_n excited by 380 nm, 400 nm and 420 nm light, respectively.

In conclusion, the helical chain [Zn(H₂O)(ONCP)Cl]_n is self-assembled by using designed ligand O-HNCP and strong supramolecular interactions make the right-handed or left-handed helices array uniformly along crystallographic b-axis, resulting in chiral space groupP2₁. The special excitation and emission character of the title compound creates tunable photoluminescence images form yellow-green to white based on variation of excitation light, which suggest that the title compound may be used as potential phosphor for a white-light-emitting diode (white LED). In the past two decades, the photoluminescence of metal–organic frameworks have received intense interest due to their fascinating structures and plentiful charge-transfer types. But studies on the photoluminescence of single-component coordination compounds for the use of phosphors on white LEDs are still in their infancy.¹² Taking advantage of complementary colour theory to search single-component coordination compounds for the application on white LEDs is a noticeable research field.
