A Pt wire coated with pyridine-2,6-dicarboxamide derivative–carbon composite in a poly(vinyl chloride) membrane was used for detection of copper. The sensor has a Nernstian slope of 29.50 ± 0.17 mV per decade over a wide range concentration, of 8.7 × 10−7 to 1.0 × 10−1 mol L−1 for Cu2+ ions. The detection limit is 1.1 × 10−7 mol L−1 and the electrode is applicable in the pH range of 3.0–7.0. The response time of the proposed electrode is 6 s, its life time is at least 3 months and it has good selectivity. The practical analytical utility of the electrode is demonstrated by measurement of Cu2+ ions in multivitamin, orange juice, river water and as indicator electrode in potentiometric titration of copper ion with EDTA. From the obtained data it is seen that there is satisfactory agreement between the results obtain by the proposed electrode and those determined by atomic absorption spectroscopy (AAS), and perfect stoichiometry is observed in titration plot.
Due to the many applications of copper in industry, biological and medical systems,5 and the need for potentiometric monitoring of Cu2+ ions in these areas, a variety of ion selective electrodes (ISEs) of copper has been constructed. In these copper sensors, small size thia-crown ethers,6,7 non-cyclic neutral ionophores,8,9 calyx arenes10,11 and Schiff bases12 have been used as ion carriers. In addition, solid-state electrodes based on CuS–Ag2S are well-established,13 but cations such as Hg22+,Hg2+, and Fe3+ give serious interference.13,14
The specific metal–ligand interaction is the most important recognition mechanism that can be utilized in the development of potentiometric sensors.15 The copper(II)-nitrogen-sulfur ligands frame provides a remarkable contribution to determine copper ions in various samples.16 Successful attempts have also been made in the design and synthesis of highly selective ionophores as sensory molecules for Cu2+ ion ISEs, but they reveal a poor detection limit17–19 narrow concentration range20,21 and serious interference by other ions.22 Most of these electrodes require internal solution.
The development of miniaturized and micro sized ISE probes continues to be an active topic of research, because most commercial ISEs, with tip diameters of the order of 3–15 mm, are regarded as macro in size. Such large sensors such as IS(internal solution)-ISEs are not suitable for measurements in small volumes of sample or for the desired in vivo applications of ISEs that biomedical researchers have long awaited. This quest for miniaturization has resulted in the development of coated wire electrodes (CWEs).23 Although long-term stability may be a problem, CWEs have been found to be quite useful for many direct determinations if the electrodes are calibrated often. The first report on CWEs was published by Cattrall and Freiser,24 since then a variety have been reported.25,26
Carbon-based materials have been used in electrochemistry because of their many advantages, for example low background, low cost, high stability, and resistance to passivation.27
We previously reported, for the first time, use of a PVC–carbon composite on platinum wire as a CWE for analysis of Ag(I), Pb(II), Cr(III) and Al(III). In comparison with most commercially available electrodes, these electrodes were readily prepared and had high selectivity and low detection limits.28–32
The object of this work is to demonstrate use of a new carbon–PVC– pyridine-2,6-dicarboxamide composite electrode on platinum wire for rapid and selective determination of copper over a wide concentration range. The significance of this membrane composition is twofold use of carbon to increasing sensitivity, conductivity and also use of ionophore, an important aspect of increasing the selectivity of this composition. Although complex and expensive methods are used to detect copper with low detection limits, as already mentioned, our method has many advantages, such as good selectivity, sensitivity, stability, easy preparation and requirement of simple and inexpensive potentiometric instruments.
Fig. 1 Chemical structure of the three ionophores: Ionophore I, ROH; ionophore II, ROCH3; ionophore III, RH. |
Ag|AgCl, KCl (sat'd.) ‖Cu2+ solution|membrane|Pt |
Activities were calculated in accordance with the Debye–Hückel procedure.8
Fig. 2 The potential response of various cations on CWE. |
The results are given in Table 1 (electrodes 1-3). Therefore ionophore I was chosen to fabricate copper selective electrode. From spectroscopic characterization as reported in literature,36 it can be concluded that the ligand acts as an ambidentate ligand towards copper metal ions under experimental conditions. The ligand binds to the copper ion through the pyridine nitrogen, two amide oxygens and two deprotonated phenolic oxygens.38
Coating composition (%) | Slope (mV/decade) | R2 | Concentration range/M | ||||
---|---|---|---|---|---|---|---|
No. | Plastisizer | PVC | C | Ionophore | |||
1 | DES | 31.9 | 2 | I(2.2) | 29.45 | 0.998 | 8.7 × 10−7 to 1.0 × 10−1 |
2 | DES | 31.9 | 2 | II(2.2) | 19.12 | 0.994 | 3.2 × 10−6 to 1.4 × 10−3 |
3 | DES | 31.9 | 2 | III(2.2) | 18.74 | 0.994 | 3.2 × 10−6 to 4.0 × 10−4 |
Several solvent mediators (o-NPOE, DES, DBS, DEP) were tested. Ion selective electrode based on DES exhibits a better Nernstian slope (29.50 ± 0.17 mV/decade) than o-NPOE, DBS and DEP as shown in Fig. 3 and Table 2. For this reason DES was chosen as plasticizer in the rest of the experiments.
No | DES | DBS | DEP | o-NPOE | Ionophore | PVC | Ca | Slope (mV/decade) | R2 | Concentration range/M |
---|---|---|---|---|---|---|---|---|---|---|
1 | 63.9 | — | — | — | 2.2 | 31.9 | 2.0 | 29.5 | 0.9995 | 8.7 × 10−7−1 × 10−1 |
2 | — | 63.9 | — | — | 2.2 | 31.9 | 2.0 | 23.7 | 0.9901 | 2.5 × 10−6−1.7 × 10−2 |
3 | — | — | 63.9 | — | 2.2 | 31.9 | 2.0 | 20.4 | 0.9890 | 2.5 × 10−6-1.7 × 10−2 |
4 | 63.9 | — | — | — | 2.2 | 31.9 | 2.0 | 14.3 | 0.9930 | 6.3 × 10−6−1.7 × 10−2 |
5 | 63.9 | — | — | — | 2.2 | 31.6 | 3.0 | 35.9 | 0.9966 | 2.5 × 10−6−2.5 × 10−2 |
6 | 63.9 | — | — | — | 2.2 | 32.3 | 1.0 | 30.8 | 0.9927 | 2.3 × 10−6–2.5 × 10−2 |
7 | 63.9 | — | — | — | 3.3 | 31.6 | 2.0 | 27.1 | 0.9800 | 2.3 × 10−6–2.5 × 10−2 |
8 | 63.9 | — | — | — | — | 32.7 | 2.0 | 21.6 | 0.9946 | 3.6 × 10−5−3.6 × 10−3 |
9 | 63.9 | — | — | — | 2.2 | 32.6 | - | 23.6 | 0.9961 | 1.0 × 10−6–2.5 × 10−2 |
10 | 63.9 | — | — | — | 1.5 | 32.2 | 2.0 | 31.5 | 0.9923 | 6.0 × 10−6−3.6 × 10−3 |
Fig. 3 Effect of several plastisizers on the response of the composite electrode under optimized conditions. |
The performance of membranes of different composition was investigated; the results are given in Table 2. It is apparent from the table that the response of the electrode coated with the composite containing no ligand (no. 8) has a near Nernstian slope of 21.59 mV per decade over a short range of concentration and that the electrode coated with the composite containing 0.0% carbon powder (no. 9) has also a near Nernstian slope of 23.55 mV per decade in the concentration range 1.0 × 10−6 2.5 × 10−2 M whereas at the optimum composition of ionophore (2.2%), carbon powder (2.0%), DES (63.9%), and PVC (31.9.%) the slope obtained was 29.50 mV per decade in the concentration range 8.7 × 10−7−1.0 × 10−1 M (no. 1). Table 2 also shows that an electrode with the optimum amount of ionophore but with more carbon than its optimum value (no. 5) has a super Nernstian slope. Changing the composition of the electrode by reducing the amount of carbon to lower than its optimum value (no. 6) results again in a super Nernstian response. From this Table it is clear that the detection limits and linear dynamic ranges for this CWE are not only influenced by carbon, but also by the amount of the ionophore. The results obtained in this study indicate that the electrodes based on both the N,N′-bis(2-hydroxyphenyl)-pyridine-2,6-dicarboxamide and the carbon powder show a high sensitivity and selectivity for copper ions.

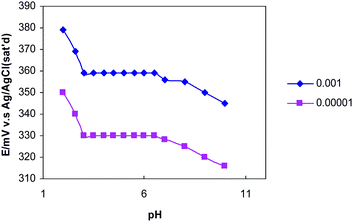

Fig. 4 pH effect on proposed composite electrode in two different concentrations of copper ion in the pH range of 2.0–10.0. |
The reproducibility was investigated by preparing seven similar electrodes at optimum membrane composition, then the slope of each electrode was determined and the average slope with standard deviation was 29.78 ± 0.58 mV/decade.
In the repeatability study, the calibration curves of one electrode were obtained five times over ten days, the calibration curves were taken every other day. The average slope with standard deviation was 29.50 ± 0.17 mV/decade.
The response time of the electrode was evaluated (according to IUPAC definition) by measuring the time required to achieve a 90% value of steady potential for a copper solution. A response time of 6 s was obtained for this carbon-PVC membrane.
To investigate the life time of the electrode, the calibration curves of copper electrode at its optimized composition were periodically obtained for three months. The results showed that this sensor is stable at this period of time.
Interfering ion | log Kij | |
---|---|---|
FIM | MPM | |
Mg2+ | −3.24 | −2.08 |
Co2+ | −3.60 | −2.08 |
Cd2+ | −3.18 | −2.06 |
Ba2+ | −3.13 | −2.05 |
Ni2+ | −2.53 | −1.86 |
Zn2+ | −3.09 | −2.05 |
Pb2+ | −2.02 | −1.66 |
Ca2+ | −3.59 | −2.03 |
K+ | −1.08 | −1.96 |
Na+ | −1.15 | −1.84 |
NH4+ | −2.17 | −1.89 |
Hg2+ | −1.18 | −1.73 |
Mn2+ | −3.54 | −2.06 |
Al3+ | −1.66 | −1.29 |
Cr3+ | −1.82 | −1.34 |
Li+ | −1.97 | −1.79 |
In cases where the ions of different charges are present, the validity of the MSM based on the semi-empirical Nikolskii–Eisenman equation is in question, therefore, the MPM was also applied to these ions. In MPM, the selectivity coefficient is defined as the activity ratio of the primary ion and the interfering ion that gives the same potential change in a reference solution. The concentration of Cu2+ ions used as the primary ion in this study was 1.0 × 10−5 M. The resulting values of the selectivity coefficient for MPM are also summarized in Table 3. As this table shows the interfering cations do not significantly affect the selectivity of the proposed electrode.
Sample | Potentiometry with Pt/CWE/mg L−1 | AAS method/mg L−1 |
---|---|---|
River water | 1.70 ±.06 | 1.80 ±.05 |
Orange juice | 0.21 ±.07 | 0.22 ±.02 |
Multivitamina | 0.79 ±.05 | 0.80 ±.03 |
Vitamin | Quantity |
---|---|
a Components of Theragran-M high potency multivitamin (SQUIBB Company,USA). | |
Vitamin A | 5000 I.U. |
Vitamin B1 | 3 mg |
Vitamin B2 | 3.4 mg |
Vitamin B6 | 3 mg |
Vitamin B12 | 9 mcg |
Vitamin C | 90 mg |
Vitamin D | 400 I.U. |
Vitamin E | 30 I.U. |
Niacin | 20 mg |
Folic acid | 400 mcg |
Pantothenic acid | 10 mg |
Biotin | 30 mcg |
Electrolytes | |
Chloride | 7.5 mg |
Potassium | 7.5 mg |
Minerals | |
Iron | 27 mg |
Copper | 2 mg |
Iodine | 150 mcg |
Zinc | 15 mg |
Magnesium | 100 mg |
Calcium | 40 mg |
Phosphorus | 31 mg |
Chromium | 15 mcg |
Molybdenum | 10 mcg |
Selenium | 10 mcg |
Manganese | 5 mg |
Fig. 5 Potentiometric titration curve of 20.0 mL 1 × 10−3 M of Cu2+ ions. |
Type of electrode | Carrier name | Linear range/M | Detection limit/M | Slope (mV/decade) | Response time/s | Ref. No. |
---|---|---|---|---|---|---|
CWE | N,N′-bis(2-hydroxyphenyl)-pyridine-2,6-dicarboxamide benzyl | 8.7 × 10−7to 1.0 × 10−1 | 1.1 × 10−7 | 29.5 | 6 | This work |
IS-ISE* | Schiff-base | 1.9 × 10−to 1.0 × 10−1 | — | 30.0 | 12 | 43 |
IS-ISE | 3-(2-Pyridinyl)-2H-pyrido[1,2,-a]-1,3,5-triazine-2,4(3H)-dithione | 5.0 × 10−8 to 1.0 × 10−2 | 4.0 × 10−8 | 29.5 | 12 | 2 |
IS-ISE | Schiff's base | 8.0 × 10 −6to 1.0 × 10−1 | 3.0 × 10−6 | 29.5 | 15 | 18 |
IS-ISE | Ethambutol–Cu2+ complex | 7.9 × 10−6 to 1.0 × 10−1 | 7.0 × 10−6 | 29.9 | 11 | 20 |
IS-ISE | o-Vanilin | 5.0 × 10−6 to 1.0 × 10−1 | 8.0 × 10−7 | 28.5 | 30 | 19 |
IS-ISE | Salens | 1.0 × 10−5 to 1.0 × 10−1 | 3.1 × 10−6 | 29.7 | 10 | 22 |
IS-ISE | Porphyrin | 4.0 × 10−6 to 1.0 × 10−1 | 4.4 × 10−6 | 29.3 | 8 | 44 |
IS-ISE | Cyclic tetrapeptide derivative | 1.0 × 10−5 to 1.0 × 10−2 | 2.1 × 10−7 | 25.9 | 15 | 45 |
CWE | Phenylglyoxal-_-monoxime | 1.0 × 10−6 to 1.0 × 10−1 | 5.0 × 10−7 | 28.2 | 10 | 46 |
IS-ISE | Napthol-derivative Schiff's base | 5.0 × 10−8 to 2.0 × 10−2 | 3.1 × 10−6 | 29.8 | 5 | 47 |
IS-ISE | o-Xylene bis(dithiocarbamates) | 10−6 to 10−1 | 1.4 × 10−7 | 29.0 | 9 | 48 |
