Inclusion of a well resolved T4(2)6(2) water tape in a H-bonded, (4,7)-binodal 3D network

Abstract

The reaction of lanthanide nitrate with m-BDTH₂ (1,3-benzeneditetrazol-5-yl) leads to a three dimensional (3D) hydrogen bonded framework formulated as {[Ln(H₂O)₈(m-BDTH)](m-BDT)·12(H₂O)} (Ln: Ce,Nd). The topological description of the supramolecular architectures reveals a new binodal (4,7) net with a Schäfli symbol of (3.4².5³)(3².4².5⁴.6⁵.7²). A self-assembled T4(2)6(2) water tape is included and has been analyzed in comparison with known examples.

---

Introduction

The crystal engineering of supramolecular metal–organic architectures assembled through covalent bonds in addition to other weak cooperative interactions such as hydrogen bond, π–π stacking and electrostatic interactions has been rapidly developed and attracted considerable interest for designing and constructing new crystalline materials.¹ Among these secondary interactions, the hydrogen bond is more important in the molecular assembly due to its suitable strength and directionality.²Hydrogen-bonded water clusters have been broadly studied both theoretically and experimentally as it is possible to provide useful information on the nature of cooperative association of a small collection of water molecules. So far, a variety of tetramer,^3apentamer,^3bhexamer,^3coctamer^3d and decamer^3ewater clusters has been isolated in different solid crystalline hosts.^3f–h Small water clusters (H₂O)_n (n = 4–6) are crucial building units for extended water morphologies including tapes⁴ and layers⁵ whose physical properties are closely associated with those of bulk water.⁶

5-Substituted-1H-tetrazoles are heterocyclic compounds that can be found in neutral, anionic or cationic form. They can act as ligands in metal complexes, form salts and can be both acceptors and donors for hydrogen bonding. The 1,3-benzeneditetrazol-5-yl (m-BDTH₂) ligand is a useful organic spacer which has received less attention in the construction of coordinated metal–organic frameworks.⁷ In a recent publication we described the room temperature synthesis of a 3-D porous framework. In the structure, the [Ln(H₂O)_n]³⁺ ions act as pillars between π-stacked and H-bonded sheets of (m-BDTH)– organic anions in [Ln(H₂O)_n](m–BDTH)₃·9(H₂O) [Ln = Pr, n = 9, Ln = Gd, n = 8].^3b

It is well known that the metal salt, temperature, solvent and the time of reaction affect the nature of the final product. Bearing this in mind, the next step in our systematic investigation was to modify these parameters and observe their influence on the structural diversity of the final products. Thus, the reaction of equimolar amounts of the corresponding hydrated lanthanide nitrate with m-BDTH₂ in a H₂O/CH₃CN/EtOH solvent mixture under reflux for 2h in the presence of CH₃CO₂Na resulted after 3 weeks in the deposition of pale yellow or pink crystals of a compound formulated as [Ln(H₂O)₈(m-BDTH)](m-BDT)·12(H₂O) [Ln: Ce(1), Nd (2)], respectively.

Results and discussion

The full structures of 1 and 2 were determined by single-crystal X-ray diffraction. These two compounds are isomorphous, crystallising in the monoclinic space groupP2₁/n with Z = 4 and consist of one Ln^III, one singly deprotonated (m-BDTH)⁻ ligand, one doubly deprotonated (m-BDT)²⁻ organic dianion, eight aqua ligands and twelve lattice water molecules in the asymmetric unit.

In compound 1Ce(1) is ligated by eight water molecules and one nitrogen atom N(3), forming a capped square antiprism, the eight Ce–O distances within the antiprism lie in the range 2.446(3)–2.588(3) Å and the distance to the capping nitrogen is 2.862(4) Å. BVS analysis reveals that Ce(1) is in the trivalent oxidation state. There are two crystallographically independent organic moieties. The first is partly deprotonated and ligated to the Ce(1) with N(3) from the deprotonated tetrazole ring forming in this way a [Ce(H₂O)₈(m-BDTH)]²⁺ cation (Fig. 1), while the second is completely deprotonated equalizing the positive charge, but not coordinated to the lanthanide centre. The hydrogens of all the water ligands, the N–H hydrogen of the organic molecule and the hydrogens of eleven out of twelve lattice waters could be located and refined, allowing us to study the hydrogen-bonding in the compound.

Fig. 1 The asymmetric unit of 1. Ce green, O red, N blue, C grey. The lattice water molecules are omitted for clarity.

Twenty water molecules are included in the asymmetric unit, therefore a variety of O–H⋯O, O–H⋯N and N–H⋯O hydrogen bonding interactions (Tables S1 and S2†) are observed in both crystal structures. Both organic moieties can act as hydrogen bond donors and acceptors from the ligated water molecules. The ligated monoanion is hydrogen bonded to two [Ce(H₂O)₈(m-BDTH)]²⁺ forming a zig–zag 1D cationic chain perpendicular to the b axis, (Fig. S1).† Generally, the [Ce(H₂O)₈(m-BDTH)]²⁺ cation is hydrogen bonded to the three aforementioned cations and to four (m-BDT)²⁻ organic moieties (Fig. 2). At the same time, the non-coordinated organic moiety forms five hydrogen bonds to ligated water molecules of four [Ce(H₂O)₈(m-BDTH)]²⁺ cations generating a 3D supramolecular architecture (Fig. 2). For the topological description of the 3D supramolecular structure, each (m-BDT)²⁻ organic moiety and each [Ce(H₂O)₈(m-BDTH)]²⁺ cation can be considered as a 4- and 7-connecting node, respectively. (Fig. 2) Thus, the 3D hydrogen bonded framework of 1 can be simplified to a new binodal (4,7) net with a Schäfli symbol of (3.4².5³)(3².4².5⁴.6⁵.7²).⁸ The long notation of the net topology can be described as 3.4.3.5.4.5₂ for the four connected node and 3.3.3.3.4.4.4.5.5.5.5.5.6.6.6₂.6₂.6₂.6₂.6₃.6₃.7₅ for the seven-connected node. (Fig. 3) Furthermore, the ligated organic monoanion and the non-coordinated organic moiety are stacked parallel to the (0 1 1) plane through strong π–π interactions with a mean interplane distance of only 3.24 Å further stabilizing the overall 3D supramolecular framework of 1.

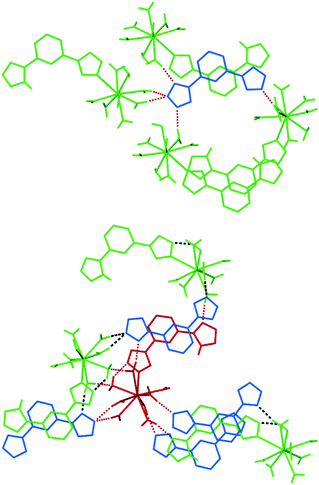

Fig. 2 Hydrogen bonds formed in compound 1 between the 4-connected node (m-BDT)²⁻ organic moiety (blue) and four [Ce(H₂O)₈(m-BDTH)]²⁺ cations (green) (upper). Hydrogen bonds formed between the emphasized 7-connected node [Ce(H₂O)₈(m-BDTH)]²⁺ (red) and three different [Ce(H₂O)₈(m-BDTH)]²⁺ (green) and four (m-BDT)²⁻ organic moieties (blue) (lower).

Fig. 3 A topological presentation of the resulting new (4,7)-connected 3D H-bonding binodal net of 1 and 2. Colour code: [Ln(H₂O)₈(m-BDTH)]²⁺ green node; m-BTD²⁻ blue node (down).

Interestingly, one coordinated (O3) and five lattice water molecules (O11, O12, O14, O15 and O19) form a cyclic water hexamer through hydrogen bonds (Fig. 4). In the structure of 2, the hexamer is slightly different compared to that in 1. Within the hexamer the O⋯O⋯O angles are in the range of 107.5–134.8°, (106.77–135.20° for 2) while the six O⋯O⋯O⋯O torsional angles in the ring are 0.8, −3.0, 4.7, −4.3, 2.9 and −0.9° (0.9, −2.9, 4.7, −4.4, 3.4 and −1.4° for 2). The hexamer in both structures thus approximates to a planar hexagon. The O⋯O distance within the hexamer ranges from 2.673 to 2.778 Å in 1 and from 2.676 to 2.776 Å in 2 with an average value of 2.728 Å and 2.731 Å for 1 and 2, respectively, which can be compared with the O⋯O distance in ice I_h (2.759 Å at 200 K).⁹ Within the hexamer, O3 and O12 act as double donors, O11 and O14 act as double acceptors, while O15 and O19 act as single donor and single acceptor. Furthermore, each hexamer is self-assembled to the symmetry related oxygen atoms through hydrogen bonds into fused four- and six-membered water rings forming in this way an infinite 1D ‘ladder-like’ water tape entitled T4(2)6(2), parallel to the (0 1 1) plane (Fig. 4). The O⋯O distance within the tetramer ranges from 2.673 to 2.852 Å in 1 and from 2.676 to 2.861 Å in 2, with an average value of 2.764 Å in 1 and 2.765 Å in 2, while the plane deviation between the four- and six-membered water rings is defined at 53.79 and 53.84° in 1 and 53.58 and 53.64° in 2. Compared to our recent work,^3b the increase of the temperature in the reaction system results in the formation of a 6-member planar water cluster, while at room temperature 5-memberd planar water clusters are formed. Moreover, it is worth mentioning that in both cases the formed water cluster is developed in the region of one ligated water molecule.

Fig. 4 A planar-shaped hexamer water cluster, the T4(2)6(2) ‘ladder-like’ water tape formed by the water hexamers (upper) and the resulting 3D supramolecular structure of 1 projected onto the (0 1 1). (lower). (Symmetry transformations used to generate equivalent atoms: ^* = 1/2 + x, 1/2 − y, 1/2 − z, ^** = x − 1/2, 1/2 − y, 1/2 + z, ^*** = x − 1/2, 1/2 − y, z − 1/2).

Up to now, the T4(2)6(2) motif has rarely been reported in the literature. Mascal et. al reported an investigation on the H-bonding water clusters with a T4(2)6(2) motif based on a CSD research.^3h As shown in Table 1, there are 22 compounds which form defined 1D water tapes with a T4(2)6(2) motif through a symmetry operation. Among them, in the fourteen examples of water chain the hexamerwater cluster possesses a chair conformation. The remaining eight compounds exhibit a hexamerwater cluster which approximates to a planar hexagon. The water chain inlaid in 1 represents the first example of a planar-shaped T4(2)6(2) motif assembled from six crystallographically independent water molecules. Compared to other planar ladder-like tapes, the average O⋯O distance 2.728 Å in the “tread” of 1 is shorter than any previously reported (Table 2). The ‘riser’ in 1 is defined at 2.764 Å close to the values calculated from other examples of 2.751 Å^10p and 2.776,¹⁰ⁱ while the deviation between ‘riser’ and ‘tread’ is defined at 53.82°, similar to the calculated values of 51.07°^10l and 50.85°^10q (Scheme 1).

Table 1 Crystallographic data for compounds 1 and 2

	1	2
Formula	C16H49CeN16O20	C16H49N16NdO20
M r	925.83	929.95
Crystal size/mm	0.05 × 0.17 × 0.22	0.04 × 0.34 × 0.42
Color	Pale yellow	Pink
Crystal system	Monoclinic	Monoclinic
Space group	P21/n	P21/n
T/K	100	100
a/Å	11.2155(5)	11.2104(17)
b/Å	28.9919(13)	28.980(4)
c/Å	11.9052(5)	11.9110(18)
β/°	111.216(1)	111.184(2)
V/Å^3	3608.7(3)	3608.2(9)
Z	4	4
ρ calcd/g cm^−3	1.704	1.712
µ(Mo-Kα)/mm^−1	1.361	1.538
F(000)	1900	1908
Reflns collected	18231	24695
Unique reflns	6787	8155
Reflns with I > 2σ(I)	6042	6949
Parameters/restraints	594/45	594/51
GoF on F^2	1.071	1.131
R 1 [I > 2σ(I)]	0.0418	0.0478
wR 2 (all data)	0.0902	0.1205

---

Table 2 Comparison of T4(2)6(2) motifs

	Configuration of the hexamer in the T4(2)6(2) motif	Coordinated water	Calculated average distance between O atoms		Dimension of the host
			6 member	4 member
ANAPHS^10a	chair– shaped	no	2.792	2.826	0D
CELGEF ^10b	chair– shaped	no	2.842	2.877	organic
CISPOJ ^10c	chair– shaped	no	2.842	2.898	organic
FEDSOW ^10d	chair– shaped	no	2.880	2.857	1D
GOMGIY ^10e	planar	no	2.808	2.803	organic
MEPYRZ ^10f	chair– shaped	no	2.760	2.849	organic
QIPPUA ^10g	chair– shaped	no	2.776	2.843	organic
UDEDAI ^10h	chair– shaped	no	2.780	2.801	organic
UMEZUH ^10i	planar	no	2.782	2.776	2D
VOBXIT ^10j	chair– shaped	no	2.880	2.884	organic
WEKCIY ^10k	chair– shaped	no	2.726	2.903	organic
XEVHIP ^10l	planar	no	2.770	2.816	0 D
XIPGUY ^10m	chair– shaped	no	2.821	2.822	0 D
XOPSIE ^10n	chair– shaped	no	2.885	2.939	1 D
YABBOS^10o	planar	no	3.024	3.000	1 D
YIKWUK ^10p	planar	no	2.783	2.751	2 D
YUJHAM ^10q	planar	no	2.805	2.844	organic
ZOGZAW ^10r	planar	no	2.799	2.838	1 D
ZUHMIY ^10s	chair– shaped	no	2.827	2.839	organic
^10t	planar	no	2.858	2.829	1D
^10u	chair – shaped	no	2.744	2.775	0D
^10v	chair– shaped	no	3.019	2.878	1D
this work	planar	yes	2.728	2.764	0D

---

Scheme 1 Schematic representation of ‘riser’ and ‘tread’ in the ladder.

Thermal studies

The thermogravimetric analysis (TGA) of compound 1 was performed between 25 and 700 °C at a heating rate of 5 °C min⁻¹ under nitrogen atmosphere (Fig. 5). The weight loss begins at the start of the experiment. The removal of the lattice–water molecules takes place in two subsequent endothermic steps at 105 °C. The calculated value for ten lattice–water molecules (19%) corresponds to the experimental ones (19.50%). Then, the dehydrated compound is stable up to the abstraction of the ligated water molecule which is accomplished at 190 °C. The calculated value for the remaining ten water molecules (19.50%) is not in agreement with the experimental value (15.60%). This indicates that two water molecules remain ligated to the cerium metal centres. Upon temperature increase, the partially dehydrated compound begins to decompose taking place in two discrete steps. First, an endothermic step is completed at 300 °C followed by a second exothermic step at 580 °C. The weight loss which is observed in these two steps corresponds to the total evacuation of N₂ gas and the sublimation of the carbon (theoretical 45.03%, experimental 44.90%). The final residue corresponds to the predicted Ce₂O₃ (theoretical 17.90%, experimental 18.50%).

Fig. 5 TGA–DTA graphs of [Ce(H₂O)₈(m-BDTH)](m-BDT)·12H₂O 1.

Reversible solvent uptake is a widespread property for coordination or hydrogen bonded frameworks either in the form of lattice molecules^11a or acting as bridges.^11b On heating the crystals of compound 1 at 60 °C in vacuum for 120 min, the dehydrated product has an amorphous phase, indicating a collapse of the initial structure. Rehydration of the heated sample affords a different product from the initial material (Fig. 6). It will thus be of interest to investigate the use of alternative methods such as hydrothermal synthesis to gauge whether the water tapes can be modified or disrupted. Initial experiments show that polycrystalline materials are accessible with different IR spectra and X-ray powder patterns from those of the compounds reported here (see ESI, Fig. S2).†

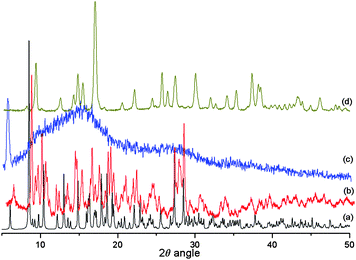

Fig. 6 (a) Theoretical powder pattern of 1, (b) experimental powder pattern of 1, (c) heated sample at 60 °C in vacuum after 2h, (d) rehydrated sample.

IR spectroscopy

The IR spectra of compounds 1 and 2 show a broad peak centred at 3375 cm⁻¹, which can be assigned to the O–H stretching vibration of the water molecules of the tape. These bands occur at higher energies than those reported for ice (3220 cm⁻¹),⁹ and are similar to those observed for other water chains.^10,12

Conclusions

In conclusion, we have synthesized and characterized an H-bonded and π-stacked 3D supramolecular architecture {[Ln(H₂O)₈(m-BDTH)](m-BDT)·12(H₂O)} (Ln = Ce, Nd) possessing a new (4,7)-connected binodal net with a Schläfli symbol of (3.4².5³)(3².4².5⁴.6⁵.7²). In both crystal structures a well-resolved water 1D ‘ladder-like’ chain possessing a T4(2)6(2) motif is observed. The present finding provides new structural data, which could enhance the understanding of the structural aspects of water. This work represents a part of our systematic efforts to determine new synthetic pathways in order to synthesize multidimensional networks, possessing special structural motifs and/or magnetic properties.

Experimental

General information

All chemicals and solvents used for the synthesis were obtained from commercial sources and were used as received, without further purification. All reactions were carried out in aerobic conditions. The elemental analysis (C, H, N) were carried out at the Institut für Anorganische Chemie at the Universität Karlsruhe (TH) using an Elementar Vario EL analyzer. Fourier transform IR spectra were measured on a Perkin-Elmer Spectrum One spectrometer with samples prepared as KBr discs. X-Ray powder diffraction patterns for all compounds were measured at room temperature using a Stoe STADI-P diffractometer with a Cu-K_α radiation.

Synthesis

m-BDTH₂ was prepared as described previously.^3b The same procedure was employed to prepare compounds 1 and 2 and hence only the compound [Ce(H₂O)₈(m-BDTH)](m-BDT)·12(H₂O) 1 is described here in detail. A solution of m-BDTH₂ (0.021 g, 0.1 mmol) in CH₃CN/EtOH (ratio 1 : 1, total volume 10 ml) was added dropwise to a stirred solution of Ce(NO₃)₃·6(H₂O) (0.044 g, 0.1 mmol) and CH₃CO₂Na (0.014 g, 0.1 mmol) in water (10 mL). The resulting colourless solution was refluxed for 2 h, filtered and left to evaporate slowly. Pale yellow crystals in 80% yield (based on Ce) of 1 were isolated after 1 week, washed with ethanol and dried in air. Analysis (%) Found (calc. for C₁₆H₄₇N₁₆O₂₀Ce): C, 20.38 (20.80); H, 5.07 (5.13); N, 24.13 (24.27). IR (KBr), ν/cm⁻¹ 3375 (br, vs), 2414 (m), 1669 (m), 1650 (m), 1567 (m), 1449 (m), 1418 (w) 1384 (w), 1331 (w), 1253 (w), 1222 (w), 1170 (m), 1079 (m), 1040 (m), 994 (m), 903 (w), 762 (m), 737 (m), 681 (w). Synthesis of [Nd(H₂O)₈(m-BDTH)](m-BDT)·12(H₂O) (2). Yield: 75% based on Nd. Analysis (%) Found (calc. for C₁₆H₄₇N₁₆NdO₂₀): C, 20.75 (20.85); H, 5.12 (5.17); N, 24.22 (24.27). IR (KBr), ν/cm⁻¹ 3375 (br, vs), 2414 (m), 1669 (m), 1650 (m), 1567 (m), 1449 (m), 1418 (w) 1384 (w), 1331 (w), 1253 (w), 1222 (w), 1170 (m), 1079 (m), 1040 (m), 994 (m), 903 (w), 762 (m), 737 (m), 681 (w).

X-Ray crystallography

Single-crystal X-ray crystallographic data were collected at 100 K on a Bruker SMART Apex CCD diffractometer using graphite-monochromated Mo-K_α radiation. Crystallographic data and details of measurement and refinement are summarized in Table 1. Semi-empirical absorption corrections were made using SADABS.^13a The structures were solved using direct methods, followed by full-matrix least-squares refinement against F² (all data) using SHELXTL.^13b Anisotropic refinement was used for all non-H atoms; organic H atoms were placed in calculated positions, while the coordinates of the hydroxo H atoms were refined. The O–H bond lengths and, where necessary, the H–O–H angles were restrained. The crystallographic data and refinement parameters are listed in Table 1.

Acknowledgements

This work is dedicated to Prof. Nick Hadjiliadis on the occasion of his retirement. Financial support from the DFG Center for Functional Nanostructures is gratefully acknowledged.

References

1. (a) S. R. Batten and R. Robson, Angew. Chem., Int. Ed., 1998, 37, 1460; (b) M. Eddaoudi, D. B. Moler, H. Li, B. Chen, T. M. Reineke, M. O'Keeffe and O. M. Yaghi, Acc. Chem. Res., 2001, 34, 319; (c) B. Moulton and M. J. Zaworotko, Chem. Rev., 2001, 101, 1629; (d) J. M. Lehn, in Concepts and Perspectives in Supramolecular Chemistry, ed. U. Anton, VCH, Verlagsgesellschaft mbH. D-69451 Weinheim, 1995; (e) M. W. Hosseini, Coord. Chem. Rev., 2003, 240, 157.
2. A. Ballbh, R. T. Darshak, P. Dastidar and E. Suresh, CrystEngComm, 2002, 4, 135.
3. (a) S. Supriya, S. Manikumari, P. Raghavaiah and S. K. Das, New J. Chem., 2003, 27, 218; (b) G. E. Kostakis, G. Abbas, C. E. Anson and A. K. Powell, CrystEngComm, 2008, 10, 1117; (c) H.-H. Song and B.-Q. Ma, CrystEngComm, 2007, 9, 625; (d) J. L. Atwood, L. J. Barbour, T. J. Ness, C. L. Raston and P. L. Raston, J. Am. Chem. Soc., 2001, 123, 7192; (e) L. J. Barbour, G. W. Orr and J. L. Atwood, Chem. Commun., 2000, 859; (f) L. Infantes and S. Motherwell, CrystEngComm, 2002, 4, 454; (g) L. Infantes, J. Chisholm and S. Motherwell, CrystEngComm, 2003, 5, 480; (h) M. Mascal, L. Infantes and J. Chisholm, Angew. Chem., Int. Ed., 2006, 45, 32.
4. (a) B. Y. Saha and A. Nangia, Chem. Commun., 2006, 1825; (b) R. Luna–Carcia, B. M. Damian– Murillo, V. Barba, H. Hopfl, H. I. Beltran and L. S. Zamudio–Rivera, Chem. Commun., 2005, 5527; (c) J. P. Naskar, M. G. B. Drew, A. Hulme, D. A. Tocher and D. Datta, CrystEngComm, 2005, 7, 67; (d) J.-M. Zheng, S. R. Batten and M. Du, Inorg. Chem., 2005, 44, 3371; (e) X. Mei and C. Wolf, CrystEngComm, 2006, 8, 377; (f) B.-Q. Ma, H.-L. Sun and S. Gao, Chem. Commun., 2004, 2220.
5. (a) K. Raghuraman, K. K. Katti, L. J. Barbour, N. Pillarsetty, C. L. Barnes and K. V. Katti, J. Am. Chem. Soc., 2003, 125, 6955; (b) C. Janiak and T. G. Scharman, J. Am. Chem. Soc., 2002, 124, 14010; (c) P. S. Lakshminarayanan, E. Suresh and P. Ghosh, J. Am. Chem. Soc., 2005, 127, 13132.
6. G. A. Jeffrey, An Introduction to Hydrogen Bonding, Oxford University Press, New York, 1997.
7. C. Jiang, Z. Yu, C. Jiao, S. Wang, J. Li, Z. Wang and Y. Cui, Eur. J. Inorg. Chem., 2004, 4669.
8. V. A. Blatov, A. P. Shevchenko and V. N. Serezhkin, J. Appl. Crystallogr., 2000, 33, 1193.
9. K. D. Eisenberg and W. Kauzmann, The Structure and Properties of Water, Oxford University Press, Oxford, 1969.
10. (a) V. Cody and J. Hazel, Acta Crystallogr., Sect. B, 1977, 33, 3180; (b) N. U. Kamath and K. Venkatesan, Acta Crystallogr., Sect. C, 1984, 40, 559; (c) D. S. S. Gowda, Puttaraja and R. Rudman, J. Crystallogr. Spectrosc. Res., 1984, 14, 359; (d) J. M. Harrowfield, R. P. Sharma, B. W. Skelton, P. Venugopalam and A. H. White, Aust. J. Chem., 1998, 51, 775; (e) A. J. Dobson and R. E. Gerkin, Acta Crystallogr., Sect. C, 1999, 55, 1192; (f) A. W. M. Braam, J. C. Eikelenboom, G. van Dijk and A. Vos, Acta Crystallogr., Sect. B, , 37, 259; (g) R. Custelcean, C. Afloroaei, M. Vlassa and M. Polverejan, Angew. Chem., Int. Ed., 2000, 39, 3094; (h) M. Mascal, M. Lera, A. J. Blake, M. Czaja, A. Kozak, M. Makowski and L. Chmurzynski, Angew. Chem., Int. Ed., 2001, 40, 3696; (i) Y.-Q. Jiang, Z.-X. Xie and S. W. Ng, Acta Crystallogr., Sect. E, 2003, 59, m947; (j) A. Vichet, J. P. Galy, A. Baldy, J. Barbe, J. Feneau-Dupont and J.-P. Declercq, Acta Crystallogr., Sect. C, 1991, 47, 2508; (k) D. Korbonits, E. Tobias-Heja, K. Simon and P. Kolonits, Liebigs Ann., 1994, 19; (l) P. C. McGowan, T. J. Podesta and M. Thornton-Pett, Inorg. Chem., 2001, 40, 1445; (m) I. S. De la Cueva-Torregrosa, J. M. Gonzalez-Perez, A. G. Sicilia-Zafra, E. Bugella-Altamirano, J. Niclos-Gutierrez and A. Castineiras-Campos, J. Coord. Chem., 2000, 51, 235; (n) J. C. Kim, A. J. Lough and H. Jo, Inorg. Chem. Commun., 2002, 5, 616; (o) S. -B. Teo, C. -H. Ng, S. -G. Teoh and H. -K. Fun, J. Coord. Chem., 1991, 24, 151; (p) G. De Munno, R. Ruiz, F. Lloret, J. Faus, R. Sessoli and M. Julve, Inorg. Chem., 1995, 34, 408; (q) B. M. Kariuki and W. Jones, Acta Crystallogr., Sect. C, 1995, 51, 1234; (r) K. Miyoshi, J. Wang and T. Mizuta, Chem. Lett., 1995, 721; (s) G. Mendoza-Diaz, W. L. Driessen and J. Reedijk, Acta Crystallogr., Sect. C, 1996, 52, 960; (t) F. Li, T. -H. Li, W. Su, S. -Y. Gao and R. Cao, Eur. J. Inorg. Chem., 2006, 1582; (u) M. Li, S. Chen, J. Xiang, H. He, L. Yuan and J. Sun, Cryst. Growth Des., 2006, 6, 1250; (v) X.-Y. Song, L.-C. Li, D.-Z. Liao, Z.-H. Jiang and S.-P. Yan, Cryst. Growth Des., 2007, 7, 1220.
11. (a) C.–C. Wang, W.–Z. Lin, W.–T. Huang, M.–J. Ko, G.–H. Lee, M.–L. Ho, C.–W. Lin, C.–W. Shih and P.–T. Chou, Chem. Commun., 2008, 1299; (b) G. E. Kostakis, L. Casella, N. Hadjiliadis, E. Monzani, N. Kourkoumelis and J. C. Plakatouras, Chem. Commun., 2005, 3859.
12. B. Sreenivasulu and J. J. Vittal, Angew. Chem., Int. Ed., 2004, 43, 5769.
13. (a) G. M. Sheldrick, SADABS (the Siemens Area Detector Absorption Correction), University of Göttingen, 1996; (b) G. M. Sheldrick, Acta Crystallogr., Sect. A, 2008, 64, 112.

---

Footnote

† Electronic supplementary information (ESI) available: Additional experimental details (Fig. S1, Tables S1 and S2). CCDC reference numbers 693449 and 702192. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/b811376a

---
