Qi Wanga,
Huijie Lua,
Fuqing Panga,
Jinglun Huangb,
Fude Nieb and
Fu-Xue Chen*a
aSchool of Chemical Engineering & the Environment, Beijing Institute of Technology, 5 South Zhongguancun street, Haidian district, Beijing 100081, China. E-mail: fuxue.chen@bit.edu.cn; Fax: +86-10-68912185
bInstitute of Chemical Materials, China Academy of Engineering Physics, Mianyang, 621050, Sichuan, China
First published on 9th June 2016
A series of hypergolic (2-methyltetrazol-5-yl)diazotates have been synthesized by treatment of bases with the diazotatic acid, which were prepared by using isoamyl nitrite at low temperature. These hypergolic energetic salts showed remarkable short ignition delay times (IDs) by droplet test and a high specific impulse up to 291.2 s by calculation. All compounds were fully characterized using IR spectroscopy, 1H and 13C NMR spectroscopy and differential scanning calorimetry (DSC), and, in the case of aminoguanidinium (2-methyltetrazol-5-yl)diazotate (8) and diaminoguanidinium (2-methyltetrazol-5-yl)diazotate (9), with single crystal X-ray structuring.

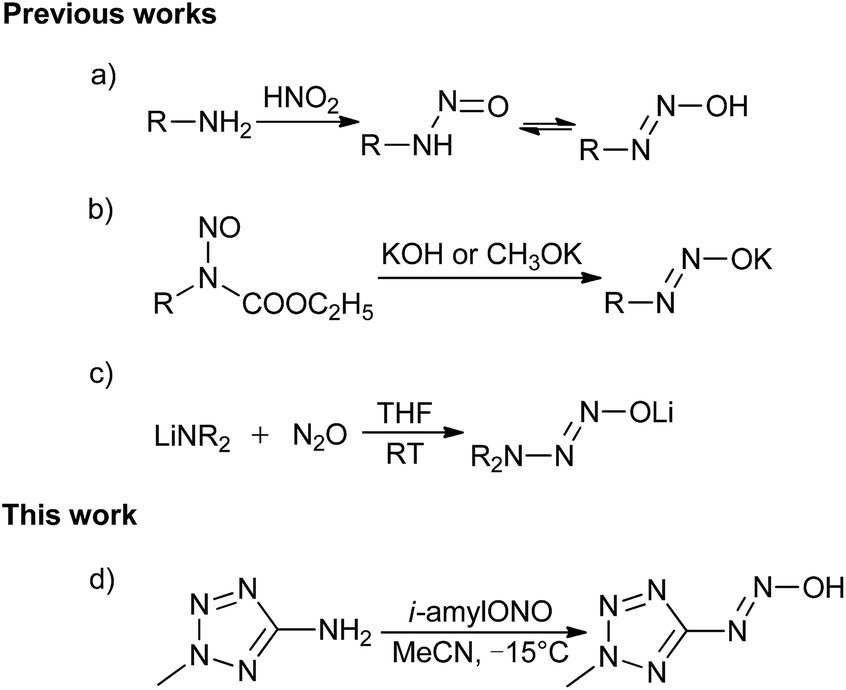

Diazotic acid has widely and long been accepted as the intermediate in diazotization of amine reacted with nitrous acid, which can be further transformed into diazonium salt at low pH.12 However, most of diazotic acids are rarely utilized due to instability, as well as the tautomer, nitrosamines. Only a few diazotic acids and diazotates have been isolated, e.g., in the synthesis of arylhydrazones13 and diazo14 compounds (Scheme 1a). Hantzsch synthesized alkanediazotates by decomposing N-nitrosourethans with a strong base (Scheme 1b).15 Much later, the decomposition mechanism of (Z)-2,2,2-trifluoro-1-arylethanediazoates in aqueous media was studied by Fishbein.16 In recent years, because of enthusiasm for nitrous oxide, a series of stable N-heterocyclic carbene (NHC)–N2O adducts, which can be described as imidazolium diazotates, were synthesized and investigated in chemical reactivity.17 Most recently, by reacting lithium dialkylamides with nitrous oxide, lithium diazotates were generated as intermediates to synthesize alkynyl and alkenyl substituted triazenes (Scheme 1c).18 In this communication, we report the syntheses and hypergolic properties of a series of (2-methyltetrazol-5-yl)diazotates (Scheme 1d).
Initially, in the presence of nitrite acid, 5-amino-2-methyltetrazole (1) was smoothly converted into 1,3-bis(2-methyltetrazol-5-yl)triazene (3)19 without observation of the known (2-methyltetrazol-5-yl)diazonium salt (2) intermediate (Scheme 2). Gratifyingly, by utilizing isoamyl nitrite in acetonitrile,20 the desired (2-methyltetrazol-5-yl)diazotic acid (4) was obtained in high yield. Furthermore, compound 4 did not react with weak acid (e.g. acetic acid) or dilute acid (e.g. diluted hydrochloric acid) but rapidly decomposed by treatment with concentrated strong acid (e.g. concentrated hydrochloric acid or methane sulfonic acid). The solution of diazotic acid 4 was stable below 0 °C and slowly decomposed at room temperature. In the solid form, 4 shows considerable stability at room temperature, while, interestingly, it spontaneously ignited upon exposing to the air in a few minutes. Subsequently, a series of stable (2-methyltetrazol-5-yl)diazotates were designed and synthesized, which displayed the expected hypergolic reactivity with white fuming nitric acid (WFNA).
Due to the acidity of the diazotic acid, compound 4 was readily converted to ammonium salt (5) and hydrazinium salt (6) by reacting with excessive aqueous ammonia and hydrazine hydrate, respectively. When the base was added to the reaction solution, the salt 5 or 6 was precipitated with high purity. To prepare guanidine based salts 7–10, barium (2-methyltetrazol-5-yl)diazotate was exploited as the precursor by treatment of 4 with barium hydroxide, followed by metathesis with guanidinium sulphates. All the salts were obtained in moderate to excellent yields (65–92%) (Scheme 3).
To observe and measure the actual ID, a droplet test was employed due to its flexibility, accuracy, and simple facility for the assessment of their potential for hypergolicity. An excess amount (50 μL) of WFNA was dropped onto a watch glass containing a small diazotate sample (ca. 20 mg). The ID time, from contact of the solid surface with the oxidizer until the first sign of a visible flame, was recorded by a high-speed camera recording 500 frames s−1.

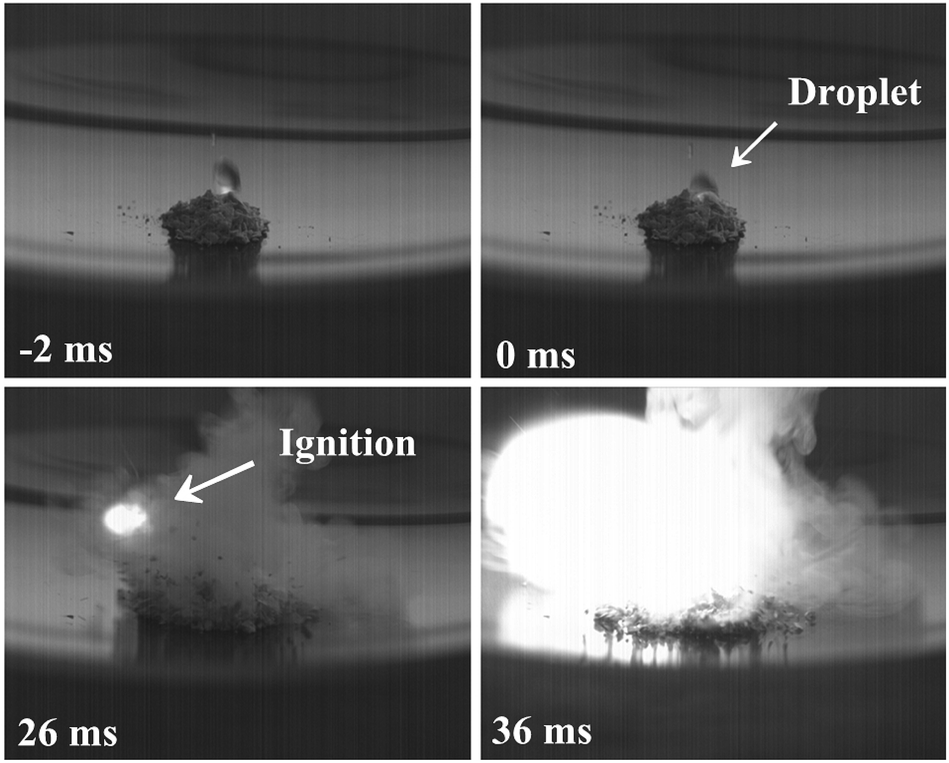

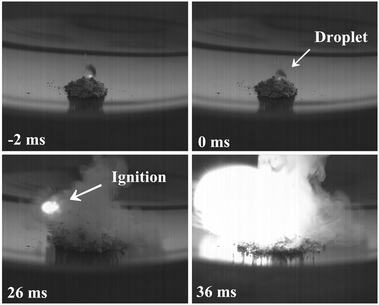

The results from the droplet test are summarized in Table 1. Ignited with WFNA, all the salts revealed ID values ranging from 12 to 26 ms, except the aminoguanidinium salt (8) with a longer ID of 62 ms. Among them, the ammonium salt (5) exhibited the shortest ID of 12 ms, whereas guanidine based salts (7–10) displayed slight longer IDs (18–62 ms) (Fig. 1). In these (2-methyltetrazol-5-yl)diazotates, we supposed that the NN–O moiety was attributed as the crucial chemical bond to introduce hypergolicity with WFNA, analogous to the N–C
N moiety in dicyanamide or B–H bonds in dicyanoborohydride.21
Comp. | Tma [°C] | Tdb [°C] | ρc [g cm−3] | ΔHfd [kJ mol−1] | IDe [ms] | Ispf [s] |
---|---|---|---|---|---|---|
a Melting point (peak, DSC, 10 °C min−1).b Thermal decomposition temperature (onset) under nitrogen gas (DSC, 10 °C min−1).c Density (gas pycnometer, 25 °C).d Heat of formation (Gaussian 09W).e Ignition delay (using WFNA as the oxidizer).f Specific impulse (EXPLO5 V6.02). | ||||||
5 | — | 98 | 1.49 | 694.0 | 12 | 281.1 |
6 | 99 | 120 | 1.54 | 847.0 | 14 | 291.2 |
7 | 194 | 209 | 1.61 | 658.8 | 24 | 246.4 |
8 | 148 | 158 | 1.49 | 779.4 | 62 | 254.4 |
9 | 120 | 151 | 1.53 | 886.9 | 18 | 259.7 |
10 | 152 | 156 | 1.50 | 999.5 | 26 | 264.8 |
The structures of (2-methyltetrazol-5-yl)diazotates were confirmed by IR spectroscopy, 1H and 13C NMR spectroscopy, high resolution mass spectrometer as well as elemental analysis. In the IR spectra, two strong absorption bands at around 1400 cm−1 and 1680 cm−1 were attributed to the NN and N
O bonds of diazotates. The other intense absorption bands at 1260 cm−1 and 1480 cm−1 were assigned to the tetrazole ring.
The 1H NMR spectra of the salts 5–10 show a single resonance at 4.19–4.24 ppm, which belongs to the methyl groups of the anions. In the 13C NMR spectra, the carbon atom of the methyl groups could be found in the range of 39.0–39.2 ppm, and the one for the tetrazole rings is located in the range of 172.0–173.7 ppm.
Single crystals of 8 and 9 suitable for single-crystal X-ray diffraction were obtained by slow evaporation of an ethyl acetate–methanol (1:
1 ratio) mixture at room temperature. Compound 8 crystallizes in the triclinic P
space group (Fig. 2), while 9 crystallizes in the monoclinic P2/c space group. All bond lengths, angles and torsion angles can be found in the ESI.† Longer than the bond length of a normal N
N double bond (1.22 Å),22 the ones of N5–N6 in 8 and 9 are 1.285 (2) and 1.289 (16) Å, respectively. In contrast, the bond lengths of N6–O1 are only 1.289 (2) and 1.285 (16) Å, much shorter than the average of N–O single bond length (1.40 Å).22 In the N5–N6–O1, it is presumable that the electron delocalization, which results in the averaging of bond lengths, is caused by the resonance of the N
N double bond and N–O single bond. The moieties of the diazotate anion, both in 8 and 9, show nearly planar assemblies with torsion angles between the tetrazole ring and the N
N–O group of 1.2(3)° and 3.3(2)°, respectively.
Due to the presence of methyl and the absence of the π–π packing effect, the densities of the diazotates range from 1.49 to 1.54 g cm−3, except in the guanidinium salt 7 (1.61 g cm−3). The thermal stability of compound 5–10 was determined by differential scanning calorimetry (DSC). Guanidinium salt 7 exhibits the highest onset decomposition temperature at 209 °C among these salts. In contrast, ammonium salt 5 and hydrazinium salt 6 decompose at low onset temperatures (98 °C and 120 °C, respectively).
The calculation of the heat of formation was carried out using the program package Gaussian 09 (Revision E.01).23 By using B3LYP with the 6-31+G** basis set,24 the geometric optimization of the structures and frequency analyses were accomplished. Single-point energies were calculated at the MP2(full)/6-311++G** level. The heats of formation of the diazotates were calculated using the Born–Haber cycle.25 As a result of the high nitrogen content, all (2-methyltetrazol-5-yl)diazotate salts exhibit high positive heats of formation. And the specific impulse of these salts ranges from 246.4 s to 291.2 s, which are calculated by EXPLO5 V6.02. Salt 6 shows the highest specific impulse approaching 291.2 s but with poor thermal stability.
In summary, (2-methyltetrazol-5-yl)diazotatic acid was prepared by using isoamyl nitrite. A series of novel hypergolic energetic salts containing the (2-methyltetrazol-5-yl)diazotate anion were synthesized using a straightforward method. Most of these salts exhibit hypergolic reactivity with WFNA and attractive short IDs (12–26 ms). All salts show moderate to high specific impulse, and the highest is 291.2 s. All test and calculation results suggest that (2-methyltetrazol-5-yl)diazotates might be of interest for the additive in propellant formulations.
Footnote |
† Electronic supplementary information (ESI) available: Detailed experimental protocols and spectroscopic characterization data are provided. CCDC 1431004 and 1431005. For ESI and crystallographic data in CIF or other electronic format see DOI: 10.1039/c6ra11494f |
