K.
Midander
*,
J.
Pan
,
I.
Odnevall Wallinder
and
C.
Leygraf
Division of Corrosion Science, Department of Materials Science and Engineering, School of Industrial Engineering and Management, Royal Institute of Technology, Drottning Kristinas väg 51, SE-100 44 Stockholm, Sweden. E-mail: klarami@kth.se; Fax: +46 8 20 82 84; Tel: +46 8 790 68 78
First published on 28th November 2006
Human inhalation of airborne metallic particles is important for health risk assessment. To study interactions between metallic particles and the human body, metal release measurements of stainless steel powder particles were performed in two synthetic biological media simulating lung-like environments. Particle size and media strongly influence the metal release process. The release rate of Fe is enhanced compared with Cr and Ni. In artificial lysosomal fluid (ALF, pH 4.5), the accumulated amounts of released metal per particle loading increase drastically with decreasing particle size. The release rate of Fe per unit surface area increases with decreasing particle size. Compared with massive sheet metal, fine powder particles (<4 μm) show similar release rates of Cr and Ni, but a higher release rate of Fe. Release rates in Gamble’s solution (pH 7.4), for all powders investigated, are significantly lower compared to ALF. No clear trend is seen related to particle size in Gamble’s solution.
Particles less than 100 μm in size are considered inhalable: smaller particles, less than 5 μm, are respirable and can reach the alveolar region of the deep lung, possibly causing an inflammatory response.3,8,9 Airborne particulate matter has been measured and characterized with respect to particle size range, composition and morphology,10–13 and epidemiological and toxicological aspects are assessed in various studies.14–19 A metallic particle in contact with lung tissue/cells involves the release of metal ions into the biological system. It is important to clarify whether released ions, or the particle itself, cause any adverse effect on health. Usually, released elemental concentrations of collected particles on filters are measured after extraction with water or diluted acid,5,20,21 and speciation of particulate metals in sediment, for example, is often assessed by chemical sequential extractions.22 Such an approach may be quite different from the real situation. The mechanism of metal release induced by corrosion, and/or chemical dissolution, depends on the material and the surrounding environment. It is therefore of importance to perform metal release studies in relevant test environments. The selection of a synthetic medium is crucial for a metal release study since different species present in body fluids may either enhance or inhibit metal release. Synthetic biological media that mimic the lung compartment have previously been used to investigate such things as the solubility of mineral fibres, bioavailability of cobalt-containing materials and metal release from massive stainless steel.23–26 It should be mentioned that, despite the complexity in composition, these test media only model the body condition to some extent since they do not contain proteins. Interactions between inhaled particles and cells/tissues of the lung compartment are complex processes that likely depend on the composition, size and shape of the particles. From a materials scientific point of view, the behaviour of the particulate material involved in these interactions is relatively undefined and unknown.
Scarce data exist on the metal release process from metallic particles. An experimental method has recently been elaborated which enables such measurements.27 The technique has so far been applied to μm-sized particles of stainless steel, nickel and copper.27,28 Studies of stainless steel are of general importance since the material spontaneously forms a passive surface film, which reduces metal release rates by several orders of magnitude,29,30 and its main alloy constituents are chromium and nickel. Both metals are considered to potentially cause adverse effects on human health, e.g., the chromium(VI) ion and insoluble nickel compounds are carcinogenic via inhalation.31,32 Nickel is also known to cause contact dermatitis. Contrary to stainless steel massive sheet, large variations in composition and thickness of the chromium and iron-rich surface film occur on particles of stainless steel. This is a result of the formation process at high temperatures. Moreover, below a certain particle size (a few μm), the oxide thickness decreases and impurity elements like S may be segregated on the surface, which may alter the physical/chemical/mechanical properties, i.e., the corrosion resistance, of the surface oxide on the particle significantly.33 This size-dependence most likely has an influence on the metal release process. However, no literature is available that assesses the metal release process from particles of stainless steels.
The aim of this study is to examine the importance of size of stainless steel 316L powder particles on the metal release process in synthetic lung fluids simulating an inhalation scenario. Two different fluids were investigated, artificial lysosomal fluid (ALF, pH 4.5), which simulates conditions occurring in conjunction with phagocytosis by cells, similar to an inflammation, and Gamble’s solution (pH 7.4), which mimics the interstitial fluid deep within the lung at normal health conditions. Since inhalation of particles might correspond to a consecutive exposure to Gamble’s solution followed by ALF, this scenario was also examined. Knowledge of the metal release process from stainless steel particles in artificial body fluids may contribute to a general understanding of potentially harmful effects on respiratory health.
Powder | Grade | C | Si | Mn | P | S | Cr | Ni | Al | Mo |
---|---|---|---|---|---|---|---|---|---|---|
a Below detection limit (alt. not measured) | ||||||||||
Ultrafine | 316L | 0.048 | 0.65 | 1.4 | 0.027 | 0.008 | 18.5 | 11.6 | — | 2.3 |
I | 316L | 0.017 | 0.71 | 1.6 | —a | — | 16.7 | 13.2 | — | 2.7 |
II | 316L | 0.005 | 0.71 | 1.2 | — | — | 16.7 | 11.8 | 0.008 | 2.7 |
III | 316L | 0.024 | 0.61 | 1.2 | 0.026 | 0.006 | 16.7 | 10.3 | — | 2.1 |
IV | 316L | 0.030 | 0.49 | 1.4 | 0.025 | 0.010 | 16.8 | 10.3 | — | 2.1 |
Table 2 provides information on the particle size distribution of the ultrafine powder, and powders I and II. All size fractions of powder particles, from sieve analysis, are presented in terms of particle diameter, where d10 is the largest particle diameter representative for 10 wt% of the particles. 50 wt% and 90 wt% of the particles have diameters less than d50 and d90, respectively. Table 3 presents the size fractions from sieve analyses for the two more coarse powders, III and IV, respectively. All information on particle size of the powders was provided by the supplier/producers.
Powder diameter | Ultrafine | I | II |
---|---|---|---|
d 10 | 1.1 μm | 1.9 μm | 5.4 μm |
d 50 | 1.8 μm | 3.5 μm | 8.5 μm |
d 90 | 3.6 μm | 5.5 μm | 12.6 μm |
Micron | 44 | 31 | 22 | 16 | 11 | 7.8 | 5.5 | 3.9 | 2.8 | 1.9 |
---|---|---|---|---|---|---|---|---|---|---|
III wt% < | — | 100 | 99.4 | 87.6 | 58.8 | 29.0 | 12.7 | 4.9 | 1.5 | 0.2 |
IV wt% < | 86.6 | 60.5 | 31.5 | 15.3 | 6.1 | 3.3 | 0.7 | — | — | — |
For a given mass of particles, the specific surface area of particles increases with decreasing particle diameter. However, the specific surface area also depends on the particle size distribution. The specific surface areas of all the investigated powders, Table 4, were measured by BET (Brunauer–Emmett–Teller) analysis (adsorption of nitrogen in cryogenic conditions). This was performed at Kanthal AB using a Micromeritics FlowSorb II 2300. The specific surface areas were used to calculate metal release rates. It should be noted that the specific surface area of the ultrafine powder is considerably larger compared with the other powders.
316L powder | Ultrafine | I | II | III | IV |
---|---|---|---|---|---|
BET area/m2 g−1 | 0.700 | 0.294 | 0.114 | 0.105 | 0.069 |
In the metal release experiments, powder samples were prepared for exposures (168 h) in the test media at a loading of 0.2 g L−1. This loading was considered as relevant and able to provide reproducible results.27 The powders were weighed using a Mettler AT20 balance with a readability of 2 μg. For the study of metal release from the ultrafine 316L powder particles, 3 replicate samples were prepared for duplicate exposures in each test medium. Accordingly, triplicate powder samples I–IV were exposed in duplicate exposures in each test medium. Triplicate samples of the ultrafine powder and the coarse powder IV were prepared for the consecutive exposure to Gamble’ solution and ALF, and kinetic studies in ALF. All powders were exposed in as-received condition.
Chemical | ALF | Gamble’s solution |
---|---|---|
MgCl2 | 0.0497 | 0.0953 |
NaCl | 3.210 | 6.0193 |
KCl | — | 0.2982 |
Na2HPO4 | 0.071 | 0.126 |
Na2SO4 | 0.039 | 0.063 |
CaCl·2H2O | 0.128 | 0.3676 |
C2H3O2Na·H2O (sodium acetate) | — | 0.7005 |
NaHCO3 | — | 2.6043 |
C6H5Na3O7·2H2O (sodium citrate) | — | 0.097 |
NaOH | 6.000 | — |
Citric acid | 20.80 | — |
Glycine | 0.059 | — |
C6H5Na3O7·2H2O (Na3 citrate·2H2O) | 0.077 | — |
C4H4O6Na2·2H2O (Na2tartrate·2H2O) | 0.090 | — |
C3H5NaO3 (Na lactate) | 0.085 | — |
C3H5O3Na (Na pyruvate) | 0.086 | — |
pH | 4.5–5 | 7.4 |
Each solution was prepared using ultra-pure water and chemicals of analytical grade. To avoid any risk of metal-containing contamination, all vessels and tools used for mixing were acid cleaned in 10% HNO3 for at least 24 hours, then rinsed four times in ultrapure water and dried in ambient air in the laboratory. The components of Gamble’s solution were added following the order in Table 5 to prevent precipitation of salts. The pH was adjusted using 50% NaOH and with 25% HCl for ALF and Gamble’ solution, respectively.
For the consecutive study in Gamble’s solution and ALF, the powder samples were first exposed in Gamble’s solution for 8 h, and then separated from the test medium by centrifugation according to the procedures described above. The separated powder particles, and a small volume (<1 mL) of Gamble’s solution, which could not be easily removed, were transferred back to the exposure flask, and 10 mL of ALF was added for further exposure of 168 h. After exposure, the test medium was separated from the powder particles by centrifugation and the supernatant was acidified prior to analysis.
Fig. 1 Metal release rates of Fe, Cr, Ni per unit surface area for 316L powders of varying particle size and massive sheet24 exposed to ALF for one week. Note (1): 5 replicates. |
The ultrafine powder exhibits similar release rates of Cr and Ni to the massive sheet, but a significantly higher release rate of Fe. Compared with the more coarse particles (I–IV), the ultrafine powder exhibits somewhat higher release rates. One exception is the release rate of Cr from powder I, which also shows a significantly larger error. The release rate of Fe shows a decreasing trend as the specific surface area decreases (particle diameter increases), and is substantially higher for the ultrafine powder, approximately 2.3 μg cm−2 week−1, compared with the coarser powders and the massive sheet. Since the release rates are normalized to the surface area, the decreasing trend with increasing particle size indicates that also other factors influence the metal release process. One explanation may be that finer particles have a more “active” surface compared with larger particles as a result of a thinner surface oxide film and enhanced segregation of impurities. Moreover, the effective surface area, i.e., the exposed surface area actually exposed to the medium, is not identical to the area measured with BET. This may induce a certain error in the results.
For a quantitative view, steady-state release rates of Fe, Cr and Ni and corresponding concentrations after 1 week of exposure in ALF are compiled in Table 6 for all powders investigated.
Powder | Ultrafine | I | II | III | IV |
---|---|---|---|---|---|
Fe/μg L−1 | 3701.8 ± 462.6 | 1024.3 ± 279.1 | 211.2 ± 56.2 | 174.3 ± 17.7 | 74.4 ± 13.4 |
(μg cm−2 week−1) | 2.272 ± 0.303 | 1.450 ± 0.251 | 0.785 ± 0.135 | 0.733 ± 0.042 | 0.511 ± 0.083 |
Cr/μg L−1 | 170.5 ± 17.7 | 80.3 ± 18.9 | 17.5 ± 4.5 | 16.6 ± 2.5 | 8.8 ± 2.3 |
(μg cm−2 week−1) | 0.105 ± 0.011 | 0.118 ± 0.042 | 0.065 ± 0.007 | 0.069 ± 0.005 | 0.058 ± 0.019 |
Ni/μg L−1 | 106.5 ± 52.1 | 28.0 ± 7.8 | 9.0 ± 1.7 | 7.8 ± 1.3 | 4.5 ± 1.8 |
(μg cm−2 week−1) | 0.076 ± 0.033 | 0.039 ± 0.004 | 0.034 ± 0.007 | 0.033 ± 0.007 | 0.029 ± 0.009 |
Based on the amount of total released metal, assuming spherical geometry of the same size, the reduction of the particle size due to metal release was estimated. For an ultrafine powder particle of diameter 2 μm, the metal release results in a particle diameter reduction of ∼13 nm, after one week of exposure. This amount is considered to be negligible despite the highest release rate among the powders.
Release rates per unit area from the different powder particles can be used for comparison with rates from massive sheet of the same material. The concentrations, i.e., the accumulated amounts of the metal released, show a drastic increase with decreasing particle size, which implies that sub-micron particles may give a high amount of released metal per particle loading.
Metal release rates per unit surface area are presented in Fig. 2 for all powder particles exposed in Gamble’s solution. All rates are significantly lower in Gamble’s solution compared with ALF (Fig. 1). The highest release rate of Fe in Gamble’s solution is of similar magnitude to release rates of Cr and Ni in ALF. Measured metal concentrations were often close to or below the detection limits. No evident trend in metal release rate relative to the specific surface area can be observed. The release rate of Fe for the ultrafine powder is lower compared with massive sheet. Also, there is a tendency for the release rate of Fe to be lower compared with the more coarse powders, i.e., contradictory to the findings in ALF. Very low metal release rates in Gamble’s solution are most likely due to the neutral pH and the adsorption of calcium and/or phosphate ions from the solution, which might inhibit metal release from the surface. Precipitation of calcium phosphates has previously been observed on massive sheet, in particular at elevated temperatures (>38 °C) and pH (>8).24 The large difference in release rates between the exposures in ALF (2.5 μg cm−2 week−1) and Gamble’s solution (0.28 μg cm−2 week−1) indicates the importance of using a relevant test medium when assessing differences in metal release rates in different lung environments.
Fig. 2 Metal release rates of Fe, Cr, Ni per unit surface area for 316L powders of varying size and massive sheet24 exposed to Gamble’s solution for one week. Note (1): 5 replicates; (2): 4 replicates; and (3): duplicate samples. Results for the other samples were below the detection limit. |

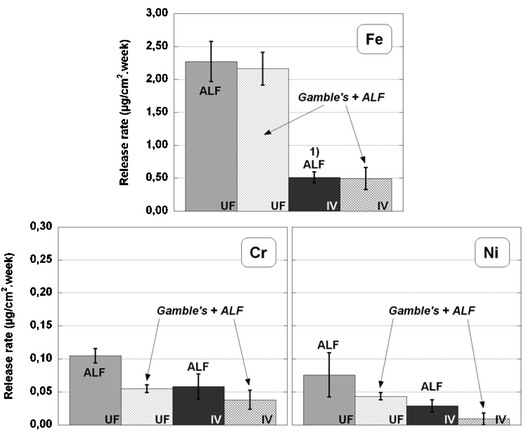

Fig. 3 Metal release rates of Fe, Cr, Ni per unit surface area for ultrafine powder and the coarser powder (IV) exposed to Gamble’s solution and ALF in sequence (based on triplicate samples), compared with the release rates in ALF (based on 6 replicates). Note (1): 5 replicates. |
Metal release rates for particles consecutively exposed in Gamble’s solution and ALF follow a similar trend related to particle size, as observed for the exposure in ALF, i.e., decreasing rates with increasing particle size (increasing specific surface area). A general observation is that metal release rates are lower for powder particles exposed in Gamble’s solution prior to the exposure in ALF, compared with particles exposed in ALF only. This behaviour was also observed for 316L massive sheet samples.24 Similar to the findings in the previous section, a certain inhibiting effect of the pre-exposure to Gamble’s solution, probably due to adsorption of calcium and phosphate ions, is more pronounced when comparing the results from exposures in Gamble’s solution and ALF in sequence with the results of metal release in ALF. Moreover, the inhibiting effect is evident for Cr and Ni for all powders investigated. For Fe, on the other hand, no pronounced inhibiting effect is observed.
Fig. 4 Metal release rates of Fe, Cr, Ni per unit surface area versus time of exposure for the ultrafine powder and the coarse powder (IV) exposed to ALF (triplicates). Note (1): duplicate samples for Cr and Ni results for the coarse powder after 8 h of exposure. |
Fig. 5 Secondary electron images illustrating the difference in particle size of (a–b) ultrafine powder particles and (c–d) powder III at comparable magnification. |
Despite very simplified experimental conditions, which are far from a realistic inhalation scenario, the results indicate low metal release rates from stainless steel particles when inhaled at normal health conditions. At lung conditions similar to an inflammation, release rates are significantly higher and the worst-case scenario seems to happen for the smallest particles. However, a realistic inhalation scenario covers a broad spectrum of complex processes that most probably resembles a condition in between the two synthetic lung fluids studied.
