Supramolecular reagents: versatile tools for non-covalent synthesis

Abstract

The design and modular synthesis of three ternary co-crystals with desired connectivity, assembled using tailor-made pyridyl/benzimidazol-1-yl-based supramolecular reagents, are described.

---

Many elegant studies have shown that extended supramolecular architectures can be synthesized with the aid of complementary intermolecular interactions.¹ When such assemblies are constructed from neutral molecular building blocks they are typically homomeric, which is consistent with the observation that “most crystals are built from identical (or enantiomeric) copies of the same molecule”.² Despite an abundance of papers dealing with design and assembly of organic extended networks with desirable connectivities and shapes, it remains exceedingly difficult to bring more than two different molecular species into one crystalline lattice in a predictable manner, without making or breaking covalent bonds.^3–5 In fact, our recent work with isonicotinamide remains the only reported successful strategy for the reliable construction of ternary supermolecules.^6–11 In a typical reaction, isonicotinamide is allowed to react with two carboxylic acids resulting in ternary supermolecules with two primary supramolecular synthons;¹² (1) the heteromeric carboxylic acid⋯pyridine hydrogen bond and (2) the heteromeric amide⋯acid hydrogen bond. The supramolecular targets are assembled using a synthetic strategy based upon a hierarchical view of intermolecular forces; the stronger acid (as determined by pK_a values) interacts preferentially with the best hydrogen-bond acceptor (the pyridine nitrogen atom), and the weaker acid binds to the amide moiety.¹³

Despite its success, isonicotinamide is not an ideal supramolecular reagent. First, it is capable of forming self-complementary amide⋯amide and amide⋯pyridine hydrogen bonds which makes it inherently difficult to combine it with molecules that lack moieties that can compete successfully with the hydrogen-bonding capabilities of the amide functionality. Second, since the two binding sites on isonicotinamide are attached to the same delocalized backbone, it is not possible to tune the electronics of the two sites independently, which reduces versatility.

In order to bring supramolecular synthesis in the solid state (crystal engineering) to a new level of complexity we are now developing supramolecular reagents (SRs) that can be refined in such a way that they offer more opportunities for structural selectivity and specificity.

This paper describes the rationale behind, and synthesis of, a family of pyridyl/benzimidazol-1-yl-based SRs, and the subsequent modular assembly of ternary co-crystals (1∶1∶1). Our approach is based upon hydrogen-bond interactions in the context of the best-donor/best-acceptor, second-best donor/second-best acceptor concept.^6,14,15 The SRs in this study are built around asymmetric bis-heterocycles where two binding sites (hydrogen-bond acceptor sites) are linked by a methylene bridge in order to provide increased solubility in a range of solvents. The binding sites have significantly different basicities,¹⁶ which means that their abilities to accept hydrogen bonds differ. They also lack strong hydrogen-bond donors and, consequently, any self-complementary intermolecular interaction will be weak and less likely to disrupt the desired heteromeric interactions, Scheme 1.

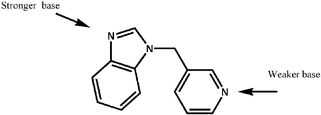

Scheme 1

Even though pK_a/pK_b values do not provide direct measures of hydrogen-bond strength, hydrogen-bond abilities and free energies of complexation have been correlated with pK_a values, and within closely related classes of compounds such comparisons frequently yield correct qualitative results.¹⁷ Finally, the basicity of each heterocycle can be independently altered through suitable covalent substituents on each ring, which thereby provides an effective handle for fine-tuning differences in intermolecular reactivity between the two binding sites. The latter is highly significant as it creates a supramolecular reagent with the potential for a high degree of versatility and transferability. Ditopic bis-benzimidazoles/bis-imidazoles are also known to form co-crystals with a variety of carboxylic acids.¹⁸

The ability of these supramolecular reagents to form ternary supermolecules with predictable connectivity was put to the test by allowing each SR to react with pairs of carboxylic acids with different pK_a values¹⁹ in a 1∶1∶1 ratio.²⁰

The crystal structure of 1 consists of two crystallographically inequivalent sets of ternary supermolecules with identical connectivity, Fig. 1.²¹

Fig. 1 One of two ternary supermolecules in the crystal structure of 1 (both have the same connectivity). The best hydrogen-bond donor binds to the best hydrogen-bond acceptor and the second-best donor binds to the second-best acceptor.

The primary synthons in this structure are (a) the O–H⋯N hydrogen bonds from the stronger acid (3,5-dinitrobenzoic acid) to the most basic nitrogen atom located on the benzimidazol-1-yl ring, O31⋯N13, 2.5762(17) Å, and O71⋯N53, 2.5455(18) Å, and (b) the O–H⋯N hydrogen bonds from the weaker acid (4-nitrobenzoic acid) to the less basic nitrogen atom located on the pyridyl moiety, O41⋯N21, 2.6081(18) Å and O81⋯N61, 2.6057(19) Å.

The crystal structure determination of 2 also reveals a ternary 1∶1∶1 supermolecule with the same connectivity as found in 1, Fig. 2.²²

Fig. 2 The ternary supermolecule in the crystal structure of 2. The best hydrogen-bond donor binds to the best hydrogen-bond acceptor and the second-best donor binds to the second-best acceptor.

The primary synthons comprise (a) an O–H⋯N hydrogen bond between the stronger acid, 3,5-dinitrobenzoic acid, and the most basic heterocyclic moiety, O47⋯N13, 2.652(3) Å, and (b) another O–H⋯N interaction between the weaker acid, 3-N,N-dimethylaminobenzoic acid, and the second-best hydrogen-bond acceptor, the pyridyl moiety, O37⋯N21, 2.665(3) Å.

The crystal structure of 3 contains the desired 1∶1∶1 supermolecule with the expected connectivity, Fig. 3.²³

Fig. 3 The ternary supermolecule in the crystal structure of 3. The best hydrogen-bond donor binds to the best hydrogen-bond acceptor and the second-best donor binds to the second-best acceptor.

The best acceptor, the benzimidazol-1-yl moiety, forms an O–H⋯N hydrogen bond with the best donor, the stronger acid, O47⋯N13, 2.553(3) Å. The second-best acceptor, the pyridyl moiety, binds to the weaker acid via an O–H⋯N hydrogen bond, O37⋯N21, 2.641(3) Å.

All three structures, 1–3, contain ternary supermolecules constructed through the deliberate use of directional intermolecular synthetic operations.²⁴ Each SR has two binding sites that differ primarily in their basicity but neither site is otherwise biased or predisposed towards interacting preferentially with either of the two competing carboxylic acids. The differences in basicity are translated into supramolecular reactivity and selectivity that subsequently carry over into the solid state, which demonstrates that supramolecular assembly can be controlled by fine-tuning individual binding sites. This raises the possibility that a solution to the problem of making non-covalent one-pot synthesis “sequential” may be to devise modular assembly processes based upon a hierarchy of intermolecular interactions derived from molecular properties and structural trends.

It should be emphasized that ternary co-crystals are extremely rare and that the supramolecular reagents presented in this study contribute to high-yielding reactions; in a supramolecular sense, this translates to a high frequency of occurrence of a particular intermolecular binding pattern in the presence of potentially disruptive intermolecular interactions.

SRs of the type presented herein will at some point undoubtedly generate results that do not acquiesce to the proposed assembly principles. However, through covalent synthesis we have unlimited opportunities for modulating the electronic and geometric details of each binding site on a supramolecular reagent such that a variety of chemical functionalities can be targeted for binding. In this way we can build a team of SRs where each member is capable of affecting the assembly of new supermolecules with a high degree of specificity and reliability, thereby clearing a path towards practical and transferable guidelines for versatile supramolecular synthesis. We are currently probing the limits and limitations of this hierarchical approach to non-covalent synthesis by examining the structural reactivity of libraries of supramolecular reagents containing multiple binding sites with easily adjustable differences in hydrogen-bond donating/accepting capabilities.

We are grateful for financial support from NSF (CHE-0316479).

Notes and references
