Preparation of ordered SBA-15 mesoporous silica containing chelating groups. Study of the complexation of Eu^III inside the pore channels of the materials

Abstract

Ordered mesoporous silica containing 3-chloropropyl groups was prepared by a direct synthetic approach involving hydrolysis and co-condensation of tetraethylorthosilicate (TEOS) and 3-chloropropyltrimethoxysilane in the presence of the triblock copolymer P123 as the structure-directing agent and under acidic conditions. Nucleophilic displacement of chloro groups by cyclam moieties (cyclam = 1,4,8,11-tetraazacyclotetradecane) was then achieved almost quantitatively. Subsequent treatment of solids containing different amounts of cyclam moieties with an ethanolic solution of europium (III) chloride gave rise to 1∶1 Eu^III/cyclam complexes. The EXAFS studies have shown that Eu^III adopts an octahedral geometry.

---

Introduction

The preparation of hybrid materials containing strongly chelated metal or lanthanide cations is a challenge worth pursuing as most transition metal and lanthanide salts exhibit physical properties (optical or magnetic, for example) that could be of interest for materials with specific properties. For this purpose, we have incorporated cyclam moieties within a silica matrix, cyclam (1,4,8,11-tetraazacyclotetradecane) being well-known for its remarkable binding ability towards transition metals.^1,2 That was done by hydrolysis and polycondensation of the tetrasilylated cyclam 1.³ The incorporation of Eu^III ions inside these solids was investigated and surprisingly, while complexation of Eu^III by the precursor 1 is not possible in solution, it was shown that direct incorporation of Eu^III within the hybrid material containing tetra-N-propyl cyclam moieties occurred, in a ratio of one Eu^IIIper two cyclam moieties. This result suggested that the cyclam moieties are in close proximity within the hybrid material, allowing the complexation of one Eu^III between two tetraaza macrocycles.⁴ This is in agreement with the previous study of the incorporation of Cu^II into the same material, a study that revealed the presence of Cu–Cu interactions by ESR spectroscopy.⁵ These results showed that the coordination mode of europium salts within the bulk is not the same as in solution, prompting us to study the coordination mode of Eu^III with cyclam moieties located inside the channel pores of ordered mesoporous hybrid materials in order to determine if it is similar to that in solution or in the bulk.

In this paper, we describe the preparation of ordered SBA-15 mesoporous silica containing N-propylcyclam moieties. These materials are obtained by post-modification of ordered SBA-15 mesoporous silica functionalized with chloropropyl groups prepared by the direct synthetic approach.^6–12 Successful complexation of europium(III) salt by the N-propylcyclam moieties located inside the channel pores of these materials was further achieved, giving rise to 1∶1 Eu^III/cyclam complexes. The results of EXAFS experiments that were performed to obtain quantitative information on the coordination mode of Eu^III within the channel pores of materials are discussed.

Results

1 Preparation of materials

First, we prepared ordered SBA-15 mesoporous silica containing chloropropyl groups. For this purpose, co-hydrolysis and polycondensation of a mixture of 3-chloropropyltrimethoxysilane and n equiv. (n = 9, 15 and 30) of tetraethylorthosilicate (TEOS) was carried out in the presence of the triblock copolymer P123 (EO₂₀PO₇₀EO₂₀) as template (Scheme 1). The procedure was the same as the one described for the preparation of ordered SBA-15 mesoporous silica containing phosphonic acid diethyl ester groups.¹² The template was removed from the as-synthesized material by Soxhlet extraction with ethanol heated under reflux for 24 h to give the samples denoted as Cl-SBA_n (n = 9, 15 and 30): Cl to specify the presence of chloropropyl groups inside the pore channels and n to indicate the number of equivalents of TEOS used. The composition of the final materials was inferred from the results of elemental analysis of Si and Cl. They were found to be close to those for the original mixtures as indicated in Table 1.

Scheme 1

Table 1 Physicochemical characteristics of chloropropyl-functionalized mesoporous silica

	Cl-SBA9	Cl-SBA15	Cl-SBA30
a Calculated from the desorption branch by using the BJH method. b Calculated from the elemental analysis. In parentheses, theoretical values.
S BET/m^2 g^−1	1160	1000	810
V p/cm^3 g^−1	1.13	1.05	1.11
D p ^a/Å	47	54	61
d 100/Å	91.9	96.6	106.5
a o/Å	106.1	111.5	123.0
Wall thickness/Å	59.1	57.5	60.0
[Cl group content]^b/mmol g^−1	1.24	0.87	0.51
	(1.49)	(0.97)	(0.51)

---

Small-angle X-ray scattering patterns of the different samples shown in Fig. 1 exhibit a single reflection. According to Pinnavaia et al., materials of the same kind presenting scattering patterns with only one reflection can be considered as having the p6m 2D hexagonal symmetry.^13,14 The identification of the first Bragg peak as the reflection on the (100) scattering planes of the 2D hexagonal structure allows the determination of the hexagonal lattice parameter a_o (see Table 1).

Fig. 1 Small-angle X-ray scattering patterns of Cl-SBA₁₅, Cycl-SBA₁₅ and Cycl,Eu-SBA₁₅

The N₂ adsorption-desorption isotherms of materials Cl-SBA_n are very similar. They are type IV isotherms, characteristic of mesoporous materials with a narrow pore size distribution (Fig. 2). The textural data of the materials are given in Table 1. It is worth noting that the S_BET, pore volumes and mean pore diameters of these materials are very large, the mean pore diameters increasing as n increases.

Fig. 2 Nitrogen adsorption-desorption isotherms of Cl-SBA₉, Cycl-SBA₉ and BJH pore size distribution plot (insert) of Cl-SBA₉

Nucleophilic displacement of chloro groups by cyclam moieties was subsequently achieved by treating the Cl-SBA_n solids with an acetonitrile solution containing 1.4 equiv. of cyclam heated under reflux for 48 h in the presence of a large excess of triethylamine. The solids were then filtered off and copiously washed with hot methanol, acetone and ether to afford Cycl-SBA_n (Scheme 1). The excess of cyclam remaining in the filtrate was determined by conductimetry measurement, which allowed the content of cyclam incorporated in the solid to be inferred. Some relevant physical data of these solids are given in Table 2. These results (Table 2) were confirmed by the elemental analyses of Si, Cl and N. Thus, the substitution reaction was almost quantitative, except for the Cl-SBA₉ material, which is the most concentrated in organic groups, for which the yield of substitution was about 80%. This is probably due to steric constraints. That indicates that the chloro groups in the materials of Cl-SBA_n are mostly accessible due to the rather large pore size.

Table 2 Physicochemical characteristics of cyclam-functionalized mesoporous silica

	Cycl-SBA9	Cycl-SBA15	Cyl-SBA30
a Calculated from the desorption branch by using the BJH method. b Calculated from the elemental analysis.
S BET/m^2 g^−1	627	688	464
V p/cm^3 g^−1	0.52	0.76	0.82
D p ^a/Å	36	47	61
d 100/Å	92	100	106
a o/Å	106	115	122
Wall thickness/Å	70	68	61
[Cyclam]^b mmol g^−1	0.93	0.70	0.48
% Substitution (µanal.)	80	92	98
% Substitution (titration)	80	92	95

---

The SAXS patterns of the different Cycl-SBA_n samples are very similar to those of the starting materials. They exhibit the diffraction peak corresponding to the d₁₀₀ spacing, indicating that the hexagonal structure is maintained (Fig. 1). The N₂ adsorption-desorption isotherms for Cycl-SBA_n are of type IV, characteristic of mesoporous materials with a narrow pore size distribution (Fig. 2). The surface area, total pore volume and pore size decreased notably after grafting, as expected,¹⁵ which is consistent with the presence of a significant amount of organic groups on the surface of the pore channels. Thus, it is possible to graft almost quantitatively a rather bulky group without modification of the structure. As one of the main characteristics of materials prepared by the direct synthetic approach is the regular distribution of organic groups within the channel pores,¹⁶ we can consider that the cyclam moieties are also regularly distributed inside the channel pores.

2 Complexation of Eu^III by cyclam moieties within the Cycl-SBA_n materials

We then investigated complexation of EuCl₃ by the cyclam moieties located inside the channel pores of the Cycl-SBA_n materials. Lanthanide complexes exhibit coordination numbers ranging from six to twelve (in the solid state and in solution), with eight and nine being the most common.¹⁷ Indeed, it is worth noting that in solution, complexation of europium(III) salts by cyclam derivatives is possible on condition that the cyclam derivatives are tetra-N-substituted by chelating arms (amido groups, for example), which allows a 4N + 4O coordination.⁴

The Cycl-SBA_n materials were treated with an excess of anhydrous EuCl₃ [2 equiv. of Eu^IIIper cyclam moiety] in ethanol heated under reflux for 24 h (Scheme 1). The resulting Cycl,Eu-SBA_n solids were copiously washed with ethanol in order to eliminate the non-complexed salt. The filtrate containing the excess of EuCl₃ was titrated by complexometry measurements. The ratio of Eu^IIIper cyclam moiety was inferred from these results. It was found to be exactly 1∶1 except for Cycl,Eu-SBA₉, for which the ratio Eu^III∶cyclam moiety was found to be 1∶0.9. Results of elemental analyses of Eu^III, Cl and N gave rise to exactly the same Eu^III∶cyclam ratio as that found by titration. It is worth noting that the incorporation of Eu^III does not take place in the absence of cyclam moieties inside the pore channels. This important point was demonstrated as follows: Cl-SBA₉ was treated with an ethanolic solution of EuCl₃ heated under reflux for 14 h. After filtration of the solid and washing with ethanol, titration of the filtrate by complexometry revealed that the entire amount of EuCl₃ remained in solution. This indicates that the complexation of Eu^III is essentially due to the N-propylcyclam moieties located inside the channel pores of the Cycl-SBA_n materials.

3 EXAFS study

Fig. 3 shows the Eu^III L₃-edge EXAFS of Eu in the Cycl,Eu-SBA_n materials and their corresponding Fourier transforms. Experimental data were fitted within the r range corresponding to the first nearest neighbour peak between 1.8 and 2.5 Å (Fig. 4). This yields a total number of independent data points equal to 2ΔkΔr/π + 2 ≈ 5.6,¹⁸ that is, greater than the number of variables (4). Best values of the structural parameters corresponding to these fits are listed in Table 3.

Fig. 3 Eu L₃-edge EXAFS in (a) k space and (b) r space for Cycl,Eu-SBA_n.

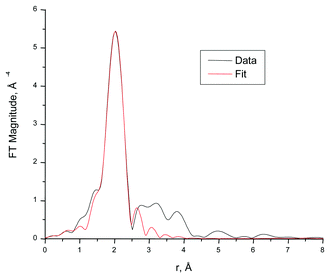

Fig. 4 Fourier transform magnitudes of the EXAFS data and fit for Cycl,Eu-SBA₉.

Table 3 Structural characteristics of the Eu environment as obtained by EXAFS

	Cycl,Eu-SBA9	Cycl,Eu-SBA15	Cycl,Eu-SBA30
N	6.2(4)	6.8(1.1)	6.5(1.0)
R/Å	2.483(6)	2.47(1)	2.47(1)
σ ^2/Å^2	0.0080(10)	0.0085(22)	0.0080(20)

---

To examine whether Cl or O enter the first shell of the Eu atom, we tested models in which a nitrogen atom in the first nearest neighbour site to Eu was substituted by Cl or O. We varied coordination numbers, distances and disorder of the Eu–Cl (or Eu–O) pairs separately from the Eu–N pairs. Because the number of parameters would exceed the number of relevant independent data points if just one data set was used in the fit, we performed the analysis for all three data sets concurrently, by imposing several physically reasonable constraints between the variables describing different samples. For example, all ΔE₀ variables were constrained to be the same during the fits, as well as the σ² of same bonds. These experiments allowed to rule out the possibility of Cl entering the first shell of Eu because the best-fit value of the coordination numbers of the Eu–Cl pairs is consistent with zero within the uncertainties.

We could not discriminate between the oxygen and nitrogen atoms as possible nearest neighbours for Eu because their backscattering amplitudes and phases are very similar. In both models, the total number of nearest neighbours to Eu was found to be equal to 6 and the interatomic distances are the same for all samples studied. Furthermore, the visual examination of the raw data (Fig. 3) allows us to conclude that there is no evidence of Eu–Eu correlation in the EXAFS data. This means that if such a correlation exists, it is very disordered and its contribution to EXAFS, therefore, is below the level of statistical noise (which can be estimated from the amplitude of the Fourier transform of the EXAFS data at high r).

Discussion

The EXAFS data revealed that the coordination of Eu^III is the same within all the materials studied (Cycl,Eu-SBA_n for n = 9, 15, 30), the coordination number being six. As we know that there is one Eu^III per cyclam moiety in all the materials studied, we propose a coordination of Eu^III by the four N atoms originating from one cyclam moiety and two oxygen atoms in the axial direction, forming an octahedron. The oxygen donors can originate from water molecules contained in the materials and/or SiOH groups remaining at the surface of the pores (Scheme 2). We have no data allowing to discriminate between these two sources of oxygen donors.

Scheme 2

It is worth noting that the geometry that we propose has been previously observed in [Mn(CN)₂(C₁₀H₂₄N₄)]·ClO₄ and trans-[Mn(CN)₂(cyclam)]·ClO₄.¹⁹ In this Mn^III-cyclam complex, both Mn–C distances in the axial direction are very close to the four in-plane Mn–N distances, ranging from 2.00 to 2.03 Å. In the Eu^III complex, all the six Eu–nearest neighbour distances must also be similar, as in the case of the Mn^III-cyclam complex, which means that the octahedron is not significantly distorted in the axial direction. Indeed, a tetragonal distortion (elongation or shortening of the axial Eu–O bond relative to the in-plane Eu–N bond) by as little as 0.15 Å would result in a static contribution to the average Eu–nearest neigbours bond length disorder of ca. 0.005 Ų. This is a too-large contribution to the total (both static and thermal) σ² (Table 3) to be physically reasonable.

Interestingly, the negative results of the EXAFS data modelling that assumed a Eu–Cl contribution to the EXAFS spectrum convincingly prove that no complexation of EuCl₃ occurred in solution in the presence of N-triethoxysilylpropylcyclam. This is in agreement with our experimental results, which prove that there is no complexation in solution between EuCl₃ and N-triehoxysilylpropylcyclam.

In conclusion, we have shown that the coordination mode of Eu^III ions in the pore channels of mesoporous hybrid materials containing chelating units is the same whatever the chelating group concentration within the channel pores. This is a good indication of the regular distribution of cyclam moieties within the channel pores. A coordination number of six was found, which is different from both that observed in solution (no formation of complex between Eu^III and N-triethoxysilylpropylcyclam) and that in the bulk (1 Eu^III for 2 cyclam units).⁴ These results illustrate the versatility of the coordination chemistry in the solid, which deserves to be further explored.

Experimental

General procedures

All reactions were carried out under argon by using a vacuum line. Solvents were dried and distilled just before use. The triblock copolymer [EO₂₀PO₇₀EO₂₀ with PEO = poly(ethylene oxide) and PPO = poly(propylene oxide)] Pluronic P123, 3-chloropropyltrimethoxysilane, tetraethylorthosilicate (TEOS) and EuCl₃ salt were purchased from Aldrich and used as supplied. 1,4,8,11-Tetraazacyclotetradecane (cyclam) was obtained from LIMSAG (CNRS UMR 5633, Université de Bourgogne, Dijon). The CP MAS ²⁹Si solid state NMR spectra were recorded on a Bruker FTAM 300 as well as the CP MAS ¹³C solid state NMR spectra, in the latter case by using the TOSS technique. In both cases, the repetition times were 5 and 10 s with contact times of 5 and 2 ms. Chemical shifts (ppm) are referenced to Me₄Si. Specific surface areas were determined by the Brunauer–Emmett–Teller (BET) method on a Micromeritics ASAP 2010 analyser and the average pore diameters were calculated by the BJH method. Elemental analyses were carried out by the “Service Central de Micro-Analyse du CNRS” (Vernaison, France). SAXS experiments were carried out on a high resolution Bonse–Hart camera with two germanium channel cuts for very small q values. The wavelength was 1.542 Å (CuKα radiation).

Preparation of materials

Preparation of Cl-SBA_n (n = 9, 15 and 30). The materials Cl-SBA_n (n = 9, 15 and 30) were prepared according to the same procedure. Preparation of Cl-SBA₉ is given as an example.

The triblock copolymer (EO₂₀PO₇₀EO₂₀) Pluronic P123 (4.0 g) was dissolved in 160 mL of an aqueous solution of HCl (pH = 1.5). The resulting clear solution was then added to a mixture of 3-chloropropyltrimethoxysilane (0.84 g, 4.49 mmol) and tetraethylorthosilicate (8.41 g, 40.41 mmol). The mixture was vigorously stirred for 3 h at room temperature until a transparent solution appeared. The solution was transferred into a hot oil bath at 60 °C and NaF (76.0 mg, 1.80 mmol) was then immediately added to induce the polycondensation. A white precipitate appeared within a few minutes and the resulting suspension was further stirred for 2 days at 60 °C. The resulting white powder was filtered off and the surfactant was selectively removed by Soxhlet extraction over ethanol for 24 h.

Cl-SBA₉. After drying at 120 °C overnight under vacuum, 2.89 g (94%) of Cl-SBA₉ was obtained as a white powder. ¹³C NMR (75 MHz, CP-MAS) δ: 9.3 (CH₂Si), 16.1 (CH₃CH₂OSi), 26.4 (CH₂CH₂Si), 46.0 (ClCH₂), 59.8 (CH₃CH₂OSi). ²⁹Si NMR (60 MHz, CP-MAS) δ: −66.7 (T³), −92.0 (Q²), −101.4 (Q³), −109.4 (Q⁴). IR (KBr) ν/cm⁻¹: 3450 (H-bonded Si–OH), 2981–2909 (C_sp3–H), 1636 (H₂O bonded), 1200–1000 (Si–O–Si)
Cl-SBA₁₅. Cl-SBA₁₅ (2.97 g, 98%) was obtained as a white powder. ¹³C NMR (75 MHz, CP-MAS) δ: 9.1 (CH₂Si), 15.9 (CH₃CH₂OSi), 26.2 (CH₂CH₂Si), 45.5 (ClCH₂), 59.7 (CH₃CH₂OSi). ²⁹Si NMR (60 MHz, CP-MAS) δ: −64.5 (T³), −92.0 (Q²), −101.4 (Q³), −109.6 (Q⁴). IR (KBr) ν/cm⁻¹: 3426 (H-bonded Si–OH), 2981–2909 (C_sp3–H), 1630 (H₂O bonded), 1200–1000 (Si–O–Si).
Cl-SBA₃₀. Cl-SBA₃₀ (2.94 g, 96%) was obtained as a white powder. ²⁹Si NMR (60 MHz, CP-MAS) δ: −64.3 (T³), −91.7 (Q²), −101.2 (Q³), −109.0 (Q⁴). IR (KBr) ν/cm⁻¹: 3450 (H-bonded Si–OH), 1630 (H₂O bonded), 1200–1000 (Si–O–Si).

Reactivity of chloropropyl groups toward cyclam. The substitution reactions within the different solids have been carried out according to the same procedure. The preparation of Cycl-SBA₉ is given as an example. For the other solids, the physical data are given below.
Preparation of Cycl-SBA₉. A mixture of cyclam (0.42 g, 2.09 mmol), Cl-SBA₉ (1.00 g, 1.49 mmol) in 90 mL of acetonitrile and triethylamine (1.1 g, 10.9 mmol) was heated under reflux and stirring for 2 days. The white solid was quantatitatively recovered by filtration and washed 5 times with hot chloroform and 3 times with hot ethanol to remove the excess of cyclam. After drying at 120 °C overnight under vacuum, 1.10 g (95%) of Cycl-SBA₉ was obtained as a white powder. The excess of cyclam contained in the reaction filtrate was titrated by conductimetry. ¹³C NMR (75 MHz, CP-MAS) δ: 9.8 (CH₂Si), 26.2 (CH₂CH₂N), 40.0–60.0 (NCH₂). ²⁹Si NMR (60 MHz, CP-MAS) δ: −61.9 (T²), −66.0 (T³), −101.6 (Q³), −110.0 (Q⁴). IR (KBr) ν/cm⁻¹: 3420 (H-bonded Si–OH), 2953–2859 (C_sp³–H), 1634 (H₂O bonded), 1200–1000 (Si–O–Si).
Cycl-SBA₁₅. Cycl-SBA₁₅ was obtained in 95% yield as a white powder. ¹³C NMR (75 MHz, CP-MAS) δ: 9.7 (CH₂Si), 26.2 (CH₂CH₂N), 40.0–60.0 (NCH₂). ²⁹Si NMR (60 MHz, CP-MAS) δ: −61.9 (T²), −66.0 (T³), −99.7 (Q³), −108.0 (Q⁴). IR (KBr) ν/cm⁻¹: 3421 (H-bonded Si–OH), 2941–2842 (C_sp³–H), 1640 (H₂O bonded), 1200–1000 (Si–O–Si).
Cycl-SBA₃₀. Cycl-SBA₃₀ was obtained in 94% yield as a white powder. ²⁹Si NMR (60 MHz, CP-MAS) δ: −66.0 (T³), −99.8 (Q³), −108.1 (Q⁴).

Complexation of EuCl₃ by cyclam moieties within the Cycl-SBA_n materials. All the complexation reactions with Cycl-SBA_n were carried out according to the same procedure with standard high vacuum and dry argon techniques. The preparation of Cycl,Eu-SBA₉ is given as an example.
Preparation of Cycl,Eu-SBA₉. Cycl-SBA₉ (0.25 g, 0.37 mmol) was added to an ethanolic solution (10 mL) of EuCl₃ (0.20 g, 0.76 mmol). The resulting suspension was heated overnight under reflux with stirring. The solid was quantitatively recovered by filtration and washed with ethanol and acetone several times. After drying at 120 °C overnight under vacuum, 0.34 g (97%) of Cycl,Eu-SBA₉ was obtained as a white powder. IR (KBr) ν/cm⁻¹: 3428 (H-bonded Si–OH), 2962–2864 (C_sp³–H), 1634 (H₂O bonded), 1200–1000 (Si–O–Si).

EXAFS experiment

For each of the Cycl,Eu-SBA_n samples, the powder was pressed into a rectangular wafer. The wafers were approximately 0.5 mm thick and satisfied the condition that Δμ·x ≤ 1, where x is the effective sample thickness and Δμ is the jump in absorption coefficient at the Eu L₃ absorption edge (6977 eV). The EXAFS measurements were taken in transmission mode at the X16C beamline of the National Synchrotron Light Source (Brookhaven National Laboratory, Upton, NY). X-Ray absorption spectra were collected using a double-crystal Si(111) monochromator. To reject higher order harmonics of the beam, the monochromator crystals were 30% detuned. The energy range was from the 6777 eV edge to 7618 eV (which corresponds to the Eu L₂ edge). The incident beam intensity was measured in a 15 cm long ionization chamber filled with N₂ while the transmitted beam intensity was measured in a 30 cm long chamber filled with a 1∶2 Ar–He mixture. After subtracting the smooth atomic background from the measured X-ray absorption coefficients, the edge-step normalized EXAFS functions χ(k) were obtained for each data set.

References

1. L. F. Lindoy, The Chemistry of Macrocyclic Ligand Complexes, Cambridge University Press, Cambridge, 1989.
2. P. V. Bernhardt and G. A. Lawrance, Coord. Chem. Rev., 1990, 104, 297.
3. G. Dubois, R. J. P. Corriu, C. Reyé, S. Brandès, F. Denat and R. Guilard, Chem. Commun., 1999, 2283.
4. R. J. P. Corriu, F. Embert, Y. Guari, C. Reyé and R. Guilard, Chem.-Eur. J., 2002, 8, 5732.
5. G. Dubois, C. Reyé, R. J. P. Corriu, S. Brandès, F. Denat and R. Guilard, Angew. Chem., Int. Ed., 2001, 40, 1087.
6. D. J. Macquarrie, D. B. Jackson, S. Tailland and K. A. Utting, J. Mater. Chem., 2001, 11, 1843.
7. R. Richer and L. Mercier, Chem. Commun., 1998, 1775.
8. R. J. P. Corriu, A. Mehdi and C. Reyé, C. R. Acad. Sci. Sér. IIc, 1999, 2(1), 35.
9. L. Mercier and T. Pinnavaia, Chem. Mater., 2000, 12, 188.
10. R. Richer and L. Mercier, Chem. Mater., 2001, 13, 2999.
11. D. Margolese, J. A. Melero, S. C. Christiansen, B. F. Chmelka and G. D. Stucky, Chem. Mater., 2000, 12, 2448.
12. R. J. P. Corriu, L. Datas, Y. Guari, A. Mehdi, C. Reyé and C. Thieuleux, Chem. Commun., 2001, 763.
13. P. T. Tanev, M. Chibwe and T. J. Pinnavaia, Nature (London), 1994, 368, 321.
14. P. T. Tanev and T. J. Pinnavaia, Science, 1995, 267, 865.
15. A. B. Sorokin and A. Tuel, New J. Chem., 1999, 23, 473.
16. Y. Mori and T. J. Pinnavaia, Chem. Mater., 2001, 13, 2173.
17. F. S. Richardson, Chem. Rev., 1982, 82, 541.
18. E. A. Stern, Phys. Rev. B, 1993, 48, 9825.
19. S. Mossin, H. O. Sorensen and H. Wiehe, Acta Crystallogr., Sect. C, 2002, 58, m204–m206.

---
