Synthesis, structure and characterization of two new antimony oxides–LaSb₃O₉ and LaSb₅O₁₂: Formation of LaSb₅O₁₂ from the reaction of LaSb₃O₉ with Sb₂O₃

Abstract

Two new lanthanum antimony oxides, LaSb₃O₉ and LaSb₅O₁₂, have been synthesized as bulk phase powders and single crystals by solid state reactions using La₂O₃ (or La(NO₃)₃·xH₂O), Sb₂O₃ and Sb₂O₅ as reagents. The structures of LaSb₃O₉ and LaSb₅O₁₂ were determined by single crystal X-ray diffraction. LaSb₃O₉ contains exclusively Sb⁵⁺ cations, whereas LaSb₅O₁₂ contains both Sb³⁺ and Sb⁵⁺ cations. LaSb₃O₉ has a novel three-dimensional framework consisting of edge- and corner-shared Sb⁵⁺O₆ octahedra. LaSb₅O₁₂ exhibits a layered crystal structure consisting of corner-shared Sb⁵⁺O₆ octahedra. The Sb³⁺O₃ groups cap the SbO₆ layers from above and below. The Sb³⁺ cations are in asymmetric coordination environments attributable to their stereo-active lone-pair. We also report on the reaction of three-dimensional LaSb₃O₉ with Sb₂O₃ to form the two-dimensional LaSb₅O₁₂. Infrared, thermogravimetric and dielectric analyses are also presented.

---

Introduction

A rich structural chemistry has been observed in mixed metal oxides containing cations with non-bonded electron pairs (Pb²⁺, Bi³⁺, Sb³⁺, Te⁴⁺ and Se⁴⁺).^1–5 These cations are found in a variety of asymmetric coordination environments attributable to their stereo-active lone-pair. The lone-pair is thought to be the result of a second-order Jahn–Teller (SOJT) distortion.^6–10 With these cations, a SOJT distortion reduces the energy between the highest occupied (HOMO) s-orbital and the lowest unoccupied (LUMO) p-orbital through s–p mixing.^11–14 Combining this variable coordination geometry with octahedral or tetrahedral moieties produces a great deal of interesting framework architecture. We recently reported the syntheses, structures, and optical behavior of a few materials that contain SOJT distorted cations.^15–17 With these ideas in mind, we investigated materials in the La–Sb–oxide system. Attributable to its structural versatility, compounds containing Sb³⁺ exhibit a great deal of interesting materials properies including magnetic,¹⁸ thermoelectric,¹⁹ second-harmonic generating,²⁰ and dielectric behavior.²¹ With respect to rare earth antimony oxides, a few materials have been reported, namely Pr₃SbO₇,²² La₃Li₅Sb₂O₁₂,²³ Ln₃Sb₅O₁₂ (Ln = Pr, Nd, Sm, Gd, Yb or Eu),^24–27 and LaSbO₄.²⁸ Except for Ln₃Sb₅O₁₂^24–27 all of these materials contain Sb⁵⁺. Structurally the materials are very different, with Pr₃SbO₇²² containing one-dimensional SbO₆ chains, whereas La₃Li₅Sb₂O₁₂²³ exhibits discrete SbO₆ octahedra. Only Ln₃Sb₅O₁₂^24–27 has a three-dimensional structure, consisting of asymmetric SbO₃ and SbO₄ polyhedra that are linked through oxygen atoms. For LaSbO₄, only a powder X-ray diffracation pattern has been reported. In this paper, we report the synthesis, structure and characterization of two new materials, LaSb₃O₉ and LaSb₅O₁₂ (LaSb₂³⁺Sb₃⁵⁺O₁₂). In addition, we report on the formation of LaSb₅O₁₂ through the reaction of LaSb₃O₉ and Sb₂O₃.

Experimental

Synthesis

Sb₂O₃ (Alfa Aesar, 99.6%), Sb₂O₅ (Aldrich, 99.995%), La(NO₃)₃·xH₂O (Aldrich, 99.9%) and TeO₂ (Aldrich, 99%) were used as received. La₂O₃ (Aldrich, 99.9%) was dried overnight at 1000 °C before being used. α-Sb₂O₄ was synthesized by heating Sb₂O₃ in air at 600 °C for 24 h and the purity was confirmed by powder X-ray diffraction.

Synthesis of LaSb₃O₉. Single crystals of LaSb₃O₉ were prepared using TeO₂ as a flux. 0.192 g (0.59 × 10⁻³ mol) of La₂O₃, 0.190 g (0.59 × 10⁻³ mol) of Sb₂O₅ and 0.563 g (3.53 × 10⁻³ mol) of TeO₂ were ground with an agate mortar and pestle and introduced into a gold tube that was subsequently sealed. The tube was heated to 900 °C for 24 h and then cooled to 500 °C at 6 °C h⁻¹ before being quenched to room temperature. Pale yellow crystals of LaSb₃O₉ were recovered along with TeO₂ and unknown amorphous phases from the gold tube. The isolated yield was approximately 20% based on the weight of Sb₂O₅.

Polycrystalline LaSb₃O₉ was prepared by standard solid-state techniques. 1.083 g (3.33 × 10⁻³ mol) of La(NO₃)₃·xH₂O and 1.618 g (5.00 × 10⁻³ mol) of Sb₂O₅ were ground thoroughly with an agate mortar and pestle and pressed into a pellet. The pellet was heated to 350 °C for 3 h, and then to 900 °C for 48 h in air and cooled to room temperature with two intermittent re-grindings. The use of La(NO₃)₃·xH₂O was critical in preventing the reduction of Sb⁵⁺ to Sb³⁺. The powder X-ray diffraction pattern on the resultant white powder is in good agreement with the generated pattern from the single crystal data (see ESI†).

Synthesis of LaSb₅O₁₂. The LaSb₅O₁₂ crystals were grown by combining 0.225 g (0.69 × 10⁻³ mol) of La₂O₃ and 1.275 g (4.15 × 10⁻³ mol) of α-Sb₂O_4. The mixture was ground with an agate mortar and pestle and introduced into a platinum tube that was subsequently sealed. The tube was heated to 1000 °C for 24 h, cooled to 800 °C at 6 °C h⁻¹, and then cooled to room temperature at 60 °C h⁻¹. Colorless blocks of LaSb₅O₁₂ crystals were recovered from the tube in 60% yield based on the weight of α-Sb₂O₄.

Pure LaSb₅O₁₂ powder was synthesized by combining 0.362 g (1.11 × 10⁻³ mol) of La₂O₃, 0.648 g (2.22 × 10⁻³ mol) of Sb₂O₃ and 1.078 g (3.33 × 10⁻³ mol) of Sb₂O₅. The mixture was thoroughly ground and pressed into a pellet. The pellet was wrapped in platinum foil, introduced into a fused silica tube that was sealed under vacuum. The tube was heated to 750 °C for 24 h, 850 °C for 48 h, 900 °C for 24 h, and then cooled to room temperature at a rate of 10 °C min⁻¹ with four intermediate re-grindings. The powder X-ray diffraction pattern on the resultant white powder indicated the material was single-phase and in good agreement with the generated pattern from the single crystal data (see ESI†).

Crystallographic determination

A pale yellow block (0.04 × 0.16 × 0.40 mm) for LaSb₃O₉ and a colorless block (0.12 × 0.15 × 0.20 mm) for LaSb₅O₁₂ were used for single crystal data analyses. Room-temperature intensity data were collected on a Siemens SMART diffractometer equipped with a 1K CCD area detector using graphite-monochromated Mo-Kα radiation. A hemisphere of data was collected using a narrow-frame method with scan widths of 0.30° in omega, and an exposure time of 30 s frame⁻¹. The first 50 frames were re-measured at the end of the data collection to monitor instrument and crystal stability. The maximum correction applied to the intensities was <1%. The data were integrated using the Siemens SAINT program,²⁹ with the intensities corrected for Lorentz, polarization, air absorption, and absorption attributable to the variation in the path length through the detector faceplate. Psi-scans were used for the absorption correction on the hemisphere of data. The data were solved and refined using SHELXS-97 and SHELXL-97, respectively.^30,31 All of the metal atoms were refined with anisotropic thermal parameters and converged for I > 2σ(I). All calculations were performed using the WinGX-98 crystallographic software package.³² Crystallographic data, atomic coordinates and displacement parameters, and selected bond distances for LaSb₃O₉ and LaSb₅O₁₂ are given in Tables 1–4. The X-ray powder diffraction data were collected on a Scintag XDS2000 diffractometer at room temperature (Cu-Kα radiation, θ–θ mode, flat plate geometry) in the 2θ range 5–60° with a step size of 0.02°, and a step time of 2 s.

Table 1 Crystallographic data for LaSb₃O₉ and LaSb₅O₁₂

Formula	LaSb3O9	LaSb5O12
a R 1 = Σ||Fo| − |Fc||/Σ|Fo|. b w R 2 = [Σw(Fo^2 − Fc^2)^2/Σw(Fo^2)^2]^1/2.
Formula weight	648.16	939.66
Crystal system	Orthorhombic	Trigonal
Space group	Cmcm (no. 63)	R3̄m (no. 166)
a/Å	6.5505(11)	7.2707(7)
b/Å	8.8941(11)	7.2707(7)
c/Å	11.8274(17)	16.4673(12)
α/°	90	90
β/°	90	90
γ/°	90	120
V/Å^3	689.07(17)	753.89(12)
Z	4	3
μ(Mo-Kα)/mm^−1	17.735	17.466
Refl. collected/unique	2040/450	1549/251
R int	0.0798	0.0472
R 1 ^a [I > 2σ(I)]	0.0438	0.0230
wR 2 ^b [I > 2σ(I)]	0.1261	0.0596

---

Table 2 Atomic coordinates for LaSb₃O₉

Atom	x	y	z	U eq ^a/Å^2	Occupancy
a U eq is defined as one third of the trace of the orthogonalized Uij tensor. b All oxygen atoms were refined isotropically.
La(1)	0	0.2449(1)	0.75	0.012(1)	1.0
Sb(1)	0	0.5	0.5	0.007(1)	1.0
Sb(2)	0	0.1217(1)	0.4084(1)	0.007(1)	1.0
O(1)	−0.1968(10)	0.6111(6)	0.4014(5)	0.010(1)^b	1.0
O(2)	0	0.3336(10)	0.3849(8)	0.012(2)	1.0
O(3)	0	0.1026(10)	0.5746(8)	0.008(2)	1.0
O(4)	0	0.0605(13)	0.25	0.007(2)	1.0

---

Table 3 Atomic coordinates for LaSb₅O₁₂

Atom	x	y	z	U eq ^a/Å^2	Occupancy
a U eq is defined as one third of the trace of the orthogonalized Uij tensor.
La(1)	0.3333	0.6667	0.1667	0.007(1)	1.0
Sb(1)	0	0	0.1517(1)	0.007(1)	1.0
Sb(2)	0.1667	0.3333	0.3333	0.006(1)	1.0
O(1)	0.2513(10)	0.1256(5)	0.3657(3)	0.010(1)	1.0
O(2)	0.1315(5)	0.2629(10)	0.2168(3)	0.011(1)	1.0

---

Table 4 Selected bond distances (Å) for LaSb₃O₉ and LaSb₅O₁₂

LaSb3O9		LaSb5O12
Sb(1)–O(1) × 4	2.000(6)	Sb(1)–O(2) × 3	1.972(6)
Sb(1)–O(2) × 2	2.011(10)	Sb(2)–O(1) × 4	1.968(2)
Sb(2)–O(1) × 2	1.989(7)	Sb(2)–O(2) × 2	1.970(6)
Sb(2)–O(2)	1.906(9)
Sb(2)–O(3)	1.972(10)
Sb(2)–O(3)	2.005(9)
Sb(2)–O(4)	1.951(3)

---

CCDC reference numbers 218480 and 218481.

See http://www.rsc.org/suppdata/jm/b3/b307496j/ for crystallographic data in CIF or other electronic format.

Characterization

Infrared spectra were recorded on a Matteson FTIR 5000 spectrometer in the 400–4000 cm⁻¹ range, with the sample pressed between two KBr pellets. Thermogravimetric analyses were carried out on a TGA 2950 (TA Instruments). The samples were contained within platinum crucibles and heated at a rate of 10 °C min⁻¹ from room temperature to 900 °C in nitrogen. The dielectric constant (κ) and quality factor (Q = 1/tan δ) measurements were performed using a HP4192A impedance analyzer operating at 1 MHz. Polycrystalline LaSb₃O₉ and LaSb₅O₁₂ were pressed into 1.2 cm diameter and 0.15 cm thick pellets and sintered at 900 °C for 24 h. The pellets had a density 90% of theoretical. A conducting silver paste was applied to the pellet surfaces for electrodes and cured at 400 °C. The temperature dependence of the dielectric constants (TCK) was measured, between −20 and 100 °C, by placing the pellets in a Linkam THMSE600 hot stage.

Results and discussion

Structures

LaSb₃O₉ exhibits a three-dimensional crystal structure consisting of layers of edge- and corner-shared SbO₆ octahedra. Each layer is connected through an oxygen atom to form the three-dimensional topology. As seen in Fig. 1(a), six-membered ring channels are formed that run parallel to the a-axis. The La³⁺ cations reside in these channels. Within each layer, two [Sb(2)O_6/2]⁻ octahedra share edges through O(3), whereas an [Sb(1)O_6/2]⁻ octahedron shares corners with four [Sb(2)O_6/2]⁻ octahedra through O(1) and O(2) (see Fig. 1(b)). The layers are connected by a single oxygen atom, O(4). The Sb–O bond distances lie in the range 1.906(9)–2.008(10) Å. The La³⁺ cation is in a seven-fold coordination environment with La–O contacts ranging from 2.431(10) to 2.717(12) Å. In connectivity terms, LaSb₃O₉ can be formulated as consisting of a {3[SbO_6/2]⁻}³⁻ anionic framework with charge balance maintained by the La³⁺ cation. Bond valence calculations^33,34 on LaSb₃O₉ resulted in values of 2.66 and 5.10 for La³⁺ and Sb⁵⁺, respectively.

Fig. 1 (a) Ball-and-stick diagram of LaSb₃O₉ in the bc plane. Note the six-membered ring parallel to the a-axis in which the La³⁺ cations are found. (b) Ball-and-stick diagram of local environments in LaSb₃O₉ indicating the connectivity of Sb(1)O₆ and Sb(2)O₆ units.

LaSb₅O₁₂ (LaSb₂³⁺Sb₃⁵⁺O₁₂) exhibits a two-dimensional layered crystal structure composed of corner-shared Sb⁵⁺O₆ octahedra. The asymmetric Sb³⁺O₃ groups cap the Sb⁵⁺O₆ octahedra from above and below and serve as intra-layer linkers (see Fig. 2). Each Sb⁵⁺O₆ octahedron is connected to four additional Sb⁵⁺O₆ octahedra and two Sb³⁺O₃ trigonal pyramids, whereas each Sb³⁺O₃ pyramid is connected to three Sb⁵⁺O₆ octahedra. The Sb⁵⁺–O bond distances lie in the range 1.968(2)–1.970(6) Å, whereas Sb³⁺–O has a unique bond distance of 1.972(6) Å. The La³⁺ cation is in a twelve-fold coordination environment with La–O contacts ranging from 2.673(6) to 2.720(6) Å. The non-bonded electron pair on the Sb³⁺ cation points toward the La³⁺. In connectivity terms, the structure can be described as a two-dimensional layer of {[Sb³⁺O_3/2]⁰3[Sb⁵⁺O_6/2]⁻}³⁻. Charge neutrality is maintained by the La³⁺ cation. Bond valence calculations^33,34 resulted in values of 2.91, 3.01 and 5.58 for La³⁺, Sb³⁺ and Sb⁵⁺, respectively.

Fig. 2 Ball-and-stick diagram of LaSb₅O₁₂ in the ac plane. Note that the Sb³⁺O₃ groups serve as intra-layer linkers, by capping the Sb⁵⁺O₆ layer from above and below.

Interestingly, the structural motif of LaSb₅O₁₂ is similar to that of A₂TeW₃O₁₂ (A = Rb or Cs).³⁵ This similarity can be better understood by re-writing LaSb₅O₁₂ as LaSb₂³⁺Sb₃⁵⁺O₁₂. Thus both LaSb₂Sb₃O₁₂ and A₂TeW₃O₁₂ have a “M₃O₁₂” sub-structure (M = Sb⁵⁺ or W⁶⁺), with the three remaining cations in the formula as either “LaSb₂” or “A₂Te” for LaSb₂Sb₃O₁₂ and A₂TeW₃O₁₂, respectively. Both LaSb₂Sb₃O₁₂ and A₂TeW₃O₁₂ contain a layer of MO₆ octahedra, Sb⁵⁺O₆ and W⁶⁺O₆, respectively, that is similar to hexagonal-WO₃.³⁶ However, in LaSb₂Sb₃O₁₂ these layers are anionic, [Sb⁵⁺O_6/2]⁻, whereas in A₂TeW₃O₁₂ the analogous layers are neutral, [W⁶⁺O_6/2]⁰. This difference in charge produces different atomic connectivities in the crystal structures. For LaSb₂Sb₃O₁₂, the Sb³⁺O₃ groups link to the Sb⁵⁺O₆ layer on both sides, above and below (see Fig. 3), whereas in A₂TeW₃O₁₂, the Te⁴⁺O₃ groups connect to the WO₆ layer only on one side. This ‘single-sided’ connectivity of the TeO₃ groups results in a non-centrosymmetric polar structure, compared with the ‘above and below’ linking of the SbO₃ groups that produces a centrosymmetric structure. Between the MO₆ layers (M = Sb⁵⁺ or W⁶⁺) are the La³⁺ or A⁺ (A = Rb or Cs) cations, respectively.

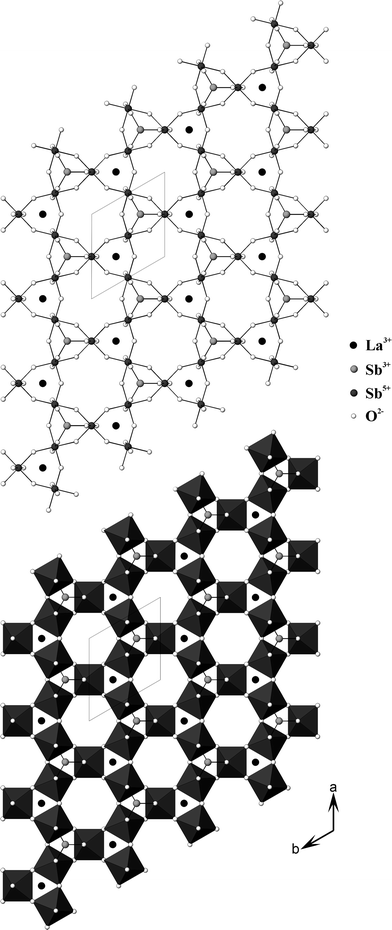

Fig. 3 Ball-and-stick (top) and polyhedral (bottom) representation of one-layer of LaSb₅O₁₂ in the ab plane.

If we write LaSb₅O₁₂ as LaSb₂Sb₃O₁₂ and ‘subtract’ Sb₂O₃ from the stoichiometry, we are left with LaSb₃O₉. Therefore reacting Sb₂O₃ with LaSb₃O₉ should produce LaSb₅O₁₂. A stoichiometric mixture of LaSb₃O₉ and Sb₂O₃ was heated in an evacuated fused silica tube to 900 °C for 24 h and 1000 °C for an additional 24 h. Powder XRD measurements on the reaction product revealed a diffraction pattern consistent with LaSb₅O₁₂. Interestingly, this reaction is irreversible. LaSb₅O₁₂ is stable up to 1100 °C, with additional heating resulting in decomposition to LaSbO₄.²⁸

Characterization

Infrared spectroscopy. The infrared spectra of both materials revealed Sb–O (730–860 cm⁻¹), Sb–O–Sb (507–690 cm⁻¹) and O–Sb–O (420–480 cm⁻¹) vibrations. The infrared vibrations and assignments are given in Table 5. The assignments are consistent with those previously reported.³⁷

Table 5 Infrared vibrations (cm⁻¹) for LaSb₃O₉ and LaSb₅O₁₂

	ν(Sb–O)	ν(Sb–O–Sb)	δ(O–Sb–O)
LaSb3O9	860	690	484
	804	653	462
	736	553
		526
		507
LaSb5O12	794	699	489
	755		466
			422

---

Thermogravimetric analysis. The thermal behavior of LaSb₃O₉ and LaSb₅O₁₂ were investigated using thermogravimetric analysis. No weight losses or phase changes were observed up to 900 °C for both materials. Heating LaSb₃O₉ and LaSb₅O₁₂ to 1200 °C resulted in both materials decomposing to crystalline LaSbO₄.²⁸

Dielectric measurements. Since the reported materials contain polarizable cations, we felt it would be interesting to investigate their bulk dielectric properties. The dielectric constants (κ) for LaSb₃O₉ and LaSb₅O₁₂ are 20.5 and 28.7, respectively. Interestingly, the quality factor (Q = 1/tan δ) and temperature dependence of the dielectric constant (TCK) for LaSb₃O₉ are superior to LaSb₅O₁₂ (see Table 6). Additional measurements are underway in order to ascertain the origin of this dielectric behavior.

Table 6 Dielectric constant (κ), quality factor (Q) and temperature coefficient of the dielectric constant (TCK) for LaSb₃O₉ and LaSb₅O₁₂ at 1 MHz and 20 °C

	κ ^a	Q (1/tan δ)^b	TCK^c/ppm °C^−1
a κ = Dielectric constant. b Q = 1/tan δ. c TCK = [(κ100 − κ−20)/κ40]/120
LaSb3O9	20.49	32.15	32.5
LaSb5O12	28.87	2.90	116.7

---

Conclusions

We have synthesized, as both bulk phases and single crystals, two new lanthanum antimony oxides, LaSb₃O₉ and LaSb₅O₁₂. The materials were characterized by single crystal and powder diffraction as well as infrared, thermogravimetric and dielectric analyses. LaSb₃O₉ has a three-dimensional crystal structure, whereas LaSb₅O₁₂ exhibits a layered motif. We have also demonstrated that LaSb₅O₁₂ can be formed by the stoichiometric reaction between LaSb₃O₉ and Sb₂O₃. We continue to explore the synthesis of new antimony oxides, as well as investigate the incorporation of other cations with stereo-active lone-pairs into new materials.

Acknowledgements

We thank the Robert A. Welch Foundation for support. This work was also supported by the NSF-Career Program through DMR-0092054 and an acknowledgment is made to the donors of The Petroleum Research Fund, administered by the American Chemical Society, for partial support of this research. P. S. H. is a Beckman Young Investigator.

References

1. L. Orgel, J. Chem. Soc., 1959, 3815.
2. G. Meunier and J. Galy, Acta Crystallogr., 1971, 602.
3. J. Galy, G. Meunier, S. Andersson and A. Anstrom, J. Solid State Chem., 1975, 13, 142.
4. Y. Arnaud, M. T. Averbuch-Pouchot, A. Durif and J. Guidot, Acta Crystallogr., Sect. B, 1975, 32, 142.
5. A. Guesdon and B. Raveau, Chem. Mater., 2000, 12, 2239.
6. U. Opik and M. H. L. Pryce, Proc. R. Soc. London A, 1957, 238, 425.
7. R. F. W. Bader, Mol. Phys., 1960, 3, 137.
8. R. F. W. Bader, Can. J. Chem., 1962, 40, 1164.
9. R. G. Pearson, J. Mol. Struct.: THEOCHEM, 1983, 103, 25.
10. R. A. Wheeler, M.-H. Whangbo, T. Hughbanks, R. Hoffmann, J. K. Burdett and T. A. Albright, J. Am. Chem. Soc., 1986, 108, 2222.
11. H. Nikol and A. Vogler, J. Am. Chem. Soc., 1991, 113, 8988.
12. H. Nikol and A. Vogler, Inorg. Chem., 1993, 32, 1072.
13. G. W. Watson and S. C. Parker, J. Phys. Chem. B., 1999, 103, 1258.
14. G. W. Watson, S. C. Parker and G. Kresse, Phys. Rev. B, 1999, 59, 8481.
15. K. M. Ok, N. S. P. Bhuvanesh and P. S. Halasyamani, Inorg. Chem., 2001, 40, 1978.
16. Y. Porter, K. M. Ok, N. S. P. Bhuvanesh and P. S. Halasyamani, Chem. Mater., 2001, 13, 1910.
17. H.-S. Ra, K. M. Ok and P. S. Halasyamani, J. Am. Chem. Soc., 2003, 125, 7764.
18. R. C. T. Slade, G. B. Hix and B. Ducourant, Solid State Ionics, 1997, 99, 233.
19. J. S. Kumar, K. V. S. Rao and U. V. S. Rao, J. Less-Common Met., 1990, 161, L19.
20. K. M. Ok, N. S. P. Bhuvanesh and P. S. Halasyamani, J. Solid State Chem., 2001, 161, 57.
21. J. S. Kumar, G. Narayana, M. C. Shekar, U. V. S. Rao and V. H. Babu, Phys. Status Solidi A, 1983, 78, 647.
22. J. F. Vent, R. B. Helmholdt and D. J. W. Ijdo, J. Solid State Chem., 1994, 108, 18.
23. J. Isasi, M. L. Veiga, A. Jerez and C. Pico, J. Less-Common Met., 1991, 167, 381.
24. A. G. Gukalova, M. N. Tseitlin and K. M. Kurbanov, Zh. Neorg. Khim., 1985, 30, 1978.
25. C. M. Marcano and I. Rasines, Inorg. Chim. Acta, 1985, 109, L15.
26. F. Fernandez, R. Saez-Puche, C. Cascales and C. M. Marcano, J. Phys. Chem. Solids, 1989, 50, 871.
27. C. Cascales, C. M. Marcano, I. Rasines, F. Fernandez and R. I. Saez-Puche, J. Less-Common. Met., 1989, 149, 63.
28. M. B. Varfolomeev, T. A. Toporenskaya and B. A. Narnov, Zh. Neorg. Khim., 1979, 24, 244.
29. SAINT, Program for Area Detector Absorption Correction, Siemens Analytical X-ray Instruments, Madison, WI, USA, 1995.
30. G. M. Sheldrick, SHELXS-97 - A program for automatic solution of crystal structures, Göttingen, Germany, 1997.
31. G. M. Sheldrick, SHELXL-97 - A program for crystal structure refinement, Göttingen, Germany, 1997.
32. L. J. Farrugia, J. Appl. Crystallogr., 1999, 32, 837.
33. N. E. Brese and M. O'Keeffe, Acta Crystallogr., Sect. B, 1991, 47, 192.
34. I. D. Brown and D. Altermatt, Acta Crystallogr., Sect. B, 1985, 41, 244.
35. J. Goodey, K. M. Ok, J. Broussard, C. Hofmann, F. V. Escobedo and P. S. Halasyamani, J. Solid State Chem., 2003, 175, 3.
36. B. Gerand, G. Nowogrocki, J. Guenot and M. J. Figlarz, J. Solid State Chem., 1979, 29, 429.
37. J. A. Alonso, A. Castro, A. Jerez, C. Pico and M. L. Veiga, J. Chem. Soc., Dalton Trans., 1985, 2225.

---

Footnote

† Electronic supplementary information (ESI) available: Powder X-ray diffraction patterns (calculated and experimental). See http://www.rsc.org/suppdata/jm/b3/b307496j/

---
