C–H bond activation reactions by Tp^Me2Ir(III) centres. Generation of Fischer-type carbenes and development of a catalytic system for H/D exchange

Abstract

The unsaturated [Tp^Me2Ir(C₆H₅)₂] fragment, readily generated from [Tp^Me2Ir(C₆H₅)₂(N₂)], or from [Tp^Me2Ir(C₂H₄)₂] and C₆H₆, is able to induce the regioselective cleavage of two sp³ C–H bonds of anisole, with formation of a Fischer-type carbene, 1. The process involves additionally ortho-metallation of the anisole aromatic ring, hence three C–H bonds are sequentially broken, the last one in the course of an α-H elimination reaction. Phenetole (ethyl phenyl ether) gives an analogous product, 3, despite the possibility of competitive α- or β-H eliminations in the last step. For C₆H₅NMe₂, two hydride-carbenes, 5a and 5b, are produced. In the latter, the aniline phenyl ring is also metallated, but the former contains a C₆H₅ aryl group and a C₆H₅N(Me)CH carbene ligand. The same Ir(III) fragment, viz. [Tp^Me2Ir(C₆H₅)₂], alternatively generated from C₆H₆ and [Tp^Me2Ir(η⁴-CH₂=C(Me)C(Me)=CH₂)], accomplishes the efficient, catalytic H/D exchange between C₆D₆ (used as the deuterium source) and a variety of organic and organometallic molecules that contain C–H bonds of different nature.

---

Introduction

The study of the reactivity of aliphatic C–H bonds of hydrocarbons and other organic molecules with transition metal compounds continues to be a topic of renewed interest.¹ Some years ago we showed that Ir(III) species like [Tp^Me2Ir(H)(CH=CH₂)(C₂H₄)] or [Tp^Me2Ir(C₆H₅)₂(N₂)], (Tp^Me2 = hydridotris(3,5-dimethylpyrazol-1-yl)borate) are able to induce the selective activation of the two sp³ C–H bonds of five- and six-membered cyclic ethers, with formation of Fischer-type carbenes.² The active species were in situ generated intermediates of the kind [Tp^Me2Ir(R)(R′)], where R and R′ represent formally monoanionic hydrocarbyl fragments (e.g. C₆H₅, C₂H₅, CH=CH₂, etc.). More recently, the use of the bulky Tp^Ph ancillary ligand (Tp^Ph = hydridotris(3-phenylpyrazol-1-yl)borate) in related coordination environments allowed extension of this synthetic methodology to a variety of ethers and amines.³ This reactivity constitutes an unusual, seldom employed route to heteroatom-stabilized carbenes.⁴

Several recent studies have focused on the application of these and related findings in C–H activation chemistry to different catalytic processes.⁵ An interesting transformation is H/D exchange between hydrocarbons (or other substrates) and a deuterium source (D₂O or a deuterated alkane or arene). Brookhart has described catalytic H/D exchange reactions between deuterated solvents and olefins bound to RhCp* centres.⁶ Andersen,⁷ Bergman^7,8 and Tilley⁸ have found very efficient H/D exchanges catalysed by cationic IrCp* species, using C₆D₆⁷ or D₂O⁸ as the deuterium source. Another interesting example is a CH₄/CD₄ exchange, catalysed by a silica supported tantalum hydride.⁹ These reports constitute valuable additions to earlier studies in this field.^10,11

In this contribution we describe recent studies on the activation of sp³ C–H bonds, which leads to the facile generation of Fischer-type carbene complexes. The bis(ethene) Ir(I) compound, [Tp^Me2Ir(C₂H₄)₂],¹² can be used as the reactive precursor, in reactions with aromatic ethers and amines, C₆H₅OR (R = CH₃, C₂H₅) and C₆H₅NMe₂. Our previous knowledge of this reactivity, along with the close investigation of the mechanistic aspects of the above C–H bond activation processes, has permitted the design of a catalytic system for H/D exchange, employing C₆D₆ as the deuterium source and the Ir(I) complex [Tp^Me2Ir(η⁴-CH₂=C(Me)C(Me)=CH₂)]¹³ as the catalyst precursor.

Results and discussion

Heteroatom-stabilised Ir(III)-carbenes

To exploit the lability of the coordinated molecule of dinitrogen in the Ir(III) complex [Tp^Me2Ir(C₆H₅)₂(N₂)],² an isolated sample of this material was reacted with anisole, C₆H₅OCH₃, under nitrogen, using C₆H₆ as the solvent (Scheme 1a). The reaction is complex and gives a mixture of products. Following column chromatography (silica gel; eluent hexane∶ether) and crystallization from CH₂Cl₂∶hexane mixtures, moderate yields of the hydride-carbene compound 1 were obtained. In an alternative, cleaner and more efficient procedure, this species was generated in comparable yields using the Ir(I) derivative [Tp^Me2Ir(C₂H₄)₂]¹² as the starting material. Under the conditions specified in Scheme 1b, the unsaturated [Tp^Me2Ir(C₆H₅)₂] fragment is readily generated.²

Scheme 1

The molecules of 1 are chiral at iridium. Asymmetry of the metal centre results in the inequivalency of the three pyrazolyl rings, which gives rise to five ¹H methyl signals in the chemical shift interval from 2.41 to 0.95 ppm (two of these resonances are accidentally degenerated at δ 2.40), along with three C–H resonances between δ 5.9 and 5.5, in the ¹H NMR spectrum. Of diagnostic value regarding the molecular complexity of 1 are both the high-field ¹H resonance at δ −17.45, due to the Ir–H unit, and the low-field ¹H and ¹³C signals associated with the Ir-carbene functionality (¹H resonance at 14.32 ppm; ¹³C signal at 257.5 ppm, ¹J_CH = 164 Hz). Other relevant NMR data for 1 are collected in the Experimental Section and need no further discussion.

Despite the simultaneous presence of hydride, aryl and carbene ligands in the metal coordination sphere, no indications for migratory insertion chemistry can be discerned either at room temperature or at 60–80 °C. It seems that the carbene atom of 1 exhibits low electrophilicity, most likely due to the presence of the adjacent oxygen atom. Nevertheless, when 1 is heated in neat acetonitrile at 60 °C, a five-membered heterometallacyclic species, 2, is produced (quantitatively by ¹H NMR; see Scheme 1). The characteristic hydride and carbene resonances of 1 are replaced by those corresponding to a coordinated molecule of NCMe and to an iridium-bound CH₂ group (see Experimental Section). Hence, NCMe induces migration of the hydride onto the carbene carbon to give an iridium-alkyl, as part of a metallacyclic unit. This reactivity is in accord with expectations, based on both experimental and theoretical grounds.¹⁴ Due to differences in the spatial properties of the σ-orbitals of the migratory groups (hydride or aryl), hydride migration is expected to be much faster than aryl migration. This is because the 1s orbital of the H atom, with spherical symmetry, allows easier access to the three centre transition state suggested for this migratory insertion,^14b than the more directional sp² orbital of the aryl carbon atom. Besides, the product of the latter rearrangement would contain a highly-strained cyclic unit, in contrast with the unstrained five-membered ring present in the structure of 2.

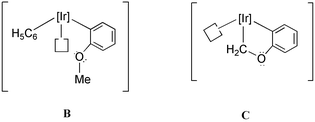

As already hinted, the formation of complex 1 under the conditions of Scheme 1 (1a and 1b) proceeds, regardless of the iridium complex precursor used, through the intermediacy of the unsaturated species [Tp^Me2Ir(C₆H₅)₂]. Previous work from our laboratory has demonstrated the capacity of this intermediate to induce the double C–H bond cleavage of tetrahydrofuran, and other cyclic, aliphatic ethers, in reactions that proceed with coordination of the ether to iridium.² A similar mechanism could be proposed for 1. However, since arene C–H bond activation by this Ir(III) fragment is much faster than THF C–H bond activation,² it appears plausible that the first of the three C–H bonds of C₆H₅OCH₃ that must be broken to form complex 1 is an aromatic C–H bond. Obviously, not only the ortho, but also the meta and the para C–H bonds can be cleaved, although when employing C₆H₆ as the reaction solvent, these single activations would remain undetected. Eventually, O-coordination of the ether moiety in an intermediate like B, which results from the activation of one of the ortho hydrogens, could lead to a metallacyclic intermediate of type C that would render 1 by means of an α-H elimination. In all, three C–H bonds, one of sp² and the other two of sp³ character, are sequentially broken. Although some examples that involve the facile rupture of three C–H bonds have been reported recently,^3a,15 this remains a very unusual observation. It seems that both the chelate effect and the stability of the five-membered metallacyclic unit of 1 are responsible for the formation of this complex, under the experimental conditions specified in Scheme 1.

The above proposal regarding the last step of the C–H bond activation reaction of ethers to generate iridium carbenes is supported by earlier isotopic labelling studies from our group, using d₈-tetrahydrofuran and different Tp′Ir(III) fragments.^2,3a In the present system the intermediate that immediately precedes the product, i.e.C, has no β-hydrogens. Hence, the alternative, and ubiquitous, β-H elimination, that would produce a hydride-olefin compound, obviously cannot occur. To ascertain whether α-H elimination is preferred over β-H elimination in this kind of substrate, the analogous activation of C₆H₅OCH₂CH₃ has been investigated.

Once more, both [Tp^Me2Ir(C₂H₄)₂] and [Tp^Me2Ir(C₆H₅)₂(N₂)] react with the ether, using benzene as the solvent, with essentially identical results. However, the reaction seems to be more complex that for C₆H₅OMe, since a mixture of two products, in a ca. 3∶1 ratio, is obtained. The minor component is a hydride-carbene derivative but it has not yet been fully characterized. However, the major product is a yellow solid with spectroscopic properties similar to those of 1, and can therefore be formulated as the hydride-carbene 3 (Scheme 2; see Experimental Section for relevant ¹H and ¹³C NMR data). Exchange of the hydride ligand of 3 by chloride is facile and allows the isolation of the chloro-carbene derivative 4, which exhibits a characteristic ¹³C carbene resonance at δ 278.6 (271.4 ppm in the parent hydride). It is clear from these results that α-H elimination is more favourable than β-H elimination.

Scheme 2

Repeated attempts to grow crystals of 3 suitable for an X-ray study have finally met with success (despite our efforts crystals of the minor product have not yet been obtained). Fig. 1 shows an ORTEP view of the molecules of this compound, Table 1 contains relevant bond distances and angles. Similar to other six-coordinate Tp′ complexes, the N–Ir–N angles are close to the ideal value of 90°. This is in line with the tendency of this family of ligands to enforce octahedral coordination.¹⁶ The Ir–N bond trans to the hydride is somewhat longer than the other two (ca. 2.17 Å vs. 2.15 Å, see Table 1), as a reflection of the higher trans influence of this ligand, in comparison with those exerted by the aryl and the carbene units. The Ir–C_aryl and Ir–C_carbene bonds have normal lengths, comparable to those reported in the literature for related compounds.^2,3a

Fig. 1 Structural view of 3 (50% ellipsoids, C- and B-bound H atoms omitted).

Table 1 Selected bond lengths [Å] and angles [deg] for 3

Bond distances
Ir–C(7)	1.902(2)	C(1)–C(2)	1.406(3)
Ir–C(1)	2.013(2)	C(2)–C(3)	1.400(3)
Ir–N(12)	2.145(2)	C(3)–C(4)	1.386(4)
Ir–N(22)	2.153(2)	C(4)–C(5)	1.390(4)
Ir–N(32)	2.168(2)	C(5)–C(6)	1.384(3)
Ir–H(1)	1.51(3)	C(7)–C(8)	1.492(3)
C(1)–C(6)	1.390(3)	O–C(7)	1.348(2)
		O–C(6)	1.402(3)
Bond angles
C(7)–Ir–C(1)	79.5(1)	N(22)–Ir–N(32)	87.9(1)
C(7)–Ir–N(12)	174.7(1)	C(7)–Ir–H(1)	86.0(10)
C(7)–Ir–N(22)	99.3(1)	C(1)–Ir–H(1)	85.0(10)
C(7)–Ir–N(32)	99.5(1)	N(12)–Ir–H(1)	88.8(10)
C(1)–Ir–N(12)	98.6(1)	N(22)–Ir–H(1)	92.2(10)
C(1)–Ir–N(22)	177.0(1)	N(32)–Ir–H(1)	174.4(10)
C(1)–Ir–N(32)	95.1(1)	C(6)–C(1)–Ir	112.4(2)
N(12)–Ir–N(22)	82.3(1)	O–C(7)–Ir	119.5(2)
N(12)–Ir–N(32)	85.6(1)	C(7)–O–C(6)	112.3(2)
		C(1)–C(6)–O	115.2(2)

---

The generality of the double C–H bond activation reaction at the α carbon with respect to a donor atom has been demonstrated using N,N-dimethylaniline as the substrate. Analogously to the results found for Tp^PhIr(η⁴-isoprene)^3a a mixture of two N-substituted Fischer carbenes, 5a and 5b is generated (Scheme 3).

Scheme 3

Column chromatography of the crude reaction mixture and routine crystallization procedures allow isolation of pure samples of these compounds. Microanalytical and extensive 1D and 2D NMR studies provide unequivocal evidence for their molecular complexity. 5a exists in solution, at room temperature, as a mixture of two fast equilibrating carbene rotamers. The ¹H NMR spectrum shows broad resonances at ca. −18.4 and 13.8 ppm, assignable to the hydride and the CH unit of the carbene ligand, respectively. The carbene carbon resonates at δ 222.0 and is characterized by a one-bond C–H coupling of 146 Hz. The iridium-bound phenyl group gives rise to five, well-defined resonances in the interval from 7.98 to 6.52 ppm, which appear broad at room temperature. The second phenyl group of 5a, namely that being part of the carbene ligand, originates sharp resonances in the narrower region from 7.34 to 7.16 ppm. At variance with this, only four aromatic signals are found in the ¹H NMR spectrum of 5b. They are accompanied by a CH carbene resonance at δ 12.12 (¹³C NMR signal at δ 216.4; ¹J_CH = 149 Hz) as well as by a hydride signal at −20.14 ppm.

The formation of the hydride-carbenes 5a and 5b during the activation of C₆H₅NMe₂ contrasts with the observation of only compound 1 in the analogous activation of C₆H₅OMe. The latter compound contains a metallated aromatic ring from the ether functionality and therefore it may be considered as the analog of 5b. The ratio of 5a∶5b (see Experimental Section) produced under the conditions of Scheme 3 does not vary with time. Furthermore, 5a remains unaltered after prolonged heating at 100 °C (cyclohexane solution, 12 h). This rules out the intermediacy of 5a in the formation of the ortho-metallated compound 5b and suggests instead that the two hydride-carbenes form through different, competitive reaction pathways. Additional evidence for this stems from the observation that 5b does not convert into 5a when heated in C₆H₆ in the presence of N,N-dimethylaniline. A plausible proposal is that N-coordination of the amine to iridium assists the double C–H bond activation that originates 5a, whereas activation of an ortho-hydrogen atom of C₆H₅NMe₂ is the first step of the reaction leading to 5b. Only the latter process appears to take place during the activation of C₆H₅OMe, perhaps as a consequence of the lower coordination ability of the ether, in comparison with the amine.

Before closing this section it is worth emphasizing the facility with which Tp′Ir(III) fragments may induce the formation of Fischer-type carbenes by means of the regioselective, double C–H bond activation of the C–H bonds in α position with respect to an ether or amine functionality. An alkyl intermediate of type C precedes the hydride-carbene product, which therefore derives from an α-H elimination. Whereas in C and the analogous intermediate of the C₆H₅NMe₂ activation reaction the α-H elimination appears to be the only low-energy reaction pathway for further rearrangement in the case of CH₃CH₂OC₆H₅ the possibility of β-H elimination, to give a hydride-olefin compound, does exist but it is not observed. It is our view that additional studies on these and related systems are needed to gain a better understanding of the factors that govern the course of these reactions, in particular the still unusual observation of more facile α- than β-H elimination.

Catalytic H/D exchange reactions

During attempts to extend the above results regarding the activation of ethers to Tp^Me2Ir(I) precursors other than Tp^Me2Ir(C₂H₄)₂, the diene derivative [Tp^Me2Ir(η⁴-2,3-dimethylbutadiene)], 6, was tested in the reaction with THF. Following the reaction of 6 and THF (3 equiv.; C₆D₆, 70 °C) by ¹H NMR spectroscopy, a progressive decline in the intensity of the α-CH₂ protons of THF, and a concomitant increase of the C₆D₅H signal became apparent. This observation points to an ongoing H/D exchange reaction which has been investigated under conditions of catalysis. Although a variety of systems is known that effect thermal H/D exchange between hydrocarbon or other substrates and a deuterium source,^5–11 general procedures of wide applicability are scarce.

A typical catalytic procedure follows: a mixture of ferrocene (0.23 mmol) and 6 (7.5 mol%) in C₆D₆ (0.5 mL) as the solvent was heated for 5 h in a sealed NMR tube at 90 °C (bath temperature). The progress of the reaction was checked by ¹H-NMR spectroscopy at regular periods of time, until the deuterium incorporation stopped. Although the typical reaction time was 20 h, all runs reached the maximum deuterium incorporation after approximately 3.5 h. Degradation after this time was not observed.

The extent of deuteration was obtained by integration of the ¹H-NMR spectra, comparing the intensity of the signals due to the substrate and the protons from C₆D₅H in the initial spectra (before heating) and the final spectra (after heating). As a verification of these results, at the end of the reaction 20 μL of TMS were added and acquisition and integration of the probe rerun. The deuterium incorporation was calculated from the integrals obtained. In the case of 7-d_9.5, and 8-d_11.4 the products were isolated by column chromatography (neutral Al₂O₃; eluent n-hexane, sampling the deep-red band) and analyzed by ¹H, ¹³C{¹H}, and ²H-NMR spectroscopy.

Table 2 summarizes the results of the H/D exchange catalysis, which suggest a kinetic control of the reaction, in agreement with previous literature data.⁵ In general, the most accessible C–H bonds take part in the reaction, whereas weaker (albeit less exposed) C–H bonds are reluctant to undergo exchange. For example, for methylcyclohexane (entry 4) or di(n-butyl) ether (entry 8) only the methyl groups experience significant exchange while the CH₂ hydrogens remain unaltered. The reaction is only effective for the poorly coordinating substrates like ethers (entries 6, 7, 8, 9, and 10) or sterically hindered N-donor ligands (entry 11). 2,6-Lutidine is deuterated mostly in the meta- and para-positions, and to a lesser extent in the methyl groups. Contrarily, pyridine poisons the catalytic system by strongly binding to iridium so that no deuterium incorporation takes place. It is worth mentioning that the exclusive deuteration of dibenzo-18-crown-6 in the 3 and 3′ positions of the benzene rings illustrates the potential of this catalytic system to introduce deuterium as markers into more sophisticated molecules. Finally, in accord with expectations, the exchange of deuterium for hydrogen is also possible, as shown by the reaction of 7-d_9.5, or 8-d_11.4, with C₆H₆ (in the presence of freshly added 6 and otherwise equal reaction conditions). Virtually undeuterated 7 or 8 was isolated.

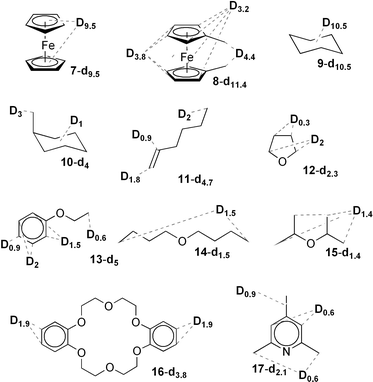

Table 2 Extent of deuteration in the subtrates tested^a

	Substrate	mmol	Catalyst/mol%	Product	TON/D
a Precatalyst: Tp^Me2Ir(2,3-dimethylbutadiene) (6) (0.01 g; 0.017 mmol); solvent: C6D6 (0.5 mL); reaction time: 2.5 h; bath temperature: 90 °C.
1	Ferrocene (7)	0.228	7.5	(7-d9.5)	127
2	1,1′-Dimethylferrocene (8)	0.199	8.5	(8-d11.4)	100
3	Cyclohexane (9)	0.463	3.7	(9-d10.5)	286
4	Methylcyclohexane (10)	0.509	3.3	(10-d4)	120
5	1-Hexene (11)	0.594	2.9	(11-d4.7)	164
6	THF (12)	0.693	2.4	(12-d2.3)	94
7	Phenyl ethyl ether (13)	0.409	4.1	(13-d5)	120
8	Di(n-butyl) ether (14)	0.384	4.4	(14-d1.5)	34
9	Di(isopropyl) ether (15)	0.489	3.4	(15-d1.4)	40
10	Dibenzo-18-crown-6 (16)	0.139	12.2	(16-d3.8)	31
11	2,6-Lutidine (17)	0.475	3.5	(17-d2.1)	59
12	Pyridine (18)	0.632	2.7	(18)	—

---

The fate of precatalyst 6 and the catalytic cycle for the H/D exchange, can be proposed to be as depicted in Scheme 4. Conversion of 6 into the suggested active catalyst, E, occurs by means of a well-established equilibrium in Tp′Ir(I) compounds^3,17 between κ³- and κ²-Tp^Me2 coordination, followed by rearrangement into the Ir(III) intermediate D.¹⁸ C–D activation of two molecules of C₆D₆¹³ by this Ir(III) species would then yield E, hence the original diene acts as a sacrificial deuterium acceptor being extruded as CH₂DC(Me)=C(Me)CH₂D.³ In accord with the results presented in the previous section, E would readily activate the substrate S–H giving F, which by exchange with C₆D₆ would form S–D and regenerate E. In excellent agreement with this proposal, the use of [Tp^Me2Ir(C₆H₅)₂(N₂)]¹³ as the precatalyst yields results identical within experimental error with those collected in Table 2.

Scheme 4

Catalyst degradation may occur through either of the following pathways. Firstly, strongly coordinating substrates (e.g. pyridine, phosphines, etc.) react with 6 to provide stable Ir(III) adducts¹⁸ related to D in Scheme 4, which are catalytically ineffective. Alternatively, some substrates like THF and phenetole (ethyl phenyl ether; entries 6 and 7 in Table 2) react with 6 to form Fischer-type carbenes (e.g.G in Scheme 4) which are also unable to promote the H/D exchange catalysis, even after prolonged heating at higher temperatures (90 °C, 24 h).

In conclusion, the unsaturated Ir(III) species, [Tp^Me2Ir(C₆H₅)₂], which can be generated in situ from C₆H₆ and readily available Ir(I) precursors like [Tp^Me2Ir(C₂H₄)₂] or [Tp^Me2Ir(η⁴-CH₂=C(Me)C(Me)=CH₂)], activates ether and amine substrates under mild conditions, with formation of Fischer-type carbenes. In this transformation, the regioselective cleavage of two C–H bonds in α with respect to the O- or N-donor atom is effected. Most remarkably, the second C–H bond scission, which is an α-H elimination, occurs even in the presence of β-hydrogens. [Tp^Me2Ir(C₆H₅)₂] acts additionally as a powerful, efficient catalyst for H/D exchange between C₆D₆ (as the deuterium source) and a variety of substrates. The use of this system for the catalytic functionalization of non-activated hydrocarbons remains an exciting avenue to explore.

Experimental

General details

All syntheses and operations were done under an inert atmosphere, following previously described procedures.¹⁸

Synthesis of new compounds.
Compound 1. To a solution of [Tp^Me2Ir(C₂H₄)₂] in C₆H₆ (0.44 g, 0.82 mmol; 12 ml) CH₃OC₆H₅ (0.44 ml, ca. 4 mmol) was added and the mixture stirred at 60 °C for 12 h. After removing the solvent under reduced pressure, the product was purified by column chromatography on silica gel, using a 10∶1 mixture of hexane∶diethyl ether as eluent (R_f = 0.68). Pure complex 1 was isolated, as a yellow microcrystalline solid, in ca. 37% yield (0.18 g). It can be crystallized from hexane∶CH₂Cl₂ mixtures (2∶1) at −20 °C. IR (Nujol): ν(Ir–H) 2192 cm⁻¹. ¹H NMR (CDCl₃, 25 °C): δ 14.32 (s, 1 H, Ir=CH), 7.39, 7.25, 6.97 (d, d, m, 1∶1∶2 H, ³J_HH ≈ 8 Hz, 4 CH_ar), 5.89, 5.86, 5.55 (s, 1 H each, 3 CH_pz), 2.41, 2.40, 2.36, 2.25, 0.95 (s, 1∶2∶1∶1∶1, 6 Me_pz), −17.45 (s, 1 H, IrH). ¹³C{¹H} NMR (CDCl₃, 25 °C): δ 257.5 (Ir=CH, ¹J_CH = 164 Hz), 168.2, 129.0 (C_qar), 151.9, 151.5, 150.9, 144.5, 144.2, 143.7 (C_qpz), 137.7, 124.4, 122.8, 110.9 (CH_ar), 107.0, 106.6, 106.5 (CH_pz), 16.0, 15.7, 13.1, 13.0, 12.9, 12.0 (Me_pz). Anal. Calcd. for C₂₂H₂₈BN₆OIr: C, 44.4; H, 4.5; N, 14.1; Found: C, 44.1; H, 4.8; N, 13.6%.
Compound 2. A solution of 1 (0.042 g, 0.07 mmol) in NCMe (4 ml) was stirred at 80 °C for 12 h, after which time the solvent was distilled off under reduced pressure. At this stage, ¹H NMR monitoring demonstrated quantitative formation of the acetonitrile adduct 2, which was isolated as a pure, white crystalline solid, by crystallization from hexane∶dichloromethane (3∶2) at −20 °C (0.037 g, isolated yield 83%). IR (Nujol): ν(CN) 2285 cm⁻¹. ¹H NMR (CDCl₃, 25 °C): δ 6.97, 6.81, 6.63, 6.46 (d, t, d, t, 1 H each, ³J_HH ≈ 7 Hz, 4 CH_ar), 6.63, 6.42 (d, d, 1 H each, ²J_HH ≈ 7 Hz, Ir–CH₂), 5.90, 5.80, 5.53 (s, 1 H each, 3 CH_pz), 2.42, 2.39, 2.37, 2.33, 2.32, 1.44 (s, 3 H each, 6 Me_pz), 2.37 (s, 3 H, NCMe). ¹³C{¹H} NMR (CDCl₃, 25 °C): δ 170.9, 122.7 (C_qar), 152.0, 150.4, 149.5, 143.3, 143.1 (1∶1∶1∶1∶2, C_qpz), 137.0, 123.7, 116.7, 106.5 (CH_ar), 114.7 (NCCH₃), 108.6, 107.0, 106.7 (CH_pz), 54.4 (Ir–CH₂, ¹J_CH = 143 Hz), 14.7, 13.8, 13.3, 12.7, 12.5, 4.2 (1∶1∶1∶1∶2∶1, Me_pz + NCCH₃). Anal. Calcd. for C₂₄H₃₁BN₇OIr·1/2CH₂Cl₂: C, 43.3; H, 4.7; N, 14.4; Found: C, 43.4; H, 4.9; N, 13.8%.
Compound 3. [Tp^Me2Ir(C₂H₄)₂] (0.30 g, 0.55 mmol) was reacted with C₆H₅OCH₂CH₃ (0.33 ml, 2.75 mmol) in C₆H₆ (12 ml) at 60 °C for 12 h. After this time the colour of the solution has changed from essentially yellow to dark-green. Removal of the solvent under reduced pressure and ¹H NMR monitoring revealed the formation of two compounds, 3 and a minor product which despite our efforts remains uncharacterized (the unidentified product is also a hydride-carbene; its proportion in the reaction mixture varies from one preparation to another; typically it is of the order of 20%, but in isolated instances it can be as high as 40%). Separation of the two components was achieved by column chromatography on silica gel, using a 40∶1 → 5∶1 mixture of hexane∶Et₂O as eluent (R_f = 0.53 (10∶1; hexane∶EtO₂)), to yield 0.11 g (ca. 33%) of pure compound 3. Yellow crystals of 3 may be obtained from its concentrated solutions in hexane∶CH₂Cl₂ (ca. 2∶1 mixtures) upon cooling at −20 °C. IR (Nujol): ν(Ir–H) 2148 cm⁻¹. ¹H NMR (CDCl₃, 25 °C): δ 7.29, 7.21, 6.98, 6.89 (d, d, t, t, 1 H each, ³J_HH ≈ 8 Hz, 4 CH_ar), 5.89, 5.85, 5.59 (s, 1 H each, 3 CH_pz), 2.55 (s, 3 H, Ir=CCH₃), 2.43, 2.41, 2.40, 2.28, 2.24, 1.05 (s, 3 H each, 6 Me_pz), −17.74 (s, 1 H, IrH). ¹³C{¹H} NMR (CDCl₃, 25 °C): δ 271.4 (Ir=C), 168.0, 129.6 (C_qar), 151.5, 150.1, 144.5, 144.4, 143.4 (2∶1∶1∶1∶1, C_qpz), 137.3, 123.4, 122.2, 109.8 (CH_ar), 106.8, 106.3, 106.2 (CH_pz), 39.6 (Ir=CCH₃), 16.5, 15.9, 13.2, 13.0, 12.9, 12.0 (Me_pz). Anal. Calcd. for C₂₃H₃₀BN₆OIr: C, 45.3; H, 4.9; N, 13.8; Found: C, 45.5; H, 5.0; N, 14.0%.
Compound 4. A solution of the above hydride-carbene 3 in CCl₄ (0.04 g, 0.066 mmol; 2 ml) was heated at 80 °C for 5 days, whereupon clean, quantitave conversion into the new product 4 was ascertained by ¹H NMR. The crude solid that resulted from the evaporation of the CCl₄ under reduced pressure was dissolved in 7 ml of a 4∶3 Et₂O∶CH₂Cl₂ mixture and filtered. Addition of 4 ml of hexane and cooling at −20 °C gave 0.03 g (71%) of a yellow microcrystalline solid. ¹H NMR (CDCl₃, 25 °C): δ 7.37, 7.08, 7.03, 6.93 (d, d, t, t, 1 H each, ³J_HH ≈ 8 Hz, 4 CH_ar), 5.90, 5.86, 5.50 (s, 1 H each, 3 CH_pz), 2.92 (s, 3 H, Ir=CCH₃), 2.57, 2.46, 2.45, 2.41, 2.39, 0.95 (s, 3 H each, 6 Me_pz). ¹³C{¹H} NMR (CDCl₃, 25 °C): δ 278.6 (Ir=C), 168.6, 125.9 (C_qar), 153.3, 151.5, 151.4, 143.7, 143.6, 143.5 (C_qpz), 136.8, 124.5, 123.5, 111.6 (CH_ar), 108.3, 108.0, 107.9 (CH_pz), 39.2 (Ir=CCH₃), 15.8, 15.5, 13.0, 12.7, 12.6, 11.9 (Me_pz). Anal. Calcd. for C₂₃H₂₉BN₆ClOIr·1/2 CH₂Cl₂: C, 41.1; H, 4.4; N, 12.2; Found: C, 41.4; H, 4.5; N, 11.9%.
Compounds 5a and 5b. 0.20 g (0.37 mmol) of [Tp^Me2Ir(C₂H₄)₂] were dissolved in 10 ml of C₆H₆. 0.23 ml of C₆H₅NMe₂ were then added and the resulting solution was heated at 60 °C, overnight. The yellow solution that resulted was evaporated under reduced pressure to give a crude solid consisting of a ca. 3∶1 mixture of 5a∶5b (as shown by ¹H NMR studies). Even if this proportion may change from one preparation to another, for a specific preparation it does not change with time, indicating that 5a and 5b form through different, competitive reaction pathways. Separation of the two components was accomplished by column chromatography on silica gel, using a 20∶1 → 1∶1 mixture of hexane∶Et₂O as eluent (R_f(5a) = 0.27, R_f(5b) = 0.15 (15∶1; hexane∶EtO₂)). 0.064 g of 5a (ca. 26%) and 0.044 g of 5b (20%) were obtained in this way. The two isolated compounds can be crystallized from hexane–Et₂O mixtures at −20 °C.
Data for 5a. IR (Nujol): ν(Ir–H) 2129 cm⁻¹. ¹H NMR (CDCl₃, 25 °C): δ 13.77 (brs, 1 H, Ir=CH), 7.34, 7.29, 7.16 (brt, brt, brd, 2∶1∶2, ³J_HH ≈ 8 Hz, 5 CH_ar, N–Ph), 7.98, 6.96, 6.76, 6.64, 6.52 (brs, brs, t, brs, brs, 1 H each, ³J_HH ≈ 7 Hz, o, m, p, m, o-CH_ar, Ir–Ph), 5.78, 5.75, 5.67 (s, 1 H each, 3 CH_pz), 2.89 (brs, 3 H, N–CH₃), 2.50, 2.41, 2.38, 2.08, 1.61, 1.58 (s, 3 H each, 6 Me_pz), −18.38 (brs, 1 H, IrH). ¹³C{¹H} NMR (CDCl₃, 25 °C): δ 222.0 (Ir=CH, ¹J_CH = 146 Hz), 152.0, 149.6, 149.3, 143.5, 143.1, 142.9 (C_qpz), 150.4 (C_qar(N–Ph)), 141.4, 140.3, 127.1, 119.7 (1∶1∶2∶1, o, o, m, p-CH_ar(Ir–Ph)), 138.4 (C_qar(Ir–Ph)), 129.5, 125.7, 121.4 (2∶1∶2, m, p, o-CH_ar(N–Ph)), 106.0, 105.6, 104.9 (CH_pz), 42.5 (N–CH₃), 15.3, 14.8, 14.0, 12.7 (1∶1∶1∶3, Me_pz). Anal. Calcd. for C₂₉H₃₇BN₇Ir: C, 50.7; H, 5.4; N, 14.3; Found: C, 50.6; H, 5.5; N, 14.1%.
Data for 5b. IR (Nujol): ν(Ir–H) 2135 cm⁻¹. ¹H NMR (CDCl₃, 25 °C): δ 12.12 (s, 1 H, Ir=CH), 7.40, 7.04, 6.96, 6.89 (d, d, t, t, 1 H each, 4 CH_ar), 5.86, 5.85, 5.50 (s, 1 H each, 3 CH_pz), 3.66 (s, 3 H, N–CH₃), 2.40, 2.40, 2.39, 2.35, 2.27, 0.91 (s, 3 H each, 6 Me_pz), −20.14 (s, 1 H, IrH). ¹³C{¹H} NMR (CDCl₃, 25 °C): δ 216.4 (Ir=CH, ¹J_CH = 149 Hz), 154.9, 138.4 (C_qar), 151.4, 150.8, 150.4, 143.6, 143.4. 142.8 (C_qpz), 137.7, 124.4, 120.1, 111.8 (CH_ar), 106.4, 105.9, 105.8 (CH_pz), 43.1 (N–CH₃), 15.9, 15.5, 12.7, 12.6, 10.8 (1∶1∶2∶1∶1, Me_pz). Anal. Calcd. for C₂₃H₃₁BN₇Ir: C, 45.4; H, 5.1; N, 16.1; Found: C, 45.6; H, 5.2; N, 15.8%.

General procedure for catalytic H/D exchange reactions

In a typical deuteration experiment, a solution of 6 (0.01 g, 0.017 mmol) and the substrate (50 μl) in C₆D₆ (0.5 ml) was prepared under N₂ and transferred into an NMR tube, that was subsequently sealed. The tube was heated in an oil bath at 90 °C (bath temperature) and the reactions were monitored by ¹H NMR spectroscopy. At the end of the deuteration procedures, ¹³C{¹H} NMR spectra, and, where appropriate, ²H NMR spectra were recorded. Below are given details for a specific example (ferrocene) as well as selected ¹H NMR data.

A mixture of ferrocene (0.23 mmol) and compound 6 (7.5 mol%) in C₆D₆ (0.5 ml) was heated at the temperature given above. At specified periods of time the progress of the reaction was checked by ¹H NMR spectroscopy. Deuterium incorporation reached its maximum after 3.5 h, although degration was not observed after this time. The extent of deuteration was measured by integration of the ¹H NMR spectrum, comparing the intensity of the Fe(C₅H₅)₂ signal and that of the deuterobenzene before and after the heating period. In this particular case the ferrocene was purified by column chromatography on alumina (neutral alumina, n-hexane eluent) and characterized by ¹H and ¹³C{¹H}, 1D- and 2D-NMR spectroscopy.

8-d_11.4 . ¹H NMR (C₆D₆, 25 °C): δ 3.89 (m, 0.2 H), 3.86 (m, 0.8 H), 1.82 (m, 1.6 H). ¹³C{¹H} NMR (C₆D₆, 25 °C): δ 83.2 (m), 69.6 (s), 67.9–67.2 (m), 14.2–13.8 (m).

10-d₄ . ¹H NMR (C₆D₆, 25 °C): δ 1.67–1.58 (m, 4 H), 1.23–1.14 (m, 3 H), 0.87–0.82 (m, 3 H). ¹³C{¹H} NMR (C₆D₆, 25 °C): δ 35.3 (s), 32.5 (m), 26.4–25.6 (m), 22.7–22.1 (m).

13-d₅ . ¹H NMR (C₆D₆, 25 °C): δ 6.84 (m, 0.6 H), 3.57 (q, 2 H), 1.10 (m, 2.4 H). ¹³C{¹H} NMR (C₆D₆, 25 °C): δ 159.2 (s), 129.3–128.5 (m), 120.1–119.5 (m), 114.3–113.7 (m), 62.7 (m), 14.5–13.8 (m).

14-d_1.5 . ¹H NMR (C₆D₆, 25 °C): δ 3.28 (t, 4 H), 1.53 (m, 2 H), 1.36 (m, 2 H), 0.86 (m, 4.5 H). ¹³C{¹H} NMR (C₆D₆, 25 °C): δ 69.8 (s), 33.1 (s), 19.5 (s), 14.1–13.7 (m).

16-d_3.8 . ¹H NMR (CDCl₃, 25 °C): δ 6.72–6.65 (m, 4.2 H), 4.15 (m, 8 H), 3.85 (m, 8 H). ¹³C{¹H} NMR (CDCl₃, 25 °C): δ 149.4 (s), 121.6 (m), 114.2 (s), 70.6 (s), 69.5 (s).

Crystallography

Crystal data for 3. C₂₃H₃₀BIrN₆O, M_r = 609.54, yellow prism (0.40 × 0.18 × 0.12 mm) from hexane∶CH₂Cl₂, monoclinic, space group C2/c (no. 15), a = 18.963(2) Å, b = 10.2605(12) Å, c = 24.556(3) Å, β = 100.160(2)°, V = 4712.1(10) ų, Z = 8, D_x = 1.718 Mg m⁻³, λ(Mo Kα) = 0.71073 Å, μ = 5.69 mm⁻¹, T = 150(2) K. X-Ray diffraction data were collected on a Bruker SMART diffractometer equipped with a CCD detector, graphite monochromated Mo Kα radiation, and a Kryoflex low-temperature device.¹⁹ Four sets of frames covering a complete sphere of the reciprocal space were recorded (4 × 606 frames, ω-scans, Δω = 0.3°, time per frame 10 s). Data reduction up to θ = 30° by program SAINT, corrections for absorption with program SADABS, 32 347 reflections measured, 6676 independent, R_int = 0.023.¹⁹ Structure solution with direct methods and program SHELXS97, structure refinement on F² using program SHELXL97.²⁰ All non-hydrogen atoms were refined anisotropically. C- and B-bound hydrogen atoms had isotropic temperature factors and rode on the atoms to which they were bonded (orientation refinement for CH₃ groups). The Ir-bound hydrogen atom H(1), located on a difference Fourier map, was refined without restraints. Final refinement with 6676 data, no restraints, and 302 parameters gave R1 = 0.0242, wR2 = 0.0400 (all data), and R1 = 0.0188, wR2 = 0.0386 [I > 2σ(I)]. CCDC reference number 195911. See http://www.rsc.org/suppdata/nj/b2/b209324c/ for crystallographic data in CIF or other electronic format.

References
