Cyclopalladated compounds derived from a [C,N,S] terdentate ligand: synthesis, characterization and reactivity. Crystal and molecular structures of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)] and [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe]}2{μ-Ph2P(CH2)4PPh2}][CF3SO3]2

Alberto Fernández *a, Digna Vázquez-García a, Jesús J. Fernández a, Margarita López-Torres a, Antonio Suárez a, Samuel Castro-Juiz a, Juan M. Ortigueira b and José M. Vila *b
aDepartamento de Química Fundamental, Universidad de La Coruña, E-15071 La Coruña, Spain. E-mail: qiluaafl@udc.es; Fax: +49[thin space (1/6-em)]81 167065
bDepartamento de Química Inorgánica, Universidad de Santiago de Compostela, E-15782 Santiago de Compostela, Spain. E-mail: qideport@usc.es; Fax: +49[thin space (1/6-em)]81 595012

Received (in London, UK) 20th July 2001 , Accepted 10th October 2001

First published on 8th January 2002


Abstract

Treatment of the Schiff base 2-ClC6H4C(H)[double bond, length half m-dash]NCH2CH2SMe, 1, with palladium(II) acetate in dry toluene gave the mononuclear cyclometallated complex [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(O2CMe)], 2. Reaction of 2 with aqueous sodium chloride gave [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)], 3, after a metathesis reaction. The X-ray crystal structure of 3 was determined and shows that the palladium atom is bonded to four different donor atoms: C, N, S and Cl. Treatment of 3 with triphenylphosphine in acetone gave the mononuclear cyclometallated complex [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)(PPh3)] with cleavage of the Pd–S bond. However, treatment of 3 with silver triflate and triphenylphosphine gave [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(PPh3)][CF3SO3], 10, in which the Pd–S bond is retained. Reaction of 3 with the diphosphines dppm, dppb or dppf in a 2 : 1 molar ratio gave the dinuclear cyclometallated complexes [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe](Cl)}2{μ-Ph2P(CH2)nPPh2}], (n[thin space (1/6-em)]=[thin space (1/6-em)]1, 5; n[thin space (1/6-em)]=[thin space (1/6-em)]4, 6), and [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe](Cl)}2(μ-Ph2PC5H4FeC5H4PPh2)], 7. Treatment of 3 with dppb in a 2 : 1 molar ratio and AgCF3SO3 gave the dinuclear cyclometallated complex [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe]}2{μ-Ph2P(CH2)4PPh2}][CF3SO3]2, 11, which was characterized by X-ray crystal structure analysis. Reaction of 3 with dppe in a 1 : 1 molar ratio and sodium perchlorate gave the mononuclear complex [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}{Ph2P(CH2)2PPh2-P,P}][ClO4], 8. Treatment of 3 with bis(2-diphenylphosphinoethyl)phenylphosphine in a 1 : 1 molar ratio, followed by treatment with sodium perchlorate gave [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}{(Ph2PCH2CH2)2PPh-P,P,P}][ClO4], 9, in which the triphosphine is bonded to the palladium atom through the three phosphorus atoms.


Introduction

The study of cyclometallated compounds has attracted much attention over the last three decades.1–5 They have numerous applications in organic and organometallic synthesis,6 insertion reactions,7 the synthesis of new metal mesogenic compounds8 and biologically active compounds9,10 and as catalytic materials.11 By far the most widely studied examples of cyclometallated complexes are five-membered palladacycles with nitrogen donor atoms. Among these, cyclometallated complexes derived from potentially terdentate [C,N,N] and [C,N,S] ligands have been described.12–23 In previous work, we have shown that potentially terdentate ligands, such as Schiff bases I,24–27 semicarbazones II28,29 and thiosemicarbazones III,30,31 undergo facile metallation with palladium(II), palladium(0) and platinum(II) to give compounds with two five-membered fused rings at the metal centre. The Schiff base and semicarbazone derivatives are monomeric species but the complexes derived from thiosemicarbazones present a tetranuclear structure.
ugraphic, filename = b106511d-u1.gif

As part of our studies on the synthesis and reactivity of cyclometallated complexes derived from multidentate ligands, we synthesized the potentially [C,N,S] Schiff base 2-ClC6H4C(H)[double bond, length half m-dash]NCH2CH2SMe, 1, where metallation may occur by activation of a C–H bond or by oxidative addition across the C–Cl bond, in order to study its reactivity and also the behavior of the subsequent metal compounds derived from 1. Therefore, in the present work, we report the reaction of 1 with the metallating reagents Pd(AcO)2, [Pd2(dba)3] (dba[thin space (1/6-em)]=[thin space (1/6-em)]dibenzylideneacetone) and Li2[PdCl4]. In the resulting complexes, the ligand behaves as [C, N, S] terdentate yielding the monomeric species 2 and 3, in contrast with the tetrameric structure observed for the [C,N,S] thiosemicarbazone cyclometallated derivatives. Moreover, the reactivity of 3 with tertiary phosphines such as triphenylphosphine, bis(diphenylphosphino)methane (dppm), 1,2-bis(diphenylphosphino)ethane (dppe), 1,4-bis(diphenylphosphino)butane (dppb), 1,1′-bis(diphenylphosphino)ferrocene (dppf) and the triphosphine bis(2-diphenylphosphinoethyl)phenylphosphine (triphos), may be regulated to give compounds where the Pd–S bond may be retained or cleaved, which is achieved by the use of a chloride removing agent, usually a silver(I) salt, in the reaction media. In the former case, the coordination vacancy is occupied by the phosphine, and in the latter, opening of the coordination ring occurs. Such a reactivity pattern differs from that observed for the related thiosemicarbazones.

Results and discussion

For the convenience of the reader, the compounds and reactions are shown in Schemes 1 and 2. The compounds described in this paper were characterised by elemental analysis (C, H, N), IR spectroscopy (data in the Experimental section), 1H, 31P-{1H} (see Table 1) and, in part, 13C-{1H} NMR spectroscopy, and FAB mass spectrometry (see Experimental section).
(i) Pd(AcO)2, (toluene); (ii) NaCl (acetone–water); (iii) PPh3
(acetone); (iv) dppm, dppb or dppf (acetone, 2 : 1 molar ratio); (v) AgCF3SO3, PPh3
(acetone); (vi) AgCF3SO3, dppb (acetone, 2 : 1 molar ratio); (vii) AgCF3SO3
(acetone).
Scheme 1 (i) Pd(AcO)2, (toluene); (ii) NaCl (acetonewater); (iii) PPh3 (acetone); (iv) dppm, dppb or dppf (acetone, 2 : 1 molar ratio); (v) AgCF3SO3, PPh3 (acetone); (vi) AgCF3SO3, dppb (acetone, 2 : 1 molar ratio); (vii) AgCF3SO3 (acetone).

(i) dppe, NaClO4
(acetone–water, 1 : 1 molar ratio); (ii) triphos, NaClO4
(acetone, 1 : 1 molar ratio).
Scheme 2 (i) dppe, NaClO4 (acetonewater, 1 : 1 molar ratio); (ii) triphos, NaClO4 (acetone, 1 : 1 molar ratio).
Table 1 31P-{1H}a and 1H NMRbcd data
  31P Aromatic Others
a In CDCl3. Measured at 80.9 MHz (ca.±20[thin space (1/6-em)]°C); chemical shifts (δ) in ppm (±0.1) to high frequency of 85% H3PO4. b In CDCl3. Measured at 200 MHz (ca.±20[thin space (1/6-em)]°C); chemical shifts (δ) in ppm (±0.01) to high frequency of SiMe4. c Coupling constants in Hz. d s, singlet; d, doublet; dd, doublet of doublets; t, triplet; dt, doublet of triplets; q, quadruplet; m, multiplet; br, broad. e 4 J(HH). f 3 J(HH). g HC[thin space (1/6-em)]=[thin space (1/6-em)]NCH2. h N values. i CH2SMe. j δ(PCH2P)[thin space (1/6-em)]=[thin space (1/6-em)]4.70t. k J(PH). l δ(CHFerrocene)[thin space (1/6-em)]=[thin space (1/6-em)]5.06 [br, 2H], 4.50 [br, 2H] m J(PP).
1   7.70 [m, 3H, H3, H4, H5] 8.73 [t, 1H, Hi 1.5e]
    8.02[dd, 1H, H6 6.9f, 2.3e] 3.88 [2H, (CH2)g 13.6h]
      2.85 [2H, (CH2)i]
      2.16 [s, 3H, Me]
2   7.25 [d, 1H, H5 7.8f] 8.34 [s, 1H, Hi]
    7.15 [t, 1H, H4 7.8f, 7.8f] 3.94 [2H, (CH2)g 12.2h]
    7.00 [dd, 1H, H3 7.8f 1.0e] 2.94 [2H, (CH2)i]
      2.64 [s, 3H, Me]
      2.11 [s, 3H, OC(Me)O]
3   7.64 [dd, 1H, H5 7.8f, 1.0e] 8.23 [t, 1H, Hi 1.7e]
    7.11 [t, 1H, H4 7.8f] 4.02 [2H, (CH2)g 12.2h]
    6.96 [dd, 1H, H3 7.8f, 1.0e] 3.11 [2H, (CH2)i]
      2.57 [s, 3H, Me]
4 42.3s 6.87 [d, 1H, H3 7.8f] 8.64 [s, 1H, Hi]
    6.49 [t, 1H, H4 7.8f] 4.19 [2H, (CH2)g 13.2h]
    6.28 [d, 1H, H5 7.8f] 3.10 [2H, (CH2)i]
      2.18 [s, 3H, Me]
5 i 30.1s 6.79 [d, 1H, H3 7.6f] 8.44 [s, 1H, Hi]
    6.43 [t, 1H, H4 7.6f] 4.05 [2H, (CH2)g]
    5.90 [m, 1H, H5] 3.04 [2H, (CH2)i 11.2h]
      2.19 [s, 3H, Me]
6 34.0s 6.83 [d, 1H, H3 7.8f] 8.49 [d, 1H, Hi 7.8k]
    6.42 [t, 1H, H4 7.8f] 4.12 [2H, (CH2)g]
    6.27 [dd, 1H, H5 7.8f, 5.4k] 3.08 [2H, (CH2)i 12.6h]
      2.20 [s, 3H, Me]
7 j 31.1s 6.88 [d, 1H, H3 7.3f] 8.57 [br, 1H, Hi]
    6.51 [br, 1H, H4] 4.16 [2H, (CH2)g]
    6.21 [m, 1H, H5] 3.07 [2H, (CH2)i]
      2.17 [s, 3H, Me]
8 62.5 [d, 27.1m] 6.99 [d, 1H, H3 7.8f] 8.69 [d, 1H, Hi 6.8k]
  44.6d 6.73 [dt, 1H, H4 7.8f, 3.0k] 3.51 [2H, (CH2)g]
    6.55 [q, 1H, H5 7.8f, 7.8k] 2.65 [2H, (CH2)i]
      1.89 [s, 3H, Me]
9 90.1 [t, 26.3m] 6.86 [d, 1H, H3 7.8f] 8.35 [s, 1H, Hi]
  45.4d 6.38 [dt, 1H, H4 7.8f, 2.3k] 3.27 [2H, (CH2)g 13.6h]
    6.84 [t, 1H, H5 7.8f, 7.8k] 2.69 [2H, (CH2)i]
      1.85 [s, 3H, Me]
10 37.8s 6.95 [dd, 1H, H3 7.8f, 1.0e] 8.76 [s, 1H, Hi]
    6.63 [t, 1H, H4 7.8f] 4.40 [2H, (CH2)g 12.6h]
    6.28 [dd, 1H, H5 7.8f, 1.0e] 3.22 [2H, (CH2)i]
      1.81 [s, 3H, Me]
11 32.5s 6.95 [d, 1H, H3 7.8f] 8.49 [d, 1H, Hi 7.8k]
    6.74 [t, 1H, H4 7.8f] 4.24 [2H, (CH2)g 12.6h]
    6.40 [dd, 1H, H5 7.8f, 5.5k] 3.23 [2H, (CH2)i]
      1.98 [s, 3H, Me]


Treatment of the Schiff base 2-ClC6H4C(H)[double bond, length half m-dash]NCH2CH2SMe, 1, with palladium(II) acetate in dry toluene gave the mononuclear cyclometallated complex [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(O2CMe)], 2, in 21% yield, which was fully characterized. The 1H NMR spectrum shows a singlet resonance at δ 7.93, assigned to the HC[double bond, length half m-dash]N proton, shifted to lower frequency due to coordination of the imine group to the palladium atom via the lone pair of the nitrogen atom.32 Coordination of the palladium atom to the C[double bond, length half m-dash]N moiety is confirmed by the shift to lower wavenumbers of the ν(C[double bond, length half m-dash]N) band in the IR spectrum (1635s, 1, 1613sh s cm−1, 2).33,34 The C[double bond, length half m-dash]N–CH2CH2–SMe resonances appear as well-defined virtual triplets at δ 3.94 and 2.94, respectively (N[thin space (1/6-em)]=[thin space (1/6-em)]13.6 Hz). A singlet at δ 2.64 was assigned to the SMe protons. This signal is shifted to higher frequency from its value in the free ligand due to coordination of the sulfur atom. The 13C-{1H} spectrum shows resonances at δ 172.4 (C[double bond, length half m-dash]N), 161.4 (C6) and 145.6 (C1) shifted to higher frequency from the free ligand values, thus confirming formation of the cyclometallated ring.24,35 The signal at 18.1, assigned to the SMe group, is also shifted to higher frequency upon coordination of the sulfur atom. The FAB mass spectrum of the complex shows peaks assigned to [M[thin space (1/6-em)][thin space (1/6-em)]O2CMe]+ and [2M+O2CMe]+, both with chemically reasonable isotopic patterns. These data suggest the formulation [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe]}2(μ-O2CMe)]+[O2CMe] for complex 2. However, the low conductivity shown by the complex in acetonitrile solution precludes an ionic formulation. Consequently, the signal assignable to [2M+O2CMe] can be explained by the dimerization produced in the ionization chamber, as has been described for related cyclometallated complexes.27 In order to improve the poor yield of the metallation reaction of 1 we attempted oxidative addition reactions with Pd(0) compounds, but with little or no success. For instance, treatment of 1 with [Pd2(dba)3] in dry toluene gave a large residue of metallic palladium as a black powder, and similarly, reaction of 1 with Li2[PdCl4] in methanol did not yield the expected cyclometallated complex.

Reaction of 2 with aqueous sodium chloride gave [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)], 3, as a pure air-stable solid which was fully characterized (see Table 1 and Experimental section). The 1H NMR spectrum of the complex shows a singlet resonance at δ 2.57 assigned to the SMe protons (shifted to higher frequency by 0.41 ppm as compared with the free ligand) and the 13C-{1H} spectrum shows a signal assigned to the SMe methyl carbon at δ 18.4 (also shifted to higher frequency), showing coordination of the sulfur atom to palladium. This was confirmed by the determination of the molecular structure of complex 3 by X-ray single crystal diffraction. Treatment of 3 with triphenylphosphine in acetone gave the mononuclear cyclometallated complex [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)(PPh3)], 4, which was fully characterized (see Experimental section and Table 1). The low conductivity value observed for complex 4 precludes the alternative formulation as a 1 : 1 electrolyte [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(PPh3)]Cl, after displacement of the chloride ligand rather than the thioether from the palladium coordination sphere. Furthermore, the SMe resonance in the 1H NMR spectrum appears at δ 2.18 (2.16 for 1) and at 15.9 (16 for 1) in the 13C NMR spectrum, suggesting the SMe group is not coordinated to the palladium atom as in the complexes 10 and 11 (vide infra), in which cases δ values under 2 (1H NMR) and 16 (13C NMR) would be expected for complex 4. Also, the IR spectrum of 4 shows a band assigned to the ν(Pd–Cl) stretch, at 306 m cm−1, which was absent in the IR spectra of compounds 10 and 11. The 31P-{1H} spectrum of 4 shows a singlet resonance at δ 42.3, in accordance with coordination of the phosphine ligand trans to the nitrogen atom.

Reaction of 3 with the diphosphines dppm, dppb and dppf in a 2 : 1 molar ratio the dinuclear gave the cyclometallated complexes [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe](Cl)}2{μ-Ph2P(CH2)nPPh2}], (n[thin space (1/6-em)]=[thin space (1/6-em)]1, 5; n[thin space (1/6-em)]=[thin space (1/6-em)]4, 6) and [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe](Cl)}2(μ-Ph2PC5H4FeC5H4PPh2)], 7, respectively (see Experimental section and Table 1). The 1H (and 13C-{1H} NMR in the case of compound 6) data are in agreement with Pd–S bond cleavage. The 31P-{1H} NMR spectra show a singlet resonance, indicating the compounds to be centrosymmetric. Reaction of 3 with AgCF3SO3 followed by PPh3 (1 : 1 molar ratio) or by Ph2P(CH2)4PPh2 (2 : 1 molar ratio), gave the mono- and dinuclear species [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(PPh3)][CF3SO3], 10, and [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2-SMe]}2{μ-Ph2P(CH2)4PPh2}][CF3SO3]2, 11, respectively, after halide extraction. The IR spectra support the presence of the [CF3SO3] anion, showing the characteristic stretching bands of the free anion,36ca. 1271, 1228, 1157 and 1028 cm−1. The 1H spectra of the complexes show singlet signals for the SMe protons at δ 1.81 and 1.98, we suggest these low values are due to shielding of the phosphine phenyl rings.24 Nevertheless, the resonance at δ 22.7 in the 13C-{1H} NMR spectrum of 11 is in agreement with coordination of the sulfur atom to palladium. Complexes 10 and 11 can also be prepared by treatment of 4 and 6, respectively, with silver triflate.

Treatment of 3 with dppe in a 1 : 1 molar ratio and sodium perchlorate gave the mononuclear cyclometallated complex [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}{Ph2P(CH2)2PPh2-,P,P}][ClO4], 8 (see Experimental section and Table 1). The 31P-{1H} NMR spectrum shows two doublets [J(PP)[thin space (1/6-em)]=[thin space (1/6-em)]27.1 Hz], the resonance at lower frequency was assigned to the phosphorus nucleus trans to the phenyl carbon atom in accordance with the higher trans influence of the latter with respect to the C[double bond, length half m-dash]N nitrogen atom.37 The HC[double bond, length half m-dash]N resonance in the 1H NMR spectrum is only coupled to the 31P nucleus trans to nitrogen and the H5 resonance is coupled to both phosphorus nuclei. The SMe resonance is shifted to lower frequency as a consequence of Pd–S bond cleavage. Reaction of 3 with the tertiary triphosphine bis(2-diphenylphosphinoethyl)phenylphosphine in a 1 : 1 molar ratio, followed by treatment with sodium perchlorate gave [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}{(Ph2PCH2CH2)2PPh-P,P,P}][ClO4], 9. The phosphorus resonances in the 31P-{1H} NMR spectrum of the complex are downfield shifted from their values in the free phosphine, suggesting coordination of the three phosphorus atoms to the metal centre. A triplet resonance at δ 62.5 was assigned to the central 31P nucleus, trans to the phenyl carbon atom, and a doublet signal at δ 45.4 was assigned to the two equivalent mutually trans phosphorus nuclei. The latter signal appears at lower frequency, in accordance with the high trans influence of the phosphine ligand.37 The resonance of the proton in the ortho position to the metallated carbon appears as a triplet showing coupling to the central 31P atom [J(PH)[thin space (1/6-em)]=[thin space (1/6-em)]7.8 Hz]; no coupling was observed to the terminal phosphorus nuclei. The shift of the ν(C[double bond, length half m-dash]N) stretching vibration to lower wavenumbers,33,34 as well as the upfield shift of the HC[double bond, length half m-dash]N proton resonance in the 1H NMR spectrum,32 indicates the existence of palladiumnitrogen interaction in solution. In agreement with the results previously obtained by us for related species in solution and in the solid state,26,38 these data strongly agree with a penta-coordinate palladium(II) compound in which the metallated ring is nearly perpendicular to the plane defined by the three phosphorus atoms, and point towards a square-pyramidal geometry in solution. These observations were confirmed by selective decoupling experiments (see Scheme 2). Recently, the chemistry of the related ligand C6H5C(H)[double bond, length half m-dash]NCH2CH2SEt, bearing no chlorine atom, has been reported and two compounds similar to 3 and 4 have been described. It should be noted that direct metallation of this Schiff base with Na2[PdCl4] and Na(CH3COO) in methanol gave [Pd{C6H4C(H)[double bond, length half m-dash]NCH2CH2SEt}(Cl)] in good yield, as opposed to ligand 1 in the present paper, where metallation was achieved only by reaction with palladium(II) acetate.

Crystal structure of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2-CH2SMe}(Cl)] (3)

Crystal data are given in Table 2 and selected bond distances and angles with estimated standard deviations are shown in Table 3. Suitable crystals of the title compound were grown by slowly evaporating a chloroform solution. The molecular structures, which are illustrated in Fig. 1 and 2, consist of discrete molecules separated by van der Waals distances.
Molecular structure of [Pd{2-ClC6H3C(H)NCH2CH2SMe}(Cl)] (3a), with labelling scheme. Hydrogen atoms have been omitted for clarity.
Fig. 1 Molecular structure of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)] (3a), with labelling scheme. Hydrogen atoms have been omitted for clarity.

Molecular structure of [Pd{2-ClC6H3C(H)NCH2CH2SMe}(Cl)] (3b), with labelling scheme. Hydrogen atoms have been omitted for clarity.
Fig. 2 Molecular structure of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)] (3b), with labelling scheme. Hydrogen atoms have been omitted for clarity.
Table 2 Crystal and structure refinement data for 3 and 11
  3 11

a R 1[thin space (1/6-em)]=[thin space (1/6-em)]Σ‖Fo|[thin space (1/6-em)][thin space (1/6-em)]|Fc‖/Σ|Fo|, [F[thin space (1/6-em)]>[thin space (1/6-em)]4σ(F)]. b wR 2[thin space (1/6-em)]=[thin space (1/6-em)][Σ[w(Fo2[thin space (1/6-em)][thin space (1/6-em)]Fc2)2w(Fo2)2]1/2, all data.
Formula C10H11NCl2SPd2 C50H50N2O6F6Cl2P2S4Pd2
M r 354.56 1362.80
T/K 293(2) 173(2)
λ 0.71073 0.71073
Crystal syst. Monoclinic Triclinic
Space group P21/n P[1 with combining macron]
a 8.241(1) 10.350(1)
b 15.229(1) 11.126(1)
c 13.367(1) 12.780(2)
α   74.691(3)
β 90.207(1) 82.642(3)
γ   82.434(3)
U3 2430.6(1) 1400.7(4)
Z 4 1
μ/mm−1 2.103 1.012
2θmax 56.6 56.6
Collected refl. 16[thin space (1/6-em)]370 9629
Unique refl. 5963 (Rint[thin space (1/6-em)]=[thin space (1/6-em)]0.04) 6726 (Rint[thin space (1/6-em)]=[thin space (1/6-em)]0.04)
R a 0.0372 0.0515
wR b 0.0856 0.1513
max ρ/eÅ3 0.946 0.832


Table 3 Selected bond lengths [Å] and angles [°] for 3
3a 3b

Pd(1)–C(1) 1.999(4) Pd(2)–C(11) 2.005(4)
Pd(1)–N(1) 1.989(3) Pd(2)–N(2) 1.985(3)
Pd(1)–S(1) 2.413(1) Pd(2)–S(2) 2.422(1)
Pd(1)–Cl(1) 2.314(1) Pd(2)–Cl(3) 2.314(1)
C(1)–C(6) 1.420(5) C(11)–C(16) 1.423(5)
C(6)–C(7) 1.447(5) C(16)–C(17) 1.450(5)
C(7)–N(1) 1.276(5) C(17)–N(2) 1.279(4)
Cl(2)–C(5) 1.750(4) Cl(4)–C(15) 1.747(4)
C(1)–Pd(1)–N(1) 80.78(14) C(11)–Pd(2)–N(2) 81.45(14)
C(1)–Pd(1)–Cl(1) 96.66(11) C(11)–Pd(2)–Cl(3) 96.69(11)
C(1)–Pd(1)–S(1) 165.10(11) C(11)–Pd(2)–S(2) 165.94(11)
N(1)–Pd(1)–Cl(1) 176.92(10) N(2)–Pd(2)–Cl(3) 179.09(9)
N(1)–Pd(1)–S(1) 84.46(10) N(2)–Pd(2)–S(2) 84.49(9)
Cl(1)–Pd(1)–S(1) 98.03(4) Cl(3)–Pd(2)–S(2) 97.34(4)
Pd(1)–C(1)–C(6) 112.1(3) Pd(2)–C(11)–C(16) 111.0(3)


The structure of 3 comprises two molecules of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)(PPh3)] per asymmetric unit (these are slightly different and will be labelled as 3a and 3b). In both cases, the palladium atom is bonded in a slightly distorted square-planar geometry to the carbon atom of the phenyl ring, the imine nitrogen atom, the sulfur atom and to a chlorine atom. The angles between adjacent atoms in the coordination sphere of palladium are close to the expected value of 90°, with the most noticeable distortions corresponding to the C(1)–Pd(1)–N(1) and C(11)–Pd(2)–N(2) angles of 80.78(14) and 81.45(14)° for 3a and 3b, respectively. The sum of the angles about palladium is approximately 360° in both cases. The Pd–N bond distances [1.989(3), 3a, and 1.985(3) Å, 3b], as well as the Pd–Cl bond distances [2.314(1) Å, 3a, 3b] are in accordance with previously reported values.24,25,27,30 The Pd–C bond distances of 1.999(4), 3a, and 2.005(4) Å, 3b, are somewhat shorter than predicted from their covalent radii39 but similar to values found earlier.24,25,27 The Pd–S bond lengths of 2.413(1), 3a, and 2.422(1) Å, 3b, reflect the strong trans-influence of the metallated carbon atom.13–16,30

The geometry around the palladium atom [Pd, C, N, S, Cl] is planar (r.m.s.[thin space (1/6-em)]=[thin space (1/6-em)]0.0122 and 0.0371 Å for 3a and 3b, respectively; planes 1 and 2). The metallated rings [Pd(1), C(1), C(6), C(7), N(1) and Pd(2), C(11), C(16), C(17), N(2)] are also planar (r.m.s.[thin space (1/6-em)]=[thin space (1/6-em)]0.0156 and 0.0256 Å for 3a and 3b, respectively; planes 3 and 4). Angles between planes are as follows: plane 1/plane 3[thin space (1/6-em)]=[thin space (1/6-em)]0.3[thin space (1/6-em)]°; plane 2/plane 4[thin space (1/6-em)]=[thin space (1/6-em)]4.6[thin space (1/6-em)]°. The two molecules of the asymmetric unit are nearly parallel (plane 1/plane 2[thin space (1/6-em)]=[thin space (1/6-em)]3.2[thin space (1/6-em)]°; plane 3/plane 4[thin space (1/6-em)]=[thin space (1/6-em)]5.3[thin space (1/6-em)]°). As expected, the coordination rings [Pd(1), N(1), C(8), C(9), S(1) and Pd(2), N(2), C(18), C(19), S(2)] show large deviations from planarity with C(8) [C(19) for 3b] lying above the least square plane and C(9) [C(18) for 3b] below. Recently, a structure similar to 3 has been reported40 where the asymmetric unit consists of three molecules, in contrast to the two found in the structure of compound 3. The bond distances and bond angles show values very close to those observed in the present case.

Crystal structure of [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe]}2(μ-Ph2P(CH2)4PPh2)][CF3SO3]2  (11)

Crystal data are given in Table 2 and selected bond distances and angles with estimated standard deviations are shown in Table 4. The molecular structure is illustrated in Fig. 3. Suitable crystals of the title compound were grown by slowly evaporating a dichloromethane solution.

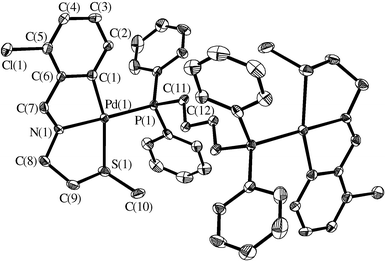

Molecular structure of [{Pd[2-ClC6H3C(H)NCH2CH2SMe]}2{μ-Ph2P(CH2)4PPh2}][CF3SO3]2
(11), with labelling scheme. Hydrogen atoms have been omitted for clarity.
Fig. 3 Molecular structure of [{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe]}2{μ-Ph2P(CH2)4PPh2}][CF3SO3]2  (11), with labelling scheme. Hydrogen atoms have been omitted for clarity.
Table 4 Selected bond lengths [Å] and angles [°] for 11
Pd(1)–C(1) 2.030(6) Pd(1)–N(1) 2.044(4)
Pd(1)–S(1) 2.399(2) Pd(1)–P(1) 2.279(1)
C(1)–C(6) 1.424(7) C(6)–C(7) 1.456(8)
C(7)–N(1) 1.283(7) Cl(1)–C(5) 1.745(6)
C(1)–Pd(1)–N(1) 81.1(2) C(1)–Pd(1)–P(1) 97.17(16)
C(1)–Pd(1)–S(1) 162.90(16) N(1)–Pd(1)–P(1) 177.17(13)
N(1)–Pd(1)–S(1) 81.95(13) P(1)–Pd(1)–S(1) 99.73(5)
Pd(1)–C(1)–C(6) 110.3(4) C(1)–C(6)–C(7) 116.6(5)
C(7)–N(1)–Pd(1) 115.7(4)


The crystal structure comprises a centrosymmetric dinuclear cation (half the cation per asymmetric unit) and two triflate anions. Each four-coordinate palladium is bonded to the terdentate Schiff base ligand through the aryl C(1) carbon, the imine N(1) nitrogen and the sulfur atom, and to the phosphorus atom of the 1,4-bis(diphenylphosphine)butane, which bridges the two metal atoms.

The geometry around each metal atom is similar to that shown by complex 3, with each palladium atom coordinated in a slightly distorted square-planar environment [mean deviation from the Pd(1), C(1), N(1), S(1), P(1) least square plane of 0.014 Å]. The most noticeable distortions being the C(1)–Pd(1)–N(1) and N(1)–Pd(1)–S(1) angles of 81.1(2) and 81.95(13)[thin space (1/6-em)]°, respectively.

The Pd(1)–C(1) bond length [2.030(6) Å] is shorter than the expected value of 2.081.24,25,27 The Pd(1)–N(1) bond distance [2.044(4) Å] is longer than the values found for complex 3 [1.989(3), 3a, and 1.985(3) Å, 3b], reflecting the trans influence of the P(1) phosphorus donor ligand.41 The Pd(1)–S(1) bond distance [2.399(2) Å] and the Pd(1)–P(1) length [2.279(1) Å] are within the expected range and similar to values reported for related complexes.25,28,41 Thus, as for compound 3, the palladium atom in 11 is bonded to four different donor atoms: C, N, S and P.

The palladium coordination plane [Pd(1), C(1), N(1), S(1), P(1)] and the metallated ring [C(1), C(6), C(7), N(1), Pd(1)] are coplanar (angle between planes 5.3[thin space (1/6-em)]°).

Experimental

General

Caution! . Perchlorate salts of metal complexes with organic ligands are potentially explosive. Only small amounts of these materials should be prepared and handled with great caution.

Solvents were purified by standard methods.42 Chemicals were reagent grade. The phosphines PPh3, Ph2PCH2PPh2 (dppm), Ph2P(CH2)4PPh2 (dppb), Ph2PC5H4FeC5H4PPh2 (dppf) and (Ph2PCH2CH2)2PPh (triphos), were purchased from Aldrich-Chemie. Microanalyses were carried out using a Carlo Erba Model 1108 elemental analyser. IR spectra were recorded from Nujol mulls or polythene discs on a Perkin-Elmer 1330 and a Mattson spectrophotometer. NMR spectra were obtained from CDCl3 solutions, referenced to SiMe4 (1H, 13C-{1H}) or 85% H3PO4 (31P-{1H}) and were recorded on a Bruker AC-2005 spectrometer. All chemical shifts are reported downfield from the standards. The FAB mass spectra were recorded using a VG Quatro mass spectrometer with a Cs ion gun; 3-nitrobenzyl alcohol was used as the matrix.

Syntheses

Preparation of 2-ClC6H4C(H)[double bond, length half m-dash]NCH2CH2SMe (1). 2-chlorobenzaldehyde (1.166 g, 8.29 mmol) was added to a solution of 2-(methylthio)ethylamine (0.716 g, 7.85 mmol) in 50 cm3 of dry chloroform. The solution was heated under reflux in a Dean–Stark apparatus for 4 h. After cooling to room temperature (r.t.), the chloroform was removed to give a yellow oil. Yield 95%. IR: ν(C[double bond, length half m-dash]N) 1635s cm−1. 13C-{1H} NMR (50.28 MHz, CDCl3): δ 158.6 (C[double bond, length half m-dash]N); 135.0, 133.0 (C1, C2); 131.5, 129.7, 128.3, 126.9 (C3–C6); 61.1 (N–CH2), 34.9 (CH2–S); 15.9 (SMe).
Preparation of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(O2CMe)] (2). A pressure tube containing 2-ClC6H4C(H)[double bond, length half m-dash]NCH2CH2SMe (305 mg, 1.42 mmol), palladium(II) acetate (316 mg, 1.41 mmol) and 20 cm3 of dry toluene was sealed under argon. The resulting mixture was heated at 60[thin space (1/6-em)]°C for 12 h. After cooling to r. t., the solution was filtered through Celite to remove the black palladium formed. The solvent was removed under vacuum to give a brown oil, which was chromatographed on a column packed with silica gel. Elution with dichloromethaneethanol (7%) afforded an orange oil after solvent removal, which was recrystallized from dichloromethanehexane to give the desired product as an orange solid. Yield 21%. Anal. found: C, 38.5; H, 3.4; N, 3.6; C12H14NO2SClPd requires C, 38.1; H, 3.7; N, 3.7%. IR: ν(C[double bond, length half m-dash]N) 1613sh s; νas(COO) 1571s; νs(COO), 1328m cm−1. 13C-{1H} NMR (50.28 MHz, CDCl3): δ 178.4 [OC(CH3)O]; 172.4 (C[double bond, length half m-dash]N); 161.4 (C6); 145.6 (C1); 131.0 (C2), 132.3, 130.0, 125.5 (C3–C5); 56.5 (N–CH2), 37.3 (CH2–S); 23.4 (OC(CH3)O); 18.1 (SMe). FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]320 [M[thin space (1/6-em)][thin space (1/6-em)]AcO]+, 697 [2M+AcO]+.
Preparation of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)] (3). An aqueous solution of NaCl (ca. 10−2 M) was added dropwise to a solution of 2 (218 mg, 0.29 mmol) in 15 cm3 of acetone. The resulting mixture was stirred for 24 h. The yellow precipitate formed was filtered off, washed with water, dried under vacuum and recrystallized from dichloromethanehexane to give complex 3 as a yellow crystalline solid. Yield 98%. Anal. found: C, 38.7; H, 3.1; N, 4.0; C10H11NSCl2Pd requires C, 38.9; H, 3.1; N, 3.9%) IR: ν(C[double bond, length half m-dash]N), 1612s cm−1. 13C-{1H} NMR (50.28 MHz, CDCl3): δ 172.4 (C[double bond, length half m-dash]N); 162.1 (C6); 146.3 (C1); 131.1 (C2), 132.6, 132.5, 125.4 (C3–C5); 56.8 (N–CH2), 38.6 (CH2–S); 18.4 (SMe). FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]355 [M]+; 320 [M[thin space (1/6-em)][thin space (1/6-em)]Cl]+.
Preparation of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(Cl)(PPh3)] (4). PPh3 (7.7 mg, 0.029 mmol) was added to a suspension of 3 (11 mg, 0.030 mmol) in acetone (15 cm3). The mixture was stirred for 12 h and the solvent removed to give a white solid which was recrystallized from dichloromethanehexane. Yield 46%. Anal. found: C, 54.0; H, 3.9; N, 2.0; C28H26NPSCl2Pd requires C, 54.5; H, 4.2; N, 2.3%. IR: ν(C[double bond, length half m-dash]N) 1617s, ν(Pd–Cl), 306m cm−1. 13C-{1H} NMR (50.28 MHz, CDCl3): δ 174.6 (C[double bond, length half m-dash]N); 160.3 (C6); 145.0 (C1); 132.2 (C2), 136.6, 131.5, 125.1 (C3–C5); 59.0 (N–CH2), 35.3 (CH2–S); 16.0 (SMe); P–phenyl; 130.5 [d, Ci, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]46.1 Hz], 135.3 [d, Co, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]12.0 Hz], 128.2 [d, Cm, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]11.3 Hz], 131.0 [d, Cp, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]2.2 Hz]. FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]582 [M[thin space (1/6-em)][thin space (1/6-em)]Cl]+.

Compounds 57 were obtained following a similar procedure as white (5, 6) or orange (7) solids, but using a 2 : 1 complex 3 to diphosphine molar ratio.

[{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe](Cl)}2(μ-Ph2PCH2PPh2)] (5). Yield 65%. Anal. found: C, 47.3; H, 3.7; N, 2.3; C45H44N2P2S2Cl4Pd2·CH2Cl2 requires C, 46.9; H, 3.9; N, 2.4%. IR: ν(C[double bond, length half m-dash]N) 1616s cm−1. FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]1058 [M[thin space (1/6-em)][thin space (1/6-em)]Cl]+; 1021 [M[thin space (1/6-em)][thin space (1/6-em)]2Cl]+; 704 [(1[thin space (1/6-em)][thin space (1/6-em)]H)Pd(dppm)]+.
[{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe](Cl)}2{μ-Ph2P(CH2)4PPh2}] (6). Yield 76%. Anal. found: C, 50.7; H, 4.4; N, 2.3; C48H50N2P2S2Cl4Pd2 requires C, 50.8; H, 4.4; N, 2.5%. IR: ν(C[double bond, length half m-dash]N), 1615s, ν(Pd–Cl), 308m cm−1. 13C-{1H} NMR (50.28 MHz, CDCl3): δ 174.0 (C[double bond, length half m-dash]N); 160.0 (C6); 144.5 (C1); 132.1 (C2), 132.9, 131.5, 125.0 (C3–C5); 58.7 (N–CH2), 34.9 (CH2–S); 16.0 (SMe); P–phenyl: 129.9 [d,Ci, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]46.1 Hz], 133.9 [d,Co, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]12.0 Hz], 128.6 [d, Cm, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]10.6 Hz], 130.9(Cp) FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]1101 [M−Cl]+; 1064 [M−2Cl]+; 746 [(1−H)Pd(dppb)]+.
[{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe](Cl)}2(μ-Ph2PC5H4FeC5H4PPh2)] (7). Yield 97%. Anal. found: C, 51.2; H, 4.4; N, 2.3; C54H50N2P2S2Cl4FePd2 requires C, 51.3; H, 4.0; N, 2.2%. IR: ν(C[double bond, length half m-dash]N) 1622s cm−1. FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]1192 [M−2Cl]+; 874 [(1−H)Pd(dppf)]+.
Preparation of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}{Ph2P(CH2)2PPh2-P,P}][ClO4] (8). PPh2(CH)2PPh2 (4.9 mg, 0.012 mmol) was added to a suspension of 3 (4.3 mg, 0.012 mmol) in acetone (20 cm3). The mixture was stirred for 1 h, after which an excess of sodium perchlorate was added. The complex was the precipitated out by addition of water, filtered off and dried in vacuo. Recrystallization from dichloromethanehexane gave the final compound as a yellow solid. Yield 94%. Anal. found: C, 51.3; H, 4.4; N, 1.5; C36H35NO4P2SCl2Pd·0.5CH2Cl2 requires C, 51.0; H, 4.2; N, 1.6%. IR: ν(C[double bond, length half m-dash]N), 1607s cm−1. FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]718 [M−ClO4]+.
[Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}{(Ph2PCH2CH2)2PPh-P,P,P}][ClO4] (9). Yield 72%. Anal. found: C, 52.3; H, 4.4; N, 1.5; C44H44NO4P3SCl2Pd·CH2Cl2 requires C, 52.0; H, 4.5; N, 1.3%. IR: ν(C[double bond, length half m-dash]N) 1615s cm−1. FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]854 [M−ClO4]+.
Preparation of [Pd{2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe}(PPh3)][CF3SO3] (10). A solution of 3 (10.4 mg, 0.029 mmol) in acetone (15 cm3) was treated with silver trifluoromethanesulfonate (7.4 mg, 0.029 mmol) and stirred for 2 h. The resulting solution was filtered through Celite to remove the AgCl precipitate. PPh3 (7.0 mg, 0.028 mmol) was added to the filtrate, the solution stirred for another 4 h and the solvent removed to give a yellow solid which was recrystallized from dichloromethanehexane. Yield 89%. Anal. found: C, 48.5; H, 3.7; N, 1.7; C29H26NO3F3PS2ClPd requires C, 47.7; H, 3.6; N, 1.9%. IR: ν(C[double bond, length half m-dash]N), 1628s cm−1.

Compound 11 was obtained following a similar procedure as a white solid but using a 2 : 1 complex 3 to diphosphine molar ratio.

[{Pd[2-ClC6H3C(H)[double bond, length half m-dash]NCH2CH2SMe]}2{μ-Ph2P(CH2)4PPh2}][CF3SO3]2  (11). Yield 50%. Anal. found: C, 44.2; H, 3.7; N, 1.9; C50H50N2O6F6P2S4Cl2Pd2 requires C, 44.1; H, 3.7; N, 2.1%. IR: ν(C[double bond, length half m-dash]N) 1626s cm−1. 13C-{1H} NMR (50.28 MHz, CDCl3): δ 172.3 (C[double bond, length half m-dash]N); 157.6 (C6); 145.6 (C1); 132.4 (C2), 135.5, 129.3, 125.5 (C3–C5); 58.1 (N–CH2), 36.1 (CH2–S); 22.7 (SMe). P-phenyl: 129.8 [d, Ci, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]46.8 Hz], 133.7 [d, Co, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]10.6 Hz], 128.8 [d, Cm, J(PC)[thin space (1/6-em)]=[thin space (1/6-em)]9.2 Hz], 131.2(Cp) FAB-MS: m/z[thin space (1/6-em)]=[thin space (1/6-em)]1213 [M−CF3SO3]+; 746 [(1−H)Pd(dppb)]+.

X-Ray crystallographic study

Three-dimensional, room temperature X-ray data were collected on a Siemens Smart CCD diffractometer by the ω scan method using graphite-monochromated Mo-Kα radiation. All the measured reflections were corrected for Lorentz and polarisation effects and for absorption by semi-empirical methods based on symmetry-equivalent and repeated reflections. The structures were solved by direct methods and refined by full matrix least squares on F2. Hydrogen atoms were included in calculated positions and refined in riding mode. Refinement converged at a final R[thin space (1/6-em)]=[thin space (1/6-em)]0.0372 and 0.515 (for complexes 3 and 11, respectively, observed data, F) and wR2[thin space (1/6-em)]=[thin space (1/6-em)]0.0856 and 0.1513 (for complexes 3 and 11, respectively, unique data, F2), with allowance for thermal anisotropy of all non-hydrogen atoms. The structure solution and refinement were carried out using the program package SHELX-97.43

CCDC reference numbers 157897 and 157898. See http://www.rsc.org/suppdata/nj/b1/b106511d/ for crystallographic data in CIF or other electronic format.

Acknowledgements

We thank the Ministerio de Educación y Cultura (Proyecto PB98-0638-C02-01/02), the Xunta de Galicia (Proyecto PGIDT99PXI20907B) and the Universidad de Coruña for financial support.

References

  1. I. Omae, Organometallic Intramolecular-Coordination Compounds, Elsevier Science, Amsterdam-New York, 1986. Search PubMed.
  2. V. V. Dunina, O. A. Zalevskaya and V. M. Potapov, Russ. Chem. Rev., 1984, 571, 250 Search PubMed.
  3. G. R. Newkome, W. E. Puckett, W. K. Gupta and G. E. Kiefer, Chem. Rev., 1986, 86, 451 CrossRef.
  4. A. D. Ryabov, Chem. Rev., 1990, 90, 403 CrossRef CAS.
  5. M. Pfeffer, Recl. Trav. Chim. Pays-Bas, 1990, 109, 567 Search PubMed.
  6. M. Pfeffer, J. P. Sutter, M. A. Rottevel, A. de Cian and J. Fischer, Tetrahedron, 1992, 48, 2427 CrossRef CAS.
  7. A. D. Ryabov, R. van Eldik, G. Le Borgne and M. Pfeffer, Organometallics, 1993, 12, 1386 CrossRef CAS.
  8. P. Espinet, M. A. Esteruelas, L. A. Oro, J. L. Serrano and E. Sola, Coord. Chem. Rev., 1992, 17, 215 CrossRef.
  9. C. Navarro-Ranninger, I. López-Solera, J. Rodríguez, J. L. García-Ruano, P. R. Raithby, J. R. Masaguer and C. Alonso, J. Med. Chem., 1993, 36, 3795 CrossRef CAS.
  10. C. Navarro-Ranninger, I. López-Solera, V. M. Gonzalez, J. M. Pérez, A. Alvarez-Valdes, A. Martin, P. R. Raithby, J. R. Masaguer and C. Alonso, Inorg. Chem., 1996, 35, 5181 CrossRef CAS.
  11. A. Bose and C. H. Saha, J. Mol. Catal., 1989, 49, 271 CrossRef CAS.
  12. J. M. Vila, M. T. Pereira, A. Suárez, J. J. Fernández, J. M. Ortigueira, A. Fernández, M. López-Torres and C. Rodríguez, Trends Organomet. Chem., 1999, 3, 71 Search PubMed.
  13. B. Schreiner, R. Urban, A. Zografidis, K. Sunkel, K. Polborn and W. Beck, Z. Naturforsch., Teil B, 1999, 54, 970 Search PubMed.
  14. S. Chattopadhyay, C. Sinha, P. Basu and A. Chakravorty, Organometallics, 1991, 10, 1135 CrossRef CAS.
  15. C. K. Pal, S. Chattopadhyay, C. Sinha and A. Chakravorty, J. Organomet. Chem., 1992, 439, 91 CrossRef CAS.
  16. T. Kawamoto, I. Nagasawa, H. Kuma and Y. Kushi, Inorg. Chem., 1996, 35, 2427 CrossRef CAS.
  17. T. Kawamoto, I. Nagasawa, H. Kuma and Y. Kushi, Inorg. Chim. Acta, 1997, 265, 163 CrossRef CAS.
  18. T. Kawamoto and Y. Kushi, Chem. Lett., 1992, 1057 CAS.
  19. I. Nagasawa, T. Kawamoto, H. Kuma and Y. Kushi, Chem. Lett., 1996, 921 CAS.
  20. A. G. Quiroga, J. M. Perez, I. Lopez-Solera, J. R. Masaguer, A. Luque, P. Roman, A. Edwards, C. Alonso and C. Navarro-Ranninger, J. Med. Chem., 1998, 41, 1399 CrossRef CAS.
  21. S. Chattopadhyay, C. Sinha, S. B. Choudhury and A. Chakravorty, J. Organomet. Chem., 1992, 427, 111 CrossRef CAS.
  22. S. Chattopadhyay, C. Sinha, P. Basu and A. Chakravorty, J. Organomet. Chem., 1991, 414, 421 CrossRef CAS.
  23. X. Riera, A. Caubet, C. López, V. Moreno, X. Solans and M. Font-Bardía, Organometallics, 2000, 19, 1384 CrossRef CAS.
  24. J. M. Vila, M. Gayoso, M. T. Pereira, M. López-Torres, J. J. Fernández, A. Fernández and J. M. Ortigueira, J. Organomet. Chem., 1997, 532, 171 CrossRef CAS.
  25. J. M. Vila, M. T. Pereira, J. M. Ortigueira, D. Lata, M. López-Torres, J. J. Fernández, A. Fernández and H. Adams, J. Organomet. Chem., 1998, 566, 93 CrossRef CAS.
  26. A. Fernández, J. J. Fernández, M. López-Torres, A. Suárez, J. M. Ortigueira, J. M. Vila and H. Adams, J. Organomet. Chem., 2000, 612, 85 CrossRef CAS.
  27. A. Fernández, P. Uría, J. J. Fernández, M. López-Torres, A. Suárez, D. Vázquez-García, M. T. Pereira and J. M. Vila, J. Organomet. Chem., 2001, 620, 8 CrossRef CAS.
  28. J. M. Vila, T. Pereira, J. M. Ortigueira, M. López-Torres, A. Castiñeiras, D. Lata, J. J. Fernández and A. Fernández, J. Organomet. Chem., 1998, 556, 21 CrossRef CAS.
  29. A. Fernández, M. López-Torres, A. Suárez, J. M. Ortigueira, T. Pereira, J. J. Fernández, J. M. Vila and H. Adams, J. Organomet. Chem., 2000, 598, 1 CrossRef CAS.
  30. J. M. Vila, M. T. Pereira, J. M. Ortigueira, M. López-Torres, D. Lata, M. Graña, A. Suárez, J. J. Fernández and A. Fernández, J. Chem. Soc., Dalton Trans., 1999, 4193 RSC.
  31. D. Vázquez-García, A. Fernández, J. J. Fernández, M. López-Torres, A. Suárez, J. M. Ortigueira, J. M. Vila and H. Adams, J. Organomet. Chem., 2000, 595, 199 CrossRef CAS.
  32. Y. Ustynyuk, V. A. Chertov and J. V. Barinov, J. Organomet. Chem., 1971, 29, C53 CrossRef CAS.
  33. H. Onoue and I. Moritani, J. Organomet. Chem., 1972, 43, 431 CrossRef.
  34. H. Onoue, K. Minami and K. Nakagawa, Bull. Chem. Soc. Jpn., 1970, 43, 3480 CAS.
  35. J. Granell, D. Sáinz, J. Sales, X. Solans and M. Font-Altaba, J. Chem. Soc., Dalton Trans., 1986, 1785 RSC.
  36. G. A. Lawrance, Chem. Rev., 1986, 86, 17 CrossRef CAS.
  37. P. S. Pregosin and R. W. Kuntz, in 31P and 13C NMR of Transition Metal Phosphine Complexes, ed. P. Diehl, E. Fluck and R. Kosfeld, Springer, Berlin, 1979. Search PubMed.
  38. J. M. Vila, M. T. Pereira, J. M. Ortigueira, J. J. Fernández, A. Fernández, M. López-Torres and H. Adams, Organometallics, 1999, 18, 5484 CrossRef CAS.
  39. L. Pauling, The Nature of the Chemical Bond, Cornell University Press, New York, 3rd edn., 1960. Search PubMed.
  40. X. Riera, A. Caubet, C. López, V. Moreno, E. Freisinger, M. Willermann and B. Lippert, J. Organomet. Chem., 2001, 629, 97 CrossRef CAS.
  41. J. M. Vila, M. Gayoso, A. Fernández, N. A. Bailey and H. Adams, J. Organomet. Chem., 1993, 448, 233 CrossRef CAS.
  42. D. D. Perrin and W. L. F. Armarego, Purification of Laboratory Chemicals, Butterworth-Heinemann, London, 4th edn., 1996. Search PubMed.
  43. G. M. Sheldrick, SHELX-97, An Integrated System for Solving and Refining Crystal Structures from Diffraction Data, University of Göttingen, Germany, 1997..
