DOI: 10.1039/B107628K (Paper) New J. Chem., 2002, 26, 94-104

Synthesis, structural characterization and reactivity of triosmium carbonyl clusters containing oxime ligands

Janet Shuk-Yee Wong and Wing-Tak Wong *
Department of Chemistry, The University of Hong Kong, Pokfulam Road, Hong Kong, P. R. China. E-mail: wtwong@hkucc.hku.hk

Received (in Montpellier, France) 13th August 2001 , Accepted 8th October 2001

First published on 22nd January 2002

Abstract

Reaction of [Os3(CO)11(NCMe)] with phenyl 2-pyridyl ketoxime produced the clusters [Os3(CO)8{μ-η3-ON[double bond, length half m-dash]CPh(NC5H4)}2] 1 and [Os3H(CO)11{η2-ON[double bond, length half m-dash]CPh(NC5H4)}] 2 in 4 and 17% yields, respectively. Oxidative addition of the oximes to the clusters with O–H bond cleavage and the loss of labile acetonitrile groups, and in the case of complex 1 decarbonylation, are observed. Cluster 2 possesses an open linear metal skeleton attached to both the pyridine nitrogen and oximato nitrogen on one terminal Os atom. Heating 2 in refluxing toluene gave [Os3(μ-H)(CO)9{µ-η3-ON[double bond, length half m-dash]CPh(NC5H4)}] 3 in 13% yield. Treatment of a CH2Cl2 solution of [Os3(CO)10(NCMe)2] with phenyl 2-pyridyl ketoxime at ambient conditions afforded the bridging oximato clusters 1 and 3 in moderate yields. Cluster 3 and 1 equiv. of phenyl 2-pyridyl ketoxime in refluxing toluene led to conversion to clusters 1 and [Os3(CO)8{μ-η3-ON[double bond, length half m-dash]CPh(NC5H4)} {μ-η2-N(H)CHPh(NC5H4)}] 4 in 12 and 16% yields, respectively. In cluster 4, one of the oximato moieties is deoxygenated with N–O bond cleavage. Treatment of another oxime ligand, benzophenone oxime, with [Os3(CO)10(NCMe)2] gave [Os3(μ-H)(CO)10{μ-η2-ON[double bond, length half m-dash]CPh2}] 5 in moderate yield. On thermolysis of 5 in toluene, [Os3(μ-H)2(CO)9{μ-η3-ON[double bond, length half m-dash]CPh(C6H4)}] 6 and [Os3(CO)10(μ-OH){μ-N[double bond, length half m-dash]CPh2}] 7 were isolated in 27 and 21% yields, respectively. The oxime ligand in 6 is converted to a tridentate ligand. In addition to the μ-η2-oximato N–O bridge, the phenyl carbon on the ligand coordinates to the cluster core by ortho-metallation. Cluster 5 isomerizes thermally to 7, which is formed by oxidative addition of the oxime with N–O bond cleavage. A μ4-oxo hexaosmium cluster, [Os6(CO)16(μ4-O){μ-η3-N[double bond, length half m-dash]CPh(C6H4)}2] 8, was isolated in low yield upon refluxing 5 in octane. Vacuum pyrolysis of 5 in 140[thin space (1/6-em)]°C yielded a pentaosmium carbonyl cluster, [Os5(CO)15{μ-η3-N[double bond, length half m-dash]CPh(C6H4)}] 9. All these clusters have been fully characterized by both spectroscopic and crystallographic techniques.

The coordination chemistry of oxime (hydroxyimine), RR′[double bond, length half m-dash]NOH, has been well documented.1–7 Often oximato groups act as bi- or multidentate ligands that are attached to a single metal atom. The oxime group may coordinate to metals either through a nitrogen or an oxygen atom or both. Reactivity observed for coordinated oxime ligands on transition metals includes (a) oxidative deoximation to a ketone,3 (b) reduction to an imine,4,5 (c) dehydroxylation to a ligated methyleneamide,4 (d) dehydration to a nitrile,4 (e) oxidation to a nitrosoalkane6 and (f) coupling with nitrile to give iminoacylated species.7 Metal clusters containing bridging oximato ligands are also known, however, their chemical properties have not been well developed. To our knowledge, reports concerning the cluster chemistry of oximes are rather rare. Deeming and co-workers reported that the O–H bond cleavage in the oxidative addition of Me2C[double bond, length half m-dash]NOH to the osmium cluster [Os3(CO)10(NCMe)2] gives [Os3(μ-H)(μ-Me2C[double bond, length half m-dash]NO)(CO)10], which thermally isomerizes to the hydroxo isomer [Os3(μ-OH)(μ-Me2C[double bond, length half m-dash]N)(CO)10].8 Lu and co-workers also reported the first example containing a μ2-η1-O-oximato coordinating group in [(μ-H)Os3(CO)10(μ2-η1-OC9H6N2Cl)].9 The reactivity of oximes towards triosmium clusters is one of our current interests. In this paper, the synthesis and spectroscopic studies of triosmium clusters with oxime ligands are reported.

Results and discussion

Reaction of [Os3(CO)11(NCMe)] with phenyl 2-pyridyl ketoxime

Treatment of [Os3(CO)11(NCMe)] with 1 equiv. of phenyl 2-pyridyl ketoxime at room temperature afforded [Os3(CO)8{μ-η3-ON[double bond, length half m-dash]CPh(NC5H4)}2] 1 and [Os3H(CO)11{η2-ON[double bond, length half m-dash]CPh(NC5H4)}] 2 in low yields upon TLC separation (Scheme 1). The spectroscopic data of 1 and 2 (and all other products) are listed in Table 1. The molecular structure of 1 was established by X-ray analysis using a red, air stable crystal that was obtained by diffusion of n-hexane into a CH2Cl2 solution at −20[thin space (1/6-em)]°C. Fig. 1 shows the perspective view and the numbering scheme for the resulting molecular configuration. Selected bond parameters are given in Table 2. The cluster consists of an open triosmium triangle [Os(1)–Os(2) 2.8472(6) Å] with two oximato ligands spanning the open Os⋯Os edge (3.60 Å) via the N–O group in a μ-η2 fashion and is similar to the cluster [Ru3(μ3-NPh)2(μ-η2-ONPh)2(CO)7].10 Cluster 1 possesses C2 symmetry with the principal axis passing through Os(2) and bisecting the open triangular metal framework. The molecule of 1 contains two oximato ligands that chelate to the metal core in a μ-η3 manner. The ligand is bound to the cluster by coordination of the pyridine nitrogen lone pair [Os(1)–N(1) 2.165(9)Å] and the oximato oxygen and nitrogen atoms [Os(1*)–O(5) 2.115(7), Os(1)–N(2) 2.146(9) Å]. The oximato oxygen atoms span to the neighbouring metal centre over the open metal⋯metal edge. The N–O bond distance is 1.35(1) Å. Most of the reported complexes with a μ-η2-coordinated oximato N–O unit are dimetallic or trimetallic in nature with the metal–metal bond remaining intact.1,8,9 Opening up of the Ru–Ru bond by coordination of the μ-η2-nitrosobenzene ligand has been reported.10 In cluster 1, one Os–Os bond is opened up by the oximato ligands. The oximato ligands in 1 act as 5e− donors. Together with the eight terminal carbonyls, cluster 1 is electron precise with a cluster valence electron (CVE) count of 50, which is expected for a trinuclear cluster with two metal–metal bonds.
scheme, filename = b107628k-s1.gif
Scheme 1

Molecular structure of [Os3(CO)8{µ-η3-ONCPh(NC5H4)}2] 1 and the atom numbering scheme.
Fig. 1 Molecular structure of [Os3(CO)8{µ-η3-ON[double bond, length half m-dash]CPh(NC5H4)}2] 1 and the atom numbering scheme.
Table 1 Spectroscopic data for compounds 1–9
Cluster IR spectraaν(CO)/cm−1 Mass spectrabm/z H NMR spectracδ, J/Hz

a In n-hexane unless otherwise stated. b Parent ion peak; the observed value is the same as that calculated from the molecular formula. c In CD2Cl2.
1 2072m, 1995vs, 1925w, 1922w, 1914w (CH2Cl2) 1189 8.86 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]6.7, 4H, Py), 7.81 (td, J[thin space (1/6-em)]=[thin space (1/6-em)]6.7, 1.3, 4H, Py), 7.31 (t, J[thin space (1/6-em)]=[thin space (1/6-em)]7.0, 6H, Ph), 7.06 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]7.0, 4H, Ph)
2 2122w, 2084s, 2064w, 2049m, 2041w, 2028vs, 2018s, 1999s, 1987w 1077 8.73 (dd, J[thin space (1/6-em)]=[thin space (1/6-em)]6.2, 1.2, 1H, Py), 7.61 (m, 1H, Py), 7.45 (m, 5H, Ph), 7.29 (dd, J[thin space (1/6-em)]=[thin space (1/6-em)]8.3, 1.0, 1H, Py), 7.04 (m, 1H, Py), −10.09 (s, 1H, Os–H)
3 2053s, 2016vs, 2006w, 1993s, 1970s, 1952m 1021 9.02 (dd, J[thin space (1/6-em)]=[thin space (1/6-em)]6.2, 1.1, 1H, Py), 7.72 (td, J[thin space (1/6-em)]=[thin space (1/6-em)]6.5, 1.1, 1H, Py), 7.54 (dd, J[thin space (1/6-em)]=[thin space (1/6-em)]6.5, 1.4, 1H, Py), 7.49 (m, 5H, Ph), 7.25 (td, J[thin space (1/6-em)]=[thin space (1/6-em)]6.2, 1.4, 1H, Py), −18.20 (s, 1H, Os–H)
4 2066m, 1989s, 1978sh, 1900w (CH2Cl2) 1175 9.02 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]6.5, 1H, Py), 8.75 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]6.0, 1H, Py), 7.88 (t, J[thin space (1/6-em)]=[thin space (1/6-em)]7.0, 1H, Py), 7.53 (t, J[thin space (1/6-em)]=[thin space (1/6-em)]6.4, 1H, Py), 7.46 (t, J[thin space (1/6-em)]=[thin space (1/6-em)]6.5, 1H, Py), 7.35 (m, 4H, Ph), 7.26 (m, 2H, Ph), 7.22 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]7.0, 1H, Py), 6.96 (t, J[thin space (1/6-em)]=[thin space (1/6-em)]6.0, 1H, Py), 6.86 (m, 4H, Ph), 6.74 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]6.4, 1H, Py), 4.38 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]4.8, 1H, NH), 2.51 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]4.8, 1H, C–H)
5 2109m, 2072s, 2059s, 2026vs, 2014s, 2003m, 1981m 1048 7.49 (m, 3H, Ph), 7.39 (m, 2H, Ph), 7.23 (m, 5H, Ph), −11.64 (s, 1H, Os–H)
6 2128w, 2082s, 2051vs, 2039s, 2028w, 2008w, 1991m, 1974m 1020 7.85 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]7.4, 1H, Ph), 7.34 (m, 3H, Ph), 7.24 (m, 2H, Ph), 7.06 (t, J[thin space (1/6-em)]=[thin space (1/6-em)]7.4, 1H, Ph), 6.97 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]7.9, 1H, Ph), 6.84 (t, J[thin space (1/6-em)]=[thin space (1/6-em)]7.9, 1H, Ph), −13.05 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]1.7, 1H, Os–H, −14.38 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]1.7, 1H, Os–H)
7 2101w, 2069vs, 2049m, 2014s, 2003s, 1987m, 1976w 1048 7.45 (m, 8H, Ph), 7.37 (m, 2H, Ph), −0.10 (s, 1H, OH)
8 2097w, 2078vs, 2064vs, 2049w, 2018vs, 2008m, 1997m, 1993m, 1968w 1964 7.77 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]7.1, 2H, Ph), 7.56 (m, 6H, Ph), 7.36 (m, 4H, Ph), 7.18 (m, 4H, Ph), 7.03 (dd, J[thin space (1/6-em)]=[thin space (1/6-em)]6.1, 2.2, 2H, Ph)
9 2099w, 2072s, 2033vs, 2008w, 1997w 1550 8.05 (d, J[thin space (1/6-em)]=[thin space (1/6-em)]7.5, 1.4, 1H, Ph), 7.44 (m, 3H, Ph), 7.34 (td, J[thin space (1/6-em)]=[thin space (1/6-em)]7.5, 1.4, 1H, Ph), 7.02 (m, 3H, Ph), 6.58 (dd, J[thin space (1/6-em)]=[thin space (1/6-em)]7.7, 1.4, 1H, Ph)

Table 2 Selected bond distances (Å) and angles (°) for cluster 1

Os(1)–Os(2) 2.8472(6) N(1)–C(5) 1.36(1)
Os(1)–N(1) 2.165(9) N(1)–C(9) 1.35(1)
Os(1)–N(2) 2.146(9) N(2)–C(10) 1.29(1)
Os(1)–O(5*) 2.115(7) C(9)–C(10) 1.46(1)
N(2)–O(5) 1.35(1)
Os(1)–Os(2)–Os(1*) 78.52(2) Os(1)–O(5*)–N(2*) 113.0(6)
Os(2)–Os(1)–N(2) 92.9(2) N(1)–Os(1)–N(2) 73.9(3)
Os(2)–Os(1)–O(5*) 89.0(2) N(1)–C(9)–C(10) 115.5(10)
Os(1)–N(1)–C(5) 126.6(9) N(2)–C(10)–C(9) 115.2(10)
Os(1)–N(1)–C(9) 114.9(7) N(2)–C(10)–C(11) 121.3(10)
Os(1)–N(2)–O(5) 124.2(6) O(5)–N(2)–C(10) 117.6(9)
Os(1)–N(2)–C(10) 118.2(7)

The mass and IR spectra show that 2 is a triosmium compound with terminal carbonyls only. The 1H NMR signal at δ −10.09 is attributed to a terminal metal hydride. In order to establish the molecular structure of 2 the compound was characterized by X-ray crystallographic analysis (Fig. 2). Selected bond parameters are presented in Table 3. This molecule contains an open linear Os3(CO)11 cluster [Os(1)–Os(2)–Os(3) 175.79(2)°] attached to both the pyridine nitrogen and oximato nitrogen atoms on the terminal Os atom [Os(1)–N(1) 2.11(1), Os(1)–N(2) 2.10(1) Å]. The metal core of 2 is similar to [Os3(CO)11(μ3-FcC4Fc)] in which the bond angle of Os(1)–Os(2)–Os(3) is 162.65(4)°.11 The oxime moiety acts as a bidentate ligand that coordinates to the Os(1) at the axial and equatorial positions via the pyridine nitrogen and oximato nitrogen atoms, respectively, to form a five-memebered chelated ring, while the oximato oxygen atom remains non-coordinating. The ligand groups on Os(1), Os(2) and Os(3) are staggered with respect to the ligands on the adjacent metal so as to minimize steric crowding. A similar effect is observed in other linear clusters.12–14 The N–O bond distance of the oximato group is 1.28(1) Å, which is within the range found in most metal complexes with N-bonded nitroso group15–17 but is comparably shorter than the corresponding value observed in complex 1, since both N and O are coordinated in 1 but not in 2. The oxime ligand in 2 acts as a 3e− donor rather than a 5e− donor as in the case for 1. Together with the eleven terminal carbonyls, cluster 2 retains a CVE count of 50.


Molecular structure of [Os3H(CO)11{η2-ONCPh(NC5H4)}] 2 and the atom numbering scheme.
Fig. 2 Molecular structure of [Os3H(CO)11{η2-ON[double bond, length half m-dash]CPh(NC5H4)}] 2 and the atom numbering scheme.
Table 3 Selected bond distances (Å) and angles (°) for cluster 2

Os(1)–Os(2) 2.9038(7) N(1)–C(16) 1.35(2)
Os(2)–Os(3) 2.9160(7) N(2)–O(12) 1.28(1)
Os(1)–N(1) 2.11(1) N(2)–C(17) 1.34(2)
Os(1)–N(2) 2.10(1) C(16)–C(17) 1.45(2)
N(1)–C(12) 1.37(2)
Os(1)–Os(2)–Os(3) 175.79(2) N(1)–C(16)–C(17) 115(1)
Os(1)–N(1)–C(12) 125.0(10) N(2)–C(17)–C(16) 114(1)
Os(1)–N(1)–C(16) 115.6(8) N(2)–C(17)–C(18) 122(1)
Os(1)–N(2)–O(12) 121.1(8) O(12)–N(2)–C(17) 121(1)
Os(1)–N(2)–C(17) 117.2(8) C(16)–C(17)–C(18) 122(1)

Thermolysis of 2 in toluene

Heating 2 in refluxing toluene for 3 h gave [Os3(μ-H)(CO)9{μ-η3-ON[double bond, length half m-dash]CPh(NC5H4)}] 3 in low yield along with decomposition of the starting material. Crystals of 3 suitable for X-ray analysis were obtained by slow evaporation from an n-hexane–CHCl3 solution at −20[thin space (1/6-em)]°C. The molecular structure of 3 is depicted in Fig. 3, and selected bond parameters are given in Table 4. Cluster 3 consists of a triangular metal core [Os(1)–Os(2) 2.8800(5), Os(2)–Os(3) 2.8470(5), Os(1)–Os(3) 2.8473(5) Å] in which the Os(1) and the Os(3) atoms are edge-bridged by a hydride and an oximato ligand. The molecule of 3 contains one oximato ligand that chelates to the metal framework in a similar manner, μ-η3, as in 1 [Os(1)–N(1) 2.092(8), Os(3)–O(10) 2.166(6), Os(1)–N(2) 2.039(7) Å]. The pyridyl nitrogen N(1) and the oximato nitrogen N(2) chelate to Os(1) and form a five-membered metallacyclic ring [Os(1), N(1), C(14), C(15), N(2)] with a mean deviation of 0.048 Å from the least-squares plane. The metallacyclic ring is fused to the four-membered ring containing Os(1), Os(3), N(2) and O(10) and pyridyl ring containing N(1), C(10), C(11), C(12), C(13) and C(14) with dihedral angles of 23.46° and 174.78°, respectively. The presence of the bridging hydride on the metal core is supported by the signal at δ[thin space (1/6-em)]−[thin space (1/6-em)]18.20 in the 1H NMR spectrum. The bond lengths of N(2)–O(10) and N(2)–C(15) are 1.348(10) and 1.30(1) Å, respectively, which indicates their partial double-bond character. The sp2 hybridization associated with the N(2) and C(15) centers was confirmed by the sum of the bond angles at N(2) (359.9°) and at C(15) (360.0°). This type of oximato bridge has been observed before in the clusters [Os3(μ-H)(μ2-Me2C[double bond, length half m-dash]NO)(CO)10] and [(μ-H)Os3(CO)10{μ2-η2-ON-C9H6NCl)].8,9 The conversion of cluster 2 to cluster 3 may involve the loss of CO under high temperature, which is followed by the coordination of the oximato oxygen to another terminal Os atom and the formation of an Os–Os bond. Therefore, cluster 2 should be an intermediate in the formation of cluster 3.
Molecular structure of [Os3(µ-H)(CO)9{µ-η3-ONCPh(NC5H4)}] 3 and the atom numbering scheme.
Fig. 3 Molecular structure of [Os3(µ-H)(CO)9{µ-η3-ON[double bond, length half m-dash]CPh(NC5H4)}] 3 and the atom numbering scheme.
Table 4 Selected bond distances (Å) and angles (°) for cluster 3

Os(1)–Os(2) 2.8800(5) N(1)–C(10) 1.34(1)
Os(2)–Os(3) 2.8470(5) N(1)–C(14) 1.37(1)
Os(1)–Os(3) 2.8473(5) N(2)–O(10) 1.348(10)
Os(1)–N(2) 2.039(7) N(2)–C(15) 1.30(1)
Os(1)–N(1) 2.092(8) C(14)–C(15) 1.45(1)
Os(3)–O(10) 2.166(6)
Os(1)–Os(2)–Os(3) 59.62(1) Os(1)–N(2)–O(10) 116.8(6)
Os(1)–Os(3)–Os(2) 60.76(1) Os(1)–N(2)–C(15) 120.3(6)
Os(2)–Os(1)–O(3) 59.61(1) Os(3)–O(10)–N(2) 103.9(5)
Os(1)–Os(3)–O(10) 69.4(2) N(1)–Os(1)–N(2) 76.0(3)
Os(2)–Os(3)–O(10) 90.8(2) N(1)–C(14)–C(15) 114.9(8)
Os(2)–Os(1)–N(2) 84.1(2) N(2)–C(15)–C(14) 113.2(8)
Os(3)–Os(1)–N(2) 68.0(2) N(2)–C(15)–C(16) 113.9(8)
Os(1)–N(1)–C(10) 126.5(7) O(10)–N(2)–C(15) 122.8(8)
Os(1)–N(1)–C(14) 114.6(6) C(10)–N(1)–C(14) 118.9(8)

Reaction of [Os3(CO)10(NCMe)2] with phenyl 2-pyridyl ketoxime

Treatment of a CH2Cl2 solution of [Os3(CO)10(NCMe)2] with 1 equiv. of phenyl 2-pyridyl ketoxime at ambient conditions gave clusters 1 and 3 in moderate yields upon TLC separation (Scheme 1). The reaction of [Os3(CO)10(NCMe)2] with phenyl 2-pyridyl ketoxime proceeds much faster than that of [Os3(CO)11(NCMe)] with the same ligand. Cluster 2 cannot be obtained in the former reaction. This is probably because [Os3(CO)10(NCMe)2] contains two labile acetonitrile groups, which favour capping by the pyridine nitrogen and the oximato oxygen and nitrogen atoms of the oxime ligand.

The cluster [Os3(CO)10(NCMe)2] is a ready source of Os3(CO)10 fragments in reactions leading to oxidative addition of HX to give compounds of the type [Os3(μ-H)(μ-X)(CO)10]. For example, alcohols react to give [Os3(μ-H)(μ-OR)(CO)10].18 Pyridine undergoes ortho-metallation to afford [Os3(μ-H)(μ-C5H4N)(CO)10].19 Therefore, in principle, oximes R2C[double bond, length half m-dash]NOH could give [Os3(μ-H)(μ-R2C[double bond, length half m-dash]NO)(CO)10] or [Os3(μ-H)(μ-RC[double bond, length half m-dash]NOH)(CO)10] if the R group trans to OH in the oxime is an H atom.8 According to our results, the primary products from the reaction of phenyl 2-pyridyl ketoxime with [Os3(CO)10(NCMe)2] are all derived in the same way from oxidative addition with O–H bond cleavage.

Thermolysis of 3 with phenyl 2-pyridyl ketoxime in toluene

A solution of cluster 3 and 1 equiv. of phenyl 2-pyridyl ketoxime in refluxing toluene led to conversion to 1 and [Os3(CO)8{μ-η3-ON[double bond, length half m-dash]CPh(NC5H4)}{μ-η2-N(H)CHPh(NC5H4)}] 4 (Scheme 1). Cluster 4 was characterized by various spectroscopic methods (Table 1). The IR spectrum shows the presence of terminal carbonyl ligands and the mass spectrum exhibits molecular ion envelopes that agree with the formula of the compound, with ion peaks corresponding to CO losses also being present. The 1H NMR spectrum of 4 is complicated and consists of proton signals ranging from δ 2.5 to 9.0; no metal hydride could be detected. The proton resonance between δ 6.7 and 9.0 are due to the aromatic ring system, while the two doublets centred at δ 4.38 and 2.51, which are coupled to each other, are attributable to the N–H and C–H protrons, respectively.

Red crystals of 4 suitable for diffraction studies were grown from a saturated solution of n-hexane and CHCl3 at −20[thin space (1/6-em)]°C. The molecular structure of 4 has also been established by X-ray crystallography. There are two independent molecules in each asymmetric unit, which are essentially the same. One of the molecules is depicted in Fig. 4 and selected bond lengths and angles are given in Table 5. One and a half molecules of CHCl3, as a solvent of crystallization, are found in the crystal lattice. Cluster 4 retains the open triangular metal arrangement of 1 with the two Os–Os bonds being almost equi-distance [2.8531(8) vs. 2.8170(8) Å], while the Os(1)⋯Os(3) edge is non-bonded with a separation of 3.31 Å. The molecule contains one oximato ligand and one deoxygenated oximato ligand. The oximato ligand adopts the same coordination mode to the metal centres as those in clusters 1 and 3 [Os(1)–N(1) 2.156(10), Os(3)–O(9) 2.136(9) and Os(1)–N(2) 2.12(1) Å] and the N–O bond distance in 4 is 1.34(1) Å, which is comparable to those in 1 and 3. The deoxygenated oximato ligand is believed to undergo N–O bond cleavage of the oximato moiety and coordinate to Os(1) and Os(3) through the oximato nitrogen and pyridine nitrogen [Os(1)–N(4) 2.164(10), Os(3)–N(4) 2.155(9) and Os(3)–N(3) 2.138(10) Å], which is similar to the reported ruthenium cluster [Ru3(μ-H)(μ-HNCHPh2)(CO)10].20 The C(26)–N(4) in the deoxygenated ligand has a length of 1.53(1) Å thus is a single C–N bond. The deoxygenated oximato ligand should be a 5e− donor with the bridging nitrogen and the pyridine nitrogen atoms contributing three and two electrons to the cluster framework, respectively; together with the oximato ligand and eight terminal carbonyls a CVE count of 50 is obtained, which is electron precise for a triosmium cluster containing two metal–metal bonds in accordance with the effective atomic number (EAN) rule.

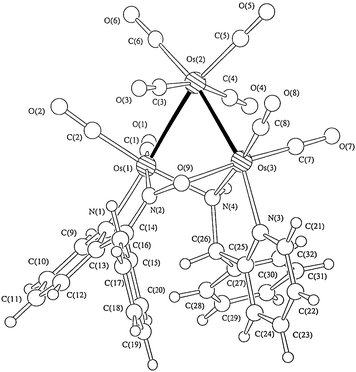

Molecular structure of [Os3(CO)8{µ-η3-ONCPh(NC5H4)}{µ-η2-N(H)CHPh(NC5H4)}] 4 and the atom numbering scheme.
Fig. 4 Molecular structure of [Os3(CO)8{µ-η3-ON[double bond, length half m-dash]CPh(NC5H4)}{µ-η2-N(H)CHPh(NC5H4)}] 4 and the atom numbering scheme.
Table 5 Selected bond distances (Å) and angles (°) for cluster 4
  Molecule 1 Molecule 2

Os(1)–Os(2) 2.8531(8) 2.8624(8)
Os(2)–Os(3) 2.8170(8) 2.8166(8)
Os(1)–N(1) 2.156(10) 2.13(1)
Os(1)–N(2) 2.12(1) 2.093(10)
Os(1)–N(4) 2.164(10) 2.16(1)
Os(3)–N(3) 2.138(10) 2.12(1)
Os(3)–N(4) 2.155(9) 2.14(1)
Os(3)–O(9) 2.136(9) 2.099(8)
N(1)–C(13) 1.38(1) 1.34(1)
N(2)–O(9) 1.34(1) 1.35(1)
N(2)–C(14) 1.32(1) 1.32(1)
N(3)–C(21) 1.35(2) 1.36(2)
N(3)–C(25) 1.33(1) 1.35(2)
N(4)–C(26) 1.53(1) 1.51(2)
C(13)–C(14) 1.44(2) 1.46(2)
C(25)–C(26) 1.52(2) 1.52(2)
Os(1)–Os(2)–Os(3) 71.45(2) 71.83(2)
Os(2)–Os(1)–N(1) 170.2(3) 166.6(3)
Os(2)–Os(1)–N(2) 95.8(3) 93.2(3)
Os(2)–Os(1)–N(4) 82.4(2) 82.6(3)
Os(2)–Os(3)–N(3) 160.5(3) 160.9(3)
Os(2)–Os(3)–N(4) 83.5(2) 84.0(3)
Os(2)–Os(3)–O(9) 91.5(2) 89.3(2)
Os(1)–N(1)–C(13) 113.9(8) 114.5(8)
Os(1)–N(2)–O(9) 120.0(8) 120.7(7)
Os(1)–N(2)–C(14) 118.2(9) 118(1)
Os(1)–N(4)–Os(3) 100.1(4) 101.4(4)
Os(1)–N(4)–C(26) 118.6(7) 115.0(8)
Os(3)–N(3)–C(21) 124.8(8) 125.9(10)
Os(3)–N(3)–C(25) 117.0(8) 117.0(8)
Os(3)–N(4)–C(26) 114.8(7) 115.0(8)
Os(3)–O(9)–N(2) 111.5(7) 112.0(6)
N(1)–C(13)–C(14) 115(1) 116(1)
N(2)–C(14)–C(13) 115(1) 112(1)
N(3)–C(25)–C(26) 120(1) 119(1)
N(4)–C(26)–C(25) 109.1(10) 109(1)
O(9)–N(2)–C(14) 120(1) 118(1)

Attempted thermolysis and hydrogenation of 1

Heating complex 1 in refluxing toluene for 2 days results in no observable change in the IR spectrum and spot TLC monitoring. Cluster 1 is thermally stable up to the boiling point of toluene without any molecular rearrangement or bond cleavage.

Hydrogenation of complex 1 was attempted in refluxing CHCl3, monitored by IR and TLC. However, no reaction was observed after 5 h. Thermolysis and hydrogenation of 1 failed to give complex 4. Therefore, complexes 1 and 4 may be formed via different pathways.

Reaction of [Os3(CO)10(NCMe)2] with benzophenone oxime

To explore the change in the reactivity of the oxime with different substitutents, we investigated the reaction of [Os3(CO)10(NCMe)2] with benzophenone oxime, in addition to phenyl 2-pyridyl ketoxime. Treatment of 1 equiv. benzophenone oxime with [Os3(CO)10(NCMe)2] in CH2Cl2 at room temperature over a period of 5 h afforded [Os3(μ-H)(CO)10{μ-η2-ON[double bond, length half m-dash]CPh2}] 5 in 27% yield (Scheme 2). The preparation and the spectroscopic data of cluster 5 have been reported and a structure for 5 proposed by comparing the spectroscopic data with those of the compound [Os3(μ-H)(μ2-Me2C[double bond, length half m-dash]NO)(CO)10].8 We determined the structure of cluster 5 by both spectroscopic techniques (Table 1) and X-ray diffraction analysis in this work. There are two independent molecules of 5 in each asymmetric unit, which are essentially the same; one of the molecules is depicited in Fig. 5 and relevant bond parameters are in Table 6. The molecule contains a triangular metal core [Os(1)–Os(2) 2.8736(8), Os(2)–Os(3) 2.8740(9), Os(1)–Os(3) 2.8471(8) Å]. The oximato ligand chelates to the metal framework via the N–O unit [Os(1)–N(1) 2.155(10), Os(3)–O(11) 2.091(9) Å], in the same way as in the reported cluster [Os3(µ-H)(µ-Me2C[double bond, length half m-dash]NO)(CO)10],8 by oxidative addition with O–H cleavage. The N–O bond distance is found to be 1.35(1) Å, which is comparable with those in previously mentioned complexes.1,8 In contrast to 3, the oxime ligand in 5 acts as a bidentate ligand and chelates to the metal core in a μ-η2-manner while the oxime in 3 binds to the cluster in a μ-η3-fashion, with one more coordination via the pyridine nitrogen atom.
scheme, filename = b107628k-s2.gif
Scheme 2

Molecular structure of [Os3(µ-H)(CO)10{µ-η2-ONCPh2}] 5 and the atom numbering scheme.
Fig. 5 Molecular structure of [Os3(µ-H)(CO)10{µ-η2-ON[double bond, length half m-dash]CPh2}] 5 and the atom numbering scheme.
Table 6 Selected bond lengths (Å) and angles (°) for cluster 5
  Molecule 1 Molecule 2

Os(1)–Os(2) 2.8736(8) 2.8594(9)
Os(2)–Os(3) 2.8740(9) 2.8605(9)
Os(1)–Os(3) 2.8471(8) 2.8747(8)
Os(1)–N(1) 2.155(10) 2.170(10)
Os(3)–O(11) 2.091(9) 2.077(9)
N(1)–O(11) 1.35(1) 1.35(1)
N(1)–C(11) 1.31(2) 1.32(2)
C(11)–C(12) 1.50(7) 1.48(2)
C(11)–C(18) 1.49(2) 1.48(2)
Os(1)–Os(2)–Os(3) 59.39(2) 60.34(2)
Os(1)–Os(3)–Os(2) 60.30(2) 59.81(2)
Os(2)–Os(1)–Os(3) 60.31(2) 59.85(2)
Os(1)–Os(3)–O(11) 69.7(2) 69.4(2)
Os(2)–Os(1)–N(1) 86.4(3) 87.4(3)
Os(2)–Os(3)–O(11) 89.9(3) 90.1(3)
Os(3)–Os(1)–N(1) 68.9(3) 68.4(3)
Os(1)–N(1)–O(11) 108.7(7) 108.4(7)
Os(1)–N(1)–C(11) 132.8(9) 132.1(9)
Os(3)–O(11)–N(1) 112.1(7) 113.5(7)
O(11)–N(1)–C(11) 117(1) 119(1)
N(1)–C(11)–C(12) 124(1) 125(1)
N(1)–C(11)–C(18) 117(1) 118(1)
C(12)–C(11)–C(18) 117(1) 116(1)

Thermolysis of 5 in toluene

Cluster 5 was heated in refluxing toluene until complete consumption was observed by TLC monitoring. Two products, identified as [Os3(μ-H)2(CO)9{μ-η3-OH[double bond, length half m-dash]CPh(C6H4)}] 6 and [Os3(CO)10(μ-OH){μ-N[double bond, length half m-dash]CPh2}] 7, were isolated in 27 and 21% yields, respectively (Scheme 2). The 1H NMR signals due to the organic moieties of the two complexes are fully consistent with their structures. The signals of the two hydrides in 6 are observed at δ −14.38 and −13.05, while a signal at δ −0.10 in 7 is assigned to the bridging hydroxy proton. The mass spectra exhibit molecular ion envelopes that agree with the formulae of the compounds (Table 1).

Yellow crystals of 6 and 7 suitable for diffraction analysis were obtained by slow evaporation of these compounds in n-hexane–CH2Cl2 at −20[thin space (1/6-em)]°C. Perspective views of the molecular structures of 6 and 7 are shown in Fig. 6 and 7, respectively, and relevant bond parameters in Tables 7 and 8, respectively. Complex 6 retains the same cluster core as 5. On thermolysis, the oxime was converted into a tridentate ligand by ortho-metallation. In addition to the μ-η2-oximato N–O bridge, the phenyl α-carbon on the ligand coordinates to Os(1) [Os(1)–C(22) 2.11(1) Å] and leads to the formation of a five-membered ring [Os(1), C(22), C(17), C(10), N(1)] with a mean deviation of 0.044 Å from the least-squares plane. The metallacyclic five-membered ring is fused to the four-membered ring containing Os(1), Os(3), N(1) and O(10) and the phenyl ring containing C(17), C(18), C(19), C(20), C(21) and C(22) with dihedral angles of 14.19° and 5.61°, respectively. The coordination mode of the ligand in 6 resembles that in 3 in which the pyridyl nitrogen atom in 3 is replaced by a phenyl carbon in 6. The bond lengths of N(1)–O(10) and N(1)–C(10) are 1.346(9) and 1.31(1) Å, respectively, which indicates their partial double-bond character. The sp2 hybridization associated with the N(1) and C(10) centres was confirmed by the sum of the bond angles at N(1) (360.0°) and at C(10) (359.9°). The N–O bond distance of 6 is comparable to those in the previously mentioned complexes.

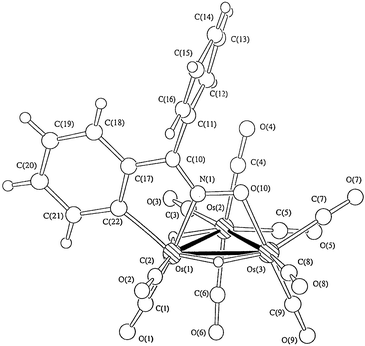

Molecular structure of [Os3(µ-H)2(CO)9{µ-η3-ONCPh(C6H4)}] 6 and the atom numbering scheme.
Fig. 6 Molecular structure of [Os3(µ-H)2(CO)9{µ-η3-ON[double bond, length half m-dash]CPh(C6H4)}] 6 and the atom numbering scheme.

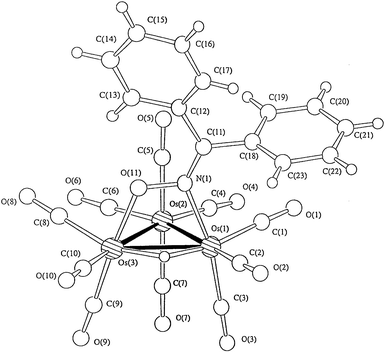

Molecular structure of [Os3(CO)10(μ-OH){µ-NCPh2}] 7 and the atom numbering scheme.
Fig. 7 Molecular structure of [Os3(CO)10(μ-OH){µ-N[double bond, length half m-dash]CPh2}] 7 and the atom numbering scheme.

Molecular structure of [Os6(CO)16(µ4-O){µ-η3-NCPh(C6H4)}2] 8 and the atom numbering scheme.
Fig. 8 Molecular structure of [Os6(CO)16(µ4-O){µ-η3-N[double bond, length half m-dash]CPh(C6H4)}2] 8 and the atom numbering scheme.
Table 7 Selected bond lengths (Å) and angles (°) for cluster 6

Os(1)–Os(2) 3.0327(6) N(1)–O(10) 1.346(9)
Os(2)–Os(3) 2.8862(6) N(1)–C(10) 1.31(1)
Os(1)–Os(3) 2.9522(6) C(10)–C(11) 1.51(1)
Os(1)–N(1) 2.073(7) C(10)–C(17) 1.46(1)
Os(1)–C(22) 2.11(1) C(17)–C(22) 1.40(1)
Os(3)–O(10) 2.151(7)
Os(1)–Os(2)–Os(3) 59.78(1) Os(1)–C(22)–C(17) 112.6(7)
Os(1)–Os(3)–Os(2) 62.58(1) Os(1)–C(22)–C(21) 129.4(9)
Os(2)–Os(1)–Os(3) 57.65(1) Os(3)–O(10)–N(1) 106.7(5)
Os(1)–Os(3)–O(10) 68.5(2) O(10)–N(1)–C(10) 122.2(7)
Os(2)–Os(1)–N(1) 84.4(2) N(1)–C(10)–C(11) 123.9(9)
Os(2)–Os(3)–O(10) 91.2(2) N(1)–C(10)–C(17) 112.5(8)
Os(3)–Os(1)–N(1) 66.3(2) C(10)–C(17)–C(22) 117.2(9)
Os(1)–N(1)–O(10) 117.6(6) C(11)–C(10)–C(17) 123.5(9)
Os(1)–N(1)–C(10) 120.2(6)

Table 8 Selected bond lengths (Å) and angles (°) for cluster 7

Os(1)–Os(2) 2.8639(5) Os(3)–O(11) 2.134(6)
Os(2)–Os(3) 2.8587(6) N(1)–C(11) 1.27(1)
Os(1)–N(1) 2.116(7) C(11)–C(12) 1.51(1)
Os(1)–O(11) 2.149(7) C(11)–C(18) 1.51(1)
Os(3)–N(1) 2.112(7)
Os(1)–Os(2)–Os(3) 65.87(1) Os(1)–N(1)–C(11) 132.8(6)
Os(2)–Os(1)–O(11) 82.3(2) Os(3)–N(1)–C(11) 132.4(6)
Os(2)–Os(1)–N(1) 81.8(2) N(1)–Os(1)–O(11) 74.6(3)
Os(2)–Os(3)–N(1) 82.0(2) N(1)–Os(3)–O(11) 75.0(3)
Os(2)–Os(3)–O(11) 82.7(2) N(1)–C(11)–C(12) 123.4(8)
Os(1)–N(1)–Os(3) 94.8(3) N(1)–C(11)–C(18) 123.1(8)
Os(1)–O(11)–Os(3) 93.2(2) C(12)–C(11)–C(18) 113.4(8)

Apart from 6, complex 7 was also obtained upon thermolysis of 5. The 1H NMR signals due to protons of the phenyl rings are observed in the range δ 7.33–7.48 and the resonance for the bridging hydroxy proton occurs at δ −0.10. The molecule consists of an open triangular array of three osmium atoms [Os(1)–Os(2) 2.8639(5), Os(2)–Os(3) 2.8587(6) Å] with OH and Ph2C[double bond, length half m-dash]N bridges on the open Os⋯Os edge [Os(1)–O(11) 2.149(7), Os(3)–O(11) 2.134(6), Os(1)–N(1) 2.116(7), Os(3)–N(1) 2.112(7) Å]. Compound 5 isomerizes thermally to 7, which is formed by oxidative addition of the oxime with N–O bond cleavage. The geometry of 7 is similar to [Os3(μ-OH){μ-Me2C[double bond, length half m-dash]N)(CO)10], which is the product of thermolysis of [Os3(μ-H){μ-Me2C[double bond, length half m-dash]NO)(CO)10]. The mechanism of this conversion has not been studied but a possible route with [Os3(μ-Me2C[double bond, length half m-dash]NOH)(CO)10] as an intermediate has been suggested before.8 A reported triruthenium cluster, [Ru3(μ-H)(μ-N[double bond, length half m-dash]CPh2)(CO)10], also contains an edge bridging N[double bond, length half m-dash]CPh2 unit that is derived from benzophenone imine.21 The μ-OH and μ-N[double bond, length half m-dash]CPh2 units would be three-electron donors. Together with ten terminal carbonyls, cluster 7 is electron precise for a triosmium cluster with two Os–Os bonds.

Thermolysis of 5 in octane

Heating 5 in refluxing n-octane for 1 h afforded [Os6(CO)16(μ4-O){μ-η3-N[double bond, length half m-dash]CPh(C6H4)}2] 8 in low yield (Scheme 2). Dark green crystals of 8 suitable for diffraction studies were grown from a saturated solution of n-hexane–n-octane at −20[thin space (1/6-em)]°C. The molecular structure of 8 is depicted in Fig. 8 and relevant structural parameters are listed in Table 9. Complex 8 contains six metal atoms grouped into a central cluster of four, Os(1)–Os(2)–Os(3)–Os(4), which is arranged in the form of a “butterfly tetrahedron” containing five metal–metal bonds. The dihedral angle between the Os(1), Os(2), Os(4) and Os(2), Os(3), Os(4) planes is 27.9°. The two remaining metal atoms are linked to this 4-atom cluster at the “hinge” atoms, one to each, via a metal–metal bond [Os(2)–Os(5) 2.862(1), Os(4)–Os(6) 2.914(1) Å]. The bond between the “hinge” atoms, Os(2) and Os(4), is quite short, 2.713(1) Å, which is relatively common in high nuclearity clusters for metals with high coordination numbers.22,23 In 8, Os(2) and Os(4) have significantly higher coordination numbers than the other Os atoms. The Os–Os bonds from the Os(2) and Os(4) hinge atoms to the Os(1) and Os(3) “wing-tips” can be grouped into pairs of long [Os(1)–Os(2) 2.891(1), Os(3)–Os(4) 2.885(1) Å] and short [Os(1)–Os(4) 2.842(1), Os(2)–Os(3) 2.825(1) Å] bonds. The hexanuclear metal framework is related to those observed in [Os6(μ4-S)(μ-HC[double bond, length half m-dash]NC6H5)2(CO)15] and [Os3(CO)8(μ3-S)2]2.22,23 A novel structural feature of cluster 8 is that a μ4-oxo atom is embraced in the semi-open environment described by Os(2), Os(4), Os(5) and Os(6) [average Os–O 2.11(1) Å]. The capping modes of μ3-oxo24,25 or μ4-oxo26 in osmium cluster systems have been reported. Another interesting feature of 8 is the formation of the ortho-metallated phenyl ring of the N[double bond, length half m-dash]CPh2 units that arises from C–H fission. Complex 8 contains two μ3 bridging N[double bond, length half m-dash]CPh2 groups, which are derived from the N–O cleavage of the oximato ligands. Each N[double bond, length half m-dash]CPh2 units bridges to one hinge and one wing-tip osmium via the μ2-oximato nitrogen and the phenyl α-carbon [average Os–N 2.09(1), Os–C 2.05(2) Å]. The coordination geometry of the bridging alkylideneimido units in 8 is similar to that in [Ru3(μ-H)2(μ3-N[double bond, length half m-dash]CPhC6H4)(PPh3)2(CO)7].27 Assuming that the μ4-O and oxime groups behave as six- and four-electron donors, respectively, then cluster 8 is a 94-electron species, which is consistent with the seven metal–metal bonds observed in the structure according to the EAN rule.
Table 9 Selected bond lengths (Å) and angles (°) for cluster 8

Os(1)–Os(2) 2.891(1) Os(5)–O(17) 2.07(1)
Os(1)–Os(4) 2.842(1) Os(5)–C(29) 2.06(2)
Os(2)–Os(3) 2.825(1) Os(6)–N(2) 2.09(1)
Os(2)–Os(4) 2.713(1) Os(6)–O(17) 2.13(1)
Os(2)–Os(5) 2.862(1) Os(6)–C(42) 2.03(2)
Os(3)–Os(4) 2.885(1) N(1)–C(17) 1.30(2)
Os(4)–Os(6) 2.914(1) N(2)–C(30) 1.29(2)
Os(1)–N(1) 2.10(1) C(17)–C(18) 1.51(2)
Os(2)–O(17) 2.11(1) C(17)–C(24) 1.49(2)
Os(3)–N(2) 2.11(1) C(30)–C(31) 1.49(2)
Os(4)–O(17) 2.13(1) C(30)–C(37) 1.50(3)
Os(5)–N(1) 2.07(1)
Os(2)–O(17)–Os(4) 79.7(4) Os(5)–N(1)–C(17) 114(1)
Os(2)–O(17)–Os(5) 86.6(5) Os(3)–N(2)–C(30) 131(1)
Os(2)–O(17)–Os(6) 133.8(5) Os(6)–N(2)–C(30) 114(1)
Os(4)–O(17)–Os(5) 134.4(6) N(1)–C(17)–C(18) 122(1)
Os(4)–O(17)–Os(6) 86.3(4) N(1)–C(17)–C(24) 118(1)
Os(5)–O(17)–Os(6) 131.2(6) N(2)–C(30)–C(31) 125(1)
Os(1)–N(1)–Os(5) 113.3(6) N(2)–C(30)–C(37) 117(1)
Os(3)–N(2)–Os(6) 113.8(7) C(18)–C(17)–C(24) 118(1)
Os(1)–N(1)–C(17) 132(1) C(31)–C(30)–C(37) 116(1)

Vacuum pyrolysis of 5

Solid state pyrolysis of the triosmium cluster 5 at 140[thin space (1/6-em)]°C for 1.5 h yielded the pentanuclear cluster [Os5(CO)15{μ-η2-N[double bond, length half m-dash]CPh(C6H4)}] 9 in 15% yield (Scheme 2). The molecular structure of 9 is shown in Fig. 9 together with the atom-numbering scheme adopted. Bond lengths and interbond angles are listed in Table 10. The metal framework of 9 can be described as an edge-bridged tetrahedron, similar to that observed in [Os5H3(CO)14(C5H4N)].28 The μ-η2-alkylideneimido ligand is bridged through the nitrogen atom to the bridging Os atom and the apex of the tetrahedron while the α-carbon of the phenyl ring is bonded to the same apex. The angle between the planes formed by Os(1), Os(2), Os(3) and Os(2), Os(3), Os(5) is 162.4°, with Os(5) displaced towards the apical Os(4) atom. The bond lengths between the μ-η2-alkylideneimido ligand and the metal atoms, Os(4)–C(18), Os(4)–N(1), and Os(5)–N(1), are not significantly different from those observed in 8. Complex 9 has an electron count of 74, consistent with the cluster having the observed edge-bridged tetrahedral geometry. We have been able to obtain four new clusters upon thermolysis of 5 in refluxing toluene or octane and vacuum pyrolysis. Upon the use of high temperature, C–H activation, N–O cleavage of the oxime ligands and cluster build-up have been observed.
Molecular structure of [Os5(CO)15(µ-η2-NCPh(C6H4)}] 9 and the atom numbering scheme.
Fig. 9 Molecular structure of [Os5(CO)15(µ-η2-N[double bond, length half m-dash]CPh(C6H4)}] 9 and the atom numbering scheme.
Table 10 Selected bond lengths (Å) and angles (°) for cluster 9

Os(1)–Os(2) 2.7528(9) Os(3)–Os(5) 2.8645(9)
Os(1)–Os(3) 2.7762(9) Os(4)–N(1) 2.13(1)
Os(1)–Os(4) 2.9180(9) Os(4)–C(18) 2.11(2)
Os(2)–Os(3) 2.7703(9) Os(5)–N(1) 2.12(1)
Os(2)–Os(4) 2.8398(9) N(1)–C(16) 1.30(2)
Os(2)–Os(5) 2.8560(9) C(16)–C(17) 1.47(3)
Os(3)–Os(4) 2.8453(9) C(16)–C(23) 1.48(2)
Os(4)–N(1)–Os(5) 110.5(6) N(1)–C(16)–C(17) 117(1)
Os(4)–N(1)–C(16) 116(1) N(1)–C(16)–C(23) 121(1)
Os(5)–N(1)–C(16) 133(1) C(17)–C(16)–C(23) 121(1)

Experimental

Methods and materials

All reactions were carried out under an inert atmosphere of argon using standard Sclenck techniques. Solvents were freshly purified by standard procedures prior to use.29 Commercial chemicals such as phenyl 2-pyridyl ketoxime and benzophenone oxime were used directly as received. The compounds [Os3(CO)10(NCMe)2] and [Os3(CO)11(NCMe)] were prepared by the literature methods.30,31 Infrared spectra were recorded on a Bio-Rad FTS-135 IR spectrometer, using 0.5 mm calcium fluoride solutions cells. 1H NMR spectra were recorded on a Bruker DPX 300 NMR spectrometer using CD2Cl2 with reference to SiMe4. Mass spectra were obtained on a Finnigan MAT 95 mass spectrometer by fast atom bombardment techniques, using m-nitrobenzyl alcohol as the matrix solvent. Routine purification of products was carried out in air by thin layer chromatography (TLC) on plates coated with Merck Kiesegel 60 GF254. Elemental analyses were conducted by Butterworth Laboratories, UK.

Reactions of triosmium clusters

Reaction of [Os3(CO)11(NCMe)] with phenyl 2-pyridyl ketoxime. A solution of [Os3(CO)11(NCMe)] (100 mg, 0.109 mmol) in CH2Cl2 was stirred with 1 equiv. of phenyl 2-pyridyl ketoxime (21.6 mg, 0.109 mmol) at room temperature. The reaction mixture gradually changed colour from yellow to deep yellow. The reaction was complete after stirring for 5 h, as monitored by TLC and IR. The reaction solution was concentrated in vacuo and separated by TLC using n-hexane–CH2Cl2 (1 : 6 v/v) as the eluent to afford a pale orange complex 1 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.50, 5 mg, 0.004 mmol, 4%) and yellow complex 2 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.20, 20 mg, 0.019 mmol, 17%). Anal. found for 1: C, 32.2; H, 1.5; N, 4.5; calc. for C32H18N4O10Os3: C, 32.3; H, 1.5; 1.5; N, 4.7%. Anal. found for 2: C, 25.5; H, 0.9; N, 2.6; calc. for C23H10N2O12Os3: C, 25.7; H, 0.9; N, 2.6%.
Reaction of [Os3(CO)10(NCMe)2] with phenyl 2-pyridyl ketoxime. A solution of [Os3(CO)10(NCMe)2] (100 mg, 0.107 mmol) in CH2Cl2 was stirred with 1 equiv. of phenyl 2-pyridyl ketoxime (21.3 mg, 0.107 mmol) at room temperature. An immediate colour change from yellow to dark red was observed. After stirring for 15 min, the solution was concentrated to 5 cm3in vacuo. Purification was accomplished by TLC using n-hexane–CH2Cl2 (2 : 3 v/v) as eluent to afford two bands with Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.75 and 0.33, which were extracted from silica to yield complex 1 (11 mg, 0.009 mmol, 8%) and complex 3 (38 mg, 0.037 mmol, 35%), respectively.
Reaction of [Os3(CO)10(NCMe)2] with benzophenone oxime. The cluster [Os3(CO)10(NCMe)2] (100 mg, 0.107 mmol) and benzophenone oxime (21.1 mg, 0.107 mmol) were allowed to react in CH2Cl2 (30 ml) at room temperature for 5 h to give a deep yellow solution. Evaporation to dryness and separation of the residue by TLC using n-hexane–CH2Cl2 (3 : 1 v/v) gave the yellow complex 5 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.50, 30 mg, 0.029 mmol, 27%). Anal. found: C, 26.4; H, 1.1; N, 1.3; calc. for C23H11NO11Os3: C, 26.4; H, 1.1; N, 1.3%.

Transformations of oxime containing osmium clusters

Attempted thermolysis and hydrogenation of complex 1. Complex 1 (50 mg, 0.042 mmol) was dissolved in toluene (30 ml). The orange solution was heated at 125[thin space (1/6-em)]°C. Using IR and spot TLC monitoring, no visible change was observed after 2 days.

Complex 1 (50 mg, 0.042 mmol) was dissolved in CHCl3 (20 ml). Hydrogenation of the pale orange solution at atmospheric pressure was then attempted under reflux at 65[thin space (1/6-em)]°C for 5 h. The reaction was monitored by IR spectroscopy and spot TLC. However, no change was observed. About 90% of the starting material was recovered upon separation on preparative silica plates.

Thermolysis of complex 2. Complex 2 (50 mg, 0.046 mmol) was refluxed in toluene under an inert atmosphere. The reaction was monitored by TLC and IR and completed after 3 h. The solvent was then removed in vacuo and redissolved in CH2Cl2 (3 cm3). TLC purification with n-hexane–CH2Cl2 (1 : l v/v) gave an orange complex 3 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.70, 6 mg, 0.006 mmol, 13%) and unreacted starting material 2 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.10, 3 mg, 0.003 mmol, 7%). Anal. found for 3: C, 24.5; H, 1.0; N, 2.6; calc. for C21H10N2O10Os3: C, 24.7; H, 1.0; N, 2.7%.
Thermolysis of complex 3 with phenyl 2-pyridyl ketoxime. Complex 3 (50 mg, 0.049 mmol) and phenyl 2-pyridyl ketoxime (10 mg, 0.049 mmol) were stirred at reflux in toluene (30 ml) for 1.5 h. The colour gradually turned from orange to dark red. The reaction mixture was evaporated to dryness. The residue was finally redissolved in CH2Cl2 (ca. 2 cm3) and separated by preparative TLC with an eluent of n-hexane–CH2Cl2 (1 : 2 v/v) to give complex 1 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.80, 7 mg, 0.006 mmol, 12%) and pale red complex 4 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.60, 9 mg, 0.008 mmol, 16%). Anal. found for 4: C, 32.8; H, 1.7; N, 4.9; calc. for C32H20N4O9Os3: C, 32.7; H, 1.7; N, 4.7%.
Thermolysis of complex 5 in toluene. Complex 5 (50 mg, 0.048 mmol) was dissolved in toluene and the yellow solution was allowed to heat under reflux for 6 h. The reaction mixture changed colour to deep yellow gradually. The solvent was removed under reduced pressure. The residue was redissolved in CH2Cl2 (3 cm3) and separated by preparative TLC with n-hexane–CH2Cl2 (3 : 1 v/v) to yield yellow complex 6 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.38, 13 mg, 0.013 mmol, 27%) and yellow complex 7 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.15, 10 mg, 0.010 mmol, 21%). Anal. found for 6: C, 26.3; H, 1.0; N, 1.3; calc. for C23H11NO11Os3: C, 26.4; H, 1.1; N, 1.3%. Anal. found for 7: C, 25.7; H, 1.1; N, 1.31; calc. for C22H11NO10Os3: C, 25.9; H, 1.1; N, 1.4%.
Thermolysis of complex 5 in octane. Cluster 5 (50 mg, 0.048 mmol) was refluxed in octane. The colour gradually turned dark brown. The reaction was monitored by TLC and IR and completed after 1 h. The solvent was then removed in vacuo and the solid residue redissolved in CH2Cl2 (3 cm3). TLC purification with n-hexane–CH2Cl2 (1 : 1 v/v) afforded 8 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.85, 6 mg, 0.003 mmol, 6%). Anal. found: C, 25.7; H, 1.0; N, 1.4; calc. for C42H18N2O17Os6: C, 25.7; H, 0.9; N, 1.4%.
Vacuum pyrolysis of complex 5. A concentrated CH2Cl2 solution (4 cm3) of 5 (50 mg, 0.048 mmol) was introduced into a Carious tube. The solvent was removed under reduced pressure and the tube was sealed after being dried. The tube was then placed in a furnace at 140[thin space (1/6-em)]°C for 1.5 h. The dark brown residue was extracted exhaustively with CH2Cl2 and the combined extracts, after concentration, were subjected to preparative TLC separation. Elution with n-hexane–CH2Cl2 (1 : 1 v/v) afforded complex 9 (Rf[thin space (1/6-em)]≈[thin space (1/6-em)]0.50, 11 mg, 0.007 mmol, 15%). Anal. found: C, 21.6; H, 0.5; N, 0.9; calc. for C28H9NO15Os5: C, 21.7; H, 0.6; N, 0.9%.

Crystallography

Crystals suitable for X-ray analyses were glued on glass fibres with epoxy resin or sealed in a 0.3 mm glass capillary. Intensity data were collected at ambient temperature on either a Bruker AXS SMART CCD diffractometer (complexes 1, 3–9) or a Rigaku AFC7R diffractometer (complex 2) equipped with graphite-monochromated Mo-Kα radiation. Details of the intensity data collection and crystal data are given in Table 11. The diffracted intensities were corrected for Lorentz-polarization effects. Absorption corrections were applied by SADABS for 1 and 3–9,32 while the Ψ-scan method was employed for semi-empirical absorption corrections in the case of 2.33 All structures except complex 3 (by heavy-atom Patterson methods, SAPI9134) were solved by direct methods (SHELXS 8635 for 1, 6; SIR 9236 for 2, 4, 5, 7–9) and expanded by Fourier difference techniques.37 Atomic coordinates and thermal parameters were refined by full-matrix least-squares analysis on F, with the osmium atoms and non-hydrogen atoms being refined anisotropically. However, attempts to refine all the atoms anisotropically were made in structures 4, 8 and 9, but led to negative anisotropic displacement parameters. Therefore some non-hydrogen atoms were refined isotropically. Hydrogen atoms were generated in their ideal positions and included in the structure factor calculations but not refined. Calculations were performed on a Silicon Graphics computer using the teXsan38 crystallographic software package.

CCDC reference numbers 174851–174859. See http://www.rsc.org/suppdata/nj/b1/b107628k/ for crystallographic data in CIF or other electronic format.

Table 11 Crystal data and data collection parameters for compounds 1–9
  1 2 3 4 5 6 7 8 9

Empirical formula C32H18N4O10Os3 C23H10N2O12Os3 C21H10N2O10Os3 C32H20N4O9Os3·1.5CHCl3 C23H11NO11Os3 C22H11NO10Os3 C23H11NO11Os3 C42H18N2O17Os6 C28H9NO15Os5
M 1189.11 1076.94 1020.92 1354.20 1047.94 1019.93 1047.94 1963.81 1550.38
Crystal system Tetragonal Triclinic Triclinic Triclinic Monoclinic Monoclinic Triclinic Monoclinic Triclinic
Space group P41212 (no. 92) P 1 (no. 2) P 1 (no. 2) P 1 (no. 2) P21/c (no. 14) P21/n (no. 14) P 1 (no. 2) P21/c (no. 14) P 1 (no. 2)
a/Å 13.050(2) 9.982(2) 8.803(2) 12.417(1) 25.233(1) 12.084(1) 10.142(2) 12.960(1) 9.505(2)
b/Å — 16.596(6) 12.235(1) 15.469(2) 20.658(1) 12.075(1) 10.612(2) 18.167(1) 11.528(3)
c/Å 19.513(1) 8.586(4) 12.380(2) 21.601(2) 10.131(1) 18.003(2) 13.508(1) 18.872(1) 16.272(2)
α/° — 102.17(3) 81.460(2) 77.57(1) — — 97.08(1) — 85.65(3)
β/° — 101.34(3) 71.34(1) 82.77(2) 91.60(1) 106.82(2) 99.07(1) 90.67(1) 83.24(1)
γ/° — 92.27(2) 77.51(2) 82.51(1) — — 111.95(2) — 67.06(2)
U/Å3 3323.1(6) 1358.4(9) 1228.9(4) 3996.7(8) 5278.9(5) 2514.5(5) 1305.0(5) 4443.0(4) 1629.7(6)
Z 4 2 2 4 8 4 2 4 2
D c/g cm−3 2.377 2.633 2.759 2.250 2.635 2.694 2.667 2.936 3.159
μ(Mo–Kα)/cm−1 114.98 140.52 155.19 98.64 144.55 151.67 146.20 171.57 194.81
T/K 298 298 298 298 298 298 298 298 298
Reflections collected 20[thin space (1/6-em)]864 5075 7606 25[thin space (1/6-em)]032 32[thin space (1/6-em)]757 15[thin space (1/6-em)]646 8113 27[thin space (1/6-em)]603 10[thin space (1/6-em)]031
Unique reflections 3699 4776 5278 17[thin space (1/6-em)]331 12[thin space (1/6-em)]240 5891 5629 10[thin space (1/6-em)]322 6972
Observed reflections [I[thin space (1/6-em)]>[thin space (1/6-em)]1.50σ(1)] 3141 3064 4794 10[thin space (1/6-em)]105 7842 4053 4613 5423 5943
R 0.035 0.039 0.043 0.048 0.052 0.037 0.038 0.051 0.057
R′ 0.038 0.042 0.055 0.045 0.050 0.039 0.046 0.046 0.070

Acknowledgements

We gratefully acknowledge financial support from the Hong Kong Research Grants Council and the University of Hong Kong. J. S.-Y. W. acknowledges the receipt of a postgraduate studentship, administered by the University of Hong Kong.

References

  1. T. Carofiglio, S. Stella, C. Floriani, A. Chiesi-Villa and C. Guastini, J. Chem. Soc., Dalton Trans., 1989, 1957 RSC.
  2. C. M. P. Ferreira, M. F. C. G. Silva, V. Y. Kukushkin, J. J. R. F. Silva and A. J. L. Pombeiro, J. Chem. Soc., Dalton Trans., 1998, 325 RSC.
  3. V. Y. Kukushkin, D. Tudela and A. J. L. Pombeiro, Coord. Chem. Rev., 1996, 156, 333 CrossRef CAS.
  4. V. Y. Kukushkin and A. J. L. Pombeiro, Coord. Chem. Rev., 1999, 181, 147 CrossRef CAS.
  5. A. K. Das, S. M. Peng and S. Bhattacharya, J. Chem. Soc., Dalton Trans., 2000, 181 RSC.
  6. V. Y. Kukushkin, D. Tudela, Y. A. Izotova, V. K. Belsky and A. I. Stash, Inorg. Chem., 1996, 35, 4926 CrossRef CAS.
  7. M. L. Kuznetsov, N. A. Bokach, V. Y. Kukushkin, T. Pakkanen, G. Wagner and A. J. L. Pombeiro, J. Chem. Soc., Dalton Trans., 2000, 4683 RSC.
  8. A. J. Deeming, D. W. Owen and N. I. Powell, J. Organomet. Chem., 1990, 398, 299 CrossRef CAS.
  9. M. H. Chao, S. Kumaresan, Y. S. Wen, S. C. Lin, J. R. Hwu and K. L. Lu, Organometallics, 2000, 19, 714 CrossRef CAS.
  10. K. K. H. Lee and W. T. Wong, J. Chem. Soc., Dalton Trans., 1996, 3911 RSC.
  11. R. D. Adams and B. Qu, Organometallics, 2000, 19, 2411 CrossRef CAS.
  12. M. A. Gallop, B. F. G. Johnson, J. Lewis and P. R. Raithby, J. Chem. Soc., Commun., 1986, 706 RSC.
  13. D. B. Firfiray, A. Irving and J. R. Moss, J. Chem. Soc., Commun., 1990, 377 RSC.
  14. K. L. Lu, M. L. Chung, P. Y. Lu, H. M. Gau, F. E. Hong and Y. S. Wen, Organometallics, 1994, 13, 3177 CrossRef CAS.
  15. K. K. H. Lee and W. T. Wong, J. Chem. Soc., Dalton Trans., 1997, 2987 RSC.
  16. R. G. Buckley, J. Charalambous, M. J. Kensett, M. McPartlin, P. Mukerjee, E. G. Brain and J. M. Jenkins, J. Chem. Soc., Perkin Trans. 1, 1983, 693 RSC.
  17. J. Charalambous, W. C. Stolen and K. Henrick, Polyhedron, 1989, 8, 103 CrossRef CAS.
  18. M. Tachikawa and J. R. Shapley, J. Organomet. Chem., 1977, 124, C19 CrossRef CAS.
  19. J. R. Shapley, D. E. Samkoff, C. Bueno and M. R. Churchill, Inorg. Chem., 1982, 21, 634 CrossRef CAS.
  20. C. Bois, J. A. Cabeza, R. J. Franco, V. Riera and E. Saborit, J. Organomet. Chem., 1998, 564, 201 CrossRef CAS.
  21. J. A. Cabeza, I. del Río, M. Moreno and V. Riera, Organometallics, 1998, 17, 3027 CrossRef CAS.
  22. R. D. Adams, Z. Dawoodi, D. F. Foust and B. E. Segmüller, J. Am. Chem. Soc., 1983, 105, 831 CrossRef CAS.
  23. R. D. Adams and I. T. Horváth, J. Chem. Soc., 1984, 106, 1869 Search PubMed.
  24. R. J. Goudsmit, B. F. G. Johnson, J. Lewis, P. R. Raithby and K. H. Whitmire, J. Chem. Soc., Chem. Commun., 1983, 246 RSC.
  25. K. S. Y. Leung and W. T. Wong, J. Chem. Soc., Dalton Trans., 1997, 4357 RSC.
  26. S. L. Ingham, J. Lewis and P. R. Raithby, J. Chem. Soc., Chem. Commun., 1993, 166 RSC.
  27. P. L. Andreu, J. A. Cabeza, I. del Río and V. Riera, Organometallics, 1996, 15, 3004 CrossRef CAS.
  28. B. F. G. Johnson, J. Lewis, W. J. H. Nelson, M. A. Pearsall, P. R. Raithby and M. J. Rosales, J. Chem. Soc., Dalton Trans., 1987, 327 RSC.
  29. D. D. Perrin and W. L. F. Armarego, Purification of Laboratory Chemicals, Pergamon, Oxford, 3rd edn., 1998. Search PubMed.
  30. J. N. Nicholls and M. D. Vargas, Inorg. Synth., 1989, 28, 232.
  31. M. R. Churchill, F. J. Hollander and J. P. Hutchison, Inorg. Chem., 1977, 6, 2697 CrossRef.
  32. R. Blessing, Acta Crystallogr., Sect. A, 1995, 51, 33 CrossRef.
  33. A. C. T. North, D. C. Phillips and F. S. Mathews, Acta Crystallogr., Sect. A, 1968, 24, 351.
  34. H. F. Fan, Structure Analysis Programs with Intelligent Control, Rigaku Corporation, Tokyo, Japan, 1991..
  35. G. M. Sheldrick, in Crystallographic Computing 3, ed. G. M. Sheldrick, C. Kruger and R. Goddard, Oxford University Press, Oxford, UK, 1985, p. 175. Search PubMed.
  36. A. Altomare, M. C. Burla, M. Camalli, M. Cascarano, G. Giacovazzo, A. Guagliardi and G. Polidori, J. Appl. Crystallogr., 1994, 27, 437.
  37. B. T. Beurskens, G. Admiroal, G. Beurskens, W. P. Bosman, R. de Gelder, R. Isrel and J. M. M. Smits, Technical Report of the Crystallographic Laboratory, University of Nijmegen, The Netherlands, 1994. Search PubMed.
  38. teXsan, Crystal Structure Analysis Package, Molecular Structure Corporation, Houston, TX, USA, 1985 and 1992..
This journal is © The Royal Society of Chemistry and the Centre National de la Recherche Scientifique 2002
Click here to see how this site uses Cookies. View our privacy policy here.
