Azamacrocycles and the azaoxacryptand 4,7,13,16,21,24-hexaoxa-1,10-diazabicyclo[8.8.8]hexacosane as structure-directing agents in the synthesis of microporous metalloaluminophosphates

Martin J. Maplea, Eilidh F. Philpa, Alexandra M. Z. Slawina, Philip Lightfoota, Paul A. Coxb and Paul A.Wright*a
aSchool of Chemistry, University of St Andrews, Purdie Building, North Haugh, St Andrews, Fife, UK KY16 9ST
bCentre for Molecular Design, University of Portsmouth, King Henry Building, King Henry I Street, Portsmouth, Hants, UK PO1 2DY

Received 28th April 2000, Accepted 27th June 2000

First published on 10th October 2000


Abstract

Hydrothermal syntheses of aluminophosphates have been performed in the presence of Mg2+, Cr3+, Mn2+, Fe2+, Co2+, Ni2+, Cu2+ and Zn2+ cations using the macrocycles 1,4,7-trimethyl-1,4,7-triazacyclononane (tmtacn), 1,4,8,11-tetraazacyclotetradecane (cyclam), 1,4,8,11-tetramethyl-1,4,8,11-tetraazacyclotetradecane (tmtact) and 1,4,7,10,13,16-hexamethyl-1,4,7,10,13,16-hexaazacyclooctadecane (hmhaco), and the cryptand 4,7,13,16,21,24-hexaoxa-1,10-diazabicyclo[8.8.8]hexacosane (K222) as structure directing agents. Tmtacn is found to template MAPO-18, K222 to template MAPO-42 and tmtact to template STA-6 or STA-7; the solids formed using tmtact depend on the metal cation present. Use of cyclam with a cobalt aluminophosphate gel results in a new solid, CoII(C10N4H24)Al(PO4)PO3(OH), which consists of aluminophosphate chains of stoichiometry AlP2O8H linked via cobalt–cyclam complexes. Bonding between the cobalt–cyclam complexes and the aluminophosphate chains is through direct Co–O bonds and a complex hydrogen-bonding network—quite different from that between the three-dimensionally connected frameworks and the tertiary amine-containing templates. An isostructural solid is formed via the substitution of cobalt by nickel in the aluminophosphate gel. The role of divalent cations in structure direction, in the presence of tertiary amine-containing macrocycles, has been further investigated. Adding Co2+ or Zn2+, in particular, enhances the amines’ ability to act as templates for STA-7 and MAPO-42, yet single crystal and powder diffraction using synchrotron radiation indicates that the divalent cations do not remain within the macrocycles after crystallisation.


Introduction

The incorporation of functional organic molecules within open framework solids offers promise of inorganic–organic hybrid materials, such as encapsulated laser dye molecules in inorganic hosts,1 solids with non-linear optical properties,2 cation exchangers with novel selectivities, proton conductors and ‘ship-in-a-bottle’ catalysts.3–5 If such functional molecules are included during synthesis, there is no need to calcine the solids to obtain open pores, with the consequent destruction of expensive templates, attendant safety concerns and the possibility of associated structural breakdown. Our own results on the incorporation of 1,4,8,11-tetramethyl-1,4,8,11-tetraazacyclotetradecane (tmtact) into the novel solids STA-66 and STA-77 (the latter is also formed in the presence of 1,4,7,10,13,16-hexamethyl-1,4,7,10,13,16-hexaazacyclooctadecane (hmhaco) and cobalt or zinc), together with those on the incorporation of the oxaazacryptand 4,7,13,16,21,24-hexaoxa-1,10-diazabicyclo[8.8.8]hexacosane (K222) and related azacrown ethers into AlPO4-42,8,9 and of porphyrins into VPI-5,10 have demonstrated that azamacrocycles and cryptands may be included, unbound, within aluminophosphate-based solids. By extrapolation from the properties associated with macrocycles, such systems should possess exciting cation complexing and catalytic potential.

We have already shown that, in the presence of tmtact and the divalent metal cations Mg2+, Mn2+ or Fe2+, the cage structure STA-6 is formed, whereas, in the presence of Co2+ or Zn2+, the STA-7 structure results.7 In the first part of this paper we explore further the compositional range of solids that may be prepared using tmtact as a template and examine the effect of using mixtures of divalent cations in the syntheses. We also compare these structures with those formed using the unsubstituted azamacrocycle cyclam under similar conditions.

In the second part of this work, we investigate (a) the use of the related methyl-substituted azamacrocycle, 1,4,7-trimethyl-1,4,7-triazacyclononane (tmtacn), in similar metalloaluminophosphate preparations, and (b) whether the cryptand K222 will give aluminophosphate-based solids with the AlPO4-42 structure in the presence of a range of divalent cations. It is known that although AlPO4-42 is formed in the presence of K222 as the only additive, co-addition of tetramethylammonium and fluoride ions to the gels result in products which are more crystalline. In these materials, K222, tetramethylammonium ions and fluoride ions occupy sites in the α-cage, sodalite cage and double four-membered ring units of the structure, respectively.11

The molecular structures of cyclam, tmtacn, tmtact, hmhaco and K222 are shown in Scheme 1 as 1 to 5, respectively.


scheme, filename = b003430o-s1.gif
Scheme 1

Our molecular modelling studies7 of protonated templates within STA-6 and STA-7 showed that only tmtact (and not hmhaco) can fit within the cages of STA-6, so that STA-6 is not templated by the larger macrocycle. Both tmtact and hmhaco are able to fit within the larger of the two types of cage in STA-7, giving this solid in the presence of cations that are expected to be strongly complexed (such as Co2+ and Zn2+). There is no evidence that the cations remain complexed in the macrocycle after crystallisation of STA-6 and STA-7—instead they end up in the tetrahedral sites of the aluminophosphate framework.7 In this investigation we have performed similar modelling studies to understand the action of tmtacn and K222.

Experimental

Homogeneous gels in a range of compositions were made up from mixtures of orthophosphoric acid solution, metal salts (usually acetates), hydrated aluminium hydroxide (Aldrich) and the azamacrocycles cyclam, tmtacn, tmtact, hmhaco or the cryptand K222 (Aldrich). Details of the gel compositions are given in Table 1, along with others that have been reported previously. In each case, the initial pH was adjusted to 7 by addition of the appropriate amount of base (azamacrocycle or cryptand). This required base/P ratios of between 0.4 and 0.7, depending on the amount of metal salt added. Gels were introduced into PTFE-lined stainless steel autoclaves and heated at 190[thin space (1/6-em)]°C for 48 h. Crystalline products were separated from the resulting suspensions by sonication, filtered, washed with distilled water and dried in air.
Table 1 Gel compositions used in this work and others reported previously. The products obtained from hydrothermal syntheses performed with these gels are reported, along with product phase identification from X-ray powder diffractometry and NMR spectroscopic and chemical analysis of selected materialsa
Cation ratio in synthesis gelAzamacrocycle (R)Product, by XRD and optical examinationNMR, δc values for amines extracted by acid treatmentInorganic composition (from EDX and ICP-AES)bReference
a The ratio R/P in the gel was varied from 0.4–0.7, so that the gel pH was always initially 7; a typical gel composition is 0.2MOAc2·4H2O∶0.8Al(OH)3·xH2O∶H3PO4∶400H2O∶0.5R.b The cation contents of the solids CoAPO-cyclam-1, MgAPO-18, Mg-STA-6, Mn-STA-6 and ZnAPO-42 were determined using EDX, and the composition of Co-STA-7 was determined by ICP-AES. c IZA structure type code: AEId IZA structure type code: AWO.e SAS.f SAV.g ATS.h AFI.i LTA.
0.2Mg∶0.8Al∶1.0Pcyclamunidentified  This work
0.2Co∶0.8Al∶1.0PcyclamCoAPO-cyclam-1 CoAlP2O8H·C10N4H24This work
0.2Ni∶0.8Al∶1.0PcyclamNiAPO-cyclam-1  This work

0.15Mg∶0.85Al∶1.0PtmtacnMgAPO-18c Mg0.15Al0.85PO4This work
0.15Co∶0.85Al∶1.0PtmtacnCoAPO-18c  This work

1.0Al∶1.0PtmtactAlPO4-21d  Ref. 6
0.2Mg∶0.8Al∶1.0PtmtactMg-STA-6e51.9, 47.0, 45.3, 19.5Mg0.2Al0.8PO4Ref. 6
0.2Cr∶0.8Al∶1.0PtmtactAlPO4-21d37.4 This work
0.2Mn∶0.8Al∶1.0PtmtactMn-STA-6e Mn0.2Al0.8PO4Ref. 7
0.2Fe∶0.8Al∶1.0PtmtactFe-STA-6e  Ref. 7
0.2Co∶0.8Al∶1.0PtmtactCo-STA-7f51.9, 47.0, 45.3, 19.6 Ref. 7
0.2Ni∶0.8Al∶1.0Ptmtactunidentified  This work
0.2Cu∶0.8Al∶1.0PtmtactAlPO4-21d  This work
0.2Zn∶0.8Al∶1.0PtmtactZn-STA-7f37.4 + 51.9, 47.0, 45.3, 19.6 Ref. 7

0.0625Zn∶0.1875Mg∶0.75Al∶1.0PtmtactSTA-6e + STA-7f  This work
0.125Zn∶0.125Mg∶0.75Al∶1.0PtmtactSTA-7f  This work
0.1875Zn∶0.065Mg∶0.75Al∶1.0PtmtactSTA-6e + STA-7f  This work

1.0Al∶1.0PhmhacoAlPO4-21d53.2, 47.0, 46.1, 36.1 Ref. 7 and this work
0.2Mg∶0.8Al∶1.0PhmhacoMgAPO-36g + Mg-STA-7f53.9, 53.1, 49.8, 45.9, 45.4 Ref. 7
0.2Fe∶0.8Al∶1.0PhmhacoAlPO4-21d  This work
0.2Co∶0.8Al∶1.0PhmhacoCo-STA-7f53.2, 44.8Co0.2Al0.8PO4Ref. 7

0.2Mg∶0.8Al∶1.0PK222MgAPO-5h + MgAPO-42i  This work
0.2Mn∶0.8Al∶1.0PK222MnAPO-5h + MnAPO-42i  This work
0.2Fe∶0.8Al∶1.0PK222FeAPO-5h + FeAPO-42i  This work
0.2Co∶0.8Al∶1.0PK222CoAPO-42i + CoAPO-5h  This work
0.2Zn∶0.8Al∶1.0PK222ZnAPO-42i Zn0.2Al0.8PO4This work


X-Ray powder diffraction patterns of all products were collected (using Cu-Kα radiation) to enable phase identification. For samples containing manganese, iron or cobalt, X-ray fluorescence from the Cu-Kα radiation results in a high background signal. To circumvent this problem, selected samples were studied using synchrotron X-radiation monochromated to a wavelength of 0.99555(1) Å on station 9.1 at the SRS at Daresbury, or using a laboratory diffractometer equipped with Fe-Kα1 X-radiation. Where crystals of sufficient quality were available, they were examined by single crystal diffractometry, either using an in-house diffractometer or at the microcrystal diffraction station 9.8 at Daresbury, depending on the crystal size.

For selected crystalline products, in order to determine whether the azamacrocycles had been incorporated intact, the inorganic framework was dissolved in 5 M HCl and the liberated amines analysed by NMR spectroscopy according to published procedures.713C NMR spectra were recorded at 75 MHz on a Bruker AM300 instrument using sodium 3-trimethylsilylpropane sulfonate as the reference. Solid state 13C MASNMR analysis was also performed on Mg-STA-6 and Zn-STA-7.

To model the likely position of templates within microporous solids we adopted the conventional computational approach of combining Monte Carlo docking and subsequent simulated annealing, reported elsewhere.7 Calculations were performed using constant valence forcefield (CVFF) within the program Discover,12 assuming that short-range interactions between the framework and the template molecules will determine the favoured locations, rather than Coulombic forces.

To confirm the presence of metal cations within selected samples, single crystals were studied by energy dispersive X-ray (EDX) analysis (carried out on a Jeol JEM-2010 electron microscope using an Oxford Instruments EDX attachment) and powders were examined using inductively coupled plasma-atomic emission spectroscopy (ICP-AES) on samples dissolved in nitric acid.

Results

The results of the hydrothermal syntheses performed in this work and those previously reported are given in Table 1, including phase identification according to X-ray powder diffractometry and analysis of selected materials by NMR spectroscopy and chemical analysis.

Templating with tmtact and hmhaco

Use of tmtact as a template was known to produce either STA-6 or STA-7 (structure types SAS and SAV, respectively), depending on the divalent cation used (Mg2+, Mn2+ or Fe2+ result in STA-6, Co2+ or Zn2+ give STA-7).7 Synchrotron X-ray powder diffraction profiles of the as-prepared solids synthesised with Mn2+, Fe2+ or Co2+ were obtained. MnAPO and CoAPO samples only give diffraction peaks due to STA-6 and STA-7, respectively, whereas the FeAPO sample is mainly STA-6 with traces of STA-7. The Rietveld refinements of the Mn-STA-6 and Co-STA-7 are shown in Fig. 1 and 2 and confirm the solids are phase pure. (See the Crystallography section for details of the refinements.) Attempts to prepare STA-6 or STA-7 with nickel, copper, or chromium cations were unsuccessful. For chromium and copper-containing gels, the only crystalline phase to form is AlPO4-21, whereas nickel-containing gels give unidentified phases that are bright salmon pink.
Rietveld refinement
of the X-ray powder diffraction profile of Mn-STA-6, collected
using synchrotron X-rays [λ = 0.99555(1) Å]
at 293 K. Mn-STA-6 has space group symmetry P4/mnc,
with a = 14.2727(3), c = 10.3750(3) Å.
Tmtact template is included in the model in positions calculated by molecular
modelling, and statistically disordered.
Fig. 1 Rietveld refinement of the X-ray powder diffraction profile of Mn-STA-6, collected using synchrotron X-rays [λ = 0.99555(1) Å] at 293 K. Mn-STA-6 has space group symmetry P4/mnc, with a = 14.2727(3), c = 10.3750(3) Å. Tmtact template is included in the model in positions calculated by molecular modelling, and statistically disordered.

Rietveld refinement
of the X-ray powder diffraction profile of Co-STA-7, collected
using synchrotron X-rays [λ = 0.99555(1) Å]
at 293 K. Co-STA-7 has space group symmetry P4/n,
with a = 18.640(2), c = 9.3755(7) Å.
Tmtact template is included in the model in positions calculated by molecular
modelling, and statistically disordered.
Fig. 2 Rietveld refinement of the X-ray powder diffraction profile of Co-STA-7, collected using synchrotron X-rays [λ = 0.99555(1) Å] at 293 K. Co-STA-7 has space group symmetry P4/n, with a = 18.640(2), c = 9.3755(7) Å. Tmtact template is included in the model in positions calculated by molecular modelling, and statistically disordered.

In order to examine further the role of the divalent cations in controlling the syntheses, a cobalt-containing gel was seeded with Mg-STA-6 crystals. In other aluminophosphate-based preparations, this approach can be used to favour the crystallisation of one phase over another that can co-crystallise from the gel. In this case, however, Co-STA-7 is formed. In addition, mixtures of Mg2+ and Zn2+ in different ratios were used in a series of experiments. For preparations with Zn2+∶Mg2+ ratios of 25∶75 and 50∶50, the product is a physical mixture of STA-6 and STA-7, the amount of STA-7 increasing as the zinc content increases. For a Zn2+∶Mg2+ ratio of 75∶25, only STA-7 is observed. 13C NMR studies of selected systems indicate that whereas STA-6 contains only intact tmtact, STA-7 contains tmtact as well as other amine fragments, presumably in the smaller of the two different types of cage present in the structure. Aluminophosphate AlPO4-21 does not contain tmtact intact: the NMR signal observed from organics liberated from AlPO4-21 prepared in the presence of tmtact (δc 37.4) is consistent with included dimethylammonium ions. Syntheses using hmhaco in the presence of Mg2+, Mn2+, Co2+ or Zn2+ demonstrate that only those preparations including Co2+ or Zn2+ result in pure STA-7, the other preparations giving mainly MAPO-5, MAPO-36 and AlPO4-21.

‘Templating’ with cyclam

Addition of cyclam to a cobalt aluminophosphate preparation for comparison gave crystals of a novel phase that was identified by single crystal diffraction (CoAPO-cyclam-1; see Crystallography section). The structure of this phase can be described in terms of aluminophosphate chains, of stoichiometry AlP2O8H, running parallel to the crystallographic a-axis. These chains are connected to four other chains via P–O–Co–O–P linkages, with the cobalt being complexed within the cyclam rings (see Fig. 3). Within the chains, aluminium is tetrahedrally coordinated by oxygens that are in turn linked to tetrahedrally coordinated phosphorus atoms. Of the four oxygens surrounding each of the two crystallographically distinct phosphorus atoms, two are involved in P–O–Al linkages and one in a P–O–Co link, leaving one in each PO4 tetrahedron apparently attached only to one phosphorus. As described in the Crystallography section, these are P–O single bonds, the oxygens of which are hydrogen bonded to each other (with an O–O distance of 2.50(1) Å) and to nitrogens of the cyclam units, to give a compound of formula CoII(C10N4H24)Al(PO4)PO3(OH). Fig. 3c shows the H-bonding network, with hydrogens on the cyclam nitrogens H-bonding to oxygens of the aluminophosphate chain with (N)H–O bond distances of 2.04(1), 2.06(1), 2.29(2) and 2.69(2) Å. Replacing cobalt by nickel in the synthesis gel gave a purple solid which is thought to be isostructural with CoAPO-cyclam-1 on the basis of its powder X-ray diffraction pattern. Replacing cobalt by magnesium gave a different, unidentified, phase.
Views of CoAPO-cyclam-1. (a)
Down the crystallographic c-axis, along the AlP2O8H
chains. (b) Stereoview of a section of the structure, showing the
arrangement of Co-cyclam units linked via Co–O bonds to
the phosphate oxygens of the aluminophosphate chains. C atoms are represented
by black spheres, N atoms by grey spheres, Co by smaller grey spheres and
PO4 and AlO4 tetrahedra are hatched and grey, respectively.
Hydrogens are omitted for clarity. (c) Stereoview including the
hydrogen atoms and also indicating the location of hydrogen bonds within the
structure.
Fig. 3 Views of CoAPO-cyclam-1. (a) Down the crystallographic c-axis, along the AlP2O8H chains. (b) Stereoview of a section of the structure, showing the arrangement of Co-cyclam units linked via Co–O bonds to the phosphate oxygens of the aluminophosphate chains. C atoms are represented by black spheres, N atoms by grey spheres, Co by smaller grey spheres and PO4 and AlO4 tetrahedra are hatched and grey, respectively. Hydrogens are omitted for clarity. (c) Stereoview including the hydrogen atoms and also indicating the location of hydrogen bonds within the structure.

Templating with tmtacn

Addition of tmtacn to the reaction gel results in the preparation of the known MAPO-18 (AEI) structure type. Crystals of MgAPO-18 (60 × 40 × 35 µm) of suitable quality for microcrystal diffraction were prepared; the results of such an analysis are described in the Crystallography section. Selected single crystals were analysed by EDX and found to contain magnesium, with a Mg/P ratio of ca. 0.15; TGA showed there to be 2.6 tmtacn molecules per unit cell (an occupancy of 65%). Like AlPO4-42, STA-6 and STA-7, MAPO-18 has a small pore structure that may be considered as possessing pore space made up entirely of cages. The cage, which is connected to six other identical cages by 8MR windows, is compared with the cages from the other structures in this work in Fig. 4. Molecular modelling reveals a strong preference of the uncharged tmtacn template for a site that possesses pseudo-threefold symmetry (Fig. 5). Since it is possible that the macrocycle could be incorporated in a monoprotonated form to balance the negative charge imparted to the framework by the incorporation of magnesium, the modelling was also performed for this case. The final energy-minimised position is very close to that of the neutral amine. Inclusion of the template in this site at a refined occupancy level of 2.8 per 4 cages in the unit cell gives a marked improvement in the fit to the single crystal diffraction data, reducing R(obs) from 13.0 to 8.4% (see Crystallography section).

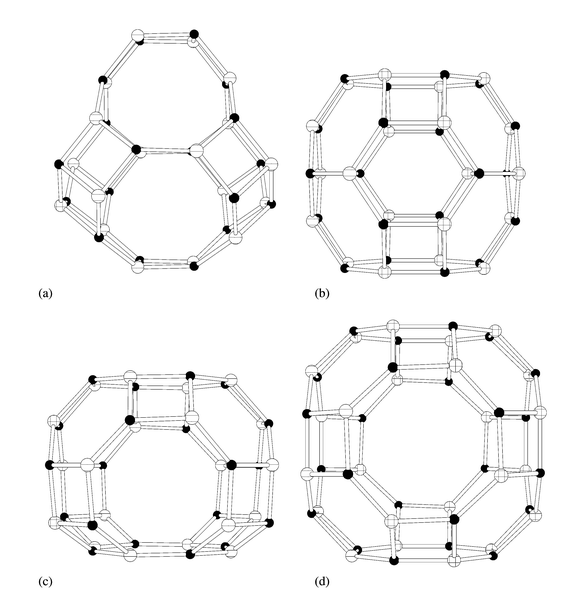

Comparison of the cages
present in the framework structures of (a) MAPO-18, (b)
STA-6, (c) STA-7 and (d) AlPO4-42.
Only the positions of tetrahedrally coordinated framework cations are marked.
Fig. 4 Comparison of the cages present in the framework structures of (a) MAPO-18, (b) STA-6, (c) STA-7 and (d) AlPO4-42. Only the positions of tetrahedrally coordinated framework cations are marked.

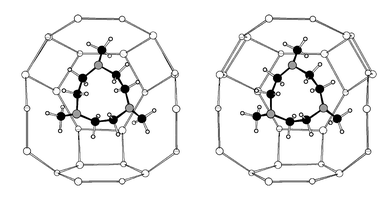

Diagrammatic representation
(stereoview) of the minimum energy position of tmtacn. The molecule’s
threefold axis matches well with the pseudo-threefold axis of the portion
of framework that makes up part of the MAPO-18 cage. For clarity, only
the position of tetrahedral atoms in the framework are shown.
Fig. 5 Diagrammatic representation (stereoview) of the minimum energy position of tmtacn. The molecule’s threefold axis matches well with the pseudo-threefold axis of the portion of framework that makes up part of the MAPO-18 cage. For clarity, only the position of tetrahedral atoms in the framework are shown.

Templating with K222

The use of K222 as a template for MAPOs follows a clear trend. Whereas Mg2+, Mn2+ or Fe2+ gives MAPO-42 as a minor product along with MAPO-5, syntheses with cobalt and, in particular, zinc cations gave highly crystalline MAPO-42, which is phase pure in the case of ZnAPO-42. TGA reveals there are ca. 8 K222 molecules per unit cell which corresponds to one molecule per supercage. Molecular modelling indicates that whereas the fit of the K222 cryptand within the supercage (α-cage) of the structure is energetically favourable, there is no uniquely favoured position. Modelled scattering from disordered template molecules that fully occupy the α-cages significantly improves the single crystal refinement residual R(obs) from 14.9 to 12.3%. The refinement also shows conclusively that zinc does not reside within the cryptand in the structure.

Crystallography

Bulk microcrystalline samples of as-prepared Mn-STA-6, Fe-STA-6 and Co-STA-7 were examined by room temperature powder diffraction at station 9.1 of the Daresbury synchrotron to circumvent difficulties due to fluorescence. Data were collected using monochromated X-rays of wavelength 0.99555(1) Å over the 2θ range 3–60°, with a step size of 0.02°. The powder profiles were matched using the Rietveld refinement technique in the GSAS suite of programs.13 The atomic coordinates derived from single crystal diffraction at 150 K for STA-6, and at room temperature for STA-7, were used as starting models. Template positions derived from modelling studies were input with large temperature factors (U = 0.3) and the templates permitted to exhibit statistical disorder over symmetrically equivalent positions. The fractional occupancy of the template was permitted to refine within experimentally reasonable limits. The fractional coordinates of the framework were also permitted to undergo constrained refinement. For Mn-STA-6, the structure was refined in space group P4/mnc [a = 14.2727(3), c = 10.3750(3) Å] with final goodness-of-fit indices of Rwp = 9.48, Rp = 6.66%. For Co-STA-7 the structure was refined in P4/n [a = 18.640(2), c = 9.3755(7) Å] with the final indices Rwp = 15.99, Rp = 11.33% (Fig. 1 and 2).

The single crystals of CoAPO-cyclam-1 obtained were large enough (up to 0.3 mm in dimensions) to be studied on a laboratory diffractometer. The structure was solved and refined using SHELX and SHELXL, respectively.14 The positions of the aluminophosphate chain and the cyclam molecules were determined directly. Hydrogens were placed on the carbon atoms in idealised geometries and were refined with U(H) = 1.2U(C)eq. Hydrogen atoms on the cyclam nitrogens were constrained to lie at a distance of 0.98 Å from N, and were allowed to refine isotropically to positions that indicate a hydrogen bonding interaction with oxygens of the aluminophosphate chain. Finally, a proton was found to lie between the two oxygens on the phosphorus atoms that do not bridge to aluminium or cobalt. This proton was placed 0.98 Å from one of these oxygens and refined to 1.53(1) Å from the other one, indicating a strong hydrogen-bond. Al–O and P–O bond lengths were within the expected range for tetrahedrally coordinated cations with single bonds to oxygen (Al–O 1.73–1.75, P–O 1.48–1.55 Å) and each of two distinct cobalt cations was found to be octahedrally coordinated by four nitrogens and two oxygens, with Co–N bond lengths of between 2.102(3) and 2.114(3) Å and Co–O bond lengths of 2.089(2) and 2.122(2) Å. Further crystallographic details are given at the end of this section.

CCDC 1145/228. See http://www.rsc.org/suppdata/jm/b0/b003430o/ for crystallographic files in .cif format.

Single microcrystals of MgAPO-18 and ZnAPO-42 were examined on station 9.8 at the Daresbury synchrotron. In each case, the basic framework structure was solved using SIR9215 and refined using the teXsan suite of programs,16 and shown to possess the same space group and framework structure as reported previously17 for AlPO4-18 and AlPO4-42. For MgAPO-18, putting the tmtacn template into the position suggested by the molecular modelling significantly improves the goodness-of-fit, R(obs) decreasing from 13.0 to 8.4%, and for ZnAPO-42, inputting the disordered template improves R(obs) from 14.9 to 12.3%. Attempts to locate zinc cations within the cryptand in ZnAPO-42 (at 0.25, 0.25, 0.25) showed that there was none. In each case, average bond lengths and refined scattering on the ‘Al’ sites indicate that divalent metal substitution has occurred into those sites. For MgAPO-18, the (Mg,Al)–O average bond length is 1.76(1) Å, and for ZnAPO-42, the (Zn,Al)–O average bond length is 1.75(2) Å. Further crystallographic details are given below.

Crystal data

Note that the crystallographic programs SHELX and teXsan refine on F2 and F, respectively. The compositions are those consistent with template occupancies derived from the single crystal data refinements.
CoAPO-cyclam-1. CoII(C10N4H24)Al(PO4)PO3(OH), M = 477.19, monoclinic, a = 14.978(1), b = 14.720(1), c = 8.479(1) Å, β = 98.323(1)°, U = 1849.8(2) Å3, T = 293 K, space group P21/c (no. 14), Z = 4, μ(Mo-Kα) = 1.195 mm−1, 7991 reflections measured, 2659 unique, of which 2100 were observed. The final R(obs) was 2.9% with Rall of 4.4%.
MAPO-18. [(Mg,Al)3P3O12·0.35(N3C9H21)], M = 426, monoclinic, a = 13.795(3), b = 12.830(3), c = 18.815(5) Å, β = 89.959(7)°, U = 3330 Å3, T = 150 K, space group C2/c (no. 15), Z = 8, μ(0.694 Å) = 0.567 mm−1, 11252 reflections measured, 4501 unique, of which 2535 were observed. The final R(obs) was 8.4% with wRF = 10.6%. Note that for MgAPO-18, the refinement was performed using a purely aluminophosphate model, because the scattering of magnesium and aluminium are so similar.
ZnAPO-42. [Zn0.2Al0.8PO4·0.083(N2C18O6H38)], M = 158.0, cubic, a = 23.990(8) Å, U = 13806(6) Å3, T = 150 K, space group Fm[3 with combining macron]c (no. 226), Z = 96, μ(0.694 Å) = 1.34 mm−1, 6420 reflections measured, 1007 unique, of which 312 were observed. The final R(obs) was 12.3% with wRF = 13.3%.

Discussion

Azamacrocycles containing tertiary nitrogen atoms and the azaoxacryptand K222 have been shown to be effective templates for the synthesis of open framework metalloaluminophosphates, where they are included, unbound, in cages within the structures of MAPO-18, STA-6, STA-7 and MAPO-42. By contrast, cyclam itself, with four secondary nitrogen atoms within the ring, remains coordinated to cobalt in the final product under similar conditions, where the macrocycle becomes an integral part of the structure. The latter kind of behaviour is similar to that observed in the cyclam-containing gallium phosphates reported previously.18 The aluminophosphate chain is similar to that identified previously19,20 and proposed by Ozin et al. to be the progenitor to very many of the aluminophosphate structures.21 Hydrogen-bonding between the cyclam and the aluminophosphate chain and within the chain itself are important structural features that are distinctly different from the bonding observed between template molecules that possess tertiary amine groups and three-dimensionally connected frameworks. Presumably, the ability of the secondary amine hydrogen atoms to hydrogen bond to phosphate group oxygens crucially directs the synthesis of CoAPO-cyclam-1 (and the related nickel-containing structure).

Evidence from X-ray diffraction and sample colour indicate that in the MAPOs containing tmtacn, tmtact, hmhaco and K222 the divalent metal cations do not remain complexed within the macrocycle after crystallisation. For example, no X-ray scattering was observed in the centre of the K222 cryptand in ZnAPO-42 (the site refined to zero occupancy) and crystallites containing tmtact and cobalt were blue before, and green after, calcination, which is consistent with the oxidation of cobalt from 2+ to 3+ within the tetrahedral sites in the framework.22 This indicates that the cations are tetrahedrally coordinated within the framework rather than remaining complexed within the macrocyclic ligand and implies that they are more strongly bound within the framework.

The role of divalent cations in directing the syntheses of microporous metalloaluminophosphates using tmtact has been investigated further. In the presence of divalent cations that are expected to be more weakly bound within the macrocycle (Mg2+, Fe2+, Mn2+), STA-6 is also produced, whereas in the presence of cobalt and zinc cations, STA-7 is formed. Where aliovalent substitution is not possible (i.e. in pure aluminophosphate or Cr3+-containing aluminophosphate gels), the AlPO4-21 structure type results, and intact macrocycle is not incorporated. The synthesis of Co-STA-7 is not affected by the presence of Mg-STA-6 seeds and, furthermore, syntheses from gels containing mixtures of Mg2+ and Zn2+ give mixtures of STA-6 and STA-7. Parallel studies using hmhaco reveal that only in the presence of cobalt or zinc cations does it act to template STA-7. Finally, it is found that, although some MAPO-42 is prepared in the presence of K222 when M is Mg2+, Mn2+ or Fe2+, the cations Co2+ and Zn2+ greatly enhance the yield, and ZnAPO-42 is readily prepared phase pure in this way. In summary, it is clear that the type of cations present together with tmtact, hmhaco and K222 have a decisive influence on the nature of the product, without remaining within the macrocycle upon crystallisation. It seems likely that the more strongly bound metal cations could be retained within the macrocycle during the initial stages of nucleation and crystal growth, and control the shape of the complex during its incorporation.

Acknowledgements

We thank Dr David Apperley and the EPSRC solid state NMR facility at Durham for MASNMR spectra, Drs Mark Roberts and Simon Teat for assistance in collecting X-ray diffraction data at stations 9.1 and 9.8 of the Daresbury synchrotron and Dr Wuzong Zhou, St Andrews, for assistance with the EDX analyses. We gratefully acknowledge the support of BP Amoco for a CASE award to M. J. M.

References

  1. G. Ihlein, F. Schuth, O. Krauss and U. Vietzeand F. Laeri, Adv. Mater., 1998, 10, 1117 CrossRef CAS.
  2. I. Bull, L. A. Villaescusa, S. J. Treat, M. A. Camblor, P. A. Wright, P. Lightfoot and R. E. Morris, J. Am. Chem. Soc., in press. Search PubMed.
  3. N. Herron, G. D. Stucky and C. A. Tolman, J. Chem. Soc., Chem. Commun., 1986, 1521 RSC.
  4. M. J. Sabater, A. Corma, V. Fornes and H. Garcia, Chem. Commun., 1997, 1285 RSC.
  5. J. C. Medina, N. Gabriunas and E. Paez-Mozo, J. Mol. Catal. A: Chem., 1997, 115, 233 CrossRef.
  6. V. Patinec, P. A. Wright, P. Lightfoot, R. A. Aitken and P. A. Cox, J. Chem. Soc., Dalton Trans., 1999, 3909 RSC.
  7. P. A. Wright, M. J. Maple, A. M. Z. Slawin, V. Patinec, R. A. Aitken, S. Welsh and P. A. Cox, J. Chem. Soc., Dalton Trans., 2000, 1243 RSC.
  8. L. Schreyeck, F. D’Agosto, J. Stumbe, P. Caullet and J. C. Mougenel, Chem. Commun., 1997, 1241 RSC.
  9. L. Schreyeck, P. Caullet, J. C. Mougenel and B. Marler, Proceedings of the 12th International Zeolite Conference, ed. M. M. J. Treacy, B. K. Marcus, M. E. Bisher and J. B. Higgens, Materials Research Society, Baltimore, 1998, p. 1733. Search PubMed.
  10. T. A. Khan and J. A. Hriljac, Inorg. Chim. Acta, 1999, 294, 179 CrossRef CAS.
  11. L. Schreyeck, J. Stumbe, P. Caullet, J. C. Mougenel and B. Marler, Microporous Mesoporous Mater., 1998, 22, 87 CrossRef CAS.
  12. Discover 3.1 program, MSI, San Diego, CA, 1993.
  13. A. C. Larson and R. B. von Dreele, Generalized Crystal Structure Analysis System, Los Alamos National Laboratory, USA, 1994..
  14. (a) G. M. Sheldrick, SHELX, Program for the solution of crystal structures, University of Göttingen, 1986; (b) G. M. Sheldrick, SHELXTL, version 5.3, Program for the solution of crystal structures, University of Göttingen, 1993..
  15. A. Altomare, M. C. Burla, M. Camalli, M. Cascarano, C. Giacovazzo, A. Gugliardi and G. Polidori, J. Appl. Crystallogr., 1993, 26, 343 CrossRef.
  16. teXsan Single Crystal Analysis Software, version 1.6, Molecular Structure Corporation, The Woodlands, TX, USA, 1993..
  17. (a) W. M. Meier, D. H. Olson and Ch. Baerlocher, Altas of Zeolite Structure Types, 4th edn., Elsevier, London, 1996 Search PubMed; (b) W. M. Meier, D. H. Olson and Ch. Baerlocher, Zeolites, 1996, 17, 1 CAS.
  18. (a) P. Reinert, J. Patarin and B. Marler, Eur. J. Solid State Inorg. Chem., 1998, 35, 389 CrossRef CAS; (b) D. S. Wragg, G. B. Hix and R. E. Morris, J. Am. Chem. Soc., 1998, 120, 6822 CrossRef CAS.
  19. R. H. Jones, J. M. Thomas, R. Xu, Q. Huo, Y. Xu, A. K. Cheetham and D. Bieber, J. Chem. Soc., Chem. Commun., 1990, 1170 RSC.
  20. W. Tieli, Y. Long and P. Wenqin, J. Solid State Chem., 1990, 89, 392 CrossRef.
  21. S. Oliver, A. Kuperman and G. A. Ozin, Angew. Chem., Int. Ed., 1998, 37, 46 CrossRef CAS.
  22. J. M. Thomas, G. N. Greaves, G. Sankar, P. A. Wright, J. Chen, A. J. Dent and L. Marchese, Angew. Chem., Int. Ed. Engl., 1994, 33, 1871 CrossRef.

Footnotes

Basis of a presentation given at Materials Discussion No. 3, 26–29 September, 2000, University of Cambridge, UK.
Electronic supplementary information (ESI) available: Rietveld files and plots. See http://www.rsc.org/suppdata/jm/b0/b003430o/
