Effects of dysprosium oxide nanoparticles on Escherichia coli

N. M. Anaya , F. Solomon and V. Oyanedel-Craver *
Department of Civil and Environmental Engineering, Bliss hall 203, University of Rhode Island, Kingston, RI 02881, USA. E-mail: nelson_anaya@my.uri.edu; fsolomon@my.uri.edu; craver@uri.edu; Fax: +1 401 874 2786; Tel: +1 401 874 2784

Received 16th April 2015 , Accepted 5th September 2015

First published on 8th September 2015


There is increasing interest in the study of dysprosium oxide nanoparticles (nDy2O3) for biomedical applications due to their fluorescence and paramagnetic properties. However, the fate of nDy2O3 and their effects on natural biological systems are a growing concern. This study assessed the toxicity of nDy2O3 on Escherichia coli for concentrations between 0.02 and 2 mg L−1, exposed to three concentrations of NaCl (8500, 850, and 85 mg L−1) and three glucose concentrations (35, 70, and 140 mg L−1). The ranges of these variables were selected to cover manufacturer recommendations of analytical methodologies for toxicity assessment, environmental and industrial nDy2O3 effluent concentrations, and metabolic activity. Two array-based toxicity techniques were used to evaluate the 27 combinations of conditions. Fluorescent dyes (Live/Dead) and respirometric assays were used to measure the undisturbed cell membrane (UCM) and remaining respiration percentage (RRP), respectively. Respirometric tests showed a higher toxic effect than Live/Dead test assays, indicating that metabolic processes are more affected than the physical structure of the cell by exposure to nDy2O3. After exposing the bacteria to concentrations of 2.0 mg L−1 uncoated nDy2O3 for 2 h at 85 mg L−1 NaCl and 140 mg L−1 glucose, the RRP and UCM decreased to 43% and 88%, respectively. Dysprosium ion (Dy+3) toxicity measurement suggested that Dy+3 was the main contributor to the overall toxicity.



Nano impact

This study offers new insights into dysprosium oxide nanoparticle (nDy2O3) exposure on E. coli with respect to its metabolic activity and structural integrity. The toxicity of nDy2O3 was evaluated for two array-based techniques, Live/Dead and respirometric assays. Our work is novel since new nDy2O3 toxicity data were produced covering manufacturer recommendations for toxicity assessments, environmental and industrial nDy2O3 effluent concentrations and metabolic activity. This is highly relevant to the evaluation of the toxic effect of nanoparticles since the physicochemical properties of the nanoparticles can differ greatly depending on the physicochemical characteristics of the aqueous solution. With an understanding of the nanoparticles' fate in aqueous medium, a careful selection of appropriate toxicological methodologies can be made to improve the accuracy of future nanotoxicological studies.

1. Introduction

Gadolinium, holmium and dysprosium belong to the lanthanide oxide-based nanoparticles (LnONps), which have acquired more relevance in recent years in regard to the location, diagnosis and treatment of diseases.1–3 LnONps have unique paramagnetic properties that allow greater spatial and temporal resolution through a higher signal-to-noise ratio. These properties play a fundamental role in acquiring and enhancing the contrast in T1 or T2 magnetic resonance images (MRI).4,5 Due to the higher sensitivity provided by the LnONps, the MRI contrast is improved and the T1 or T2 relaxation times are discriminatorily shortened in the region of interest.6

Dysprosium oxide nanoparticles (nDy2O3) have recently received increasing attention due to their potential applications in the biomedical field4,5 including cancer research, new drug screening, and the delivery of drug applications.2,7,8 However, the fate of nDy2O3 and their effects on natural biological systems are growing concerns.9 nDy2O3 will enter into aquatic and land environments through wastewater treatment facility effluent and wastewater sludge due to an inability to retain and or remove these nanoparticles completely.10 Moreover, the release of nDy2O3 into land environments from agricultural applications could transport nanoparticles to surface waters via storm water runoff and to groundwater via infiltration through the soil.10,11

Previous studies have provided limited insight into the toxic effects of nDy2O3 and Dy ions on natural systems. Kattel et al.12 investigated the in vitro toxicity effect of ultra-small spherical dysprosium oxide and dysprosium hydroxide nanorods.5 Both nanoparticles were coated with D-glucuronic acid and exposed to DU 145 and NTC 1469 cell lines. These studies showed that the nanoparticles were not toxic to the human cells for concentration values ranging from 0 to 37.3 mg L−1.

Harper et al.13 tested 11 types of metal oxide nanoparticles, including nDy2O3, and found that high mortality of embryonic zebrafish was observed when they were exposed to 250 mg L−1 nDy2O3 for 5 days of continuous waterborne conditions. In addition, concentrations of 250 mg L−1 for nDy2O3 produced morphological malformations of the zebrafish's jaw and eyes.

Toxicological assessment of nanoparticles can be studied in terms of their impact on metabolic functions and cell structure such as cell viability, membrane permeation, growth and respiration. Live/Dead assay (BacLight viability kit) is a commonly used method to measure cell viability14 and membrane permeation on bacteria through the integrity of cell membranes. The manufacturer of the reagents used for the Live/Dead test recommends that experiments and samples have to be prepared in specific water chemistry conditions (8500 mg L−1 NaCl) to avoid a decrease in staining efficiency.14 Previously, the metabolic activity of bacteria has been measured using a traditional respirometric bottle test (RT). Water chemistry conditions with monovalent and divalent cations have been successfully used in the range of 10 to 1000 mg L−1; however, high concentrations of glucose (in the order of 300 mg L−1) and bacteria (in the order of 109 CFU mL−1) were required to quantify a toxic response.15 This type of test can be used to measure the interaction and effect of nanoparticles on microorganisms. Nevertheless, each methodology required its own range of optimal conditions, which makes it a complex process to assess toxic effects when identical water chemistry conditions are used. This is highly relevant to the evaluation of the toxic effect of nanoparticles since the physicochemical properties of the nanoparticles (e.g., charge, aggregation, cell–nanoparticle ratio and dissolution) can differ among each other and also their properties are influenced by the physicochemical characteristics of the aqueous solution.

In this study, we propose to evaluate the use of array-based dye methods in identical water chemistry conditions and observe the effect of nDy2O3 and exposure on E. coli metabolic activity and structural integrity of E. coli under variable water chemistry conditions.

2. Materials and methods

2.1 Materials

A non-pathogenic wild strain of E. coli (IDEXX Laboratories) was selected for this study. E. coli is a Gram-negative bacterium that has been found to be metabolically active in saline solution without growth16 and has been extensively studied in nanotoxicological research.15,17,18 Reagents used to prepare the growth medium for the bacteria – sodium chloride (NaCl), yeast extract, and tryptone – were purchased from Sigma Aldrich. Glucose was purchased from Sigma Aldrich and used as received. Tetrazolium dye (Redox Dye Mix A) was purchased from Biolog and used to measure the respiratory responses of E. coli. Cell membrane permeation was measured using SYTO 9 and propidium iodide; both reagents were purchased from Invitrogen.

2.2 Methods

Hydrodynamic diameter and zeta potential were measured by dynamic light scattering (DLS) using a Malvern Zetasizer Nano ZS, ZEN 3600 instrument. Data were collected at 0.25 h and at 2 h after nanoparticle exposure to bacteria to differentiate the effect of aggregation of nanoparticles. Shape characterization of the nanoparticle was obtained by using JEOL JEM-2100 LaB6 transmission electron microscope (TEM) imaging. Ionic release from nDy2O3 for each condition was quantified as per Liu and Hurt19 using centrifugal ultrafilter devices (Ultra-4 3K) purchased from Amicon. Inductively coupled plasma spectroscopy (ICP-OES Optima 3100, Perkin Elmer) was used to measure the concentration of nDy2O3 and Dy ions before and after the contact times established for each of the water chemistry conditions tested. Samples were digested in nitric acid (HNO3, 2% v/v) before analysis.

The growth medium consisted of 10 g L−1 NaCl, 5 g L−1 yeast extract, and 10 g L−1 tryptone. After the solution was prepared, it was autoclaved and then E. coli seed was added. E. coli was grown for 12 h in a culture medium at 37 °C. Bacteria were harvested during the logarithmic growth phase and centrifuged at 2000 rpm for 0.25 h. The supernatant was discarded and the pellet re-suspended in the respective NaCl solution.15E. coli concentration was fixed to OD670 (optical density at a wavelength of 670 nm) of 2.68 using the respective NaCl solution. E. coli solutions were refrigerated at least 30 min prior to inoculation into the microplate in order to decrease the metabolism of the bacteria. This allowed for a homogenous metabolic reaction to the glucose.

Three NaCl concentrations were selected: 85, 850 and 8500 mg L−1 (ionic strength 1.45, 14.5 and 145 mM, respectively). The lowest concentration represents the ionic strength commonly found in surface waters,20 while the highest NaCl concentration was selected based on the manufacturer's recommendations of the Live/Dead test.14 The middle value was chosen for a three-tier comparison. Glucose concentrations in the range of 35 to 140 mg L−1 were used as a carbon source to evaluate nDy2O3 toxicity under different aerobic metabolic levels. Preliminary experiments were carried out to determine the glucose concentrations that inhibit the E. coli metabolic functions. The glucose concentration of 35 mg L−1 was the lowest limit of respiratory detection, and 140 mg L−1 was below the concentration (210 mg L−1) that produces an inhibitory effect on E. coli.

Three concentrations of non-coated Dy2O3 nanoparticles – 0.02, 0.2 and 2.0 mg L−1 – were used to simulate not only environmental concentrations (0.02 mg L−1) but also accidental spill scenarios (2.0 mg L−1). Non-coated Dy2O3 nanoparticles were prepared based on the method used by Kattel et al.12

Table 1 shows the 27 conditions and the blanks tested in this study for the respirometric and Live/Dead tests using a Synergy™ Mx Microplate Reader. Blanks without nDy2O3, glucose and NaCl were analyzed for each scenario.

Table 1 Condition matrix tested using respirometric and Live/Dead tests. Samples were run in quadruplicate. Glucose, nDy2O3 and bacteria were prepared at the same NaCl concentration. *Represents blanks for each condition
NaCl [mg L−1] Glucose [mg L−1] nDy2O3 [mg L−1]
0* 0* 0.02, 0.2, 2
35 0*, 0.02, 0.2, 2
70 0*, 0.02, 0.2, 2
140 0*, 0.02, 0.2, 2
85 0* 0.02, 0.2, 2
35 0*, 0.02, 0.2, 2
70 0*, 0.02, 0.2, 2
140 0*, 0.02, 0.2, 2
850 0* 0.02, 0.2, 2
35 0*, 0.02, 0.2, 2
70 0*, 0.02, 0.2, 2
140 0*, 0.02, 0.2, 2
8500 0* 0.02, 0.2, 2
35 0*, 0.02, 0.2, 2
70 0*, 0.02, 0.2, 2
140 0*, 0.02, 0.2, 2


2.3 Toxicity tests

2.3.1. Respirometric test. Cell respiration in non-growing conditions was quantified through the reduction of tetrazolium dye.21,22 When a carbon source is consumed, metabolic activity transports electrons from the carbon source to the electron transport chain in the cell membrane where the tetrazolium dye is reduced, which in turn produces a purple colour.23,24 The purple colour can be quantified in terms of absorbance using a microplate reader at a wavelength of 590 nm.25 The plate was prepared first by adding NaCl; then glucose, nDy2O3, tetrazolium dye, and finally a bacteria solution were directly inoculated into a blank half-area 96-well microplate to achieve the required concentrations. The final volume within each well was 100 μL, mixed thoroughly by pipetting at least 10 times. Glucose, nDy2O3, and cell solutions were all prepared in the respective saline solution. Experiments were run for 2.5 h and readings were recorded every 0.25 h after every horizontal shaking (medium setting) performed by the microplate reader. Data were analyzed at 0.25 and 2 h. The two-hour interval was selected in order to distinguish the effect between nanoparticles before and after aggregation. Aggregation increased drastically after 2 h, particularly for those conditions with high concentrations of NaCl. Higher exposure time could increase the toxicity effect; however, for time periods longer than 2 h, the toxicity results will not be because of the dysprosium nanoparticles but because of the dysprosium microparticules. The microplates were incubated at 25 °C. A detailed description of the microplate set-up is presented in the ESI.

The microplate included a nDy2O3 blank and background correction sections to evaluate the interaction between nanoparticles and tetrazolium dye. Lack of coloration in the nDy2O3 blank section indicated that no interaction was observed between nDy2O3 and the tetrazolium dye. For the background (absorbance of nDy2O3) correction, the value obtained in the respective well was subtracted from the experiment values and also served as a secondary control to confirm that experimental conditions had no reducing effect on the tetrazolium dye without the presence of bacteria.

Each plate was set up in quadruplicate wells for each condition, and the plates were run in duplicate to quantify the percent of remaining respiration (PRR). The PRR (eqn (1)) is the ratio of slopes between bacteria exposed to nDy2O3 and the blank bacteria (samples containing bacteria that were not exposed to nDy2O3) at a specific nDy2O3 concentration from the absorbance–time graph.


image file: c5en00074b-t1.tif(1)
where Pt is the slope from the absorbance–time graph for bacteria exposed to nDy2O3 and Pc is the slope from the absorbance–time graph for control bacteria without nDy2O3.

2.3.2 Live/Dead test. The cell membrane permeation of E. coli was determined using the BacLight kit (propidium iodide and SYTO 9) with the microplate reader. Propidium iodide becomes intercalated to the DNA within cells and indicates bacteria that have a damaged membrane. SYTO 9, on the other hand, indicates intact cell membranes.14 A stain solution composed of SYTO 9 and propidium iodide fluorescent nucleic acid stains was mixed at a 1[thin space (1/6-em)]:[thin space (1/6-em)]1 (v/v) ratio with a subsequent dilution in DI water (12 μL of mixed stain solution in 2 mL of DI water). Suspension mixtures of NaCl, glucose, nDy2O3, and bacteria were added into separate wells of a 96-well flat-bottom black microplate to achieve the required concentrations. The plate was incubated at 25 °C for 2.0 h, during which horizontal shaking (medium setting) was performed by the microplate every 0.25 h. After incubation, 100 μL of mixed stain solution was added and mixed thoroughly by pipetting at least 10 times for each well. Before reading with the microplate, 0.25 h of additional incubation was required in the dark at room temperature. A detailed description of the microplate setup is presented in the ESI. Each plate contained quadriplicate wells for each condition, and each plate was run in duplicate to quantify the undisturbed cell membrane (UCM). The UCM (eqn (2)) is the green/red fluorescence ratio between bacteria exposed to nDy2O3 and the blank bacteria (bacteria not exposed to nDy2O3) at given nDy2O3 concentration. Data were analyzed at 0.25 and 2 h to differentiate the effect of aggregation of nanoparticles.

image file: c5en00074b-t2.tif(2)
where Pt is the green/red fluorescence ratio for bacteria exposed to nDy2O3 and Pc is the green/red fluorescence ratio for control bacteria without nDy2O3.
2.3.3. Toxicity tests for nDy2O3 ion release. Additional experiments using the respective ion concentration, released at the highest concentration of nDy2O3, were performed. These experiments allowed us to determine the contribution of Dy ions to the overall toxicity on E. coli. A similar method was used to prepare the plate, but dysprosium ions were used instead of nDy2O3.

2.4 Statistical analysis

The results from each data set were analyzed with SAS statistical software, version 9.1.2. A generalized linear mixer model (GLIMMIX) was used to identify statistical differences among glucose, NaCl, and nDy2O3 concentrations because the response was not necessarily normally distributed. A p value of less than 0.05 was considered to indicate significant difference.

3. Results and discussion

3.1 Physiochemical characterization of nDy2O3

3.1.1. Size and zeta potential without bacteria. Uncoated nDy2O3 characterization consisted of size and zeta potential measurements in two of the three water chemistry conditions. Tests with 8500 mg L−1 NaCl were discontinued due to interference between tetrazolium dye and NaCl. Details will be explained in section 3.2. Fig. 1 shows size (a) and zeta potential (b) measurements at 0, 0.25 and 2.0 h for the highest nDy2O3 concentration of 2.0 mg L−1. nDy2O3 sizes from 0 to 0.25 h at all water chemistry conditions were in the range of 75 to 150 nm; however, size measurements at 2 h showed an increase in nDy2O3 particle size, indicating aggregation. It was observed that aggregation increased when the ionic strength was higher (850 mg L−1 NaCl) and also at all glucose concentrations. This may be attributed to the absence of a coating agent on the nanoparticle surface and lower repelling forces as a result of high ionic strength in the solution. Zeta potential measurements (Fig. 1b) showed the instability of nDy2O3 with surface charge measurements ranging between 6 and 23 mV in 85 and 850 mg L−1 NaCl during 2 h of contact time.
image file: c5en00074b-f1.tif

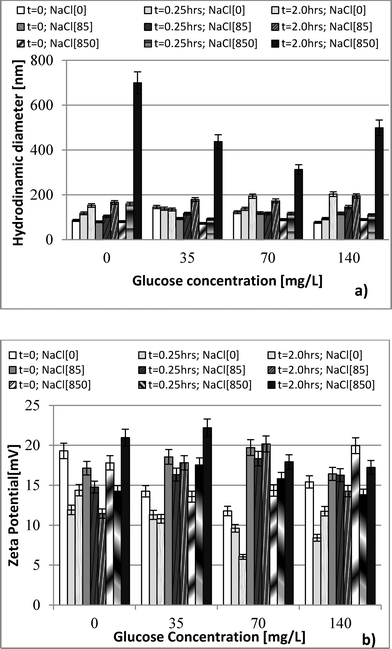

Fig. 1 Size (a) and zeta potential (b) measurements in samples containing 35, 70, and 140 mg L−1 glucose, and 2.0 mg L−1 nDy2O3. Measurements were taken at 0, 0.25 and 2 h.
3.1.2. Shape and pH. TEM imaging confirmed the shape of the nDy2O3 to be spherical (Fig. 2). Nanoparticles were found to have an average size of 74.8 ± 5 nm. Changes in H+ ions before and after nanoparticle exposure were recorded periodically with a pH meter. The pH measurements at t = 0 h and t = 2 h ranged from 5.5 to 6.2, indicating that pH did not function as an additional stress on bacteria performance. Moreover, there was no statistically significant change.
image file: c5en00074b-f2.tif
Fig. 2 nDy2O3 TEM image shows the spherical nanoparticles with average diameter of 74.8 nm.
3.1.3. Ion release. Ion release experiments were conducted for the highest concentration of nDy2O3, (2.0 mg L−1), which was the most toxic condition for E. coli. Dy ions were measured in all water chemistry and glucose conditions to determine the amount of dissolution over time. Table 2 shows a sudden increase in Dy ions measured at 0 h and 0.25 h, with a plateau occurring at 2.0 h.

3.2. Toxicity tests

Respirometric tests at 8500 mg L−1 NaCl detected interference between tetrazolium dye and NaCl. Bacteria at 85 and 850 mg L−1 NaCl without stress conditions maintained an absorbance value after the dye was reduced. On the other hand, bacteria at 8500 mg L−1 showed the opposite behaviour (see the ESI). Interference with glucose was discarded because Live/Dead tests showed no problems under similar condition. Although absorbance measurements could not be obtained at high NaCl concentration, it is known that E. coli may survive under high ionic strength conditions similar to those presented in this study.26–28
3.2.1. Respirometric test. The PRR compares the slope values representing respiration of the remaining bacteria after nDy2O3 exposure with the slope values of the control wells. In the control wells, bacteria were not exposed to nDy2O3. Fig. 3 shows the PRR for all water chemistry conditions tested at 0.25 and 2 h. For 0.25 h, no toxicity effect was observed for most glucose concentrations of 35 and 70 mg L−1, except for 35 mg L−1 glucose and 0.02 mg L−1 nDy2O3. This could be due to the fact that the nDy2O3 contact time was not enough to produce a significant toxicity effect in the bacteria. After 2.0 h, there was an increase in toxicity for some water chemistry conditions. For 2.0 mg L−1 nDy2O3, the toxicity effect was more pronounced at all glucose and NaCl concentrations. The greatest toxicity effect (PRR = 43%) was observed at 85 mg L−1 NaCl and 140 mg L−1 glucose. The high PRR values may be associated with the metabolic activity at high carbon concentration levels and more stable nanoparticles at low concentrations of NaCl. E. coli increases the carbon mineralization at glucose concentration of 140 mg L−1, where Dy ions can be transported inside the bacteria that are coupled to an essential metal uptake by the cells.29
image file: c5en00074b-f3.tif

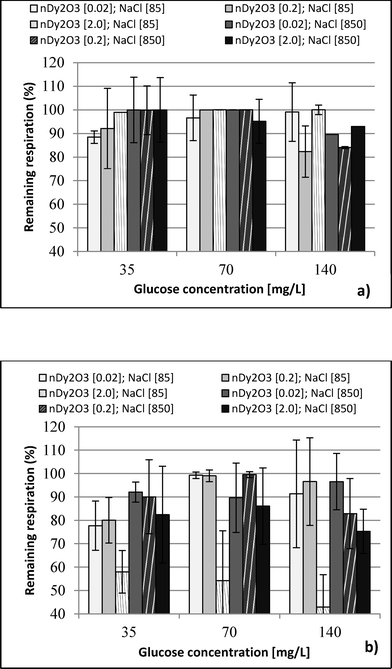

Fig. 3 Percent remaining respiration (PPR) of E. coli under different water chemistry conditions (NaCl 85 and 850 mg L−1) and glucose concentration (35, 70 and 140 mg L−1). PPR values were calculated for three concentrations of nDy2O3, 0.02, 0.2 and 2.0 mg L−1 at (a) 0.25 h and (b) 2.0 h. Values are means from 4 wells and duplicate plates.
3.2.2. Live/Dead test. The undisturbed cell membrane (UCM) results are shown in Fig. 4. Live/Dead experiments detected a very low toxicity effect of nDy2O3 on E. coli under the same conditions used for the respirometric microarray tests. The results showed no significant membrane permeation, which means minimal (UCM = 94.9) to no physical damage to E. coli occurred at nDy2O3 concentrations ranging from 0.02 to 0.2 mg L−1. Only at high concentrations of nDy2O3 (2 mg L−1) and at ionic strength (850 mg L−1 NaCl) was a slight toxicity effect (UCM = 88.5) observed on bacteria. However, it was less pronounced compared to the toxicity effect results obtained for the respirometric test. The increasing concentrations of glucose seem to show no constant trend. Thus, glucose concentration could not have influenced the toxicity effect results.
image file: c5en00074b-f4.tif

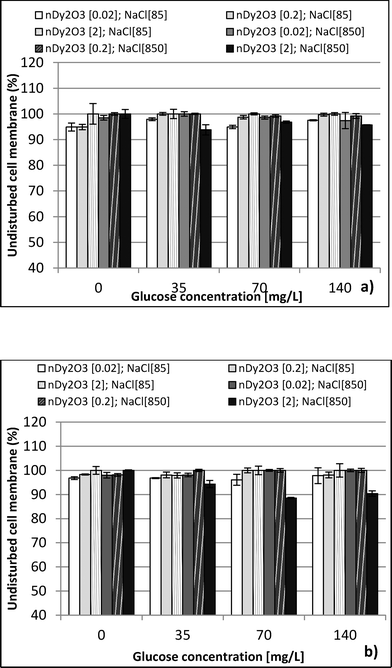

Fig. 4 Undisturbed cell membrane (UCM) of E. coli under different water chemistry conditions (NaCl 85 and 850 mg L−1), and glucose concentration (35, 70 and 140 mg L−1). UCM values were calculated for three concentrations of nDy2O3 (0.02, 0.2 and 2.0 mg L−1) at (a) 0.25 h and (b) 2.0 h. Values are means from 4 wells and duplicate plates.
3.2.3. Effect of Dy ions on E. coli toxicity. Additional experiments were performed to determine the contribution of Dy ions to the overall toxicity on E. coli. The tests were performed using the respective ion concentration released at the highest concentration of nDy2O3 (Table 2), as that exhibited the highest toxicity effect on bacteria. The results showed that cell viability was predominantly lost due to interactions of Dy+3 ions with E. coli rather than nDy2O3 (Fig. 5). This suggests that nDy2O3 could have caused damage to the cell membrane, and Dy+3 could have entered into the cell and disturbed intracellular activities, as previously presented.
Table 2 Ion release concentration for 2.0 mg L−1 nDy2O3 in samples containing 85 and 850 mg L−1 NaCl, and 35, 70 and 140 mg L−1 glucose. Measurements were taken at 0, 0.25 and 2.0 h
NaCl [mg/L] Glucose [mg/L] Dy ions [mg/L]
t = 0 h t = 0.25 h t = 2 h
85 35 0.40 0.65 0.70
70 0.42 0.68 0.72
140 0.43 0.69 0.75
850 35 0.47 0.64 0.73
70 0.48 0.68 0.75
140 0.49 0.68 0.79



image file: c5en00074b-f5.tif

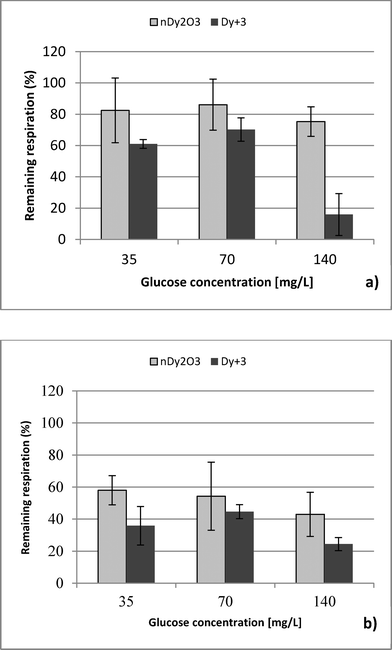

Fig. 5 Toxicity effect of dysprosium ions (Dy+3) and nDy2O3 under different water chemistry conditions: (a) 850 mg L−1 and (b) 85 mg L−1) and glucose concentration (35, 70, and 140 mg L−1) at the highest concentration of ions released after 2 h for 2 mg L−1 nDy2O3.

3.3. Comparison between toxicology methodologies

This study performed a comparison between two toxicological tests using nDy2O3 on E. coli. It was found that for both methodologies, and at the same conditions, nDy2O3 is most toxic at high concentrations (2.0 mg L−1). The respirometric test showed a more prominent response (PRR = 43%) compared to Live/Dead (UCM = 88%) test. This indicates that metabolic responses are more sensitive to toxicity than cell physiology when bacteria are exposed to nDy2O3.

Statistical analysis (for details, see the ESI) confirmed a correlation – first with the nDy2O3 concentrations (p < 0.0001), then with NaCl concentrations (p = 0.0040) and finally with glucose concentrations (p = 0.0074) on the exposure response to nDy2O3 for the metabolic activity of the cell. For both methods, nDy2O3 concentration was the most influential variable and determined the magnitude of the exposure response. In addition, a strong correlation was observed when the combined effect between NaCl and nDy2O3 (p = 0.0148) was analyzed. This is consistent with the results obtained, which showed higher toxicity effect in conditions with low NaCl and high nDy2O3 concentrations. Also, NaCl and glucose were analysed simultaneously and showed a significant correlation with a p value of 0.0566. A similar trend was observed in the high toxicity effect of nDy2O3 on E. coli when bacteria were more active at high glucose concentrations and nDy2O3 more stable at low NaCl concentrations.

Conclusion

The results showed that respirometric and permeation membrane tests can be used to provide a comprehensive assessment of nanoparticle toxicity on microorganisms. This study evaluated the performance of two toxicity methodologies: the Live/Dead assay to evaluate the membrane permeation and the respirometric assay to evaluate the metabolic activity of bacteria. The respirometric microarray test proved to be more sensitive than the Live/Dead test in measuring nanoparticle toxicity.

With an understanding of the fate of nanoparticles in aqueous medium, a careful selection of appropriate toxicological methodologies can be made to improve the accuracy of future nanotoxicological studies.
