Nanozymes have been widely used to construct colorimetric sensors due to their advantages of cost-effectiveness, high stability, good biocompatibility, and ease of modification. The emergence of nanozymes greatly enhanced the detection sensitivity and stability of the colorimetric sensing platform. Recent significant research has focused on designing various sensors based on nanozymes with peroxidase-like activity for colorimetric analysis. However, with the deepening of research, nanozymes with peroxidase-like activity has also exposed some problems, such as weak affinity and low catalytic activity. In view of the above issues, existing investigations have shown that the catalytic properties of nanozymes can be improved by adding surface modification and changing the structure of nanomaterials. In this review, we summarize the recent trends and advances of colorimetric sensors based on several typical nanozymes with peroxidase-like activities, including noble metals, metal oxides, metal sulfides/metal selenides, and carbon and metal–organic frameworks (MOF). Finally, the current challenges and prospects of colorimetric sensors based on nanozymes with peroxidase-like activity are summarized and discussed to provide a reference for researchers in related fields.
Very recently, nanozyme-based sensors have been widely applied in electrochemical,22–24 chemiluminescence,25–27 luminescence,28–30 and colorimetric31–33 detection. Compared with other sensors, colorimetric sensors based on color change analysis can directly or indirectly achieve qualitative and quantitative detection of the target causing color change that is visible through naked eye observation34,35 or smartphone color readout device.36,37 Due to the merits of quick response, low cost, and no requirement of sophisticated instruments and professional operators, colorimetric sensors as a novel strategy have drawn tremendous attention.38–41 Thus, simple colorimetric assays-based nanozymes offer the unflinching biocatalytic potential for portable and inexpensive daily applications.
Nanozymes materials themselves show no light absorption properties in the constructed colorimetric sensors. After the introduction of a chromogenic substrate, nanozymes act as catalysts to catalyze the reaction of the substrate to trigger the light signal output, thus amplifying the signal as well as improving the sensitivity of colorimetric sensors.42,43 The types of nanozymes currently reported include peroxidase,44 oxidase,45 catalase,46 and superoxide dismutase.47 Among them, peroxidase is the most widely investigated nanozyme.48–50 For the peroxidase-mimetic system, nanozymes can efficiently catalyze the chromogenic substrates, such as 3,3′,5,5′-tetramethylbenzidine (TMB),51 2,2′-azino-bis-3-ethylbenzothiazoline-6-sulfonic acid (ABTS),52 and o-phenylenediamine dihydrochloride (OPD),4 to generate chromogenic products also accompanied by colorimetric signals in the presence of hydrogen peroxide (H2O2). The mechanism of catalytic color involves nanozymes decomposing the O–O bond of H2O2 into hydroxyl radicals (˙OH) with high oxidative capacity and then generating ˙OH that further oxidizes chromogenic substrates.
Earlier reviews on nanozymes mainly focused on the aspects of fluorescent and electrochemical sensors. To date, almost few reviews have concentrated on nanozyme-based colorimetric assays. As a result, this review aims to highlight the recent advancements and applications of colorimetric sensors based on nanozymes with peroxidase-like activity, including noble metals, metal oxides, metal sulfides/metal selenides, carbon materials, and MOFs. Finally, we discuss the challenges faced in the nanozyme-based colorimetric sensors and look forward to the future development directions.
Recently, paper-based sensors fabricated by modifying Au NPs on the paper have attracted considerable attention in improving colorimetric homogeneity and sensitivity.54 For example, Han N. K. et al. reported an Au NP-based paper chip for colorimetric detection of Hg2+.55 The combination of Hg2+ and Au NPs formed an Au–Hg alloy, which stimulated the peroxidase-like activity of Au NPs. The chromogenic substrates TMB were oxidized to blue stain on the cellulose paper chip by Au–Hg alloy in the presence of H2O2, with a LOD of 30 μg L−1. Subsequently, wicking pads (Whatman No. 1 filter paper) loaded with DNA-Au NPs were also developed to fabricate a paper device for colorimetric detection of Hg2+.56 DNA is an important substance that can control the peroxidase-like activity of various nanomaterials.57 Thus, DNA-Au NPs could combine with Hg2+ to produce a more stable DNA-Au–Hg alloy for enhancing peroxidase-like activity. Besides, wicking pads can adsorb a large volume of Hg2+ solution, therefore the color signal was significantly enhanced, and the lower LOD was 10 nM.
In addition, due to their specific identification function and easy modification, aptamers are mainly exploited as identification, signal conversion, and signal amplification elements in the design of colorimetric sensors.58 Recently, aptamer-based Au NP sensors have been used for competitive colorimetric analysis.59–61 The aptamers will inhibit the intrinsic peroxidase-mimicking activity of Au NPs by simply adsorbing onto the Au NPs surface. However, when there was a target, the target–aptamer will leave the Au NPs surface due to the high affinity and specificity to the target. Therefore, Au NPs restored their peroxidase-like activity for catalyzing TMB to produce a blue color. For example, an Au NP-based nanozyme aptasensor was proposed for ultrasensitive colorimetric sensing of murine norovirus (Fig. 1). An aptasensor probe was prepared by combining Au NPs with the high target specificity of a murine norovirus aptamer, which produced a blue color in the presence of a norovirus target.62 Similarly, other Au NP-based aptasensors were also used for colorimetric detection of Pseudomonas aeruginosa63 and multiple diarrheic shellfish poisons.64 More importantly, the peroxidase-like activity of Au NP-based aptasensors can be remarkably promoted by the hybridization chain reaction, enabling highly sensitive colorimetric detection of saxitoxin with a LOD as low as 42.46 pM.65 Thus, Au NP-based colorimetric aptasensors will be a promising direction for colorimetric sensor research.
![]() | ||
Fig. 1 Schematic diagram of the nanozyme aptasensor prepared by adapting Au NPs to norovirus aptamer.62 |
Although the enzymatic catalytic activity has been greatly improved, Au NP-based nanozymes still face the challenges of difficult recovery and reuse. Alle M. et al. in situ synthesized Au NPs@cationic cellulose nanofibrils (C.CNF) nanozymes using C.CNF-loaded positively charged Au NPs, which could be reused by casting into a film.66 A sensitive colorimetric approach based on recyclable nanozymes was established for the detection of glucose in human serum with the help of the TMB substrate. Afterwards, the same group fabricated a reusable nanozyme via Au NPs immobilized on dialdehyde cellulose nanofibrils (DACNF).67 Au NPs@DACNF was modified onto a paper sensor for the colorimetric detection of cholesterol with ABTS as a substrate. Cholesterol oxidase (ChOx) catalyzed the oxidation of cholesterol to 4-cholestene-3-one and H2O2, and the resulting H2O2 further oxidized colorless ABTS to blue products in the presence of Au NPs@DACNF nanozymes. A smartphone application was employed to visually record and analyze color changes (Fig. 2). Additionally, some materials, such as quantum dots (QDs),68 β-cyclodextrin (β-CD),69 polyoxometalates (POMs),70 polyvinyl alcohol,71 hydrogel,72 cysteamine73 and tannic acid74 combined with Au NPs showed higher catalytic activity under neutral conditions, and were successfully utilized for colorimetric detection of metal ions and small biological molecules.
![]() | ||

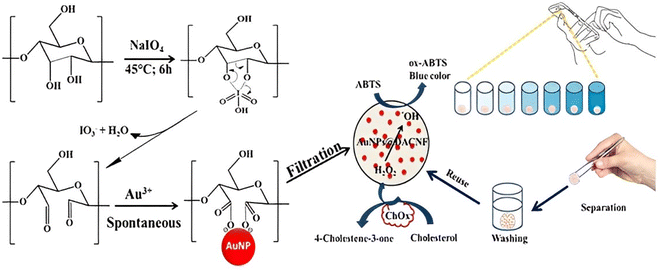

Fig. 2 Schematic illustration of the preparation of paper-based Au NPs@DACNF sensor and the colorimetric detection of cholesterol assisted by smartphone.67 |
![]() | ||
Fig. 3 Schematic diagram of HPPtCuDs catalysis of the classical peroxidase substrate TMB by H2O2 and linear calibration plot for H2O2 detection.84 |
Besides Pt-based alloy nanozymes, Au-based alloy nanozymes with peroxidase-like activity are also attracting significant interest in colorimetric assays. Singh S. et al. explored the peroxide potential of Pd@Au NRs.87 The catalytic activity of Pd NPs dispersed on the surface of Au NRs was higher than that of Au NRs alone. Pd@Au NR-based nanozymes were employed for colorimetric sensing of malathion using OPD-H2O2 as substrates, with the lowest LOD of 60 ng mL−1. The peroxidase-mimicking activity of Ag–Au-based nanozymes was also demonstrated for visual colorimetric assays. Liu H. et al. covalently cross-linked Hemin (Hem) onto melamine (MA) through an EDC-NHS chemical bond to prepare a Hem-MA polymer matrix.88 MA-Hem/Au–Ag nanocomposites were fabricated by the bimetallic Au–Ag in-site mineralization into the Hem-MA polymer matrix (Fig. 4A). Moreover, the catalytic activity of complex enzymes obtained by combining MA-Hem/Au–Ag nanozymes with glucose oxidase (GOx) was investigated. As described in Fig. 4B, MA-Hem/Au–Ag-GOx complex enzymes catalyzed the oxidation of glucose-TMB to generate a blue signal. Complex enzymes exhibited significantly-enhanced catalytic activity due to the introduction of the Au–Ag bimetallic into the Hem-MA polymer matrix. It could not only be functionalized into “nanowires” to accelerate electron transfer but also had high adsorption capacity and affinity for the substrates. Similarly, Fang H. et al. proposed a colorimetric nanozyme-linked immunosorbent assay (NLSA) based on Au@Ag NPs nanocomposites.89 NLSA showed high sensitivity by M13 bacteriophage as a competing antigen assembled Au@Ag NPs for deoxynivalenol (DON) detection, with the LOD of 13.67 pg mL−1.
![]() | ||

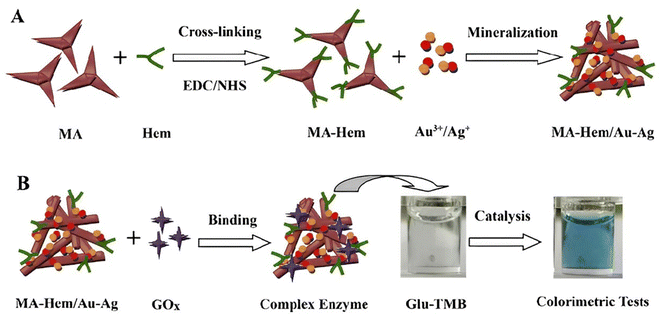

Fig. 4 Schematic diagram of (A) MA-Hem/Au–Ag nanozymes prepared by MA-Hem cross-linking and Au–Ag mineralization, and (B) complex enzymes obtained by MA-Hem/Au–Ag nanozymes attached with GOx for colorimetric detection of glucose.88 |
![]() | ||
Fig. 5 A schematic diagram for colorimetric determination of HeLa and T98G cell concentrations based on the difference in peroxidase-mimicking activity of HA@Fe3O4@SiO2 nanozymes.93 |
In addition, Yardimci B. et al. synthesized reusable and low-cost ethylenediamine (EDA)-modified Fe3O4 NPs in a one-pot reaction.94 The EDA@Fe3O4 nanozyme colorimetric sensors were designed to detect TNT/tetryl via catalyzed H2O2 oxidation to produce a blue-colored complex from oxidized TMB. The principle of the colorimetric sensors was that TNT and tetryl caused fading of blue color by inhibiting the catalytic performance of EDA@Fe3O4 nanozymes. Inspired by the principle of complementary coloring harmonics, Su M. et al. designed a bisubstrate multi-colorimetric system based on polyethylene glycol (PEG)@Fe3O4 NPs. According to the hue circle, TMB and dopamine were chosen to form the complementary colors of blue and orange.95 Thus, PEG@Fe3O4 NPs with peroxidase-like performance catalyzed the oxidation of TMB-dopamine for three-color threshold colorimetric detection of H2O2.
Although Fe3O4-based nanozymes colorimetry has been widely used in the field of biosensing, some limitations of nanozymes, such as the low catalytic ability and poor sensitivity to analytes remain unsolved. To address these shortcomings, multiple metal–metal oxide interfaces are good candidates for synergistic effects. Zeng's group rationally designed a Pd-Fe3O4 Janus nanozyme via a seed-mediated method.96 Due to the synergistic effect of Pd and Fe3O4 in dumbbell-like nanostructures, the ultrasensitive colorimetric detection of biothiols was realized. Meanwhile, the same group established an innovative colorimetric fluoride (F−) probe with high sensitivity and specificity based on AgPt-Fe3O4@SiO2.97
Furthermore, due to the synergistic effects of bimetallic oxides and enzymatic cascade reactions, the obtained CeO2 has higher catalytic efficiency and stability. Chi M. Q. et al. prepared CeO2/Co3O4/poly(3,4-ethylenedioxythiophene) (PEDOT) composite nanofibers using an electrospinning and calcination process, followed by a redox reaction.100 They found that the enhanced peroxidase-mimicking activity of CeO2/Co3O4/PEDOT nanozymes was due to the synergistic interactions between multiple components. Therefore, a novel high-sensitivity colorimetric platform was established for the detection of H2O2 using CeO2/Co3O4/PEDOT composite nanofibers. Liu M. et al. synthesized a CeO2/GOx multi-enzyme complex via self-assembly.101 In this cascade catalytic system, GOx catalyzed the oxidation of glucose to produce H2O2, while CeO2 immediately degraded H2O2 with minimal diffusion (Fig. 6). Such an enzyme cascade reaction-based CeO2/GOx hybrid nanocomplex system was employed to establish a colorimetric sensor with high selectivity and sensitivity for glucose detection.
![]() | ||
Fig. 6 Cascade reaction diagram of CeO2/GOx multi-enzyme complex catalyzed oxidation of glucose.101 |
Recently, the design and development of CeO2 nanozyme-based logic gates for colorimetric analysis have sparked extensive research efforts.102 Chishti B. et al. successfully integrated two and a three-input regulated AND logic circuit, and established a visual colorimetric sensor for the detection of melamine at acidic (4.5) and neutral (7.4) pH.103 The constructed logic gate sensor based on the intrinsic peroxidase-like activity of CeO2 NRs displayed a high affinity for melamine, producing outstanding visual output on a logic platform of TMB/H2O2 (Fig. 7). The developed sensor was successfully applied for the detection of melamine in raw milk and infant formula with picomolar sensitivity.
![]() | ||

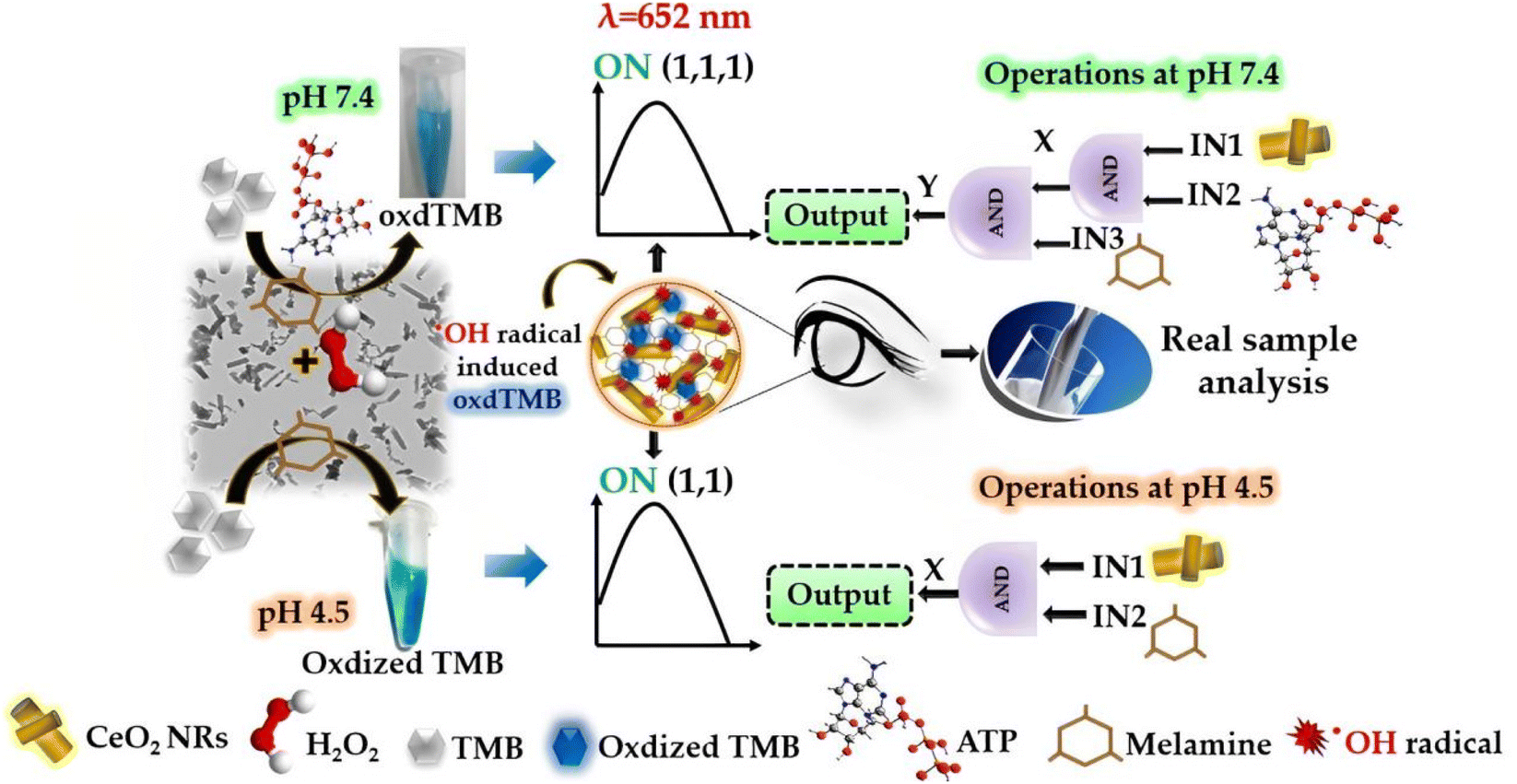

Fig. 7 Schematic illustration of the logic operation mechanism for melamine detection based on peroxidase-like activity of CeO2 NRs at acidic (4.5) and neutral (7.4) pH.103 |
Likewise, Guan's group developed a colorimetric immunoassay based on MnO2 NRs for the detection of human chorionic gonadotropin (HCG).105 They synthesized MnO2 NRs with outstanding peroxidase-like activity using a hydrothermal method using EDTA as a template. The MnO2 NRs were first immobilized in the chitosan matrix of the BSA-modified 96-well plastic microplates, and then the microplates were further modified by streptavidin and biotinylated β-HCG antibodies. In the presence of HCG antigen, the specific recognition between HCG-antibodies on the sensing platform inhibited the peroxidase-like activity of MnO2 NRs through the steric hindrance effect. Therefore, based on this principle, as the HCG concentration was increased, the blue color generated by MnO2 NRs catalyzing TMB-H2O2 substrate gradually faded, which allowed for quantitative colorimetric sensing of HCG.
Although this review introduced the aforementioned metal oxides with peroxidase-like activity, the research is not limited to these. Other metal oxide-based nanozymes, such as copper(I) oxide (Cu2O),106 cobaltous oxide (CoO),107 molybdenum oxide (MoO3)108 and tricobalt tetraoxide (Co3O4)109 also have intrinsic peroxidase-like characteristics, forming a rich metal oxide-based nanozyme systems. These novel metal oxide-based nanozyme colorimetric platforms have the potential to be applied for sensing H2O2, glucose, acid phosphatase, and glyphosate.
Inspired by the above work, Feng L. P. et al. first simply doped MoS2 nanosheets with Fe element via a one-pot hydrothermal route, obtaining a highly superior peroxidase-like catalytic Fe-MoS2 nanozymes (Fig. 8).112 Thus, Fe-MoS2 nanosheet-based colorimetric strategy realized the detection of glucose with satisfactory sensitivity. Except for Fe-based doping, Prussian blue NPs (CPBNPs) or other metals (i.e., Au, Ag, and Pd) NP hybridized MoS2 nanosheets can also increase the peroxidase-mimicking activities of MoS2. Zhu Z. Q. et al. prepared MoS2-CPBNPs nanozymes to present a probe for colorimetric detection of dopamine (DA), with a LOD of 0.09 μM.113 As expected, MoS2-CPBNPs nanozymes showed superior peroxidase-like activity and catalyzed TMB to produce a blue product and ˙OH in the presence of H2O2. While adding DA, the color of the solution gradually faded and the adsorption strength decreased with the consumption of ˙OH. Moreover, a series of polypyrrole (PPy)@MoS2-based nanozymes deposited on three typical metal NPs (Au, Ag, and Pd NPs) were synthesized via in situ reductions by exploiting the inherent reducibility of MoS2 (Fig. 9).114 The differential binding interactions of different biomolecules and metal NPs induced peroxidase-like property modulation of metal NP-decorated PPy@MoS2. On the basis of this, a cross-reactive colorimetric sensor array-based PPy@MoS2@Au/Ag/Pd was developed for the accurate and effective discrimination of 11 proteins and 5 oral bacteria with substrates of TMB and H2O2.
![]() | ||
Fig. 8 Schematic diagram of enzyme activity comparison of MoS2 and Fe-MoS2 prepared using a hydrothermal method.112 |
![]() | ||
Fig. 9 (A) Schematic illustration of Au, Ag, and Pd NP-decorated PPy@MoS2 nanocomposites prepared by in situ reduction and (B) PPy@MoS2@Au catalytic oxidation of TMB.114 |
In addition, other metal sulfide-based nanozymes, such as vanadium disulfide (VS2), copper sulfide (CuS), and platinum disulfide (PtS2), with specific morphologies also possess intrinsic peroxidase-like behavior. They were chosen as a useful and dependable colorimetric probe for the determination of H2O2 and glucose in real samples. For instance, Huang LJ and coworkers combined VS2 nanozymes and GOx to design a colorimetric cascade assay for the detection of glucose by employing the catalyzed TMB-H2O2 reaction.115 In brief, GOx was first incubated with glucose for catalytic oxidation to generate gluconic acid and H2O2 with the existence of O2. After that, the reaction between VS2 and TMB was initiated using the resultant H2O2, causing a blue color solution. Ultimately, the glucose concentration was indirectly detected using the resulting color as colorimetric signals. As with this colorimetric assay principle, Swaidan A. et al.116 and Zhang W. X. et al.117 integrated CuS/PtS2-based nanozymes with GOx to demonstrate a colorimetric cascade method for sensing H2O2 and glucose.
Moreover, the large surface area of MoSe2 nanosheets was compatible with different surface engineering tactics. Chitosan was conjugated onto MoSe2 nanosheets (CS-MoSe2 nanosheets) surface through a one-step ionic liquid-assisted grinding approach for the colorimetric determination of Hg2+.119 When Hg2+ was introduced, chitosan molecules captured Hg2+, and partial Hg2+ was in situ reduced to Hg0 on the surface of CS-MoSe2 nanosheets. Hence, the peroxidase-like properties of CS-MoSe2 nanosheets were enhanced by the activating effect of Hg2+. Using TMB as a chromogenic dye, a sensitive and rapid platform for the colorimetric detection of Hg2+ was established by integrated low cytotoxicity CS-MoSe2 nanosheets sensor and a smartphone detection device, with a lower LOD of 8.4 nM (Fig. 10). Lin L. and coworkers recently synthesized MoSe2@Fe-based nanozymes via a one-pot hydrothermal strategy for the colorimetric sensing of Fe3+ and GSH.120 MoSe2@Fe with peroxidase mimetic property catalyzed the oxidation of TMB-H2O2 to form blue oxTMB solution. The enzymatic activity increased (or decreased) when Fe3+ (or GSH) was added, resulting in a deepening (or weakening) of the blue color of the system, allowing quantitative and selective recognition of Fe3+ and GSH in food samples.
![]() | ||
Fig. 10 Versatile colorimetric detection diagram of Hg2+ based on CS-MoSe2 nanosheets.119 |
![]() | ||

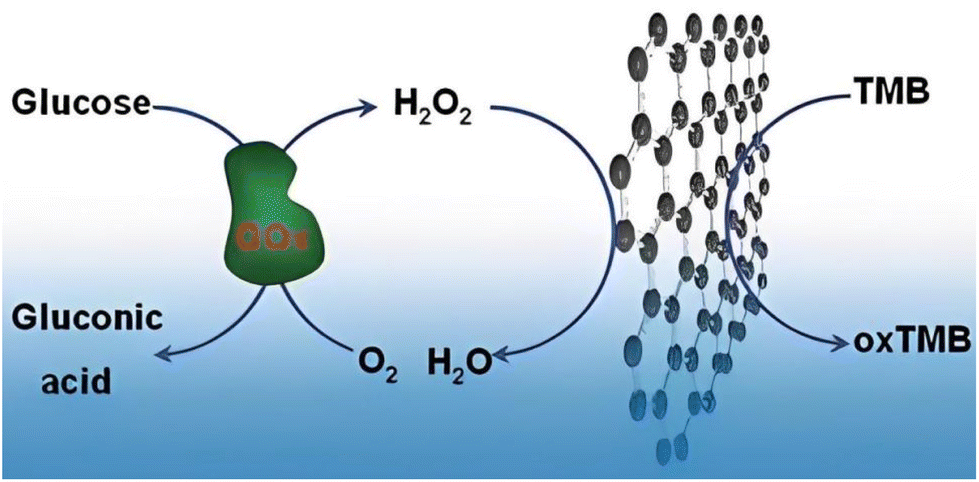

Fig. 11 Schematic diagram of a colorimetric approach for the detection of glucose based on GOx and the GO-COOH catalyzed TMB-H2O2 system.122 |
However, the dispersion of metals and metal oxide NPs on GO nanosheets in a unique 2D layer assembly hinders their aggregation induction, leading to a decrease in enzyme-like activity. To solve this limitation, Sun H. Y. et al. prepared small-sized iridium oxide (IrO2) NPs supported on polyallylamine (PAH)-modified GO nanosheets via electrostatic interactions by employing a facile and environment-friendly pulsed laser ablation in liquid (PLAL) method.124 Due to the large surface area and anchor sites, the choice of GO modified with PAH as the carrier of IrO2 was beneficial to reduce the aggregation of GO while extending the reaction time. The high peroxidase-like activity of the IrO2@GO nanozymes was derived from accelerated electron transfer rather than dependent on ˙OH production. Upon the introduction of AA, the admirable peroxidase-mimicking properties of IrO2@GO nanozymes could be inhibited. Herein, a colorimetric probe based on the IrO2@GO-H2O2-TMB reaction system was constructed for sensing AA.
Additionally, using PEG derivatives as coupling linkers, Zhang S. T. and coworkers first synthesized strongly coupled Au/Fe3O4/GO hybrid materials.125 Owing to the abundant functional groups with remarkable hydrophilicity and high surface area in GO, the aggregation of Au and Fe3O4 NPs was reduced while the deposition of Hg0 on the Au surface was increased. Moreover, the use of superparamagnetic Fe3O4 as a carrier can facilitate the recovery of ternary hybrid materials. The authors further demonstrated that Hg2+ could stimulate the peroxidase-like property of Au/Fe3O4/GO hybrid materials for ultrasensitive colorimetric sensing of Hg2+ by catalyzing TMB with H2O2. Furthermore, Adegoke O. et al. successfully anchored Au NPs and CeO2 NPs onto GO nanosheet surfaces using a chemically modified means.126 In the presence of nitrite, nitrite drove the redox cycle of Au NP-CeO2 NP@GO nanozymes to rapidly catalyze the oxidation of colorless TMB to produce a unique green color signal without H2O2 (Fig. 12). Therefore, a colorimetric sensor based on AuNP-CeO2 NP@GO nanozymes was developed for the colorimetric determination of nitrite in tap water.
![]() | ||
Fig. 12 Schematic illustration of the synthesis of Au NP-CeO2 NP@GO nanozymes and their use for colorimetric detection of nitrite.126 |
Compared with bimetallic NPs catalysts, bimetallic oxide NPs nanozymes are rarely investigated. Accordingly, Das's group reported low-cost Fe3O4–TiO2 decorated on the reduced GO (rGO) nanosheets through a simple hydrothermal method.127 rGO nanosheets could promote the interaction of composites with targeted molecules via π–π interactions. Benefiting from the synergistic effects of Fe3O4 NPs and TiO2 NPs, magnetic Fe3O4–TiO2/rGO-based nanozymes improved the activity of peroxidase-like catalysis for the colorimetric detection of atrazine pesticide by oxidizing TMB-H2O2 (Fig. 13). Similarly, a novel nanozyme for the modification of Fe3O4 NPs, CuO NPs, and cucurbit[6]uril (CB[6]) onto the surface of GO was fabricated by employing a facile sonochemical technique.128 In Fe3O4-CuO-CB[6]-GO nanozymes, CB[6] as a specific binding pocket equipped nanozymes with molecular recognition ability, and the synergistic effect of Fe3O4-CuO-GO facilitated the improvement of the peroxidase-mimicking activity. Attributable to the inhibition effect of homocysteine (Hcy) towards the oxidation of TMB-H2O2 catalyzed by Fe3O4-CuO-CB[6]-GO nanozymes, a sensitive and selective colorimetric approach was thereby established for the detection of Hcy, with a LOD of 1.8 μM. In addition, other GO-based nanozymes, such as Prussian blue (PB),129 cetyltrimethylammonium bromide (CTAB),130 ganoderma polysaccharide (GP),131 and quantum dot (QD)132 incorporated GO also possessed the excellent properties of simulating peroxidase with higher catalytic activity. Accordingly, the ultrasensitive colorimetric biosensor was established for the detection of apolipoprotein A1 (ApoA1), amphetamine (AMP), methamphetamine (MAMP), L-cysteine (L-Cys) and H2O2, respectively.
![]() | ||

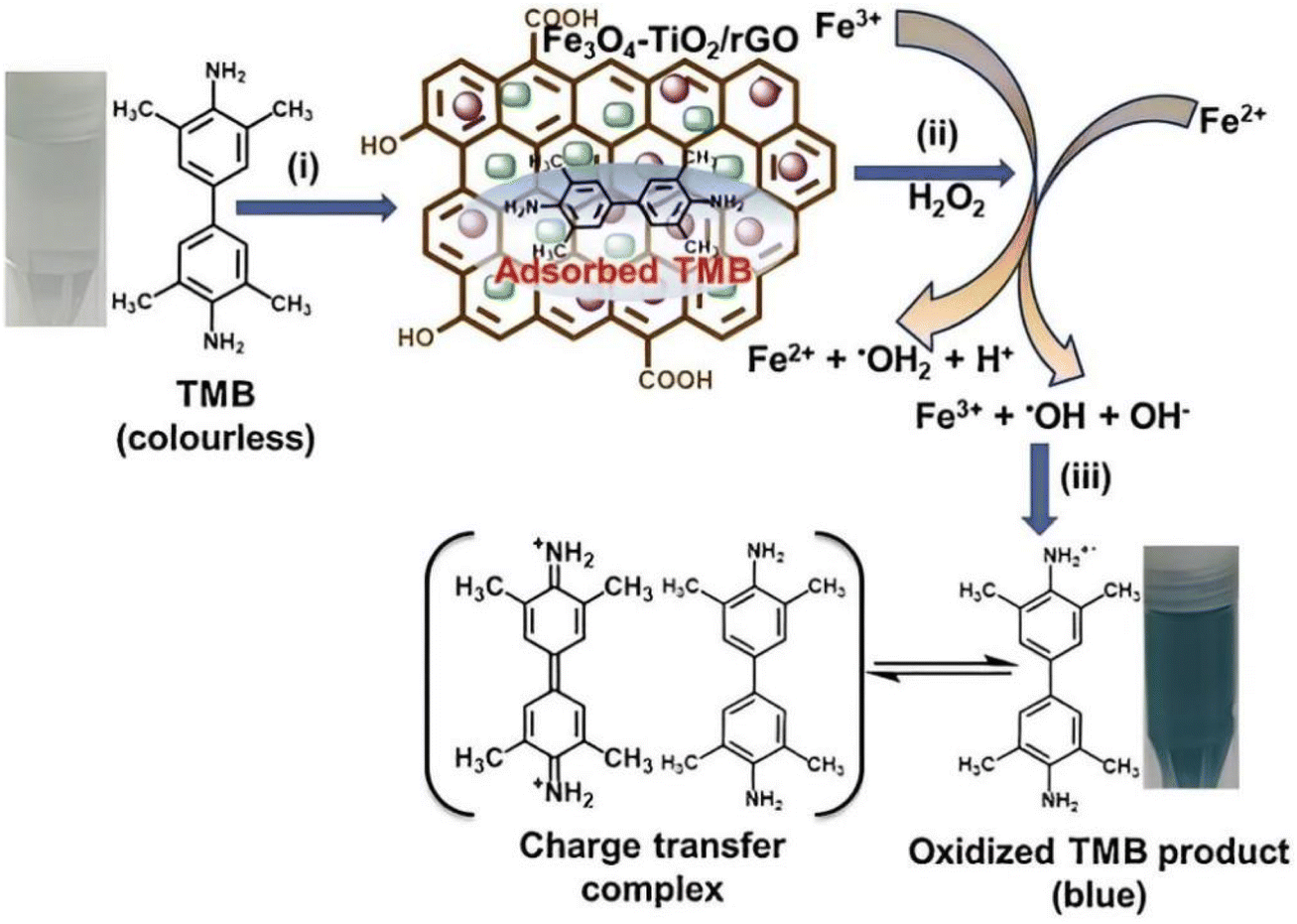

Fig. 13 Schematic illustration of (i) TMB adsorbed on the surface of Fe3O4–TiO2/rGO nanozymes, (ii) ˙OH generated by the Fenton reaction, and (iii) TMB oxidized by ˙OH radicals.127 |
Moreover, g-C3N4 nanozymes have been shown to absorb single-stranded DNA (ssDNA). The high affinity between g-C3N4 and ssDNA enables g-C3N4/ssDNA sensing platforms to specifically recognize target molecules. However, the catalytic activity of g-C3N4 nanosheets against H2O2 is low. To break through this bottleneck, Fan Y. F. et al. prepared a novel nanozyme based on 3D branched carbon nitride nanoneedles (3DBC-C3N4).135 The 3D branched structures possessed a large specific surface area and plenty of active sites, which promoted electron transfer and induced a lightning-rod-like effect to accelerate the electron collection in the tip region for activating H2O2 (Fig. 14). Therefore, 3DBC-C3N4 nanozymes can adsorb more target molecules for the catalytic reaction and improve catalytic activity. With the activation of H2O2 to the formation of ˙OH, 3DBC-C3N4 with excellent peroxidase-like activity catalyzed the oxidation of TMB in the presence of H2O2. In addition, ssDNA accelerated the oxygenation of TMB through electrostatic interaction, thus improving the peroxidase-like activity of 3DBC-C3N4 nanozymes. The increased concentration and length of ssDNA further enhanced the catalytic oxidation of TMB by 3DBC-C3N4 nanozymes, which could also be employed for the colorimetric detection of oxytetracycline (OTC).
![]() | ||

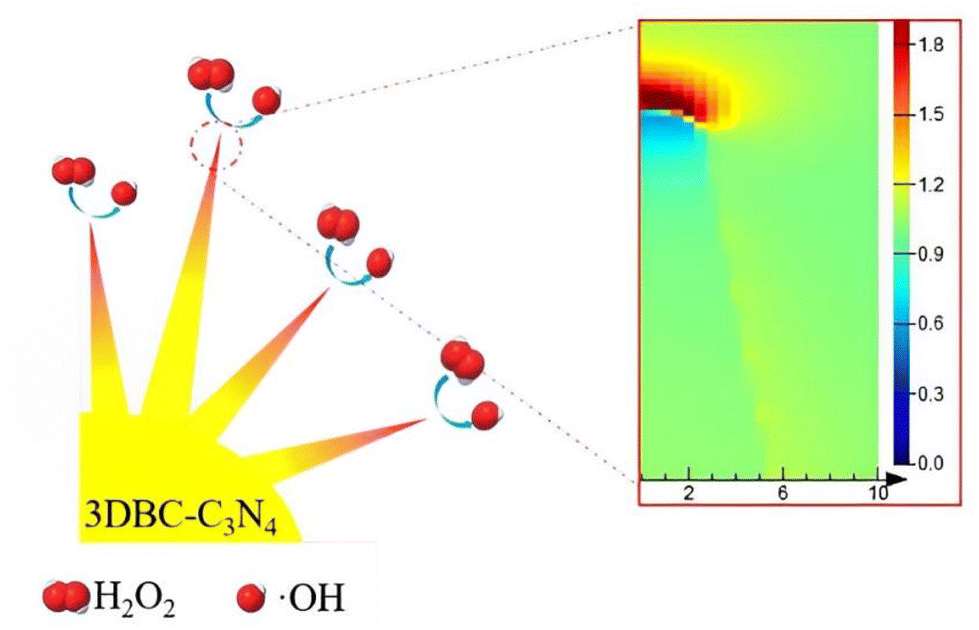

Fig. 14 Schematic diagram of the 3DBC-C3N4 nanozymes accelerating electron collection in the tip region to activate H2O2 to produce ˙OH.135 |
Zhou X. B. et al. prepared Fe–N–C SAzymes showing exceedingly good peroxidase-mimicking activity and specificity via an isolation-pyrolysis approach.138 While galactose oxidase (Gal Ox) catalyzed the oxidation of galactose to generate H2O2, Fe–N–C SAzymes further catalyzed the oxidation of TMB-H2O2 to produce a blue signal. Such an enzymatic cascade reaction based on Gal Ox and Fe–N–C SAzymes realized the rapid and sensitive quantitative colorimetric detection of galactose. Similarly, Mao Y. and coworkers reported a novel colorimetric assay for the determination of Cr(VI) ions using Fe–N–C SAzymes.139 Using 8-hydroxyquinoline (8-HQ) as an inhibitor could prevent Fe–N–C SAzymes from catalyzing the oxidation of TMB to generate blue oxTMB products. When Cr(VI) ions were added, due to their strong chelating capability, the preferential binding of Cr(VI) ions to 8-HQ ultimately led to blue color recovery. According to this phenomenon, an ultrahigh sensitive and selective colorimetric platform based on Fe–N–C SAzymes was proposed for sensing Cr(VI) ions, with a lower LOD of 3 nM. However, many SAzymes have the disadvantages of low dispersion of aqueous solution and lack of recognition ability, which hinders their application in biological analysis. Therefore, Sun L. P. et al. synthesized DNA/Fe–N–C SAzymes conjugates by engineering DNA modification to Fe–N–C SAzymes.140 This significantly enhanced the dispersibility of Fe–N–C SAzymes without affecting the peroxidase-like activity of Fe–N–C SAzymes. A HePG2 cancer cell sensor was established based on a diblock DNA (one polyadenine and one aptamer DNA sequence) attached to Fe–N–C SAzymes in HEPES containing MgCl2 (Fig. 15A). Apt/Fe–N–C SAzymes, after binding to HePG2 cancer cells with aptamer-targeting receptors, catalyzed the oxidation of the TMB-H2O2 system to produce the blue signal (Fig. 15B).
![]() | ||

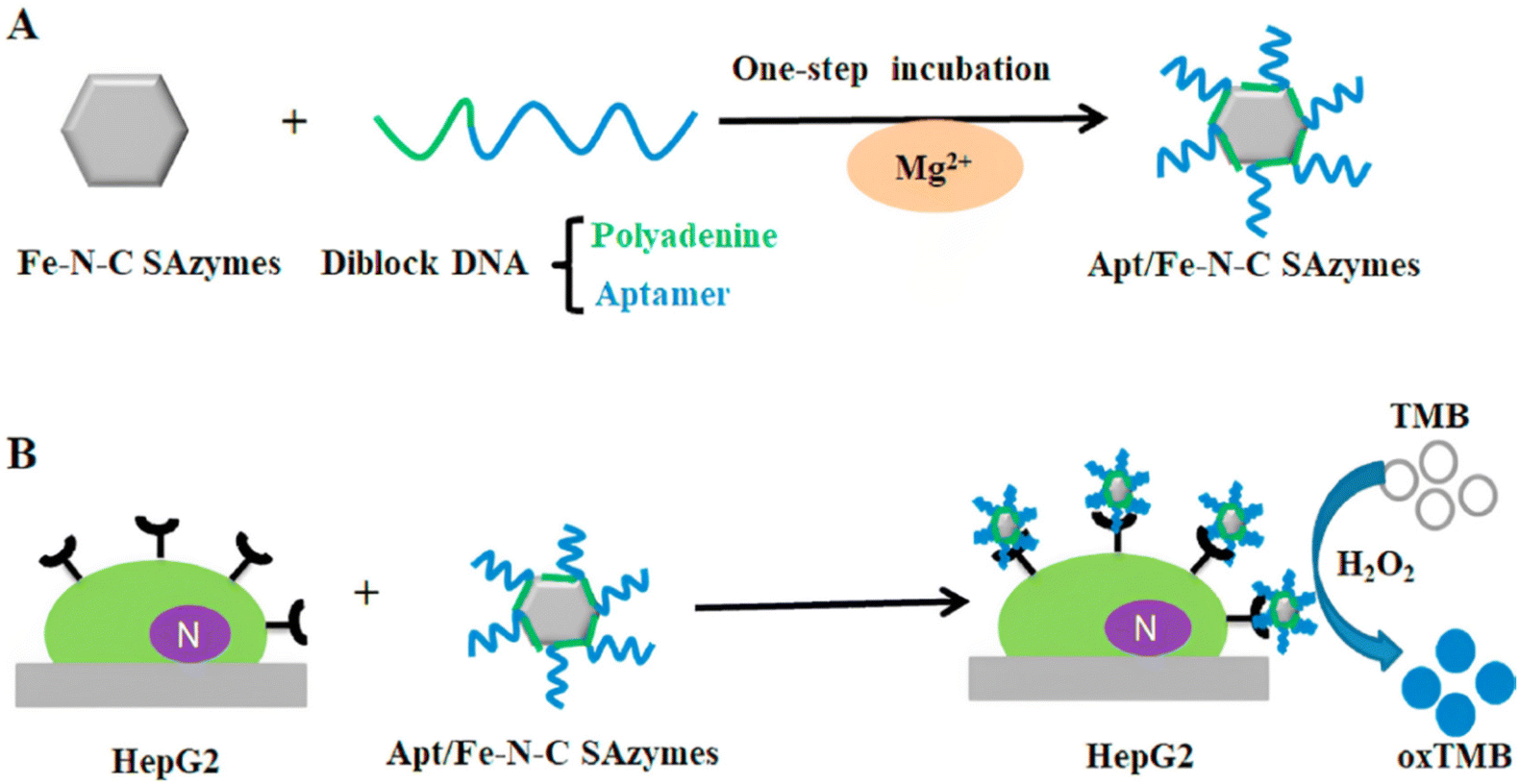

Fig. 15 Schematic diagram of Apt/Fe–N–C SAzymes preparation (A) and colorimetric detection of HePG2 cancer cells (B).140 |
In recent years, sensors based on nanozymes with enzyme-like activity have been employed for the rapid and low-cost detection of antioxidants. However, most colorimetric sensors based on nanozymes are single sensors that can only detect one type of antioxidant, and also have very limited specificity. Herein, a colorimetric sensor array based on SAzymes was designed to recognize a variety of biological antioxidants. For instance, Jing W. J. et al. constructed a three-channel colorimetric sensor array based on Fe–N–C SAzymes for the simultaneous discrimination of five representative biological antioxidants including GSH, L-Cys, AA, uric acid (UA), and melatonin (MT).141 Fe–N–C SAzymes could catalyze the oxidation of TMB, OPD, and ABTS, respectively, generating blue oxTMB, yellow oxOPD, and green oxABTS. When different contents of GSH, L-Cys, AA, UA, and MT were added, the sensing probes of oxTMB, oxOPD, and oxABTS were reduced to diverse degrees, respectively, also being accompanied by different color responses. Thus, a three-channel colorimetric sensor array was fabricated to accurately identify five representatives as low as 100 nM in human serum samples through the linear discriminant analysis (LDA). Following the same detection principle, Liu B. and coworkers developed a Co–N–C SAzymes-based array sensor with a simpler design and more sensitive detection for distinguishing seven antioxidants: GSH, AA, Cys, tannin (TA), catechin (C), DA and UA, with the lowest LODs of 10 nM (Fig. 16).142 The identification and quantitative analysis of multiple target antioxidants were achieved using the colorimetric changes as fingerprints attributed to the different catalytic abilities of Co–N–C SAzymes at pH 3.6 and 4.8 as array receptors.
![]() | ||
Fig. 16 Schematic diagram of identifying seven antioxidants based on the sensor array of Co–N–C SAzymes as sensor units at different pH values.142 |
Additionally, enzymatic cascade reactions of other carbon-based nanozymes, such as carbon support material, carbon quantum dot (CQD), and graphdiyne oxide (GDYO), with natural enzymes have also been employed in colorimetric detection investigations. Ren H. et al. first synthesized MoO3 nanorod-supported carbon materials (MoO3/C) with outstanding peroxidase-mimicking activity utilizing a green tide biomass template (Fig. 17).144 As-synthesized MoO3/C combined with the GOx cascade reaction were applied for constructing colorimetric sensors for the sensitive detection of glucose by using TMB as chromogenic substrates. The process of applying MoO3/C nanozymes to detect glucose mainly consisted of two steps. Under the catalysis of GOx, glucose was initially oxidized by O2 to gluconic acid and H2O2, and then the synthesized H2O2 further oxidized TMB, inducing a color change in the presence of MoO3/C nanozymes. By the same principle, as described above, Mo, S-co-doped CQD (Mo-CQDs), and hemin/GDYO nanocomposites formed cascade reactions with ChOx and GOx, respectively, for colorimetrically sensing cholesterol145 and glucose.146 These studies have greatly broadened the application range of carbon-based nanozymes.
![]() | ||
Fig. 17 Preparation of MoO3/C nanorods by a green tide biomass template.144 |
At present, Fe-doped MOFs with peroxidase-like activity have been demonstrated for the colorimetric detection of biomolecules. For example, Chen N. et al. developed a naked-eye and point-of-care testing sensor based on Fe-MOFs nanozymes for immunoassay colorimetric determination of Salmonella enteritidis (S. enteritidis).147 The basic principle of colorimetric determination was as follows. Ab1 (mouse anti-Salmonella monoclonal antibody) modified nanozymes will combine with Ab2-modified magnetic beads (Dynabeads™ anti-Salmonella) through a specific interaction between Ab1, Ab2, and S. enteritidis with the addition of target virus. In this manner, the formed sandwich structure “Ab1-modified nanozymes-S. enteritidis-Ab2 modified magnetic beads” were removed from the supernatant with an external magnet. After magnetic separation, residual Fe-MOFs nanozymes that were not bound to the target could not be removed due to the lack of the attached magnetic beads. Therefore, using TMB-H2O2 as colorimetric substrates, S. enteritidis can be measured indirectly and successfully by residual Fe-MOFs nanozymes promoting the oxidation of TMB to generate different degrees of blue color signals in the supernatant. Since the Fe-doped MOFs nanozymes enhanced the sensing signal, S. enteritidis can be detected with a lower LOD of 34 CFU mL−1. Furthermore, MIL-53(Fe) was chosen as MOFs-based nanozymes, serving to realize the colorimetric detection of salicylic acid (SA) in aspirin.148 MIL-53(Fe) prepared using a solvothermal method exhibited favorable peroxidase-mimicking activity, which catalyzed the oxidation of TMB in the presence of H2O2 and rendered it blue. Notably, the catalytic activity of MIL-53(Fe) was clearly suppressed after the introduction of SA, which displayed a lighter blue color due to the complexation reaction of SA with Fe3+ at the center of MIL-53(Fe) (Fig. 18). Accordingly, a high selectivity and sensitivity approach based on MIL-53(Fe) MOF nanozymes was proposed for the sensing of SA, with a LOD of 0.26 μM.
![]() | ||

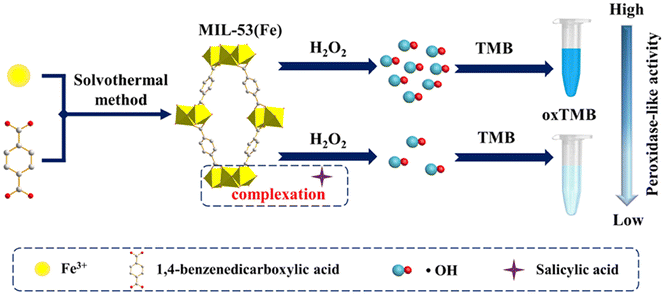

Fig. 18 Schematic diagram of MIL-53(Fe) synthesized using the solvothermal method and the colorimetric detection of SA based on MIL-53(Fe) MOFs nanozymes.148 |
In recent years, Cu-MOF nanozymes systems have not been effectively applied due to the mutual interference between the properties of various enzymes. To address this issue, Ying M. H. and coworkers explored a novel Cu/fumaric acid (FMA)-MOFs with high bifunctional nanozyme activities and good anti-interference properties.149 Cu2+ and Cu+ active centers existed on the surface of Cu/FMA, which showed peroxidase and laccase-like activities under pH = 4 and 8, respectively. Accordingly, a dual-mode colorimetric platform based on Cu/FMA-MOFs was established for detecting glucose and epinephrine in human serum.
Relative to that of the single-metal MOFs, the bimetallic MOFs formed by the partial replacement of the original metal nodes with other metal ions possess higher nanozymes catalytic activity. In principle, doping two metal elements in the initial MOFs can enhance the catalytic activity due to the good synergistic electron transfer effects between various metals. For instance, 2D Ni/Fe-MOFs nanosheets were prepared using a simple two-step sonication method at room temperature.150 With strong intrinsic peroxidase-like activity, 2D Ni/Fe MOFs nanosheets could catalyze the oxidation of the TMB-H2O2 reaction system from colorless to blue. The addition of glutathione could markedly inhibit the peroxidase-like activity of 2D Ni/Fe-MOF nanosheets. Interestingly, due to the high specific affinity of Hg2+ for thiol groups in glutathione, further introduced Hg2+ could restore the suppressed TMB oxidation. According to the above principles, a colorimetric platform based on 2D Ni/Fe-MOFs nanosheets was constructed to recognize multiple targets, including H2O2, glutathione, and Hg2+, with LODs of 10 nM, 10 nM, and 100 nM, respectively. Due to the high density of active metal sites in 2D Ni/Fe-MOFs nanosheets, the synergistic effect between Ni and Fe strengthened the intrinsic catalytic behavior of each site. Meanwhile, as demonstrated from the UV-Vis spectra, compared with single-metal Ni-MOFs and Fe-MOFs, the peroxidase-like activities of the 2D Ni/Fe-MOFs nanosheets were enhanced by over 14-fold and 3-fold, respectively.
Subsequently, Zhao X. L. et al. designed a simple, rapid, and cost-effective colorimetric approach based on Co/Fe-MOFs-iodide (I−) nanozymes for detecting hydrogen sulfide (H2S) in real serum samples.151 In the presence of H2O2, Co/Fe-MOFs and I− could synergistically catalyze TMB to blue oxTMB, thereby enhancing the catalytic performance of Co/Fe-MOFs-I−. When H2S was present, the color rendering effect of TMB was suppressed and the system appeared a lighter blue (Fig. 19). A novel ultrahigh sensitivity H2S colorimetric platform was therefore established, with the lowest LOD of 0.33 nM. While in the absence of I−, the LOD was approximately 200 times higher than that from the amplified colorimetric assays.
![]() | ||
Fig. 19 Schematic illustration of H2S detection by Co/Fe-MOFs-I− nanozyme-based colorimetric sensors.151 |
The synthesis conditions of most MOFs (i.e. Fe-MOF and Cu-MOF) are harsh, generally requiring high temperature and high pressure, as well as numerous organic reagents. Nonetheless, biomimetic zeolitic imidazolate frameworks (ZIF) have attracted extensive attention due to their promising biocompatibility, diverse enzyme-like activities, and facile synthetic conditions. Nataraj N. et al. reported a novel Co-ZIF-67 nanozyme via a simple co-precipitation method at room temperature.152 Co-ZIF-67 nanozymes exhibited intrinsic peroxidase-mimicking performance and effectively oxidized TMB to produce blue oxTMB in the presence of H2O2. Interestingly, the abundant availability of Co-ZIF-67 active sites binding acetaminophen provided enhanced catalytic properties. Different concentrations of acetaminophen could oxidize TMB to generate varying degrees of dark blue. As a result, Co-ZIF-67 nanozymes were employed for the colorimetric detection of acetaminophen. Furthermore, Ran F. P. et al. first constructed a novel nanozyme sensor by utilizing the self-assembly of Au NCs and ZIF-8/polyamine functionalized quantum dots (CQDs).153 They found that the peroxidase-like activity of Au NCs can be significantly enhanced by heparin in the physiological environment (pH 7.4). Accordingly, the catalytic activity of Au NCs-ZIF-8/CQD nanozmes on TMB-H2O2 substrate was significantly improved (Fig. 20). Once protamine was introduced, due to the specific binding of protamin to heparin, heparin was unable to adsorb on the surface of ZIF-8/CQDs, thus significantly inhibiting the enhancement of the catalytic activity of Au-NCs. Based on the above facts, a facile and efficient colorimetric method was proposed for the quantitative detection of heparin and protamine in biological samples. These studies provide valuable references for designing MOFs-based nanozymes in colorimetric assays.
![]() | ||
Fig. 20 Schematic illustration of the colorimetric determination of heparin and protamine.153 |
(1) Since nanomaterials are easily aggregated and unstable, how to improve the catalytic activity and stability of nanozymes has become an urgent problem to be solved. Hence, modifying the surface of nanomaterials to synthesize efficient nanozymes with high catalytic activity and high affinity will be the focus of future research.
(2) In the detection of real biological samples, the non-specific adsorption of proteins to nanozymes will affect the catalytic activity of nanozymes, resulting in unsatisfactory detection results. For the development of novel nanozymes with high utilization, it is necessary to further investigate the anti-interference of their enzyme-like activities.
(3) In recent years, the potential safety, environmental, and health concerns of nanozymes have drawn public and academic attention to their toxicity. Faced with this challenge, besides the nanomaterials themselves, surface coatings and modifications should also be considered.
(4) In addition, considering the diversity of natural enzymes, designing nanozymes with novel catalytic properties, such as hydrolases and synthases, to greatly improve the selectivity of nanozymes will also be the focus of future work.
To sum up, although nanozyme-based colorimetric biosensors show broad prospects, the practical applications of basic and leading scientific achievements in clinical diagnosis, food analysis, immunoassay, and environmental monitoring requires more effort. We hope that this review can provide a certain reference value for the synthesis of nanozymes and their application in colorimetric analysis, which is helpful for their future development.
