Tung-Ho Wu‡
ab,
Yung-Yi Cheng‡c,
Jing-Ru Liou‡a,
Tzong-Der Wayd,
Chao-Jung Chenef,
Yung-Husan Cheng,
Sheng-Chu Kuoc,
Mohamed El-Shazlyh,
Fang-Rong Changaij,
Yang-Chang Wu*aklm and
Chih-Chuang Liaw*j
aGraduate Institute of Natural products, Kaohsiung Medical University, Kaohsiung 807, Taiwan
bDivision of Cardiovascular Surgery, Veterans General Hospital, Kaohsiung 813, Taiwan
cGraduate Institute of Pharmaceutical Chemistry, China Medical University, Taichung 404, Taiwan
dDepartment of Biological Science and Technology, College of Life Sciences, China Medical University, Taichung 404, Taiwan
eProteomics Core Laboratory, Department of Medical Research, China Medical University Hospital, Taichung 404, Taiwan
fGraduate Institute of Integrated Medicine, China Medical University, Taichung 404, Taiwan
gNational Museum of Marine Biology and Aquarium, Pingtung 944, Taiwan
hDepartment of Pharmacognosy and Natural Products Chemistry, Faculty of Pharmacy, Ain-Shams University, Organization of African Unity Street 11566, Abassia, Cairo, Egypt
iCancer Center, Kaohsiung Medical University Hospital, No. 100 Tz-You First Road, Kaohsiung 807, Taiwan
jDepartment of Marine Biotechnology and Resource, National Sun Yat-sen University, 70 Lienhai Road, Kaohsiung 80424, Taiwan. E-mail: ccliaw@mail.nsysu.edu.tw; Fax: +886-7-525-5020; Tel: +886-7-525-2000 ext. 5058
kSchool of Pharmacy, College of Pharmacy, China Medical University, Taichung 404, Taiwan. E-mail: yachwu@mail.cmu.edu.tw; Fax: +886-4-22060248; Tel: +886-4-22057153
lChinese Medicine Research and Development Center, China Medical University Hospital, Taichung 404, Taiwan
mCenter for Molecular Medicine, China Medical University Hospital, Taichung 404, Taiwan
First published on 30th April 2014
Three new diterpenes, polylongifoliaic A (1), polylongifoliaons A (4) and B (5), together with nine known diterpenes, were isolated from the unripe fruits of Polyalthia longifolia var. pendula. The structures of the new isolates were determined by extensive spectroscopic analysis. The effects of all the isolated compounds on the viability of human neuroblastoma SK-N-MC cells under β-amyloid (Aβ)-induced neurotoxicity were evaluated. Polylongifoliaic A (1), polylongifoliaon B (5) and 8–10 improved the viability of human neuroblastoma cells (SK-N-MC cells) under Aβ-induced neurotoxicity. Among the active compounds, polylongifoliaic A (1) and polylongifoliaon B (5) exhibited the most potent activity toward SK-N-MC cells with IC50 values of 1.64 μM and 3.75 μM, respectively. In addition, the isolated diterpenes were found to possess potent promising acetylcholinesterase inhibitory activity, which was revealed by the TLC bioautographic assay.
Polylongifoliaic A (1) was isolated as a white wax. The molecular formula of 1 was established as C20H28O5 by 13C NMR and HRFABMS data, representing seven indices of hydrogen deficiency (IHD). The UV absorption band at 216 nm and the IR absorption bands at 1749 and 1685 cm−1 suggested the presence of α,β-unsaturated γ-lactone and α,β-unsaturated carboxylic acid, respectively. The 13C NMR experiment revealed the presence of 20 carbons including four methyls, five methylenes, three methines and eight quaternary carbons (Table S1†). The 1H NMR spectrum indicated the presence of four methyl groups, including one olefinic methyl at δH 1.97 (3H, s, CH3-18), two tertiary methyl groups with overlapping signals at δH 0.93 (6H, s, CH3-19/CH3-20) and a secondary methyl group at δH 0.86 (3H, d, J = 6.5 Hz, CH3-17) (Table S1†). Two signals at δH 6.04 (1H, s, H-16) and 5.90 (1H, s, H-14), which are characteristic to the γ-hydroxyl α,β-unsaturated-γ-lactone moiety, were also detected, supporting the data from the UV and IR experiments (Table S1†). Comparing the spectral data of 1 with that of other known diterpenes, such as (4 → 2)-abeo-16-hydroxy-cleroda-2,13Z-dien-15,16-olide-2-al (6),17 revealed that 1 possesses a clerodane-type skeleton with a (4 → 2) rearranged ring A. This suggestion was further supported by HMBC correlations between δH 2.33 and 2.27 (m, 2H, H2-1) to δC 128.9 (C-2), 165.2 (C-4), 51.5 (C-5) and 55.5 (C-10) (Fig. 2). In addition, the 13C NMR data revealed that the aldehyde group (δC 189.3) attached to C-3 in 6 is replaced by a carboxylic group in 1 (δC 173.7). The A/B ring junction in 1 was deduced to be trans because of the lack of a NOESY correlation between δH 0.93 (CH3-19) and δH 1.67 (H-10). The key HMBC and COSY correlations are shown in Fig. 2. Therefore, the structure of 1 was assigned to be (4 → 2)-abeo-16-hydroxy-cleroda-2(4)E,13Z-dien-15,16-olide-2-oic acid.
Compounds 2 and 3 were isolated as a pair of diterpene enantiomers, and their stereochemistry was deduced by utilizing simulations of circular dichroism spectra by a time-dependent density functional theory.16 The isolation of these compounds (2 and 3) was previously reported but spectral data was not shown.16 Compound 2 was obtained as a white wax. Its molecular formula was calculated as C21H34O5 from the analysis of its positive HRFABMS data. The UV and IR absorption bands of 2 indicated the presence of a hydroxyl (IR: 3483 cm−1) and α,β-unsaturated lactone (UV: λmax 207 nm; IR: 1758 cm−1) functionalities. The 1H and 13C NMR signals of 2 (Table S1†) indicated the presence of four methyl protons [δH 1.27 (3H, s, CH3-18), 1.14 (3H, s, CH3-19), 0.79 (3H, s, CH3-20), 0.78 (3H, m, CH3-17)], one methoxy [δH 3.57 (3H, s, CH3-16)] and one oxymethine proton [δH 3.59 (1H, t, J = 2.5 Hz, H-3)]. The presence of the α,β-unsaturated lactone was supported by two characteristic proton signals [δH 5.87 (1H, s, H-14), 5.65 (1H, s, H-16)], as well as by typical carbon resonances [δC 104.4 (C-16), 170.8 (C-15), 117.6 (C-14), 168.5 (C-13)]. HMBC correlations [δH 3.59 (H-3)/δC 76.3 (C-5); δH 1.27 (H3-18), 1.14 (H3-19)/δC 76.3 (C-5), 76.3 (C-3), 41.3 (C-4); δH 1.75 (H-10β)/δC 76.3 (C-5)] confirmed the location of the quaternary hydroxylated carbon at C-5, which is next to the quaternary C-4 carbon with the geminal methyl groups (Fig. 2). The detailed analysis of the NMR spectral data of 2 revealed similarity to those of halimane-type diterpene, such as 3β,5β,16α-trihydroxy-halima-13Z-en-15,16-olide, except for an additional methoxy group in 2.5 The methoxy group was assigned to C-16 based on the key HMBC correlation between δH 3.57 (CH3-16) and δC 104.4 (C-16). To determine the stereochemistry of compound 2, its NOESY and CD spectra were analyzed (Fig. S1† and 3). The NOESY correlation between δH 1.14 (CH3-19) and 0.79 (CH3-20) confirmed the A/B ring junction of this bicyclic diterpene as cis, suggesting a β-orientation for H-10 and 5-OH (Fig. S1†). In addition, a smaller coupling constant and the NOESY correlations (Fig. S1†) confirmed the β-orientation of 3-OH. The CD spectrum of 2 (Fig. 3) demonstrated a positive Cotton effect due to n–π* transition (235–250 nm) and a negative Cotton effect due π–π* (200–220 nm) transition, suggesting an S configuration at C-16.16 Thus, the structure of 2 was assigned to be 3β,5β-dihydroxy-16α-methoxy-halima-13Z-en-15,16-olide.
Compound 3 was isolated as a white wax and was assigned the molecular formula of C21H34O5 based on its HRFABMS data. The UV, IR, 1D and 2D NMR spectroscopic data of 3 were identical to those of 2 (Table S1†), except for the CD spectrum (Fig. 3). The detected negative Cotton effect due to n–π* transition (235–250 nm) and the positive Cotton effect due to π–π* transition (200–220 nm) were opposite to those of 2, suggesting that 2 and 3 are epimers with 3 possessing the R configuration at C-16 (Fig. 3).16 Therefore, the structure of 3 was assigned to be 3β,5β-dihydroxy-16β-methoxy-halima-13Z-en-15,16-olide. The experimental CD spectra of 2 and 3 were in agreement with the ab initio calculations of CD spectra using Gaussian TDDFT (B3LYP) based on 6-31+G(d) and 6-311++G(d,p).16
Both polylongifoliaons A (4) and B (5) were isolated as white waxes. They had the same molecular formula (C21H30O4) as revealed by their HRFABMS data, which indicated seven IHD. The IR spectra of both 4 and 5 showed characteristic absorption bands, suggesting the presence of a hydroxyl (3449 cm−1), α,β-unsaturated γ-lactone (1757 cm−1) and conjugated carbonyl moieties (1681 cm−1). The 1H and 13C NMR spectra of 4 showed signals attributable to a clerodane diterpene with an α,β-unsaturated γ-lactone, including four methyl groups [δH 1.95 (3H, d, J = 1.0 Hz, CH3-18)/δC 19.3, δH 1.18 (3H, s, CH3-19)/δC 18.6, δH 0.90 (3H, s, CH3-20)/δC 18.1, δH 0.87 (3H, d, J = 6.2 Hz, CH3-18)/δC 16.0] and olefinic and oxymethine protons [δH 5.98 (1H, s, H-14)/δC 118.6, δH 5.82 (1H, s, H-16)/δC 106.3] with three quaternary carbons [δC 173.0, 170.4] (Table S2†). A proton signal [δH 5.72 (1H, s, H-3), a tertiary carbon [δC 125.8 (C-3)] and two quaternary carbons [δC 202.8 (C-2), 176.4, (C-4)] suggested that the C-2 position in 4 should be oxidized, which was further supported by the HMBC correlations [δH 5.72 (H-3)/δC 41.3 (C-5), 19.2 (C-18); δH 2.48, 2.29 (H2-1)/δC 202.8 (C-2), 47.0 (C-10)]. The detailed analysis of the NMR spectral data of 4 revealed its similarity to 16(R&S)-hydroxy-3,13Z-kolavadien-15,16-olide-2-one (9),17 except for an additional methoxy group [δH 3.55 (3H, s, CH3-16) and δC 57.6]. The HMBC correlation between δH 5.82 (H-16) and δC 57.6 (CH3-16) further confirmed the location of the methoxy group at C-16 in 4, instead of the hydroxyl group (16-OH) in 9.
The 1D and 2D NMR spectra of 4 and 5 were almost identical (Table S2†), but they showed different CD absorption (Fig. 3). Compound 4 displayed a positive Cotton effect at 291 (shoulder) and 240 nm due to n–π* excitation and a negative Cotton effect at 214 nm due to π–π* transition. On the other hand, 5 showed a positive Cotton effect at 291 (shoulder) and 240 (weak) nm for n–π* band and a strong negative Cotton effect at 203 nm for π–π* transition. By comparing these data with the CD data of known butenolides and applying the octant rule,24 the orientation of the methyl groups at C-19 in 4 and 5 were suggested as α. However, the orientation of the methoxy group at C-16 in 4 was assigned as α, and as β in 5.16 Finally, the structures of 4 and 5 were elucidated to be 16α-methoxy-3,13Z-kolavadien-15,16-olide-2-one and 16β-methoxy-3,13Z-kolavadien-15,16-olide-2-one, respectively.
The nine known compounds were identified by comparing their UV, IR, 1H NMR, 13C NMR and MS data with those reported in the literature.

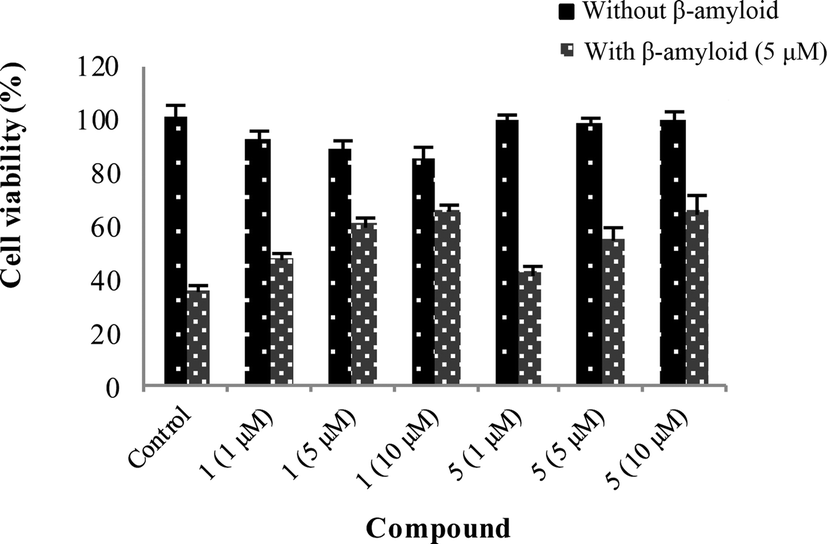

The recent findings on the neuroprotective activity of certain clerodane diterpenoids have encouraged us to evaluate the activity of the isolated compounds on the viability of human neuroblastoma SK-N-MC cells under Aβ-induced neurotoxicity (Fig. 4). The results indicated that the isolates did not exhibit cytotoxicity toward SK-N-MC cells except for 6 and 12, which were derivatives with an aldehyde group. In Fig. 4, 1 and 5 showed significant protective activity (65–66%) against Aβ1–42 insult at 10 μM. These compounds, 1 and 5, demonstrated their neuroprotective effect in a dose dependent manner with IC50 values of 1.64 μM and 3.75 μM, respectively (Fig. 5). On the other hand, compounds 8–10 exhibited moderate protection (37.7–42%) (Fig. 4). The activity was comparable to epigallocatechin gallate (EGCG) (48.5%), which is a well-known neuroprotective agent. Several studies have demonstrated the neuroprotective activity of EGCG and revealed its mechanism.25
![]() | ||
Fig. 4 The effect of the selected diterpenes isolated from P. longifolia var. pedula on SK-N-MC cell viability. Results are presented as mean ± S.E.M. (n = 3). |
To further understand the activity of the isolated diterpenoids, we sought to study the structure activity relationship (SAR) of these compounds. It was found that the substituent nature and its stereoconfiguration at C-16 in the 2-furanone ring significantly affects the neuroprotective activity of the isolated diterpenes. Compound 8 with an α hydroxyl group (electron withdrawing group) at C-16 exhibited more potent activity compared to 7 with a β hydroxyl group. On the other hand, 5 with a β methoxy group (electron donating group) was more active than 4 with an α methoxy group.
In addition, the inhibitory effect of the isolated compounds on AChE was examined. Compounds 1, 4, 5, 6, 9, 10 and 11 exhibited potent inhibitory effects on acetylcholinesterase (AChE) at a concentration of 20 μg mL−1 (Fig. S15†). The effect of the active compounds on AChE was comparable to galantamine, a marketed second generation acetylcholinesterase inhibitor.26 It is known that the accumulation of beta-amyloid peptides and the reduction in the activity of the cholinergic neurons are one of the well-known features of Alzheimer's disease (AD). However, no medication has been discovered to effectively delay or halt the progression of AD.27 The potent neuroprotective activity of the isolated compounds warrants further investigation to determine the mechanism of action of Polyalthia longifolia diterpenes.
Footnotes |
† Electronic supplementary information (ESI) available: full details of TLC bioautographic assay, the 1D and 2D spectroscopic data of compounds 1–5 and 11. See DOI: 10.1039/c4ra01879f |
‡ These authors contributed equally to this work. |
