Pillared clay-supported gold catalysts for CO oxidation

Abstract

Gold supported on various bentonites was prepared using hydrothermal and co-precipitation methods. The catalysts were characterized by FT-IR, BET, XRD, TEM, SEM, XPS and ICP and tested for CO oxidation reaction. It was found that the Au–Al–Ce pillared bentonite, Au–Al–Ce/Na-LBen (CP) and Au–Al–Ce/Na-LBen (HT), have better catalytic activity and stability than Au/Na-Lben and Au/Al–Ce–Na-LBen. Characterization results show that gold nanoparticles could move into the interlayer spaces of bentonite, which contributes to the high stability of the Au–Al–Ce/Na-LBen (HT) and Au–Al–Ce/Na-LBen (CP) samples. Ce oxide is distributed on the surface of Au–Al–Ce/Na-LBen (HT), while it stays in the interlayers of the bentonite in the Au–Al–Ce/Na-LBen (CP) sample. The pillaring process could increase the d₍₀₀₁₎ space of the bentonite since the Ce and Au species could move into the interlayer space of the bentonite. The acid-activation process clearly increases the surface area of the bentonite, while the pillaring process increases the surface area of the samples slightly.

---

1. Introduction

In recent years, gold catalysis has become a hot topic in chemistry.^1,2 The catalytic activity of supported gold particles was discovered in the 1980s by Masatake Haruta.^3,4 His pioneering work initiated extensive activities in applied and fundamental research in this field.⁵ Following the pioneering work of Haruta et al. on the application of supported gold nanoparticles as catalysts for low-temperature CO oxidation, gold catalysts have been widely studied.⁶ The synthesis of gold nanoparticles supported on a variety of metal oxides, such as TiO₂, Fe₂O₃, ZrO₂, CeO₂, and Al₂O_3, has been reported.^7–9

The catalytic performance of Au is defined by three major factors: contact structure, support selection, and particle size, the first of which being the most important because the perimeter interfaces around Au particles act as the site for reaction.¹⁰ The use of Au as a catalyst requires careful and unconventional preparation of the Au clusters, focused on achieving very small and stable Au particles (<5 nm).^3,11,12 The problem is that Au nanoparticles (NPs) can move and aggregate into larger particles on the support surface, which is one of the key issues impeding the application of Au catalysts.^13–15

Clays are layered oxide materials, which widely exits in nature and could be used as catalyst supports.^6,16–18 By exchanging the interlayered cations of layered clays with bulky inorganic polyoxocations, followed by calcination, the intercalated polycations increase the basal spacing of the clays and, upon heating, they convert to metal oxide clusters by dehydration and dehydroxylation. In such process the clays became pillared clays. The metal oxide clusters, named pillars, are inserted between the clay layers, yielding temperature stable oxide pillars that permanently keep the layers apart.¹⁸ Previous experiments tried to stabilize metal nanoparticles into the interlayer spaces of clay minerals of the smectite group like montmorillonite, hectorite and saponite.^1,2,8,15 Several methods were also reported in the literature for preparation of metal nanoparticles in the interlayer space of modified montmorillonite.^6,19,20

As a kind of clay, bentonite has been widely used in many industries as filter materials, decolorant, and adsorbents and so on.^21,22 The bentonite used as catalyst support remains an important research area, drawing much attention due to its large surface area and moderate reactivity.^{14,15,23–31}

In order to acquire the Au nanoparticles confined in the interlayer space of modified bentonite, the bentonite supported Au–Al–Ce pillaring catalysts were prepared in the present work, and compared with Au nanoparticles catalysts supported on Al–Ce pillared bentonite.^19,20,25 The catalyst performance was evaluated for the CO oxidation reaction (2CO + O₂ → 2CO₂), and the catalysts were characterized by FT-IR, BET, XRD, TEM, SEM, XPS and ICP.

2. Experimental

2.1. Preparation of supports and catalyst

The original clay is a commercial type natural bentonite from Jiangxi province, China. It is a calcium montmorillonite, previously separated through a 80 mesh sieve and dipped in deionized water for 24 h. The bentonite was obtained, centrifuged and dried at 70 °C for 12 h. 10 g bentonite was dissolved in 30% (w/w) H₂SO₄ solution at 70 °C for 6 h with the ratio of acid/bentonite (w/w) = 5 : 1. The acid-activated bentonite was centrifuged, washed with deionized water until the pH of the solution became 7, and then dried at 80 °C. The dried acid-activated bentonite was grinded into powders and labeled as LBen. Then sodium bentonite was obtained by dispersing LBen to NaCl aqueous solution with constant stirring at 60 °C for 3 h, until a ratio NaCl/clay (mol g⁻¹) = 0.1 was obtained. The clay was then centrifuged and washed with deionized water repeatedly up to the end of chlorides. The bentonite obtained was dried at 80 °C and labeled as Na-Lben.

Al–Ce pillaring solution had been prepared by AlCl₃·6H₂O and Ce(NO₃)₃·6H₂O, with the Ce/(Al + Ce) molar ratio of 20% and molar concentration for Al³⁺ of 0.5 M. Then the dilute NaOH solution (0.05 M) was added into the mixture slowly until the OH⁻/metal molar ratio reaches 2.6. Hydrothermal treatments were carried out in Teflon coated stainless steel pressure vessels, which were slowly rotated for 24 h at 120 °C. Then, the vessels were cooled to room temperature and opened under atmospheric pressure. The mixtures were added drop-wise to Na-LBen slurry (bentonite/water ration of 2 g/0.1 L), until the reaction mixture/Na-LBen ratio reaches 20 mmol g⁻¹. Then the mixture was stirred continuously for 48 h at 60 °C, after which the mixture was filtered and washed with deionized water until the chlorides were removed. Then, the samples were dried at 80 °C and calcined at 400 °C for 2 h. This sample is labeled as Al–Ce–Na-LBen.

Au/Na-LBen and Au/Al–Ce–Na-LBen catalysts were prepared by deposition–precipitation method with an aqueous of HAuCl₄·4H₂O as gold precursor. 1 g of Na-LBen and Al–Ce–Na-LBen were mixed with 10 ml HAuCl₄ solution separately. The suspension was constantly stirred at 70 °C for 2 h, and then 0.5 M NaOH solution was added to the suspension until the pH of the mixture became 8–9. The suspension was then filtered and washed with large amount of deionized water until the chlorides were removed, dried at 80 °C and calcined at 400 °C for 3 h.

Au–Al–Ce pillaring solutions were prepared by co-precipitation method and hydrothermal treatment, respectively. For the co-precipitation method, AlCl₃·6H₂O, Ce(NO₃)₃·6H₂O and a certain amount of HAuCl₄·4H₂O were firstly dissolved into water, with the Al/Ce molar ratios of 20, and the Al³⁺ molar concentration of 0.5 M. A dilute NaOH solution (0.05 M) was added into the suspensions slowly until the ratio of OH⁻/metal reaches 2.6. The mixture was stirred at 70 °C for 24 h. Then, the reaction mixture was added drop-wise to Na-LBen slurry (2 g/0.1 L), until the mixture/Na-LBen ratio reaches 20 mmol g⁻¹. Then the mixture was stirred continuously for 48 h at 60 °C, filtered, washed with deionized water until the chlorides were removed, dried at 80 °C and calcined at 400 °C for 3 h. This sample is labeled as Au–Al–Ce/Na-LBen (CP). For the hydrothermal treatment, the AlCl₃·6H₂O, Ce(NO₃)₃·6H₂O and HAuCl₄·4H₂O solution and NaOH mixture was kept at 120 °C in Teflon coated stainless steel pressure vessels for 24 h. Then, the mixture was added to the Na-LBen slurry (2 g/0.1 L), until the mixture/Na-LBen ratio reaches 20 mmol g⁻¹ and stirred for 24 h at room temperature. Then, the products were filtered, washed with deionized water until the chlorides were removed, dried at 80 °C and calcined at 400 °C for 3 h. This sample is labeled as Au–Al–Ce/Na-LBen (HT).

2.2. Catalytic activity tests

The catalysts were evaluated for the CO oxidation reaction with a micro-reactor (stainless steel U-shaped tube, 4 mm id) under atmospheric pressure. The sample (100 mg) is placed among quartz sand. A K-type thermocouple was used to control the reaction temperature. The composition of the feed gas contains 3% CO, 3% O₂ with N₂ as carrier gas and a flow rate of 30 mL min⁻¹, which corresponds to a gas hourly space velocity (GHSV) of 18 000 mL g⁻¹ cat⁻¹ h⁻¹. The catalyst was reduced in situ under hydrogen flow (30 mL min⁻¹) at 150 °C for 2 h before the reaction was performed. The reactants and products were analyzed on-line with a GC7890I gas chromatograph equipped with TDX-01 column and TCD with optimized working conditions of carrier gas flow rate at 35–42 mL min⁻¹, column temperature at 80 °C, injector temperature at 100 °C and detector temperature at 110 °C. Before the products analysis, the reaction over the catalysts at each temperature was stabilized for 30 minutes to get steady data.

2.3. Characterization

The contents of the catalysts were analyzed by ICP-AES (optima 5300DV, PE, USA) quantitative analyses (Au line 267.595 Å, plasma power 1200 W, plasma flow 1.5 L min⁻¹).

XPS characterization was carried out on a Perkin-Elmer PHI1600 system using a single Mg–K-X-ray source operating at 300 W and 15 kV of voltage. The spectra were obtained at ambient temperature with an ultrahigh vacuum. The binding energies were calibrated using the C 1s peak of graphite at 284.5 eV as a reference.

XRD analyses were performed on a Bruker AXS D8 Focus diffract meter instrument operated at 40 kV and 40 mA with Cu target Kα-ray irradiation. Scans were collected over a range of 2θ from 2° to 90° with a speed of 2° min⁻¹.

The specific surface area, pore volume, and average pore diameter of the supports and catalysts were measured by BET methods using a Micromeritics ASAP2020C instrument. Before analysis, the samples were degassed for 1 h at 90 °C and 10 h at 200 °C in vacuum.

The morphologies of the samples were investigated by scanning electron microscopy (SEM, FEI Quanta 200F).

Transmission and high resolution transmission electron microscopic images were obtained on a JEOL JSM-2010 electron microscope. The powders were suspended in ethanol for about 10 min under ultrasonic treatment before been deposited on carbon-film-coated copper grids. The average gold particle diameter and its distribution were determined by counting more than 50 particles.

FT-IR spectral data (KBr pellets) were collected in the range of 400–4000 cm⁻¹ on VARIAN 2000 FT-IR.

3. Results and discussion

3.1. Characterization

3.1.1 ICP and XPS. The compositions of Au and Ce of the catalysts were characterized by ICP and XPS, and the results are shown in Table 1. For Au–Al–Ce/Na-LBen (CP), Au–Al–Ce/Na-LBen (HT) and Au/Al–Ce–Na-LBen, the real surface contents of Au characterized by XPS are less than that of ICP. It indicates that part of the Au nanoparticles has gone into the inter-layers of the bentonite. In addition, it is found the XPS results show that the surface contents of Ce in Au–Al–Ce/Na-LBen (CP) is 0, vs. 6.14% for the Au–Al–Ce/Na-LBen (HT) sample. It suggests that Ce distributes on the surface of Au–Al–Ce/Na-LBen (HT). While, for Au–Al–Ce/Na-LBen (CP), Ce stays in the interlayers of the bentonite.

Table 1 The real contents of Au and Ce were measured by ICP and XPS

Sample	ICP		XPS
	Au (%)	Ce (%)	Au (%)	Ce (%)
Au/Na-LBen	0.01	—	0.04	—
Au/Al–Ce–Na-LBen	0.32	0.018	0.11	3.23
Au–Al–Ce/Na-LBen (CP)	0.39	0.009	0.18	0
Au–Al–Ce/Na-LBen (HT)	0.36	0.011	0.16	6.14

---

3.1.2 XRD and BET. X-ray diffraction was used to characterize the structures of the samples. XRD diagrams between 2° and 90° (2θ) of Au/Al–Ce–Na-LBen, Au/Na-LBen, Au–Al–Ce/Na-LBen (HT) and Au–Al–Ce/Na-LBen (CP) are presented in Fig. 3. 2θ angles at about 19.88 and 26.78 belong to kaolinite and SiO₂, respectively.³² It can be seen that the d₍₀₀₁₎ spacing of Na-LBen is 12.35 Å, while the d₍₀₀₁₎ spacings of Au–Al–Ce/Na-LBen (HT) and Au–Al–Ce/Na-LBen (CP) are 14.19 Å and 14.04 Å respectively. Shifting of 2θ valuing from 7.350 to 6.290 clearly suggests expansion of clay layers during preparation. The d₍₀₀₁₎ spacing increased from 12.35 Å (Na-LBen) to 12.51 Å for Au/Al–Ce–Na-LBen in the present case, indicating the presence of ion substituted Al–Ce pillaring solution as polymers. These sentences should be rewritten. In addition, it is found that the XRD diagrams of Au–Al–Ce/Na-LBen (CP) and Au–Al–Ce/Na-LBen (HT) show strong peaks of CeO₂. On the contrary, the Au/Al–Ce–Na-LBen sample does not show the CeO₂ peak. It indicates that the Ce aggregated into larger particles in Au–Al–Ce/Na-LBen (CP) and Au–Al–Ce/Na-LBen (HT), while Ce was highly dispersed in Au/Al–Ce–Na-LBen.

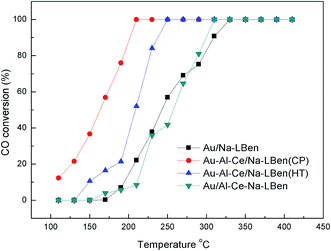

Fig. 1 Reaction performance of the catalysts for CO oxidation.

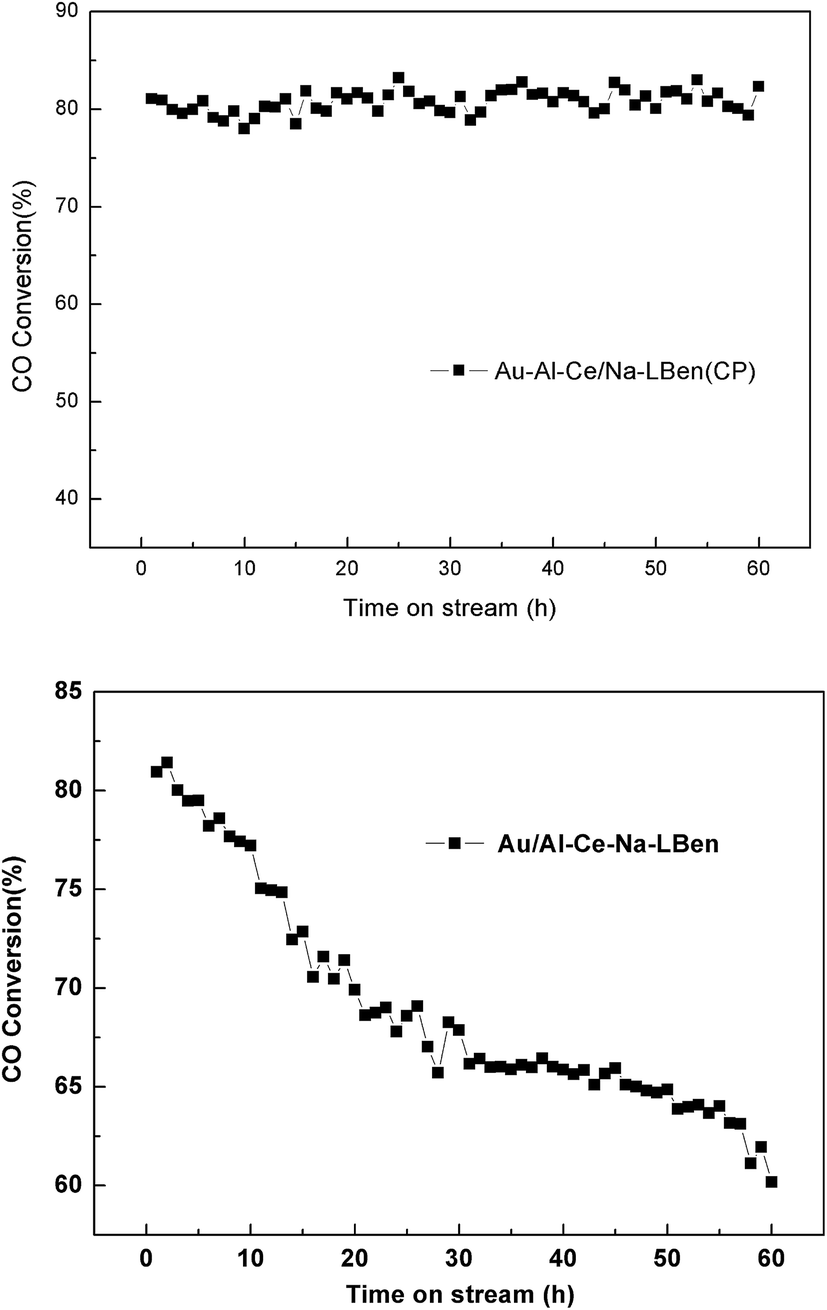

Fig. 2 Time-on-stream evolution of the catalyst for CO conversion.

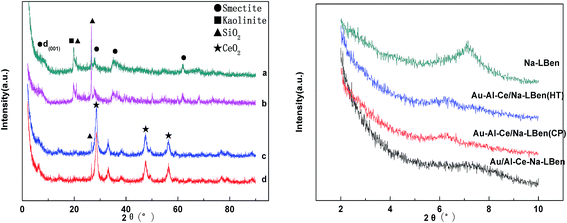

Fig. 3 XRD patterns of the catalysts. (a) Au/Al–Ce–Na-LBen, (b) Au/Na-LBen, (c) Au–Al–Ce/Na-LBen (HT), (d) Au–Al–Ce/Na-LBen (CP).

BET surface area, average pore volume, and average pore diameter for all the samples are shown in Table 2. It shows that the original Ben had a BET surface area of 35.5 m² g⁻¹, after the acid-activation, the LBen became 210.9 m² g⁻¹, it indicates the acid-activation process could increase the BET surfaces of the bentonite. While, direct ion-exchange process could reduce the BET surface areas of the samples, as indicated by the BET surface area of Ben and LBen (35.5 and 210.9) vs. Na-Ben and Na-LBen (32.8 and 153.8 m² g⁻¹). In addition, it is found that the BET surface area of Na-LBen increases from 153.8 to 187.3 m² g⁻¹ for Au–Al–Ce/Na-LBen (CP). It indicates that the pillaring process increases the BET surface area of the samples,³³ since the process creates regular porosity. However, the surface area of Al–Ce–Na-Lben decreased from 179.7 to 168.1 m² g⁻¹ for Au/Al–Ce–Na-LBen. This may because some of the Au nanoparticles go into the interlayers of the bentonite.

Table 2 BET surface area, pore volume and average pore size of the catalyst supports and catalysts

Sample	Average pore diameter (nm)	Pore volume (cm^3 g^−1)	SBET (m^2 g^−1)
Ben	6.68	0.059	35.5
LBen	4.23	0.223	210.9
Na-Ben	7.07	0.058	32.8
Na-LBen	4.61	0.177	153.8
Al–Ce–Na-LBen	9.02	0.405	179.7
Au/Al–Ce–Na-LBen	9.72	0.408	168.1
Au–Al–Ce/Na-LBen (HT)	11.6	0.449	154.1
Au–Al–Ce/Na-LBen (CP)	4.46	0.209	187.3

---

3.1.3 TEM and SEM. The TEM images of Au–Al–Ce/Na-LBen (CP) and Au/Al–Ce–Na-LBen are depicted in Fig. 4. It shows that bentonite has a layered structure and a two-dimension porous structure with small basal spacing. For Na-LBen the layers are obviously kept apart, obtaining large pore structures and the large d₍₀₀₁₎ spacing. It is reported that the intercalated polycations increase the basal spacing of the clays and, upon heating they are converted to metal oxide clusters by dehydration and dehydroxylation processes. These metal oxide clusters (pillars) between clay layers permanently keep apart the layers, generating an interlayer space of molecular dimensions.^15,29 Fig. 4(a) and (b) show that both Au–Al–Ce pillaring species and Au nanoparticles appeared as particles, in the diameter of 5–19 and 1–4 nm respectively. In adition, for the Au/Al–Ce–Na-LBen, some of the Au nanoparticles entered the interlayers of bentonite. For the Au–Al–Ce/Na-LBen (CP), the Au–Al–Ce pillaring species homogeneously dispersed in the interlayers of bentonite.

Fig. 4 TEM images of the catalysts (a) and (c) Au–Al–Ce/Na-LBen (CP) (b) and (d) Au/Al–Ce–Na-LBen.

SEM micrographs of Au–Al–Ce/Na-LBen (CP) and Au/Al–Ce–Na-LBen are illustrated in Fig. 5. It is shows that the Au–Al–Ce/Na-LBen (CP) sample has a uniform particles size. While, the particle sizes of Au/Al–Ce–Na-LBen are irregular.

Fig. 5 SEM images of the catalysts (a) Au–Al–Ce/Na-Lben (CP) (b) Au/Al–Ce–Na-LBen.

3.1.4 FT-IR. The FT-IR spectra of Al–Ce–Na-Lben, Na-Lben, Au–Al–Ce/Na-LBen (CP), Au–Al–Ce/Na-LBen (HT), Au/Na-Lben and Au/Al–Ce–Na-LBen are shown in Fig. 6. The spectrum of Na-LBen showed the characteristic bands in the range of 3300–3800 cm⁻¹ presents the interlayer H-bonded O–H, 1623 cm⁻¹ (H–O–H bending), 1037 cm⁻¹, 1098 cm⁻¹ (Si–O stretching), 521 and 465 cm⁻¹ (Si–O–Si and Si–O–Al deformation vibrations, respectively).²⁴ Meanwhile, compared with pure Na-LBen, the characteristic peaks of other samples have some changes, due to the interactions between the supports and nanoparticles.

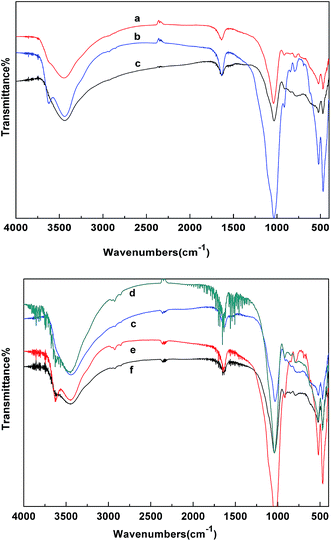

Fig. 6 FT-IR spectra of the catalysts. (a) Al–Ce–Na-Lben, (b) Na-Lben, (c) Au–Al–Ce/Na-LBen (CP), (d) Au–Al–Ce/Na-LBen (HT), (e) Au/Na-Lben, (f) Au/Al–Ce–Na-LBen.

3.2. Catalytic activity and stability tests

The selectivity of the CO oxidation to CO₂ is 100%. The yield of CO₂ is equal to the CO conversion. The catalytic performances of the prepared catalysts for CO oxidation are shown in Fig. 1. It should be mentioned that the clay without gold does not show any catalytic activity for the CO oxidation. Our results show that the activity of Au catalysts for CO oxidation highly depends on the type of supports and the preparation methods. In addition, the CO conversion increases as the temperature rises at low temperature. Fig. 1 shows that Au/Na-LBen acquires its best performance until the temperature reaches 330 °C. Au/Al–Ce–Na-LBen acquires its best performance until the temperature reaches 310 °C. Au–Al–Ce/Na-LBen (CP) could reach its best performance at 200 °C (the turnover number of the CO oxidation over Au–Al–Ce/Na-LBen (CP) catalyst is 2.15 × 10¹⁶ s⁻¹ m⁻² for 100% CO conversion.), vs. 240 °C for Au–Al–Ce/Na-LBen (HT) and 310 °C for Au/Al–Ce–Na-LBen. It indicates that Au–Al–Ce pillaring species and the co-precipitation method contribute to the high CO conversion activity of the catalysts.

Some experiments reported that the gold nanoparticles could catalyze the CO oxidation reaction at lower temperature.^4,9,34 It should be noted that the catalytic performance of Au is defined by three major factors:¹⁰ contact structure, support selection, and particle size, the first of which being the most important because the perimeter interfaces around Au particles act as the site for reaction. The sizes of the gold particles of the Au–Al–Ce/Na-LBen (CP) catalyst are as small as the reported work, while the contact structure and support interaction are different, which may contribute to the activity of the catalyst.

Except for the activity, the stability of the catalyst is another important factor to evaluate the catalytic performance. Fig. 2 shows the durability tests of CO oxidation for the Au–Al–Ce/Na-LBen (CP) and Au/Al–Ce–Na-LBen. The reaction temperature for Au–Al–Ce/Na-LBen (CP) and Au/Al–Ce–Na-LBen are 170 °C and 290 °C, respectively, which obtained ∼80% CO conversions. Fig. 2 shows that no obvious deactivation was observed for the Au–Al–Ce/Na-LBen (CP) catalyst during the 60 h's evaluation. While, the CO conversion over the Au/Al–Ce–Na-LBen decreases from 80% to 60% in 60 h's evaluation. It indicates that the Au–Al–Ce/Na-LBen (CP) shows much better stability than Au/Al–Ce–Na-LBen.

Furthermore, we tried to stop the CO oxidation reaction over the Au–Al–Ce/Na-LBen (CP) catalyst and restart the reaction after the reactor was cooled to room temperature. It shows that Au–Al–Ce/Na-LBen (CP) catalyst could perform as well as the first run.

4. Conclusions

Au/Na-Lben, Au–Al–Ce/Na-LBen (HT), Au–Al–Ce/Na-LBen (CP) and Au/Al–Ce–Na-LBen catalysts are synthesized using hydrothermal and co-precipitation methods for CO oxidation reaction. It is found that Au–Al–Ce/Na-LBen (CP) and Au–Al–Ce/Na-LBen (HT) have better catalytic activity and stability than Au/Na-Lben and Au/Al–Ce–Na-LBen. The samples were characterized using XPS, XRD, BET, TEM, SEM and FT-IR. XPS analysis found that Ce oxide distributes on the surface of Au–Al–Ce/Na-LBen (HT), while stays in the interlayers of the bentonite for the sample Au–Al–Ce/Na-LBen (CP). In addition, the gold nanoparticle could move into the interlayer spaces of bentonite, which contributes to the high stability of the Au–Al–Ce/Na-LBen (HT), Au–Al–Ce/Na-LBen (CP) samples. The XRD characterization indicates that the pillaring process could increase the d₍₀₀₁₎ space of the bentonite since the Ce and Au species could move into the interlayer space of the bentonite. The BET results show that the acid-activation process obviously increases the surface area of the bentonite, while the pillaring process increases the surface area of the samples slightly. The TEM results indicate that the Au–Al–Ce pillaring species homogeneously dispersed in the interlayer of bentonite for Au–Al–Ce/Na-LBen (CP). SEM micrograph shows that the Au–Al–Ce/Na-LBen (CP) sample has a uniform particles size, while, the particle sizes of Au/Al–Ce–Na-LBen (24 h) are irregular. The FTIR results show that, compared with Na-LBen, some new peaks emerged for the samples with Au, due to the interaction between the supports and nanoparticles.
