A (μ-oxo) dicopper complex anchoring graphitized mesoporous carbon surface prepared by an in situ electrochemical method for bioinspired electrocatalytic reduction of nitrite to ammonia and sensing

Abstract

The design and development of functional biomimetic systems that resemble natural enzymes is highly challenging. Cytochrome c nitrite reductase (ccNiR), a specific enzyme containing multiple heme sites, functions as a catalyst for converting nitrite to ammonium through a complex six-electron transfer reaction under physiological conditions. In the literature, only a few homogeneous biomimetic metal complexes catalyzing nitrite reduction were reported, all under non-physiological conditions (organic and acid media). Herein, we developed a bioinspired copper(II)–BPA(μ-oxo) complex (BPA = bis(pyrid-2-ylmethyl)amine), denoted as {Cu₂(μ-O)₂}, immobilized on a graphitized mesoporous carbon modified glassy carbon electrode, GCE/GMC@{Cu₂(μ-O)₂}, which was prepared by an in situ electrochemical reaction of a precursor complex, {Cu(BPA)Cl}. The as-prepared GCE/GMC@{Cu₂(μ-O)₂} worked as an efficient biomimetic heterogeneous electrocatalyst for the reduction of nitrite into ammonia, in an aqueous medium and at neutral pH. This bioinspired system showed a stable and well-defined redox system with E^o′ = −220 mV vs. Ag/AgCl, and a surface-excess value of 83.9 nmol cm⁻². The peak potential is much lower (>500 mV) than that of the unmodified electrode. In the presence of nitrite, a well-defined irreversible reduction peak at −0.250 V vs. Ag/AgCl is developed, which was assigned to the electrocatalytic reduction of nitrite. The molecular reaction and product formation were confirmed by SEM, TEM, Raman, IR, electrochemical quartz crystal microbalance (EQCM), and ESI-MS. A strong π–π interaction between the graphitic sp² carbons and the aromatic sp² in the BPA-pyridyl moiety of the metal complex favors good stability. To prove its functional application, the electroanalytical performance and bulk electrolysis conversion of nitrite into ammonia (faradaic efficiency of 92 ± 1%) were demonstrated.

---

1. Introduction

Nitrite (NO₂⁻) is ubiquitous in natural terrestrial and aquatic environments where it functions as an intermediate in the biological reduction of nitrate (NO₃⁻) into molecular nitrogen (N₂) or ammonia (NH₃), throughout the denitrification and ammonification branches of the nitrogen cycle, respectively. It also partakes in the reverse direction, i.e., the oxidation of ammonia back to nitrate, through the nitrification pathway.^1–4 All these processes occur in a highly articulated manner, though, in intensively managed environments, the local biological N-cycle can be perturbed to the point that its ecological functioning is compromised. In particular, the excessive load of nitrite in soils and water bodies, directly or indirectly through modern agricultural practices and some industrial activities, can put the ecosystems and human health at risk.^5–7 The ecological and environmental importance of the microbial transformations of nitrite within the N-cycle has thus gained much attention and driven extensive research over the last five decades (Besson et al. provide a detailed account of this topic).⁸ Major progress was made in the characterization of the bacterial enzymes performing these reactions and their catalytic mechanisms,^3,8 as well as on potential applications in radioactive waste conversion,⁹ clinical diagnoses,¹⁰ biosensors,^11–15 electrocatalysis,^16–22 and electrochemical sensing.^23–32

In this work, we will focus on the direct nitrite reduction into ammonium, NO₂⁻ + 8H⁺ + 6e⁻ → NH₄⁺ + 2H₂O (E^o′ = 0.103 vs. Ag/AgCl at pH 7), which is considered a challenging step in the global N-cycle.^33,34 This complex six-electron and eight-proton transfer reaction is catalyzed by the well-characterized cytochrome c nitrite reductase (ccNiR), also coined as NrfA, a bacterial enzyme containing five c-type heme sites.⁸ ccNiR catalyzes the nitrite to ammonium conversion via intramolecular binding of nitrite on a low-valent aquo-ligand containing iron site Fe(II), through a multi-electron-transfer pathway.^33,34 This reaction has been studied by electrochemical techniques using enzyme-modified electrodes,^35,36 which have also been explored for bioelectroanalytical applications^37–39 where the selectivity and sensitivity of detection have been shown to be major advantages. However, their mass production has been hindered by issues such as the cost of enzyme purification and the biosensor shelf-life.

Several authors have been trying to mimic the bioelectrocatalytic reduction of nitrite, but this has proved to be a challenging task. Biomimicking molecular systems based on MoS₂,⁴⁰ Cu-tris(triazolyl)borate,⁴¹ Cu-bearing four-carboxylate ligand (6-chloromethylpyridine-2-carboxylic acid),⁴² cobalt-tripeptide complex,⁴³ and the Fe-pentadentate macrocycle 2,13-dimethyl-3,6,9,1,2,18-pentaazabicyclo[12.3.1]octadeca-1(18),2,12,14,16-pentaene complex¹⁹ have been developed as molecular electrocatalysts. However, the procedures involve complicated synthetic routes,⁴³ non-physiological medium (non-aqueous solutions),^19,41–44 homogeneous conditions^19,41–44 and require a high-over potential (η > 500 mV) for nitrite reduction.^19,42–44 Meanwhile, there have been many reports on metal and metal oxide based nitrite reduction with non-biomimetic approaches.^45–48

Herein, we report a copper(I) bis(pyrid-2-ylmethyl)amine-(μ-oxo) complex, {Cu₂(μ-O)₂}, for the highly efficient biomimicking electrocatalytic reduction of nitrite into ammonia, at physiological pH and lower over-potentials (−0.250 V vs. Ag/AgCl). The complex was obtained by a simple and quick electrochemical method, which anchored it to graphitized mesoporous carbon. The as-prepared heterogeneous electrocatalyst was characterized using Raman, FTIR, a transmission electron microscope (TEM), an electrochemical quartz crystal microbalance (EQCM), and ESI-MS, which revealed that an authentic-active site has been involved in the electrocatalytic reaction. By using scanning-electrochemical microscopy (SECM), active electrochemical spots on the electrocatalytic surface were visualized. The electrochemical kinetics of the nitrite reduction reaction was monitored using the rotating disc electrode (RDE) technique. The number of electrons involved in the reaction was calculated by CV, RDE, and bulk electrolysis techniques. As functional applications, the bulk electrolytic conversion of nitrite to ammonia, and the electrocatalytic sensing of nitrite by amperometric i–t have been demonstrated.

2. Experimental section

2.1. Chemicals and reagents

Carbon black, N330 grade, was obtained from Phillips Carbon Black Ltd Kochi, India as a gift sample. Pristine multiwalled carbon nanotubes (MWCNTs) with a purity of ∼90 wt% (carbon basis), 10–15 nm outer diameter, 2–6 nm inner diameter and 0.1–10 μm length; double-walled carbon nanotubes (DWCNTs) with a purity of ∼90 wt% (carbon basis), 3–4 nm diameter and 1–10 μm length; single-walled carbon nanotubes (SWCNTs) with a purity of ∼70 wt% (carbon basis) and 0.7–1.1 nm diameter; graphitized mesoporous carbon (GMC) with purity assay of >99.95% and <50 nm pore size; and activated charcoal (AC) with purity assay >99.95% and 2–12 μm diameter were obtained from Merck, India. All other analytical grade chemicals were used as received. Aqueous solutions were prepared using deionized and alkaline KMnO₄ double distilled water (DDW). A phosphate buffer solution (PBS) at pH 7 was used as a supporting electrolyte. Unless stated otherwise, all solutions were N₂-gas purged for 20 minutes before measurements.

2.2. Apparatus

The cyclic voltammetric experiment was performed using a FRA2 μAutolab Type III potentiostat/galvanostat from Metrohm Autolab, Netherlands with an electrochemical cell volume of 10 mL. The three-electrode system consists of a glassy carbon electrode (GCE, working electrode) with a geometrical surface area of 0.0707 cm², an Ag/AgCl, 3 M KCl (reference electrode) and a platinum wire (counter electrode). Raman spectroscopy analysis was conducted using an AZILTRON PRO 532 (USA) with a 532 nm laser excitation source. FTIR analysis was done using a JASCO 4100 spectrophotometer and the KBr method. A Nano Lc-ESi-QTOF Qstar Elite (ABSciex Pte Ltd) instrument was adopted for ESI-mass analysis. In situ CV-EQCM experiments were carried out using a gold single crystal electrode (EQCM-Au) with a geometric surface area of 0.196 cm². SECM analysis was carried out using a PAR (Princeton Applied Research, USA) Versascan bipotentiostat through a feedback mode operation. A GCE with a geometric area of 0.0707 cm² (3 mm diameter) and 25 μm Pt-tip ultramicroelectrode under bipotentiostat conditions was used for the SECM surface morphology studies. Prior to the analysis, the position of the Pt-tip against the modified electrode substrate was fixed from an approach curve in the feedback mode, obtained by moving the Pt-tip position at a speed of 2 μm s⁻¹ in the z-axis direction, at a fixed applied potential of 0.36 V vs. Ag/AgCl, and substrate potential of 0.53 V vs. Ag/AgCl, at which the diffusion-controlled redox cycling of Fe³⁺/Fe²⁺ occurs.

2.3. Synthesis of bis(pyrid-2-ylmethyl)amine (L1)

The ligand was synthesized using the previously reported procedure.⁴⁹ In brief, 20 mL methanolic solutions of N-pyridylamine (0.74 g, 10 mmol) and pyridine-2-carboxaldehyde (1.10 g, 10 mmol) were mixed and stirred overnight to get a bright yellow solution. To this, NaBH₄ (0.57 g, 15 mmol) was added, and the solution was stirred for another day, followed by rotary-evaporation to dry. The resulting solid was dissolved in water, wherein the organic layer was extracted with CH₂Cl₂ and dried with anhydrous sodium sulphate. The CH₂Cl₂ layer was rotary-evaporated to get bis(pyrid-2-ylmethyl)amine (BPA) as a yellow oil. The compound's structural features were confirmed through the ¹H NMR data (200 MHz, CDCl₃): δ 8.54–7.36 (m, 8H), 3.91 (s, 4H), 2.28 (t, 2H), 1.32 (m, 2H), 1.11 (t, 3H). ESI-MS m/z = 241: C₁₅H₁₉N₃⁺.

2.4. Preparation of the copper(II) L1-complex, {Cu(BPA)Cl}

The reported procedure was used to prepare this complex.⁵⁰ To a 10 mL methanolic solution of the ligand BPA (0.17 g, 1 mmol), a 5 mL solution of CuCl₂·2H₂O (0.170 g, 1 mmol) in methanol was added, stirred well, and cooled. The pale blue crystalline precipitate obtained was filtered off, washed with small amounts of cold methanol, and vacuum dried, resulting in a 75% yield (0.22 g). The electronic spectral data of the ligand – two peaks at 664 nm (124 M⁻¹ cm⁻¹) and 263 nm (18 850 M⁻¹ cm⁻¹) – matched the reported values.⁴⁹ The ESI-MS analysis indicated a peak at m/z 297.06, which corresponds to the complex {Cu(L1)Cl}.

2.5. Preparation of the GCE/GMC@{Cu₂(μ-O)₂} chemically modified electrode

First, 2 mg of GMC was dispersed in 500 μL ethanol and sonicated for 15 minutes, to obtain a suspension. The GCE was first cleaned mechanically by polishing it with 0.5 μm alumina powder, followed by sonication in double distilled water for 5 minutes. Then the polished GCE was electrochemically pretreated by potentially cycling in 0.1 M PBS, pH 7, within a potential window of −0.2 V to +1 V vs. Ag/AgCl, at a scan rate (ν) of 50 mV s⁻¹ for ten continuous cycles. Over this pretreated GCE, 5 μL of GMC dispersed in ethanol was drop-cast and air-dried for 5 ± 1 minutes, followed by an electrochemical pretreatment in the potential window of −0.7 V to +0.2 V vs. Ag/AgCl, for ten cycles, in N₂ purged in 0.1 M PBS, pH 7, at a ν of 50 mV s⁻¹. Then, 5 μL of the precursor complex, {Cu(BPA)Cl}, dispersed in ethanol, was drop-cast over the GCE/GMC and air-dried for 15 ± 2 minutes, followed by drop-casting 5 μL of a dilute, 0.6% Nafion dispersed in ethanol and air-dried for 15 ± 2 minutes (denoted as GCE/GMC@{Cu(BPA)Cl}_ads, where ads = adsorbed). A perfluoro cation-exchange polymer, Nafion, was used to protect the complex modified electrode. All other chemically modified electrodes were prepared similarly. The prepared GCE/GMC@{Cu(BPA)Cl}_ads was electrochemically cycled in the potential window of −0.7 V to +0.2 V vs. Ag/AgCl, in nitrogen-purged 0.1 M PBS, pH 7, at ν = 50 mV s⁻¹. The “as prepared” chemically modified electrode was used for further analysis.

The faradaic efficiency (FE) from bulk electrolysis was calculated using the following expression:⁵¹

where n = number of electrons involved in the electrocatalytic reaction, F = Faraday constant (96 500 C mol⁻¹), c = concentration of the product, V = volume of the analyte, and Q = total charge.

2.6. Identification of the product reaction

To authenticate the product identity, the bulk electrolysis of nitrite (5 mM) was carried out at an applied potential of −0.3 V vs. Ag/AgCl, in 0.1 M PBS, pH 7. The final product of the reaction was tested with Nessler's reagent (9 mM K₂[HgI₄] in 2.5 M KOH), using nitrite and ammonia solutions as controls. Further, an indophenol based colorimetric method combined with an ammonia standard addition approach, involving the electrolyzed sample in addition to the standard concentration of ammonia spiked, were also performed for the confirmation of NH₃ formation as a reaction product.⁵²

3. Results and discussion

3.1. Electrochemical behaviour of the Cu(BPA)Cl adsorbed GMC modified electrode

First, the {Cu(BPA)Cl} complex adsorbed on the GCE surface, GCE/{Cu(BPA)Cl}_ads, was analyzed through electrochemical techniques in 0.1 M PBS, pH 7 (Scheme 1). As seen in Fig. 1A, the GCE-adsorbed form of the complex (curve a) gives no faradaic response, which is why most of the inorganic complexes developed so far could not be used for heterogeneous-electrochemical applications in aqueous electrolytes. Interestingly, when the same CV experiment was repeated on a GMC-modified GCE (Nafion covered), i.e., GCE/GMC@{Cu(BPA)Cl}_ads, a well-defined pair of anodic (E_pa) and cathodic peaks (E_pc) was observed at a formal reduction potential (E^o′) of −220 mV vs. Ag/AgCl, estimated as the average mean of peak potentials ((E_pa + E_pc)/2). After an initial current decay (first 10 cycles), the voltammetric response was very stable (Fig. 1B). The calculated peak-to-peak separation, ΔE_p, is 214 ± 5 mV at v = 50 mV s⁻¹, and the surface-excess (Γ_CuBPA) of the active site is 83.9 × 10⁻⁹ mol cm⁻² (Fig. 1C; ESI Fig. S1†), and the relative standard deviation value for the last 5 cycles is 4.7%. The plot of peak current (i_pa and i_pc) vs. scan rate is linear up to v = 150 mV s⁻¹ (Fig. 2A & B), indicating an adsorption-controlled-electron-transfer kinetic behavior at low scan rates, and a mixed-adsorption and diffusion-controlled (possibly an electron-hopping type mechanism) electron-transfer pathway at high scan rates (>150 mV s⁻¹). The double logarithmic plot of i_pvs. scan rate, where a slope of 0.5 relates to a diffusion-controlled reaction and a slope of 1 relates to an adsorption-controlled reaction mechanism,⁵³ showed slope values of 0.730 for both the anodic and cathodic responses, supporting the mixed-diffusion and adsorption-controlled electron-transfer mechanism (Fig. 2C).⁵⁴ The diffusion of the electrolyte within the modified electrode film and its kinetic limitation is the most likely reason for this observation. Based on the Laviron model equation,^53–55 which is applicable for surface-confined electron-transfer reactions with a high peak-to-peak separation (>200 mV s⁻¹), kinetic parameters such as the transfer coefficient, α, and heterogeneous electron-transfer rate constant, k_s, can be calculated as follows:

S_a/S_c = α/1 − α (2)

log k_s = α log(1 − α) + (1 − α)log α − log[RT/nFv] − α(1 − α)nFΔE_p/2.303RT (3)

where S_a (0.223 V dec⁻¹) and S_b (0.235 V dec⁻¹) are the anodic slope and cathodic slope values of the plots of E_pa and E_pcvs. log v (Fig. 2D), v is 50 mV s⁻¹, and ΔE_p is 214 mV. The calculated value of α is thus 0.49, which is close to the ideal value of 0.5, denoting a symmetrical energy barrier for the electron-transfer reaction. The obtained k_s value, 1.19 s⁻¹, is comparable with those reported for hemin (1.3 s⁻¹) and hematin (1.34 s⁻¹) complexes.^56,57

Scheme 1 Illustration of the [Cu(BPA)Cl]⁺ adsorbed GCE/GMC modified electrode (A) and the in situ electrochemical conversion of the (μ-O) copper complex modified electrode system by simple potential cycling, in pH 7 PBS (B) and the mechanism for the electrocatalytic reduction of nitrite into ammonia (C). Structure of the active intermediate involved in the nitrite reduction reaction obtained during the bulk electrolysis of nitrite (D). (E) Structure of cytochrome c nitrite reductase enzyme and its selective nitrite reduction to ammonia function.

Fig. 1 (A) Cyclic voltammetric responses of (a) GCE@{Cu(BPA)Cl}_ads; (b) GCE/GMC@{Cu(BPA)Cl}_ads in nitrogen purged 0.1 M PBS, pH 7, at scan rate (ν) = 50 mV s⁻¹ (n = 20 cycles) and (B) last five CVs; (C) comparative plots of surface excess values of different carbon nanomaterials used.

Fig. 2 (A) Effect of scan rate on GCE/GMC@{Cu(BPA)Cl}-redox from 5 to 500 mV s⁻¹; plots of (B) i_pvs. v, (C) log i_pvs. log v and (D) E_pvs. log v; (E) effect of various pHs (3–11) on GCE/GMC@{Cu(BPA)Cl}-redox. Electrolyte: in N₂ purged 0.1 M PBS, pH 7.

The “as prepared” modified electrode was tested in different pH media, ranging from pH 3 to pH 11. As shown in Fig. 2E, the GCE/GMC@{Cu(BPA)Cl}_ads has a nearly pH-independent redox feature. In general, metal(aquo)-based complexes show a strong-proton-coupled electron-transfer mechanism, with an E_pavs. pH slope of ca. −60 mV pH⁻¹ (Nernstian value).⁵⁸ A molecular transformation of the {Cu(BPA)Cl} complex to a proton-independent redox complex under electrified conditions is a possible reason for this observation. Further experiments were carried out to characterize and identify the truly active species of the Cu-complex. It is noteworthy that since the amount of entrapped Cu-complex on the modified electrode is very low (about nanogram level) and the electrogenerated complex may not be stable outside the matrix, this is a challenging task. For the sake of clarity, hereafter, the electrochemically treated GCE/GMC@{Cu(BPA)Cl} is denoted as GCE/GMC@{Cu(BPA)Cl}-redox, where {Cu(BPA)Cl}-redox stands for the electrochemically transformed molecular complex.

3.2. Physicochemical characterization of GMC@{Cu(BPA)Cl}-redox

Since our primary focus is to characterize the copper complex as immobilized on the electrode surface, for comparison purposes, we also analyzed an electrode modified with GMC@{Cu(BPA)Cl}-redox but without the Nafion layer on top. From a qualitative perspective, both Nafion-modified and unmodified electrodes showed similar voltammetric responses (ESI Fig. S2†). Fig. 3A & B show the typical TEM images of GMC and GMC@{Cu(BPA)Cl}-redox showing a porous material-like structure and islands of agglomerated cloudy spots, respectively. Presumably, a strong non-covalent bond, like a π–π interaction between the aromatic electrons of the BPA ligand and the sp² carbon in the graphitic structure of GMC, resulted in a cloudy image. Noteworthily, a similar effect was reported for an inorganic enzyme analog composed of Nafion/lead–ruthenium oxide pyrochlore.⁵⁹Fig. 3C & D are typical FESEM images of GMC and GMC@{Cu(BPA)Cl}-redox showing globular structures like those seen by TEM. The presence of Cu and N atoms was confirmed by the EDAX results (ESI Fig. S3†).

Fig. 3 TEM (A & B) and FESEM (C & D) images of GMC and GMC@{Cu(BPA)Cl}-redox, respectively.

The modified electrode surface was also subjected to a Raman spectroscopic analysis, and the data was compared to that of the unmodified GMC (Fig. 4A). Well-defined peaks corresponding to the D-band (graphitic disorder structure, sp³ bonding) and G-band (ordered graphitic structure, sp² bonding) at 1350 and 1550 cm⁻¹ were observed in both systems but with different relative intensities. The intensity ratio I_D/I_G, considered as a measure of the structural modification on the surface,⁵³ increased from 0.62 to 0.95, in the GMC and GMC@{Cu(BPA)Cl}-redox electrode configurations, respectively. This suggests that there is a significant addition of sp³ bonds on the GMC surface upon its modification with the {Cu(BPA)Cl}-redox complex. Fig. 4B compares the FTIR spectra of a naked {Cu(BPA)Cl} complex (curve a), GMC@{Cu(BPA)Cl}-redox (curve b) and GMC (curve c); the peaks at 1620.2 cm⁻¹ (–C=N), 1458.6 cm⁻¹ (–CH=CH–) and 1049.2 cm⁻¹ (–C–N) are characteristic of the complex. After the immobilization of the latter on GMC, one can observe a significant reduction in the peak intensities along with a marked shift in their position. Besides the above-mentioned peaks, the Cu-complex also shows a ν(Cu–N)-stretching vibrational peak at 500.9 cm⁻¹ and ν(Cu–O)-stretching signal at 469.7 cm⁻¹, whose intensity enhanced upon the immobilization of the complex on the GMC surface.⁶⁰ These observations support the occurrence of molecular interactions between the functional groups of the {Cu(BPA)Cl}-redox complex and the underlying graphitic structure of the GMC. Furthermore, the {Cu(BPA)Cl} complex and an isolated ethanolic extract of GMC@{Cu(BPA)Cl}-redox were analyzed by UV-Vis spectroscopy, as shown in ESI Fig. S4.† The {Cu(BPA)Cl} complex gave peaks at 263 nm and 664 nm owing to the π–π* and d-transitions, whereas {Cu(BPA)Cl}-redox showed distinct peaks at 218, 289 nm, and 477 nm, which are very different from those of the precursor complex (at 263 and 664 nm) and closely match the spectroscopic signature of the dinuclear (μ-O) complex {Cu₂(μ-O)₂}.⁶⁰ So, at this point, we propose that the surface-bound {Cu(BPA)Cl} complex is transformed into a {Cu₂(μ-O)₂} like complex due to an electrochemical reaction.

Fig. 4 Comparative (A) Raman and (B) FTIR spectra of GMC, {Cu(BPA)Cl} and GMC@{Cu(BPA)Cl}-redox.

After exploring various carbon nanomaterials, including carbon black, double-walled carbon nanotubes, single-walled carbon nanotubes, activated charcoal (AC), and graphene-modified carbon (GMC), it was observed that the GMC-based material exhibited the most favorable electrochemical response. This superiority can be attributed to its optimized pore size and graphitic structure, facilitating the effective immobilization of the {Cu₂(μ-O)₂} complex (refer to ESI Fig. S1†).

To identify the true molecular species, a clear ethanolic extract of the GMC@{Cu(BPA)Cl}-redox complex was analyzed through ESI-MS. As seen in ESI Fig. S5,† two major m/z peaks were observed at 379.59 and 663.93, which correspond to the ions {Cu(BPA)(H₂O)₂}⁺ (MW ca. 379.07) and {Cu₂(BPA)_2s(μ-O)₂}⁴⁺ (MW ca. 662.03), respectively. As a control, a dilute ethanolic solution of {Cu(BPA)Cl} (MW ca. 297.01) was also examined by ESI-MS (ESI Fig. S6†); the peaks with m/z 261.06, 297.06, and 361.02 were respectively assigned to the following structural forms {Cu(BPA)} (MW ca. 262.04), {Cu(BPA)Cl} (MW ca. 297.01), and {Cu(BPA)(H₂O)(OCH₃)}⁺ (MW ca. 361.06). These data indicate that a {Cu(μ-O)}-complex has been formed on the modified electrode surface, which can explain the proton-independent electron-transfer reaction previously seen in Fig. 2E (the new oxo compound has no acidic protons). Therefore, from now on, the GCE/GMC@{Cu(BPA)Cl}-redox will be denoted as GCE/GMC@{Cu₂(μ-O)₂}.

3.3. In situ electrochemical EQCM analysis

To further support the occurrence of the molecular transformation GCE/GMC@{Cu(BPA)Cl} → GCE/GMC@{Cu₂(μ-O)₂} on the electrode interface, the precursor electrode GCE/GMC@{Cu(BPA)Cl} was subjected to an in situ EQCM analysis. This technique provides detailed information about mass changes (Δm/g) throughout the electrochemical reaction. Fig. 5A and B present the continuous CV and EQCM responses of the EQCM-Au/GMC@{Cu(BPA)Cl}_ads modified electrode in N₂ purged 0.1 M PBS, pH 7, showing a regular increase in the Δm during the potential cycles (based on the relation MW = F × Δm/ΔQ, where Q = charge consumed, MW = molar mass (g mol⁻¹) per electron (n = 1), and F = Faraday constant, one can evaluate the molar mass involved in the intermediate region).^61–64Fig. 5C and D are typical plots of Δm vs. E/V vs. Ag/AgCl and Δm vs. ΔQ for the EQCM-Au/GMC@{Cu(BPA)Cl}_ads modified electrode, whilst Fig. 6E zooms in the latter plot in several potential regions. Based on the slope value (Δm/ΔQ) obtained in different potential windows, the calculated M_w values were 107.2 ± 0.3 g mol⁻¹ (0.2 V to −0.1 V – forward sweep) and 93.9 ± 1 g mol⁻¹ (−0.1 V to 0.2 V – reverse sweep), which correspond to the addition of the molecular species 6H₂O and PO₄⁻ within the modified electrode upon potential cycling. Although the exact molecular mechanism is unclear, the intake of the H₂O molecule likely helps the conversion of {Cu(BPA)Cl} into the {Cu₂(μ-O)₂} complex, at the electrified interface.

Fig. 5 (A and B) In situ CV-EQCM responses of GCE/GMC@{Cu(BPA)Cl}_ads in N₂ purged 0.1 M PBS, pH 7, at a scan rate of 10 mV s⁻¹. Inset of (A) shows the molecules involved in the redox reaction. Corresponding derivative plots of (C) Δm vs. E and Δm vs. ΔQ plots of (D) 1–10 cycles and (E) second cycle. (F) Picture of an EQCM-Au electrode.

Fig. 6 (A) Schematic illustration of SECM feedback mode operation for GCE/GMC@{Cu₂(μ-O)₂} using the Fe²⁺/Fe³⁺ redox mediator. Cyclic voltammetric response of GCE/GMC (B, curve a) and GCE/GMC@{Cu₂(μ-O)₂} (B, curve b) and Pt-tip (C). SECM responses of (D) GCE/GMC@{Cu₂(μ-O)₂} and (E) GCE/GMC (control) images. Conditions: E_tip = 0.365 V and E_sub = −0.538 V vs. Ag/AgCl in 5 mM Fe²⁺/Fe³⁺ solution containing 0.1 M KCl.

3.4. In situ SECM imaging of electroactive sites

The surface morphology of GCE/GMC@{Cu₂(μ-O)₂} was visualized using an ultramicroelectrode as an SECM probe, under a feedback current approach (Fig. 6A). Herein, the redox couple is first electro-oxidized to a high-valent species (Fe³⁺) on the underlying surface (substrate) and subsequently reduced to a low-valent species (Fe²⁺) continuously on the Pt-tip (moved in the x–y direction) throughout the electrochemical reactions, so that the variation in the electronic conductivity of the surface can be viewed simultaneously (Fig. 6A). Fig. 6B compares the CV responses of GCE/GMC@{Cu₂(μ-O)₂} and GCE/GMC in the presence of 5 mM Fe³⁺ and Fe²⁺ each, in a 0.1 M KCl solution, at v = 10 mV s⁻¹. The current intensity of both cathodic and anodic peaks increased with the GCE/GMC@{Cu₂(μ-O)₂} modified electrode, due to changes in the electronic conductivity at several surface sites. Before the surface analysis, the Pt-tip position was properly placed using the approach curve experiment, as displayed in Fig. 6C (inset). Fig. 6C is a typical CV response of the Pt-tip in an Fe³⁺/Fe²⁺ solution (5 mM each) in 0.1 M KCl, showing an “S” shaped curve due to the electrochemical reaction's radial diffusion mechanism (a mandatory condition in SECM imaging). Fig. 6D is a typical SECM image of the GCE/GMC@{Cu₂(μ-O)₂} showing a cloud-like electro-active spot with a size of 60 ± 5 μm on the modified electrode surface. This observation is supported by the TEM results (Fig. 3B), but one should note that because the TEM study was carried out using a diluted test solution, the observed image is only an approximation of the real surface morphology. Under optimal working conditions, the unmodified electrode, GCE/GMC, was also analyzed through SECM, delivering a featureless image (Fig. 6E); here we can see a highly heterogeneous catalytic surface, with 4 different spots showing a stepwise increase in the current signals (spot-1 > 2 > 3 > 4). Based on the electron-microscopy images, spot-1 can be correlated to an active {Cu₂(μ-O)₂} complex staged on the GMC via π–π interaction (assigned to a black-colored spot in the TEM). On the other hand, spot-2 relates to the adsorbed {Cu₂(μ-O)₂} complex on porous cavities without any specific interaction. Similarly, spots 3 and 4 are due to the adsorbed complex with poor or weak π–π interactions. This is the reason why multiple redox peaks were detected in the CVs of the GCE/GMC@{Cu₂(μ-O)₂} electrode (Fig. 1A).

3.5. Biomimetic nitrite reduction by GCE/GMC@{Cu₂(μ-O)₂}

In nature, the direct 6-electron reduction of nitrite into ammonium is effectively performed by the multiheme nitrite reductase ccNiR. The binding of NO₂⁻ by replacing the aquo-ligand has been referred to as a key step for the overall conversion reaction.^41,44 Although several synthetic analogues have been chemically prepared, their functional application to monitor the nitrite reduction reaction in real-time is very limited (some of them failed to catalyze the electrochemical nitrite reduction).^40,42,43 In this work, we explored GMC@{Cu₂(μ-O)₂} as a biomimetic functional analogue of a nitrite reductase enzyme. Fig. 7A shows the CV response of GCE/GMC@{Cu₂(μ-O)₂} in 0.1 M PBS, pH 7, with and without nitrite. In the absence of nitrite (Fig. 7, curve a), a well-defined pair of peaks is observed at the same formal potential (E^o′). Following the addition of 50 μM nitrite (Fig. 7, curve b), the cathodic peak increases its intensity and shifts to a more negative potential (E_1/2 = −270 ± 10 mV vs. Ag/AgCl), while the intensity of the anodic peak decreases, which should be due to the irreversible electrocatalytic reduction of nitrite, according to an EC′ mechanism, i.e., an electrochemical reaction coupled with a homogeneous irreversible chemical reaction (Scheme 2). As demonstrated in section 3.6, the final product of the reaction is ammonium.

Fig. 7 (A) Comparative CV responses of GCE/GMC@{Cu₂(μ-O)₂} without (curve a) and with 50 μM NO₂⁻ (curve b), GCE/GMC (curve c), at scan rate (ν) = 10 mV s⁻¹; and inset is a Tafel plot. (B) Effect of scan rate (ν) on the GCE/GMC@{Cu₂(μ-O)₂} from 5 to 500 mV s⁻¹, in the presence of 50 μM NO₂⁻; plots of (C) i_pcvs. ν^1/2, (D) i_pc/ν^1/2vs. ν and (E) E_pcvs. log(ν). Electrolyte: nitrogen purged 0.1 M PBS, pH 7.

Scheme 2 Reaction mechanism on the GMC@{Cu₂(μ-O)₂} for the electrocatalytic reduction of nitrite to ammonium under electrochemical (step 3) and chemical (steps 1 & 2) conditions. [GMC@{Cu^I₂ (μ-O)₂}⋯NO₂⁻] is an intermediate species similar to Scheme 1D.

As a control experiment, the bare GCE/GMC was also tested in the presence of nitrite (Fig. 7A, curve c), but it failed to develop significant catalytic currents throughout the entire potential window (+0.4 to −1.0 V vs. Ag/AgCl), demonstrating the ineffectiveness of the bare GCE/GMC as a nitrite electrocatalytic reducer.

Table 1 summarizes the works available in the literature^{16,43,65,66,72–77} reporting the electrochemical reduction of nitrite into ammonium. One should emphasize that very few studies were based on molecular heterogeneous systems for the nitrite reduction reaction. Typically, the reduction potentials are high; for example [Fe^III(H₂O)(TMPyP)]⁵⁺(TMPyP = meso-tetrakis(N-methyl-4-pyridyl)porphine dication)¹⁶ works at −1.0 V vs. Ag/AgCl at pH 2.87 and the cobalt-tripeptide complex (CoGGH)⁴³ is active at −0.95 V vs. Ag/AgCl at pH 7. Additionally, the operational conditions are non-physiological, not mimicking the biological nitrite reduction into ammonium. To the best of the authors' knowledge, the GCE/GMC@{Cu₂(μ-O)₂} is the first synthetic complex that can perform the heterogeneous electrocatalytic reduction of nitrite into ammonium under physiological-like conditions.

Table 1 Works reported in the literature on the electrocatalytic conversion of nitrite into ammonia^a

	Molecular system	Condition	pH	E/V	Remarks	Ref.
a GCE: glassy carbon electrode; HMDE: hanging mercury drop electrode; JDC: cobalt nanoparticle decorated biomass Juncus derived carbon; GF: graphite felt.
1	[Fe^III(H2O)(TMPyP)]^5+	Heterogeneous	2.87	−0.9 V vs. SCE (−0.85 V vs. Ag/AgCl)	(i) Non-physiological medium	16
	WE: GCE
2	Cobalt-tripeptide complex (CoGGH)	Homogeneous	7.2	−0.65 V vs. Ag/AgCl	(i) Hazardous working electrode	43
	WE: HMDE
3	PEDOT–BIPY–Fe film	Homogeneous	4.4	−0.65 V vs. Ag/AgCl	(i) Non-physiological medium; (ii) poor redox response	65
4	V^IVO(SB)-CPE	Homogeneous	4	0.8 V vs. Ag/AgCl	(i) Non-physiological medium; (ii) overpotential; (iii) non-molecular system	66
5	[(tpy)(bpy)M(NO2)]^3+	Homogeneous	3.97	0.89 V vs. SSCE (0.93 V vs. Ag/AgCl)	(i) Non-physiological medium	72
	WE: mercury pool
6	Thin-film diamond electrode	Homogeneous	13	−2 V vs. SCE (−1.96 V vs. Ag/AgCl)	(i) Non-physiological medium; (ii) overpotential; (iii) non-molecular system	73
7	{(TpRu)2(μ-pz)} (Tp = HB(pyrazol-1-yl)3)	Homogeneous	[^nBu4N][PF6]	Not available	(i) Non-physiological medium	74
	WE: platinum disk
8	Ag@NiO/CC	Heterogeneous	0.1 M NaOH	−0.15 V vs. RHE (−0.35 V vs. Ag/AgCl)	(i) Non-physiological medium; (ii) non-molecular system	75
	WE: Ag nanoarray using a NiO nanosheet array on carbon cloth
9	Co@JDC/GF	Heterogeneous	0.1 M NaOH	−0.2 V vs. RHE (−0.4 V vs. Ag/AgCl)	(i) Non-physiological medium	76
10	CoP NA/TM	Heterogeneous	7	−0.2 V vs. RHE (−0.4 V vs. Ag/AgCl)	(i) Non-molecular system	77
	WE: CoP nanoarray supported on titanium mesh
11	GMC@{Cu2(μ-O)2}	Heterogeneous	7	−0.25 V vs. Ag/AgCl	(i) Molecular system, (ii) physiological medium, (iii) good redox response and (iv) less overpotential	This work
	WE: GCE

---

To understand the reaction kinetics and mechanism, we studied the effect of the scan rate (5–500 mV s⁻¹) on the GCE/GMC@{Cu₂(μ-O)₂} CVs in the presence of NO₂⁻ (Fig. 7B). As expected, the current of both peaks rose with the scan rate, and the electrocatalytic effect disappeared due to the increase in the heterogeneous electron transfer rate. As depicted in Fig. 7C, the plot of the cathodic peak current (i_pc) against the square root of the scan rate (ν^1/2) is linear starting from the origin, with a slope of 696.4 μA (V s⁻¹)^−1/2. Fig. 7D shows the plot of the catalytic peak intensity (i_pc/ν^1/2) against the scan rate which gives a parabolic curve, indicating a higher current function at a lower scan rate (<50 mV s⁻¹), and a lower current function at a higher scan rate (>50 mV s⁻¹). This is also a characteristic response of an EC′ reaction mechanism⁵³ (Scheme 2).

In addition, Scheme 3 illustrates the potential reaction pathways for the electrochemical reduction of nitrite. During the electrochemical process, adsorbed nitrite undergoes conversion to NO, which subsequently transforms into NH₃via four distinct pathways. In pathway 1, sequential hydrogenation (NO → NHOH) and deoxygenation (NHOH → NH₂OH → NH₃) of the nitrogen and oxygen atoms occur. Pathway 2 involves deoxygenation (NO → NOH) followed by hydrogenation (NOH → NH₂ → NH₃). Pathways 3 and 4 entail hydrogenation of NO (NO → N) followed by sequential deoxygenation of uncoordinated oxygen (N → NH or N₂H₂ → NH₃). The precise details of the correct pathway for this mechanism are currently unknown to us.

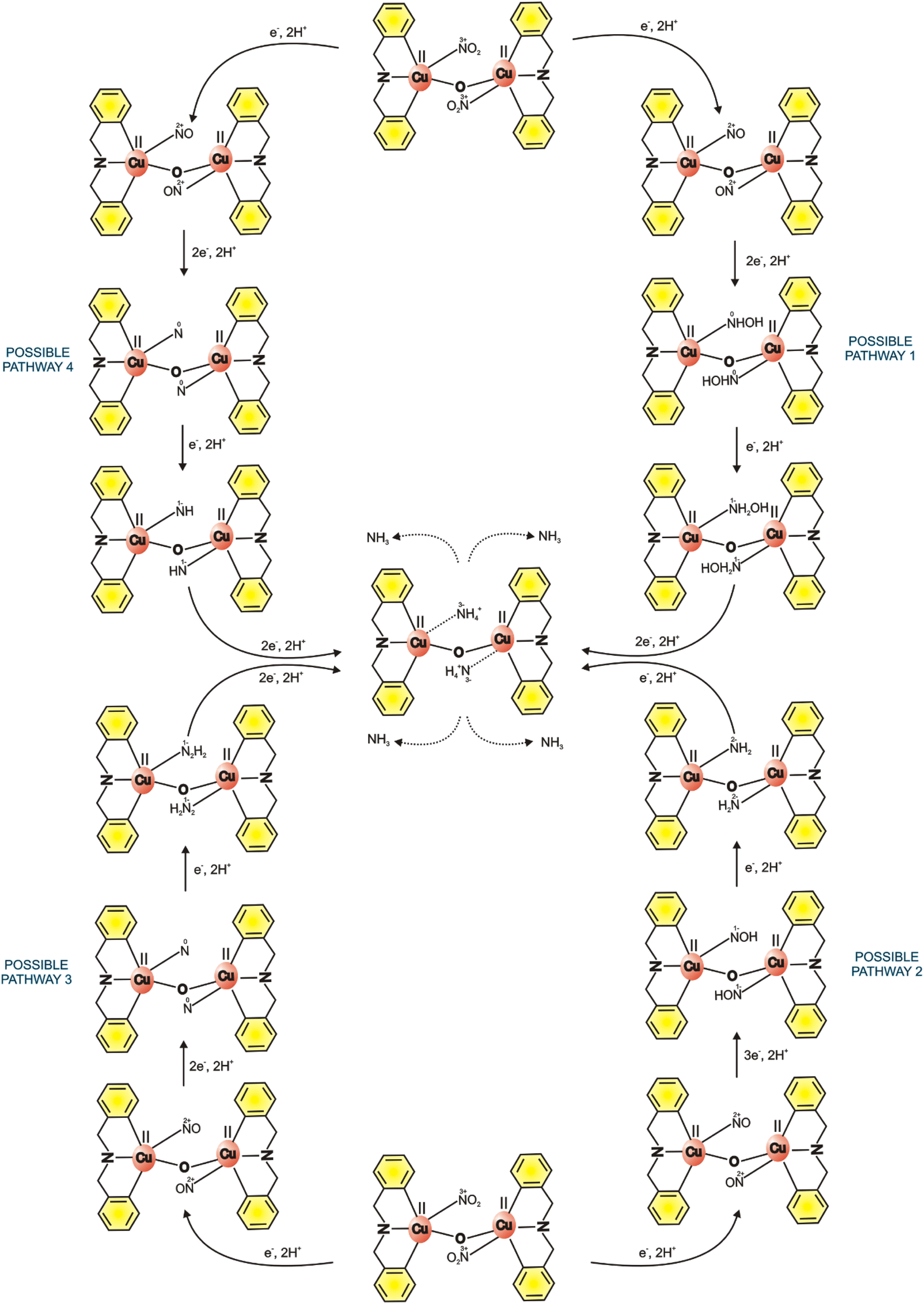

Scheme 3 Possible electrochemical reduction reaction mechanism pathway of GMC@{Cu₂(μ-O)₂} on nitrite to form ammonium. The adsorbed NO₂⁻ is first reduced to NO and its conversion to NH₃ occurs via four pathways: pathway 1: NO → NHOH → NH₂OH → NH₃; pathway 2: NO → NOH → NH₃; pathway 3: NO → N → NH₃; pathway 4: NO → N → NH → NH₃. The oxidation states of nitrogen are depicted at each step.

Fig. 7E shows a typical Tafel plot (E vs. log I), obtained in the presence of 50 μM nitrite. For a totally irreversible diffusion-controlled reaction, the number of electrons involved in the rate-determining step (n_c′) and transfer coefficient (α′) values can be deduced from the Tafel equation:

E_pc = K + (b_c/2)log ν (4)

where the Tafel slope b_c is given by

2.303RT/(1 − α′)n_c′F (5)

and K, R, T, and F are constants. The calculated Tafel slope (∂E_pc/∂log ν) is 145 V dec⁻¹. A similar value of 71.5 mV dec⁻¹ was also obtained indirectly from the plot of E_pavs. log v, from which the b_c (2 × slope) was estimated to be 143 mV dec⁻¹. Furthermore, using the Randles–Sevcik equation, the total number of electrons involved in the electrocatalytic nitrite reduction (n′) for an irreversible diffusion-controlled electron process can be calculated using eqn (6):⁵³

ipc = 2.99 × 105n′[(1 − α′)nc′]1/2AgeoCNO2−DNO2−½ν½ (6)

where (1 − α′) = 0.34, A_geo = 0.0707 cm², C_NO2⁻ = 1.5 × 10⁻⁶ mol cm⁻³, and D_NO2⁻ = 3.7 × 10⁻⁵ cm² s⁻¹.⁵⁸ Substituting the slope of (i_pc/ν^½), 696.4 × 10⁻⁶ A (V s⁻¹)^−1/2, and the above-listed values in eqn (6), the value of n_c′ was calculated to be 6.19, confirming the occurrence of a six-electron reduction reaction.

Fig. 8A shows the CVs of the modified electrode with increasing nitrite concentrations in the range 50–400 μM. A linear increase of i_cat with the concentration of NO₂⁻ was observed, with slope and regression values of 10.72 μA mM⁻¹ and 0.9964, respectively (Fig. 8B). The GMC@{Cu₂(μ-O)₂} modified electrode was also studied with the rotating disc electrode (RDE) technique; the linear sweep voltammetry response was recorded in 500 μM NO₂⁻, at a scan rate of 10 mV s⁻¹, with a systematic increase of the hydrodynamic rotation speed from 0 to 1200 rpm. As shown in Fig. 8C, as the rotating speed increased, the hydrodynamic reduction current also increased. The system obeyed the Levich equation, as follows:⁶⁷

i_E = [0.62nFAD^2/3ν^−1/6C_NO2⁻]ω^1/2 (7)

where i_E denotes the hydrodynamic currents at different potentials. The plot of i_Evs. ω^1/2 shown in Fig. 8D gives linear responses denoting the diffusion-controlled electron transfer behavior of the electrocatalytic reduction of NO₂⁻. Using the Koutecky–Levich (KL) equation, the kinetic parameter of the electrochemical reduction reaction was calculated according to eqn (8) and (9):

1/i_E = 1/i_k + 1/0.62n_cFAD^2/3ν^−1/6ω^−1/2C_NO2⁻ (8)

and

i_k = nFAk_hC_NO2⁻ (9)

where i_k is the kinetic current and k_h = heterogeneous rate constant for the electrocatalytic reduction of NO₂⁻. As shown in Fig. 8E, a linear response was observed for the plot of i_E⁻¹vs. ω^−1/2, from which the respective i_k values were obtained from the intercept. Substituting the latter in eqn (9), the k_h value was estimated to be 4.97 ± 0.5 × 10² mol⁻¹ cm³ s⁻¹, which is comparable to other nitrite reduction systems (5.9 × 10² mol⁻¹ cm³ s⁻¹ and 8.4 × 10³ mol⁻¹ cm³ s⁻¹).^68,69 Based on the Levich slope (135.5 nA (rad s⁻¹)⁻¹), the calculated average number of electrons for the nitrite reduction reaction is 6.3 ± 0.5, which is close to the value obtained from the CVs (n = 6.19).

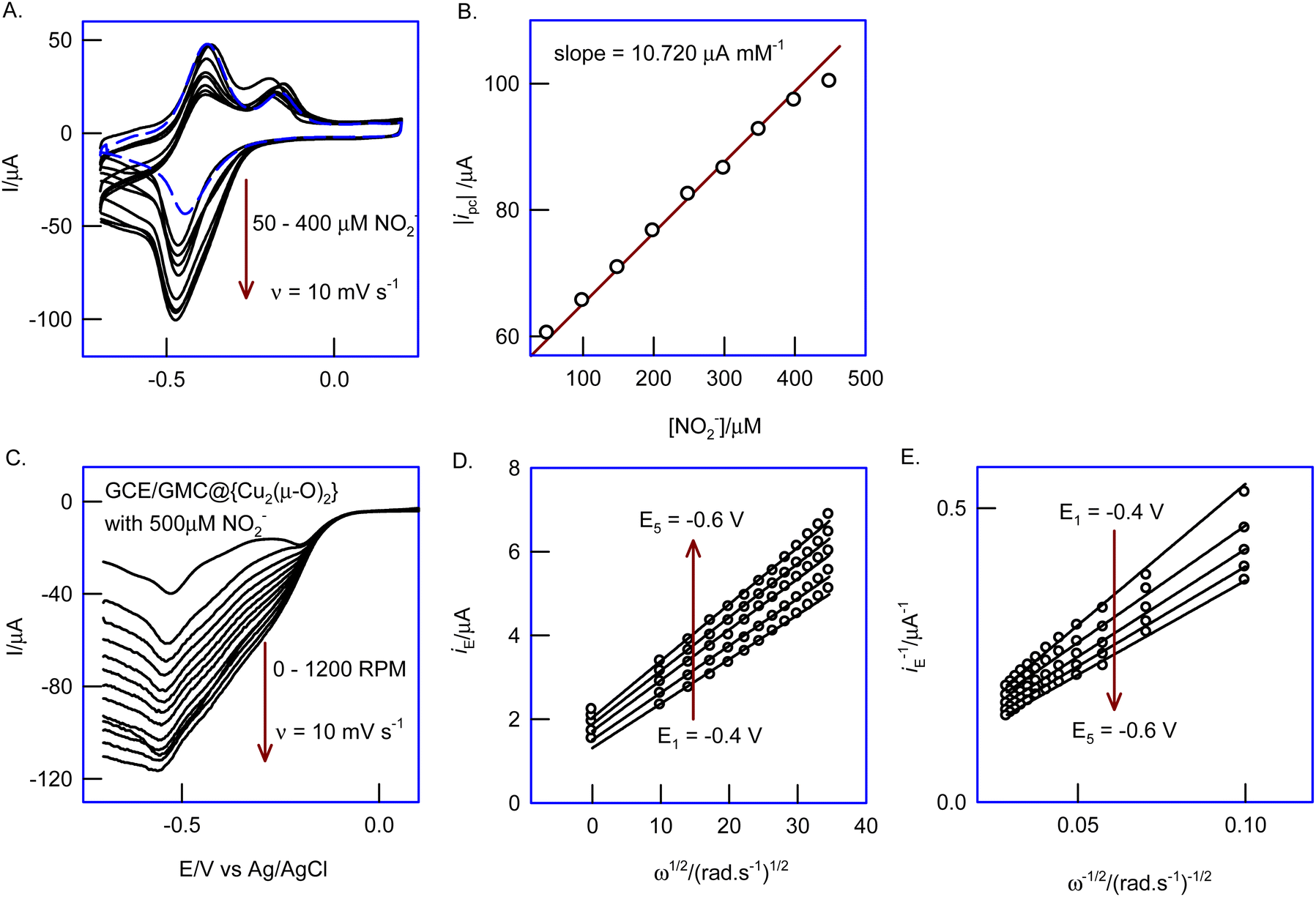

Fig. 8 (A) Effect of increasing the concentration of NO₂⁻ (0.5–4 mM) on GCE/GMC@{Cu₂(μ-O)₂} in N₂ purged 0.1 M PBS, pH 7, at ν = 10 mV s⁻¹; plots of (B) |i_pc| vs. C_NO2⁻, (C) RDE response of GCE/GMC@{Cu₂(μ-O)₂} in 500 μM of NO₂⁻, at different potentials, −0.4, −0.45, −0.5, −0.55, −0.6 V vs. Ag/AgCl; (D) Levich and (E) Koutecky–Levich plots.

An in situ EQCM experiment was carried out for the electrochemical nitrite reduction reaction on the EQCM-Au/GMC@{Cu₂(μ-O)₂} complex modified electrode in 0.1 M PBS, pH 7. As seen in Fig. 9A & B, there was a sudden increment in the mass of about 231.7 g mol⁻¹, corresponding to the formation of five NO₂⁻ molecules (M_w = 46.01 g mol⁻¹) at the beginning of the potential cycling experiments. Similarly, at the positive potential of 0.1 V vs. Ag/AgCl, an M_w of 68.41 ± 0.4 was observed, corresponding to the release of four NH₃ (M_w = 17.03 g mol⁻¹) from the matrix (Fig. 9E). These observations revealed that a specific electrochemical reaction took place at the negative potential, which was followed by chemical steps that led to the overall nitrite conversion into ammonium. In the electrochemical process, the reduced form of the complex, GMC@{Cu^I₂(μ-O)₂}, catalyzes the nitrite reduction reaction, thus recycling the oxidized form of the complex, {Cu^II₂(μ-O)₂}. Under the electrochemical dynamic conditions, the latter is regenerated back to the reduced Cu-complex, {Cu^I₂(μ-O)₂}, which can then be involved in a new turnover cycle, as shown in Schemes 2 & 3.

Fig. 9 (A and B) In situ CV-EQCM responses of GCE/GMC@{Cu₂(μ-O)₂} with 500 μM NO₂⁻ in N₂ purged pH 7 PBS at a scan rate of 10 mV s⁻¹. Corresponding derivative plots of (C) Δm vs. E and Δm vs. ΔQ of (D) 1–2 cycles, (E) the first cycle and (F) second cycle.

3.6. Identification of the product of nitrite reduction by GCE/GMC@{Cu₂(μ-O)₂}

To confirm the identity of the reaction product, we conducted bulk electrolysis of nitrite (5 mM) at −0.3 V vs. Ag/AgCl (Fig. 10A & B). The final product was tested using Nessler's reagent, resulting in an immediate appearance of a pale orange color, indicating the formation of HgO·Hg(NH₂)I due to the production of an ammonium salt (ESI Fig. S7†). Additionally, we employed an indophenol-based colorimetric method, along with standard addition of ammonia, to authenticate the formation of NH₃ as a reaction product (ESI Fig. S8†). The results confirmed the selective formation of NH₃. Furthermore, we hypothesized that N₂ reduction and hydrazine formation might occur in this process. To investigate this, we conducted an independent study on the electrochemical oxidation reaction using a chemically modified electrode, both in the presence and absence of N₂-purged pH 7 PBS. However, minimal change in the faradaic response was observed. Additionally, if hydrazine were formed during the reaction, it would be detectable through specific oxidation at an oxidation potential of 0.6 V vs. Ag/AgCl on the chemically modified electrode (ESI Fig. S9†). However, our experiments did not yield such a specific signal, refuting the notion of hydrazine formation as an intermediate or product of the reaction.

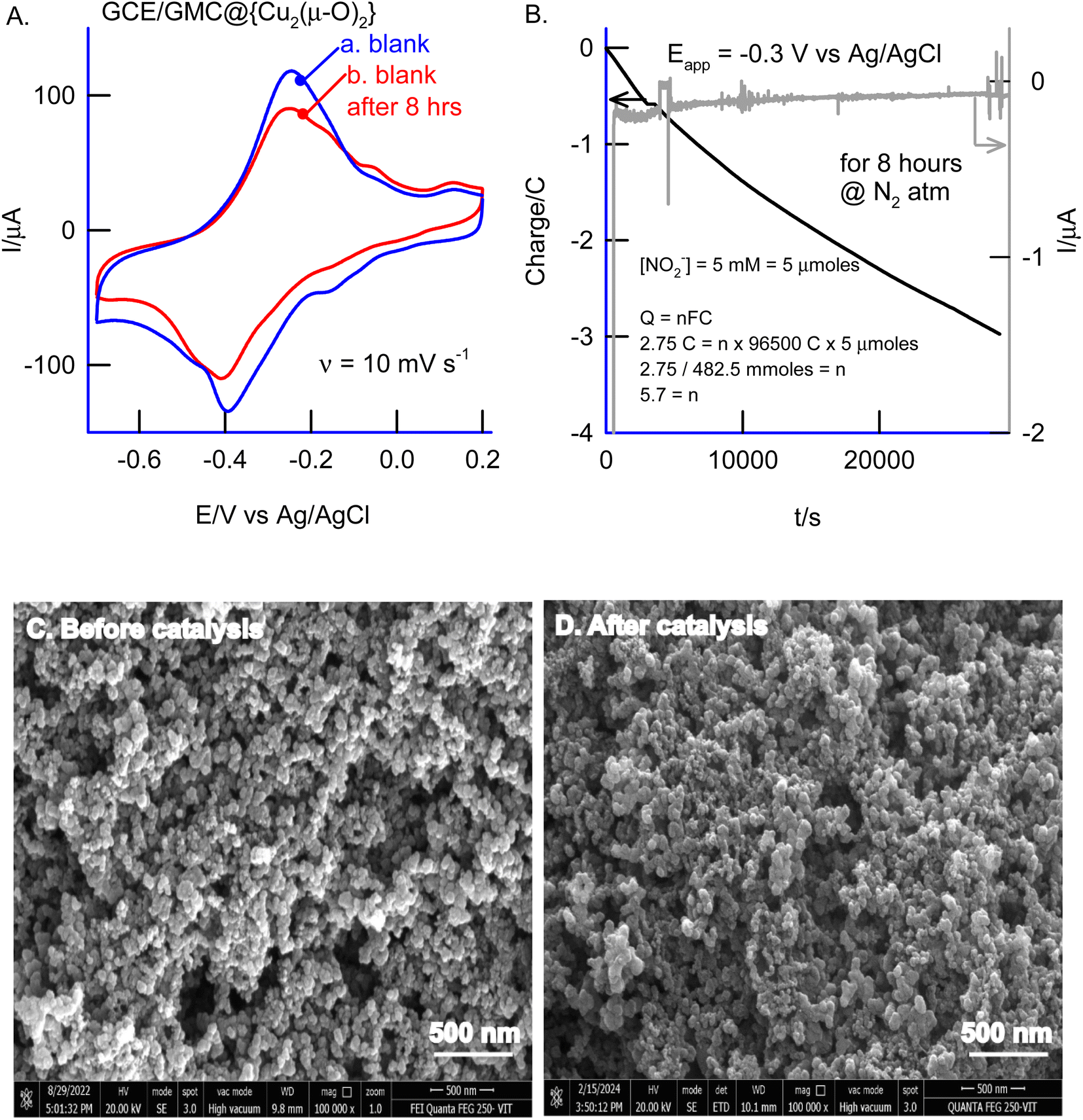

Fig. 10 (A) CV responses of GCE/GMC@{Cu₂(μ-O)₂} before and after the bulk electrolysis of 5 mM NO₂⁻ at an applied potential of −0.3 V vs. Ag/AgCl in N₂ purged pH 2 HCl–KCl. (B) Bulk electrolysis response (inset: number of electrons calculation). Comparison of GCE/GMC@{Cu₂(μ-O)₂} before (C) and after (D) electrocatalytic nitrite reduction.

Due to the stability of the modified electrode towards electrocatalytic nitrite reduction, the catalyst can facilitate long-term ammonia production. A faradaic efficiency of approximately 80 ± 1% can be anticipated for a duration of around 50 hours. Following bulk electrolysis, the catalyst underwent FESEM analysis to assess its morphology, revealing that the catalyst remained undamaged despite the adsorption of nitrite (Fig. 10C & D). This finding supports the notion of catalyst stability.

The active metal complex involved in the electrochemical nitrite reduction reaction was analysed by ESI-MS using an ethanolic extract of {Cu₂(μ-O)₂}, obtained at the middle of the electrochemical reaction. Fig. 11 shows a typical ESI-MS spectrum where the peak M_w = 701.54 is assigned to the intermediate {Cu₂(μ-O)₂} where one of the oxo-bridges was cleaved due to NO₂⁻ binding, resulting in {Cu₂(BPA)_2s(NO₂)₂(μ-O)}²⁺ (Scheme 1D). This complex intermediate formation is similar to the catalytic mechanism of ccNiR.^70,71 Overall, the biomimicking of the heterogeneous electrocatalytic reduction of nitrite into ammonium, at neutral pH and low overpotential, was observed for the first time, owing to the in situ generation of a GMC@{Cu₂(μ-O)₂} complex.

Fig. 11 ESI-MS data of an ethanolic extract of GCE/GMC@{Cu₂(μ-O)₂}, upon NO₂⁻ electrocatalysis.

3.7. Electroanalytical application

As a proof of concept, the biomimetic electrode GCE/GMC@{Cu₂(μ-O)₂} was applied in the amperometric sensing of nitrite (E_app = −0.4 V vs. Ag/AgCl), by successively spiking 500 μM (Fig. 12A) or 50 μM nitrite (Fig. 12B) to a 0.1 M PBS, pH 7, electrolyte solution, under hydrodynamic conditions. As seen in Fig. 12C, the current increases linearly upon continuous addition of 500 μM and 50 μM NO₂⁻, yielding sensitivity values of 16.14 μA mM⁻¹ (curve a) and 15.54 μA mM⁻¹ (curve b), respectively. In a control assay, the unmodified electrode GCE/GMC showed a featureless response (Fig. 12A, curve b). Furthermore, possible electrochemical and biochemical interferents, namely, ascorbic acid (AA), uric acid (UA), dopamine (DA), citric acid (CA), glucose (G), hydrogen peroxide (H₂O₂), cysteine (CySH) and oxygen (O₂), were tested under identical conditions. Except for oxygen, none of the other compounds were found to interfere with the electrocatalytic reduction of nitrite, like a natural enzyme under physiological conditions (Fig. 12D).

Fig. 12 Comparative amperometric i–t responses of GCE/GMC@{Cu₂(μ-O)₂} with continuous spikes of (A) 500 μM (curve b is the control response of the GCE/GMC) and (B) 50 μM NO₂⁻; (C) calibration plots of i_pcvs. [NO₂⁻] in different NO₂⁻ concentration regions. (D) Effect of interference of various analytes. (E) Analysis of a tap water sample.

The nitrite content of a real water sample was assessed by the standard addition method, showing a recovery value of ∼100 ± 3%, thereby attesting to the applicability of this new electroanalytical system in a practical application (Fig. 12E).

4. Conclusions

The in situ electrochemical conversion of the {Cu(BPA)Cl} complex into {Cu₂(μ-O)₂} has been demonstrated on a GMC-modified glassy carbon electrode by simple potential cycling of the precursor complex, {Cu(BPA)Cl}, as chemically adsorbed on the GCE. A control experiment with the non-electrochemically modified {Cu(BPA)Cl} complex has failed to provide any faradaic response. In contrast, the {Cu₂(μ-O)₂} chemically modified electrode, GCE/GMC@{Cu₂(μ-O)₂}, showed a well-defined redox peak at E^o′ = −0.25 V vs. Ag/AgCl. The as-prepared electrochemically modified electrode was characterized through various physicochemical techniques and by an in situ EQCM study. In addition, an ethanolic extract of the chemically modified electrode was subjected to ESI-MS analysis. The experimental observations revealed that the {Cu(BPA)Cl} precursor complex was transformed into a {Cu₂(μ-O)₂} complex, as a surface-confined molecular species on the GMC surface. By using the SECM technique, the electro-active sites involved in the electronic conductivity of the Cu-complex modified electrode were visualized. The surface morphology features are in good agreement with the observations from the TEM analysis. The GCE/GMC@{Cu₂(μ-O)₂} heterogeneous system showed a highly efficient electrocatalytic reduction of nitrite at a much lower potential than the values reported in the literature for inorganic electrocatalysts. By using cyclic voltammetry and rotating disc electrode studies, electrokinetic parameters such as the Tafel slope (145 mV dec⁻¹), the transfer coefficient (0.49), and the number of electrons involved in the rate-determining step (n_c′ = 1) and the overall process (n = 6; nitrite to ammonia formation) have been evaluated. A possible reaction mechanism for the nitrite reduction reaction was probed using in situ EQCM analysis showing specific binding of nitrite to the complex, for the enzyme-based reaction systems. To validate the nature of the electrosynthesized product, a bulk electrolysis experiment was carried out in a 500 μM nitrite solution, using the Cu-complex chemically modified electrode; the final product was tested with Nessler's reagent, confirming the ammonium formation.

The novel GCE/GMC@{Cu₂(μ-O)₂} biomimicking catalytic system has important practical applications. First, it potentially offers an alternative route for the synthesis of ammonium, a very important fertilizer whose industrial production relies on the Haber–Bosch process, an energy-intensive method with a huge carbon footprint.⁷⁸ Second, it enables the selective chrono-amperometric sensing of nitrite at neutral pH.
